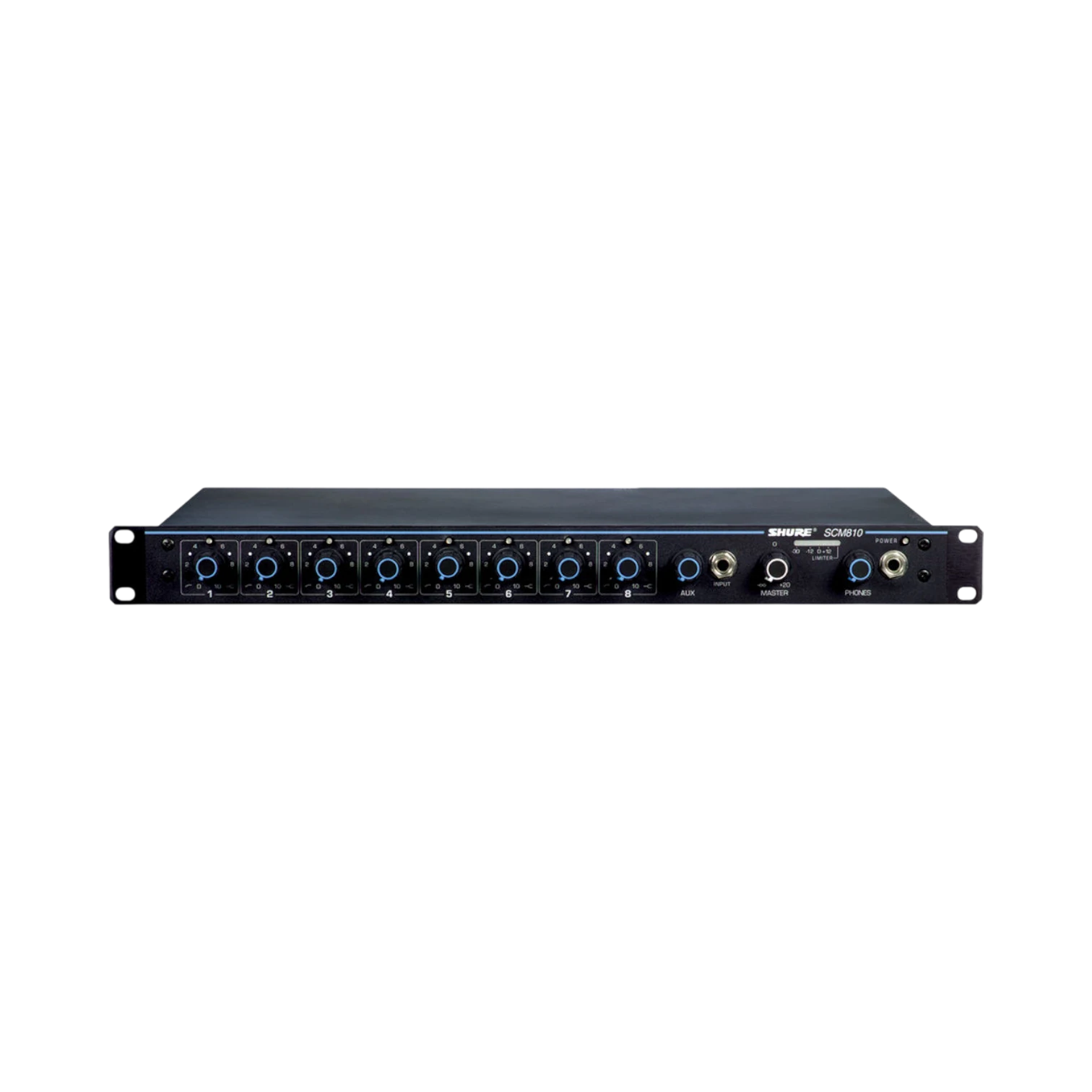

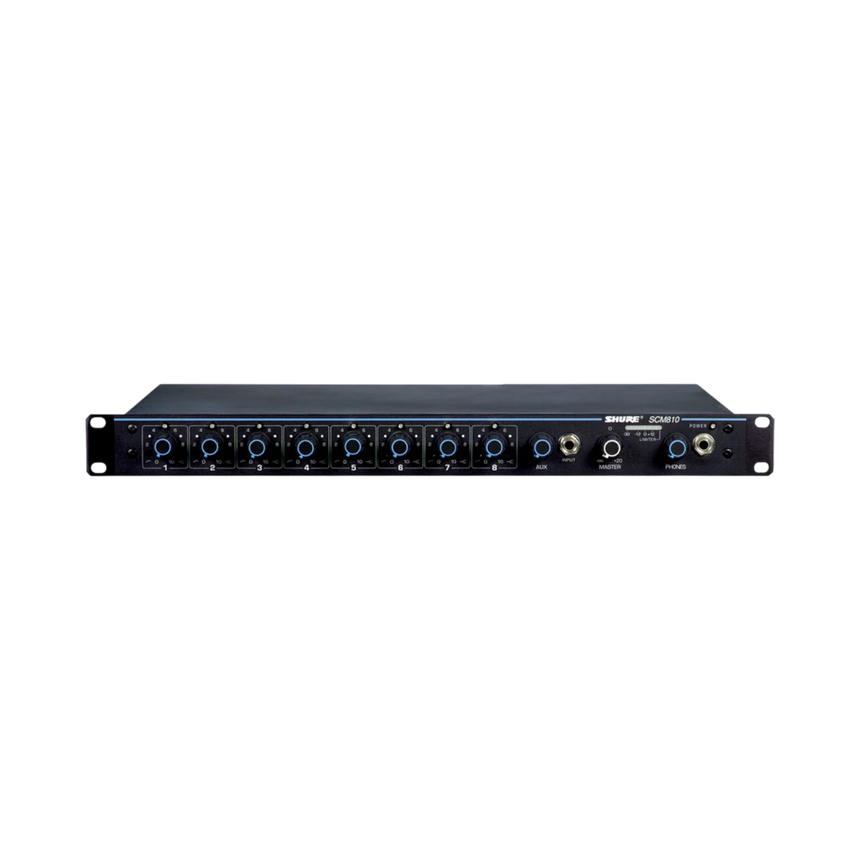

Shure SCM810

Overview

The Shure SCM810 is an 8-channel microphone mixer designed to streamline the management of multiple microphones in settings such as conference rooms, panel discussions, and live events. It features IntelliMix technology that automatically activates only the microphones in use, reducing background noise and feedback for clear and natural sound. Each channel supports microphone or line-level inputs with selectable 48V phantom power, making it versatile for various microphone types and audio sources.

With individual EQ controls and low-frequency roll-off on each channel, the mixer allows precise sound tailoring to suit the room acoustics or specific microphones. Outputs include eight direct feeds before gating and EQ, a master line output, and a headphone jack for monitoring, providing flexible routing options for professional audio setups.

Key features

• IntelliMix automatic microphone activation reduces unwanted noise and feedback by gating inactive channels
• Eight balanced mic/line inputs with removable connectors and selectable 48V phantom power for condenser microphones
• Individual channel EQ and low-frequency roll-off enable sound customization for different environments and mic types
• Eight direct outputs provide unprocessed signals for external processing or recording
• Max Bus and Last Mic Lock-On logic maintain a natural room ambience by managing microphone activation smoothly
• Internal dip switches allow fine-tuning of limiter threshold, attenuation, and hold time to match specific audio setups
• Scalable design supports cascading multiple units to handle up to 400 microphones for large venues
• Microphone logic control via DB25 connector enables remote management and integration with complex audio systems

Key specs

• Channels: 8 microphone/line inputs
• Phantom power: Selectable 48V on each input
• Outputs: 8 direct outputs, 1 master line output, 1 headphone output
• Controls: Individual EQ and low-frequency roll-off per channel
• Logic control: DB25 connector for microphone logic and remote operation
• Scalability: Cascadable to support up to 400 microphones

Connectivity and compatibility

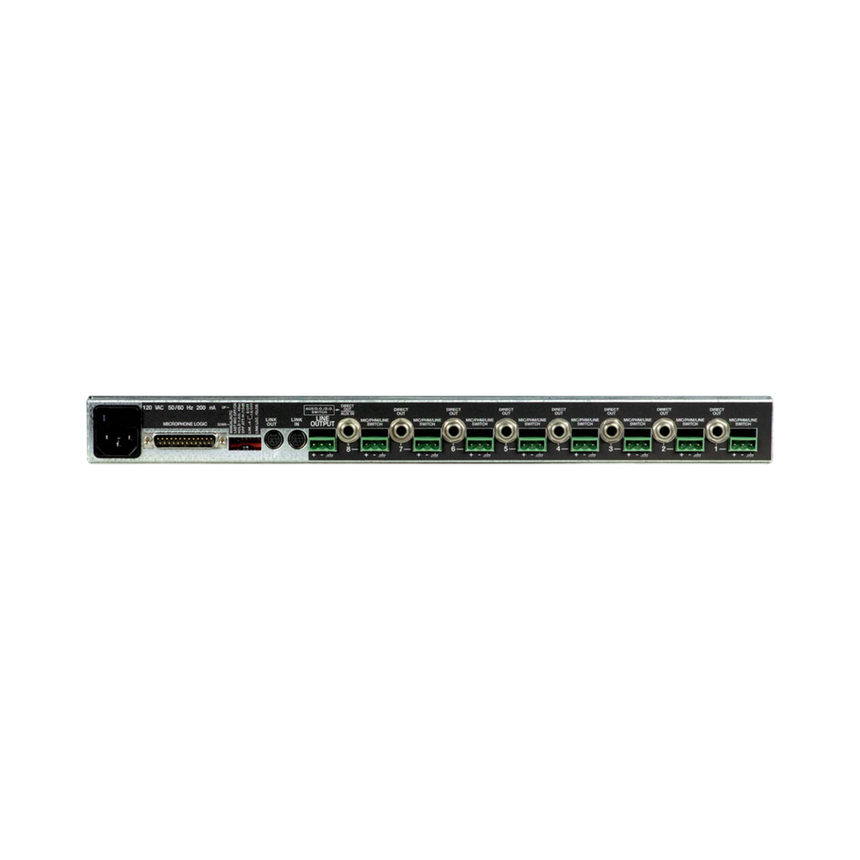

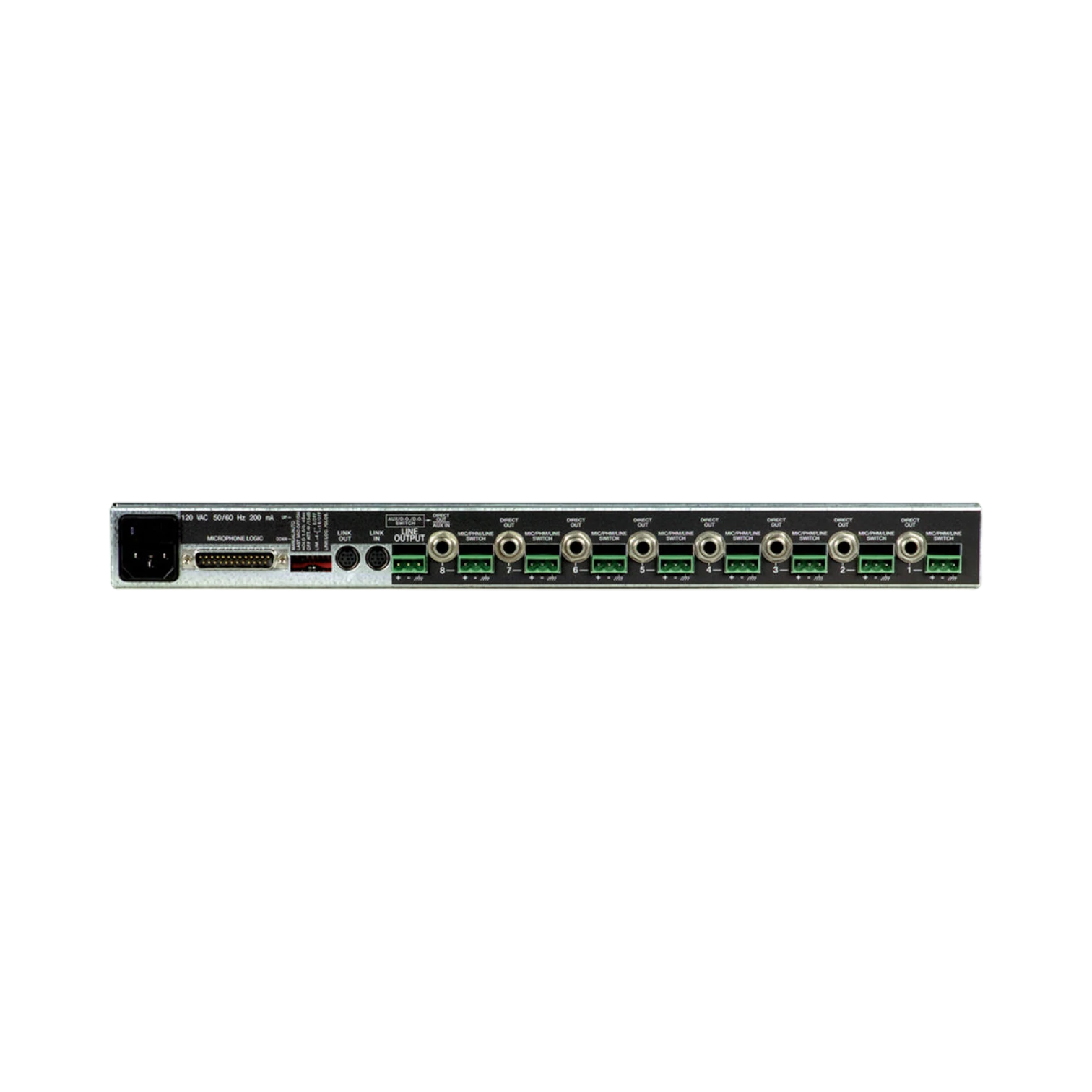

The mixer’s balanced inputs accept both microphone and line-level signals, making it compatible with a wide range of audio sources. The removable connectors simplify installation and maintenance. Direct outputs provide unprocessed signals for external mixers or recording devices, while the master line output delivers the mixed audio to amplifiers or PA systems. The DB25 connector supports microphone logic control, allowing integration with remote control systems or automation setups.

Performance and reliability

Designed for professional audio environments, the SCM810 offers reliable hands-off microphone management that reduces the need for constant manual adjustments. IntelliMix technology ensures that only active microphones are live, minimizing background noise and feedback. The Max Bus and Last Mic Lock-On features help maintain a natural sound environment, especially in fixed installations with multiple speakers. The robust build and configurable settings make it a dependable choice for corporate, broadcast, and worship applications.

Ideal uses and environments

This mixer fits well in conference rooms, boardrooms, houses of worship, broadcast studios, and any venue requiring clear and controlled microphone management. It is particularly suited for setups where multiple microphones are used simultaneously and where automatic gating improves audio clarity without manual intervention. The ability to cascade units makes it a strong option for larger venues or events with extensive microphone needs.
