Shure AD4QNP=-A

Overview

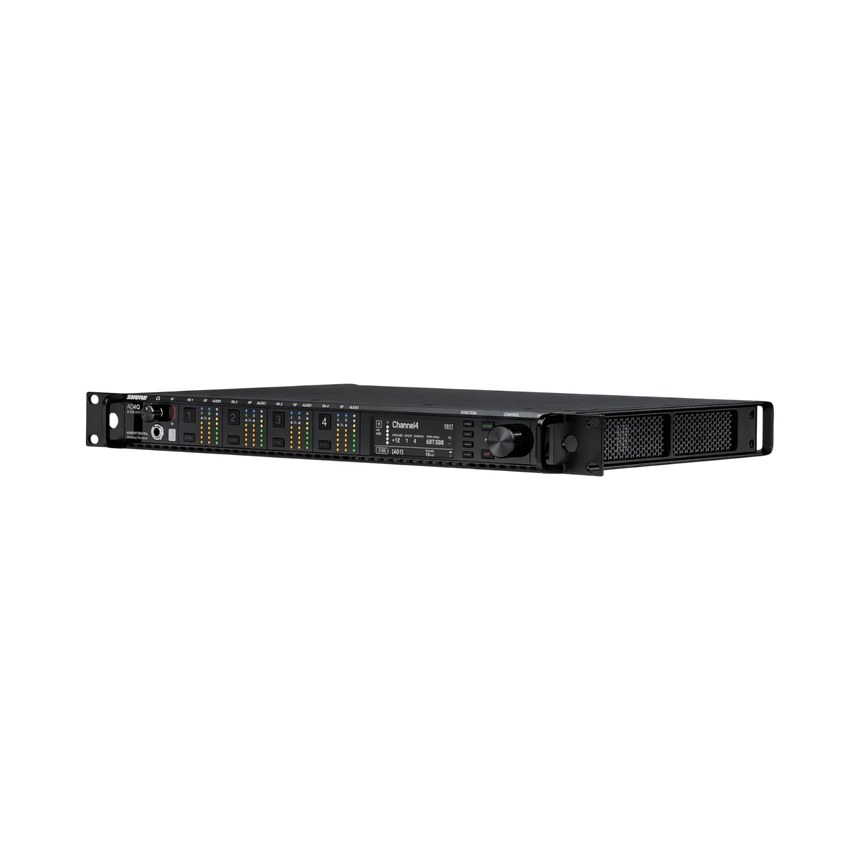

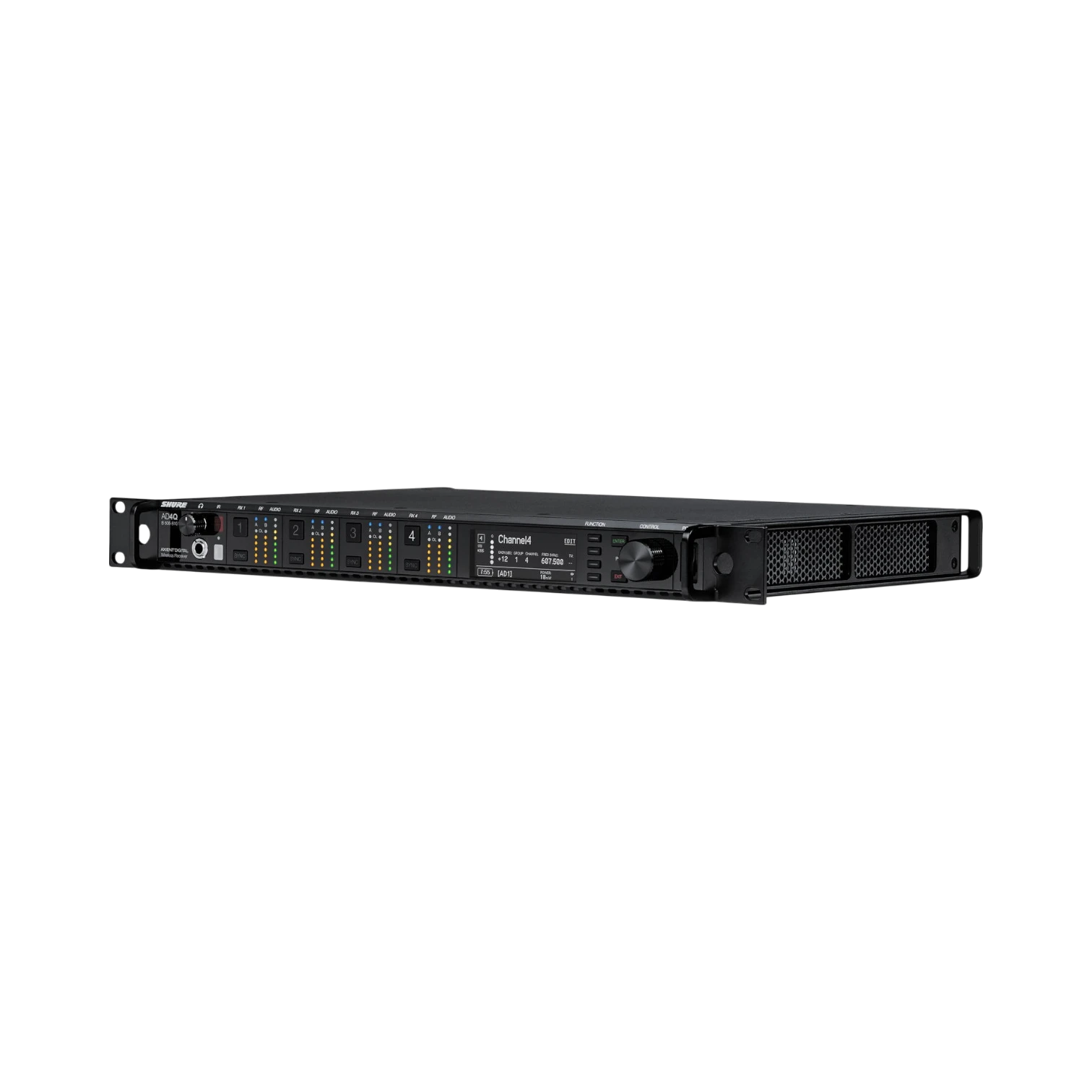

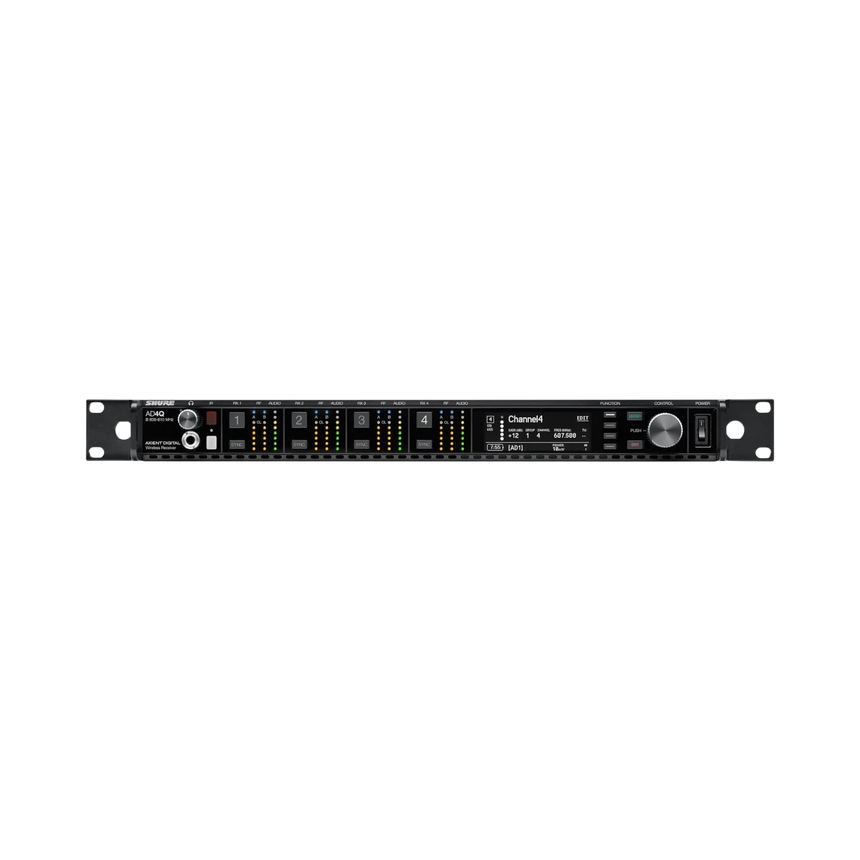

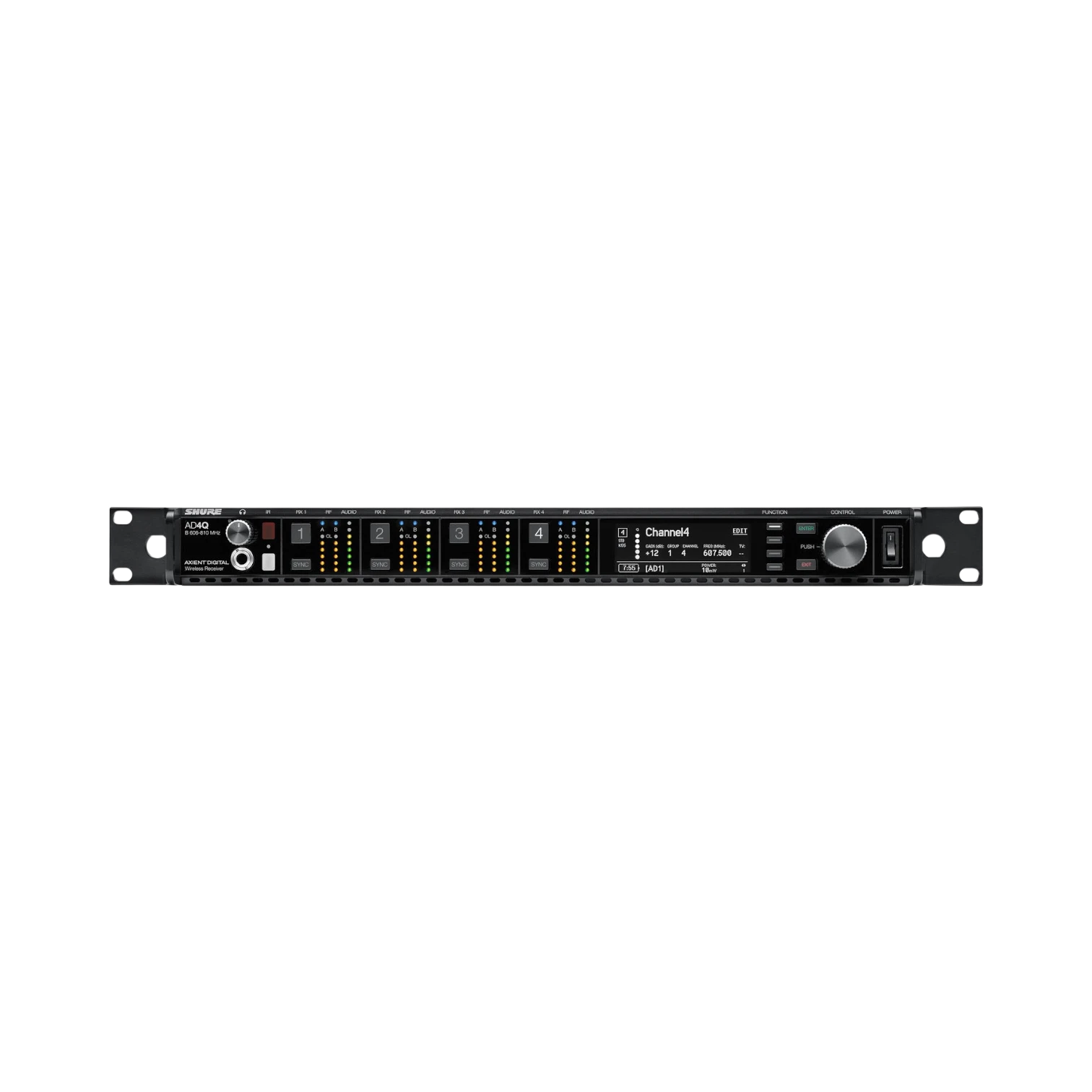

The Shure AD4QNP=-A is a four-channel wireless receiver designed for the Axient Digital system, operating within a wide UHF range of 470 to 636 MHz. This single-rack-unit device delivers reliable digital diversity reception and low latency down to 2 milliseconds, making it suitable for professional audio environments such as theaters, broadcast trucks, and touring setups. Its robust signal processing and flexible networking options ensure consistent audio quality even in complex RF conditions.

Key features

• True digital diversity reception on each of the four channels ensures stable and clear audio by constantly selecting the strongest RF signal path.
• Wide 166 MHz tuning range simplifies frequency coordination across different regions and crowded RF environments.
• Quadversity mode allows the use of four antennas to extend coverage and overcome physical obstacles in challenging venues.
• High Density mode supports up to 47 transmitters within a single 6 MHz TV channel, ideal for metropolitan areas with limited spectrum availability.
• 256-bit AES encryption secures wireless transmissions, protecting sensitive content from interception.
• Multiple output options including balanced analog XLR, AES3, Dante, and AES67 digital audio provide versatile integration with professional audio systems.
• Built-in four-port Ethernet switch offers network redundancy, remote control, and Dante Cue monitoring for front-panel headphone checks of any channel on the network.
• Selectable latency floor as low as 2 ms maintains real-time audio synchronization for in-ear monitoring, live mixing, and broadcast applications.
• Compatible with all AD and ADX series handheld and bodypack transmitters, offering flexibility across various wireless microphone setups.

Key specs

• Tuning range: 470 to 636 MHz (166 MHz span)
• Channels: Four independent audio channels
• Latency: Selectable down to 2 milliseconds
• Encryption: 256-bit AES

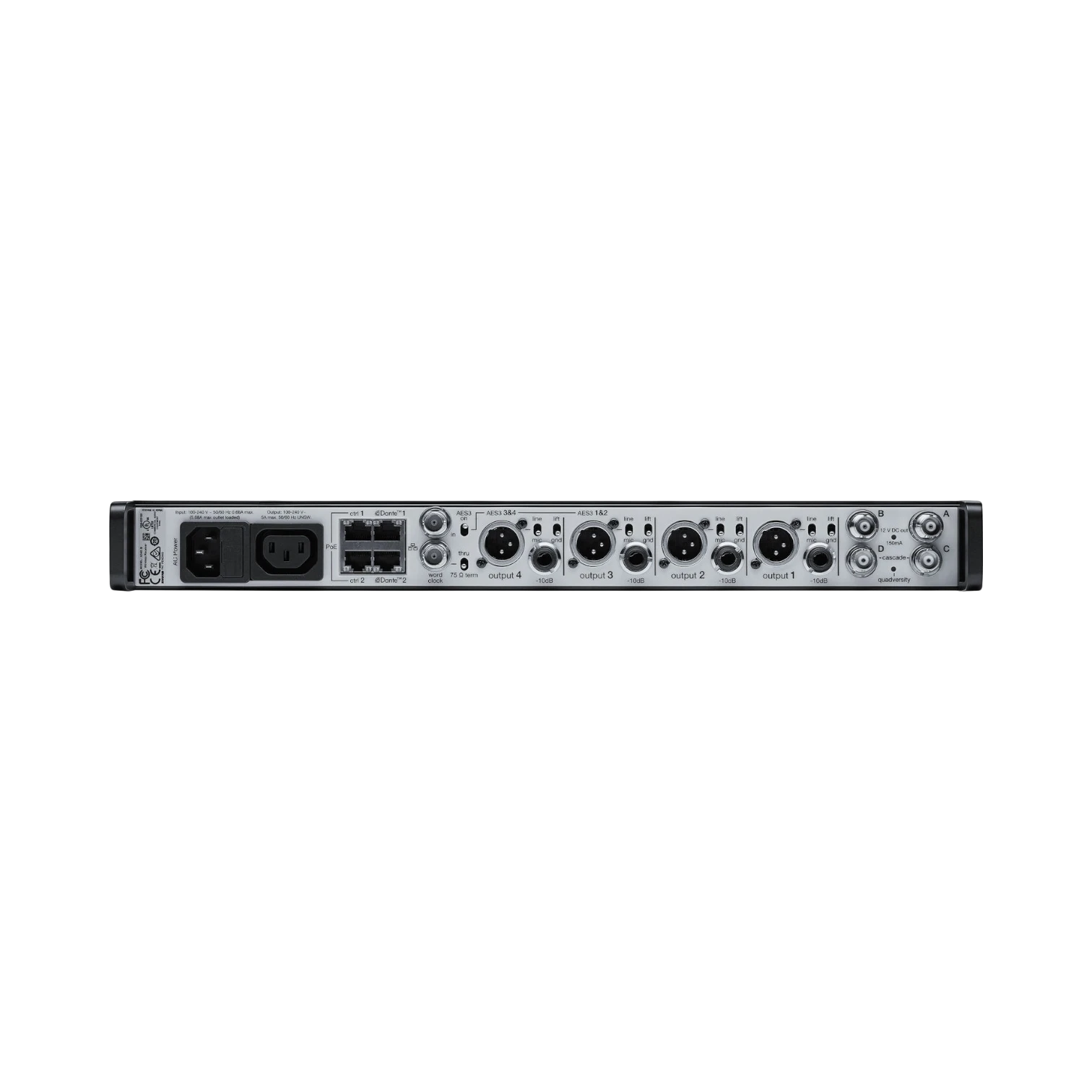

• Audio outputs: Balanced XLR analog, AES3 digital, Dante, AES67

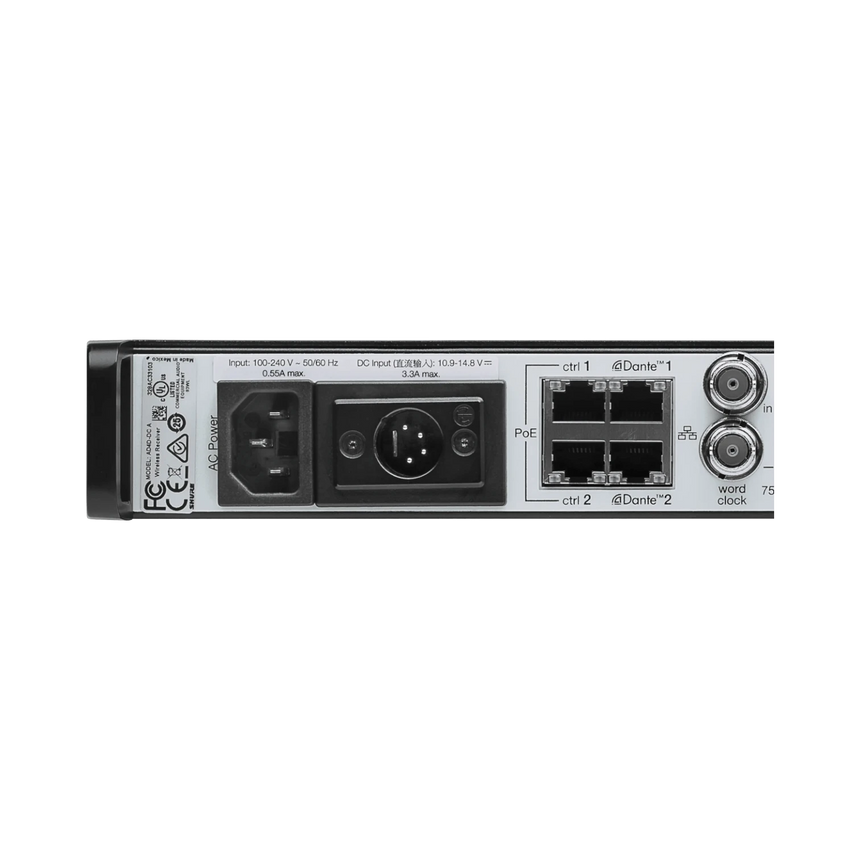

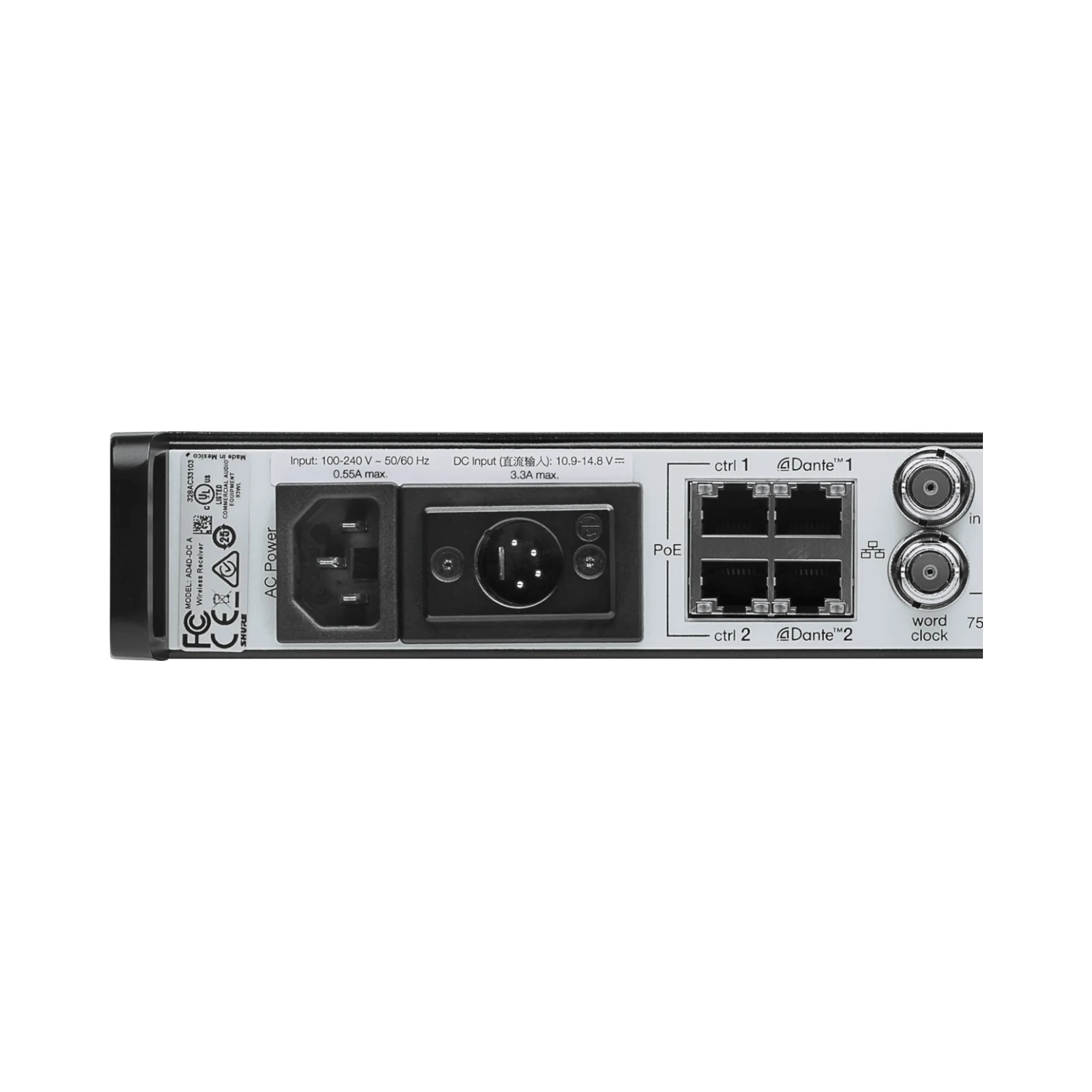

• Network: Built-in four-port Ethernet switch with redundancy and remote control
• Form factor: Single rack unit (1 RU)

Connectivity and compatibility

The receiver integrates seamlessly with Shure’s AD and ADX series transmitters, supporting a wide range of handheld and bodypack wireless microphones. Its multiple output formats allow connection to analog mixing consoles as well as digital audio networks using Dante and AES67 protocols. The built-in Ethernet switch simplifies network setup by combining audio, control, and redundancy functions into a single interface, reducing cabling complexity and improving reliability.

Performance and reliability

Designed to maintain consistent audio quality in demanding environments, the AD4QNP=-A uses true digital diversity to minimize dropouts caused by reflections or crowd movement. The Quadversity antenna system and High Density mode further enhance RF performance, making it a strong choice for large-scale events and dense RF environments. The low-latency option ensures audio stays in sync for performers and broadcasters who require precise timing.

Ideal uses and environments

This receiver is well suited to professional audio engineers managing complex wireless setups in theaters, live concerts, broadcast trucks, and conference venues. Its wide tuning range and advanced RF features make it a reliable solution for events that demand multiple wireless channels without interference. The security features and network capabilities also make it a good match for corporate events and broadcast studios where content protection and uptime are critical.
