Shure MXP-5B

Overview

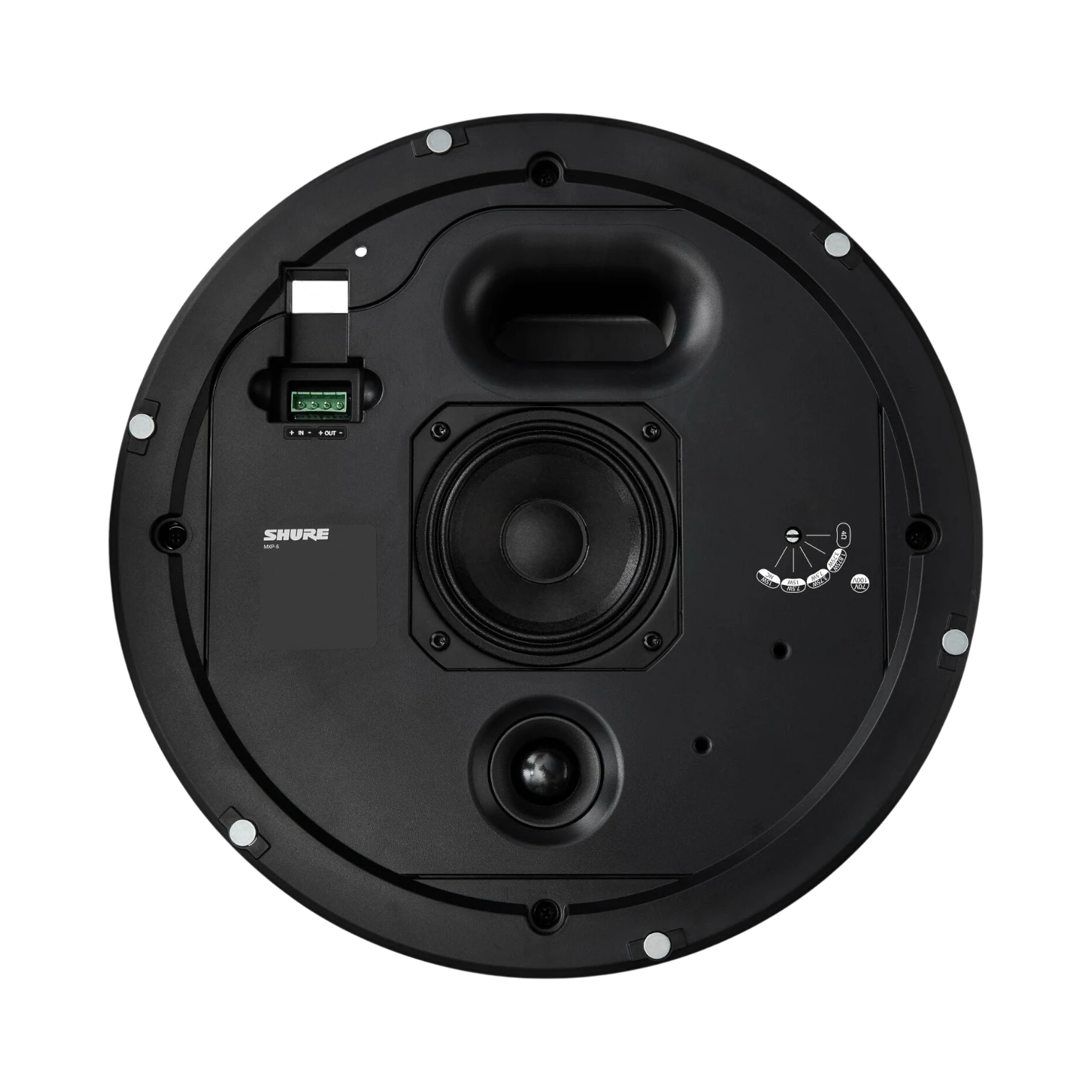

The Shure MXP-5B is a passive ceiling loudspeaker designed for conferencing environments, delivering clear and natural sound that enhances speech intelligibility. It features a 4-inch woofer and a 1-inch neodymium tweeter housed in a sealed enclosure, with a frequency response ranging from 90 Hz to 20 kHz. This speaker fits well in meeting rooms and collaborative spaces, providing balanced audio coverage that captures both low and high frequencies effectively.

Its shallow 2.5-inch mounting depth allows installation in ceilings with limited space, and it includes hardware for both on-ceiling and wall mounting. The MXP-5B supports 70/100V or 8-ohm operation via a front-mounted switch, making it adaptable to various audio system configurations. It pairs seamlessly with the MXN-AMP PoE+ amplifier for larger setups and maintains tonal consistency with the MXP-6 model, ensuring a uniform audio experience across rooms.

Key features

• 4-inch woofer and 1-inch neodymium tweeter deliver clear and natural sound for speech clarity
• Wide frequency response from 90 Hz to 20 kHz covers a broad audio range for balanced sound
• Front-mounted switch allows easy selection between 70/100V or 8-ohm operation to fit different systems
• Peak sound pressure level of 98 dB provides effective coverage for medium-sized rooms
• Shallow 2.5-inch mounting depth enables installation in ceilings with limited space
• Sealed enclosure design reduces unwanted resonance and improves sound quality

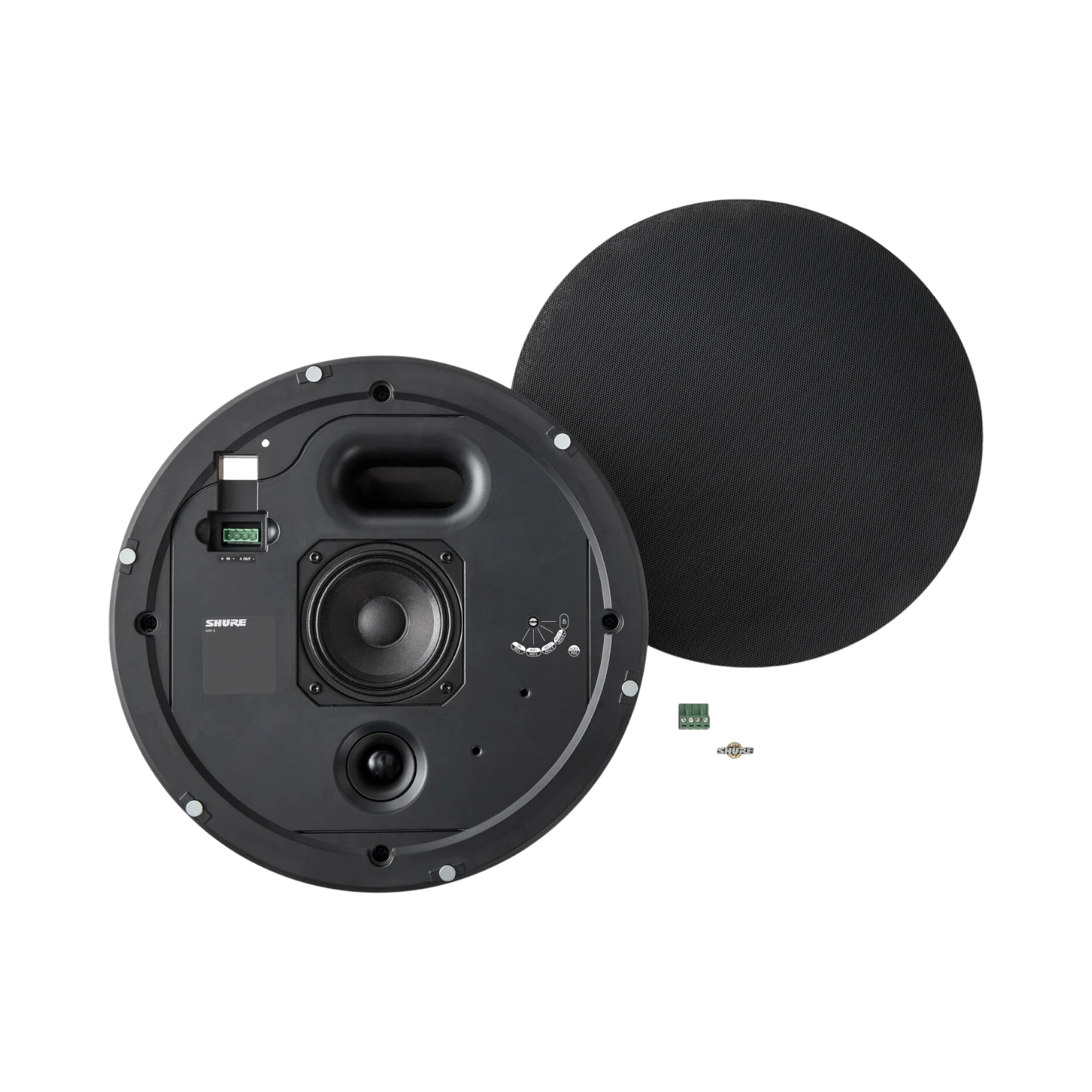

• Includes mounting hardware for flexible installation on ceilings or walls
• Compatible with MXN-AMP PoE+ amplifier for straightforward integration in networked audio systems
• Tonal consistency with MXP-6 model supports uniform sound across blended room environments

Key specs

• Woofer size: 4 inches
• Tweeter size: 1 inch neodymium
• Frequency response: 90 Hz to 20 kHz
• Peak sound pressure level: 98 dB
• Mounting depth: 2.5 inches
• Operation voltage: selectable 70/100V or 8 ohms
• Enclosure type: sealed

Connectivity and compatibility

The MXP-5B is designed to integrate smoothly with existing audio systems, offering selectable operation modes to match 70/100V distributed audio lines or standard 8-ohm setups. This flexibility makes it suitable for a variety of professional audio installations. When paired with the MXN-AMP PoE+ amplifier, it benefits from networked power and audio delivery, simplifying system design and reducing cable clutter.

Installation and setup

Installation is straightforward thanks to the included mounting hardware that supports both ceiling and wall mounting options. The shallow mounting depth allows the speaker to fit into tight ceiling spaces without compromising sound quality. The front-mounted switch provides easy access for selecting the appropriate voltage setting during setup, making it convenient for installers and system integrators.

Ideal uses and environments

This loudspeaker is well suited to office conference rooms, boardrooms, and collaborative workspaces where clear voice communication is critical. Its balanced frequency response and high sound pressure level ensure that speech remains intelligible even in larger or acoustically challenging rooms. The MXP-5B is a strong choice for professional environments that require reliable, high-quality audio without complex installation demands.
