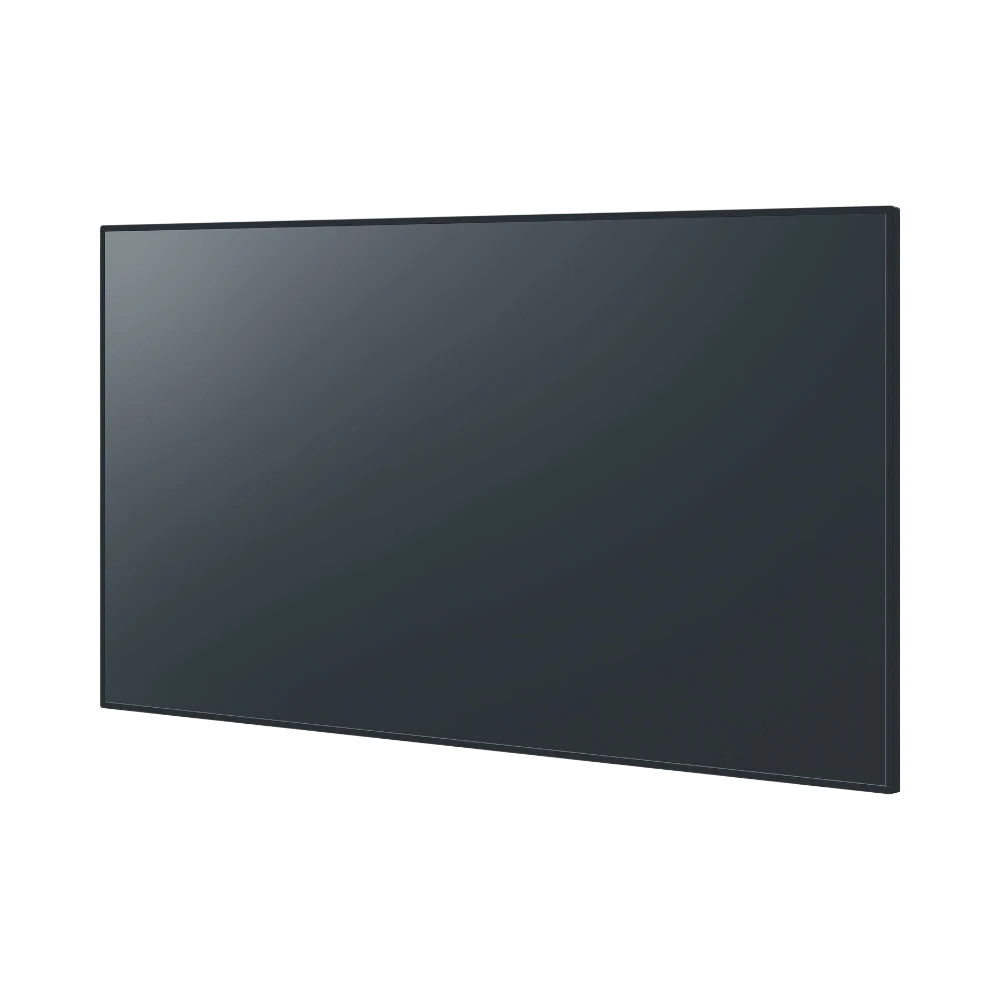

Panasonic TH-86EQ2W

Overview

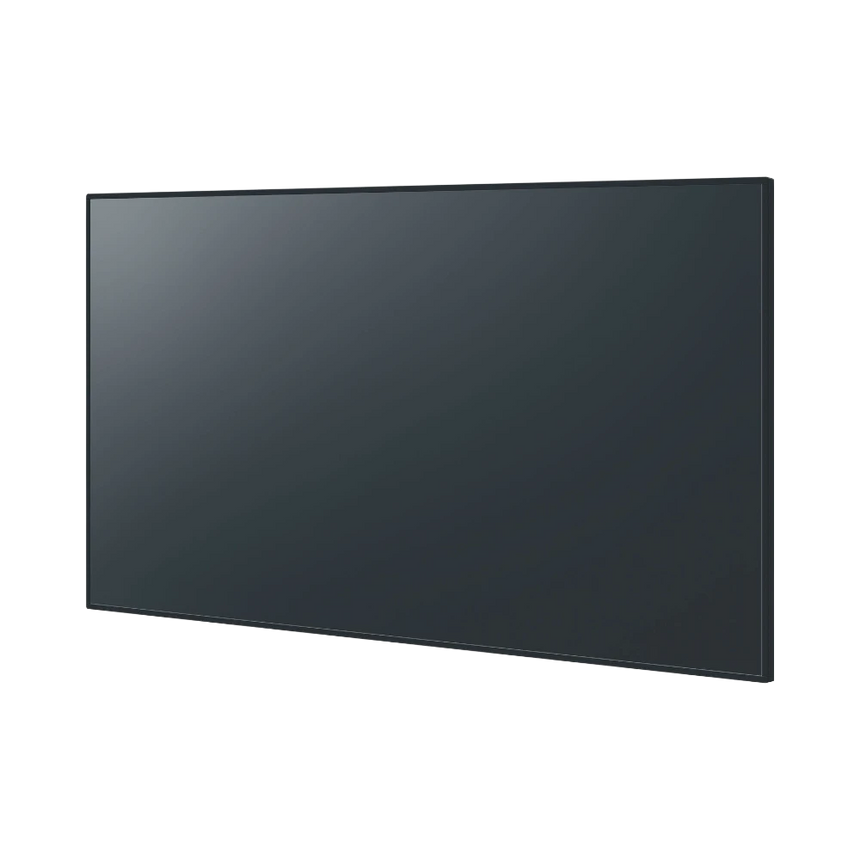

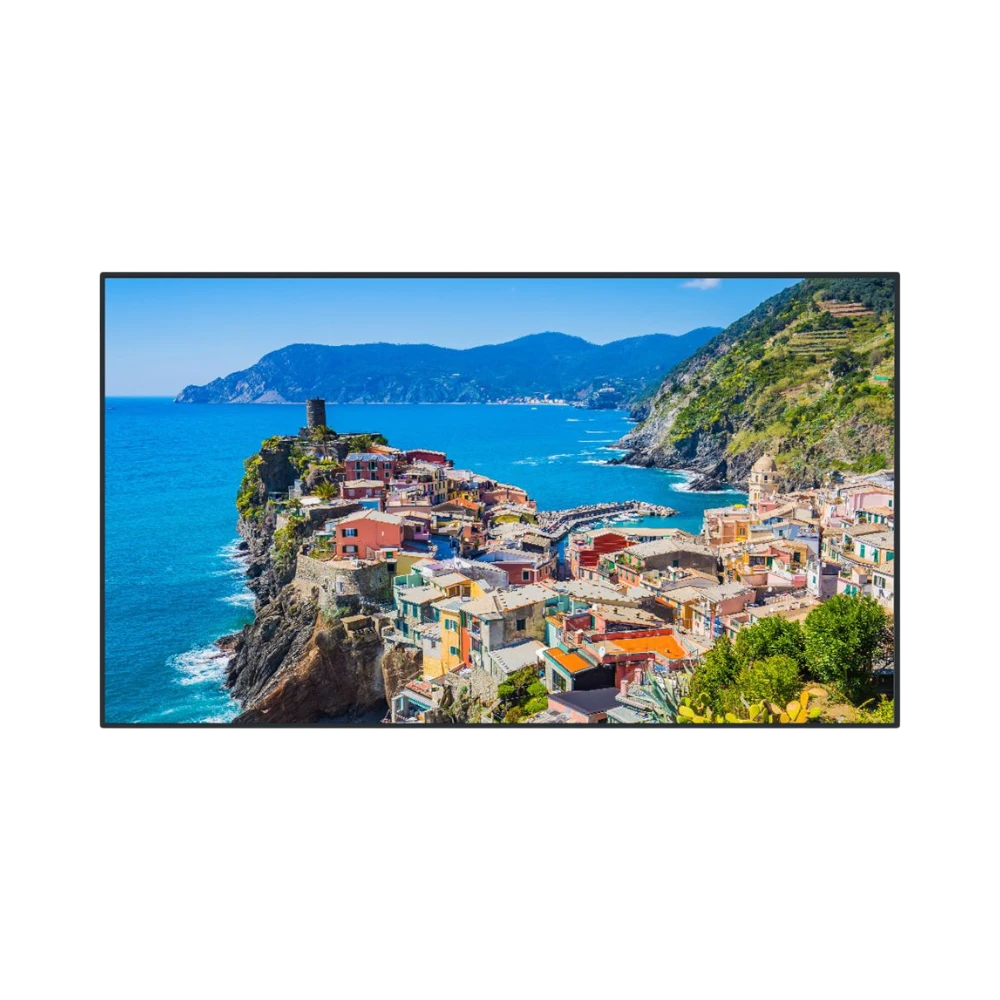

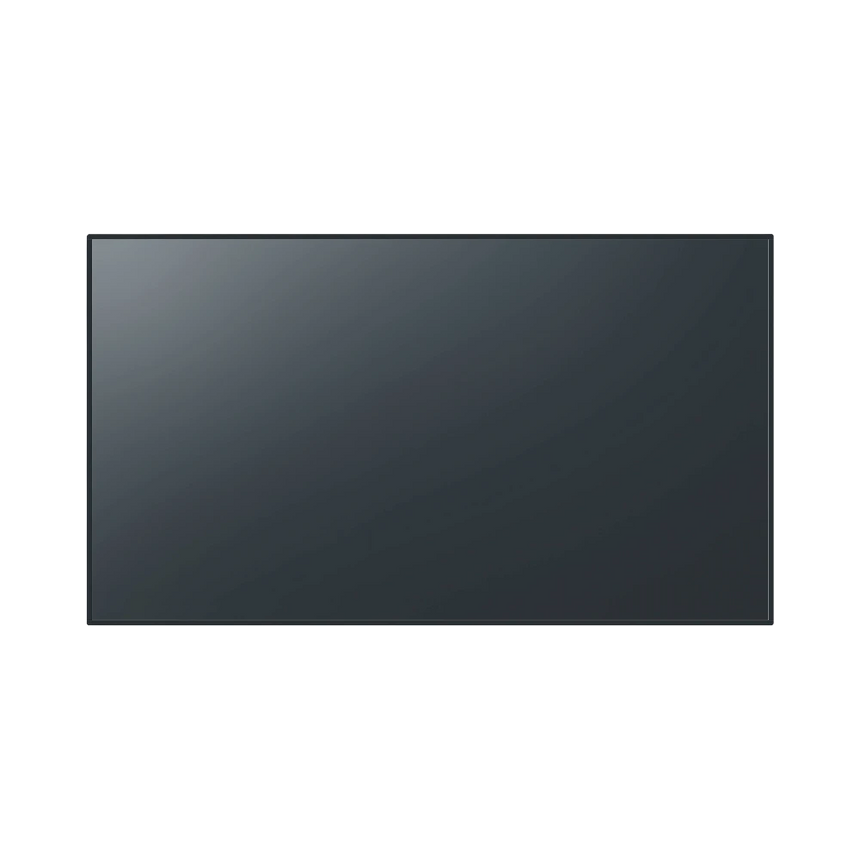

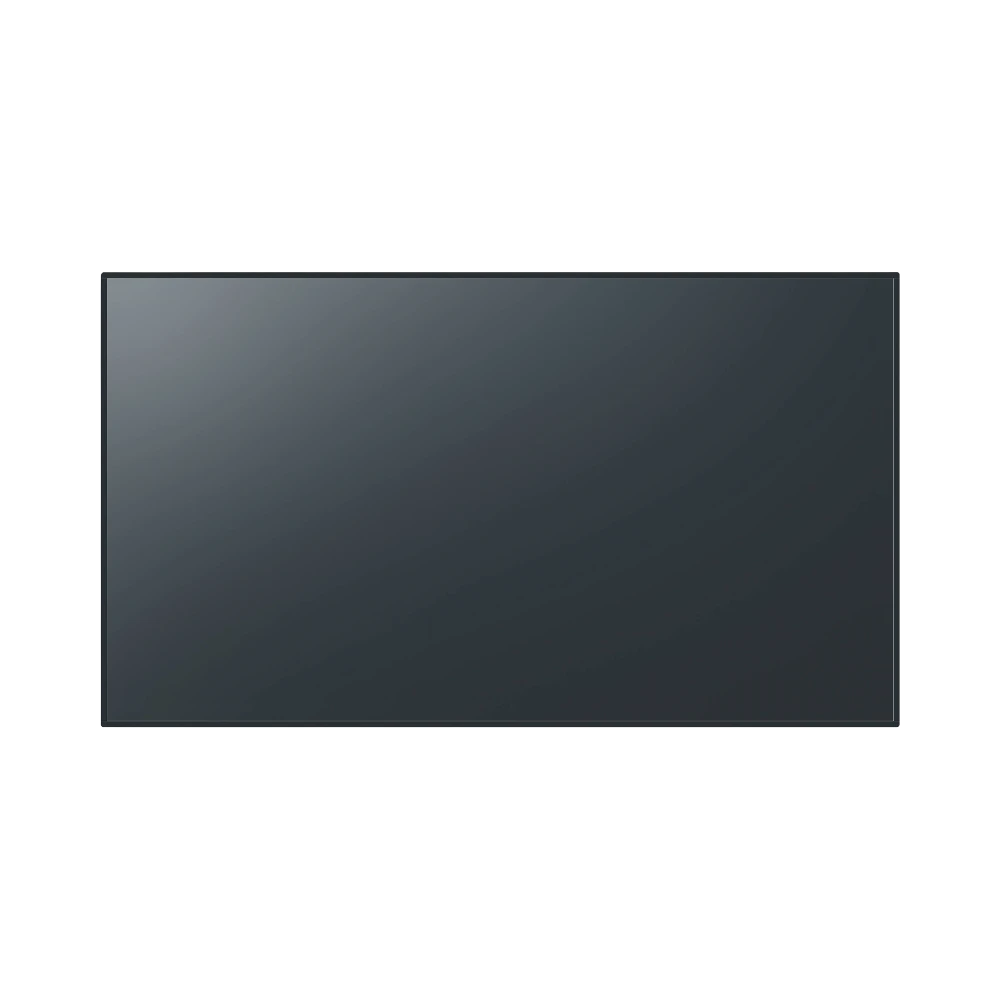

The Panasonic TH-86EQ2W is a large-format digital signage display designed to deliver sharp and vibrant 4K content on an 85.6-inch IPS panel. With a native resolution of 3840 x 2160 and a brightness of 500 nits, it ensures clear visibility in various lighting conditions, including open offices, retail environments, and classrooms. Its anti-glare surface with 25 percent haze reduces reflections, making text, charts, and videos easy to read even under overhead lighting. Built for continuous use up to 18 hours daily, this display supports both portrait and landscape orientations with a 20-degree tilt adjustment for flexible installation.

Key features

• IPS type ADS panel reproduces 1.07 billion colors for rich and accurate visuals
• Anti-glare coating with 25 percent haze minimizes reflections to maintain image clarity
• USB-C port supports DisplayPort Alt Mode and delivers up to 60 watts of power, enabling single-cable connection and charging for laptops
• Intel SDM slot allows integration of PC modules for enhanced functionality
• Built-in whiteboard mode enables direct annotation on the screen for interactive meetings and presentations
• Three HDMI inputs provide versatile connectivity for media players, set-top boxes, and conferencing devices
• Automatic failover and failback ensure continuous content display even if the primary signal is lost
• Dual 10-watt speakers deliver clear audio for videos and conference calls without external sound systems
• USB pass-through simplifies touch and control data transfer to connected computers without extra cables
• Mounting flexibility with portrait or landscape orientation and 20-degree forward or backward tilt

Key specs

• Display size: 85.6 inches diagonal
• Resolution: 3840 x 2160 (4K UHD)
• Panel type: IPS ADS
• Brightness: 500 nits
• Contrast ratio: 1200:1
• Color reproduction: 1.07 billion colors
• Refresh rate: 60 Hz
• Response time: 8 ms
• Audio output: Dual 10 W speakers
• Connectivity: 3x HDMI, 1x USB-C (DisplayPort Alt Mode, 60 W power delivery), 1x USB-A, Intel SDM slot, LAN, RS-232C
• Operating hours: Rated for up to 18 hours daily
• Mounting: Portrait or landscape with 20-degree tilt adjustment

Connectivity and compatibility

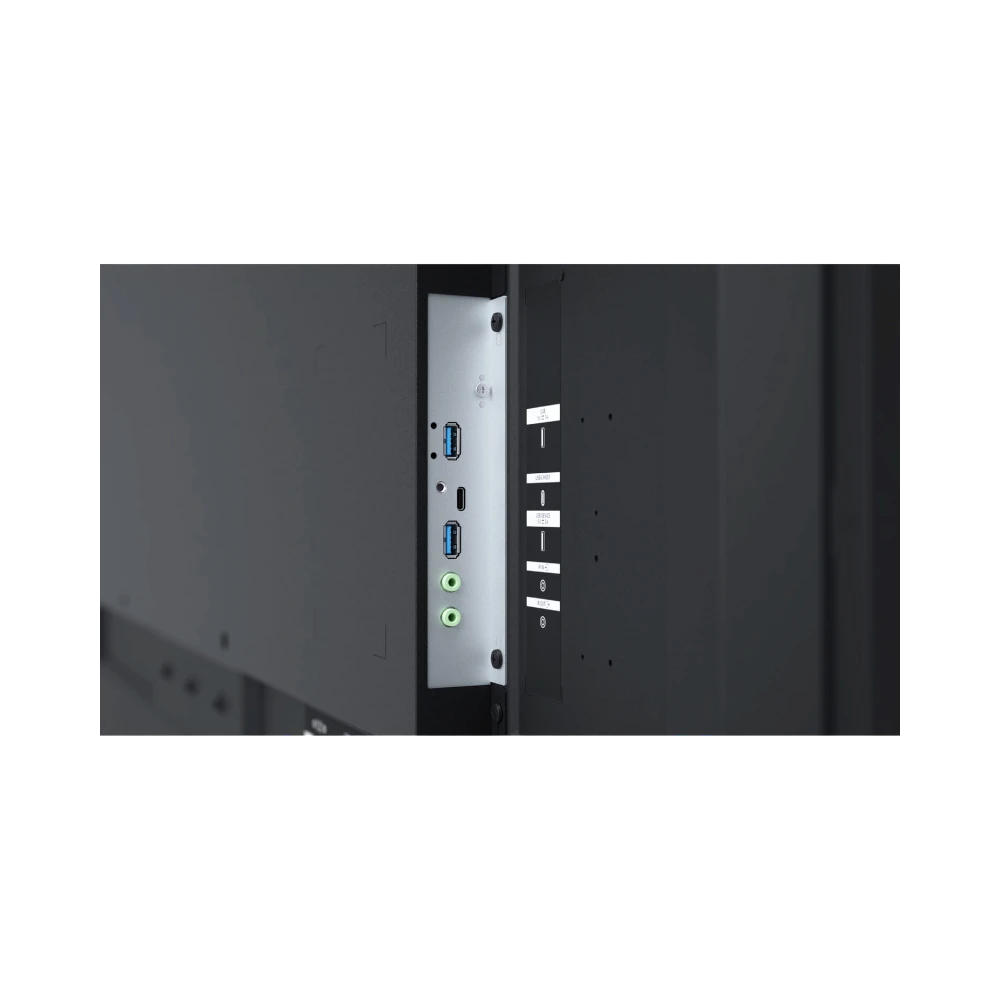

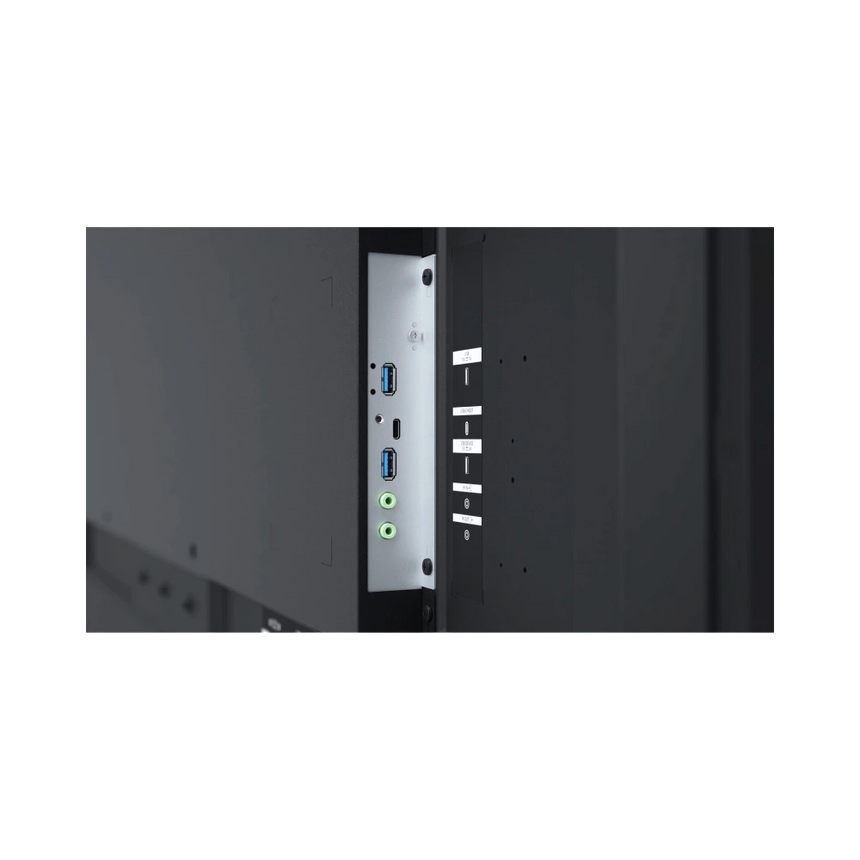

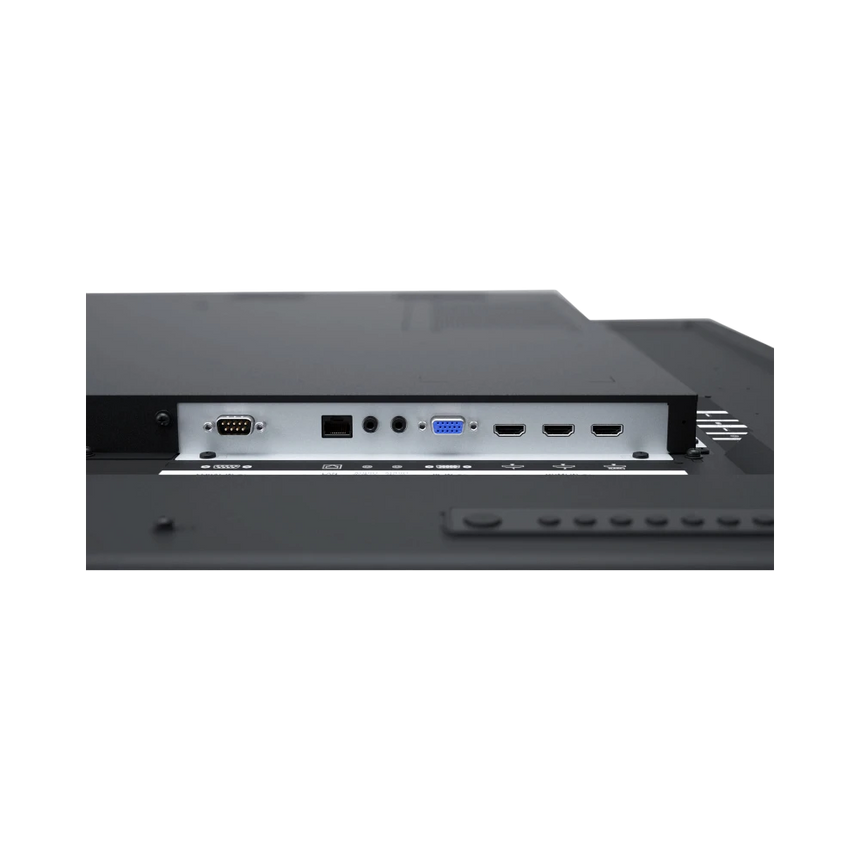

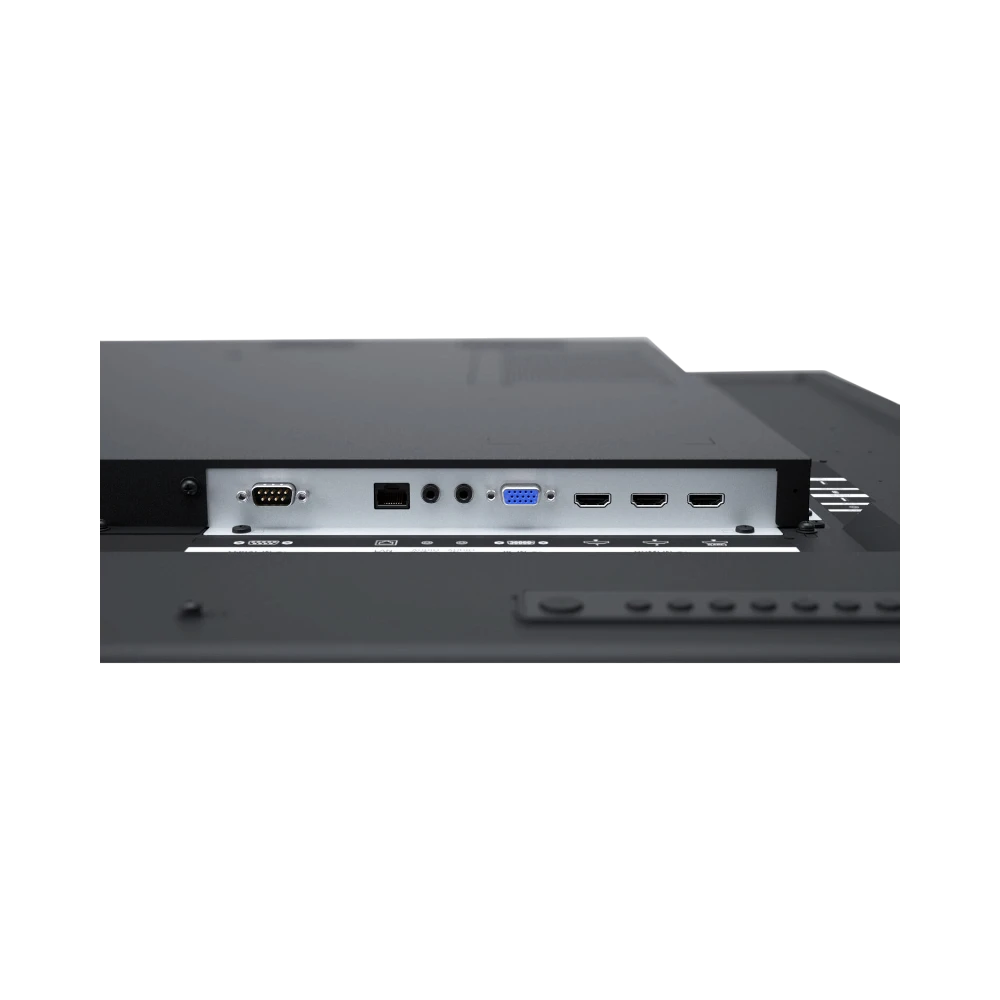

This display offers a range of input options to accommodate various media sources and control systems. The three HDMI ports allow connection to multiple devices such as media players and video conferencing hardware. The front-facing USB-C port supports video input via DisplayPort Alt Mode and provides up to 60 watts of power, which is ideal for connecting and charging laptops with a single cable. USB-A enables direct playback from flash drives, while the Intel SDM slot supports integrated PC modules for added computing power. LAN and RS-232C ports facilitate remote monitoring and integration with control systems, making it suitable for complex signage setups.

Installation and setup

The TH-86EQ2W is designed for straightforward installation and flexible placement. It can be mounted in either portrait or landscape orientation, with a 20-degree forward or backward tilt to optimize viewing angles. This adaptability allows it to fit various wall types, stands, or kiosks. The display’s robust build supports continuous operation for up to 18 hours daily, ensuring reliable performance in demanding environments. Features like automatic failover and failback reduce downtime by maintaining on-screen content if the primary input signal is interrupted.

Ideal uses and environments

This digital signage display is well suited for corporate lobbies that require dynamic branding and messaging, lecture halls that need to present detailed content to large audiences, and retail spaces that benefit from vivid product videos throughout the day. Its combination of high resolution, anti-glare technology, and interactive features like the whiteboard mode make it a strong choice for environments where clear communication and engagement are essential. The integrated speakers and versatile connectivity also support multimedia presentations and video conferencing without additional equipment.
