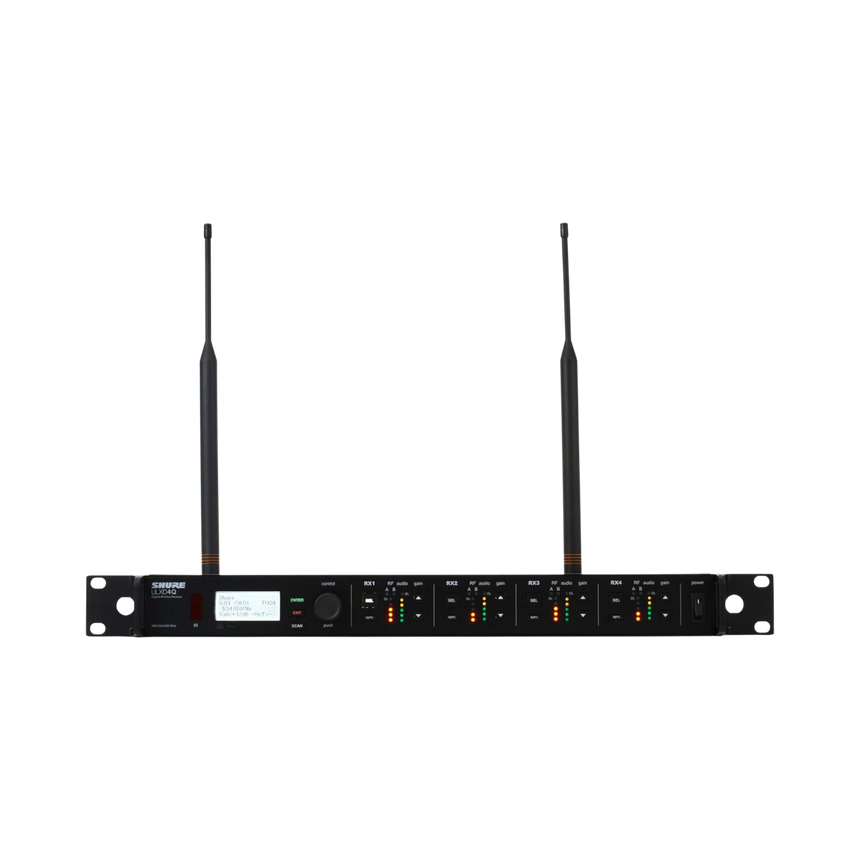

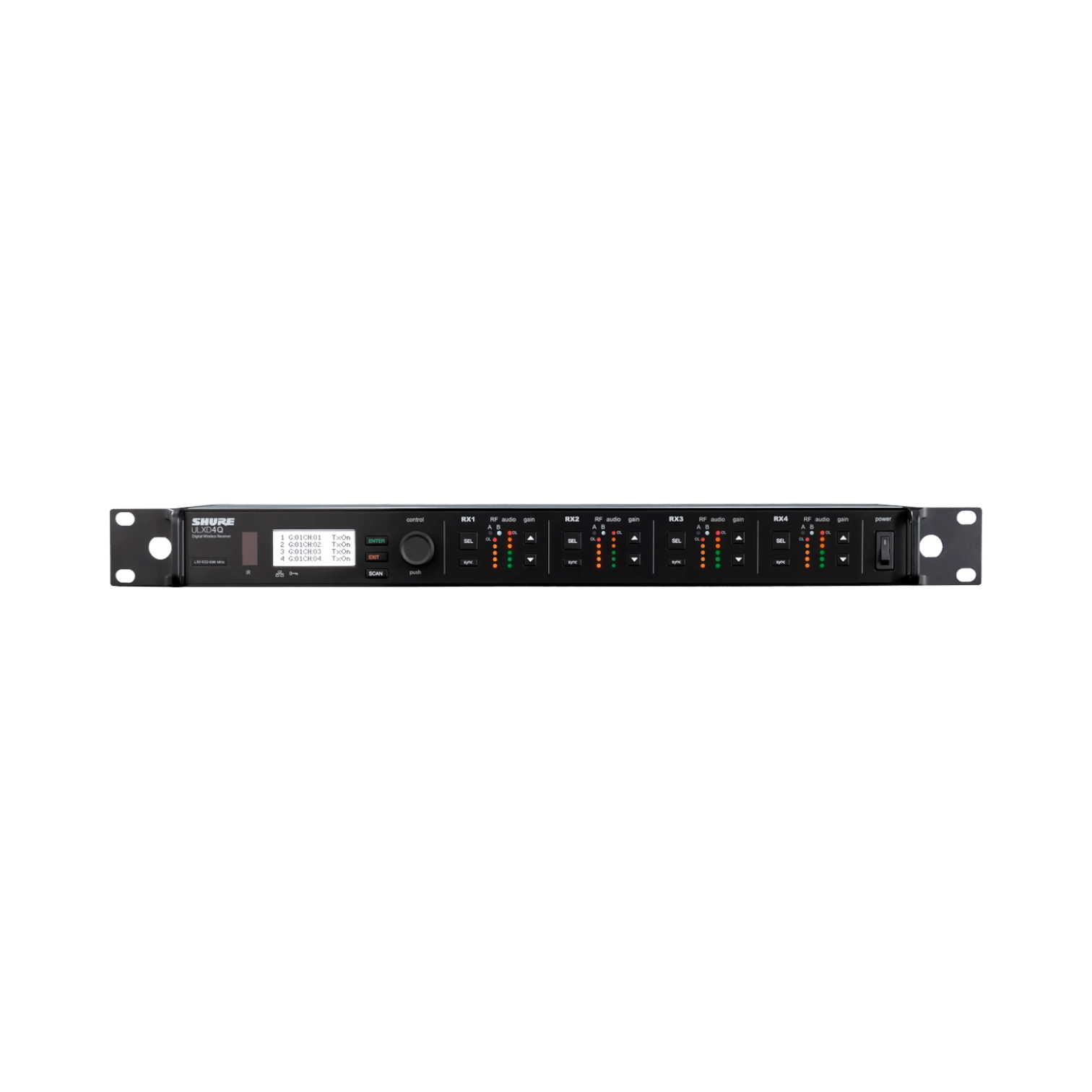

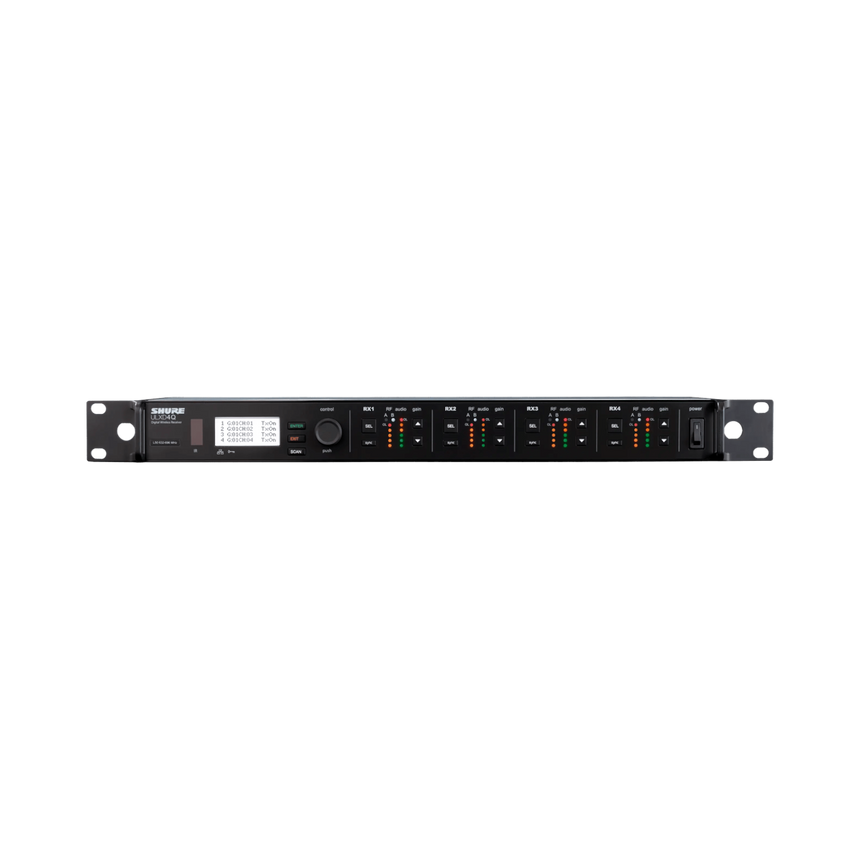

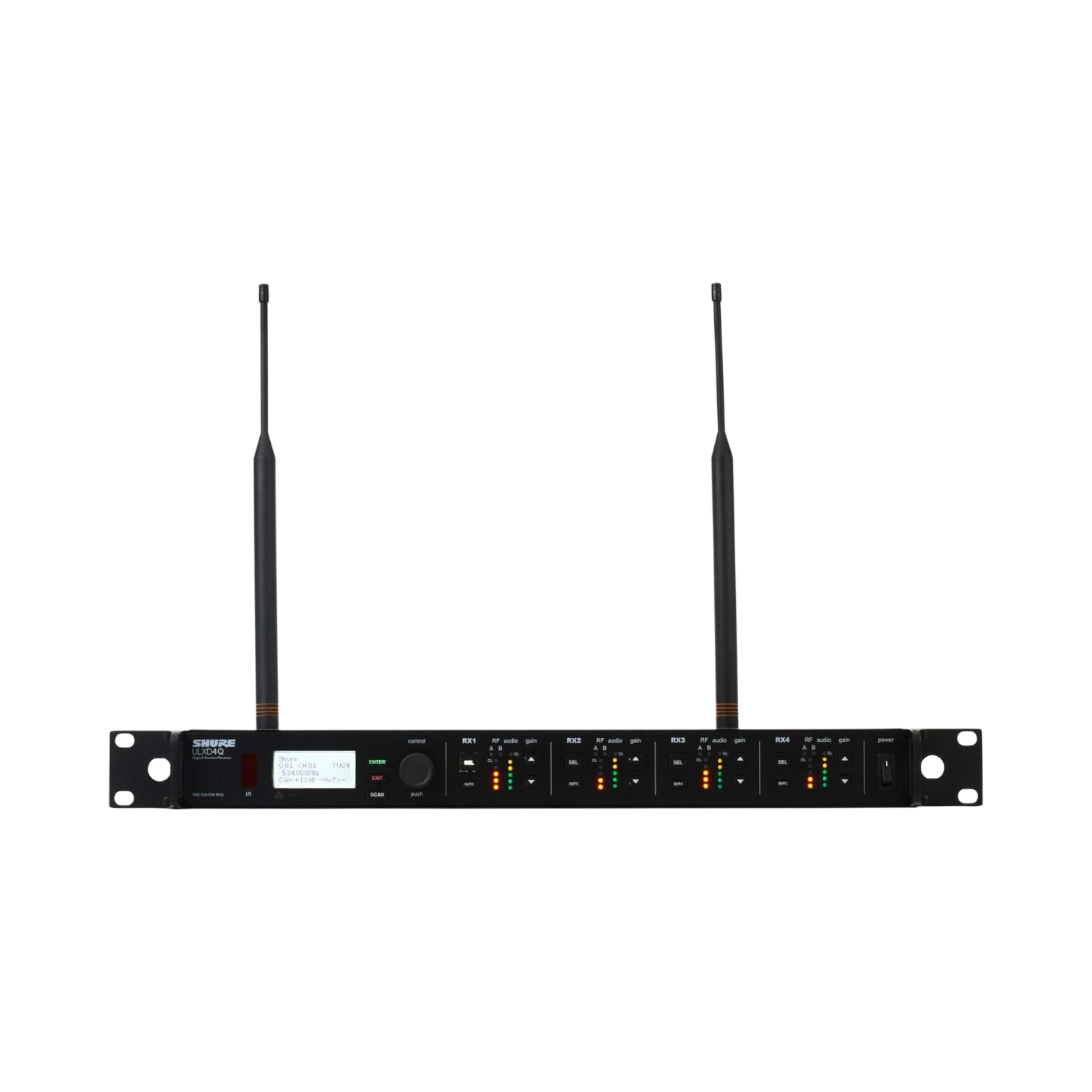

Shure ULXD4Q=-H50

Overview

The Shure ULXD4Q=-H50 is a quad-channel digital wireless receiver designed to deliver four independent RF channels within a single 1U rack unit. Operating in the H50 frequency band from 534 to 598 MHz, it is built to meet the demands of touring professionals, corporate AV teams, and fixed installations such as houses of worship. Each channel features its own front-panel display with individual gain control and metering, allowing precise management of audio signals. The receiver supports 24-bit, 48 kHz digital audio with over 120 dB of dynamic range, ensuring clear and consistent sound quality for speeches, performances, and presentations.

Key features

• Four independent channels housed in a compact 1U metal chassis for efficient rack space use
• Dante digital audio networking enables low-latency, multi-channel audio transmission over a single Ethernet cable
• Individual balanced XLR outputs with adjustable gain for each channel, facilitating separate routing to mixers, recorders, or loudspeaker zones
• AES-256 encryption secures wireless transmissions, protecting sensitive communications in corporate or government settings
• 64 MHz tuning range supports up to 60 compatible channels in Standard mode, providing flexibility for complex setups
• RF cascade ports simplify antenna distribution, allowing multiple racks to share directional antennas efficiently
• Internal limiting prevents audio clipping, maintaining clean sound even during sudden volume peaks

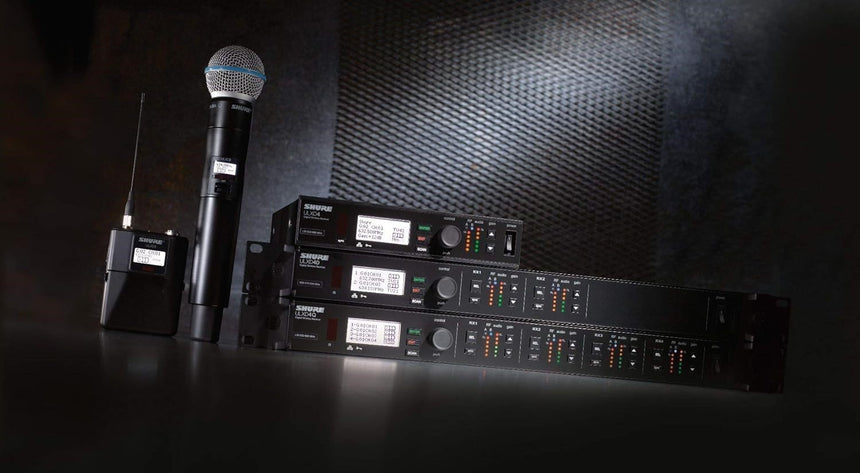

• Compatible with Shure handheld and bodypack transmitters, as well as a wide range of microphone capsules

Key specs

• Frequency band: H50 (534–598 MHz)
• Channels: 4 independent RF channels
• Audio resolution: 24-bit, 48 kHz digital audio
• Dynamic range: Over 120 dB
• Rack size: 1U metal chassis
• Encryption: AES-256
• Tuning range: 64 MHz
• Outputs: Balanced XLR for each channel

Connectivity and compatibility

The receiver integrates seamlessly into networked audio environments through its Dante ports, which carry all four channels over Ethernet with low latency. An additional network port supports remote monitoring and control via Shure’s Wireless Workbench or compatible third-party software, simplifying frequency coordination and gain adjustments from any location within a venue. The RF cascade ports enhance antenna management by allowing multiple units to share antenna signals, reducing cabling complexity in large installations.

• Dante digital audio networking for multi-channel audio over Ethernet
• Secondary network port for remote control and monitoring
• RF cascade ports for streamlined antenna distribution
• Balanced XLR outputs for direct connection to professional audio equipment
• Compatible with Shure handheld and bodypack transmitters

Performance and reliability

Designed for demanding environments, the ULXD4Q=-H50 offers robust RF performance with a wide tuning range and the ability to support numerous channels simultaneously. Its internal limiting circuitry protects against audio distortion caused by sudden volume spikes, ensuring clear and intelligible sound throughout events. The rugged metal chassis withstands the rigors of touring and frequent use, while AES-256 encryption guarantees secure wireless communication for sensitive applications.

Ideal uses and environments

This receiver is well suited to professional touring setups, corporate AV systems, houses of worship, and any fixed installation requiring multiple wireless channels in a compact form. It fits well in environments where secure, high-quality audio transmission is critical, such as government meetings or boardrooms. The flexible networking options and individual channel controls make it a strong choice for audio engineers managing complex sound systems with multiple microphones and output zones.
