ELAC IW-DC51-W

Overview

The ELAC IW-DC51-W is an in-wall center channel speaker designed to deliver clear and focused dialogue for home theater systems while maintaining a clean, unobtrusive look. It features two 5.25 inch aramid fiber woofers and a 1 inch soft dome tweeter, covering a frequency range from 45 Hz to 20 kHz. With power handling between 30 and 120 watts and a nominal impedance of 6 ohms, it integrates smoothly with most home theater receivers and fits flush inside standard wall cavities.

Key features

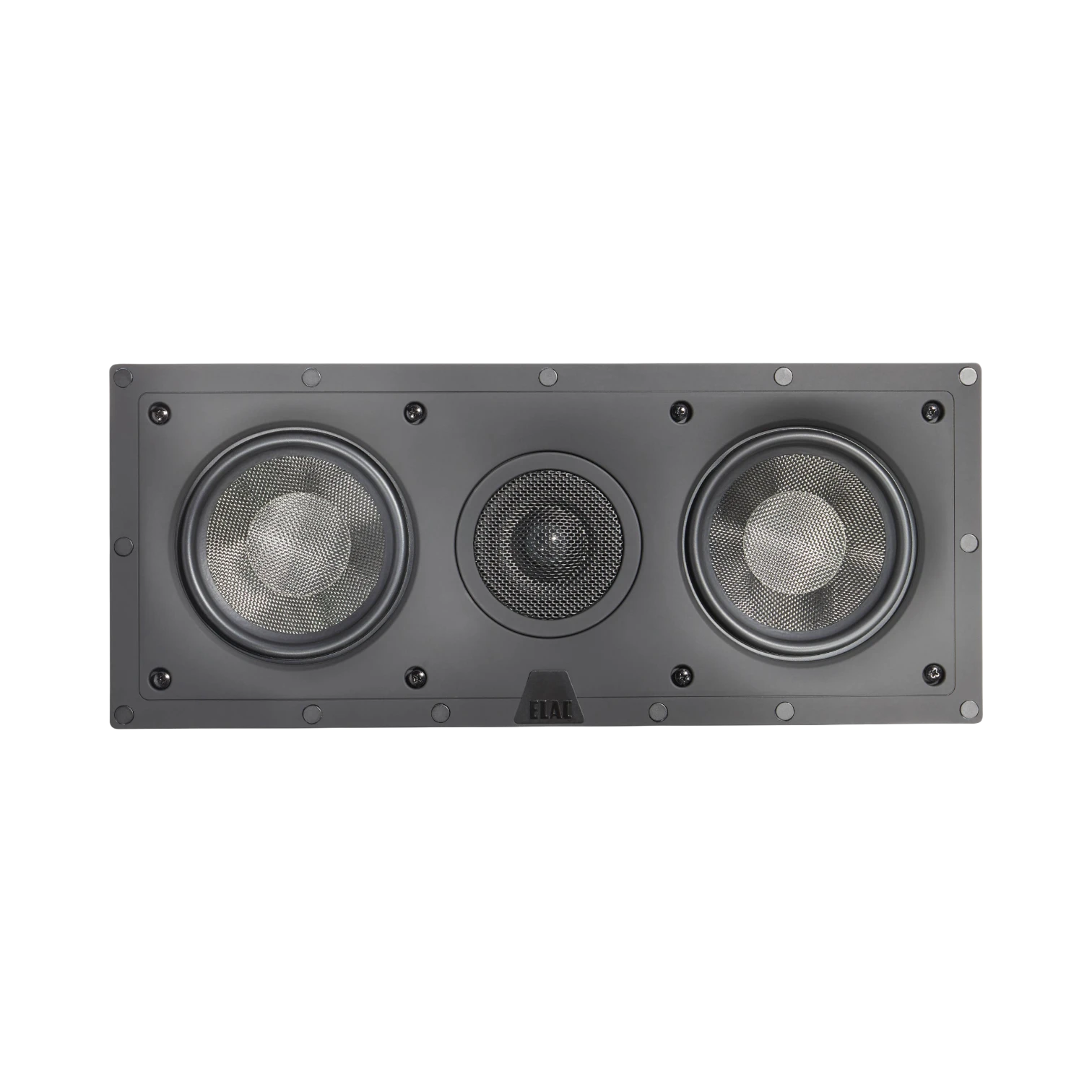

• Two 5.25 inch aramid fiber cone woofers provide strong and accurate mid-bass response for natural sound reproduction.
• One 1 inch soft dome tweeter ensures smooth and detailed high frequencies, enhancing vocal clarity and dialogue intelligibility.

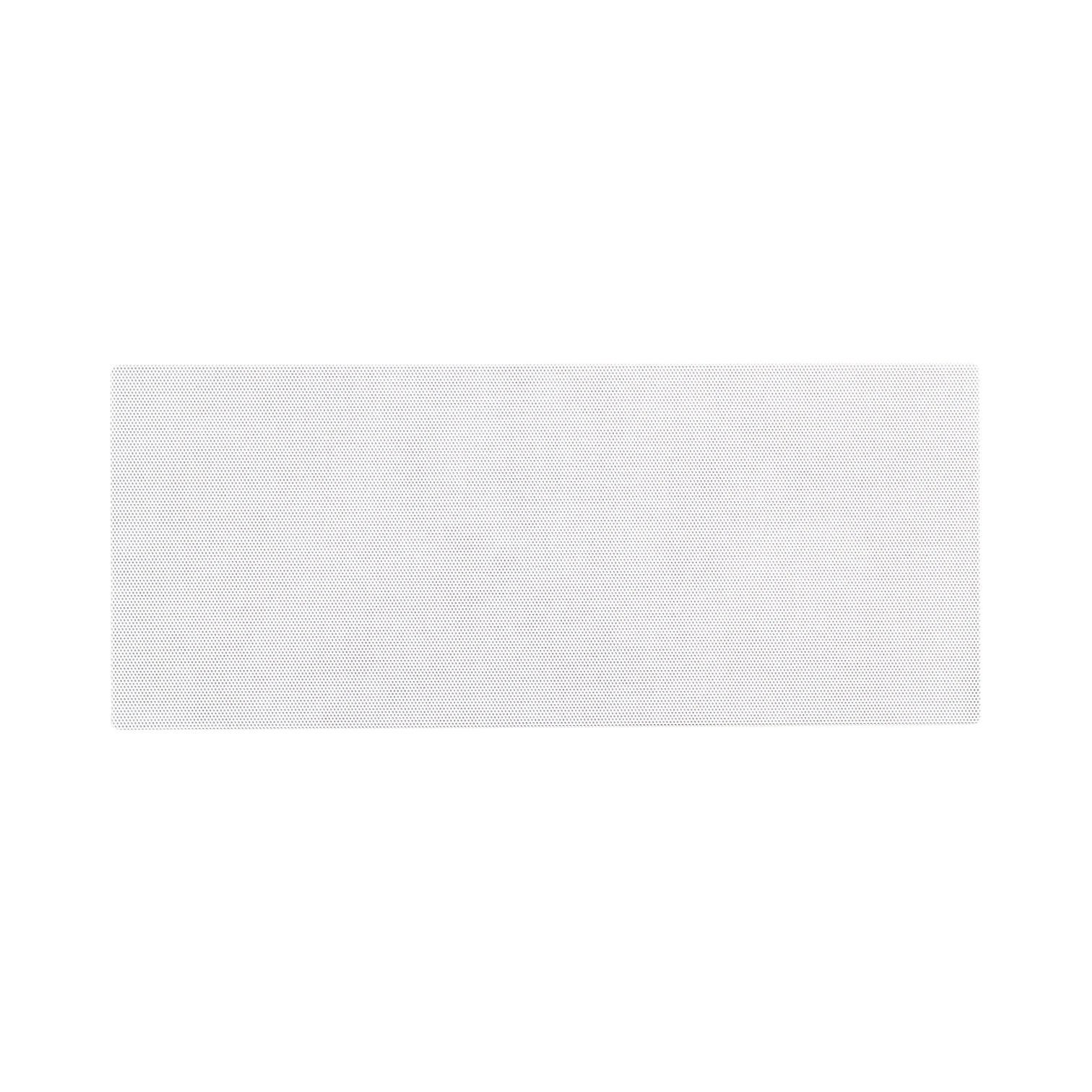

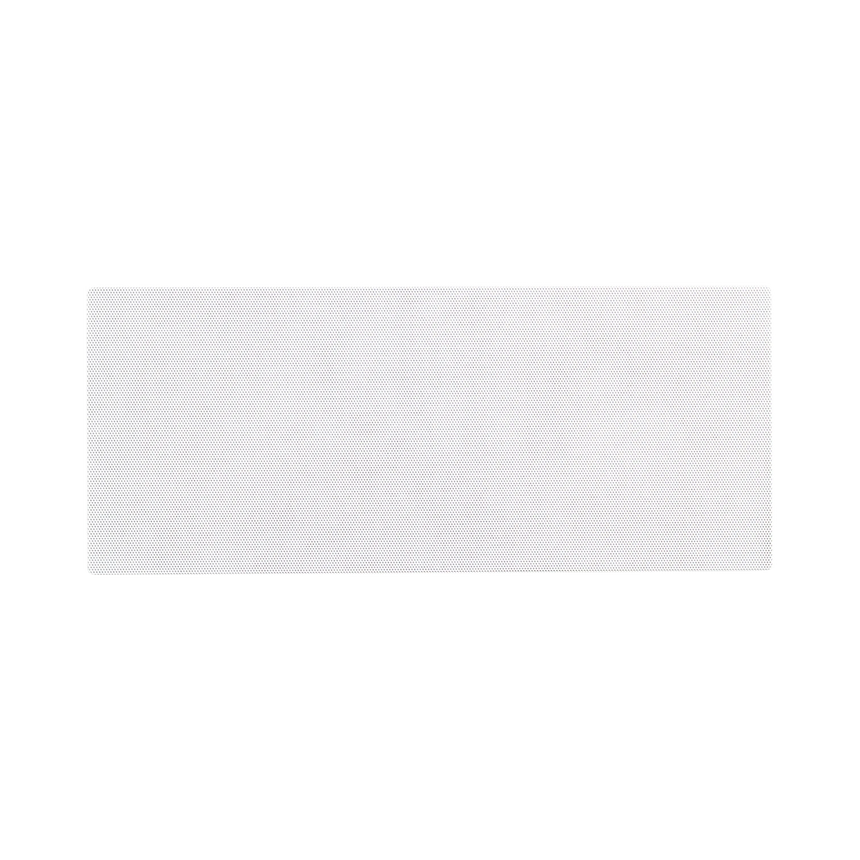

• Magnetic grille that can be painted to match your wall color, allowing the speaker to blend seamlessly into any room décor.

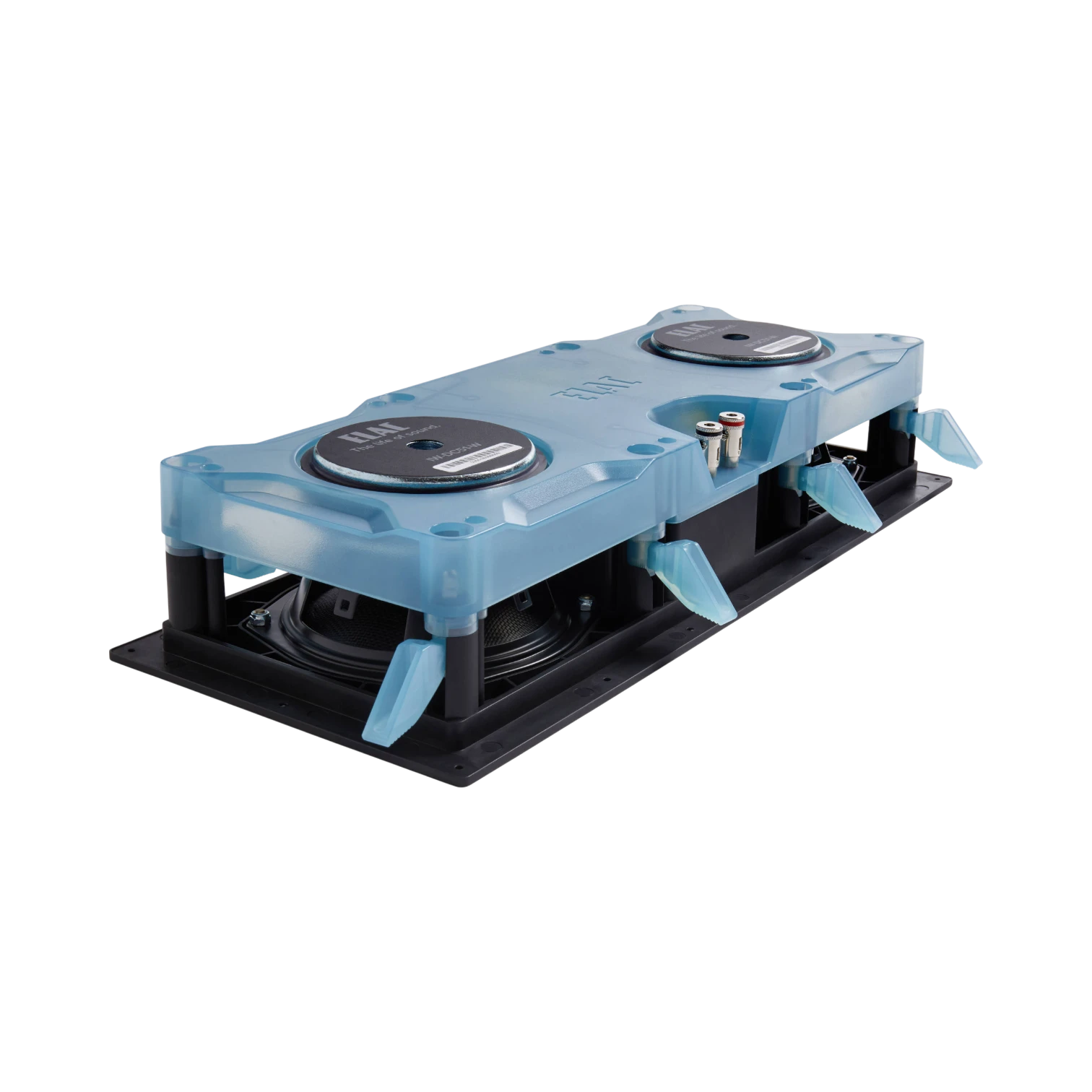

• Rotating cam clamps simplify installation by securely locking the speaker into the wall cavity without the need for additional hardware.
• Compact depth of 3.4 inches fits standard wall constructions, making it suitable for both new builds and retrofit projects.
• Flexible mounting options allow horizontal placement as a center channel or vertical use as a left or right surround speaker.

Key specs

• Frequency response: 45 Hz to 20 kHz
• Power handling: 30 to 120 watts
• Sensitivity: 87 dB
• Nominal impedance: 6 ohms
• Drivers: Two 5.25 inch aramid fiber woofers, one 1 inch soft dome tweeter
• Dimensions: 17.7 x 7.4 x 3.4 inches (HxWxD)
• Weight: 10.7 lbs

Installation and setup

The IW-DC51-W is designed for straightforward installation with its rotating cam mounting system. After cutting the appropriate opening in the wall, the frame locks securely in place, and the speaker wire connects easily. The magnetic grille attaches without tools and can be painted to match your wall, ensuring a discreet appearance. Its slim 3.4-inch depth fits most standard wall cavities, making it a practical choice for both new construction and retrofit installations.

Ideal uses and environments

This in-wall center channel speaker is well suited for home theater enthusiasts who want immersive sound without visible speakers cluttering the room. It works well in living rooms, media rooms, or open-concept spaces where maintaining a clean aesthetic is important. The speaker’s clear vocal reproduction and smooth frequency response make it a strong choice for watching movies, TV series, or listening to music with focused front-stage sound.
