Eaton DIN24240DC

Overview

The Eaton DIN24240DC is a 240 W industrial uninterruptible power supply designed to provide a stable 24 V DC power source for control cabinets and automation systems. It mounts easily on a standard 35 mm DIN rail, offering reliable backup power to protect critical devices like PLCs, sensors, and network switches from outages, brownouts, and voltage spikes. With about ten minutes of runtime at full load, it allows operators to safely complete machine cycles or wait for backup generators to start.

Its rugged, fanless design supports operation in ambient temperatures ranging from -15 °C to 50 °C, making it suitable for harsh industrial environments. Clear LED indicators and remote control features simplify monitoring and integration with supervisory systems.

Key features

• Provides uninterrupted 24 V DC power to industrial loads, preventing downtime and data loss during power disturbances
• Fanless construction reduces noise and eliminates a common failure point, enhancing reliability in dusty or vibration-prone settings
• Pre-installed DIN rail clamp enables quick installation without panel redesign

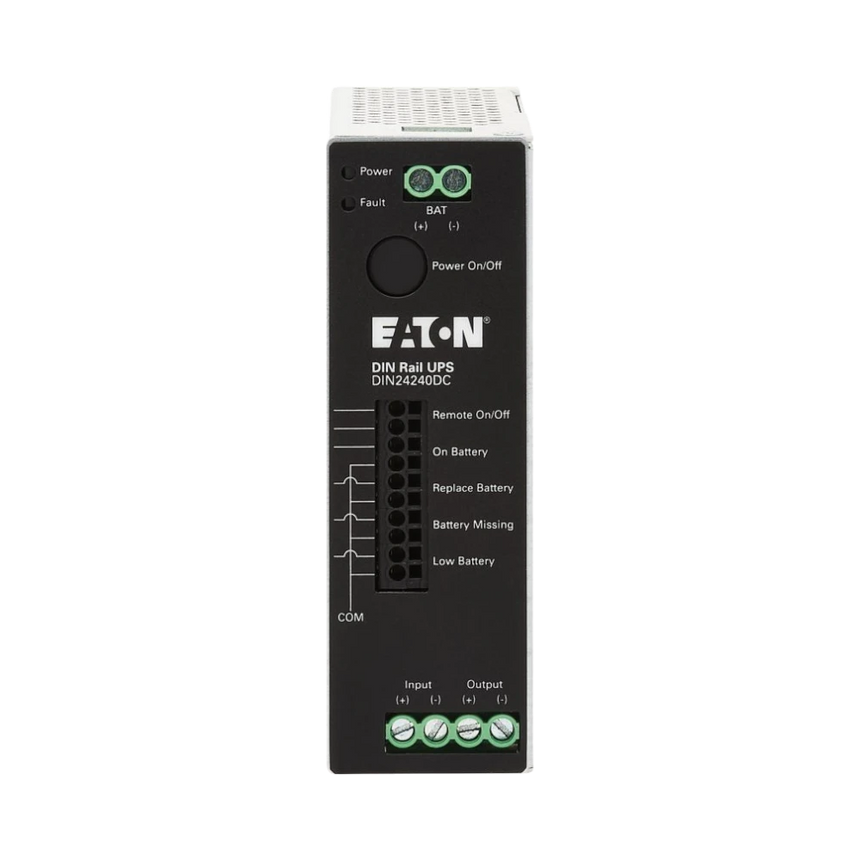

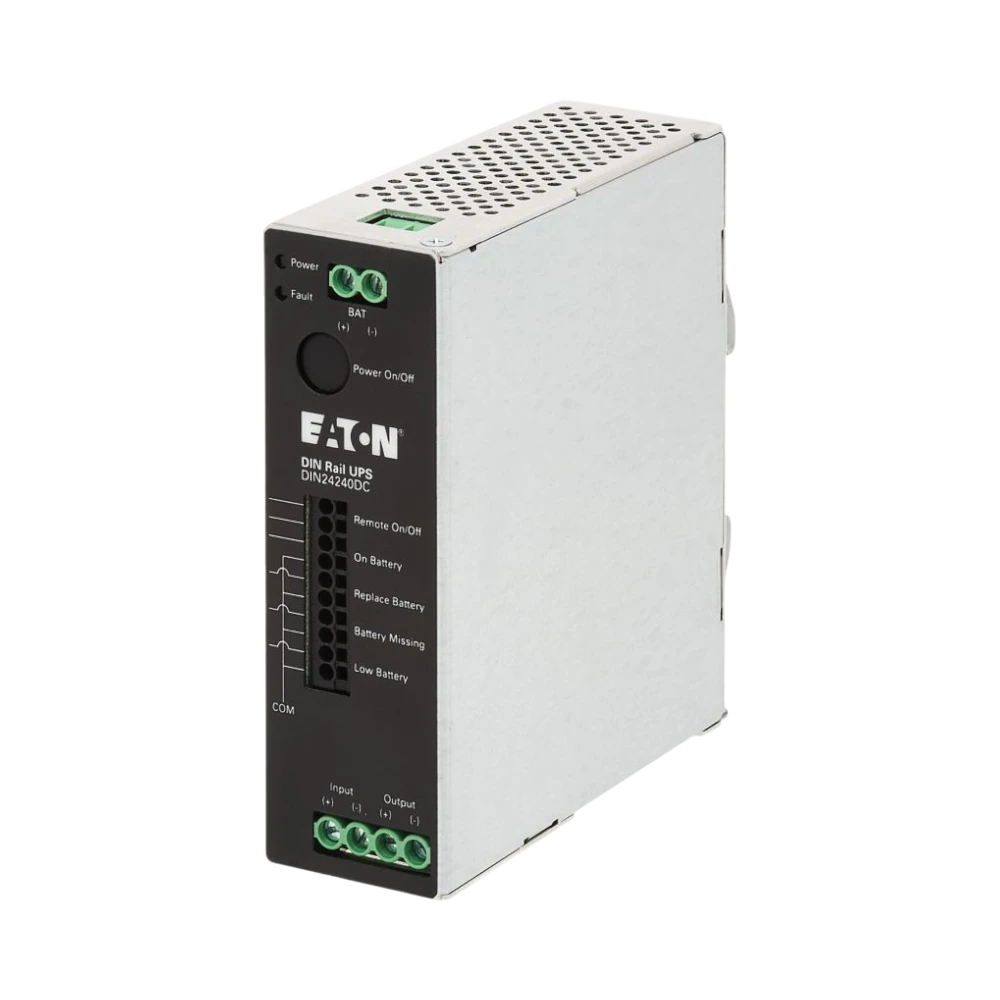

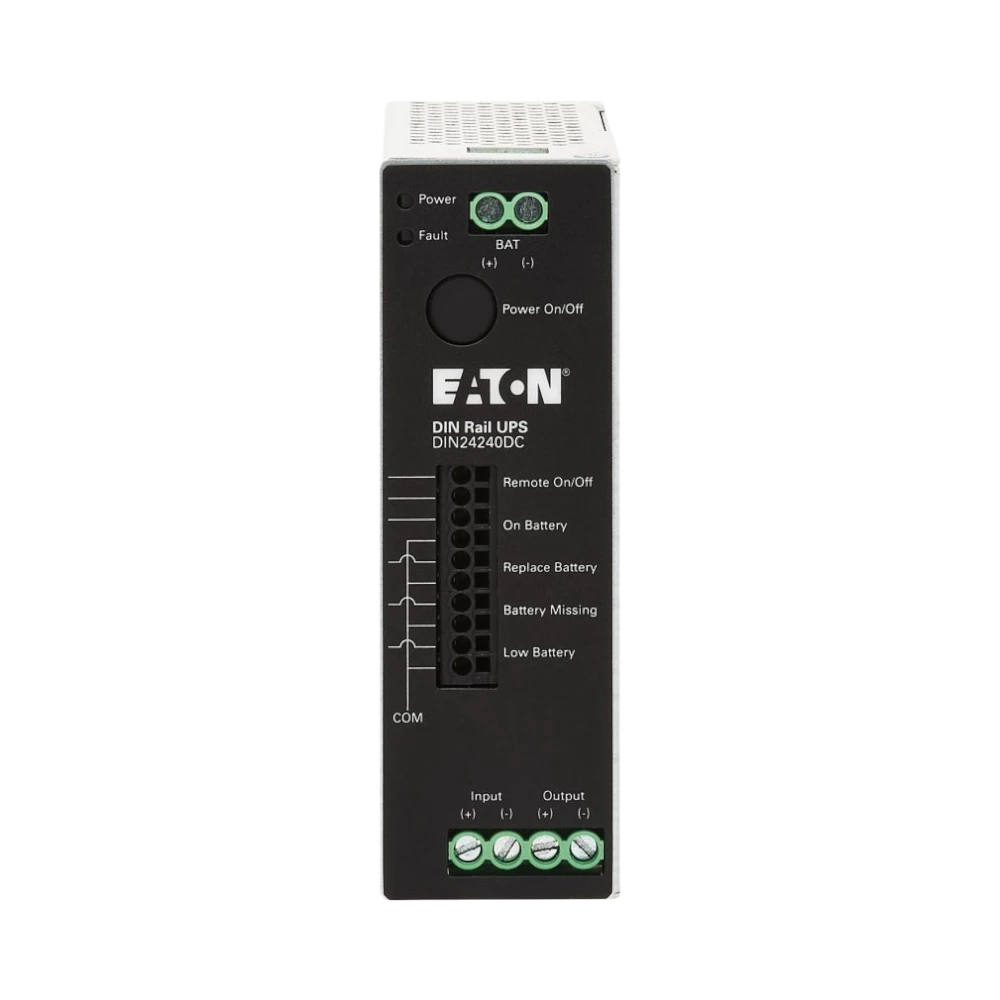

• LED status indicators and dry contacts offer straightforward visual monitoring and easy integration with automation systems
• Remote on/off control and communication ports allow seamless connection to supervisory control and monitoring equipment
• External battery module option extends backup runtime when longer power support is necessary
• Built to operate reliably in a wide temperature range from -15 °C to 50 °C, suitable for various industrial environments
• Complies with CE, cURus, and UKCA standards, facilitating certification and deployment across multiple regions

Key specs

• Power capacity: 240 W
• Output voltage: 24 V DC
• Backup runtime: approximately 10 minutes at full load

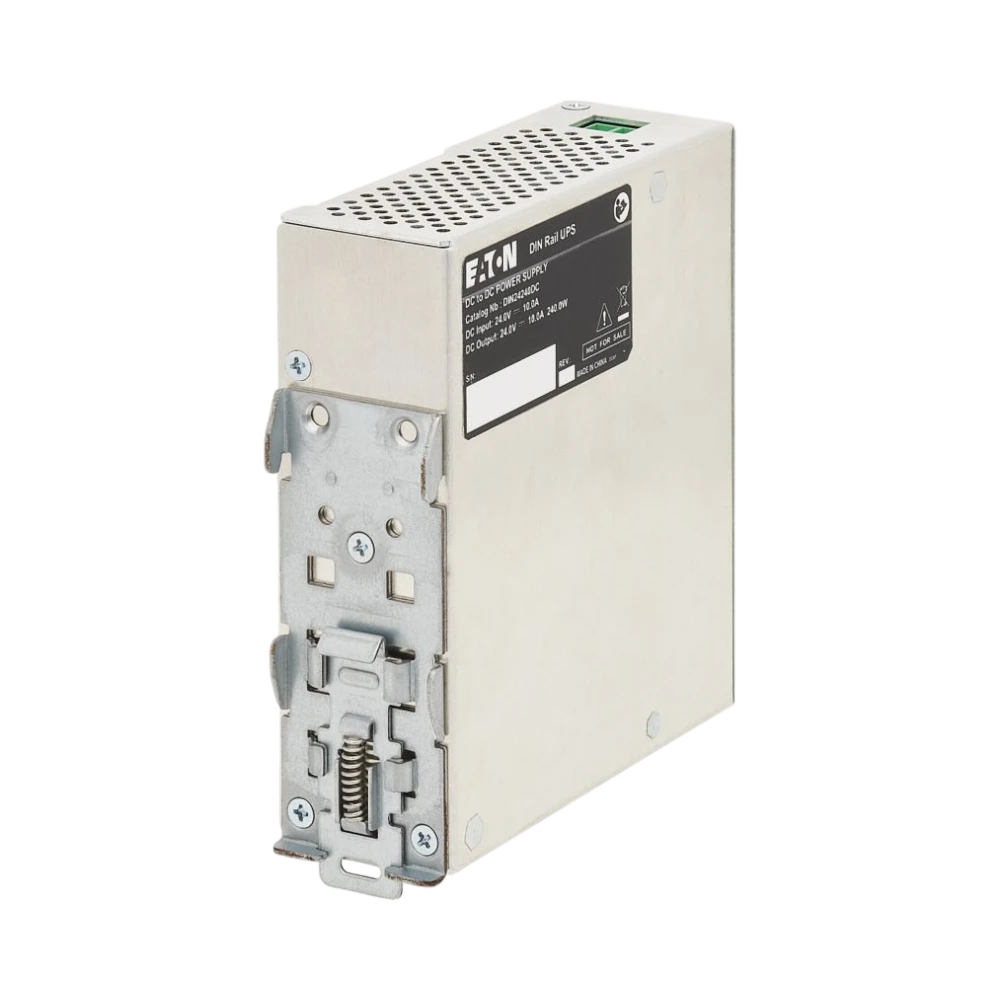

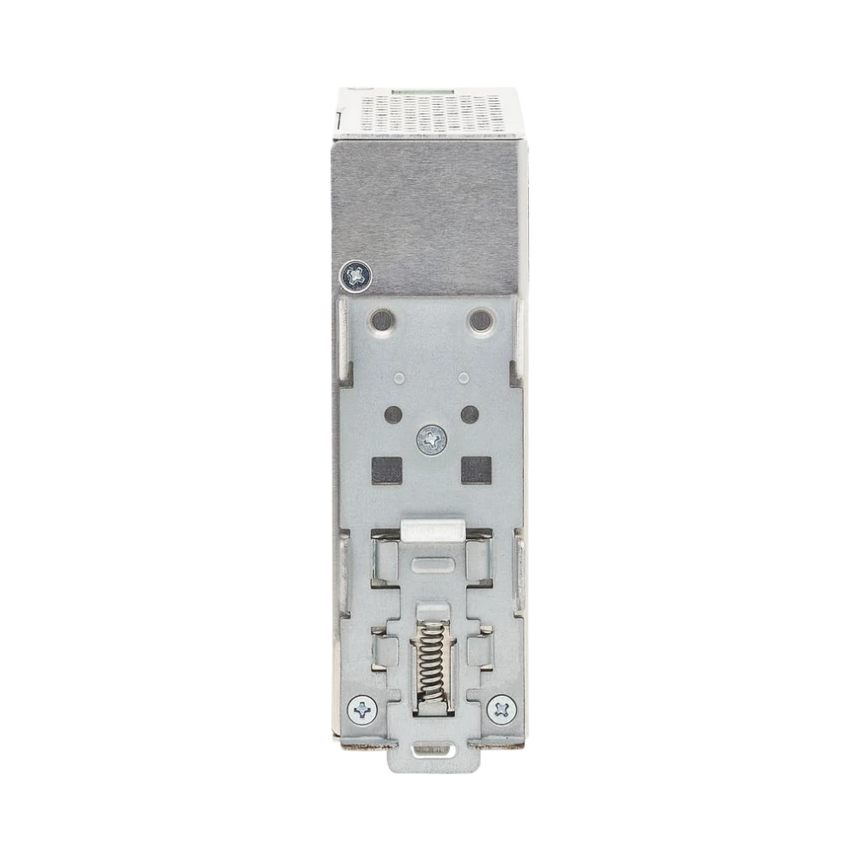

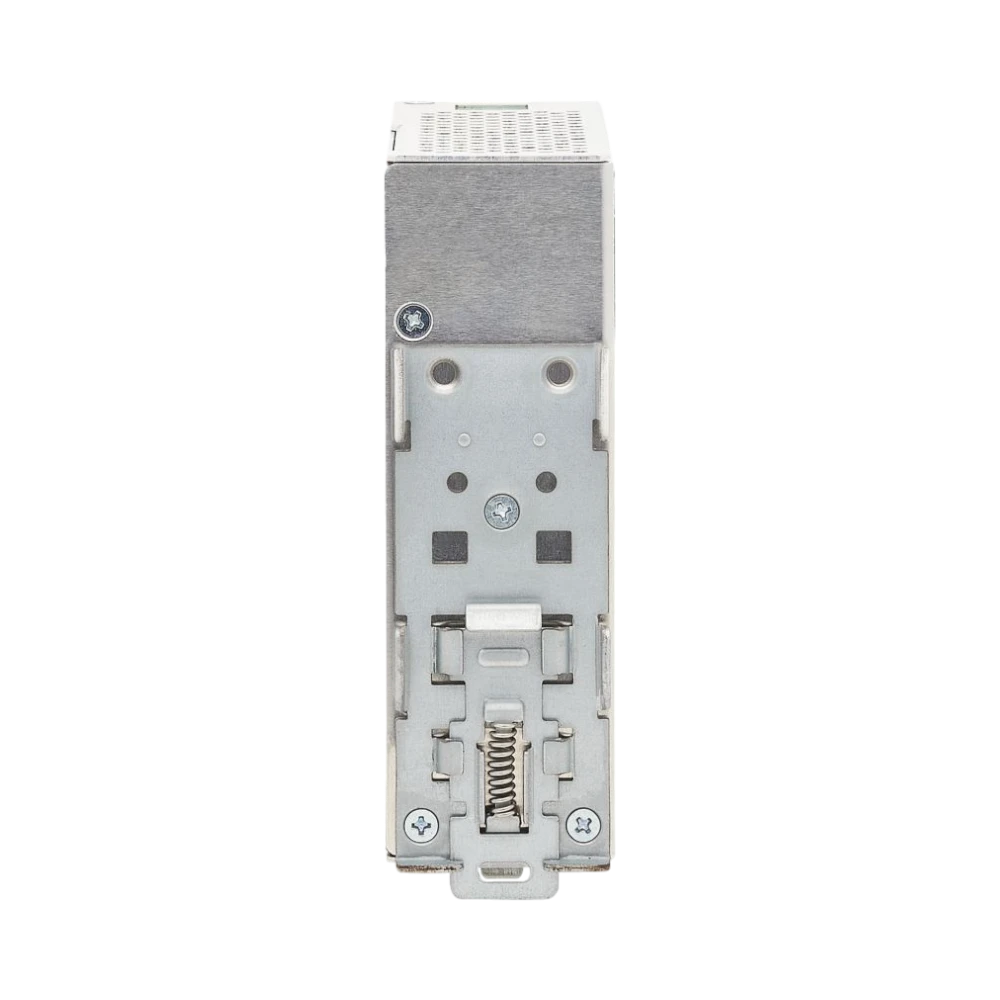

• Mounting: 35 mm DIN rail with pre-installed clamp
• Operating temperature range: -15 °C to 50 °C
• Design: fanless for reduced noise and increased durability
• Certifications: CE, cURus, UKCA

Connectivity and compatibility

The UPS features dry contact outputs and remote on/off control ports that integrate easily with existing supervisory control and data acquisition (SCADA) systems or building management systems. This allows for automated monitoring, status reporting, and controlled shutdowns, ensuring smooth operation within complex industrial setups.

• Dry contacts for alarm and status signaling
• Remote on/off control for flexible power management

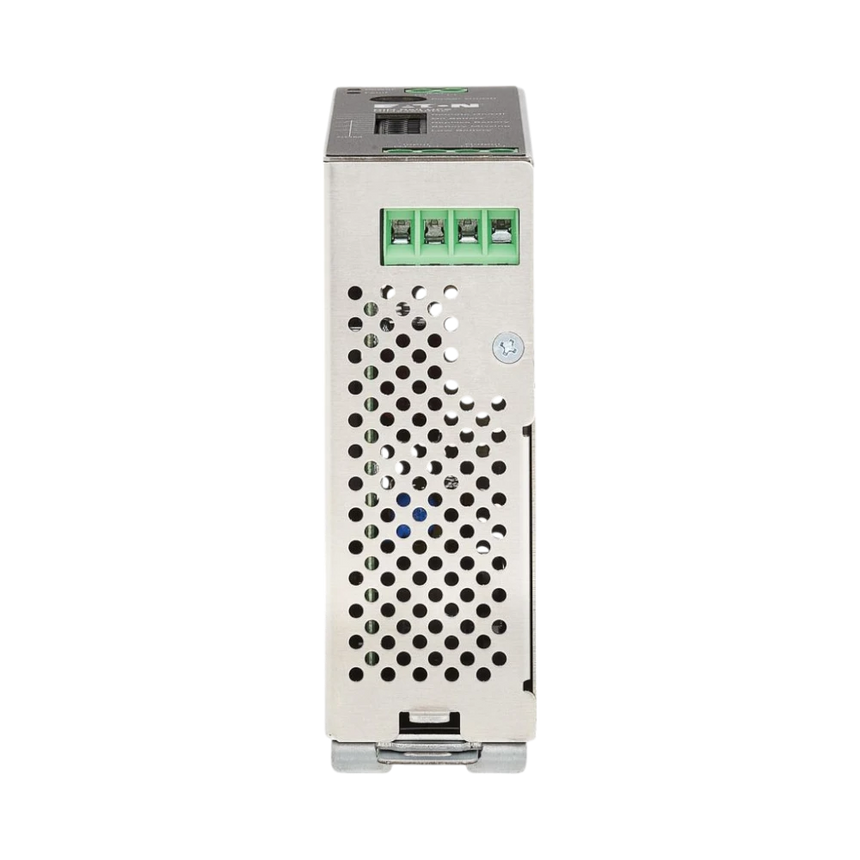

• Hardwired input and output terminals designed for secure and straightforward connections

Installation and setup

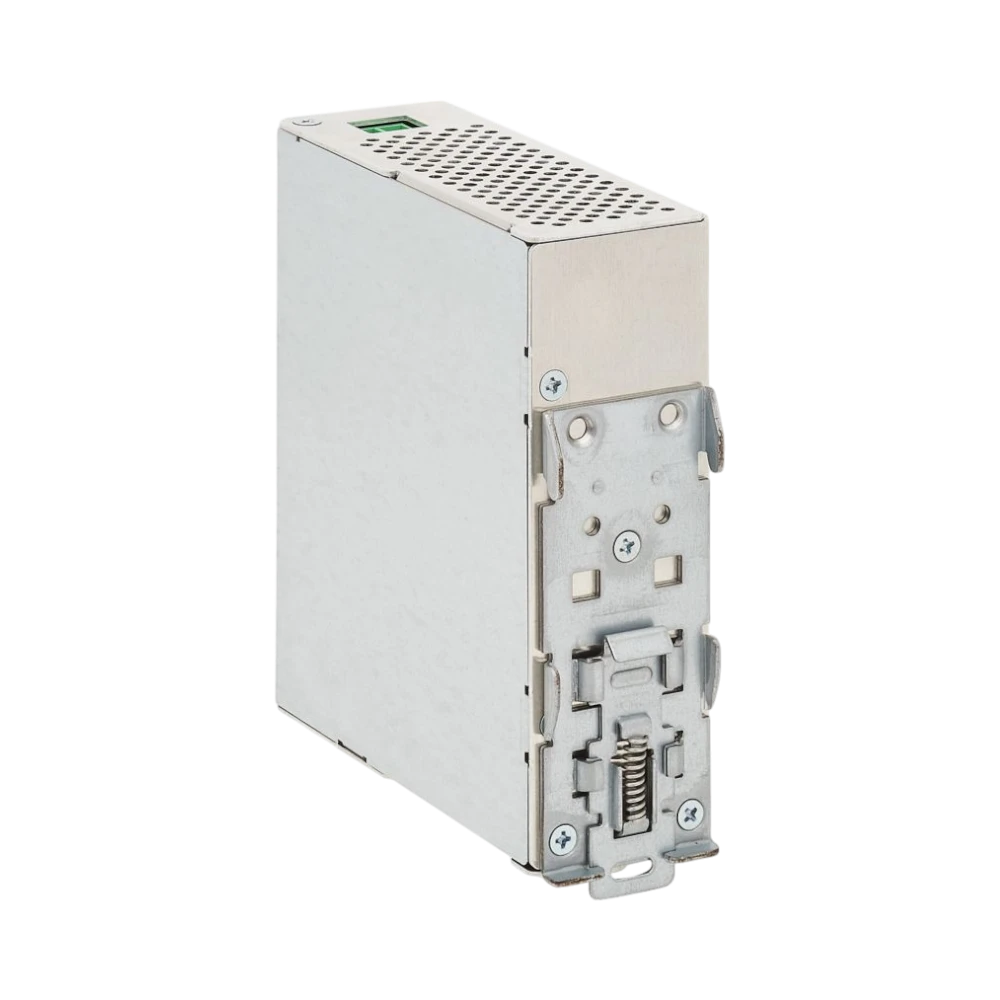

Installation is streamlined with a pre-attached DIN rail clamp that snaps onto standard 35 mm rails, eliminating the need for panel modifications. Wiring terminals are positioned for easy access, allowing quick hardwired connections. Adding an external battery module to extend runtime is a simple process that can be completed in minutes, minimizing downtime during upgrades.

Ideal uses and environments

This UPS is well suited to industrial automation environments where maintaining continuous 24 V DC power is critical. It fits naturally into control cabinets on production lines, warehouses, and manufacturing facilities that require protection against power interruptions and voltage irregularities. Its robust temperature tolerance and fanless design make it a strong choice for locations exposed to temperature fluctuations, dust, or vibration.

Operators and maintenance teams benefit from its clear status indicators and remote control capabilities, which simplify monitoring and reduce the risk of unexpected downtime. The Eaton DIN24240DC is a practical solution for ensuring operational continuity in demanding industrial settings.
