ZeeVee ZVPRO620-NA

Overview

The ZeeVee ZVPRO620-NA is a dual channel encoder and QAM modulator designed to convert component or VGA video signals into digital television channels. It supports high definition resolutions including 1080p, 720p, and 480p, enabling you to broadcast HD content over existing coaxial cable infrastructure. This makes it an efficient solution for venues like sports bars, schools, offices, and hospitality environments that want to distribute video without rewiring.

Equipped with two DIN inputs, the unit accepts separate sources such as satellite receivers, Blu-ray players, or signage computers. Setup is user-friendly with a front panel screen and navigation buttons, while remote management is possible via a web interface over Ethernet. The device also includes an adjustable audio delay to ensure perfect lip sync when using external amplifiers.

Key features

• Converts component or VGA video into digital QAM channels for easy distribution over coax cable
• Supports multiple HD resolutions (1080p, 720p, 480p) to match your source content
• Dual DIN inputs allow simultaneous encoding of two separate video sources

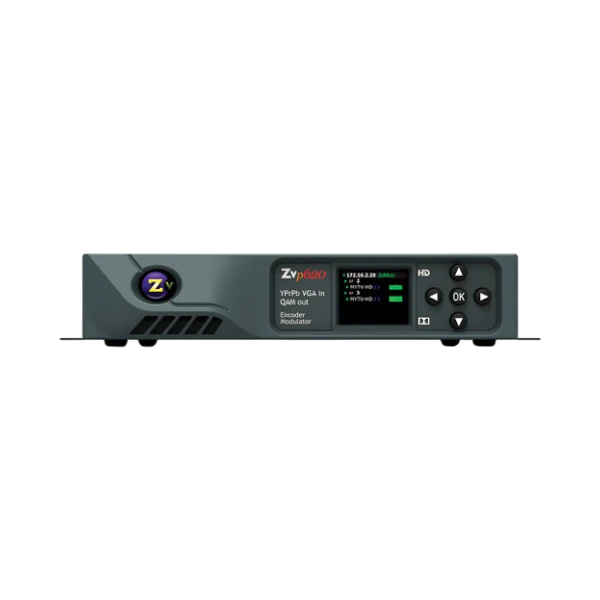

• Front panel display and controls simplify setup and provide real-time signal diagnostics
• Web-based control through Ethernet enables remote channel assignment, level adjustment, and troubleshooting
• Audio delay adjustable from 0 to 2000 milliseconds to correct lip sync issues with external audio systems
• Robust metal chassis designed to fit into a 1U rack space with an optional mounting kit
• High RF output level up to 45 dBmV ensures strong signal strength for long cable runs and multiple splits without extra amplification

Key specs

• Input types: Two DIN connectors for component or VGA video
• Supported resolutions: 1080p, 720p, 480p
• RF output level: up to 45 dBmV
• Audio delay range: 0 to 2000 milliseconds
• Control interface: Front panel display with navigation buttons and Ethernet for web-based management
• Chassis: Metal construction, 1U rack mountable with optional kit

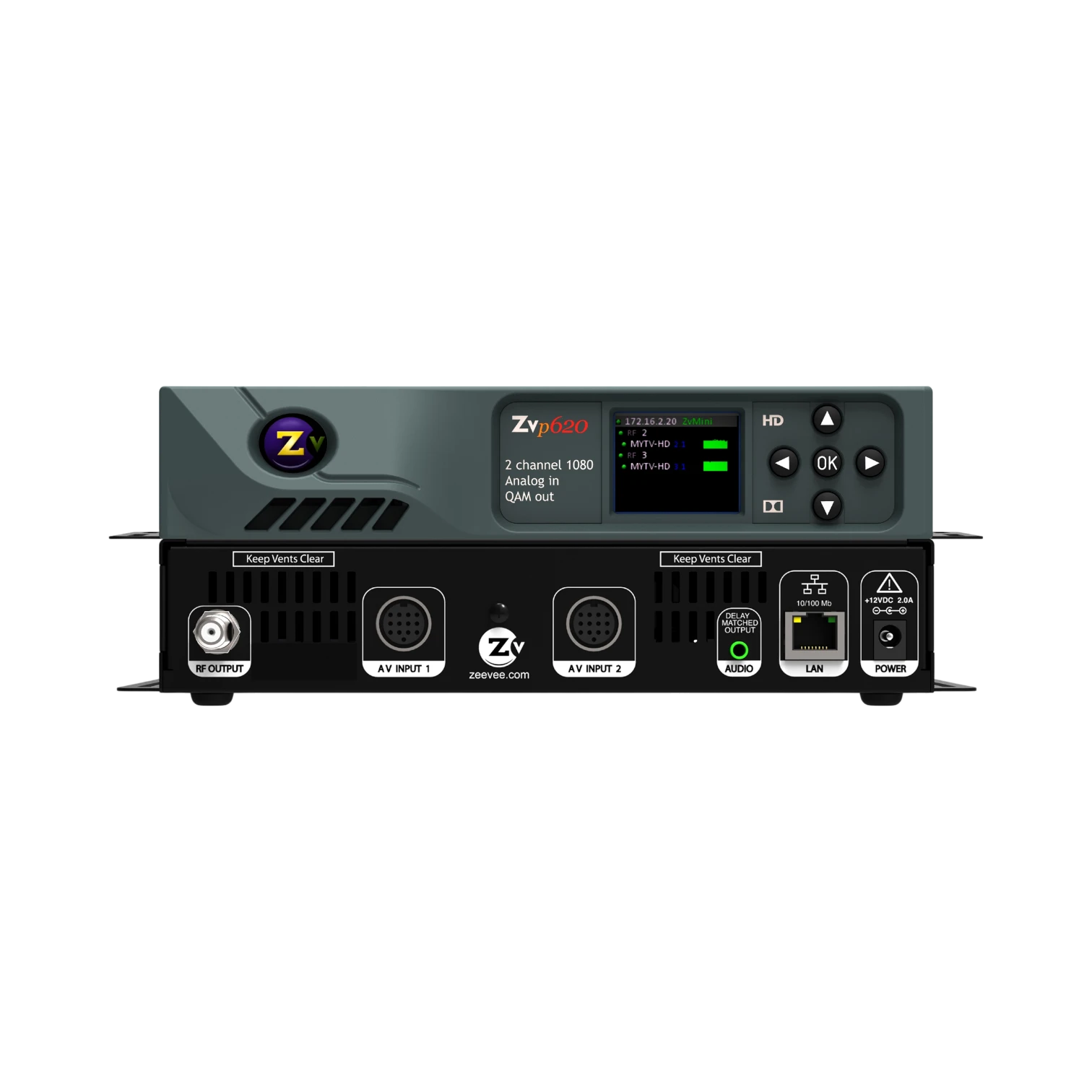

Connectivity and compatibility

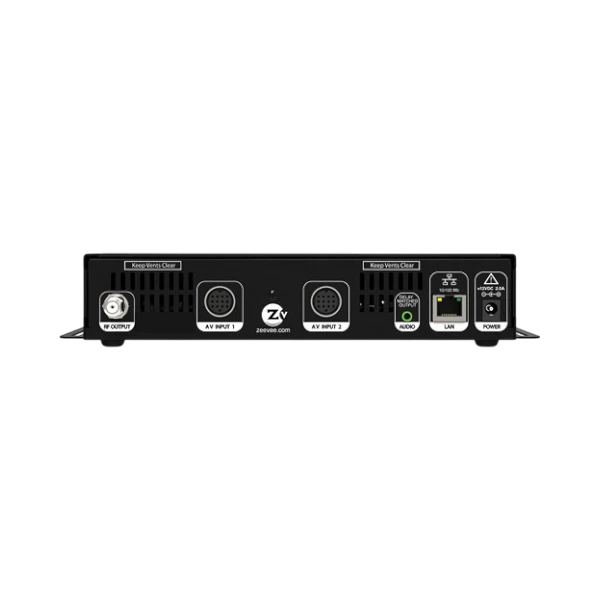

The ZVPRO620-NA connects to video sources via two DIN inputs, compatible with optional Hydra cables for component or VGA signals. It outputs digital QAM channels over standard RG-6 or RG-59 coaxial cables, allowing you to use existing wiring to reach multiple TVs. The Ethernet port provides network access for remote control and monitoring, making it easy to integrate into professional AV setups.

• Two DIN inputs for flexible source connections
• QAM output over coaxial cable compatible with standard cable TV tuners
• Ethernet port for web interface and remote management

Ideal uses and environments

This encoder and modulator is well suited for environments that require efficient distribution of HD video to multiple displays without installing new cabling. It works well in sports bars, corporate offices, educational institutions, and hospitality venues where coaxial cable infrastructure is already in place. The device’s dual channel capability and high output power make it a strong choice for setups needing simultaneous feeds and wide signal coverage.
