Black Box AEMEX-HDMI-R2

Overview

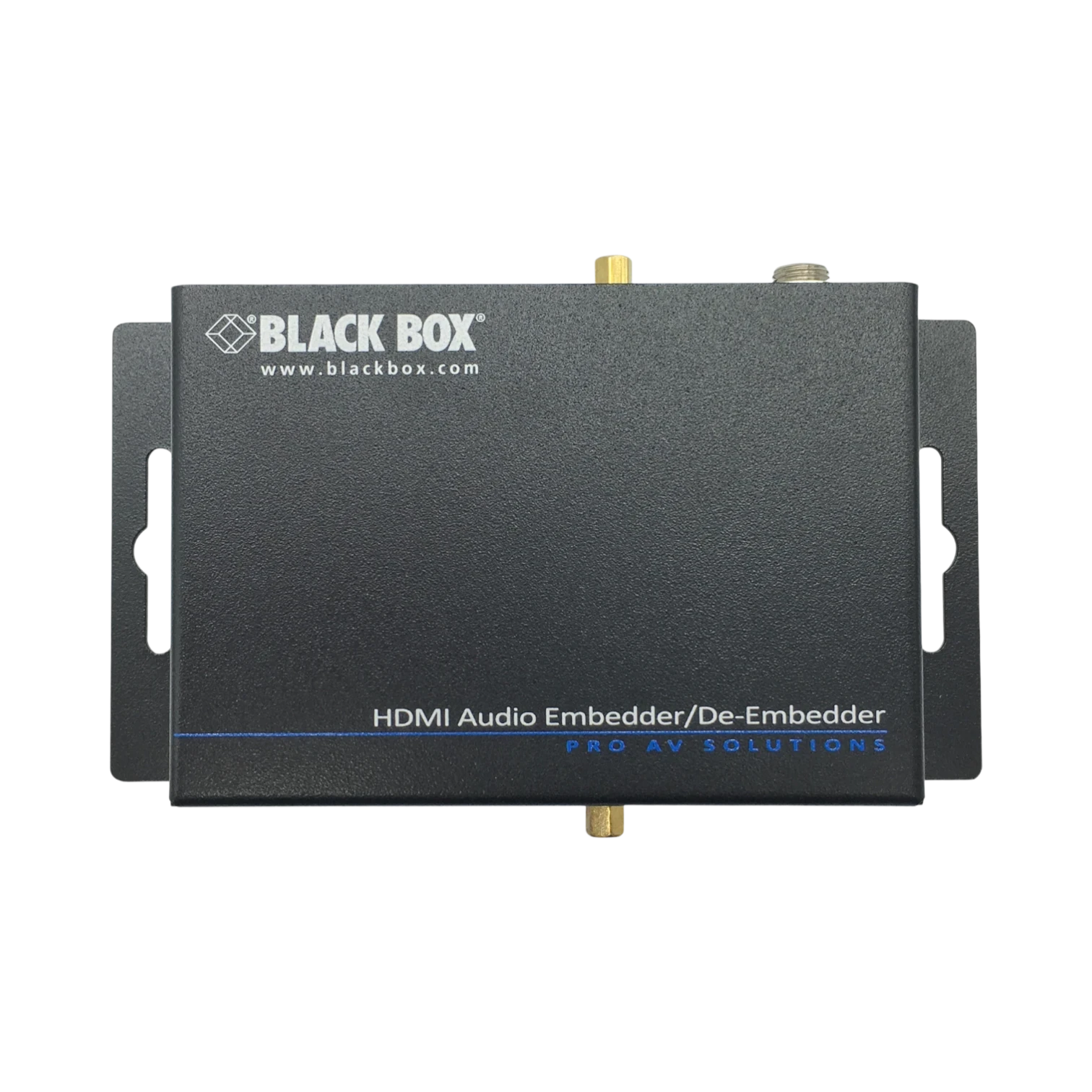

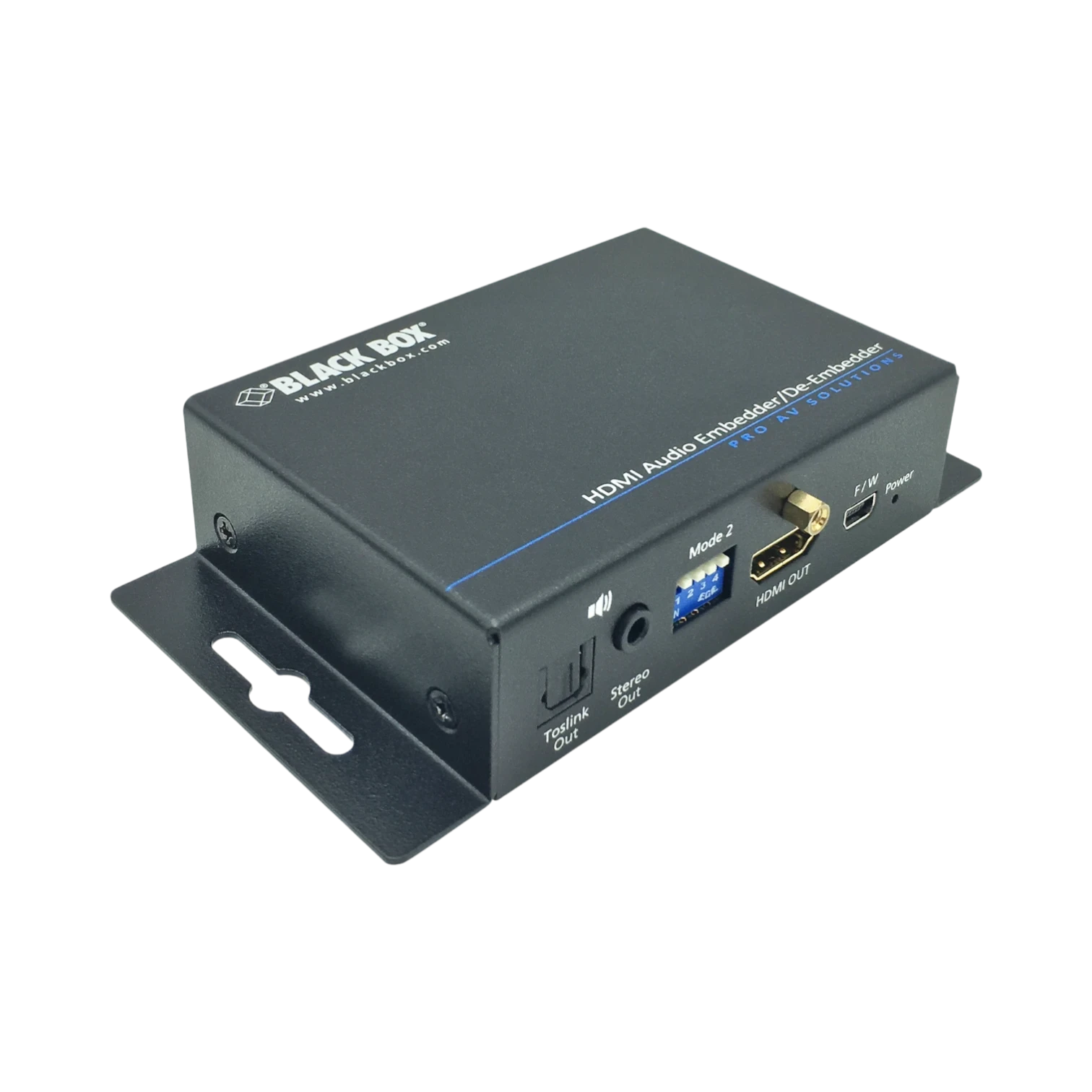

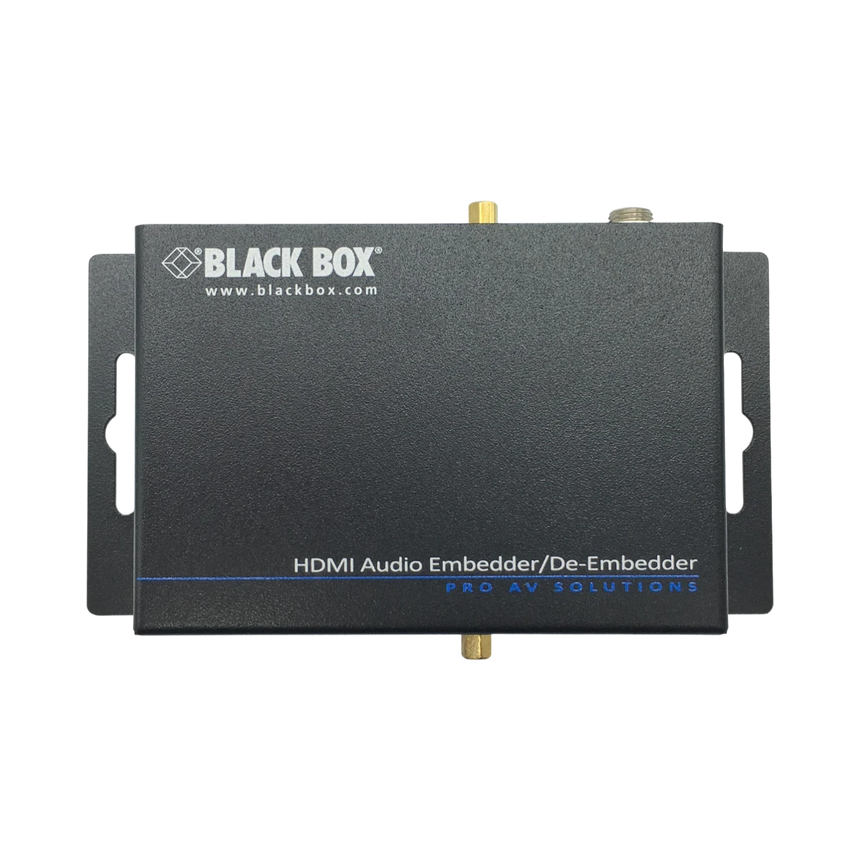

The Black Box AEMEX-HDMI-R2 is an audio embedder and de-embedder designed to give you precise control over audio signals within your HDMI setup. It supports HDMI 2.0 with resolutions up to 4K at 60 Hz in full 4:4:4 color, ensuring that video quality remains sharp and vibrant while you manage audio separately. This device allows embedding audio into HDMI or DVI-D video streams and extracting audio from HDMI sources to analog or digital outputs, making it a flexible solution for integrating various audio systems.

Key features

• Supports embedding and extracting audio through both 3.5-mm analog and TOSLINK digital connections, providing compatibility with a wide range of audio equipment.
• Enables Audio Return Channel (ARC) functionality, simplifying audio extraction from compatible TVs without the need for additional cables.
• Complies with HDCP 2.2 standards, ensuring secure playback of protected high-definition content in modern AV environments.
• Compact metal enclosure offers durability and easy integration into existing AV setups without occupying much space.
• DIP switch controls allow quick and straightforward configuration without requiring software or complex menus.

Key specs

• HDMI version: 2.0
• Maximum resolution: 4K at 60 Hz with 4:4:4 color sampling
• Audio inputs/outputs: 3.5-mm analog and TOSLINK digital
• HDCP compliance: 2.2
• Audio Return Channel (ARC): supported
• Enclosure: compact metal housing

Connectivity and compatibility

This unit supports both HDMI and DVI-D video streams, making it versatile for various video sources and displays. The inclusion of analog and digital audio ports means you can connect to traditional stereo systems or modern digital audio devices. ARC support further enhances compatibility with TVs that use this feature, reducing cable clutter and simplifying audio routing.

Installation and setup

Setup is designed to be user-friendly with DIP switch controls that let you configure the device quickly without needing software or navigating complex menus. Its compact metal enclosure fits neatly into professional AV racks or home theater cabinets, making it easy to add to your existing system without rearranging your setup.

Ideal uses and environments

This audio embedder and de-embedder is well suited for professional AV installations, home theaters, and any environment where managing audio separately from video is important. It works well for AV professionals who need reliable audio routing, as well as home users who want to connect external sound systems or extract audio from HDMI sources for better sound control.
