APC AP9559

Overview

The APC AP9559 is a rack power distribution unit designed to deliver reliable power management in data centers, server rooms, and IT environments. It occupies a standard 1U rack space and can be installed horizontally or vertically, adapting to various rack setups. With a maximum current rating of 16 amps and a load capacity of 3680 VA, it supports a wide input voltage range from 90 to 250 volts at 50/60 Hz, making it compatible with most equipment. The unit features ten IEC C13 and two IEC C19 outlets, allowing you to power multiple servers, networking devices, and storage systems efficiently from a single source.

Key features

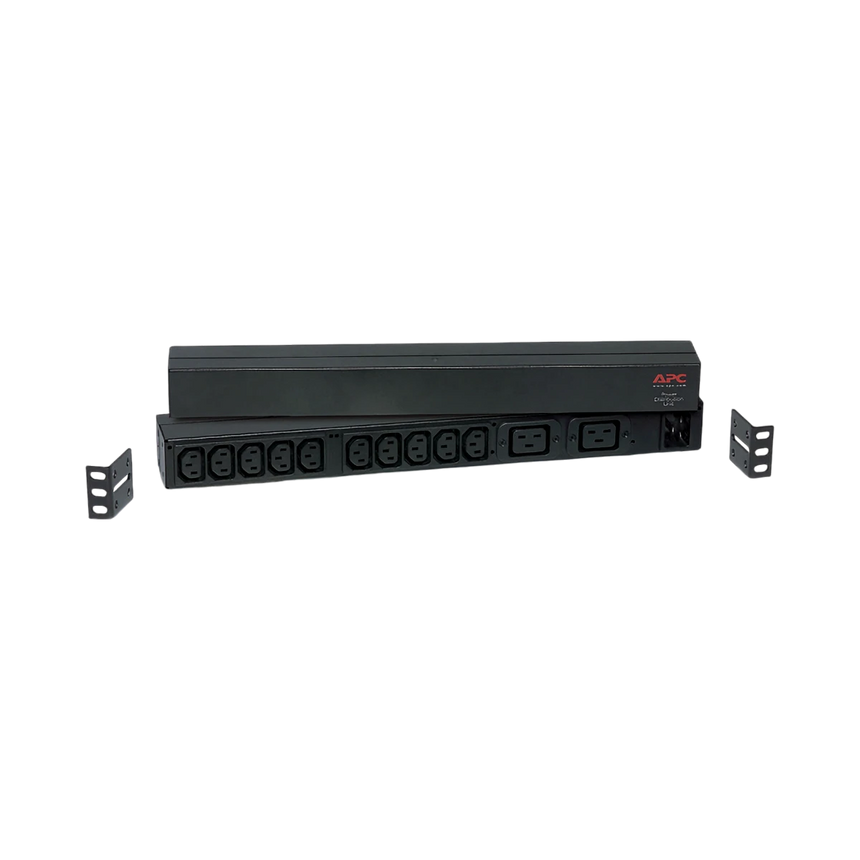

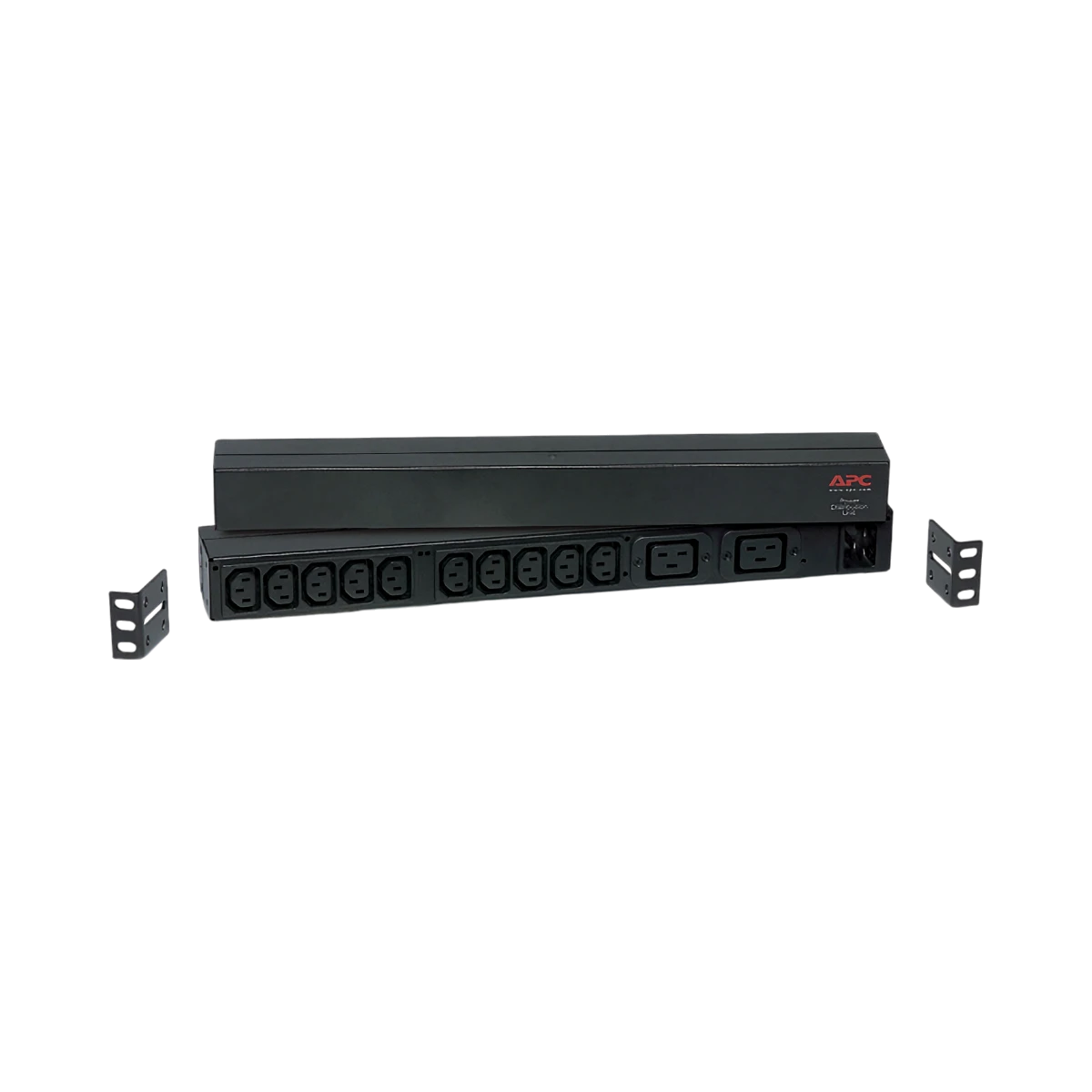

• 1U rack-mount design that fits standard racks and supports both horizontal and vertical installation for flexible setup options

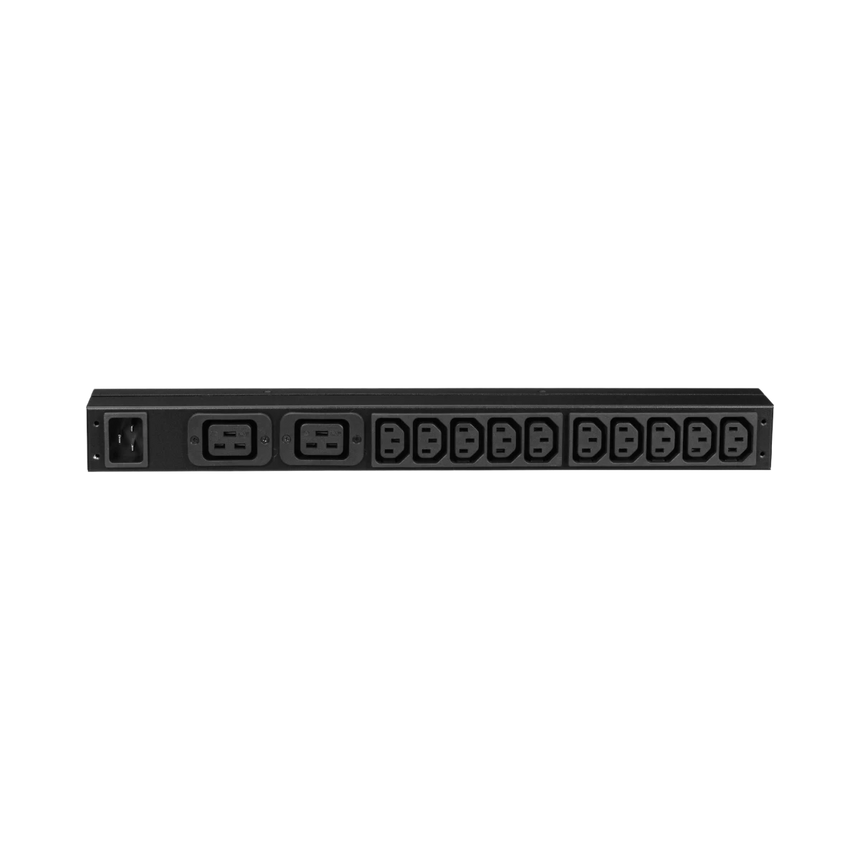

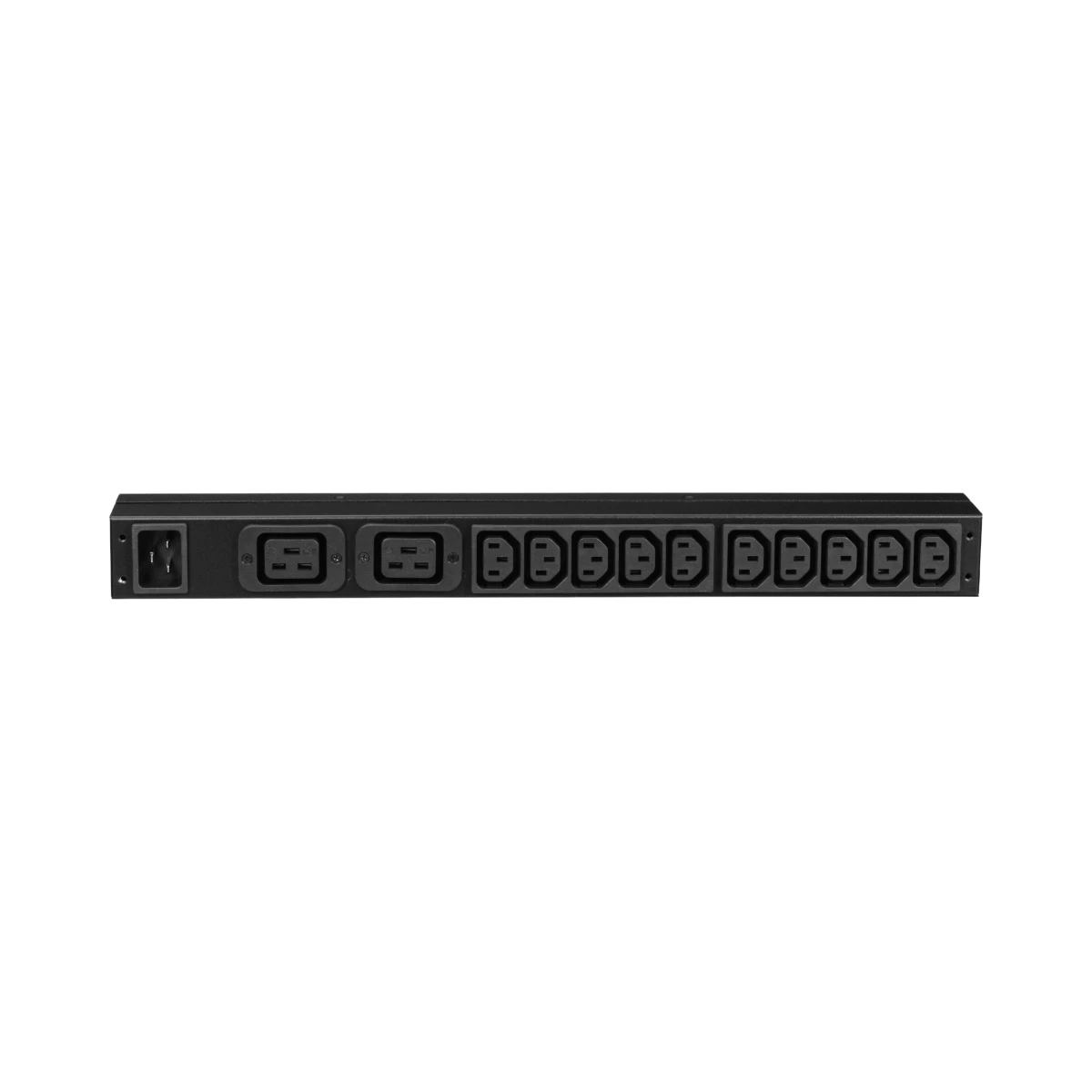

• Ten IEC C13 and two IEC C19 outlets provide versatile connections for a variety of IT equipment
• Supports up to 16 amps maximum line current, ensuring sufficient power delivery for multiple devices
• Equipped with an 8.2-foot (2.5-meter) power cord to allow flexible positioning within your rack or room
• Wide input voltage range of 90-250V at 50/60 Hz accommodates different power standards and environments
• Durable construction designed to operate reliably in temperatures from 32 to 113 degrees Fahrenheit and relative humidity up to 95 percent
• Certified by UL, CE, and VDE, meeting recognized safety and quality standards for peace of mind
• Lightweight design that simplifies installation without compromising durability

Key specs

• Form factor: 1U rack-mount
• Maximum current: 16 amps
• Load capacity: 3680 VA
• Input voltage range: 90-250 V at 50/60 Hz
• Outlets: 10 x IEC C13, 2 x IEC C19
• Power cord length: 8.2 feet (2.5 meters)
• Operating temperature range: 32 to 113 °F (0 to 45 °C)
• Relative humidity: up to 95% non-condensing
• Certifications: UL, CE, VDE

Connectivity and compatibility

This power distribution unit is designed to support a wide range of IT equipment commonly found in data centers and server rooms. The combination of IEC C13 and C19 outlets covers most server and networking device power connectors, making it a flexible choice for mixed equipment setups. Its wide input voltage range ensures compatibility with different power standards worldwide, which is especially useful for global IT operations or environments with variable power sources.

Installation and setup

The APC AP9559 fits into a standard 1U rack space and can be mounted either horizontally or vertically, allowing it to adapt to your rack layout and space constraints. The included 8.2-foot power cord provides enough length to reach power sources without restricting rack placement. Its lightweight design makes installation straightforward, while the durable build ensures it withstands typical data center conditions without issue.

Ideal uses and environments

This PDU is well suited to data centers, server rooms, and IT closets where reliable power distribution is critical. It works well in environments that require powering multiple servers, switches, or storage devices from a single unit. The unit’s certifications and operating range make it a strong choice for professional IT setups that demand consistent performance and safety compliance. IT professionals looking for a straightforward, dependable power distribution solution will find this model meets their needs effectively.
