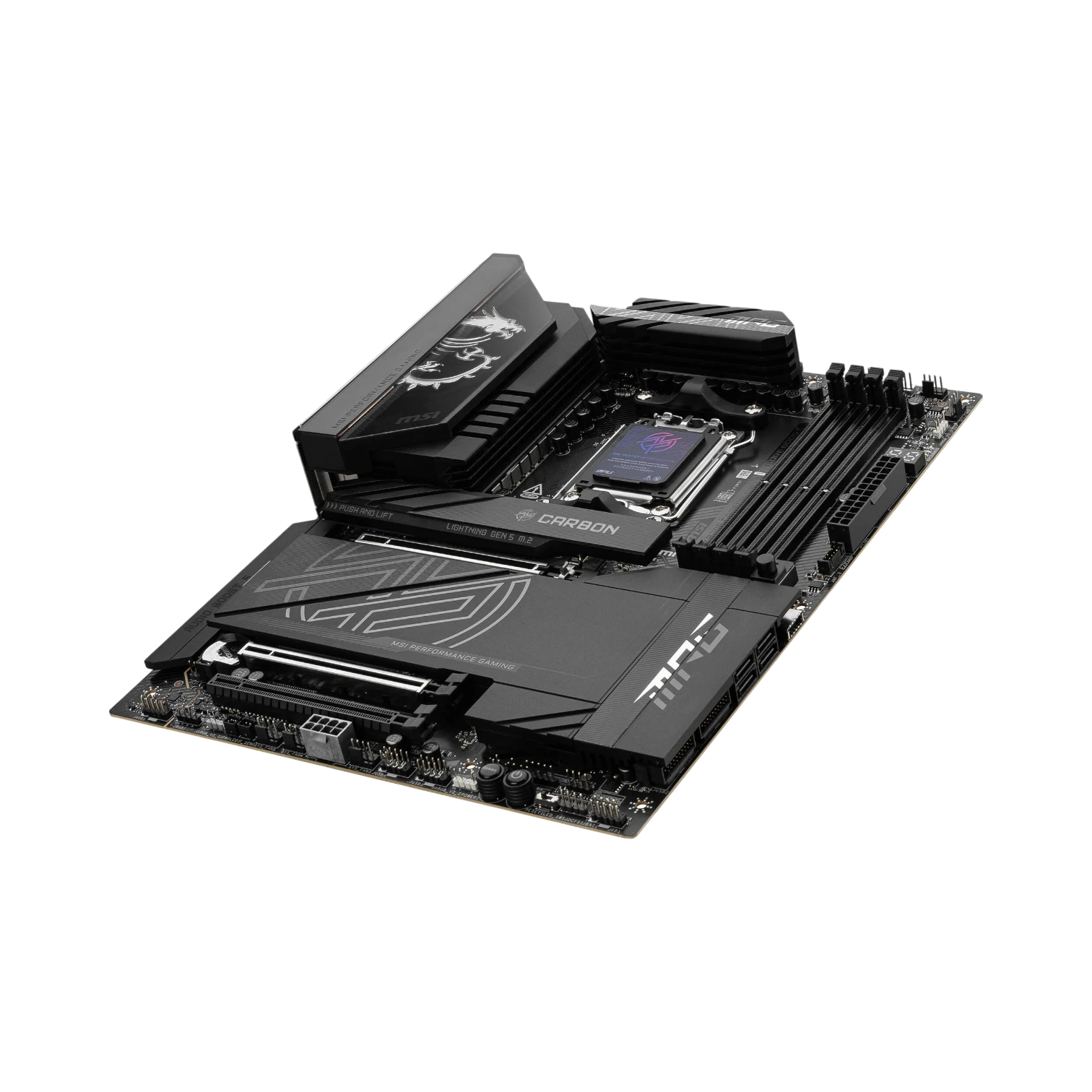

MSI X870ECARBONWIFI7

Overview

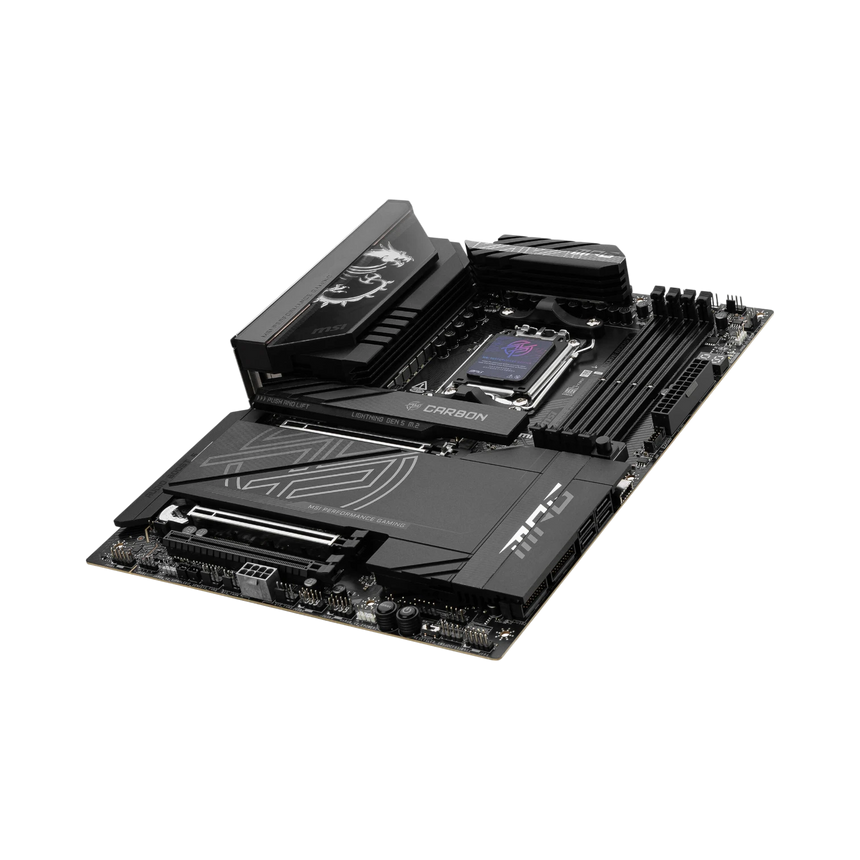

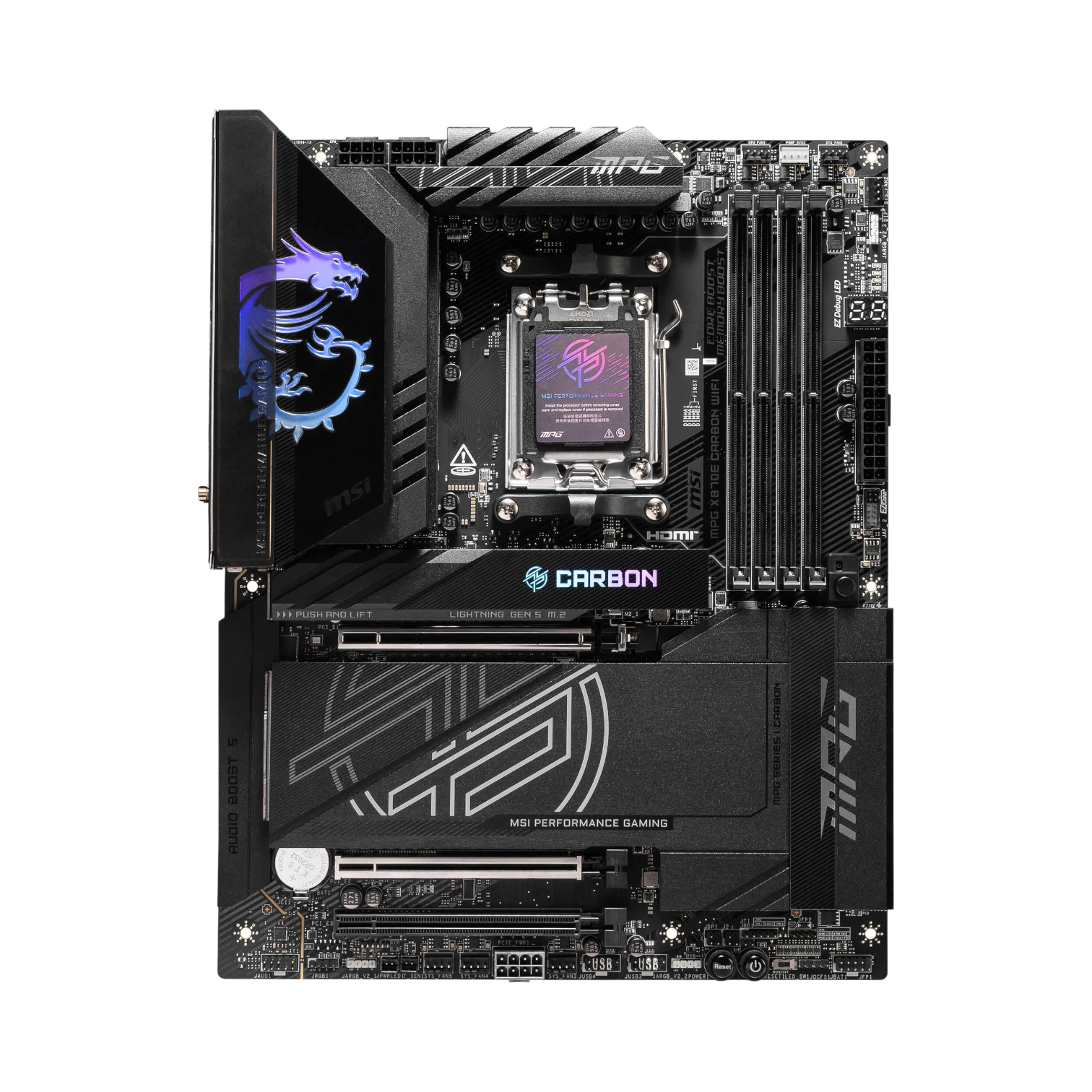

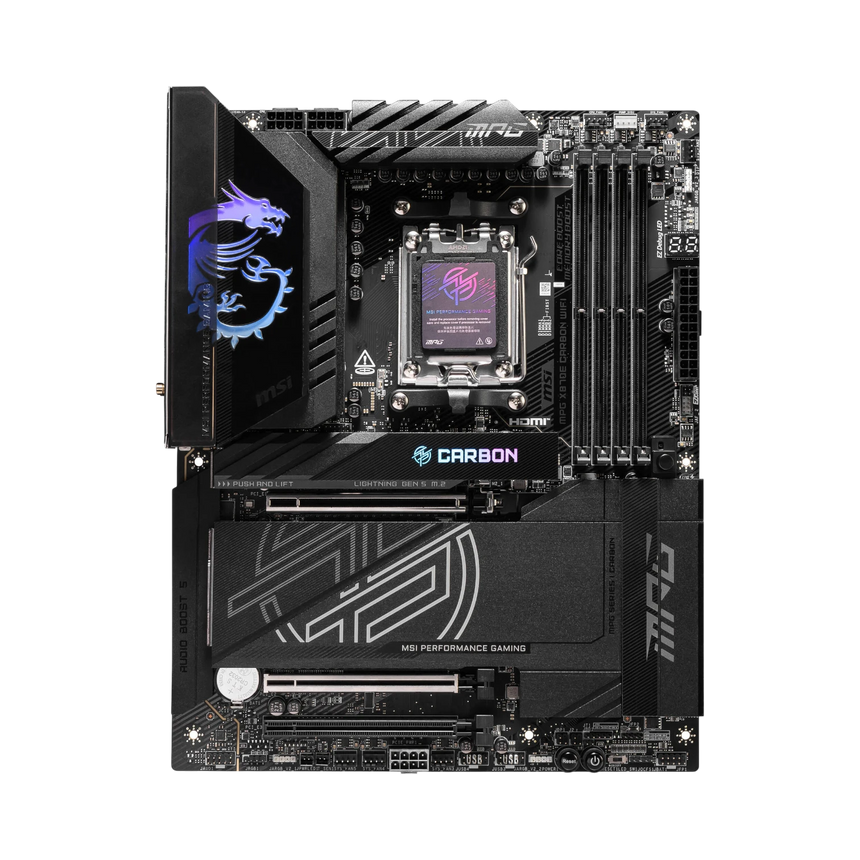

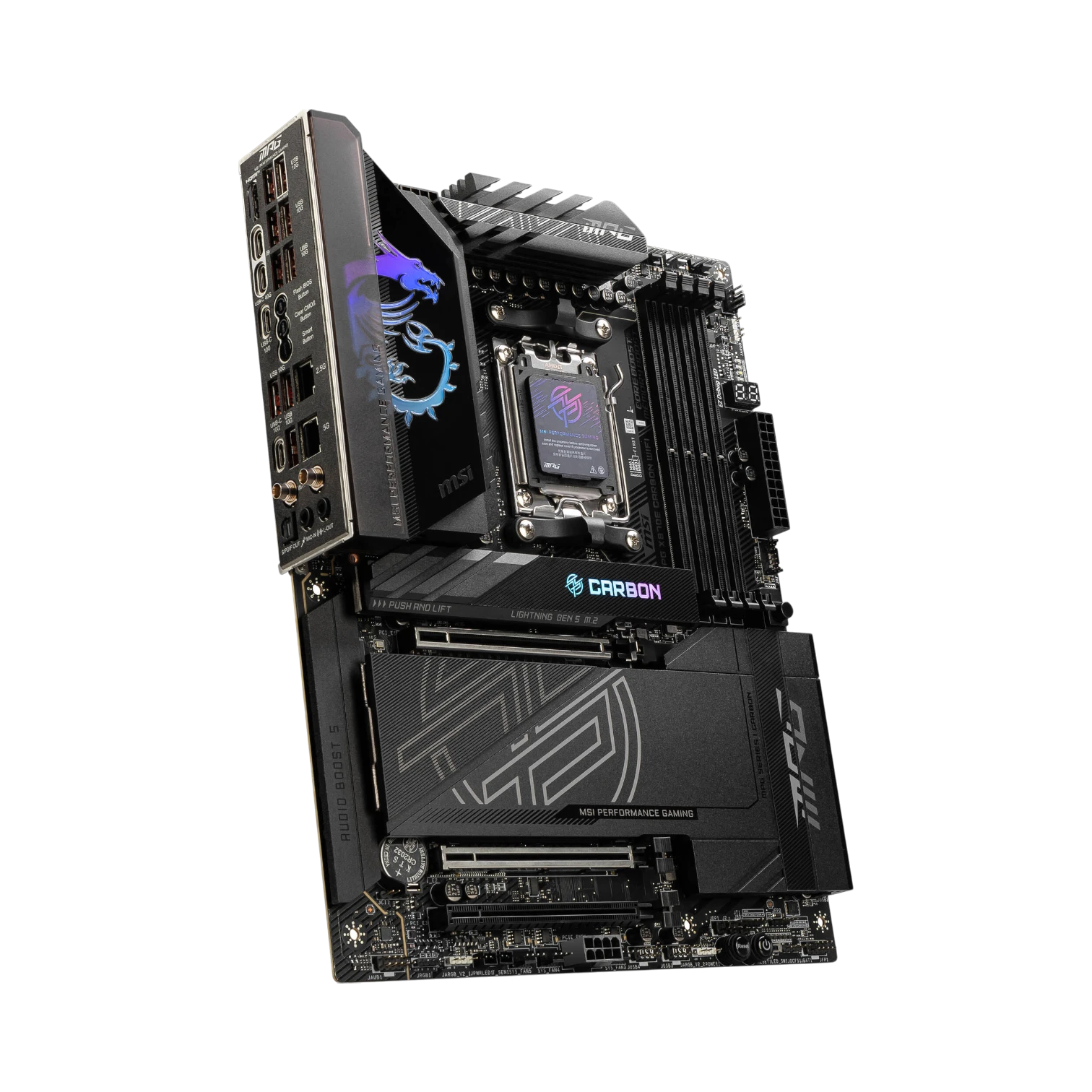

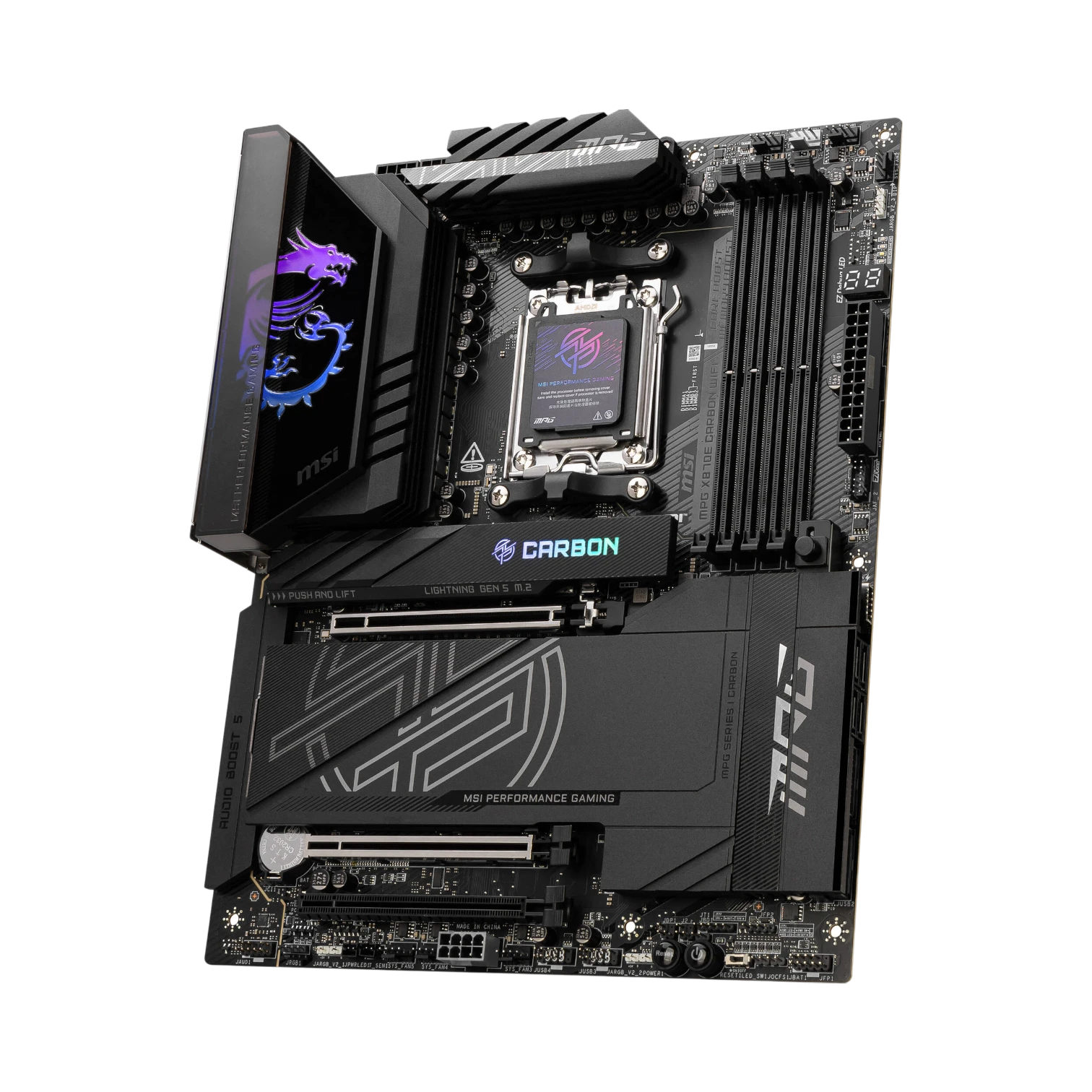

The MSI X870ECARBONWIFI7 is an ATX motherboard built around the AMD X870E chipset, designed for AM5 socket processors from the Ryzen 7000, 8000, and 9000 series. It supports up to 256 GB of DDR5 memory with overclocking potential reaching 8400 MT/s, making it suitable for high-performance gaming, content creation, and demanding workstation tasks. With multiple PCIe 5.0 and 4.0 slots, plus advanced connectivity options, this motherboard provides a versatile and future-ready platform for building a powerful PC.

Key features

• Supports the latest Ryzen processors on the AM5 socket, ensuring compatibility with current and upcoming CPU generations.
• Four DDR5 DIMM slots allow for up to 256 GB of high-speed memory, with overclocking capabilities that enhance system responsiveness and multitasking.
• Multiple M.2 slots with PCIe 5.0 and 4.0 support provide flexible options for ultra-fast NVMe storage, improving load times and data transfer speeds.
• Expansion slots include two PCIe 5.0 x16 and one PCIe 4.0 x16, enabling multi-GPU setups or additional high-bandwidth cards for graphics, networking, or storage.

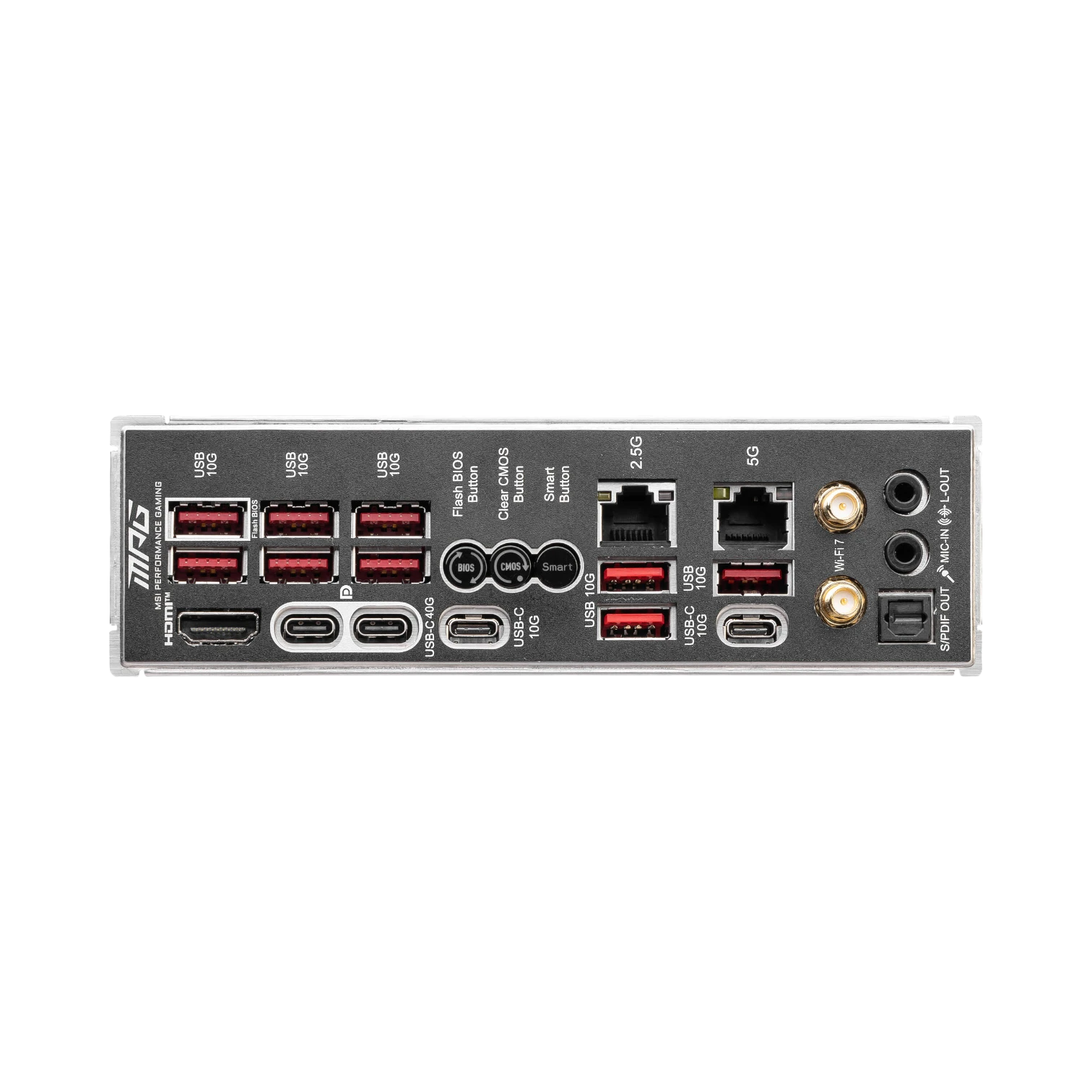

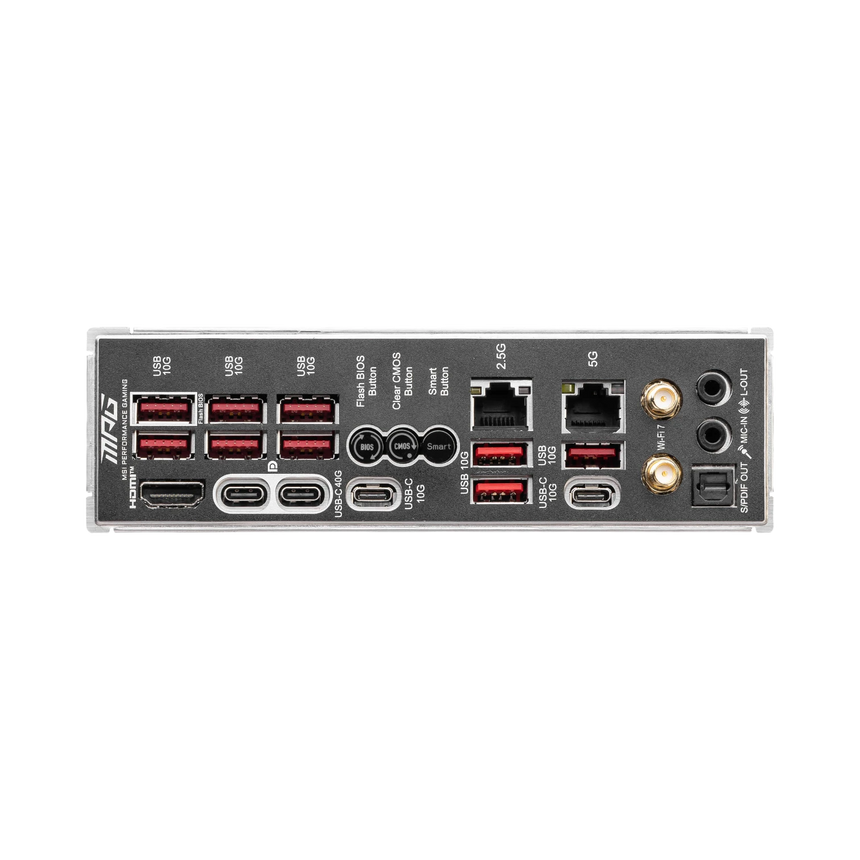

• Rear I/O panel offers extensive connectivity with two USB4 Type-C ports, nine USB-A ports, two USB-C ports, and HDMI 2.1 for high-resolution video output.
• Integrated Wi-Fi 7 and Bluetooth 5.4 deliver fast and reliable wireless connections without the need for extra adapters.
• Dual LAN ports support 5 GbE and 2.5 GbE speeds, providing high-speed wired networking options for gaming or professional environments.
• EZ M.2 Clip II and PCIe release button simplify the installation and upgrading of storage drives and expansion cards, reducing setup time and effort.

Key specs

• Chipset: AMD X870E
• Socket: AM5
• Memory: Up to 256 GB DDR5 across 4 DIMM slots
• Memory overclocking: Up to 8400 MT/s (depending on CPU)
• M.2 slots: 2 x PCIe 5.0, 2 x PCIe 4.0
• SATA ports: 4 x SATA III
• PCIe slots: 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• USB ports: 2 x USB4 Type-C, 9 x USB-A, 2 x USB-C (rear I/O)
• Video output: HDMI 2.1
• Networking: Dual LAN (5 GbE and 2.5 GbE), Wi-Fi 7, Bluetooth 5.4

Connectivity and compatibility

This motherboard offers a comprehensive set of ports and wireless options to connect a wide range of peripherals and devices. The USB4 Type-C ports support high-speed data transfer and video output, while the numerous USB-A and USB-C ports accommodate legacy and modern accessories. HDMI 2.1 ensures compatibility with the latest displays and monitors. Dual LAN ports provide flexible wired networking choices, and integrated Wi-Fi 7 and Bluetooth 5.4 support fast wireless connections for peripherals and internet access.

Installation and setup

The MSI X870ECARBONWIFI7 includes user-friendly features like the EZ M.2 Clip II and PCIe release button, which make installing or upgrading storage drives and expansion cards straightforward and less time-consuming. These practical design elements reduce the risk of damage during installation and help maintain a clean and organized build. The ATX form factor fits standard cases, making it compatible with a wide range of PC builds.

Ideal uses and environments

This motherboard is well suited to enthusiasts and professionals who require a high-performance platform for gaming, content creation, or workstation applications. Its support for the latest Ryzen processors and DDR5 memory, combined with advanced connectivity and expansion options, makes it a strong choice for users who want a future-proof system capable of handling demanding workloads and fast data transfers. It fits naturally in setups where speed, reliability, and flexibility are priorities.
