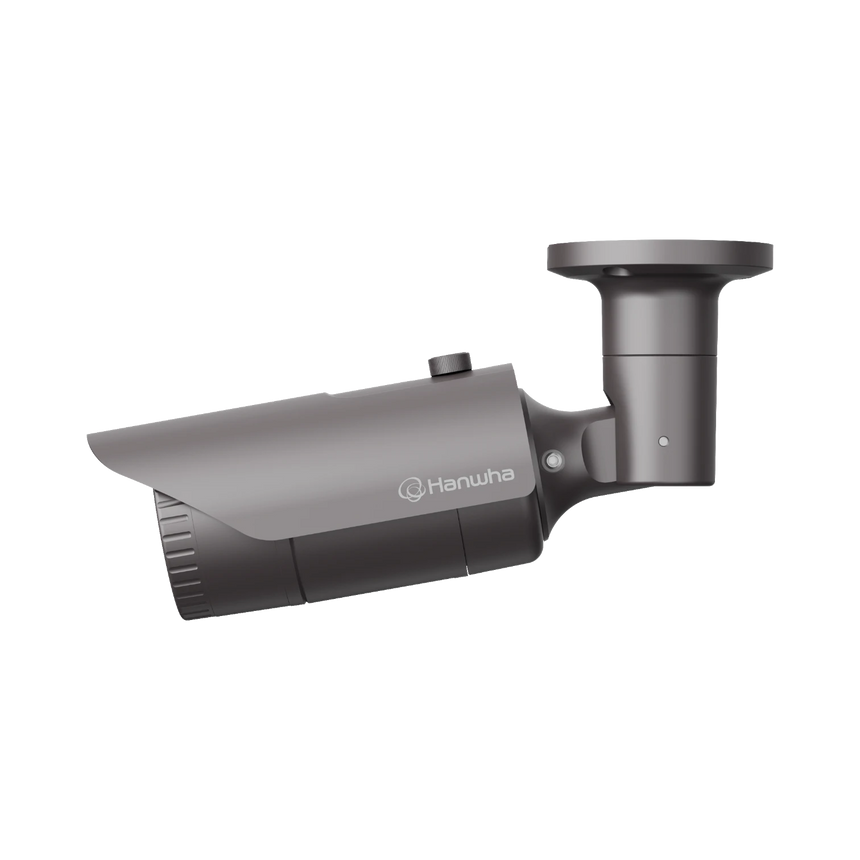

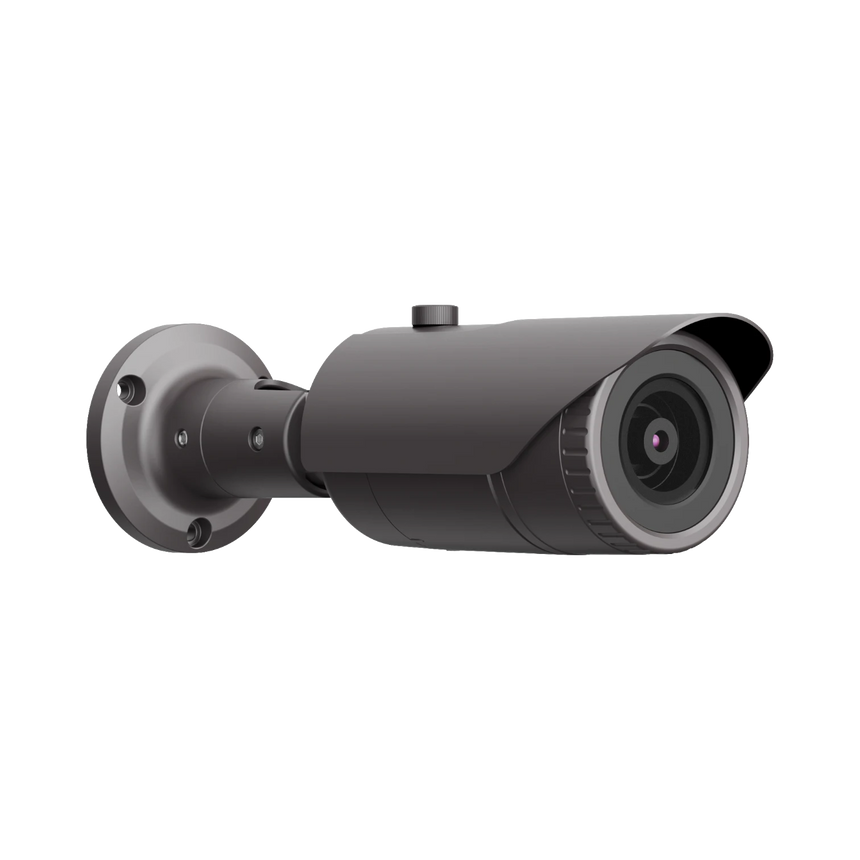

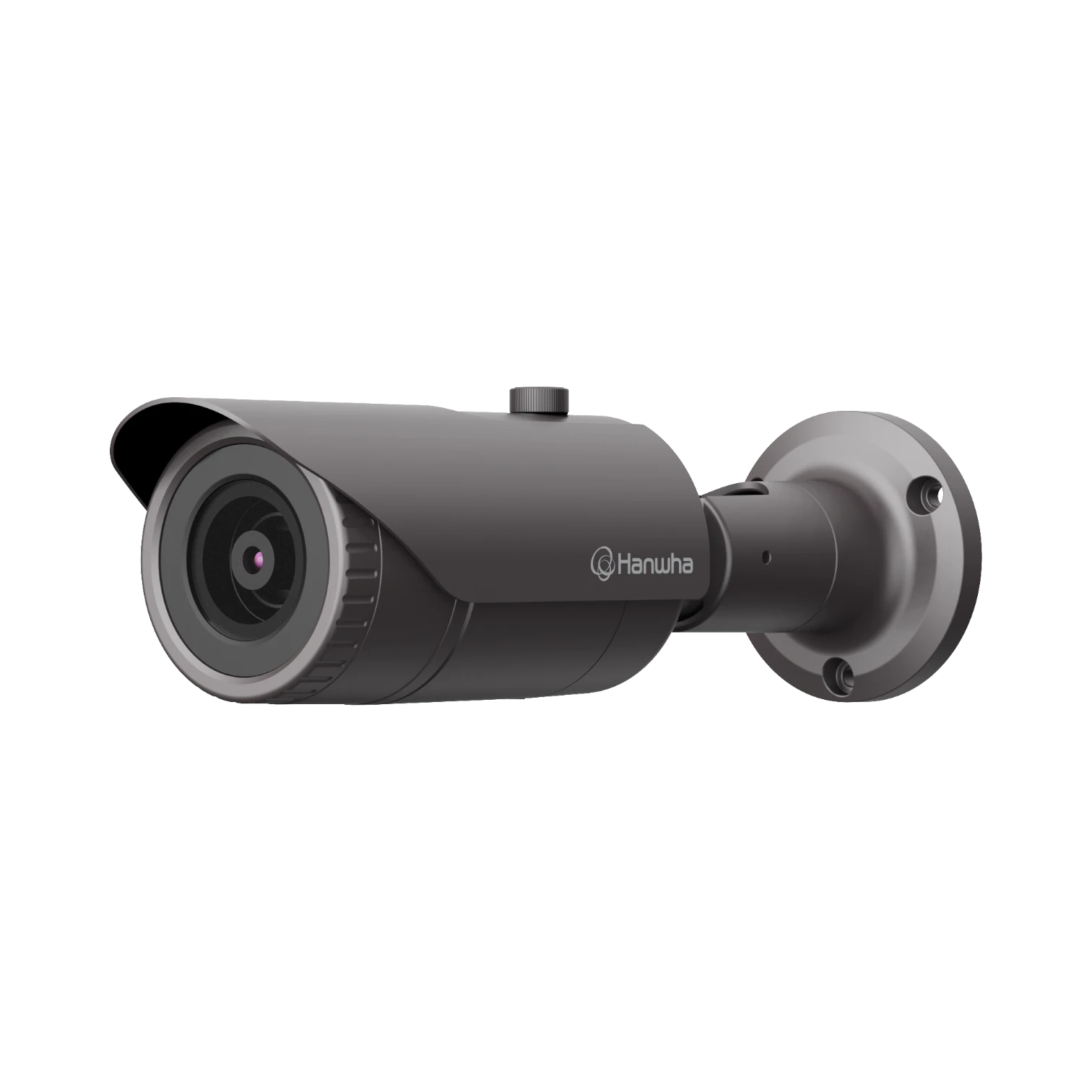

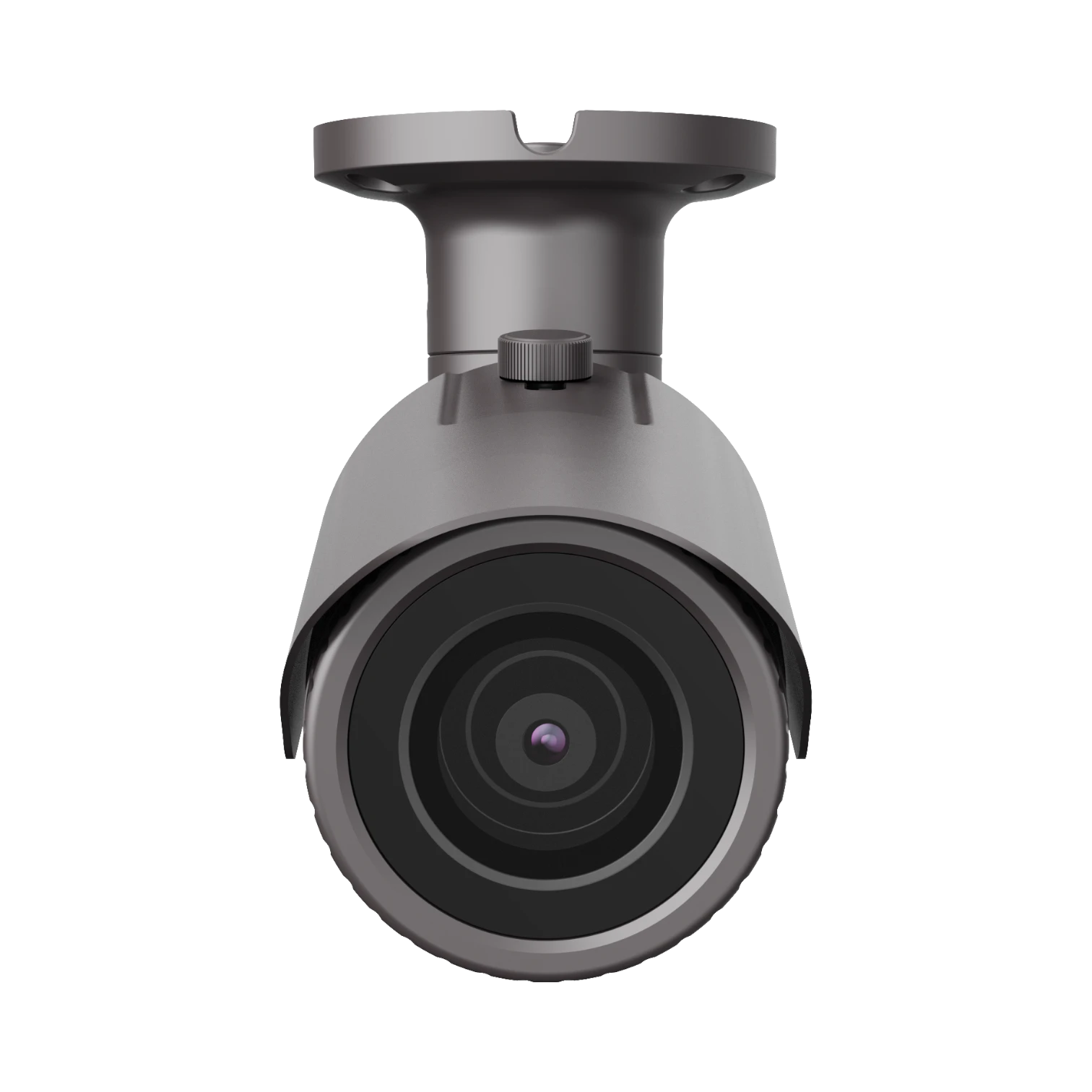

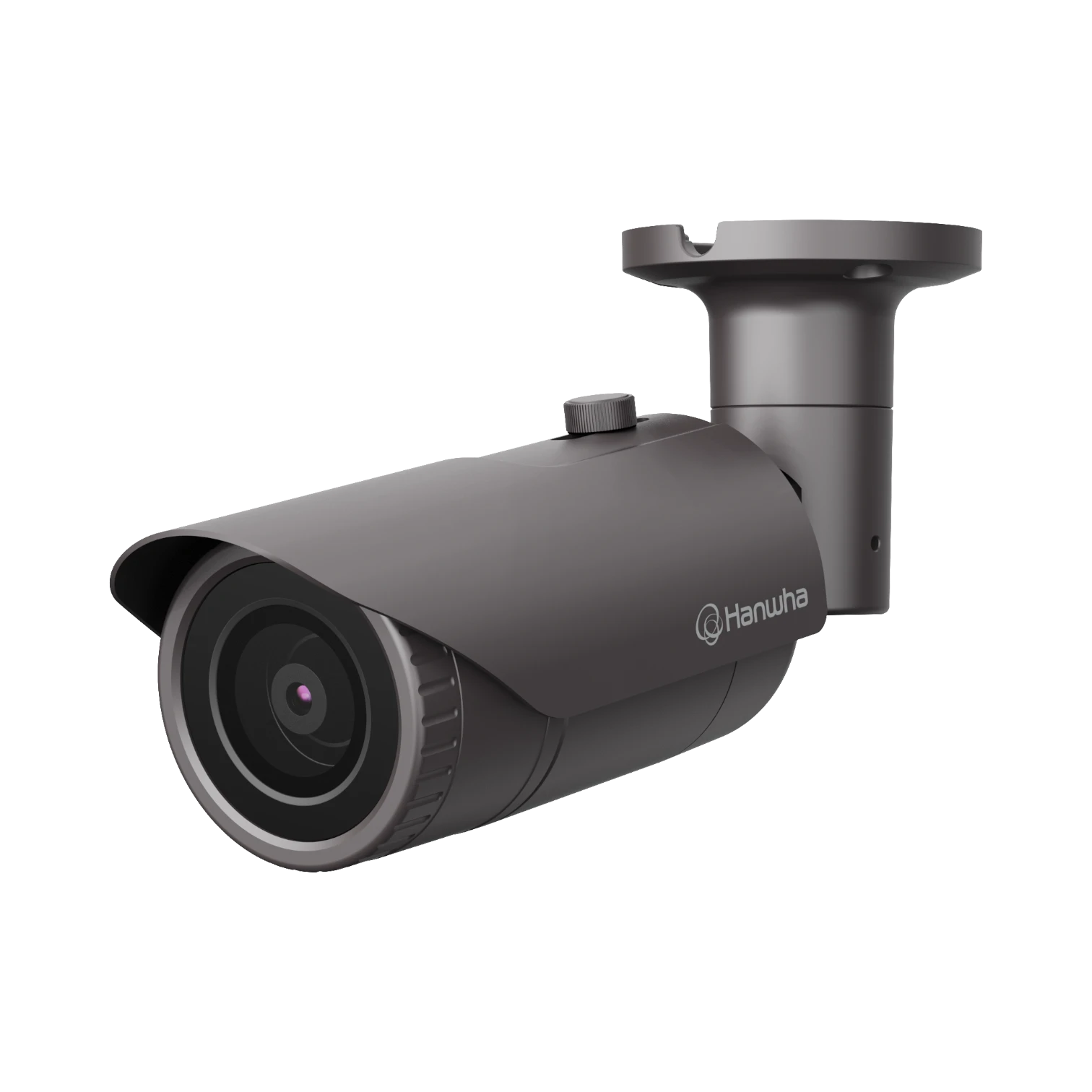

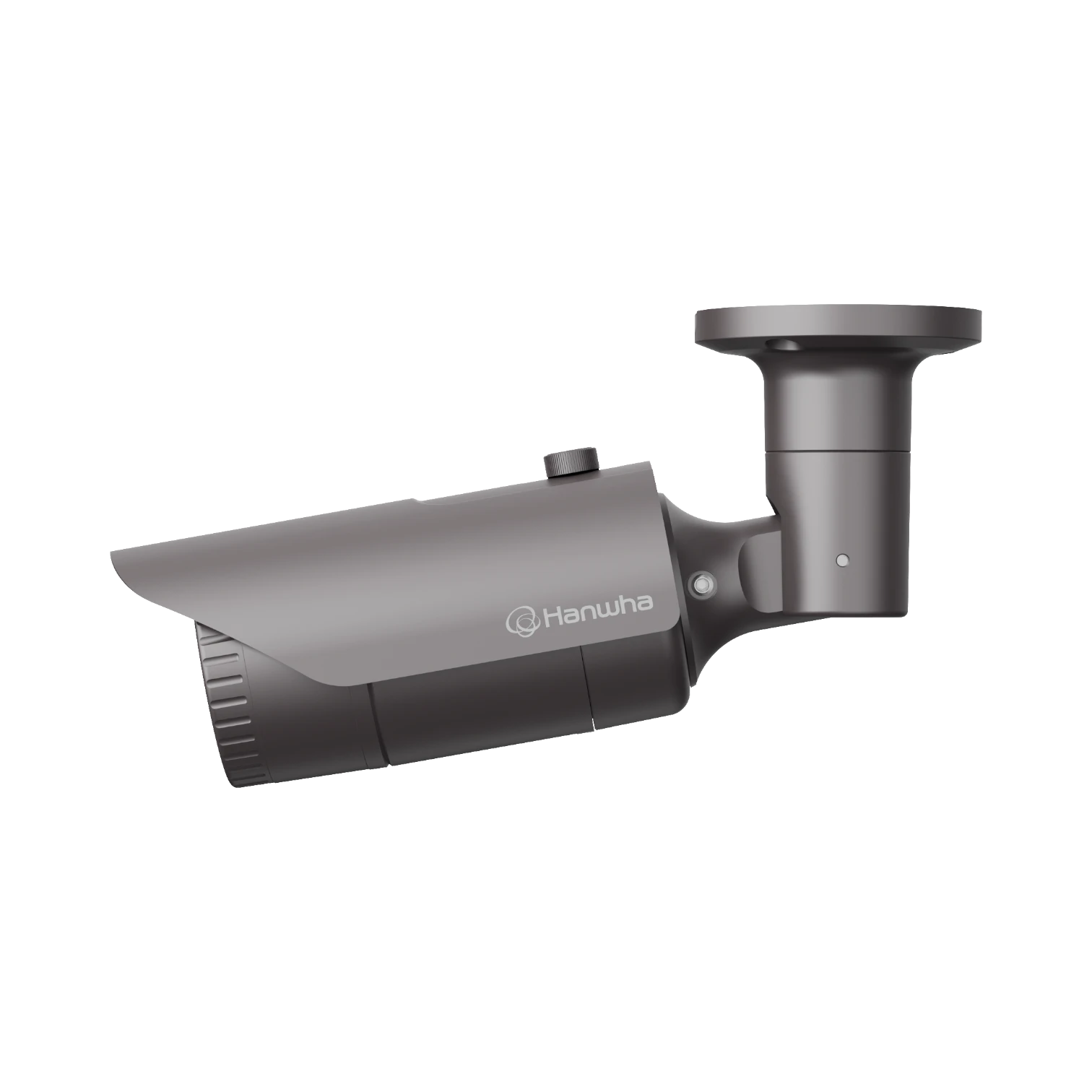

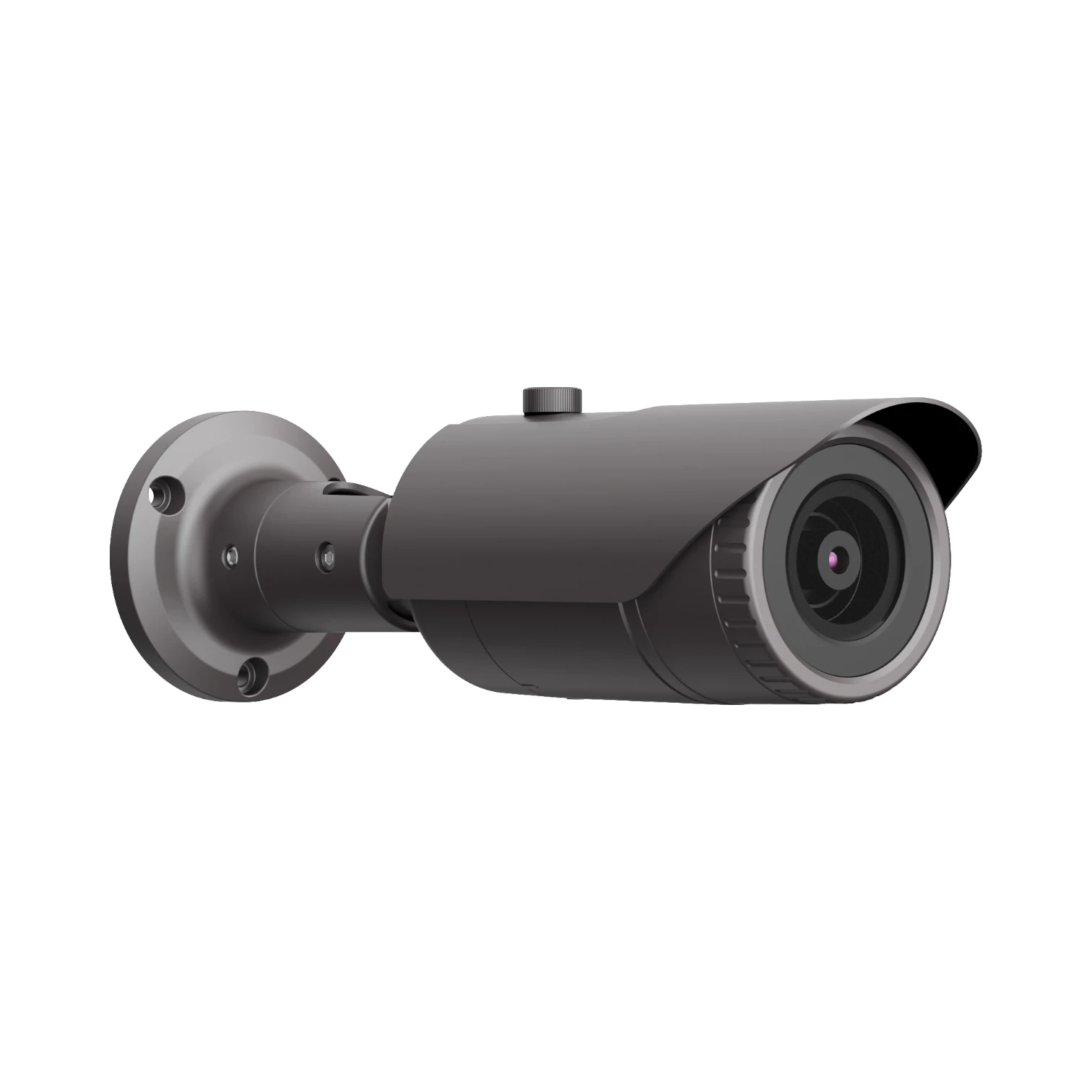

Hanwha Vision QNO-8020R

Overview

The Hanwha Vision QNO-8020R is an outdoor network bullet camera designed to provide high-resolution surveillance with 5MP video at 2592 by 1944 pixels and 30 frames per second. Its 4mm fixed lens offers an 80-degree horizontal field of view, making it well suited for monitoring entrances, parking areas, and building perimeters. The camera automatically switches to night vision with infrared LEDs, allowing clear visibility up to 82 feet in complete darkness. Built to endure harsh weather and physical impact, it features IP66 and IK10 ratings for reliable outdoor use.

Key features

• High-resolution 5MP video captures detailed images to help identify faces and objects clearly.
• Infrared night vision extends surveillance capabilities to low-light and no-light conditions up to 82 feet.
• Durable metal housing with IP66 weatherproof and IK10 vandal-resistant ratings ensures continuous operation in tough environments.
• Power over Ethernet simplifies installation by combining power and data transmission into a single cable.
• Supports local storage with microSD cards up to 128GB, providing backup recording options without network dependency.
• Built-in analytics detect motion, tampering, and line crossing to reduce false alarms and focus on relevant events.
• Compatible with ONVIF Profile G, S, and T standards for seamless integration with various video management systems.
• Triple streaming supports efficient video compression formats including H.265, H.264, and MJPEG to optimize bandwidth and storage.
• Wide operating temperature range from -22 to 131 degrees Fahrenheit allows use in diverse climates and outdoor conditions.

Key specs

• Resolution: 5MP (2592 x 1944 pixels)
• Frame rate: 30 frames per second
• Lens: 4mm fixed lens with 80-degree horizontal field of view
• Night vision range: up to 82 feet with infrared LEDs
• Weather resistance: IP66 rating
• Impact resistance: IK10 rating
• Storage: Supports microSD cards up to 128GB
• Video compression: H.265, H.264, MJPEG
• Network standards: ONVIF Profile G, S, T
• Operating temperature: -22 to 131 °F (-30 to 55 °C)
• Power: Power over Ethernet (PoE)

Connectivity and compatibility

This camera integrates easily into existing security setups thanks to its support for ONVIF standards, ensuring compatibility with a wide range of network video recorders and management software. The Power over Ethernet feature reduces cable clutter and simplifies installation by delivering both power and data through a single Ethernet cable. Its triple streaming capability allows simultaneous video streams in different compression formats, optimizing network bandwidth and storage based on your system’s needs.

Ideal uses and environments

The QNO-8020R is a strong choice for businesses, residential properties, and public spaces requiring reliable outdoor surveillance. Its robust build and wide temperature tolerance make it suitable for locations exposed to harsh weather or potential vandalism. Whether monitoring parking lots, building entrances, or perimeter fences, this camera provides clear images day and night, helping security personnel respond quickly to incidents.
