JBL CSA1300Z

Overview

The JBL CSA1300Z is a single-channel commercial amplifier delivering 300 watts of power, designed to provide reliable sound reinforcement in professional audio environments. It supports both low impedance speakers and distributed 70V or 100V speaker systems, making it adaptable for various commercial and industrial audio setups. Its compact design and efficient Crown DriveCore technology ensure high-quality amplification while remaining easy to install and operate.

Key features

• DriveCore technology delivers efficient amplification with reduced heat and power consumption
• Built-in output transformer allows seamless use with 70V and 100V distributed speaker systems
• Rack-mountable design fits into standard 2U equipment cabinets for professional installations
• Remote volume control capability via RJ45 connector and optional CSR-V module for convenient sound adjustments
• Independent bass and treble controls enable precise audio tuning to match room acoustics and content
• RS232 interface supports integration with centralized control systems for volume, mute, and standby functions

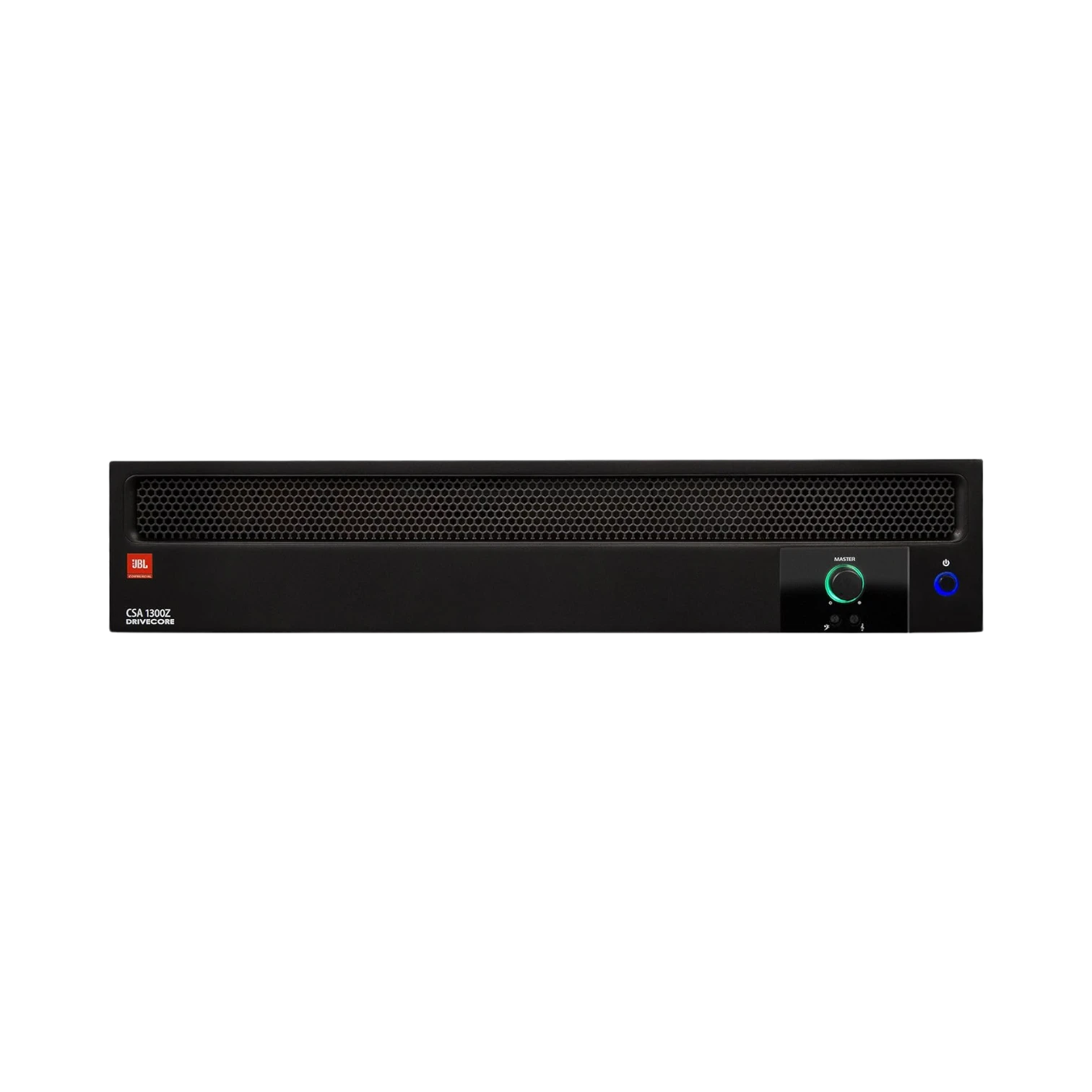

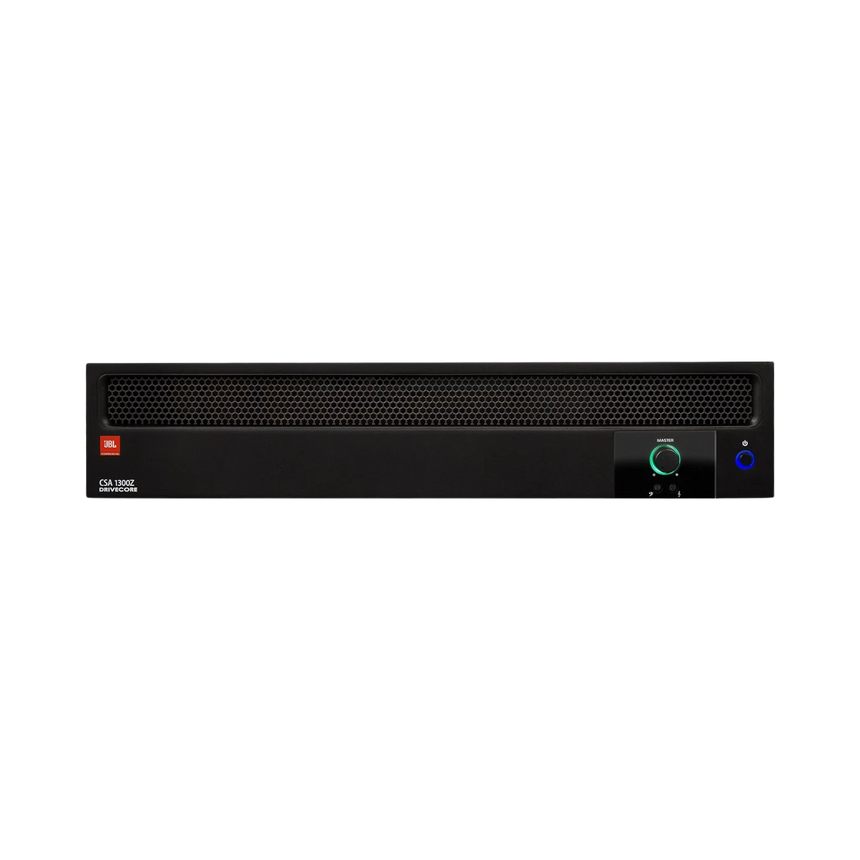

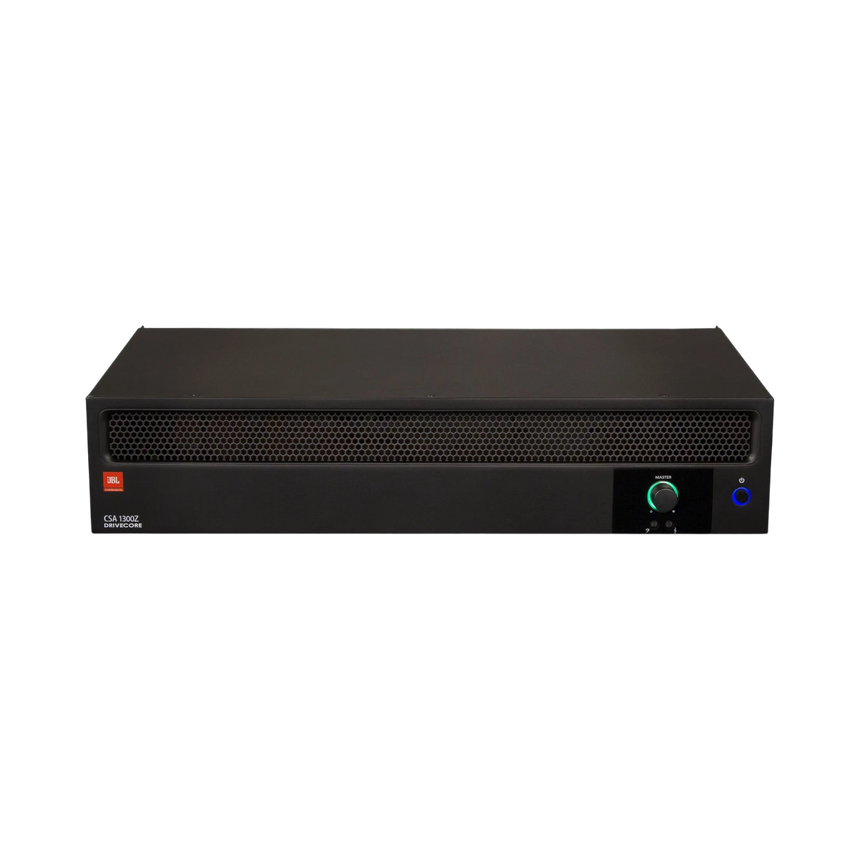

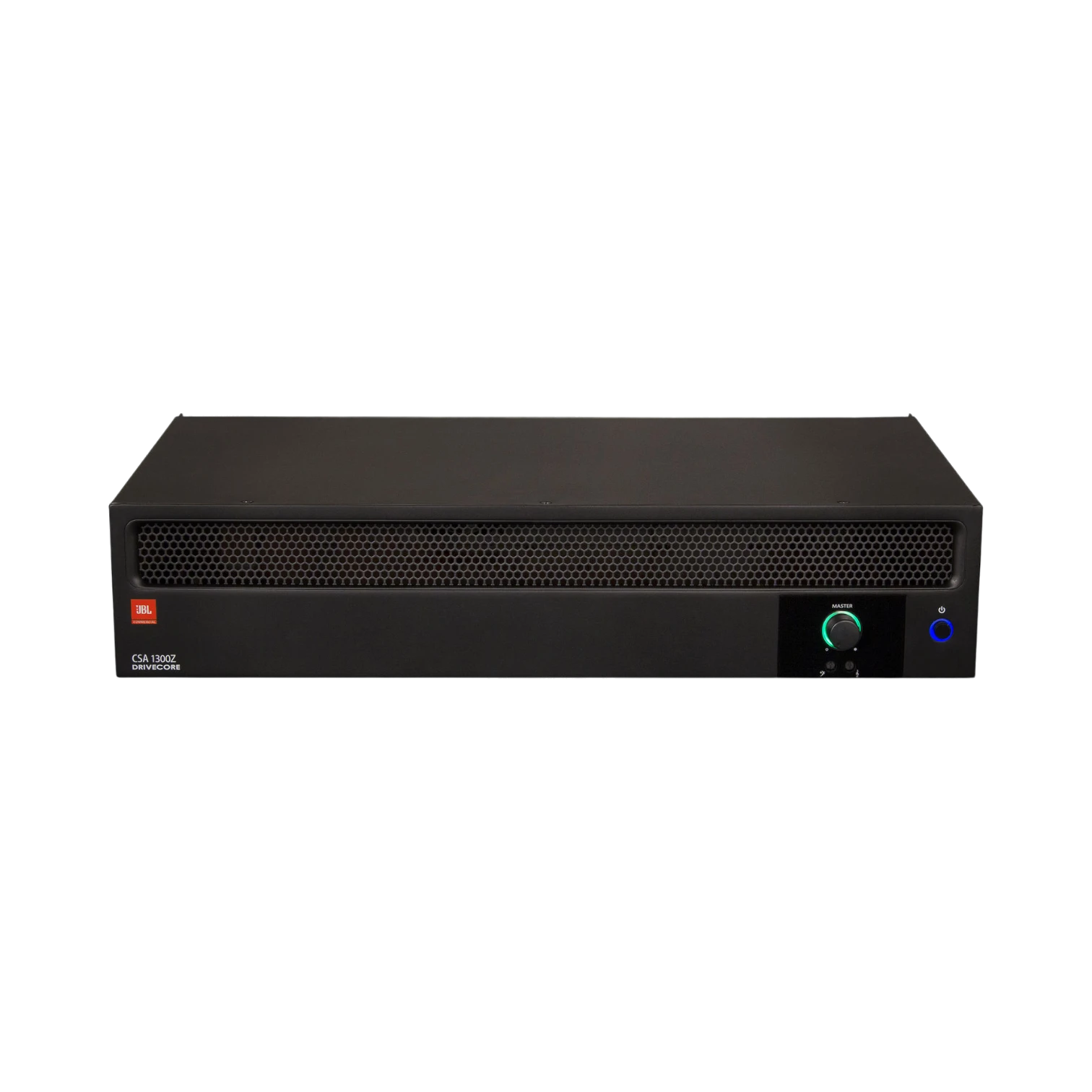

• Illuminated front panel interface improves usability in low-light environments
• Energy-saving Sleep Mode disable feature helps reduce power consumption when the amplifier is not in use

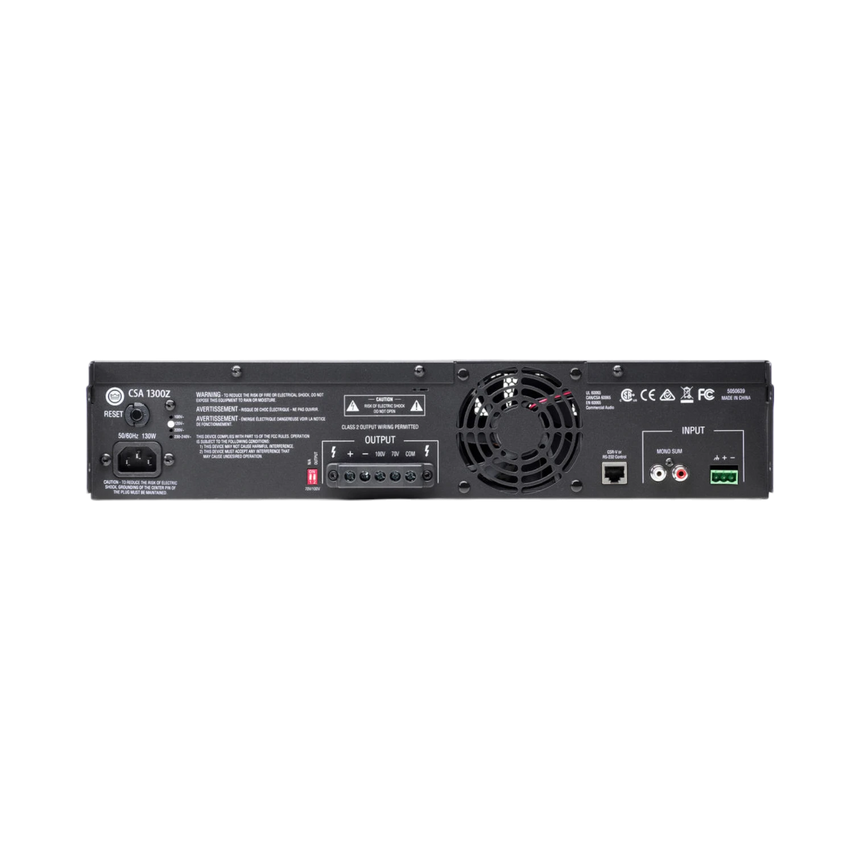

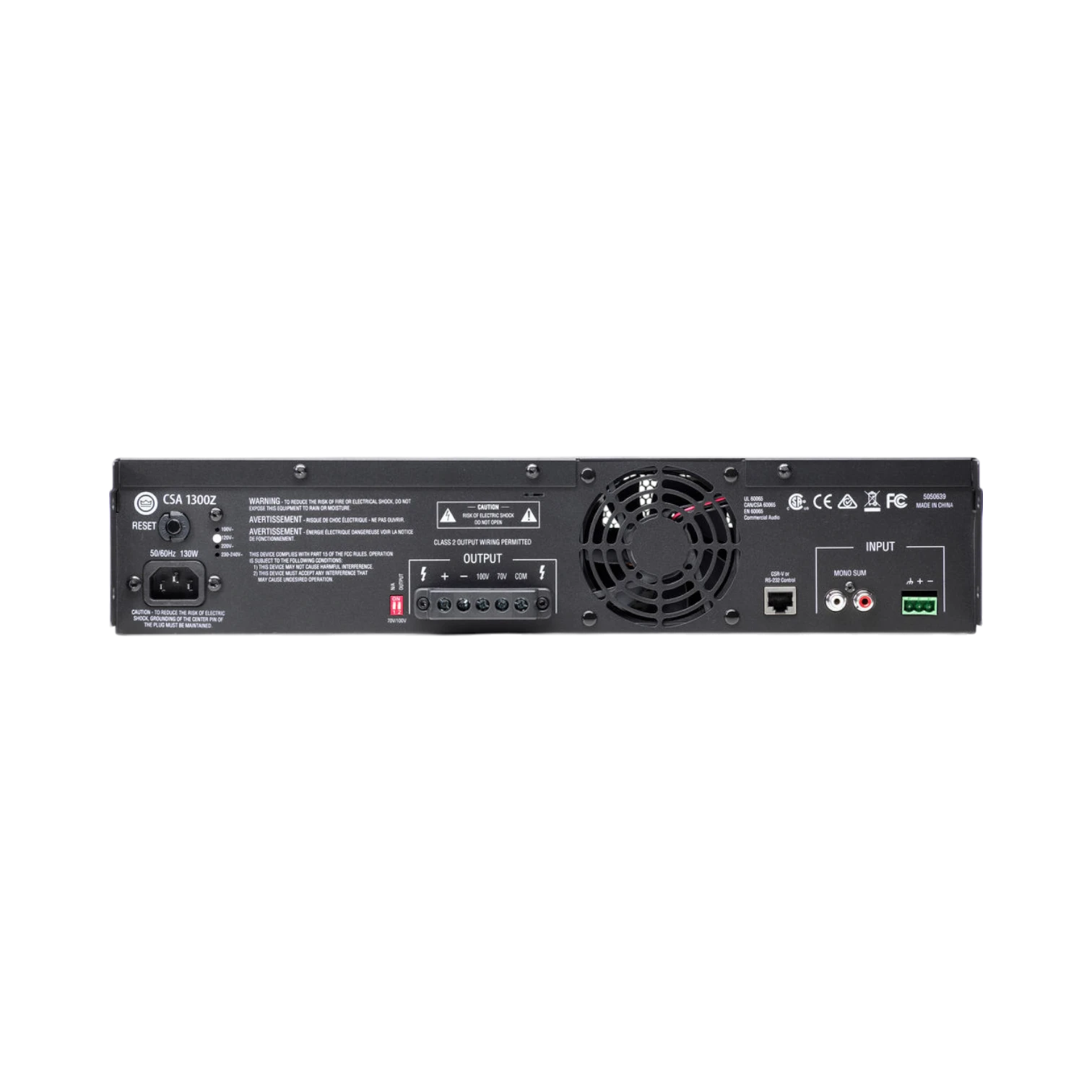

• Euroblock input connectors and barrier strip outputs simplify wiring and system integration

Key specs

• Output power: 300 watts, single channel
• Speaker compatibility: low impedance, 70V, and 100V distributed systems
• Rack units: 2U height for standard rack mounting
• Input connectors: Euroblock
• Output connectors: barrier strip
• Control interface: RS232 for volume, mute, and standby
• Remote volume control: RJ45 connector with optional CSR-V module
• Power efficiency: includes Sleep Mode disable function

Connectivity and compatibility

This amplifier integrates smoothly into existing commercial audio systems thanks to its versatile input and output options. The Euroblock connectors provide secure and straightforward wiring, while the barrier strip outputs accommodate various speaker configurations. The RS232 interface allows it to connect with control systems for centralized management, and the remote volume control option adds flexibility for adjusting sound levels without direct access to the unit.

Installation and setup

The CSA1300Z’s compact 2U rack-mount design makes it easy to install in standard equipment cabinets, saving space in professional audio racks. Its built-in output transformer eliminates the need for external transformers when using distributed speaker systems, simplifying installation. Independent bass and treble controls on the front panel allow quick audio adjustments during setup or live operation, ensuring the sound matches the environment perfectly.

Ideal uses and environments

This amplifier is well suited to commercial venues such as retail stores, conference rooms, and public address systems where dependable, high-quality sound is essential. Its flexibility with speaker types and remote control options makes it a strong choice for corporate spaces and industrial facilities that require straightforward, effective audio amplification. Users who need a balance of power, efficiency, and ease of integration will find this model meets those demands effectively.
