Atlona AT-HDVS-210H-TX-WP-KIT

Overview

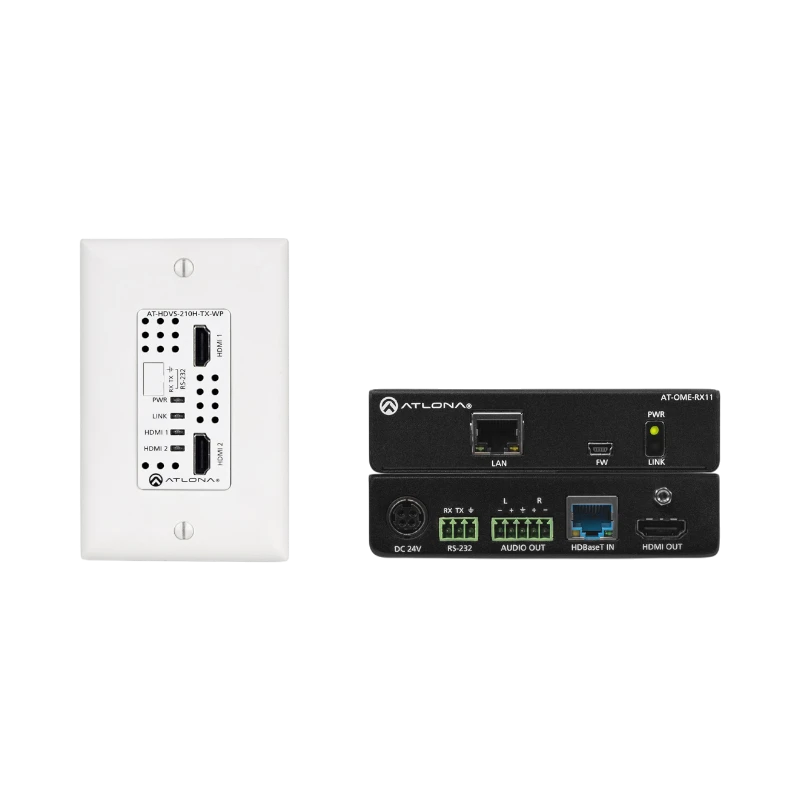

The Atlona AT-HDVS-210H-TX-WP-KIT is a 4K HDMI over HDBaseT extender kit designed to simplify the distribution of high-quality video, audio, and control signals in professional environments. It combines a two-input HDBaseT wallplate switcher with a low-profile receiver, allowing you to extend AV signals up to 330 feet using a single category cable. Supporting 4K/UHD video at 60Hz with 4:2:0 chroma subsampling, it delivers sharp and clear images suitable for presentations, video conferencing, and digital signage. The transmitter is powered via PoE from the receiver, eliminating the need for a separate power source near the wallplate. This kit is well suited to classrooms, meeting rooms, and huddle spaces where clean installation and reliable performance are essential.

Key features

• Two HDMI inputs with automatic switching to manage multiple sources seamlessly
• Extends AV and control signals up to 330 feet (100 meters) over a single category cable for flexible installation
• Supports 4K/UHD video at 60Hz with 4:2:0 chroma subsampling to maintain image clarity over long distances
• HDCP 2.2 compliance ensures secure transmission of protected content
• Power over Ethernet (PoE) powers the transmitter from the receiver, simplifying wiring and installation
• Automatic display control allows smooth management of connected displays without manual input selection
• Audio de-embedding at the receiver enables integration with external sound systems for enhanced audio performance

Key specs

• Video resolution: 4K/UHD at 60Hz with 4:2:0 chroma subsampling
• Extension distance: up to 330 feet (100 meters) over single category cable
• Inputs: 2 HDMI inputs on the wallplate switcher
• HDCP version: 2.2 compliant
• Power: Transmitter powered via PoE from receiver
• Audio: De-embedded audio output at receiver

Connectivity and compatibility

This kit integrates easily into professional AV setups by using standard category cables for signal extension, reducing cable clutter and installation complexity. The dual HDMI inputs on the wallplate switcher allow connection of multiple source devices such as laptops, media players, or conferencing systems. The receiver provides audio de-embedding for connection to external sound systems, enhancing flexibility in audio management. Its HDCP 2.2 compliance ensures compatibility with protected content from modern devices.

Installation and setup

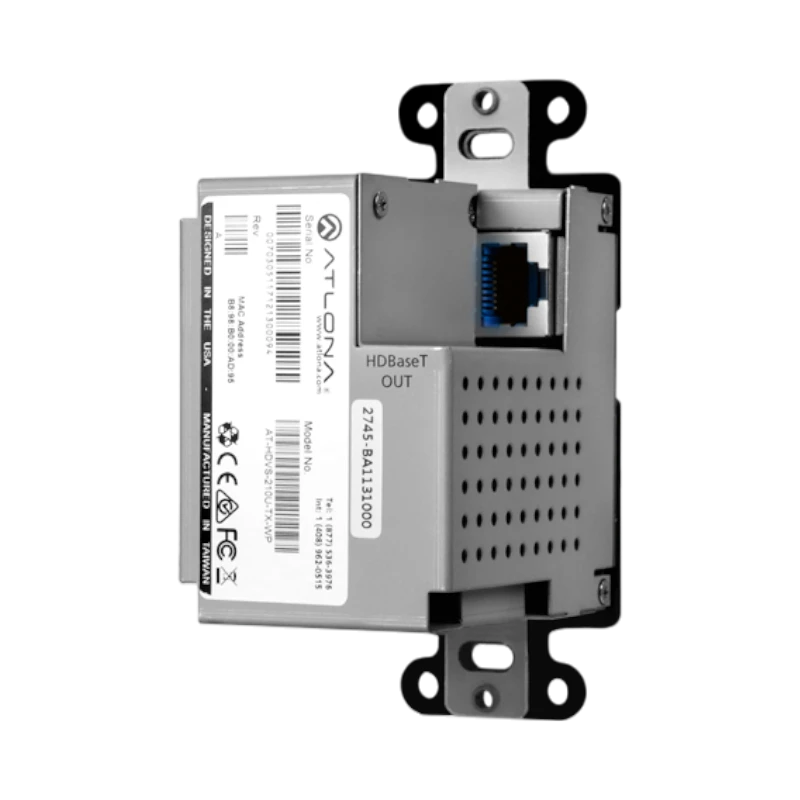

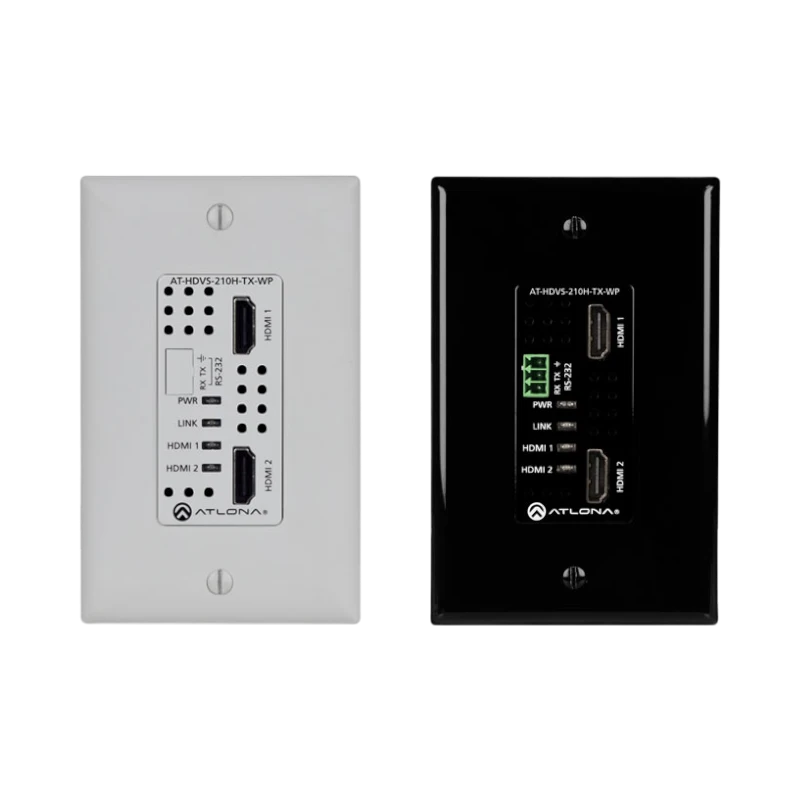

The compact wallplate design fits neatly into standard wall boxes, making it ideal for clean and professional installations in classrooms, conference rooms, or huddle spaces. Power over Ethernet simplifies wiring by eliminating the need for a separate power supply at the transmitter end. Automatic input switching and display control reduce the need for manual adjustments, streamlining operation for end users and integrators alike.

Ideal uses and environments

This extender kit is a strong choice for AV integrators and IT professionals who need to distribute high-quality video and audio signals over long distances with minimal complexity. It works well in educational settings, corporate meeting rooms, and collaborative workspaces where multiple sources must be managed and signal integrity is critical. The ability to de-embed audio also makes it suitable for installations requiring integration with external sound systems.
