APC AP4432A

Overview

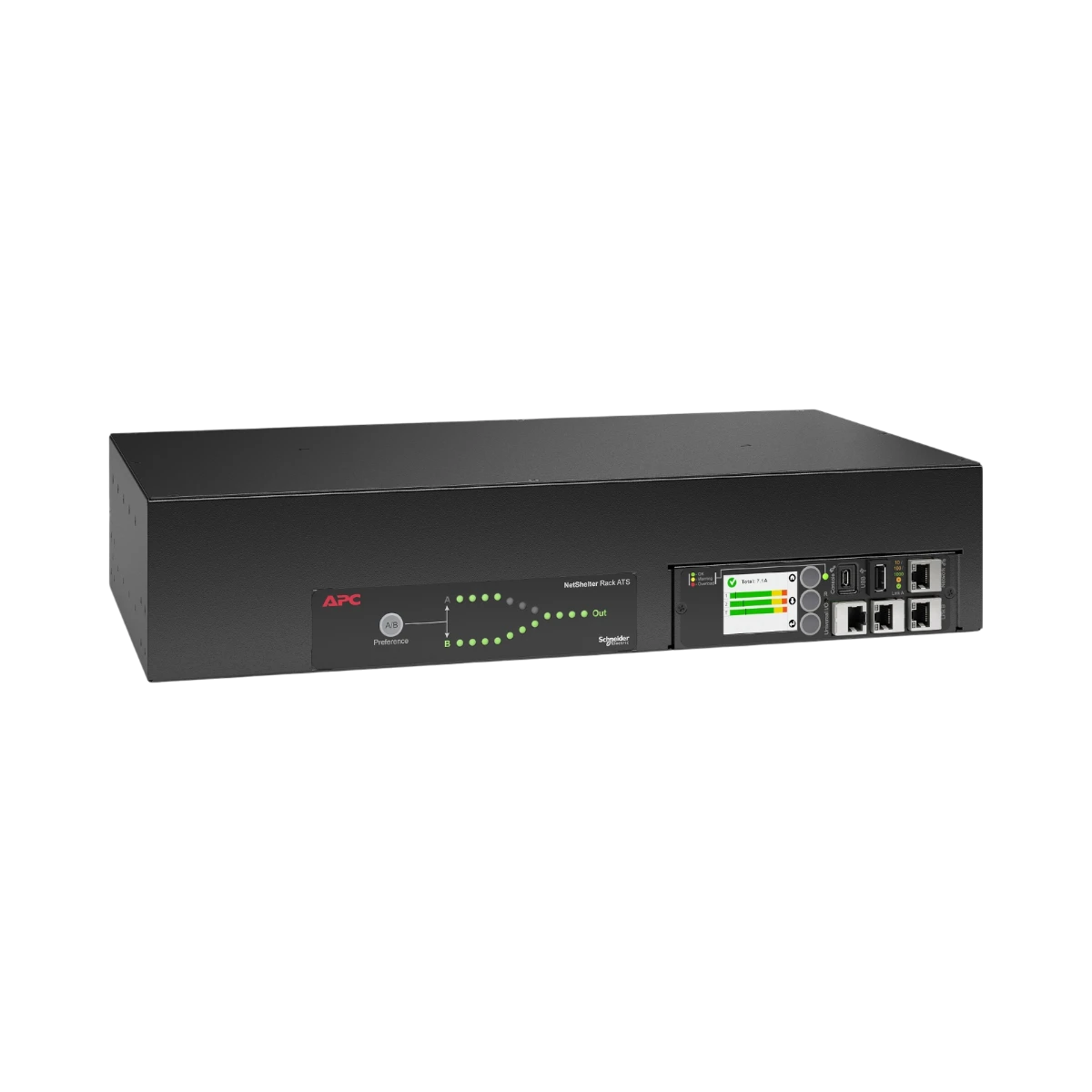

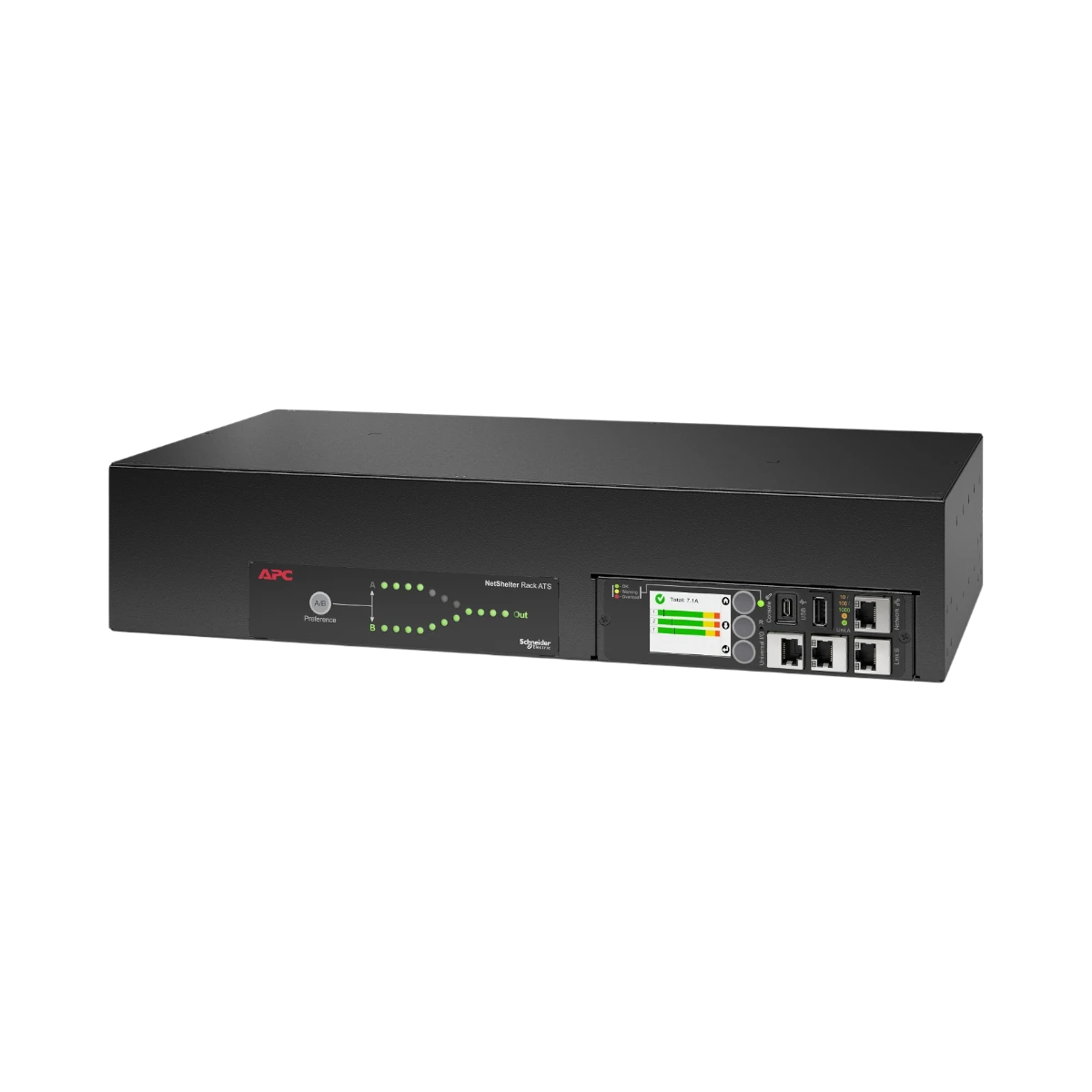

The APC AP4432A is an automatic transfer switch designed to maintain uninterrupted power to critical IT equipment by seamlessly switching between two power sources. It fits into a 2U rack space and supports a load of up to 4992VA at 200/208V and 30 amps, making it well suited for server rooms and data centers with demanding power needs. With 16 C13 and 2 C19 outlets, it offers versatile connectivity for a range of devices, while dual NEMA L6-30P inputs with built-in circuit breakers provide redundancy and protection.

Key features

• Automatic switching between two power sources to prevent downtime during power failures
• 2U rack-mount design that optimizes space in server racks and data centers
• Dual NEMA L6-30P input cables with circuit breakers for reliable power source redundancy and safety
• 16 C13 and 2 C19 outlets to accommodate multiple devices with different power requirements
• Remote management capabilities via web interface, SNMP, and command-line interface for convenient monitoring and control
• Integration with EcoStruxure IT for centralized power management across multiple racks or remote sites
• Operating temperature range from 23°F to 113°F to handle various data center environments
• 8-foot input cables that provide flexibility in installation and help maintain organized rack setups
• Two-year warranty with an option to extend coverage up to five years for long-term reliability

Key specs

• Rack size: 2U
• Current rating: 30 amps
• Voltage: 200/208V output
• Input connectors: 2 NEMA L6-30P cables with built-in circuit breakers
• Output connectors: 16 C13 outlets and 2 C19 outlets
• Maximum load capacity: 4992VA
• Operating temperature range: 23°F to 113°F
• Cable length: 8 feet
• Frequency: 50/60Hz

Connectivity and compatibility

This transfer switch supports a wide range of IT equipment through its combination of C13 and C19 outlets, which are common in servers, networking gear, and other rack-mounted devices. The dual NEMA L6-30P inputs allow connection to two separate power sources, ensuring continuous operation even if one source fails. Remote management options make it compatible with network monitoring tools and IT infrastructure management platforms.

Performance and reliability

Built to provide dependable power switching, the AP4432A includes built-in circuit breakers on each input to protect connected equipment from electrical faults. Its robust design supports continuous operation in typical data center temperature ranges, and the included warranty options offer peace of mind for long-term deployments. The device’s integration with EcoStruxure IT enhances reliability by enabling proactive monitoring and control.

Ideal uses and environments

This automatic transfer switch is a strong choice for data centers, server rooms, and IT closets where maintaining power continuity is critical. It fits well in environments that require redundancy for single-corded devices and where remote management is essential for efficient operations. Its flexible outlet configuration and power capacity make it suitable for setups with multiple servers, networking equipment, and other rack-mounted devices.
