ADJ PIX088

Overview

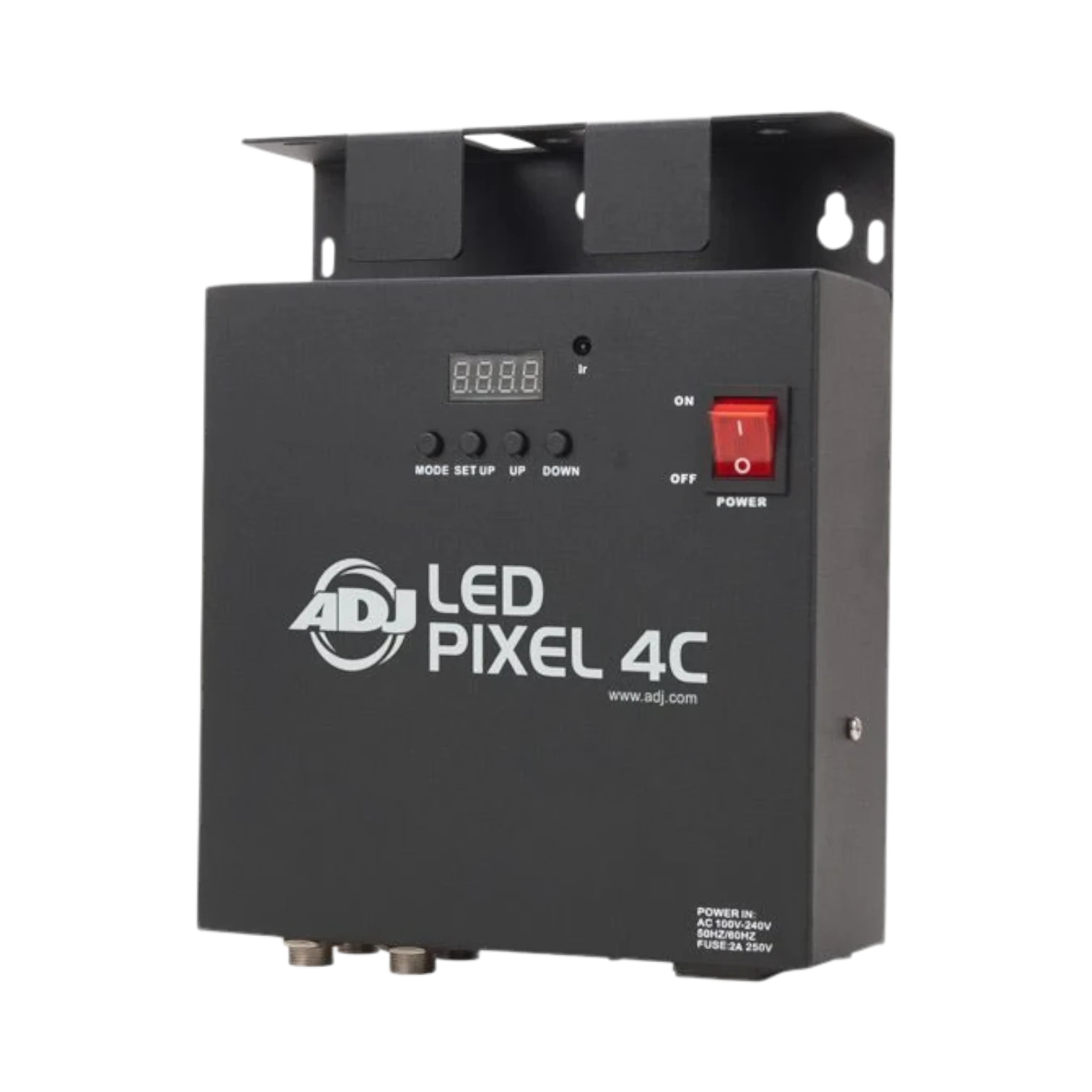

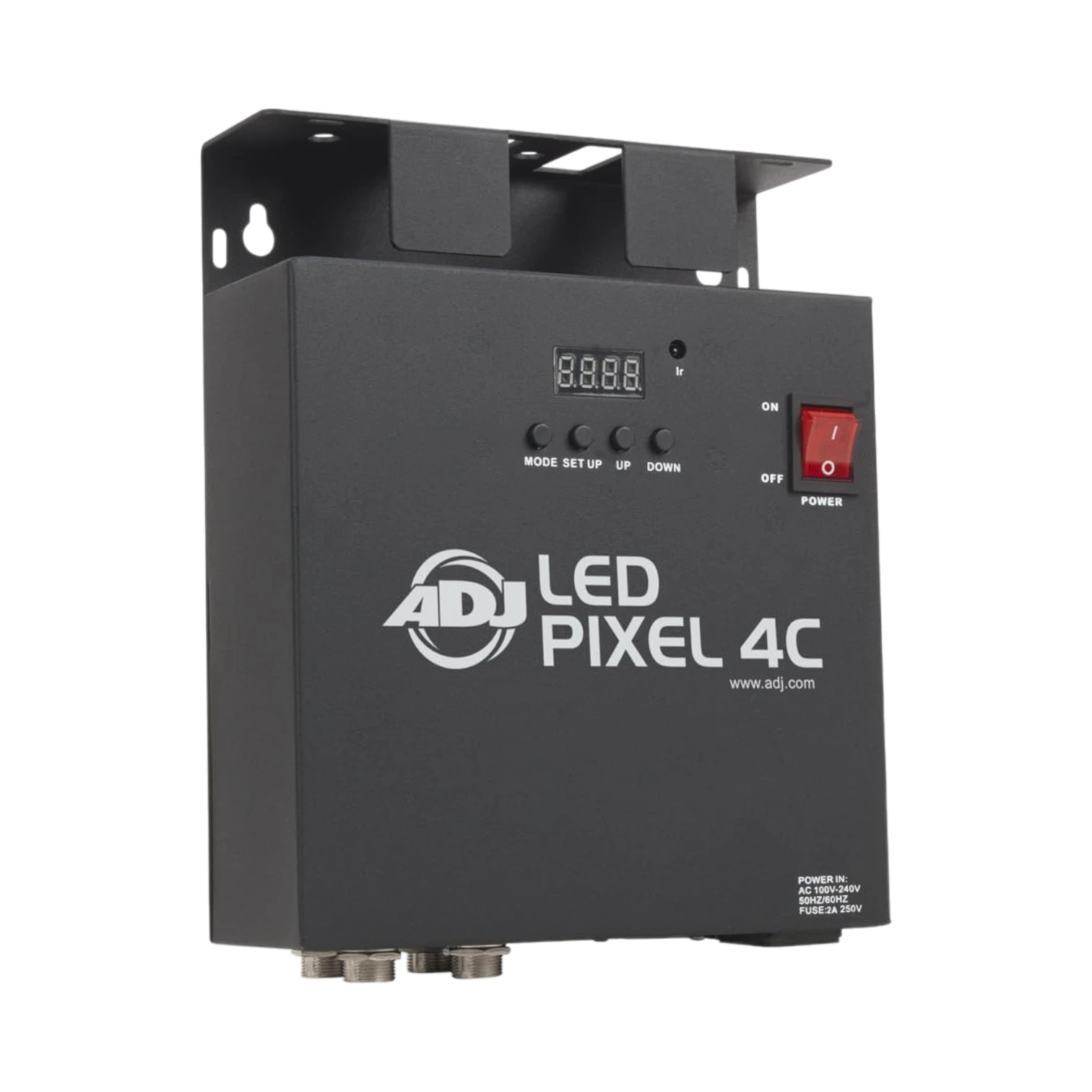

The ADJ PIX088 is a 4-channel LED light controller designed specifically for the LED Pixel Tube 360, providing musicians, DJs, and lighting professionals with hands-on control over dynamic light shows. It features 24 built-in sound-activated programs that respond to music or ambient noise, making it easy to create engaging lighting effects for live performances, clubs, or events. The controller supports multiple DMX channel modes and offers electronic dimming from 0% to 100%, ensuring smooth brightness adjustments.

Key features

• Four-channel control tailored for LED Pixel Tube 360 lighting setups
• Twenty-four built-in programs that react to sound for synchronized effects
• Flexible DMX channel modes including 5, 7, 14, and 192 channels for detailed control
• Ability to link multiple units via 3-pin XLR cable to expand lighting configurations
• Electronic dimming allows precise brightness control from zero to full intensity
• Intuitive 4-button LED display simplifies navigation and setting adjustments
• Reversible hanging/truss bracket supports versatile mounting options

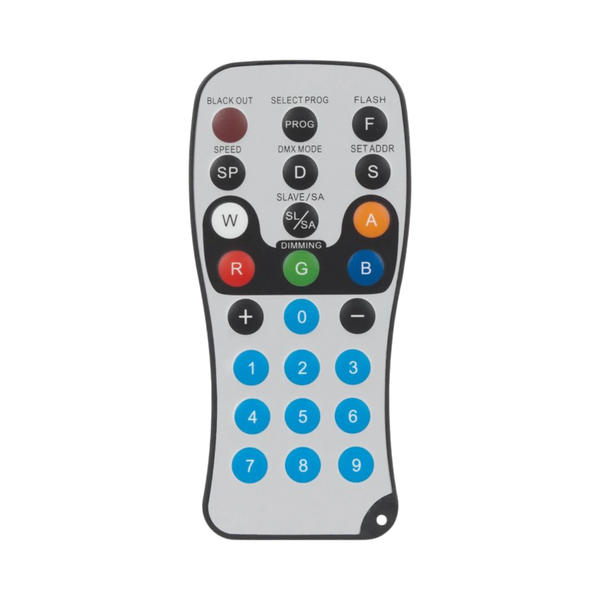

• Compatible with ADJ LED RC wireless remote for convenient remote operation
• IEC AC power input and output enable daisy chaining up to eight units, reducing cable clutter
• Multi-voltage operation from 100 to 240 volts at 50/60 Hz supports global use
• Low power consumption with a maximum draw of 72 watts for efficient operation

Key specs

• Channels: 4
• DMX channel modes: 5, 7, 14, 192 channels
• Built-in programs: 24 sound-activated
• Dimming: electronic, 0% to 100%
• Power consumption: maximum 72 watts
• Power input: AC 100–240 V, 50/60 Hz
• Power connectors: IEC AC input and output
• Control interface: 3-pin XLR for DMX and linking units
• Mounting: built-in reversible hanging/truss bracket

Connectivity and compatibility

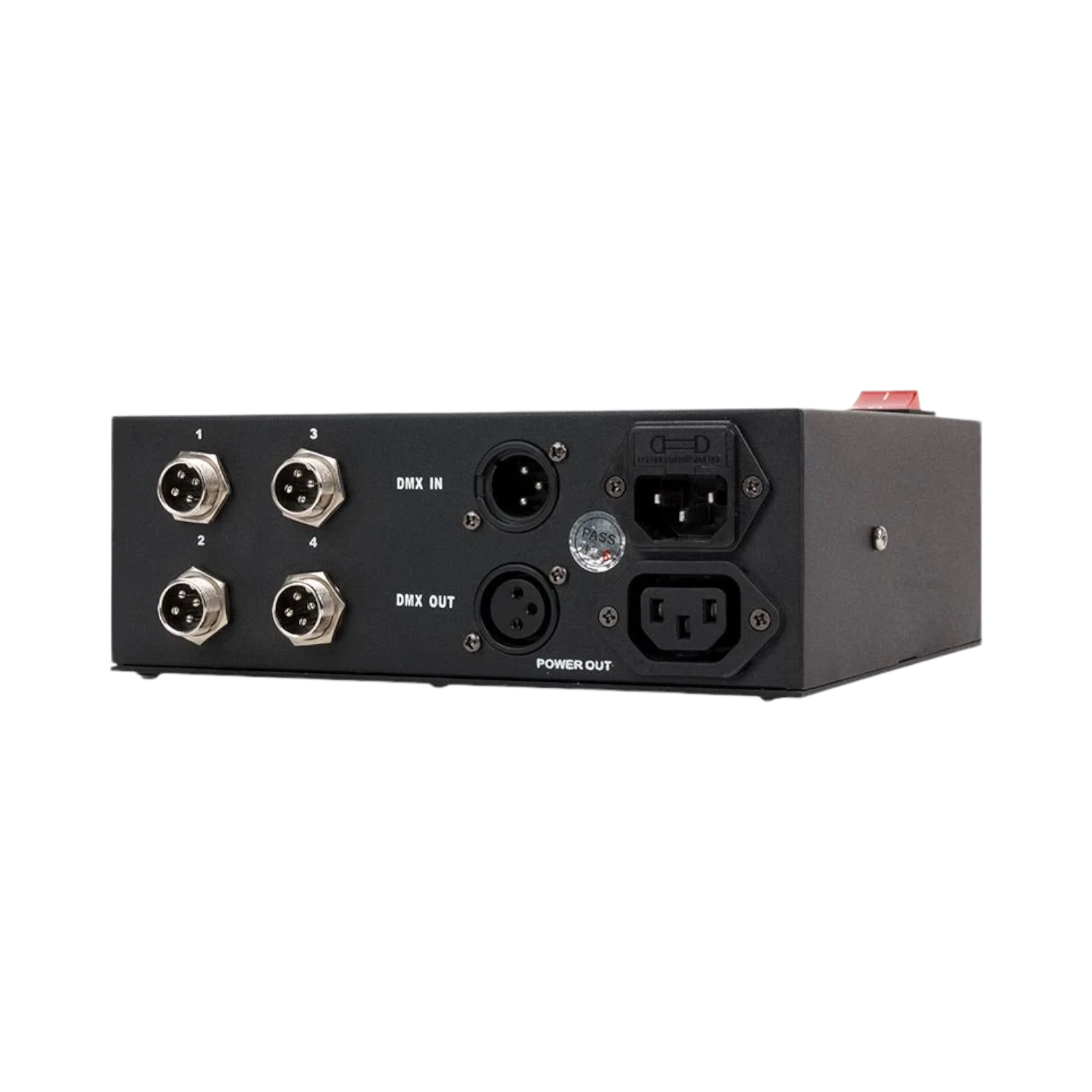

This controller uses the DMX-512 protocol with wired digital communication, ensuring reliable and precise control over your lighting setup. The 3-pin XLR connectors allow you to link multiple ADJ PIX088 units together, making it easy to scale your system for larger venues or more complex designs. It also supports remote control via the ADJ LED RC wireless remote, sold separately, for added convenience during performances.

Installation and setup

Setting up the ADJ PIX088 is straightforward thanks to its user-friendly 4-button LED display and electronic dimming controls. The built-in reversible hanging/truss bracket fits easily into various rigging systems, allowing flexible mounting options whether you are installing in a club, on stage, or at an event. Daisy chaining power through IEC AC input and output connectors simplifies power management and reduces cable clutter when using multiple units.

Ideal uses and environments

This controller is well suited to live music performances, DJ setups, club lighting, and special events where responsive and customizable LED pixel lighting is desired. Its sound-activated programs and flexible DMX modes make it a strong choice for professionals who want to create vibrant, synchronized light shows without complex programming. The ability to link multiple units and remote control compatibility also makes it a practical option for larger installations and touring setups.
