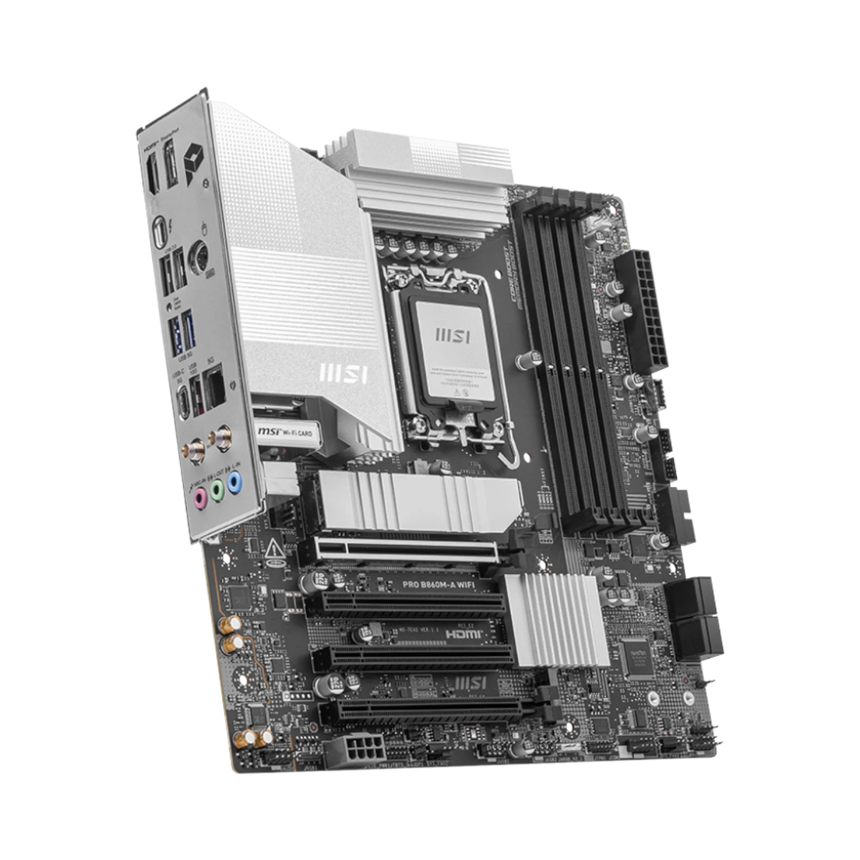

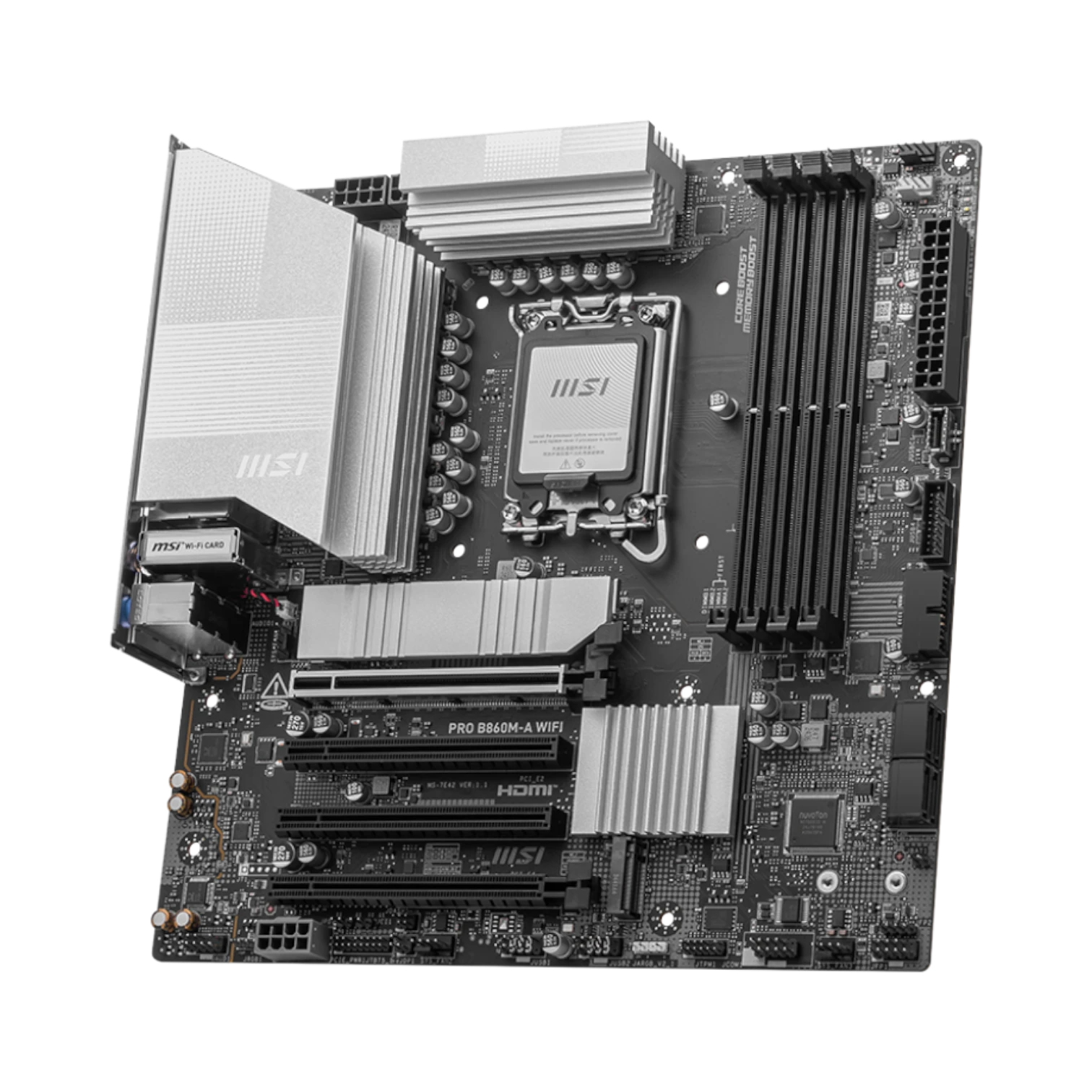

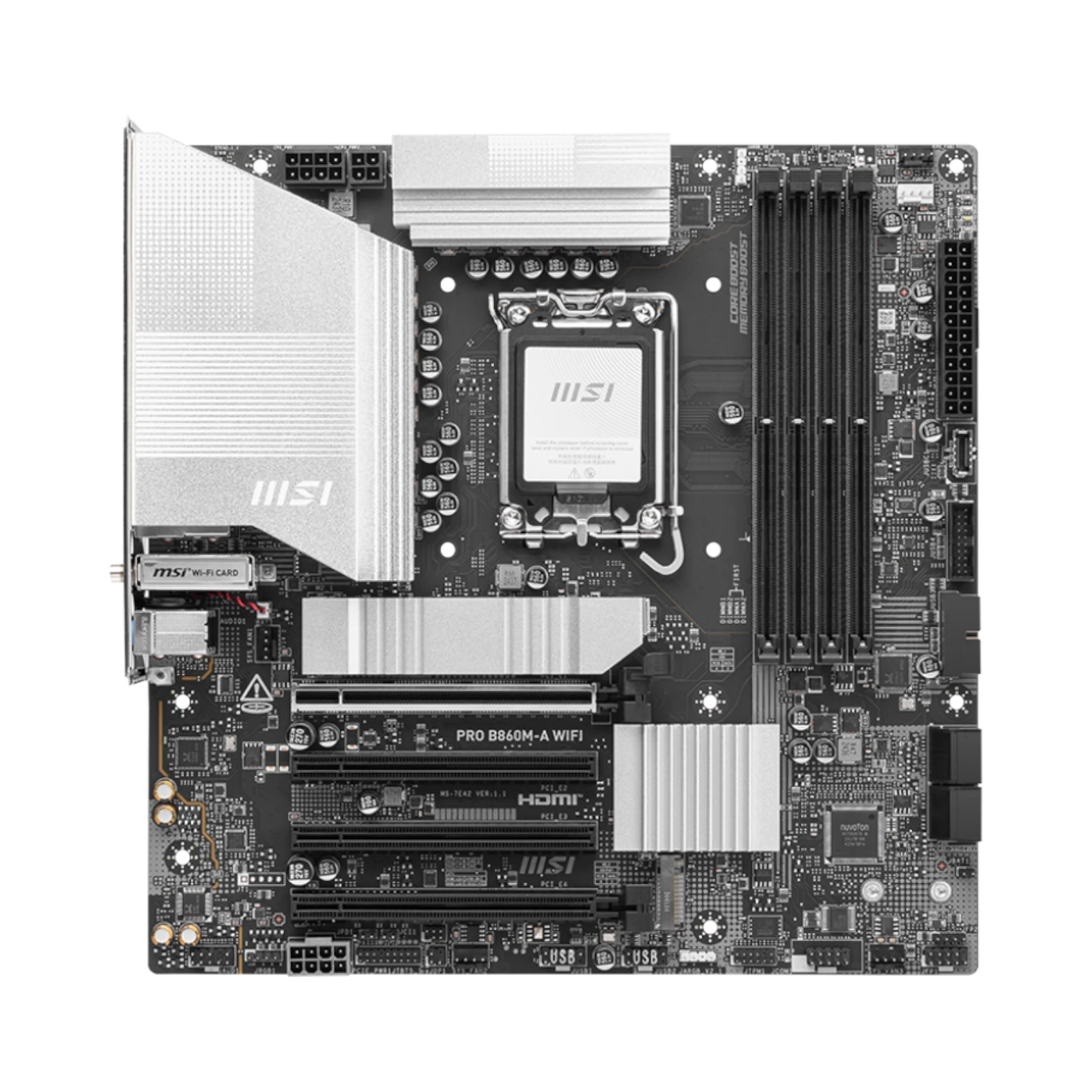

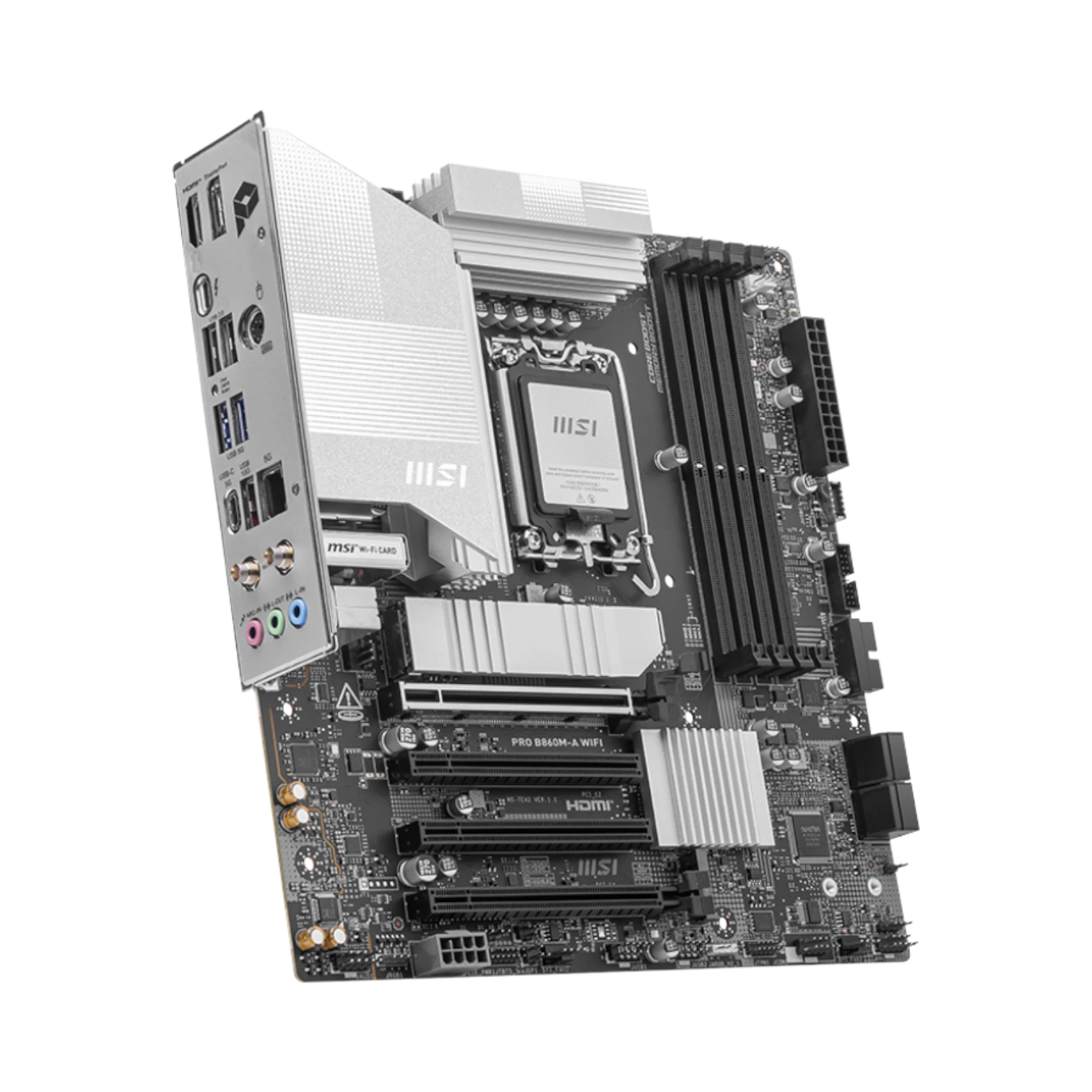

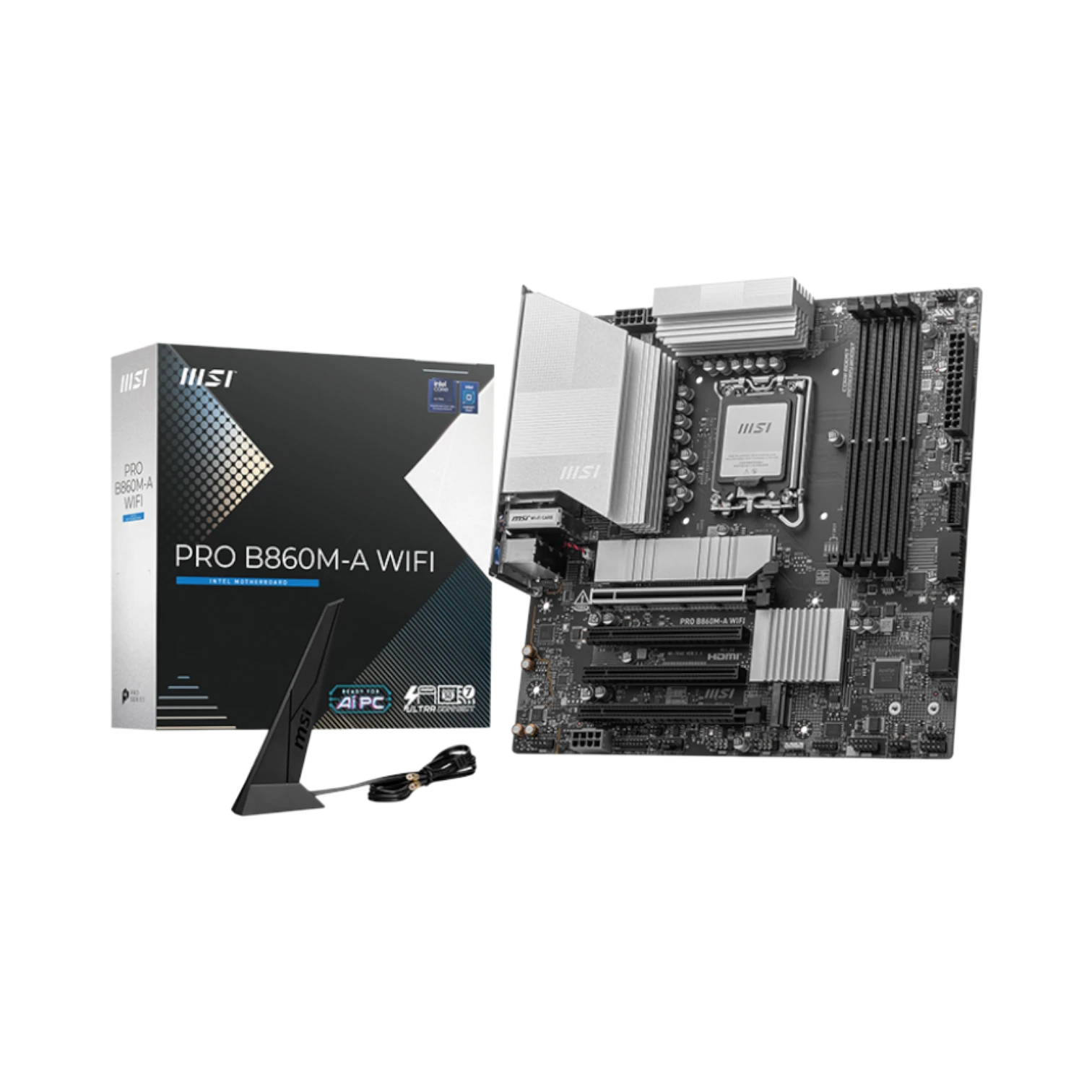

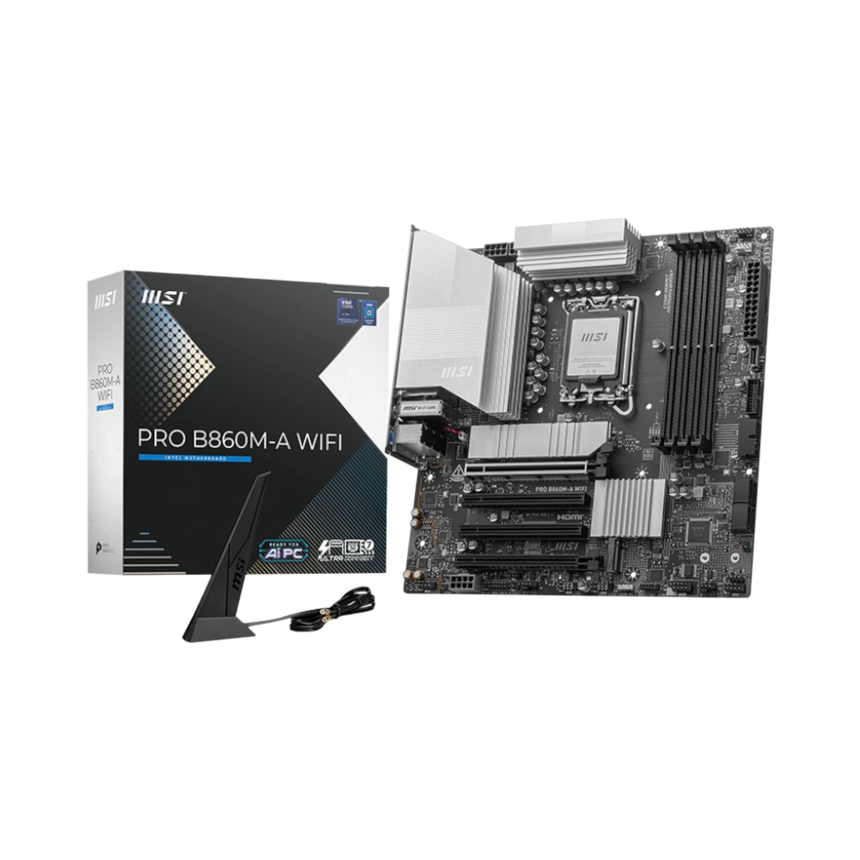

MSI B860MAWIFI

Overview

The MSI B860MAWIFI is a micro-ATX motherboard built around the Intel B860 chipset, designed to support Intel Core Ultra Series 2 processors with the LGA 1851 socket. It provides a robust platform for desktop builds that require high memory capacity and fast storage options. With support for up to 256 GB of DDR5 memory running at speeds up to 8800 MT/s, this motherboard handles demanding multitasking and intensive applications with ease. Its combination of PCIe 5.0 and PCIe 4.0 slots, along with advanced connectivity features, makes it suitable for gaming, creative work, and professional use.

Key features

• Supports the latest Intel Core Ultra Series 2 processors for powerful computing performance
• Four DDR5 DIMM slots allow for up to 256 GB of high-speed memory, enabling smooth multitasking and fast data access
• Three M.2 slots including a PCIe 5.0 x4 slot provide ultra-fast NVMe storage options for quick boot times and rapid file transfers
• Expansion flexibility with one PCIe 5.0 x16 slot for high-end graphics cards and three PCIe 4.0 slots for additional add-ons like sound or network cards
• Advanced wireless connectivity through Intel Wi-Fi 7 and Bluetooth 5.4 ensures stable and fast connections for peripherals and internet access
• Thunderbolt 4 port supports DisplayPort 2.1 and data transfer speeds up to 40 Gbps, ideal for connecting high-resolution displays and fast external drives
• Realtek 5G LAN port delivers reliable wired networking with high bandwidth for gaming and streaming
• 7.1-channel HD audio provides immersive sound quality for gaming, media, and communication
• Four SATA 6G ports with RAID support offer versatile and secure storage configurations

Key specs

• Chipset: Intel B860
• Socket: LGA 1851
• Memory: Up to 256 GB DDR5, speeds up to 8800 MT/s, 4 DIMM slots
• Storage: 3 M.2 slots (including PCIe 5.0 x4), 4 SATA 6G ports with RAID support
• Expansion slots: 1 PCIe 5.0 x16, 3 PCIe 4.0 slots
• Wireless: Intel Wi-Fi 7, Bluetooth 5.4
• LAN: Realtek 5G LAN port
• Thunderbolt: 1 Thunderbolt 4 port with DisplayPort 2.1, 40 Gbps data transfer
• Audio: 7.1-channel HD audio

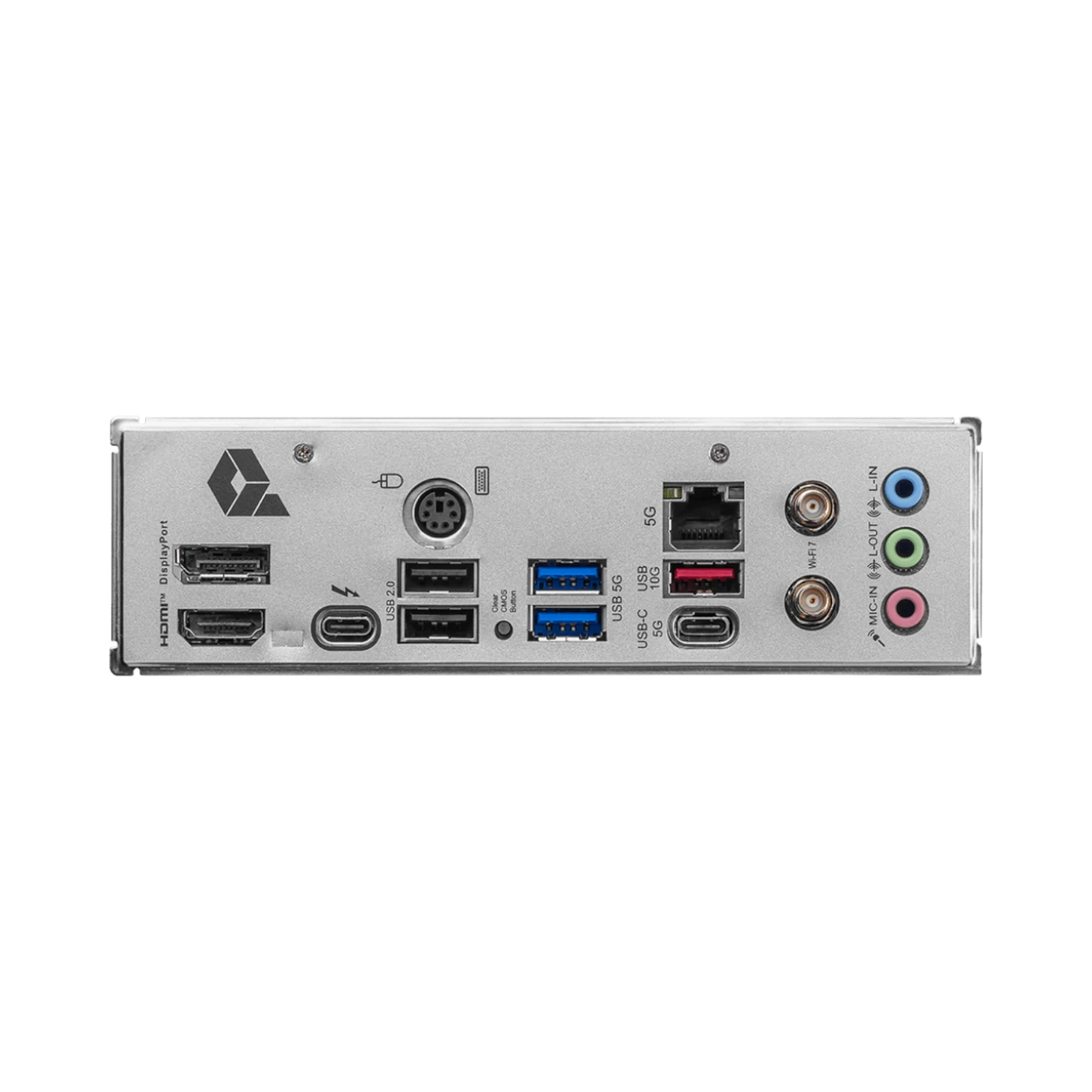

Connectivity and compatibility

This motherboard offers a comprehensive set of connectivity options to support a wide range of devices and peripherals. The inclusion of Intel Wi-Fi 7 and Bluetooth 5.4 ensures fast and reliable wireless connections for modern accessories and network environments. The Realtek 5G LAN port provides a high-speed wired connection suitable for gaming and streaming without lag. The Thunderbolt 4 port supports high-resolution displays and fast data transfer, making it easy to connect external storage or professional monitors. Multiple PCIe slots allow for expansion cards to enhance graphics, audio, or networking capabilities.

Ideal uses and environments

The MSI B860MAWIFI motherboard is well suited to users building a versatile desktop system that balances performance and future-proof features. It fits well in home offices where multitasking and connectivity are important, gaming setups that require high-speed memory and graphics expansion, and creative workstations that benefit from fast storage and audio capabilities. Its support for the latest Intel processors and advanced wireless standards makes it a strong choice for users who want a reliable and flexible platform without unnecessary complexity.
