Black Box FOCA20M3-1MP24-24LC

Overview

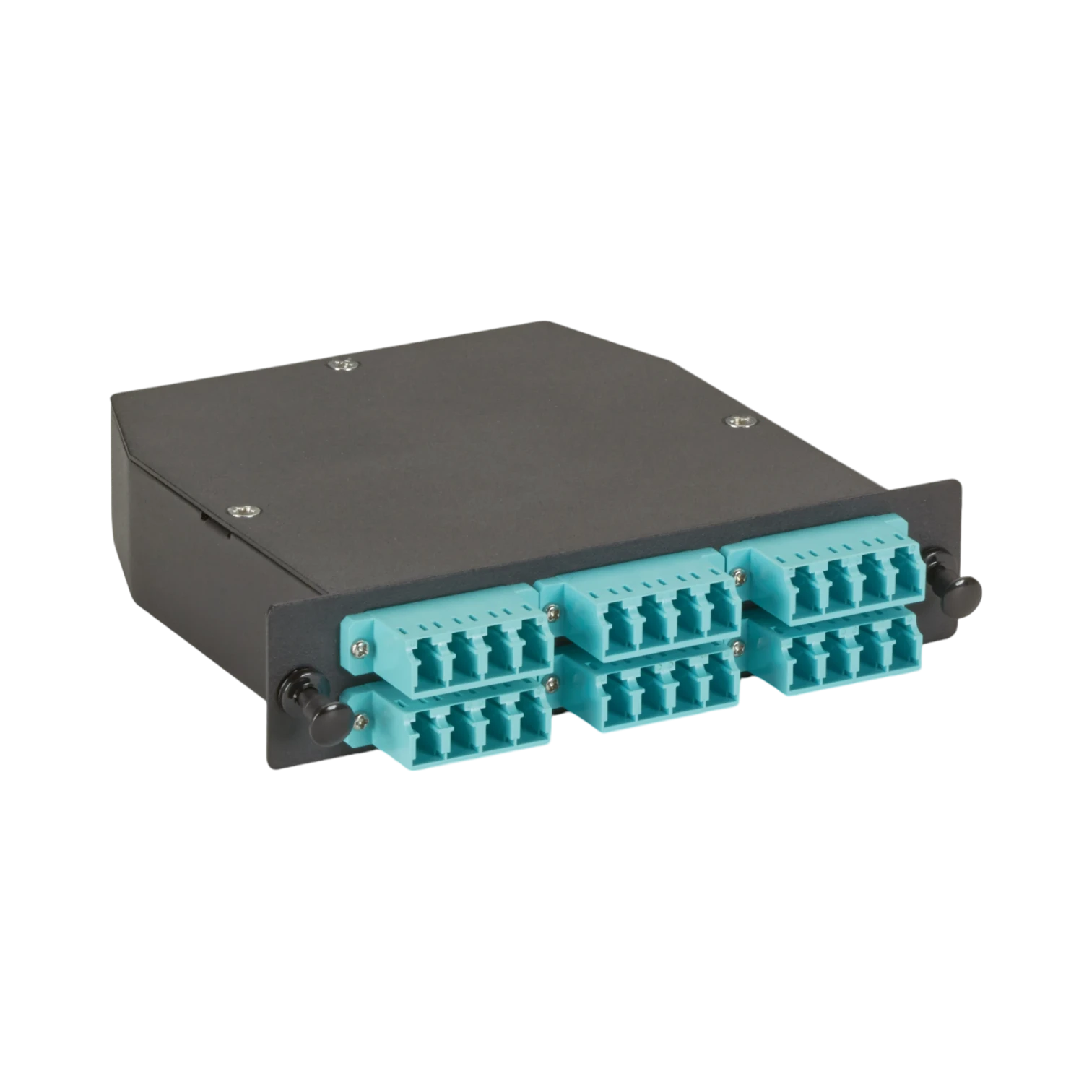

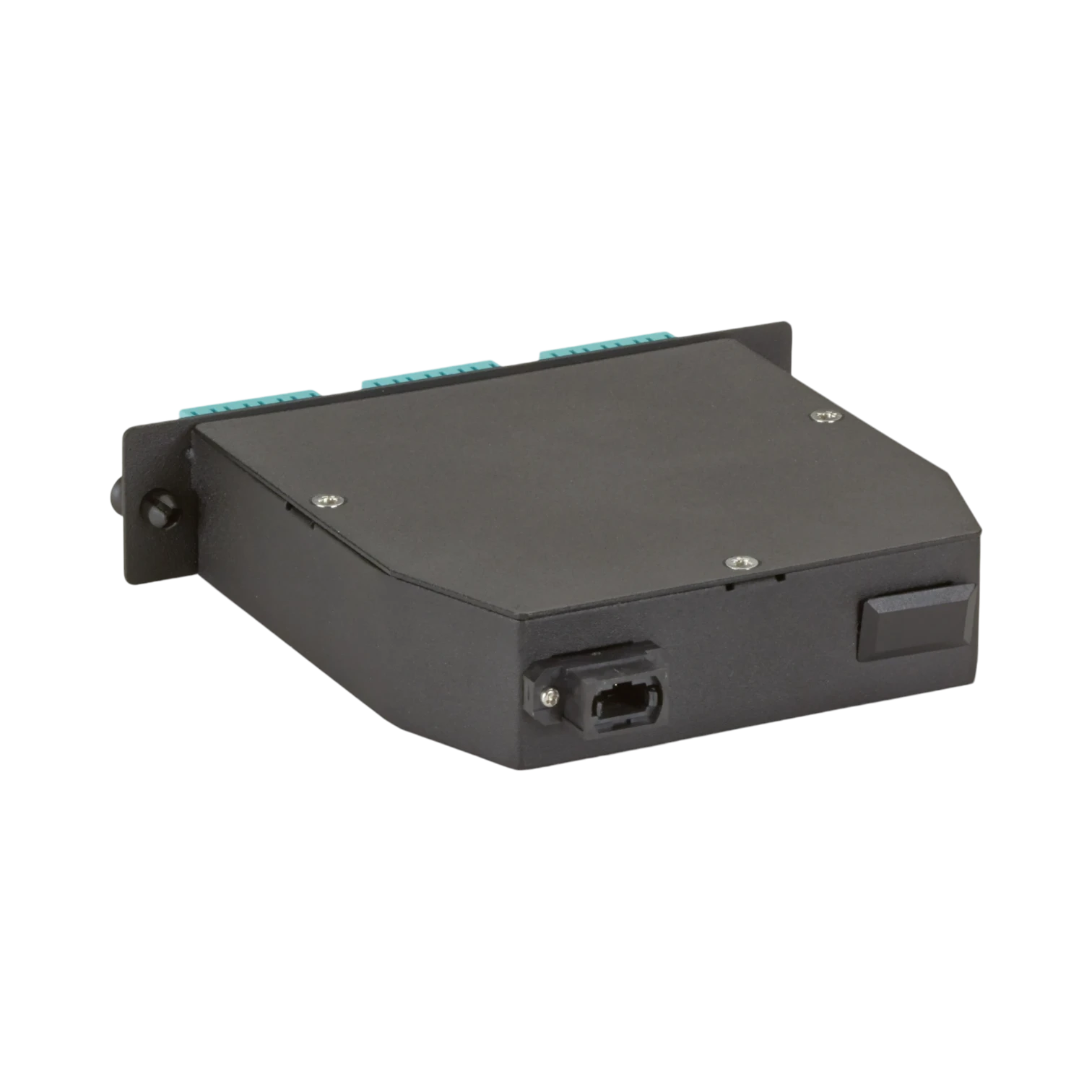

The Black Box FOCA20M3-1MP24-24LC is a fiber optic LGX cassette designed to provide high-density and reliable connectivity in demanding network environments. It supports up to 24 fibers within a single cassette, making it an efficient solution for data centers and enterprise networks that require organized cable management and consistent performance. This cassette features MTP connectors on one end and LC connectors on the other, facilitating smooth transitions between high-density trunk cables and standard patch cables while maintaining low insertion loss.

Key features

• Supports up to 24 fibers in a single cassette, enabling high-density network configurations
• MTP to LC connectors provide flexible connectivity options for diverse network setups
• MTP connectors offer a maximum insertion loss of 0.75 dB at 850/1310 nm, minimizing signal degradation
• LC connectors maintain a maximum insertion loss of 0.3 dB, ensuring strong signal integrity
• Key up/key down connector orientation helps maintain secure and precise connections during installation and maintenance
• Complies with OM3 standards, supporting high-performance fiber optic networks with enhanced bandwidth capabilities

Key specs

• Fiber count: 24 fibers per cassette
• Connector types: MTP (one end), LC (other end)
• Maximum insertion loss: 0.75 dB for MTP connectors at 850/1310 nm
• Maximum insertion loss: 0.3 dB for LC connectors
• Fiber standard: OM3 multimode fiber
• Connector orientation: Key up/key down

Connectivity and compatibility

This LGX cassette is designed to fit seamlessly into various rackmount enclosures, shelves, and fiber patch panels, making it a versatile component for structured cabling systems. It is compatible with blade servers, network switches, and patch panels that support OM3 fiber standards. The combination of MTP and LC connectors allows it to bridge high-density trunk cables with standard patch cables, supporting efficient network expansion and upgrades.

Ideal uses and environments

Well suited for data centers and enterprise networks, this cassette helps manage fiber optic connections in environments where space and performance are critical. It works effectively in setups requiring high-density fiber management and low signal loss, such as server rooms, telecommunications closets, and network distribution points. Its compliance with OM3 standards ensures it supports high-speed data transmission for modern network demands.
