Chief LVSXU

Overview

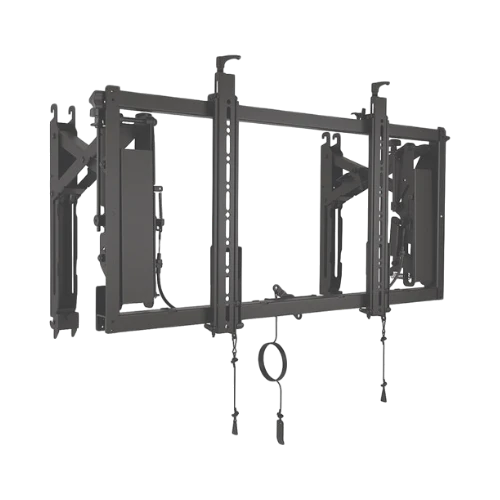

The Chief LVSXU is a video wall landscape mounting system designed to support multiple displays ranging from 42 to 80 inches and weighing up to 150 pounds each. It simplifies installation and maintenance by connecting mounts along a single strut channel, allowing quick leveling of each row without horizontal spacers. This system is well suited for environments requiring precise alignment and stability, such as control rooms, corporate lobbies, and retail displays.

With features like PowerZone technology for fine alignment and RapidDraw release for easy servicing, the LVSXU ensures both accuracy and convenience. Its adjustable depth and tilt accommodate recessed or uneven walls while maintaining secure and stable mounting.

Key features

• Supports displays from 42 to 80 inches with a weight capacity of up to 150 pounds, accommodating a wide range of professional video walls
• Single strut channel connection enables fast and precise leveling of each row without the need for horizontal spacers

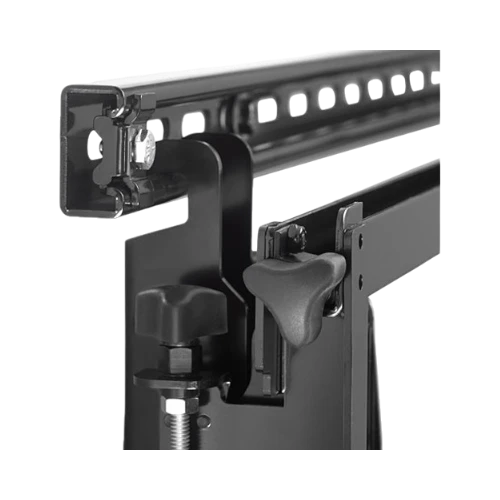

• PowerZone technology offers six points of fine adjustment at the top of each mount for perfect alignment across the video wall

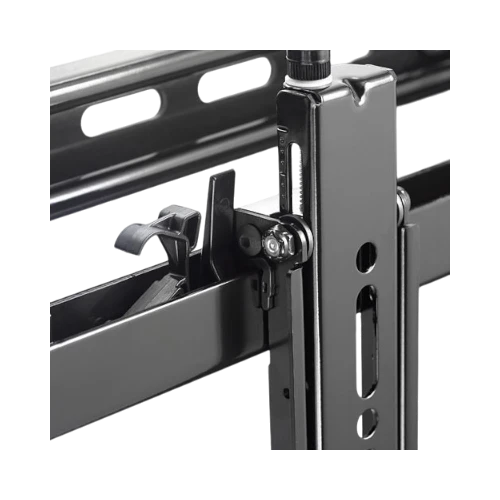

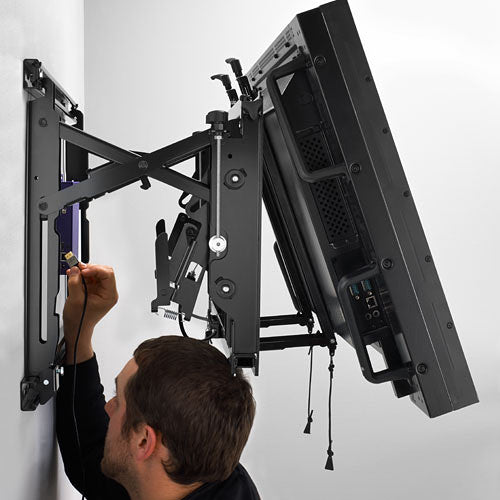

• RapidDraw release mechanism allows gentle, on-demand removal of displays, reducing the risk of damage during servicing
• Adjustable depth from 4 to 7.4 inches provides flexibility for recessed installations and cable management access
• Micro-adjustments for tilt (-2.5 to 4 degrees) and height help protect displays and ensure a uniform appearance
• Designed for landscape orientation with support for VESA mounting patterns ranging from 200 x 100 mm to 700 x 400 mm
• Rigid frame construction maintains stability and alignment even after repeated servicing and adjustments

Key specs

• Display size compatibility: 42 to 80 inches
• Weight capacity: up to 150 pounds per display
• Mounting orientation: landscape
• VESA mounting patterns supported: 200 x 100 mm to 700 x 400 mm
• Depth adjustment range: 4 to 7.4 inches
• Tilt adjustment range: -2.5 to 4 degrees
• Mount extension from wall: up to 13.4 inches
• Fine adjustment points: six-point PowerZone system

Installation and setup

The LVSXU system streamlines video wall installation by connecting mounts along a single strut channel, which allows installers to level entire rows quickly and accurately. Its adjustable depth and tilt features accommodate various wall conditions, including recessed or uneven surfaces. The RapidDraw release mechanism simplifies display removal for maintenance without requiring excessive force, making servicing safer and faster.

Ideal uses and environments

This mounting system is a strong choice for professional settings where video walls must be precisely aligned and easily serviced. It fits well in control rooms, corporate lobbies, retail environments, and any space where multiple large displays are arranged in landscape orientation. The robust design and fine adjustment capabilities ensure the video wall remains stable and visually consistent over time, even with frequent maintenance.
