ViewSonic VB-IOB-001

Overview

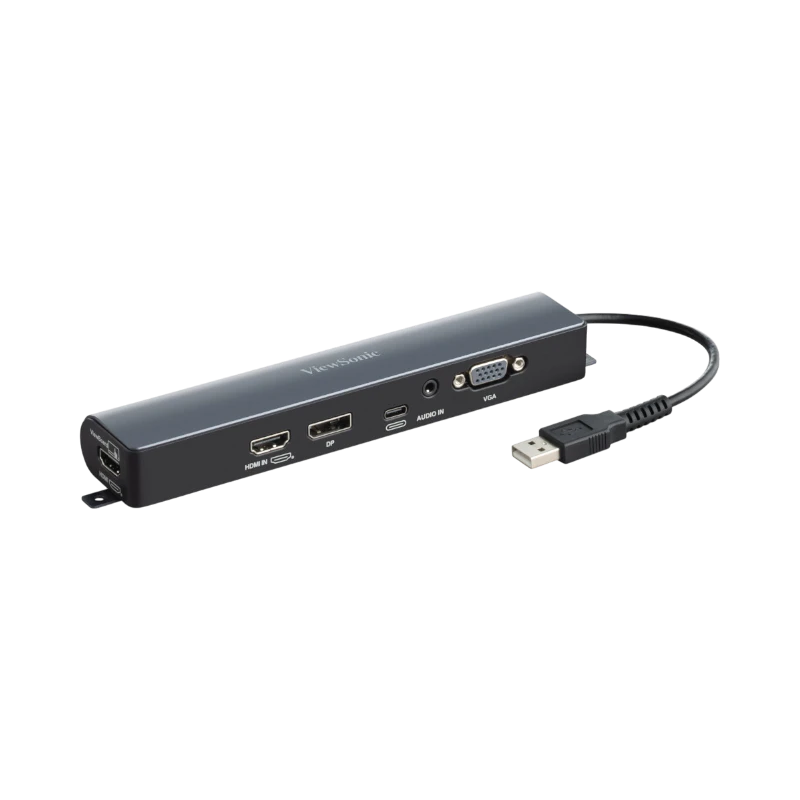

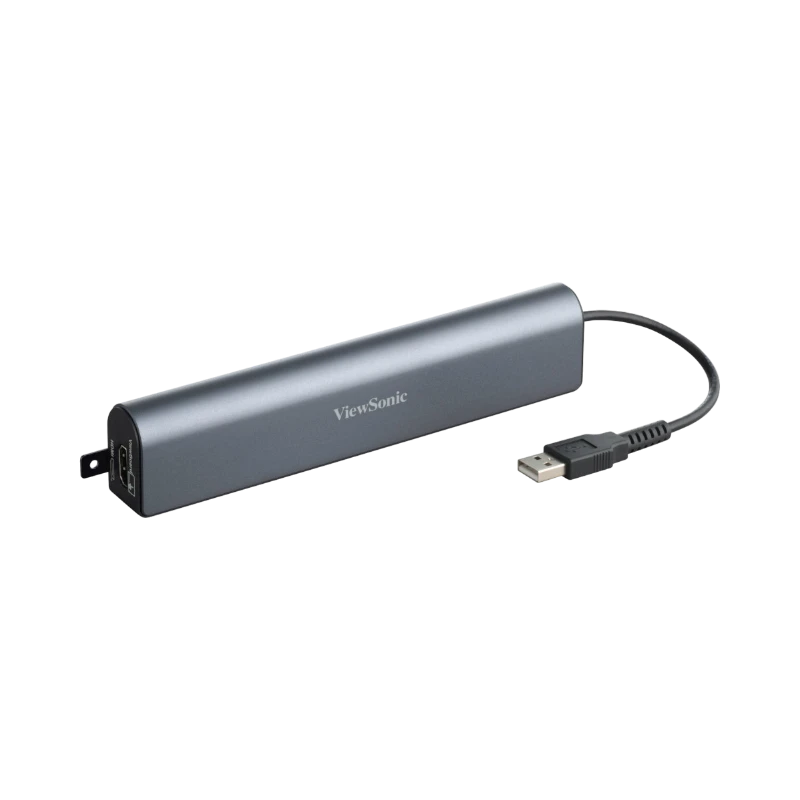

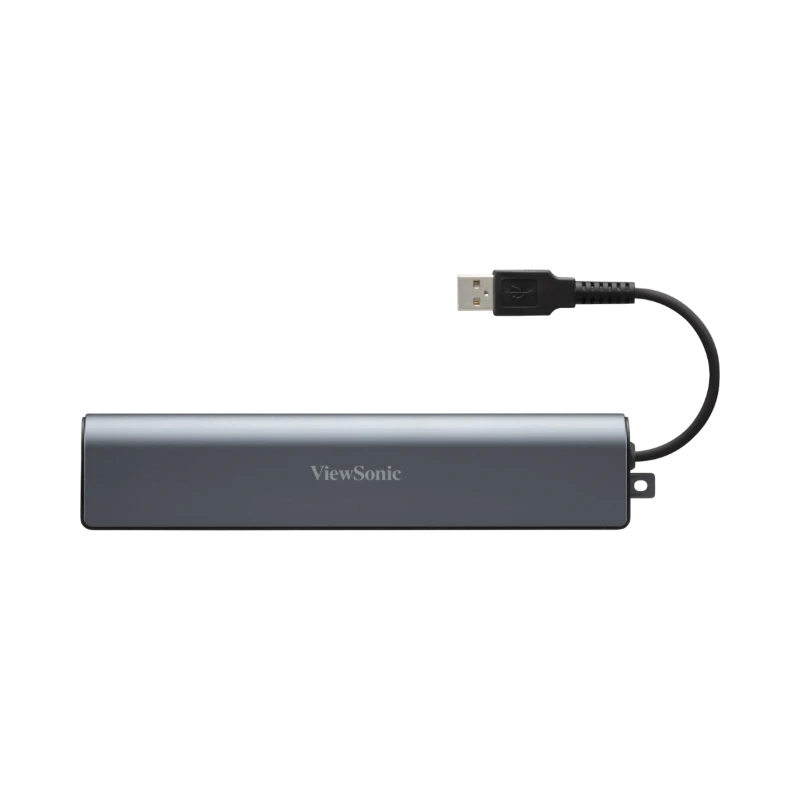

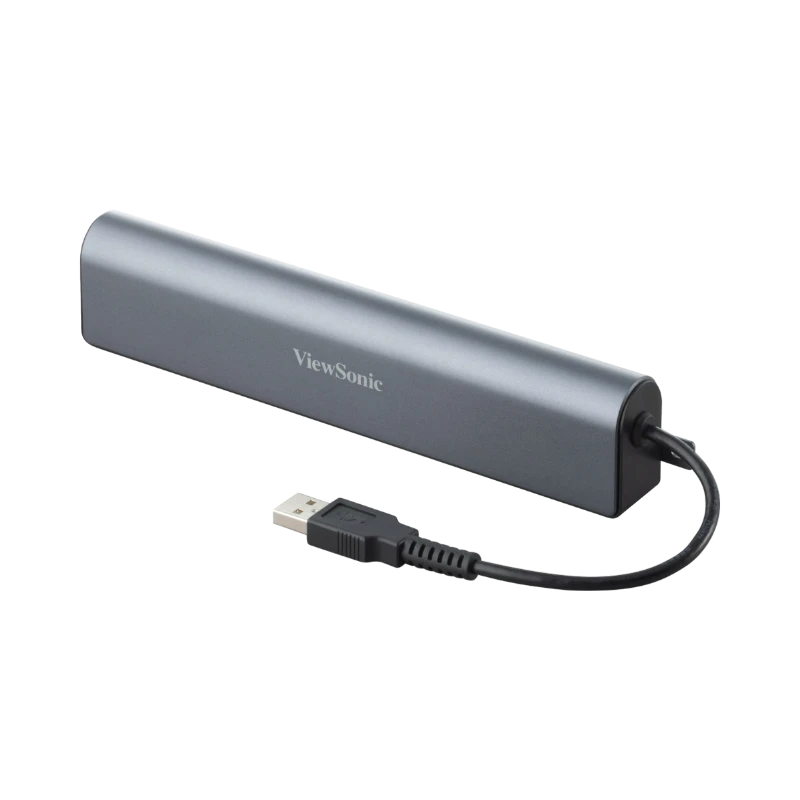

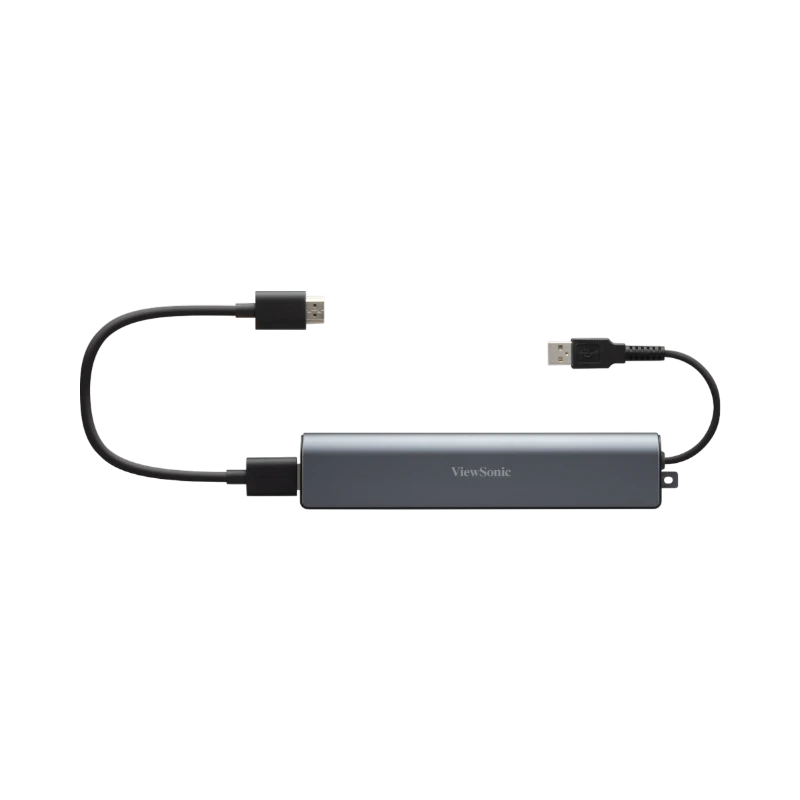

The ViewSonic VB-IOB-001 is a docking solution designed to enhance the connectivity of ViewBoard IFP50-5 series interactive displays. It connects through an integrated USB-A 2.0 cable and supports devices running Android 9 or later. This dock expands your input options with multiple ports, including HDMI 2.0, DisplayPort 1.2, USB-C with DisplayPort Alt Mode, VGA, and a 3.5 mm audio input, while delivering video output up to 3840 by 2160 pixels for sharp and clear visuals. Its bus-powered design eliminates the need for an external power adapter, simplifying installation and reducing cable clutter.

Key features

• Multiple input ports allow connection of various devices, making it easier to switch between video sources during presentations or meetings.
• Supports high-resolution video output up to 4K UHD (3840 × 2160), ensuring detailed and vibrant display quality on the ViewBoard.
• Bus-powered operation removes the need for an external power supply, streamlining setup and minimizing cables.
• Includes an 8-inch built-in USB-A 2.0 cable for direct connection to the ViewBoard, ensuring reliable data transfer and video signal.
• Comes with a mounting bracket, HDMI cable, and screws to facilitate a clean and secure installation in classrooms or conference rooms.
• Compatible with Android 9 or later devices, expanding usability across modern platforms.
• Certified to meet CE, FCC/ICES003, RoHS, REACH, and WEEE standards, ensuring compliance with safety and environmental regulations.

Key specs

• Video output resolution: up to 3840 × 2160 pixels (4K UHD)

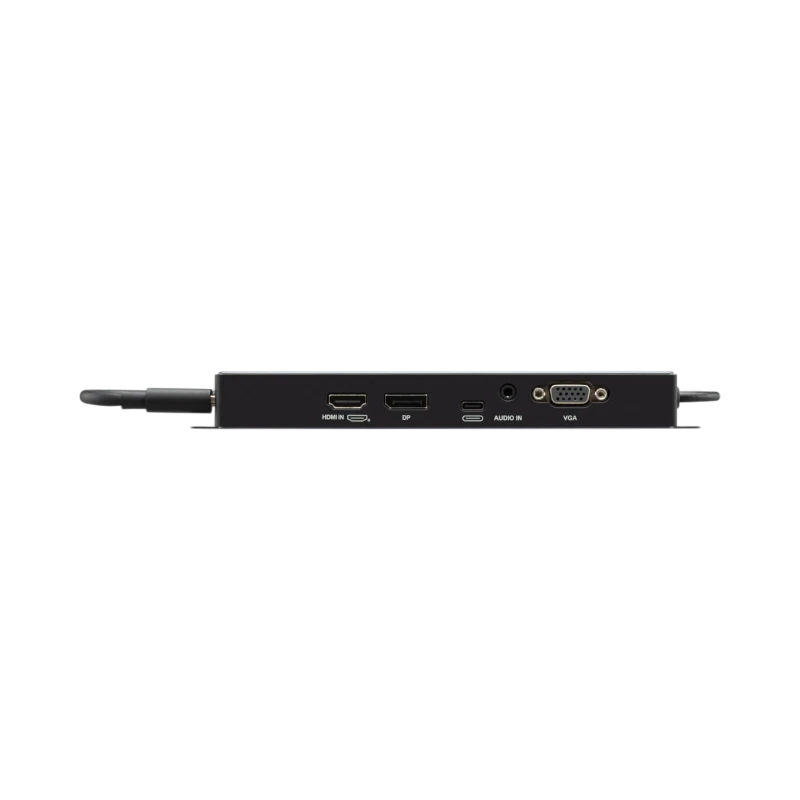

• Input ports: HDMI 2.0, DisplayPort 1.2, USB-C with DisplayPort Alt Mode, VGA, 3.5 mm audio input
• Output port: HDMI 2.0 dedicated to ViewBoard display
• Host connection: integrated USB-A 2.0 cable (8 inches)
• Power: bus powered, no external adapter required
• Compatibility: ViewBoard IFP50-5 series, Android 9 or later devices
• Certifications: CE, FCC/ICES003, RoHS, REACH, WEEE

Connectivity and compatibility

This dock offers a broad range of input options to connect laptops, tablets, and other multimedia devices to the ViewBoard IFP50-5 series. The inclusion of HDMI 2.0 and DisplayPort 1.2 inputs supports high-definition video sources, while USB-C with DisplayPort Alt Mode allows modern devices to connect with a single cable for video and data. VGA input ensures compatibility with older equipment, and the 3.5 mm audio input supports external sound sources. The HDMI 2.0 output is dedicated to the ViewBoard, enabling seamless switching between inputs without interrupting the display.

• HDMI 2.0 input and output for high-definition video
• DisplayPort 1.2 input for high-quality digital video
• USB-C input with DisplayPort Alt Mode for modern device compatibility
• VGA input for legacy device support
• 3.5 mm audio input for external audio sources
• Integrated USB-A 2.0 cable for host connection to ViewBoard

Installation and setup

The VB-IOB-001 is designed for straightforward installation with its included mounting bracket, HDMI cable, screws, and built-in USB-A cable. Its bus-powered design means no additional power adapters are necessary, reducing clutter and simplifying the setup process. This makes it well suited for classrooms, meeting rooms, and collaborative workspaces where a clean and efficient installation is important.

Ideal uses and environments

This docking solution fits well in educational settings, corporate meeting rooms, and collaborative offices that use ViewBoard IFP50-5 series interactive displays. It supports multiple video sources and device types, making it a strong choice for environments where users need to connect laptops, tablets, or other media players quickly and switch between them during presentations or group work. Its bus-powered design and included mounting hardware help maintain a tidy and professional setup.
