Sharp PN-ZB01

Overview

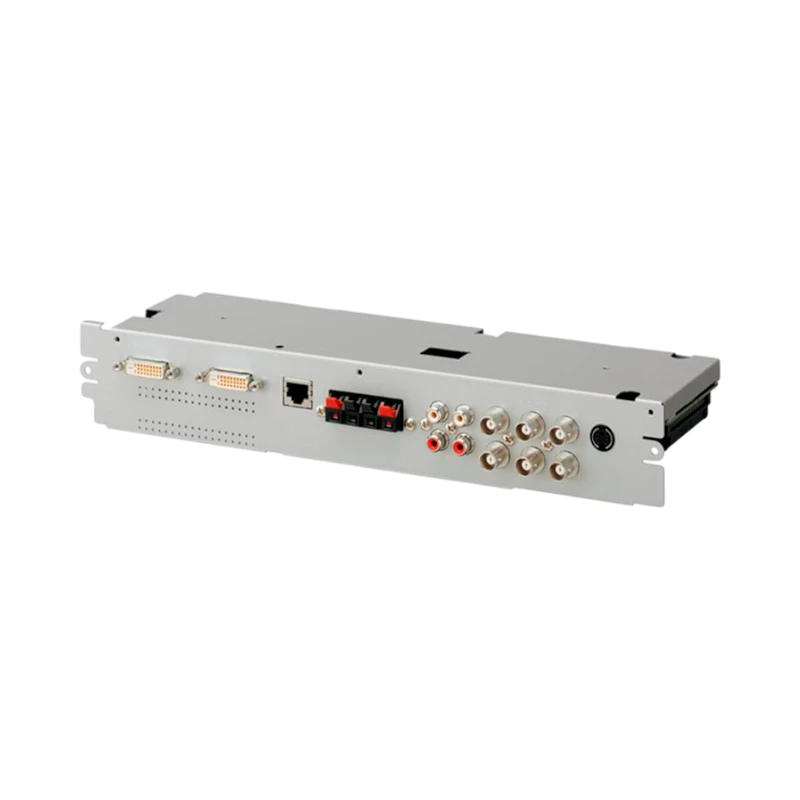

The Sharp PN-ZB01 is an interface expansion board designed to enhance the connectivity of Sharp's PN-E series monitors, including models PN-E601, PN-E521, PN-E471, and PN-E421. It provides a broad range of video and audio input and output options, allowing you to connect multiple sources directly to your monitor without the need for additional adapters. This board installs neatly on the back of the monitor, keeping your setup organized while supporting both digital and analog video formats along with audio inputs and outputs.

Key features

• Supports DVI-D input and output for high-quality digital video connections, ensuring sharp and clear images.
• Includes 5-BNC analog RGB input and component video input to accommodate professional and legacy video equipment.
• Offers S-video and composite video inputs via BNC, expanding compatibility with standard definition devices.
• Provides stereo audio input through two RCA connectors, allowing easy integration of external sound sources.
• Features stereo speaker outputs delivering 10 watts per channel for clear and direct audio playback from the monitor.
• Equipped with an RJ-45 LAN port to enable remote display control, ideal for managing multiple monitors in professional environments.
• Compact design that mounts directly onto the monitor, simplifying installation and maintaining a clean workspace.

Key specs

• Video inputs: DVI-D (input/output), 5-BNC analog RGB, component video, S-video, composite video (BNC)
• Audio inputs: Two stereo RCA connectors
• Audio outputs: Stereo speaker output, 10 watts per channel
• Control interface: RJ-45 LAN port for remote display management
• Compatible monitors: Sharp PN-E601, PN-E521, PN-E471, PN-E421

Connectivity and compatibility

This expansion board is designed to integrate seamlessly with Sharp PN-E series monitors, expanding their input and output capabilities to support a wide variety of video and audio sources. Whether you are connecting modern digital devices via DVI-D or older analog equipment through BNC connectors, the PN-ZB01 ensures your monitor can handle diverse signals without extra converters. The LAN port adds a layer of control, making it suitable for environments where centralized management of displays is necessary.

Ideal uses and environments

The PN-ZB01 is well suited for professional settings such as conference rooms, control centers, and broadcast studios where multiple video formats and remote control capabilities are essential. It allows users to consolidate their AV setup by connecting various sources directly to the monitor, reducing clutter and simplifying operation. This makes it a strong choice for users who require flexible and reliable connectivity in complex audiovisual installations.
