ASUS RS720-E8-RS24-ECP

Overview

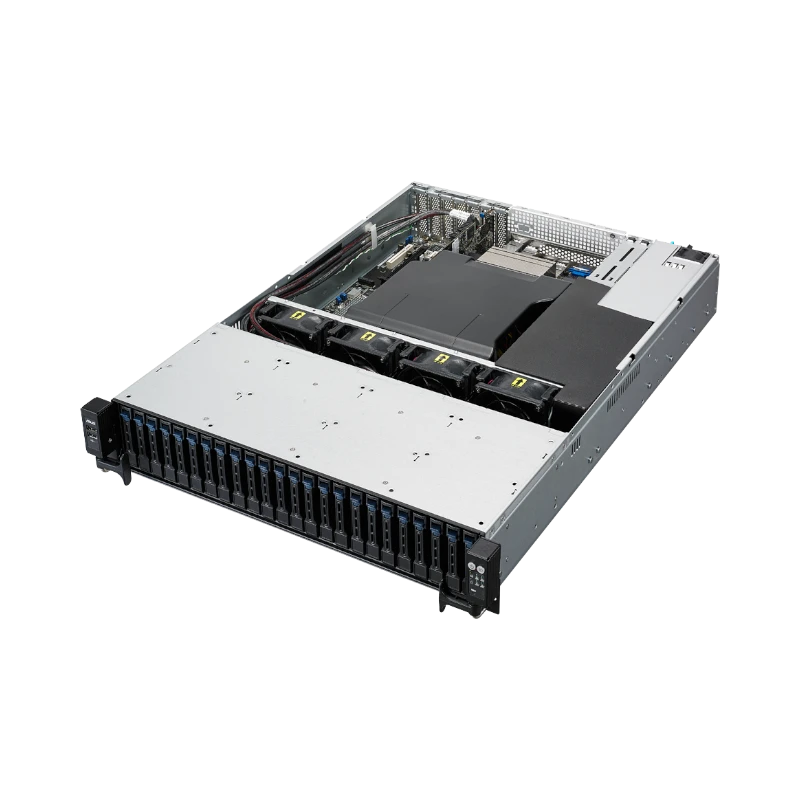

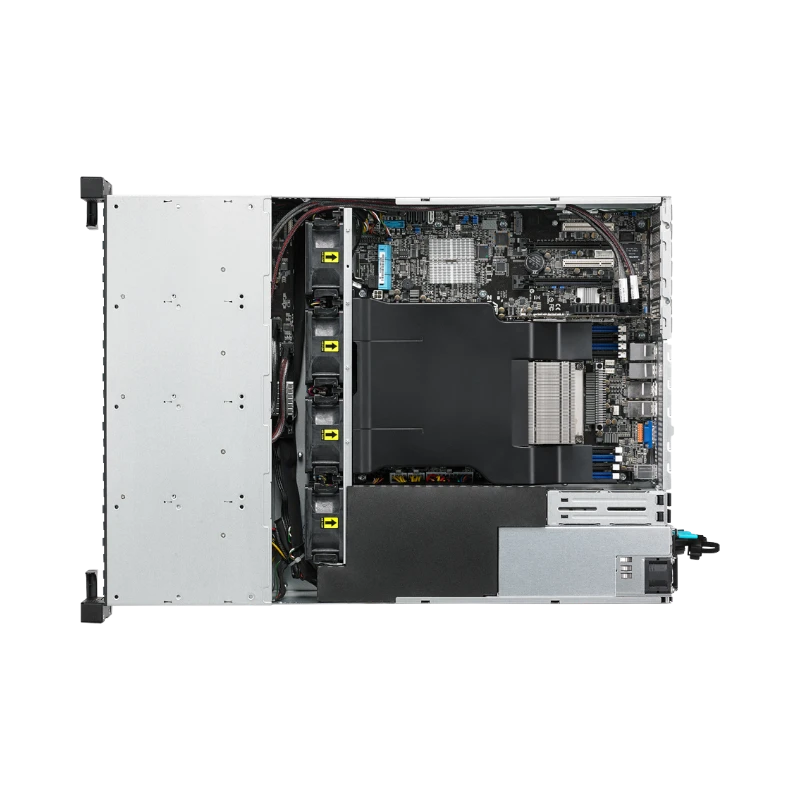

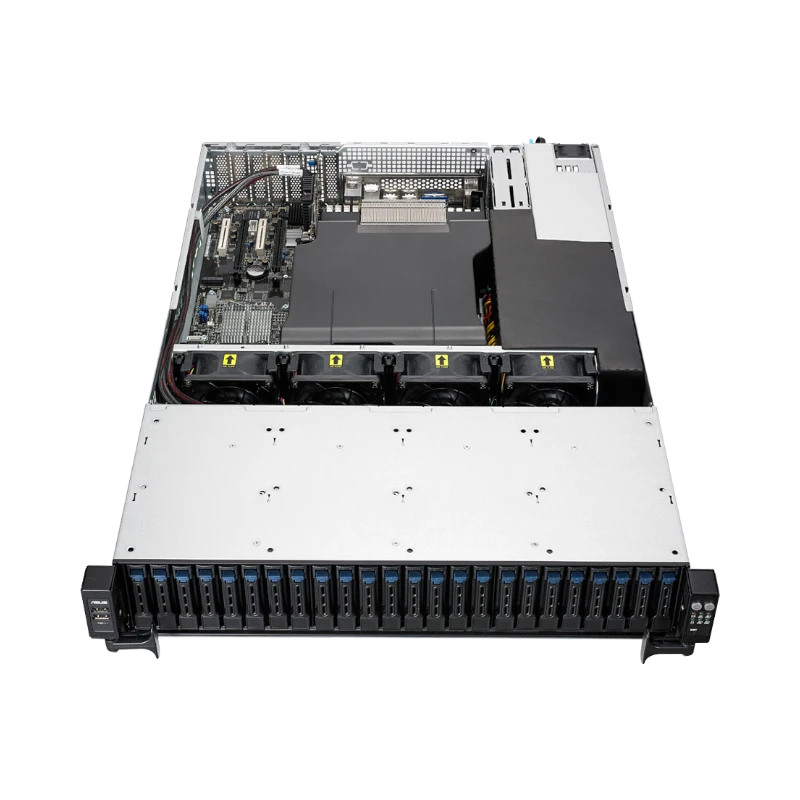

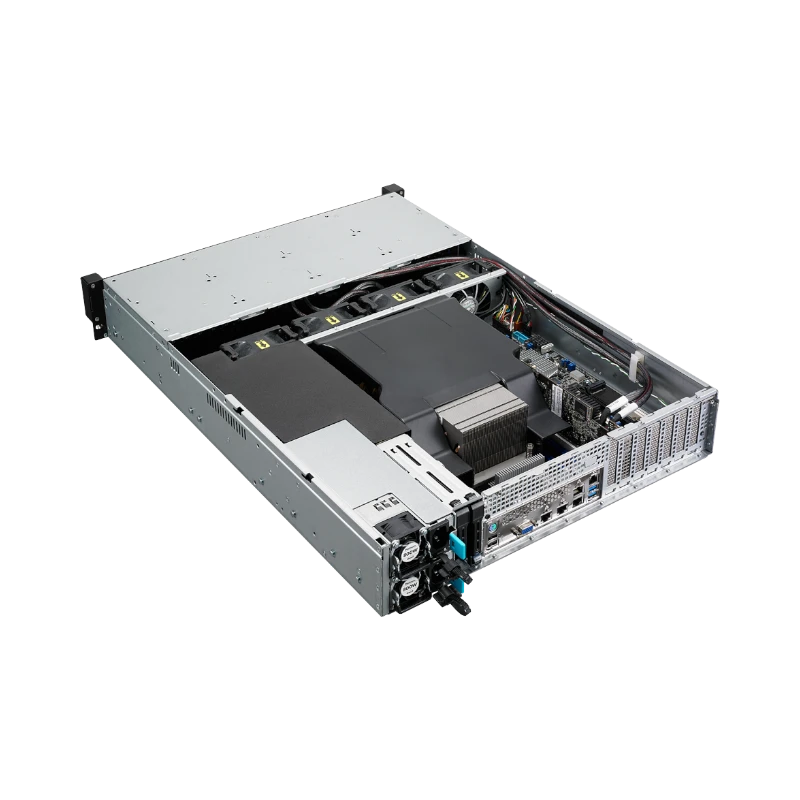

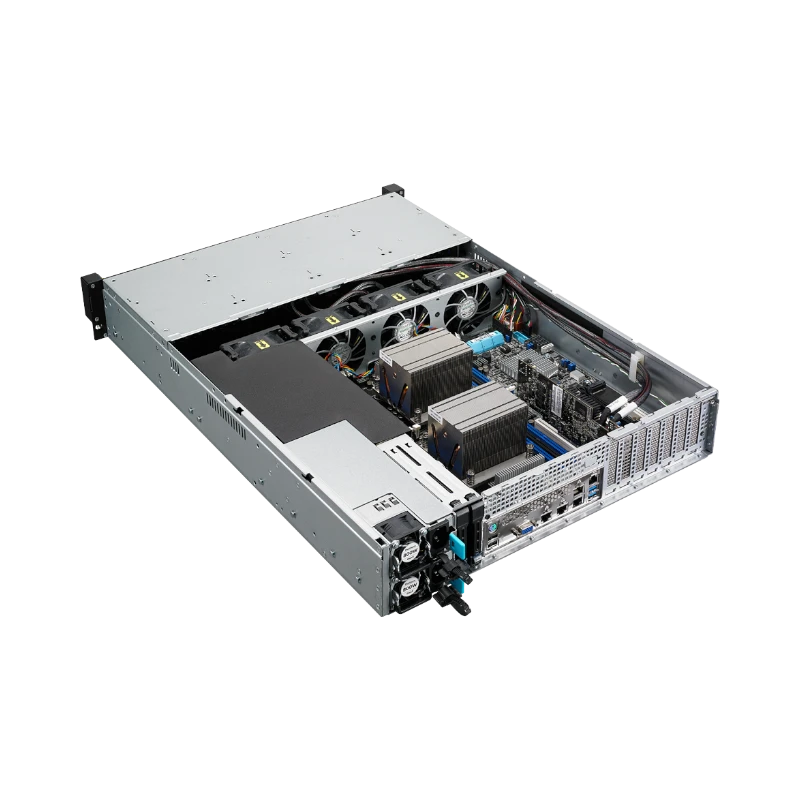

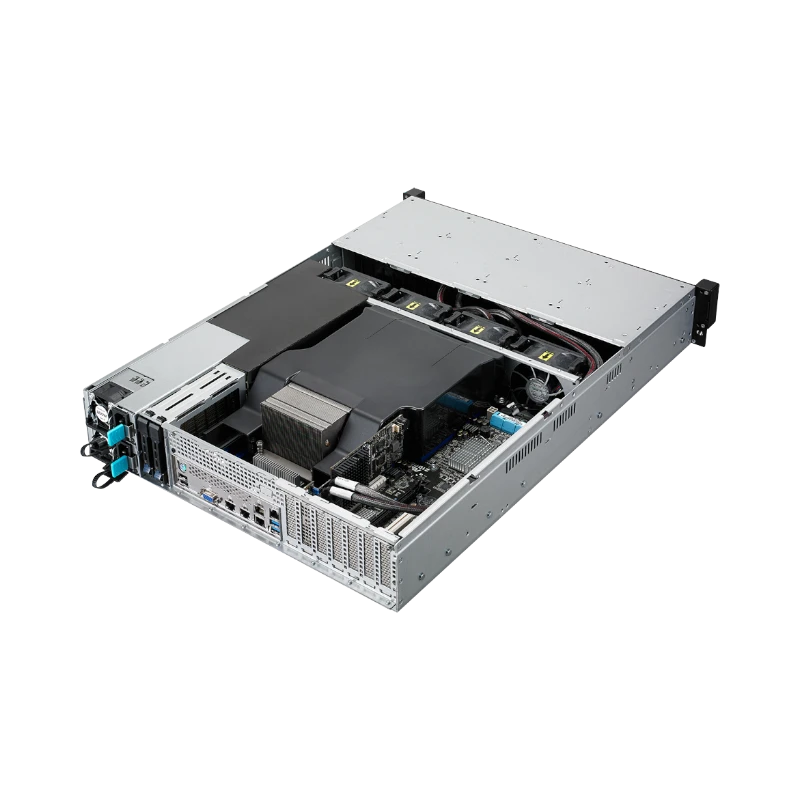

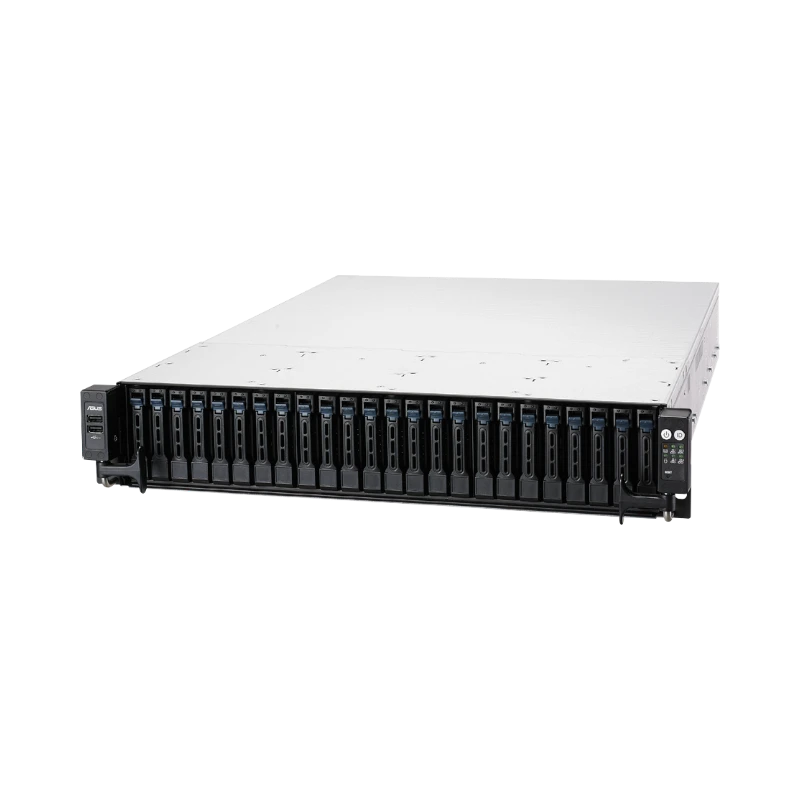

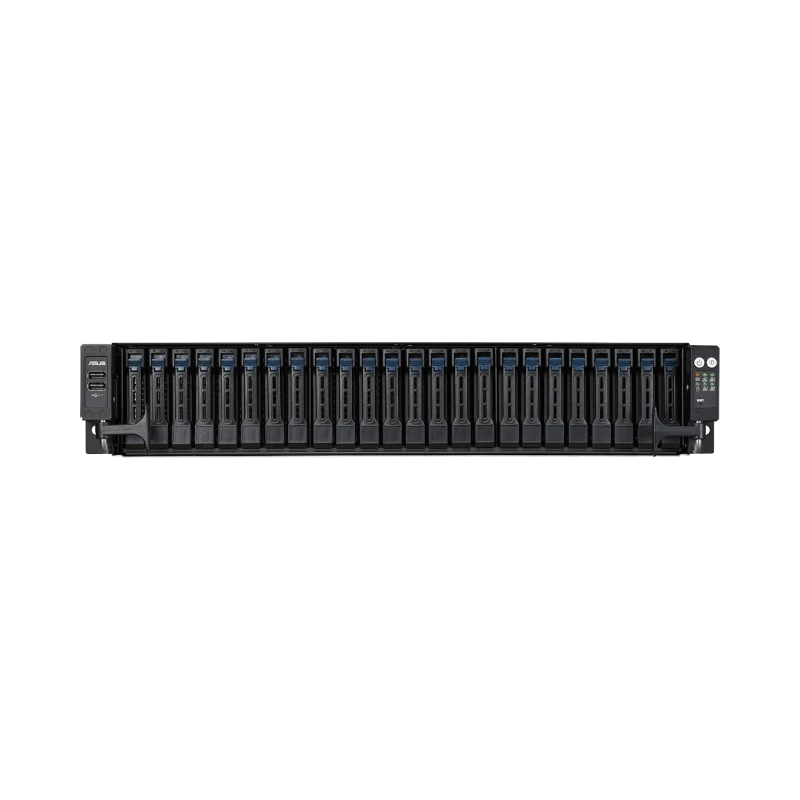

The ASUS RS720-E8-RS24-ECP is a 2U rack server built to deliver robust computing power within a compact chassis. It supports dual Intel Xeon E5-2600 v3 or v4 processors, enabling scalable performance for demanding workloads such as virtualization, high-performance computing, and large database management. With up to 1024 GB of DDR4 ECC memory across sixteen DIMM slots, it ensures smooth operation of memory-intensive applications without compromising stability.

Storage needs are well addressed with twenty-six hot-swappable 2.5-inch drive bays, complemented by two rear bays for dedicated OS SSDs and an onboard M.2 slot for efficient operating system deployment. The server’s native 12 Gbps SAS and SATA3 interfaces allow a balanced mix of high-speed SSDs and high-capacity hard drives. Networking is handled by four Gigabit Ethernet ports alongside a dedicated management LAN port for remote system administration. Dual 800 W 80 PLUS Platinum power supplies provide reliable, energy-efficient power with redundancy to minimize downtime.

Key features

• Dual-socket design supports Intel Xeon E5-2600 v3 or v4 processors for flexible core and thread scaling
• Large memory capacity with sixteen DIMM slots supporting up to 1024 GB DDR4 ECC for demanding applications
• Extensive storage options with twenty-six hot-swappable 2.5-inch bays plus rear OS SSD bays and an M.2 slot for streamlined system setup
• High-speed 12 Gbps SAS and SATA3 connectivity to optimize performance and storage capacity balance
• Five PCI Express Gen3 low-profile slots allow expansion with network adapters, GPU accelerators, or RAID controllers
• Four Gigabit Ethernet ports provide ample network bandwidth, while a dedicated management LAN port enables secure remote monitoring
• Redundant 800 W 80 PLUS Platinum power supplies ensure continuous operation and energy efficiency

Key specs

• Processor support: Dual Intel Xeon E5-2600 v3 or v4 (Socket R3, LGA 2011-3)
• Memory: Up to 1024 GB DDR4 ECC across 16 DIMM slots
• Drive bays: 26 x 2.5-inch hot-swappable bays, plus 2 rear OS SSD bays and 1 onboard M.2 slot
• Storage interface: 12 Gbps SAS and SATA3 native support
• Expansion slots: 5 x PCI Express Gen3 low-profile
• Network ports: 4 x Gigabit Ethernet, 1 x dedicated management LAN
• Power supplies: Dual 800 W 80 PLUS Platinum certified redundant units
• Form factor: 2U rackmount chassis

Connectivity and compatibility

This server offers a versatile set of connectivity options to fit into various enterprise environments. The four Gigabit Ethernet ports handle standard network traffic efficiently, while the dedicated management LAN port provides out-of-band access for IT administrators to perform remote diagnostics and maintenance without interrupting normal operations. The five PCIe Gen3 slots support a range of add-on cards, including high-speed network adapters, GPU accelerators for compute-intensive tasks, and hardware RAID controllers to enhance storage performance and reliability.

Performance and reliability

Designed for mission-critical workloads, the server’s dual Intel Xeon processors deliver scalable performance with multiple cores and threads. The large memory capacity supports applications that require extensive RAM, such as virtualization and database management. Redundant 800 W power supplies with 80 PLUS Platinum certification ensure high energy efficiency and continuous operation even if one power supply fails, reducing the risk of downtime in data centers or enterprise labs.

Ideal uses and environments

This server is well suited to data centers, private cloud infrastructures, and enterprise environments where space efficiency and high compute density are priorities. Its combination of powerful processors, large memory capacity, and flexible storage options makes it a strong choice for virtualization hosts, high-performance computing clusters, and large-scale database servers. IT teams will appreciate the remote management capabilities and redundant power supplies that support reliable, continuous operation.
