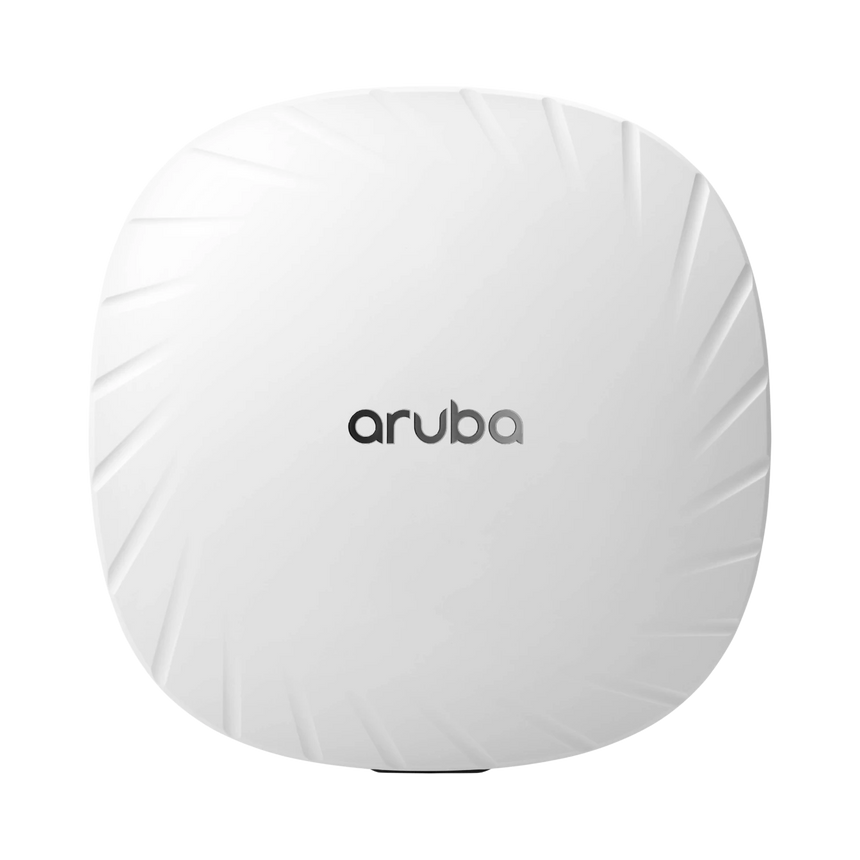

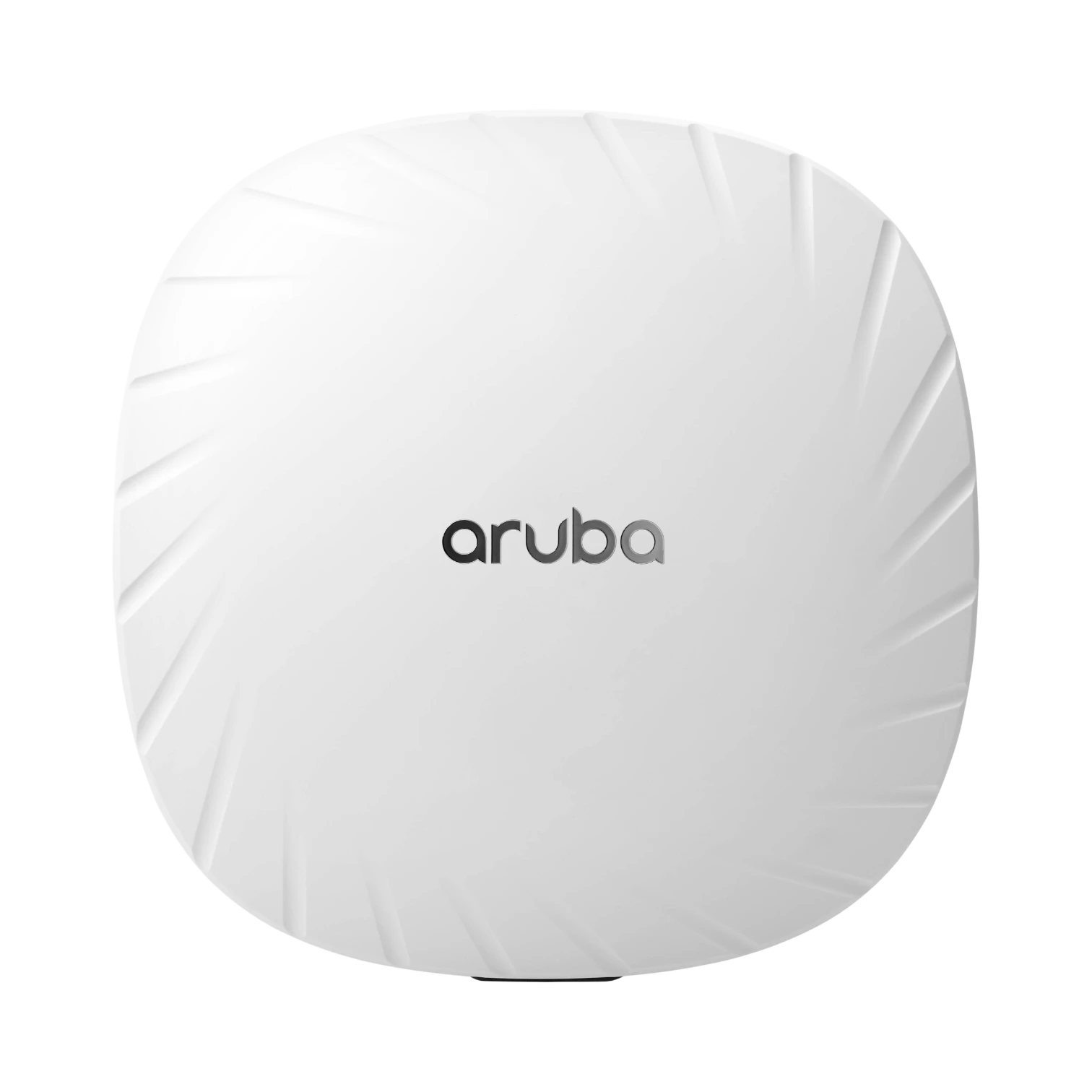

Aruba Q9H63A

Overview

The Aruba Q9H63A is a dual radio internal antenna wireless access point designed to provide fast and reliable Wi-Fi 6 connectivity in environments with many connected devices. It supports speeds up to 4.8 Gb/s on the 5 GHz band and 575 Mb/s on the 2.4 GHz band, making it well suited for schools, hotels, offices, and other high-density settings. This access point also integrates Bluetooth 5 and Zigbee radios to support IoT devices and location services without extra hardware, while advanced technologies like OFDMA and MU-MIMO help maintain smooth network performance during peak usage.

Key features

• Wi-Fi 6 support on both 2.4 GHz and 5 GHz bands for faster and more efficient wireless connections
• Capacity to handle up to 256 devices per radio, ideal for crowded networks with many users and smart devices
• Built-in Bluetooth 5 and Zigbee radios enable seamless integration of IoT devices and location-based services
• OFDMA and MU-MIMO technologies optimize network traffic, reducing latency and improving overall performance
• 4x4 MIMO on 5 GHz and 2x2 MIMO on 2.4 GHz ensure strong signal quality and extended coverage
• One 2.5G HPE SmartRate port and one gigabit Ethernet port provide flexible wired connectivity options
• Integrated USB and micro-USB ports offer additional functionality and expandability
• Supports ArubaOS and InstantOS deployment modes for versatile network management
• Smart power-saving modes reduce energy consumption while maintaining performance
• WPA3 security and Trusted Platform Module enhance network protection against threats

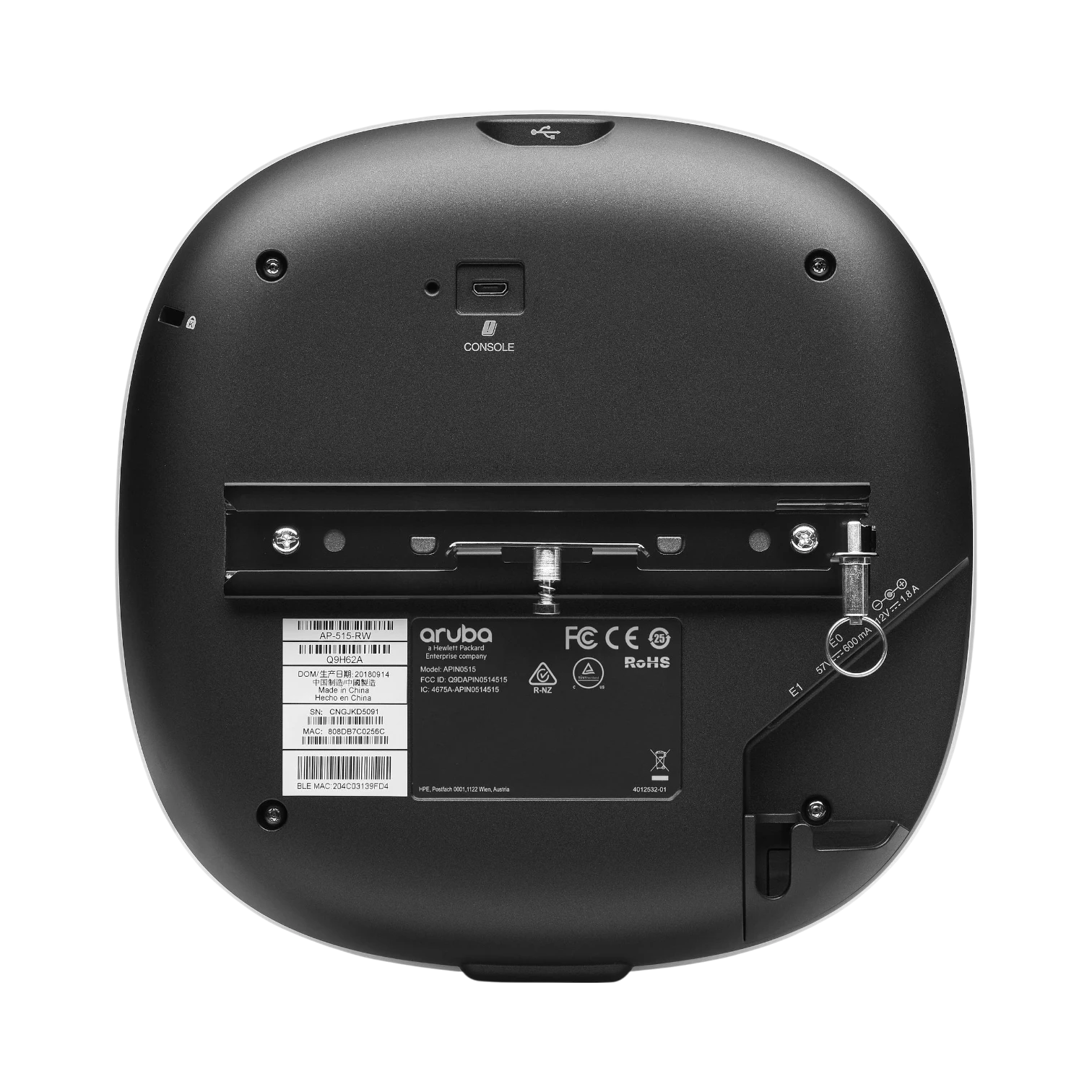

• Includes a mounting bracket designed for easy ceiling installation in indoor environments
• Manageable through Android and iOS apps for convenient remote control and monitoring

Key specs

• Wireless standard: Wi-Fi 6 (802.11ax)
• Maximum wireless throughput: up to 5375 Mb/s total
• Device capacity: up to 256 devices per radio
• Radio configuration: dual radio with 4x4 MIMO on 5 GHz and 2x2 MIMO on 2.4 GHz
• Ethernet ports: one 2.5G HPE SmartRate, one gigabit Ethernet
• Additional ports: integrated USB and micro-USB
• Bluetooth version: 5
• Zigbee radio: included
• Power consumption: maximum 16 W with smart energy-saving modes
• Security: WPA3 and Trusted Platform Module
• Management: compatible with ArubaOS and InstantOS, Android and iOS apps
• Mounting: ceiling bracket included

Connectivity and compatibility

This access point offers versatile connectivity options to fit into various network setups. The 2.5G HPE SmartRate port supports faster wired connections for high-throughput backhaul or uplink, while the gigabit Ethernet port provides standard network access. The integrated USB and micro-USB ports allow for additional device support or future expansion. Bluetooth 5 and Zigbee radios enable direct communication with IoT devices and support location services, reducing the need for extra hardware installations. Compatibility with ArubaOS and InstantOS ensures flexible deployment and management across different network environments.

Performance and reliability

Designed to maintain strong and stable wireless connections even in dense device environments, this access point uses advanced technologies like OFDMA and MU-MIMO to efficiently allocate bandwidth and reduce interference. The 4x4 MIMO on the 5 GHz band and 2x2 MIMO on the 2.4 GHz band deliver robust signal strength and coverage, helping to minimize dead zones. Smart power-saving features optimize energy use without sacrificing performance, making it a practical choice for continuous operation in busy indoor spaces. Security is enhanced with WPA3 encryption and a Trusted Platform Module, protecting your network from unauthorized access and attacks.

Ideal uses and environments

The Aruba Q9H63A fits well in environments that demand reliable, high-speed wireless access for many users and devices simultaneously. It is a strong choice for educational institutions, hospitality venues, corporate offices, and other indoor spaces where consistent connectivity is critical. Its support for IoT integration and location services also makes it suitable for smart building applications. The included ceiling mounting bracket simplifies installation in common commercial and institutional settings, helping to keep the access point discreet while maximizing coverage.
