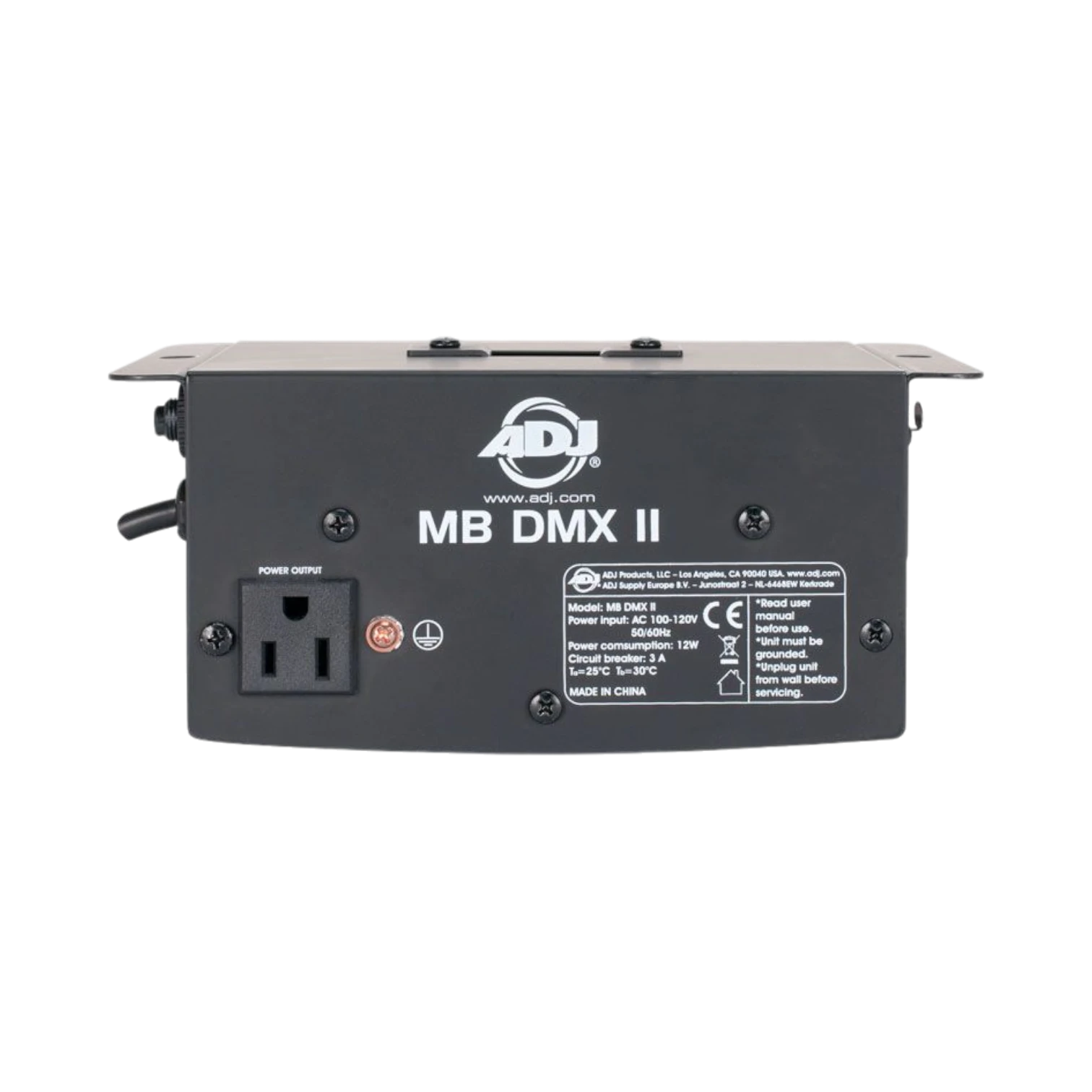

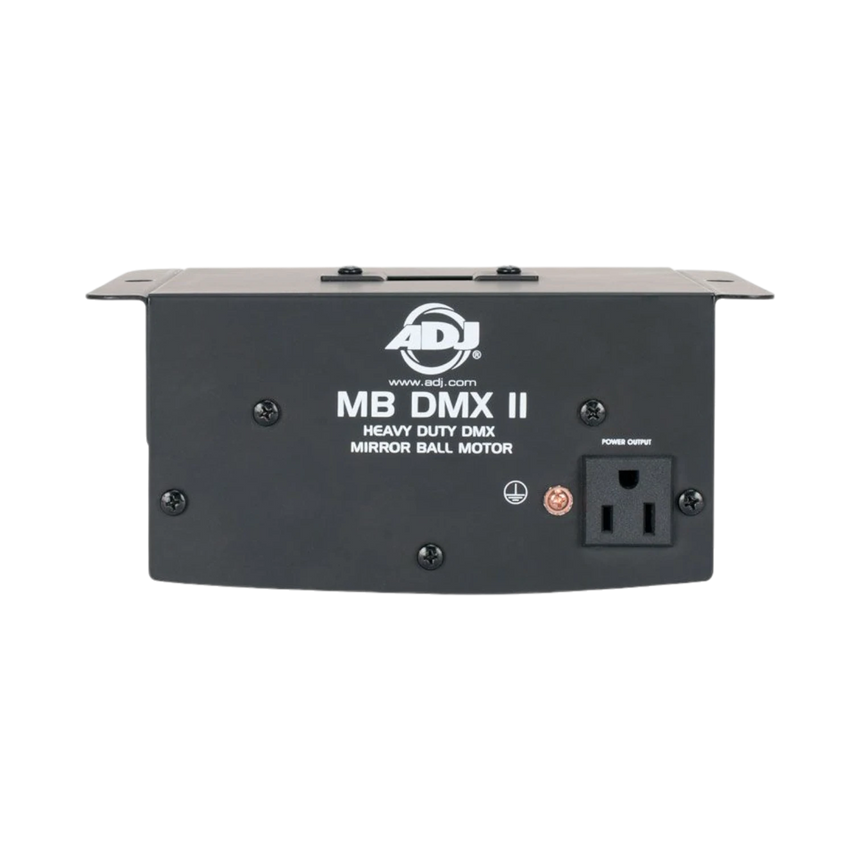

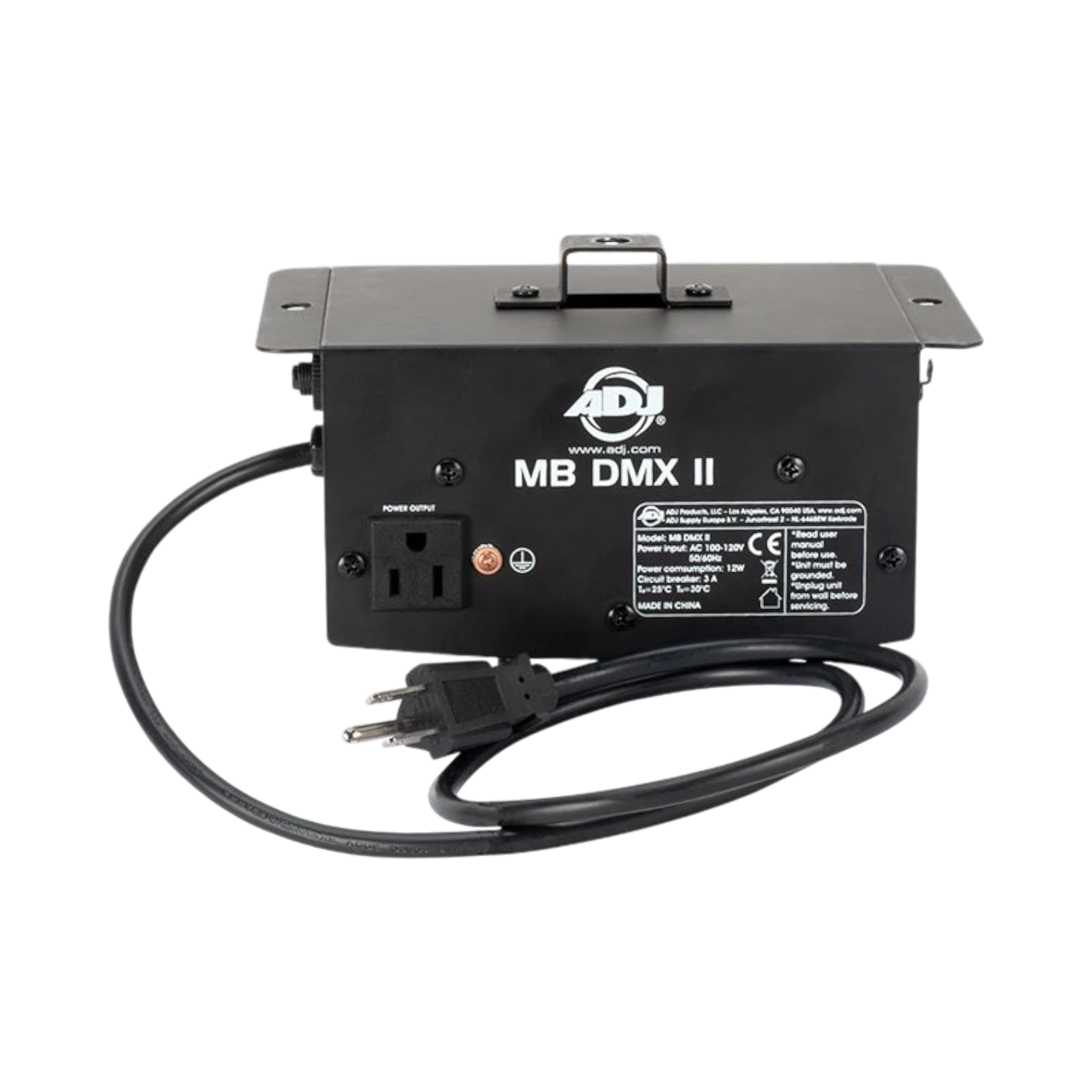

ADJ MB DMX II

Overview

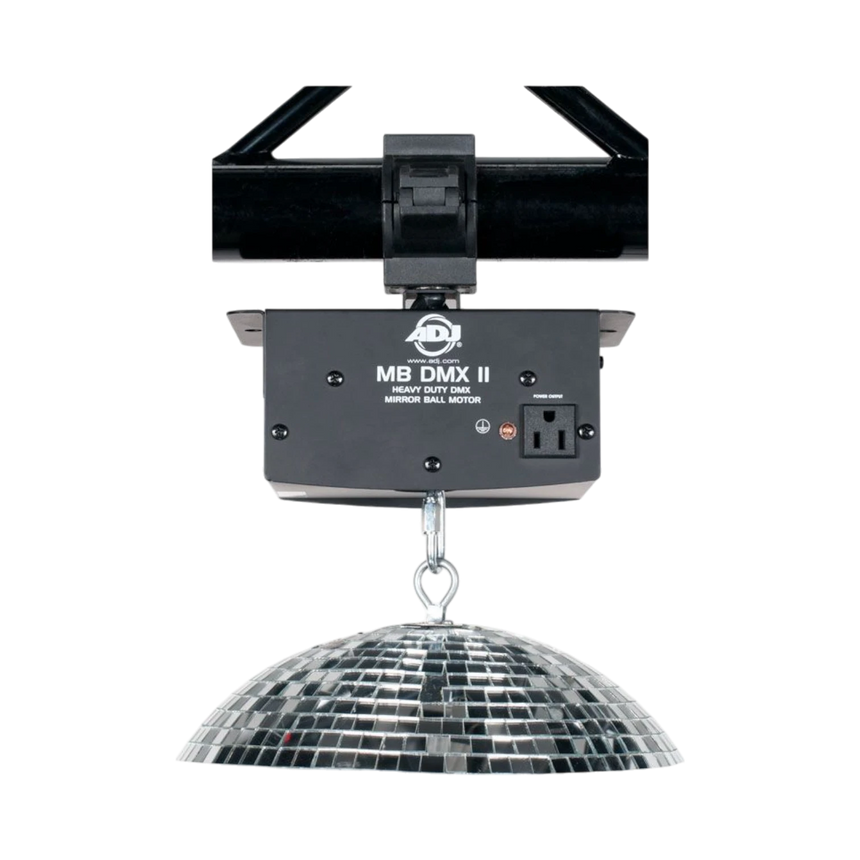

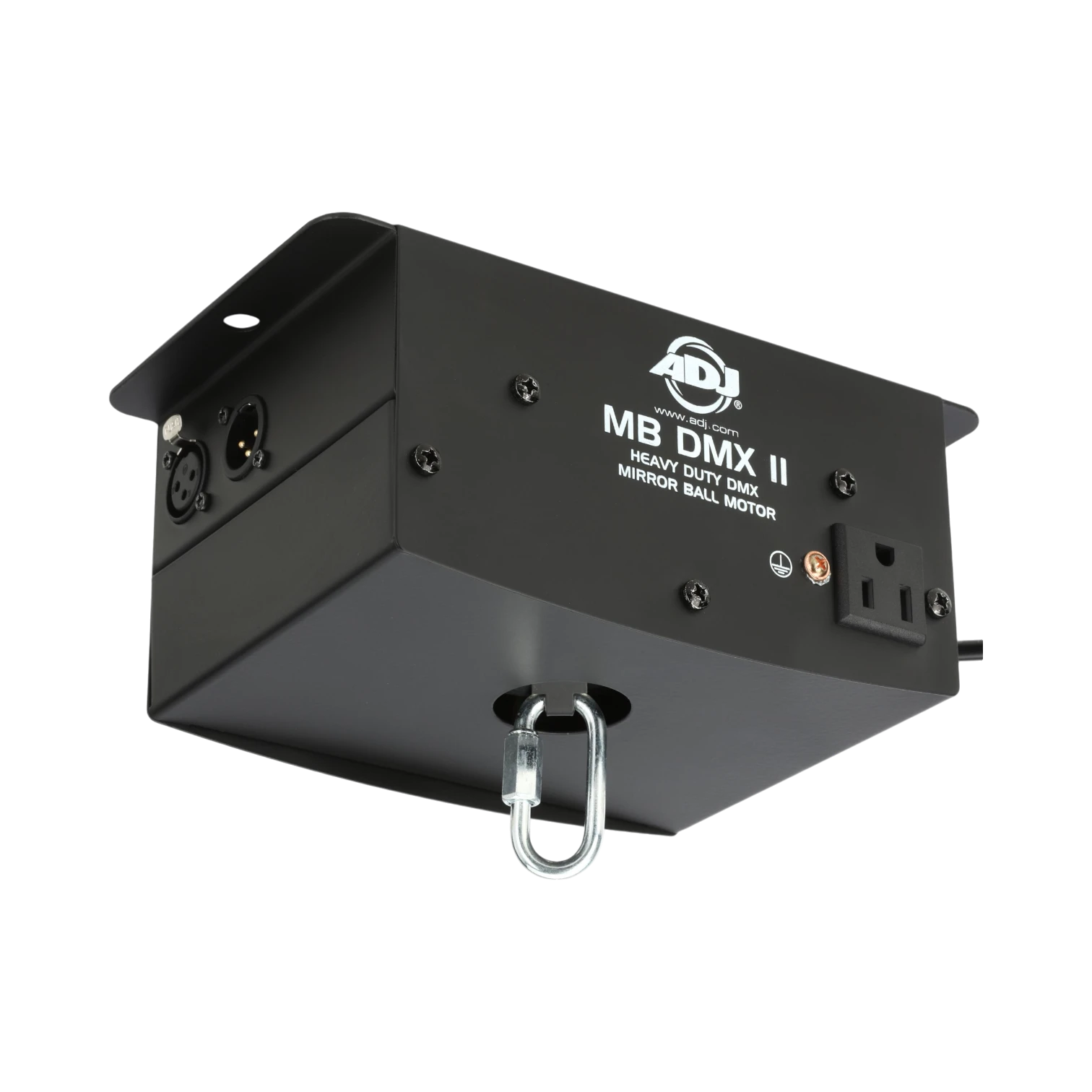

The ADJ MB DMX II is a heavy-duty mirror ball motor designed to operate up to four mirror balls simultaneously, supporting sizes up to 20 inches in diameter. It provides precise control over rotation speed and direction using two DMX channels, making it suitable for nightclubs, mobile entertainers, and permanent installations. With a compact size and a weight of just 4 pounds, it fits easily into existing lighting setups while delivering smooth and reliable performance.

Key features

• Drives up to four mirror balls at once, allowing for complex visual effects in larger venues
• Supports mirror balls up to 20 inches, offering flexibility for different event scales
• Two DMX channels enable independent control of rotation speed, direction, and pinspot power for dynamic lighting
• Built-in circuit breaker protection eliminates the need for fuse replacements, reducing downtime
• XLR input and output connections allow daisy-chaining multiple units for synchronized mirror ball movement

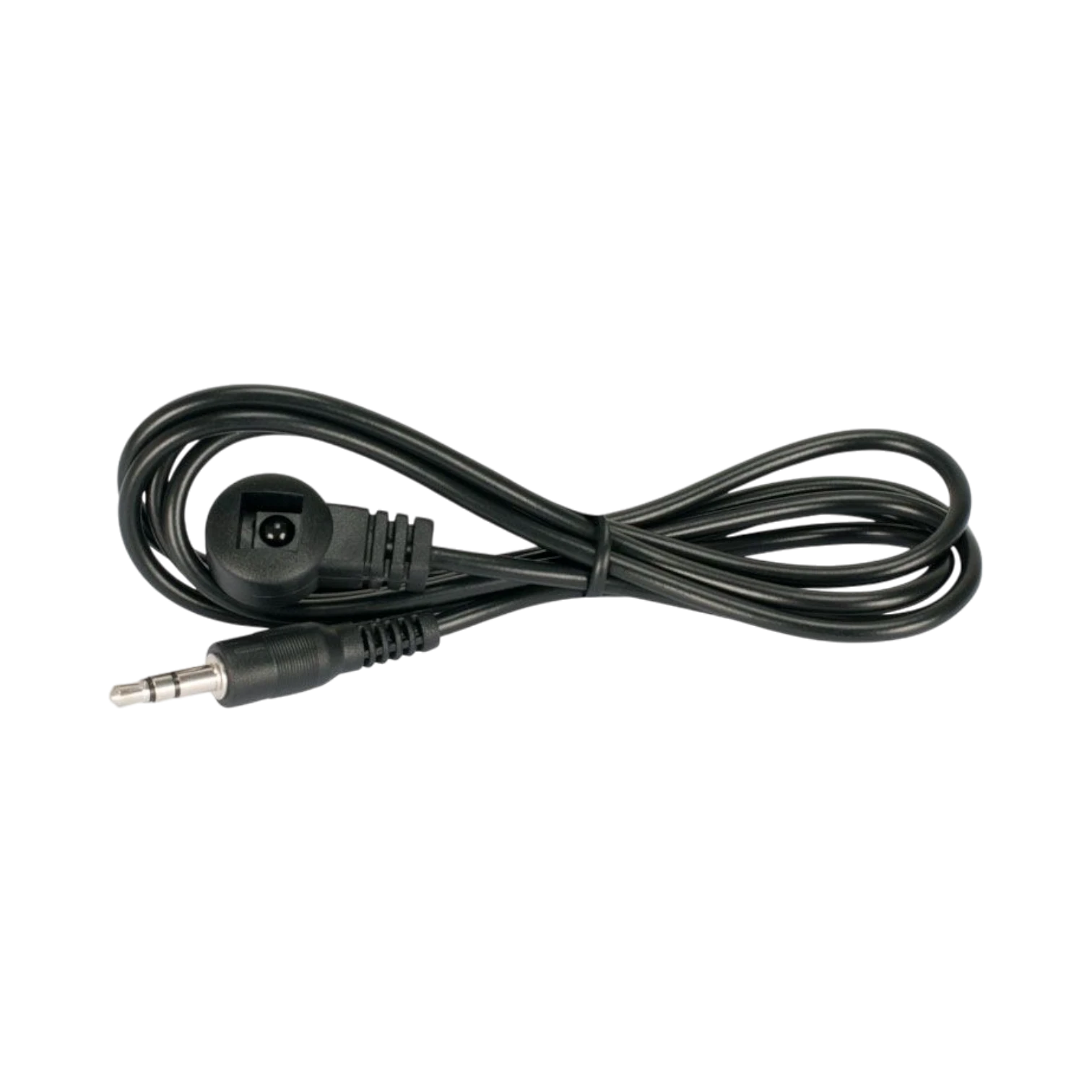

• Optional UC IR remote control can be connected via a 1/4” socket for convenient adjustments from a distance
• Energy-efficient operation with power consumption ranging from 10.2W to 10.5W depending on speed
• Compact and lightweight design simplifies installation and integration into existing rigs

Key specs

• Maximum mirror ball diameter: 20 inches
• Number of mirror balls supported: up to 4
• Control channels: 2 DMX channels (speed/direction and pinspot power)
• Power consumption: 10.2W (slowest speed) to 10.5W (fastest speed)
• Dimensions: 8 inches (length) x 4.8 inches (width) x 5.75 inches (height)
• Weight: 4 pounds

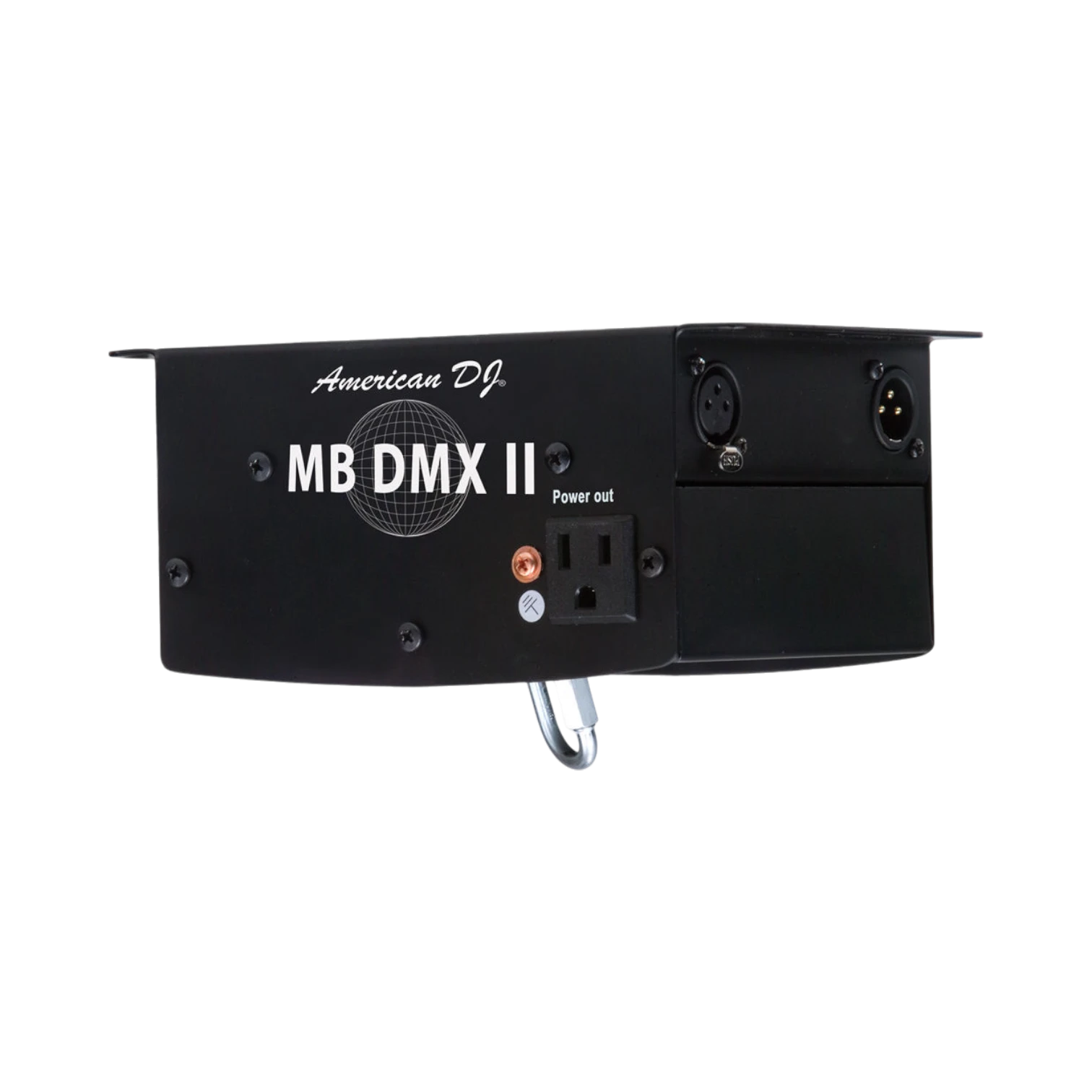

• Connections: XLR input and output for daisy-chaining, 1/4” socket for optional remote

Connectivity and compatibility

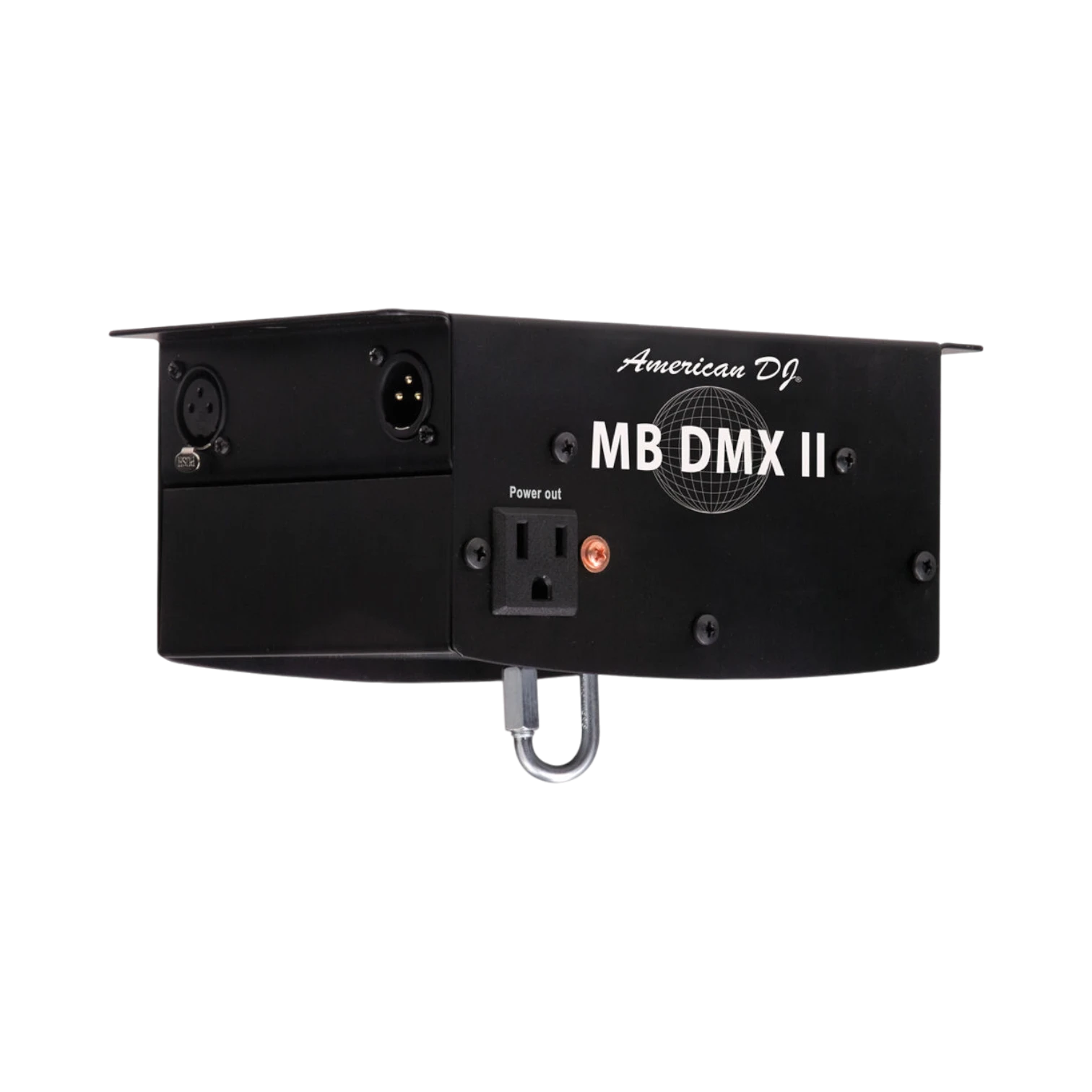

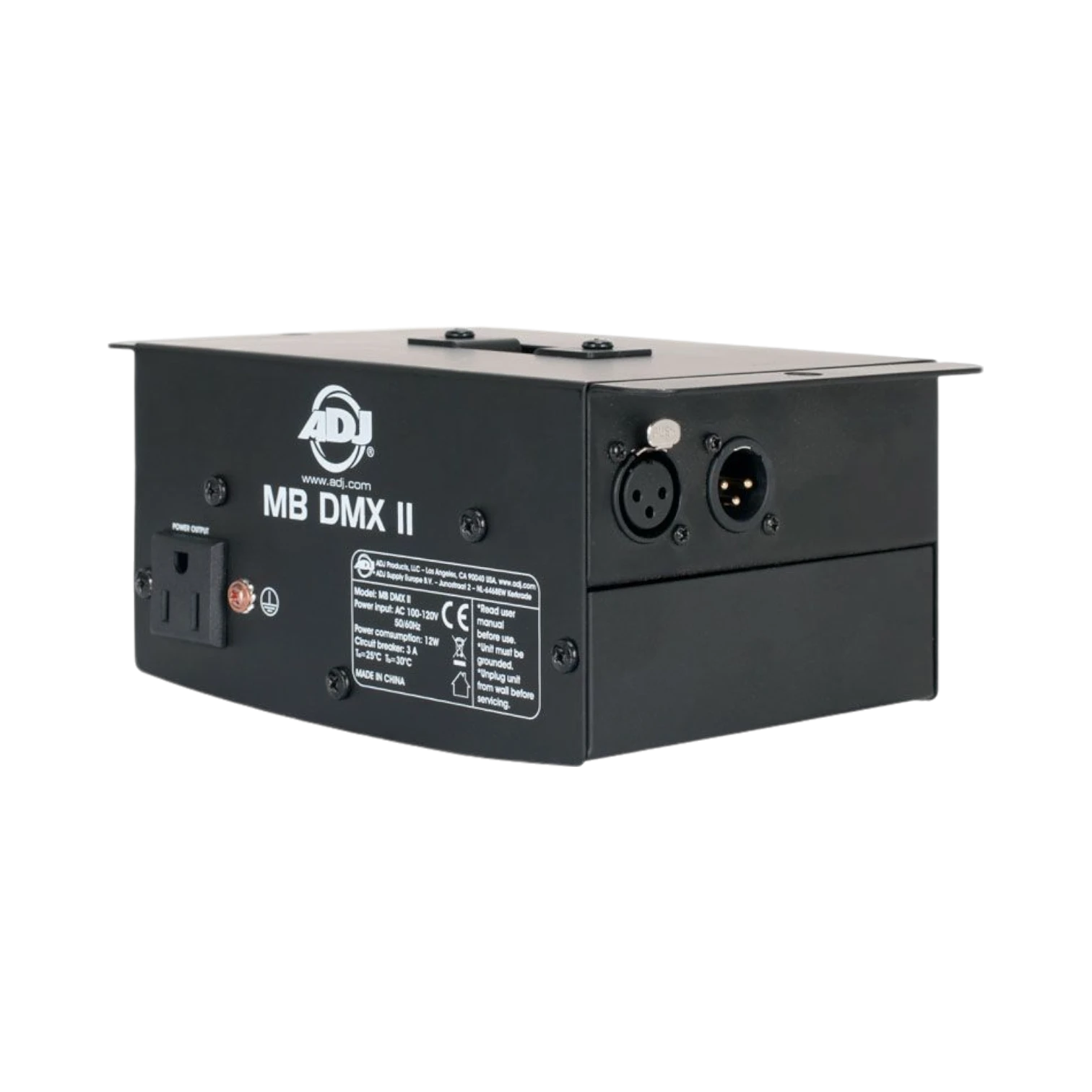

The motor’s XLR input and output ports make it easy to link multiple units together, enabling synchronized control of several mirror balls across a venue. This feature is particularly useful for creating coordinated lighting effects in nightclubs or event spaces. The 1/4” socket supports an optional UC IR remote controller, providing flexibility for remote adjustments without needing direct access to the motor.

Installation and setup

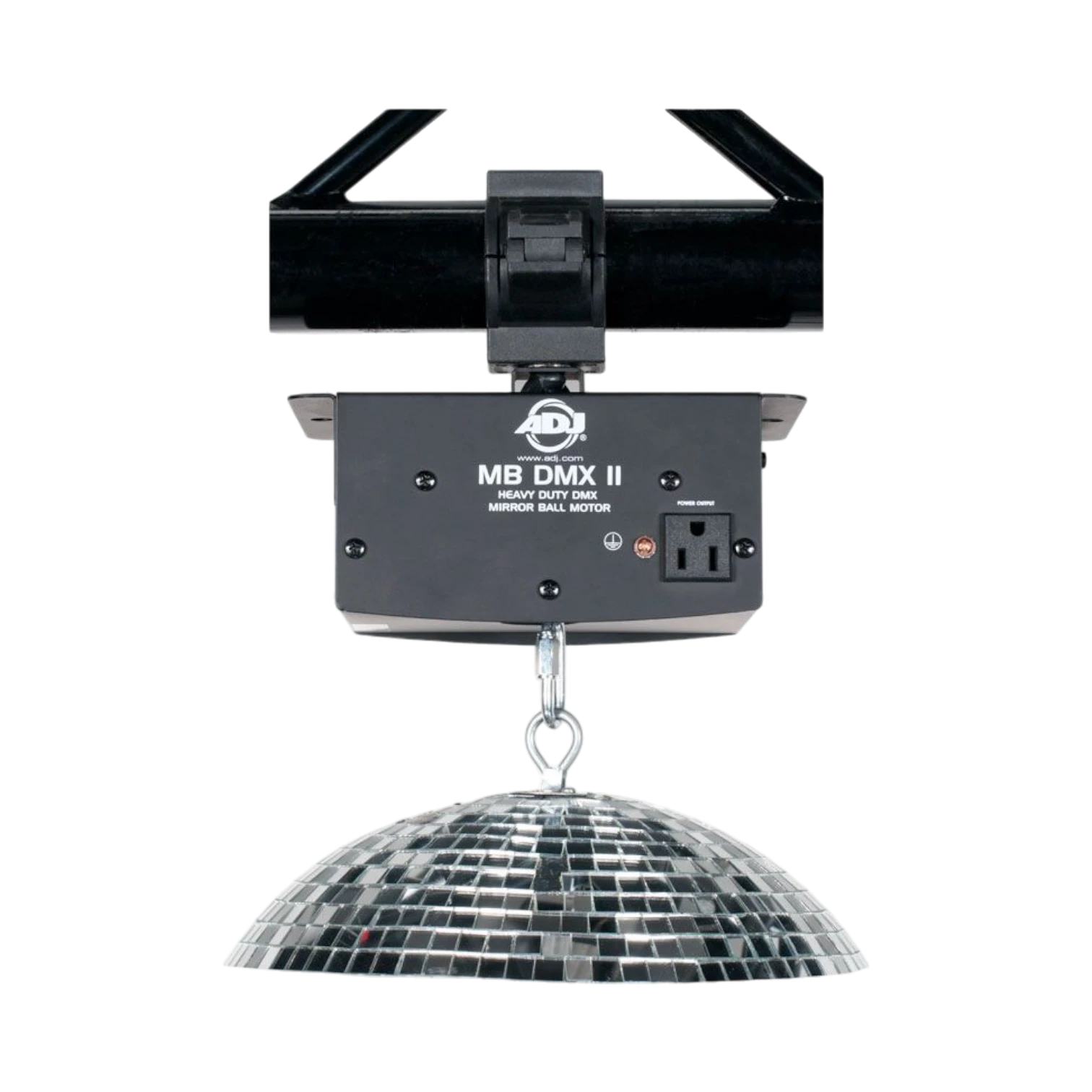

Thanks to its compact dimensions and lightweight design, the MB DMX II can be installed quickly and integrated into a variety of lighting rigs. Its energy-efficient power draw ensures it can run continuously without excessive power consumption. The built-in circuit breaker protection adds reliability by preventing motor damage and avoiding the inconvenience of fuse replacements during busy events.

Ideal uses and environments

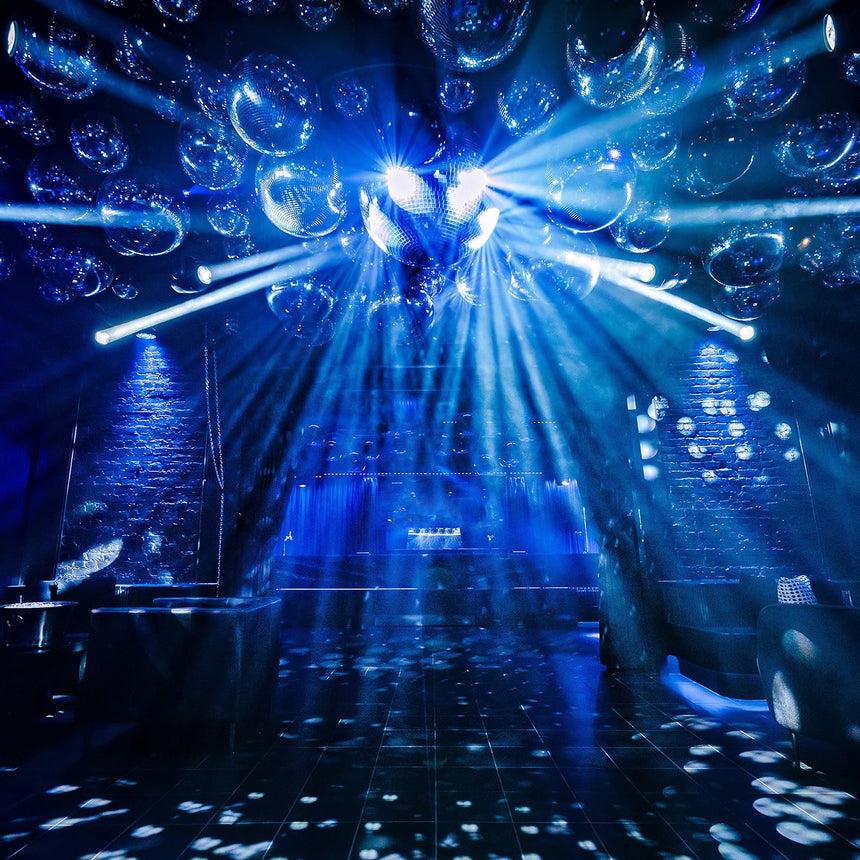

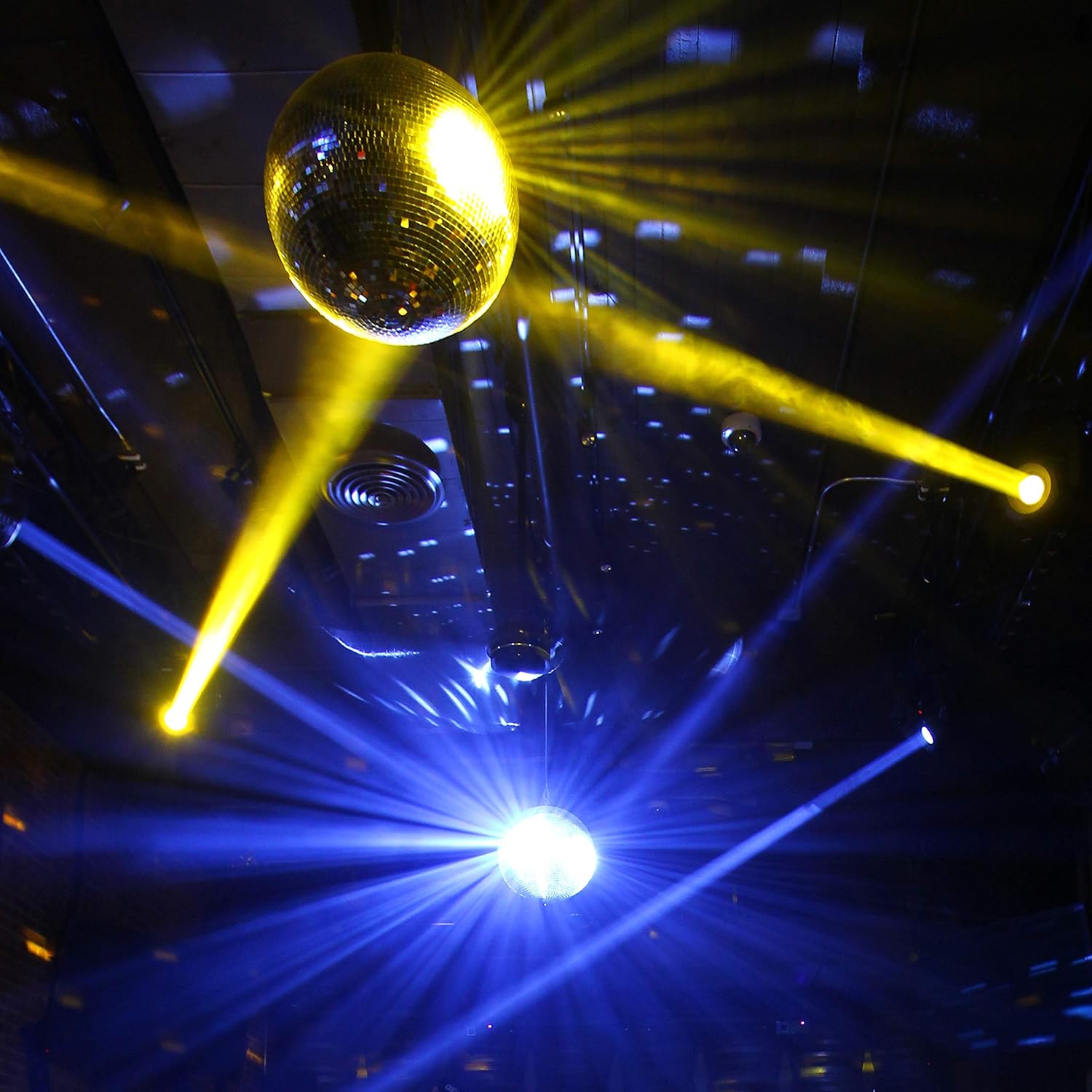

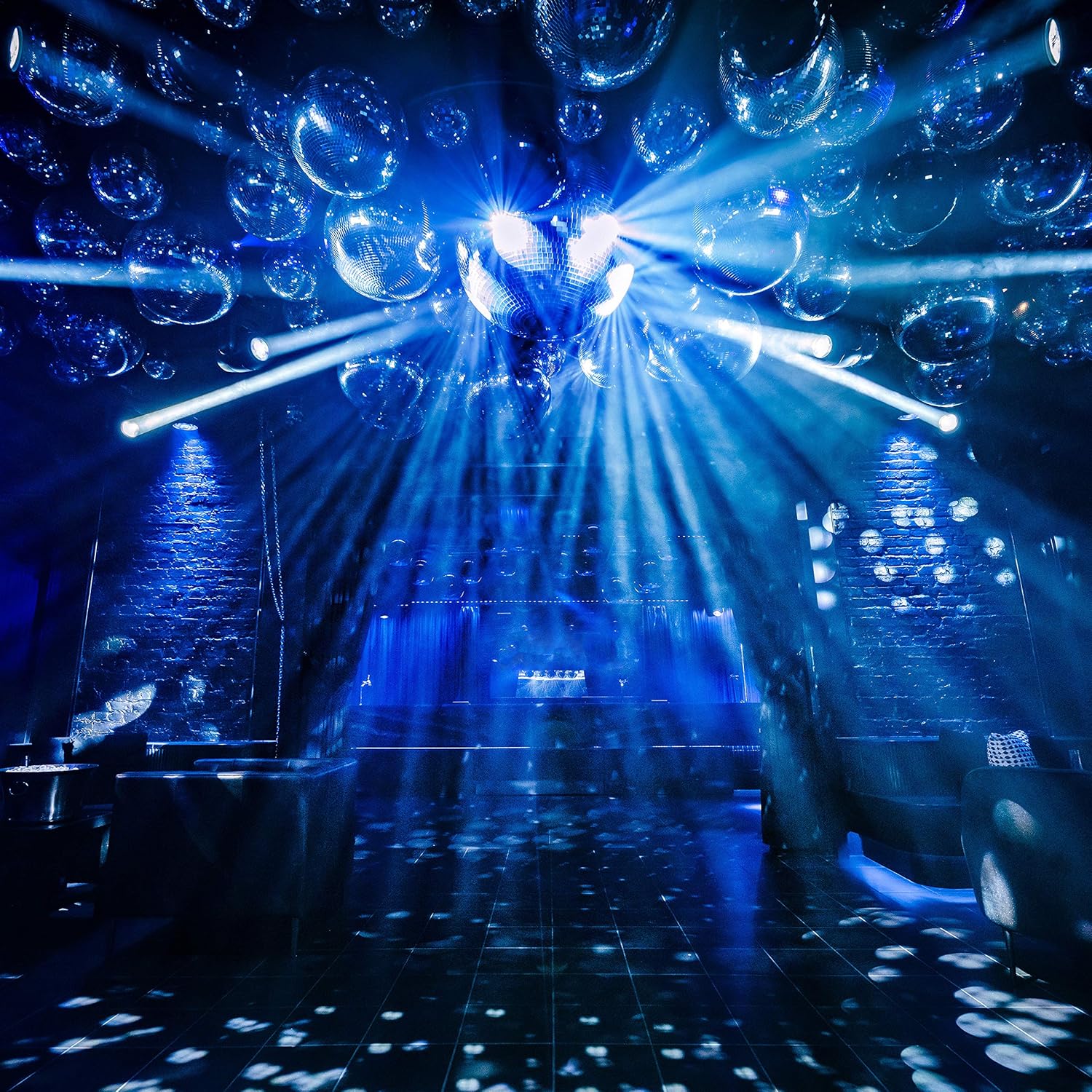

This motor is well suited to venues that require multiple mirror balls to create immersive lighting effects, such as nightclubs, mobile DJ setups, and permanent installations in theaters or event halls. Its precise DMX control and daisy-chaining capabilities make it a strong choice for users who want synchronized mirror ball rotation and dynamic pinspot lighting to enhance the atmosphere of their events.
