Samsung MM015F-A

Overview

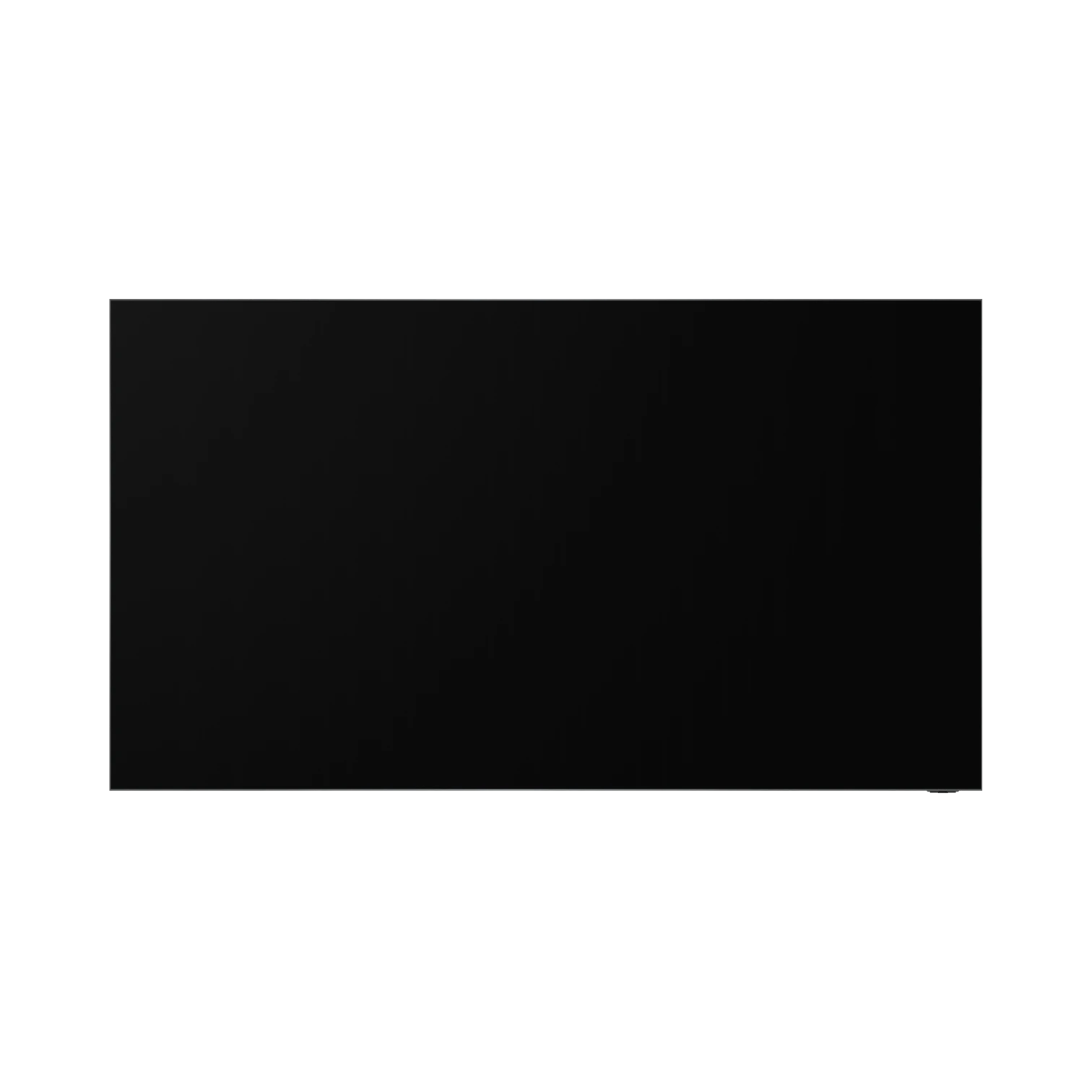

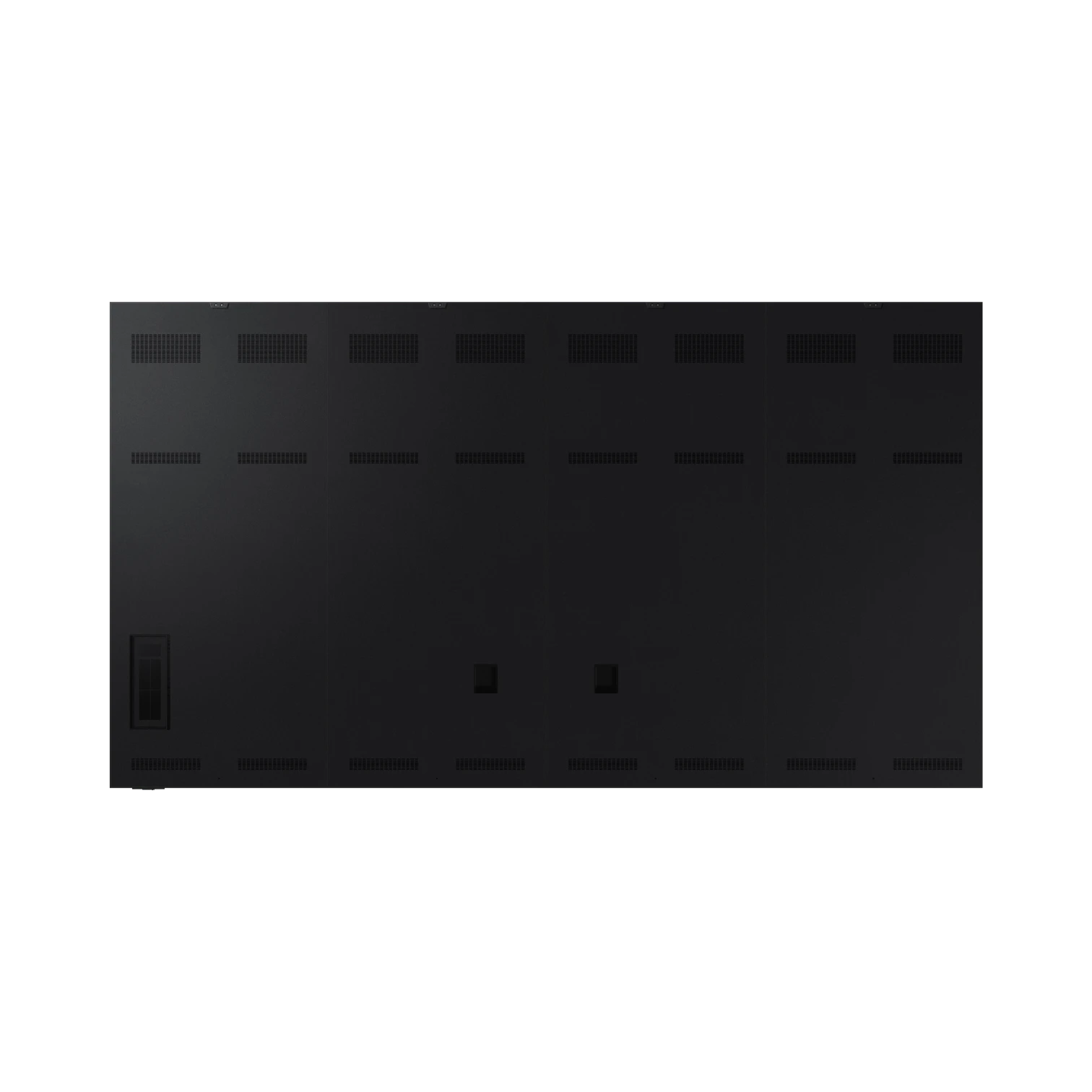

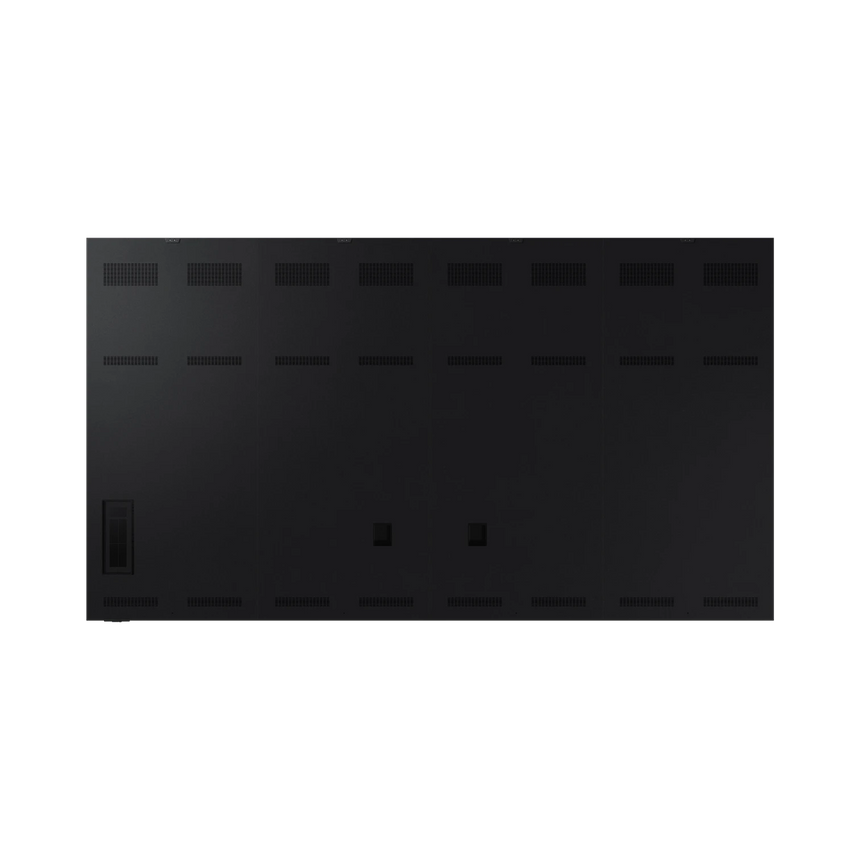

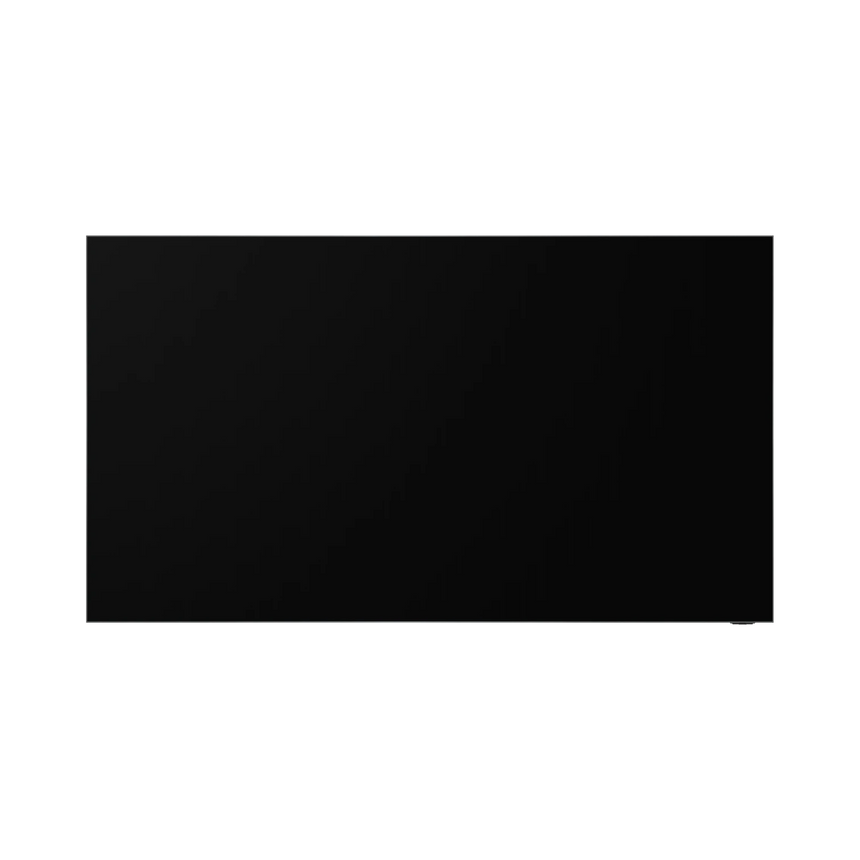

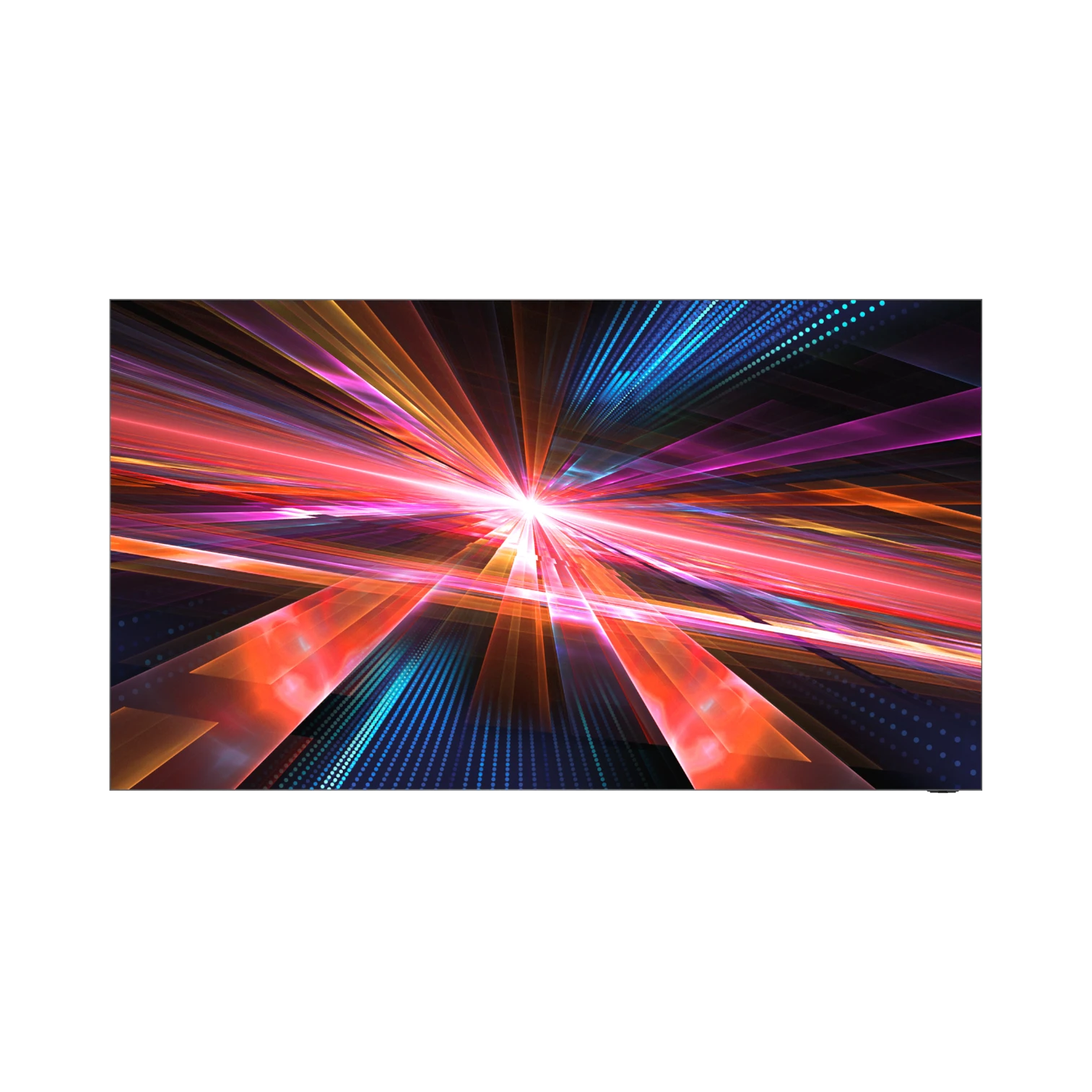

The Samsung MM015F-A is a 136-inch all-in-one LED display designed to deliver large-scale, high-quality visuals with a 1.56 mm pixel pitch and 500 nits of brightness. It supports HDR10 and HDR10+ for vibrant colors and deep contrast, making it well suited for professional environments that require clear and impactful content presentation. The display integrates essential components such as a control box, speakers, wall brackets, and decorative bezels into a single unit, simplifying installation and operation.

Key features

• Flip-chip RGB LED panel that produces sharp and detailed images with a fine 1.56 mm pixel pitch
• HDR10 and HDR10+ support with 16-bit color processing for enhanced color accuracy and contrast
• Built-in control box and speakers reduce the need for additional external equipment
• Quick Build system allows the entire display to be installed in about two hours, minimizing downtime
• Runs on Tizen 8.0 OS, providing a user-friendly interface and versatile content management
• Multiple connectivity options including four HDMI 2.0 ports and two USB 2.0 ports for flexible input sources
• Supports side-by-side installation of up to four screens to create expansive video walls
• TUV Rheinland Eye Comfort certification helps reduce eye strain during extended viewing sessions
• Energy efficient with less than 0.5W power consumption in standby mode, lowering operational costs

Key specs

• Display size: 136 inches
• Pixel pitch: 1.56 mm
• Brightness: 500 nits
• Viewing angle: 160° wide viewing angle
• HDR support: HDR10 and HDR10+
• Color processing: 16-bit
• Operating system: Tizen 8.0
• HDMI ports: 4 x HDMI 2.0
• USB ports: 2 x USB 2.0
• Power consumption in standby: less than 0.5W

Connectivity and compatibility

This display offers multiple input options to accommodate a variety of content sources. The four HDMI 2.0 ports support high-definition video and audio signals, making it easy to connect computers, media players, and other devices. Two USB 2.0 ports provide additional flexibility for media playback or peripheral connections. The Tizen 8.0 operating system ensures smooth content management and compatibility with a wide range of applications.

Installation and setup

The Samsung MM015F-A is designed for quick and straightforward installation. Its Quick Build system integrates all necessary components, including the control box, speakers, wall brackets, and decorative bezels, into a single unit. This approach allows professional installers to complete the setup in about two hours, reducing disruption and enabling faster deployment in corporate offices, retail spaces, or control rooms.

Ideal uses and environments

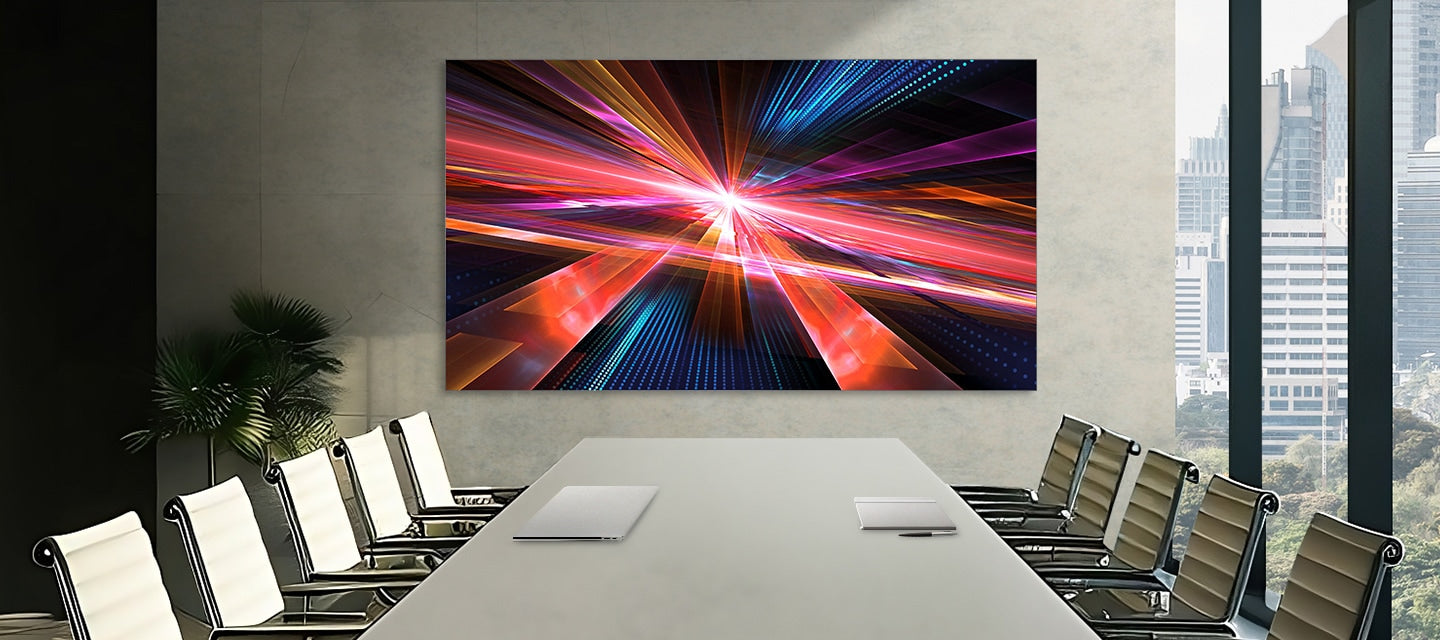

This large-format LED display fits well in environments that demand high-impact visuals and reliable performance. It is a strong choice for corporate meeting rooms, control centers, retail stores, and venues that require immersive video walls. The wide viewing angles and eye comfort certification make it suitable for spaces where viewers may spend extended periods watching the screen. Its energy efficiency also benefits organizations looking to manage operational costs.
