MSI B760M PROJECT ZERO

Overview

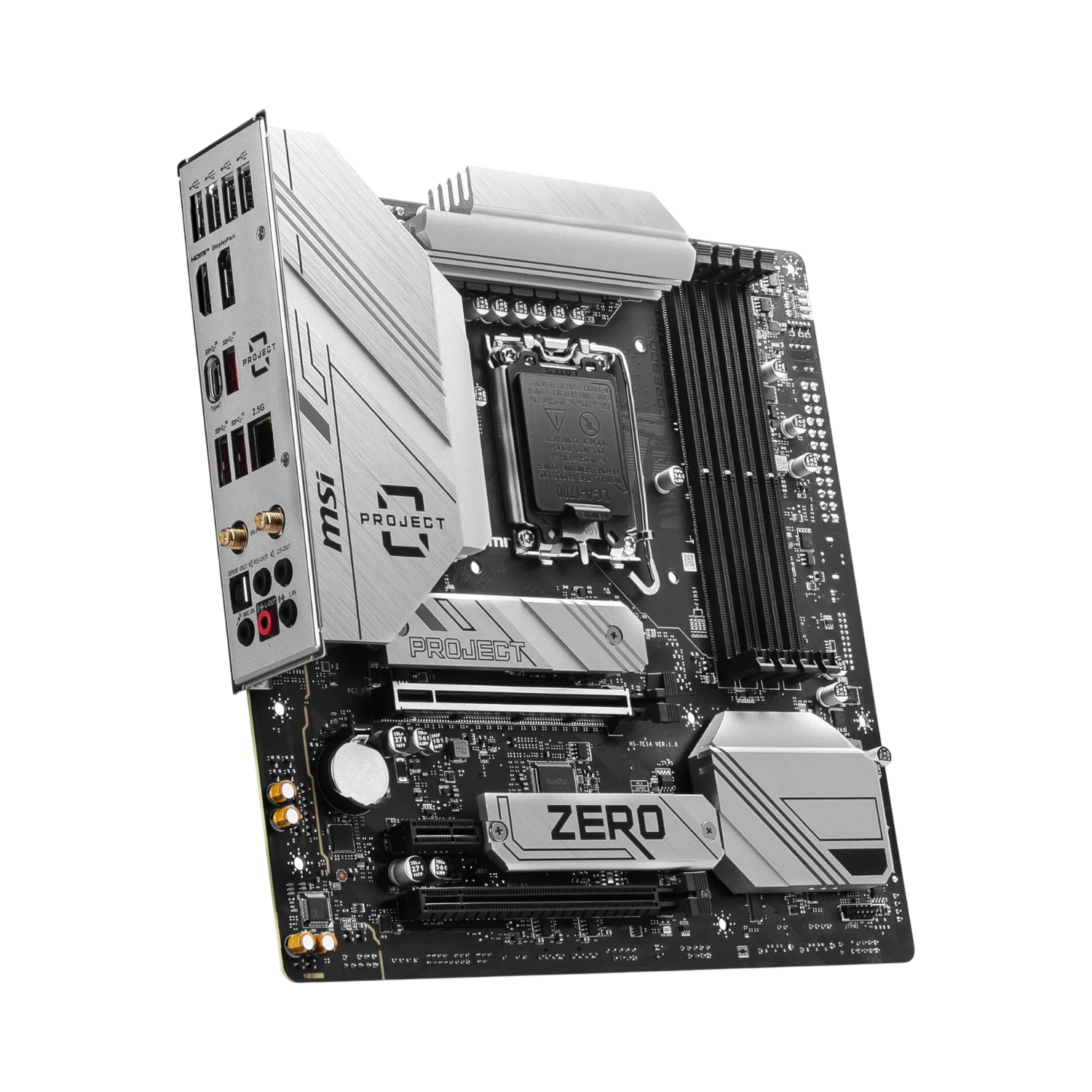

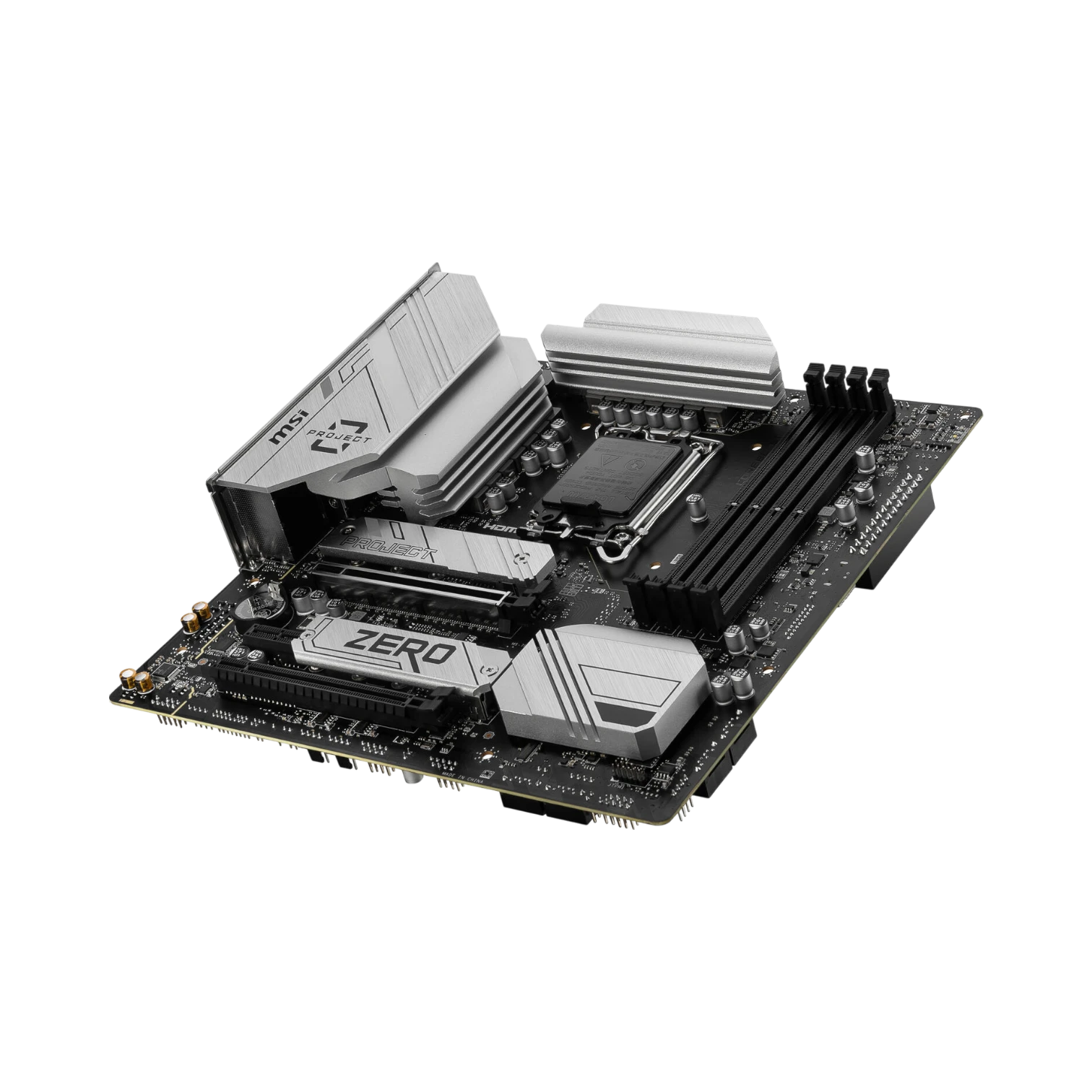

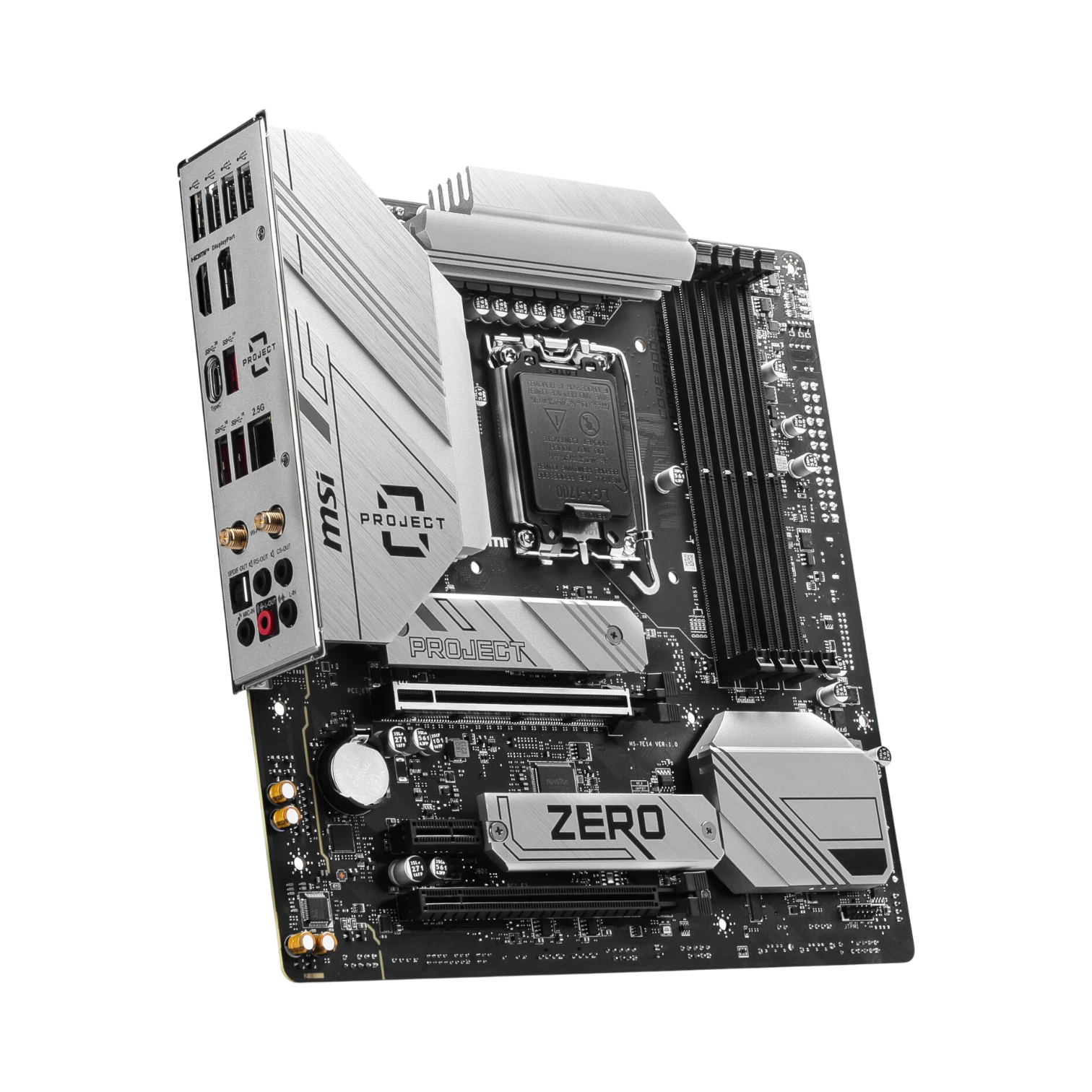

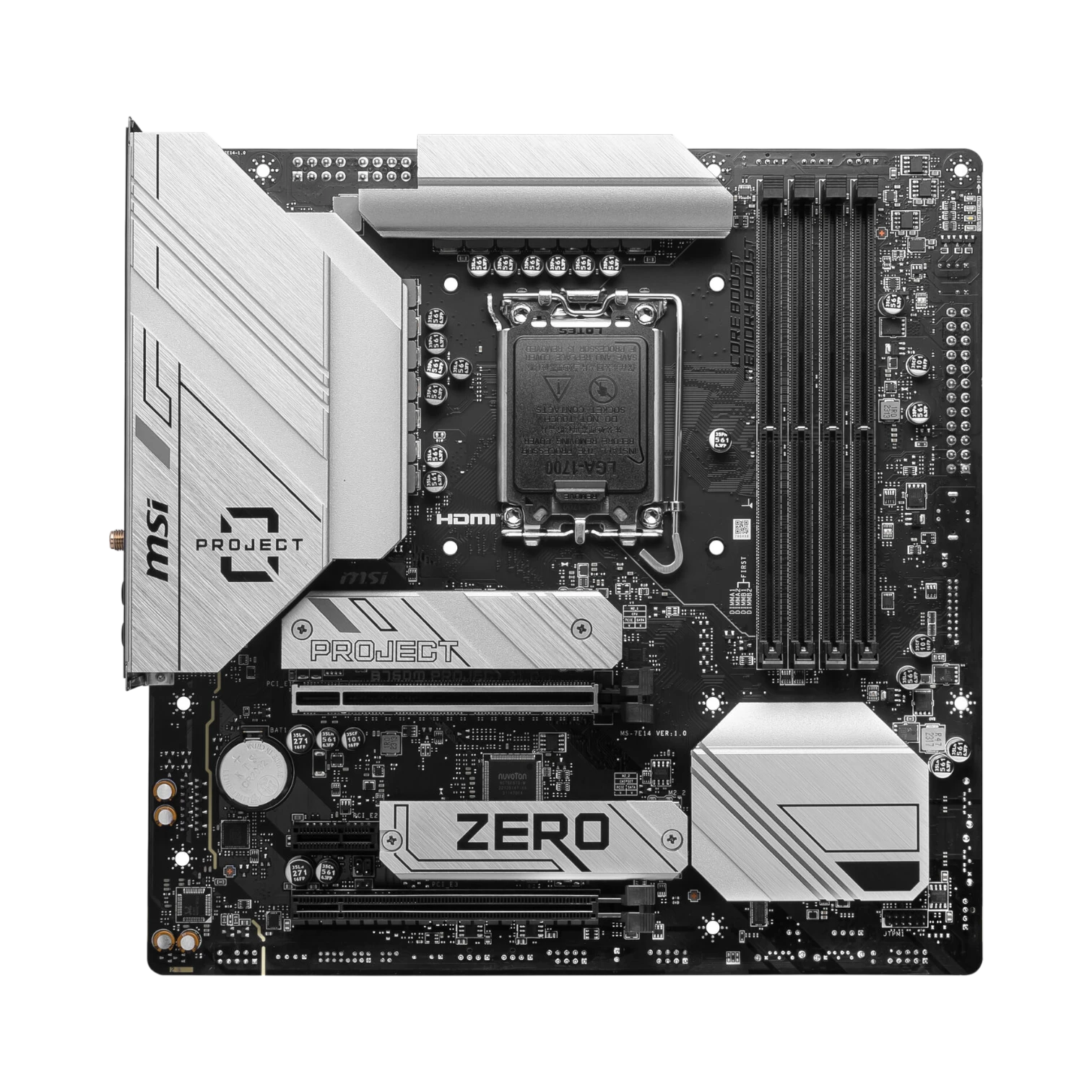

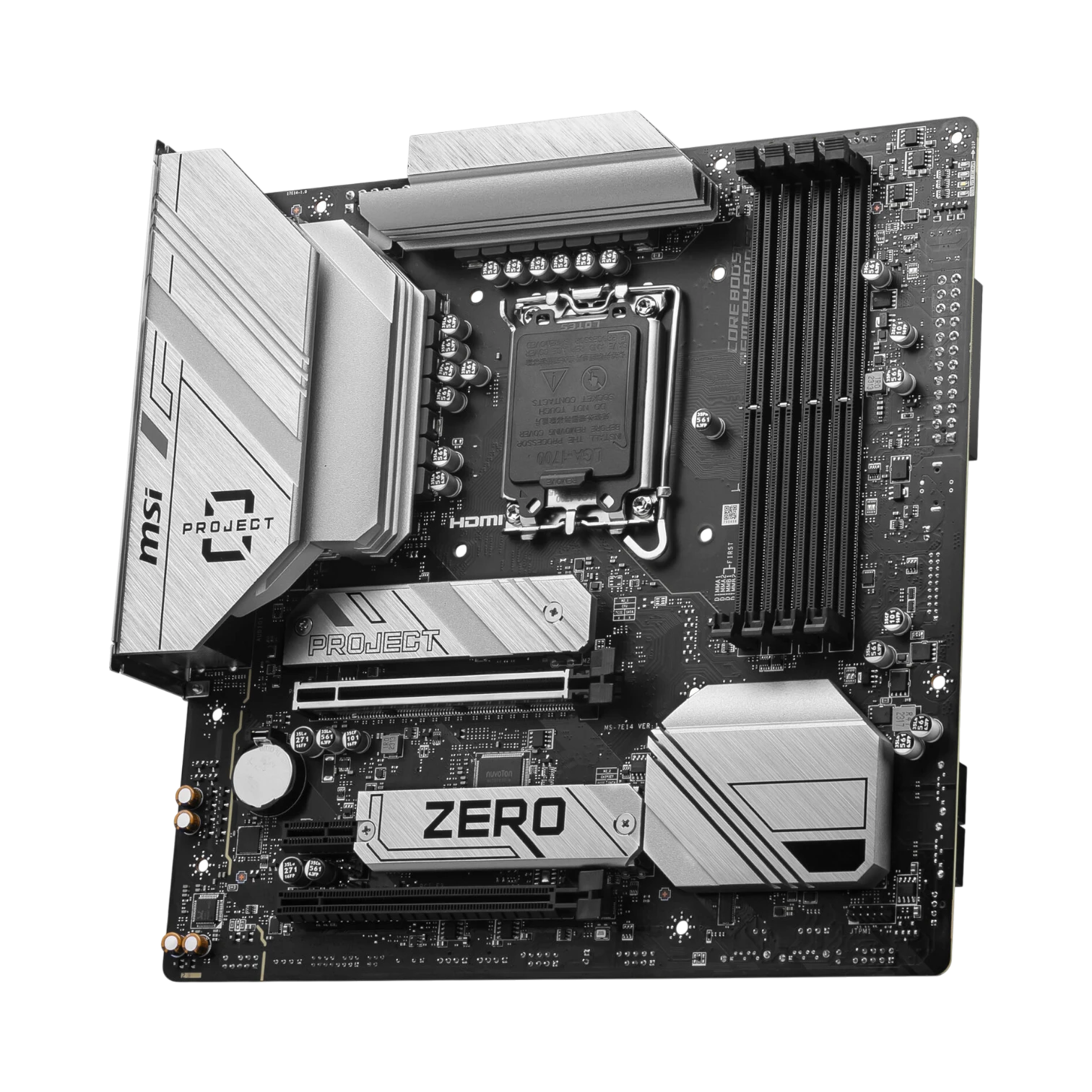

The MSI B760M PROJECT ZERO is a micro-ATX motherboard designed to simplify PC building with a unique back-connect layout that places power, fan, and I/O headers on the rear side. This design keeps cables hidden behind the tray, improving airflow and providing a cleaner look through side windows. It supports Intel 12th, 13th, and 14th Gen Core processors via the LGA 1700 socket, and offers four DDR5 memory slots with speeds validated up to 7800 MT/s, making it suitable for gaming, content creation, and home office setups.

Equipped with a PCIe 5.0 x16 slot, it is ready for the latest graphics cards, while storage options include two M.2 PCIe 4.0 slots and four SATA III ports. Networking is handled by a 2.5 Gigabit Ethernet controller and onboard Wi-Fi 6E for fast wireless connections. The rear I/O panel features a variety of USB ports including a 20 Gb/s USB 3.2 Gen 2x2 Type-C, plus DisplayPort and HDMI outputs for CPUs with integrated graphics. Audio is powered by a Realtek ALC897 codec supporting 7.1-channel sound.

Key features

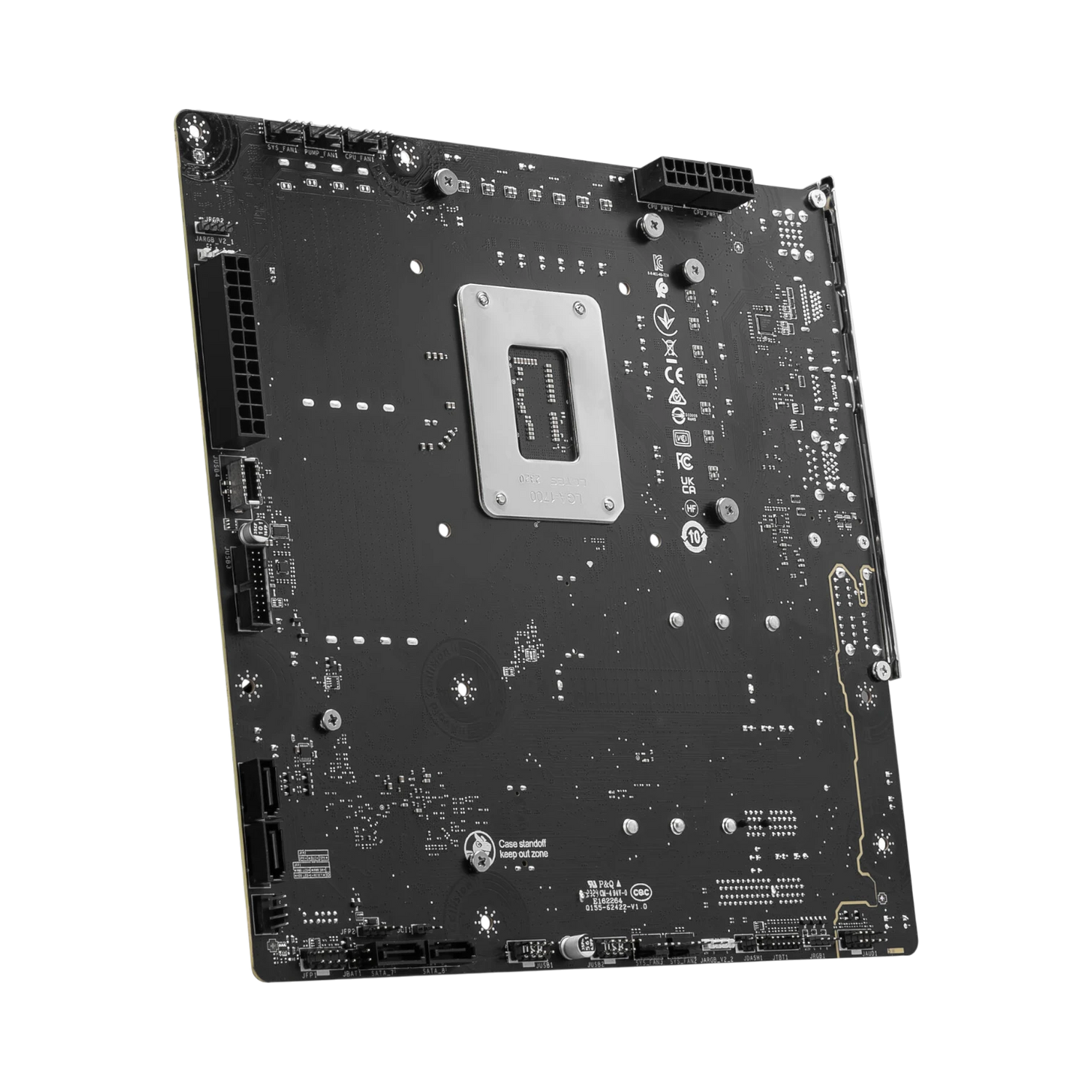

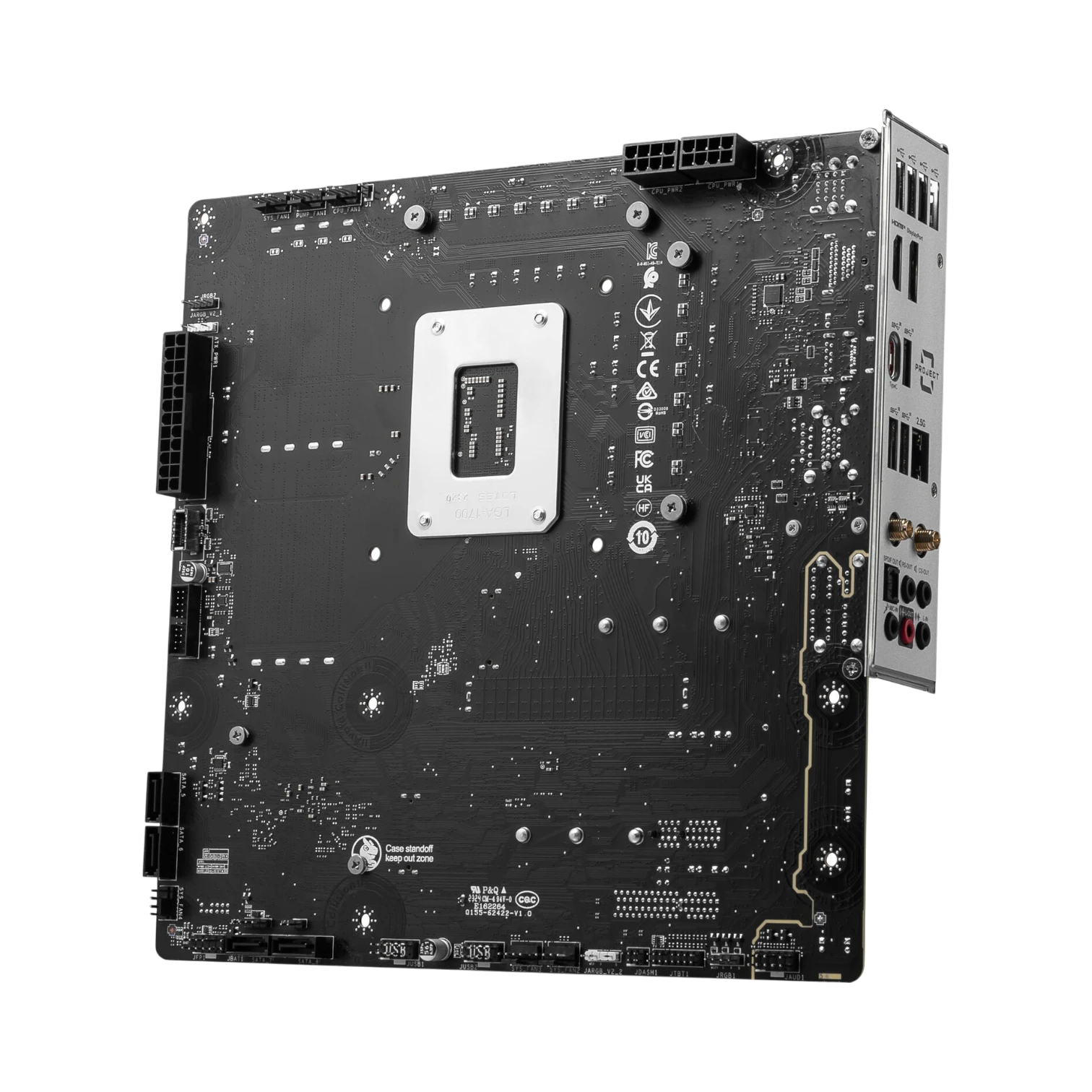

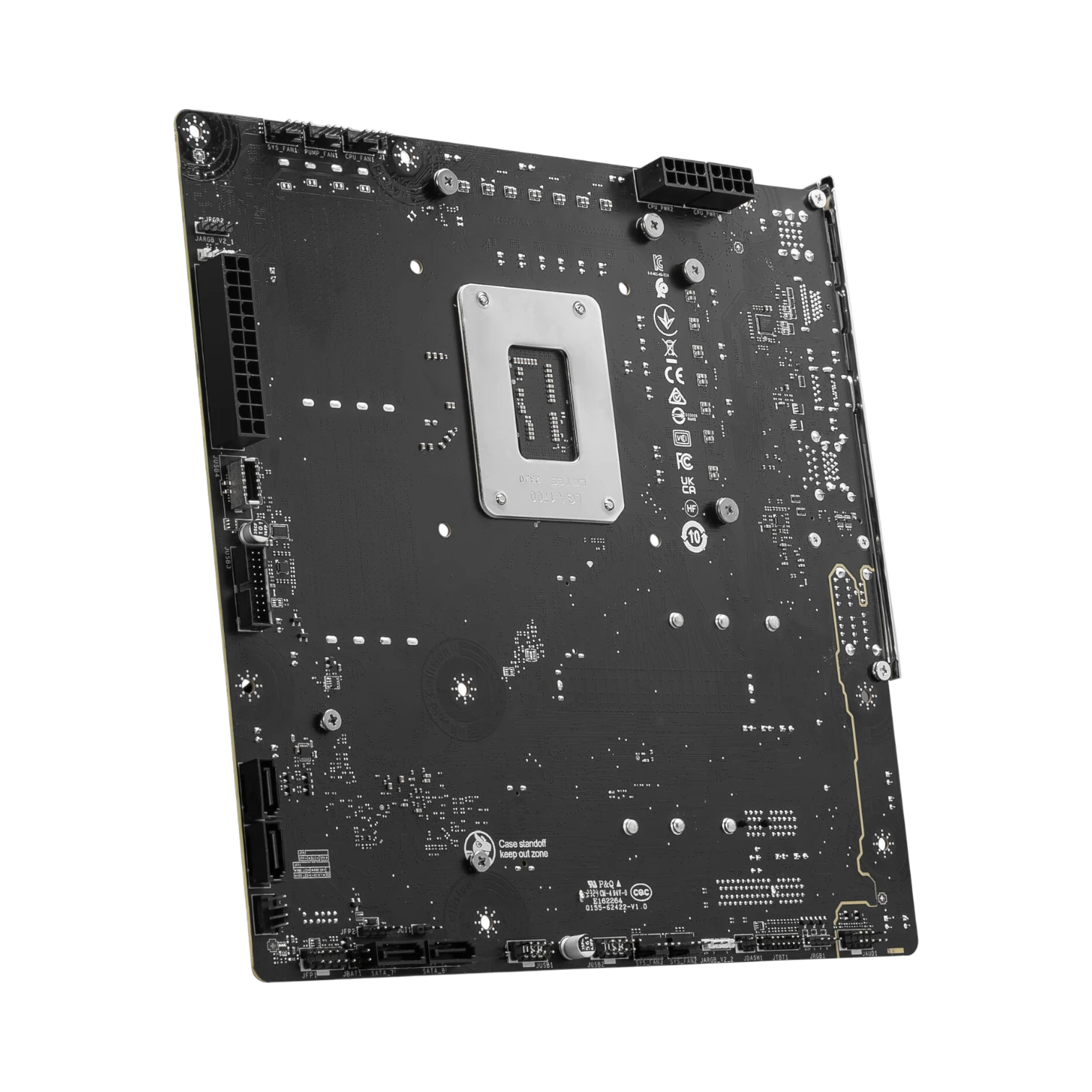

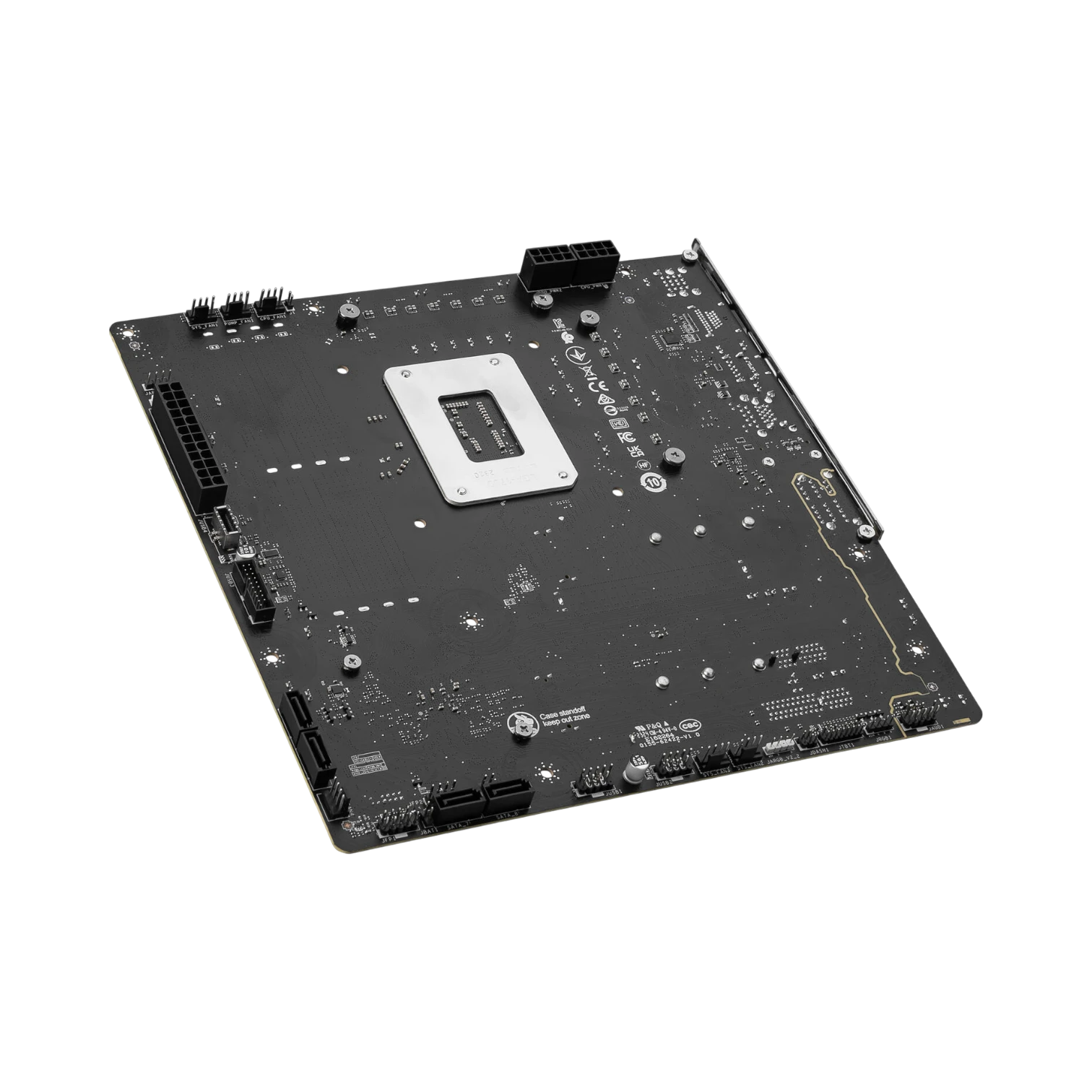

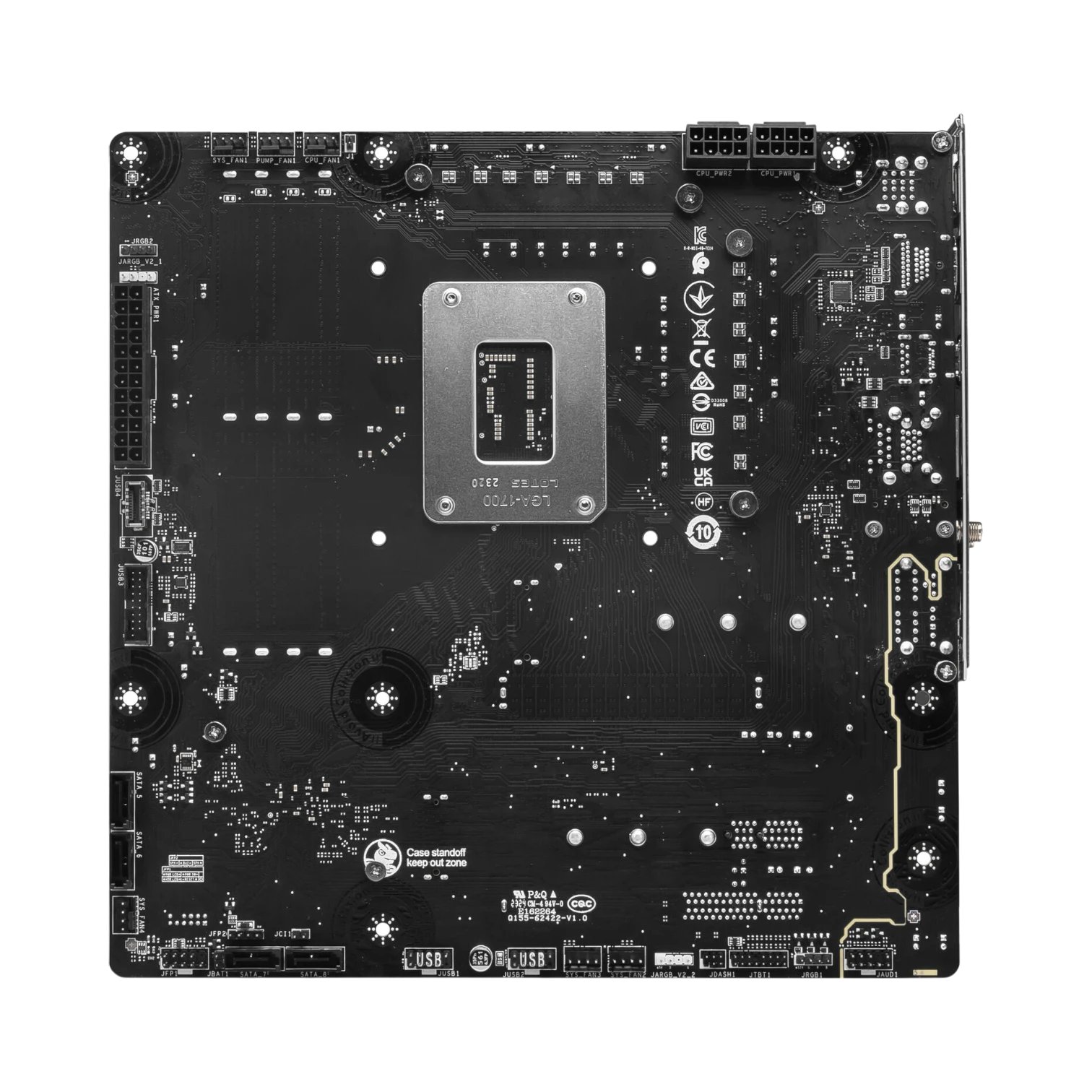

• Back-connect layout moves all power, fan, and front-panel headers to the rear, keeping the front side clean and improving airflow.
• Supports Intel 12th, 13th, and 14th Gen Core processors with the LGA 1700 socket, offering flexibility for various CPU choices.
• Four DDR5 memory slots support up to 192 GB at speeds up to 7800 MT/s, ensuring smooth multitasking and responsiveness.
• PCIe 5.0 x16 slot provides future-proof compatibility with next-generation graphics cards for enhanced gaming and creative work.
• Two M.2 PCIe 4.0 slots and four SATA III ports offer versatile storage options for fast NVMe drives and bulk storage needs.
• Integrated 2.5 Gb Ethernet and Wi-Fi 6E deliver reliable wired and fast tri-band wireless networking for modern setups.
• Rear USB-C 3.2 Gen 2x2 port offers 20 Gb/s bandwidth for high-speed data transfer and device connectivity.
• Realtek ALC897 audio codec supports 7.1-channel sound, providing immersive audio for gaming, streaming, and media consumption.
• Compatible with MSI and select third-party cases featuring back-connect cutouts, enabling neat cable management without extra accessories.

Key specs

• Socket: LGA 1700
• Processor support: Intel 12th, 13th, and 14th Gen Core
• Memory: 4 x DDR5 slots, up to 192 GB, 7800 MT/s validated speeds
• Expansion slots: 1 x PCIe 5.0 x16
• Storage interfaces: 2 x M.2 PCIe 4.0, 4 x SATA III
• Networking: 2.5 Gigabit Ethernet, Wi-Fi 6E
• USB ports: USB 2.0, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2x2 Type-C (20 Gb/s)
• Video outputs: DisplayPort, HDMI (for CPUs with integrated graphics)
• Audio codec: Realtek ALC897, 7.1-channel support
• Form factor: Micro-ATX

Connectivity and compatibility

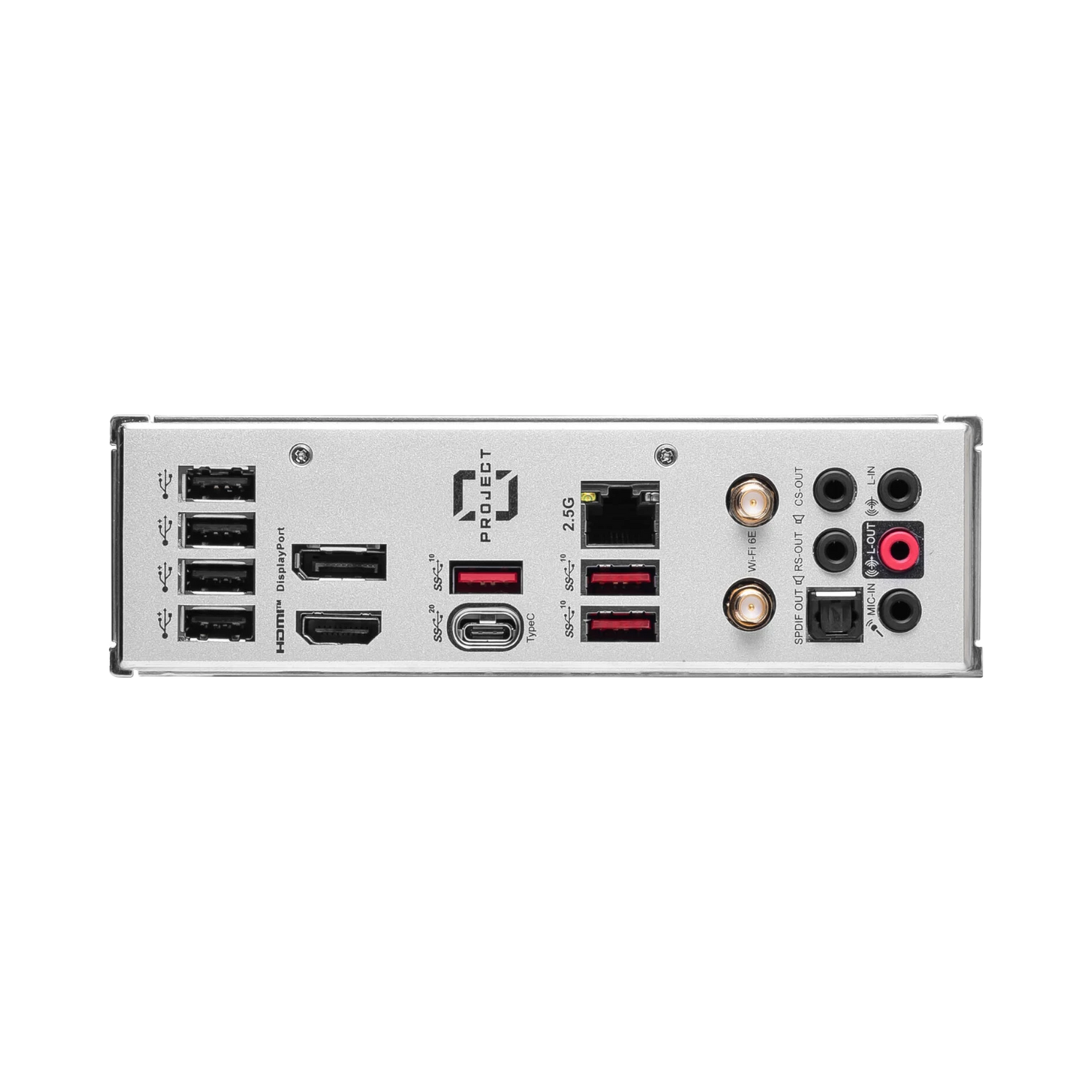

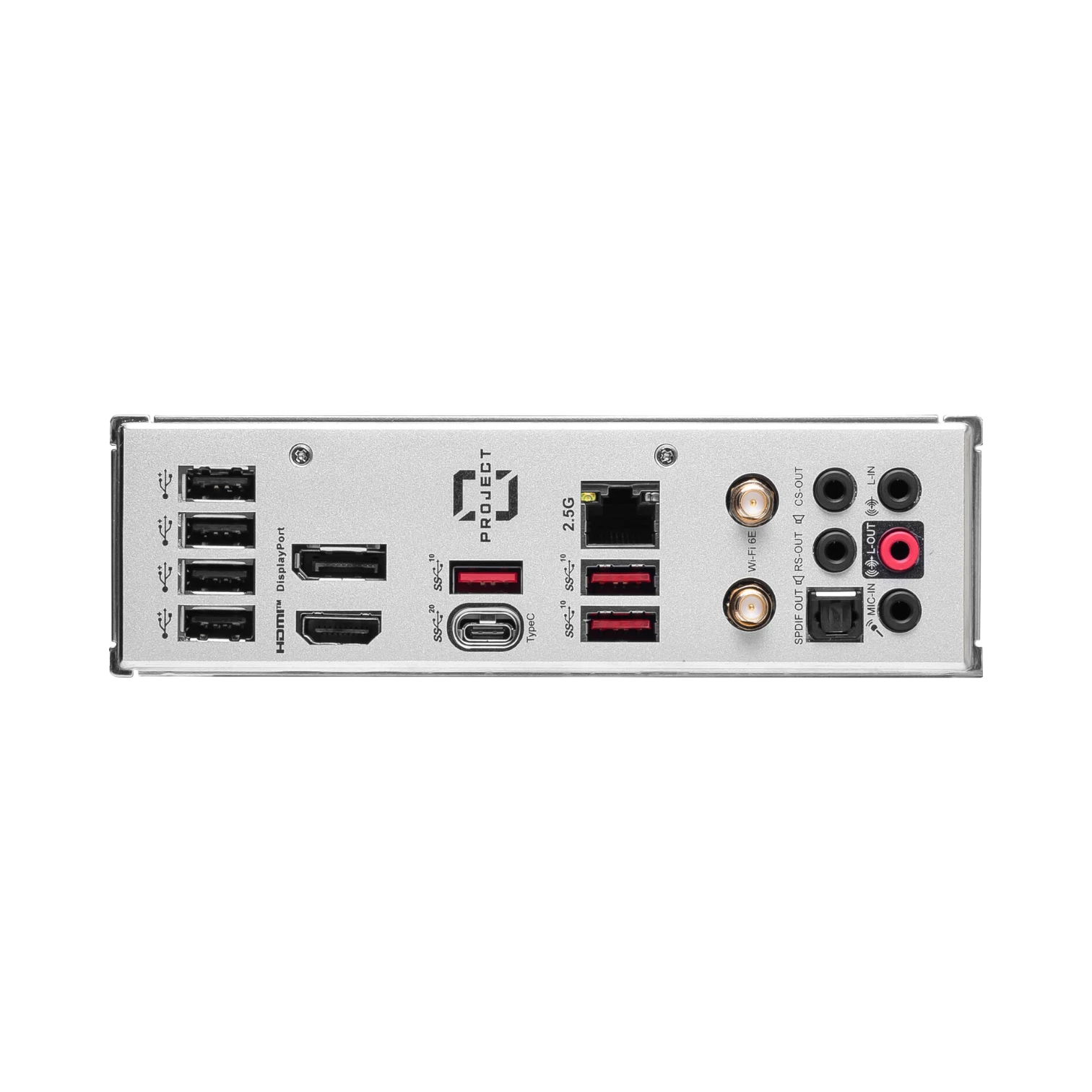

This motherboard offers a comprehensive set of connectivity options to support a wide range of peripherals and devices. The rear I/O panel includes multiple USB ports for keyboards, mice, external drives, and other accessories. The USB 3.2 Gen 2x2 Type-C port provides ultra-fast data transfer speeds, ideal for external SSDs or high-bandwidth devices. DisplayPort and HDMI outputs allow connection to modern monitors or TVs when using CPUs with integrated graphics.

Networking is robust with a 2.5 Gb Ethernet port for stable wired connections and Wi-Fi 6E for fast wireless access on compatible routers. The back-connect design requires cases that support rear cable routing, which helps maintain a tidy interior and improves airflow. This makes the motherboard a good fit for compact or mid-tower builds that prioritize clean cable management and aesthetics.

Ideal uses and environments

The MSI B760M PROJECT ZERO is well suited to users who value a clean and efficient PC build, such as streamers who want a neat interior visible through a side window or families assembling a living-room gaming PC. Its support for the latest Intel processors and DDR5 memory makes it capable of handling demanding tasks like gaming, content creation, and multitasking in home office environments. The back-connect layout also benefits builders who prefer straightforward cable management without additional accessories, fitting naturally into cases designed for this innovative approach.
