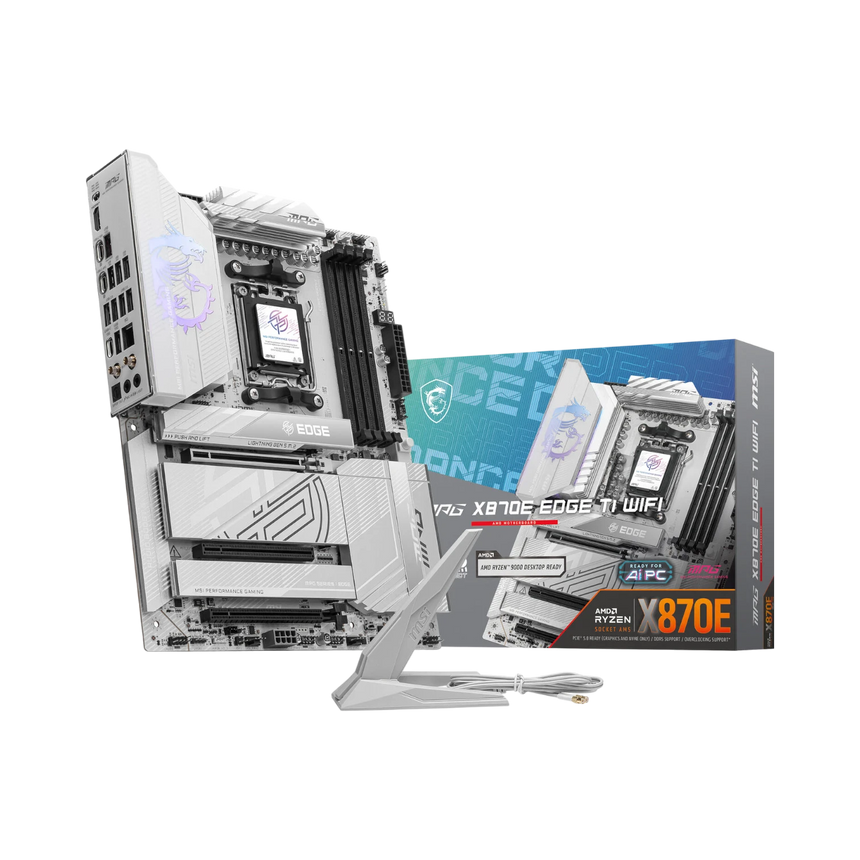

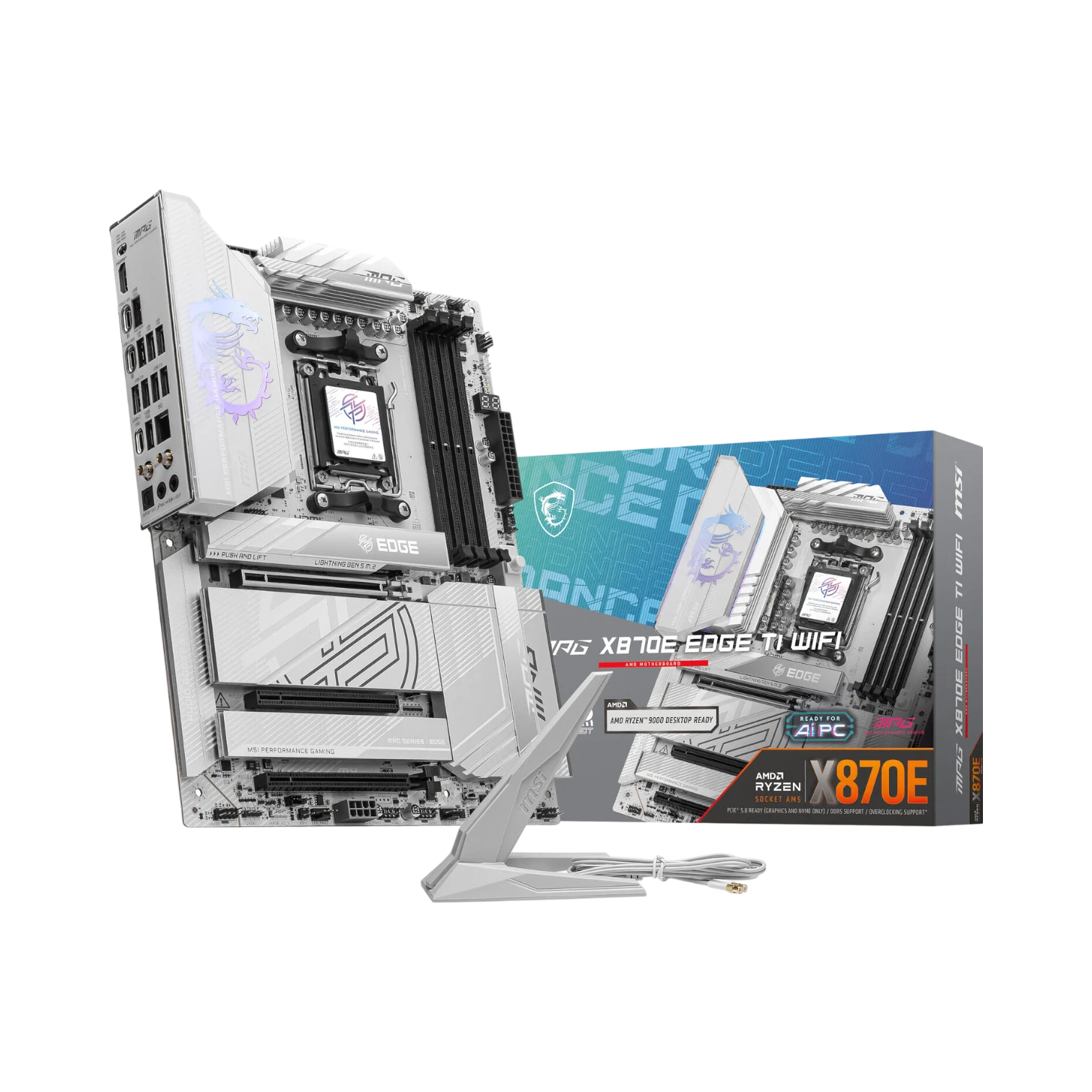

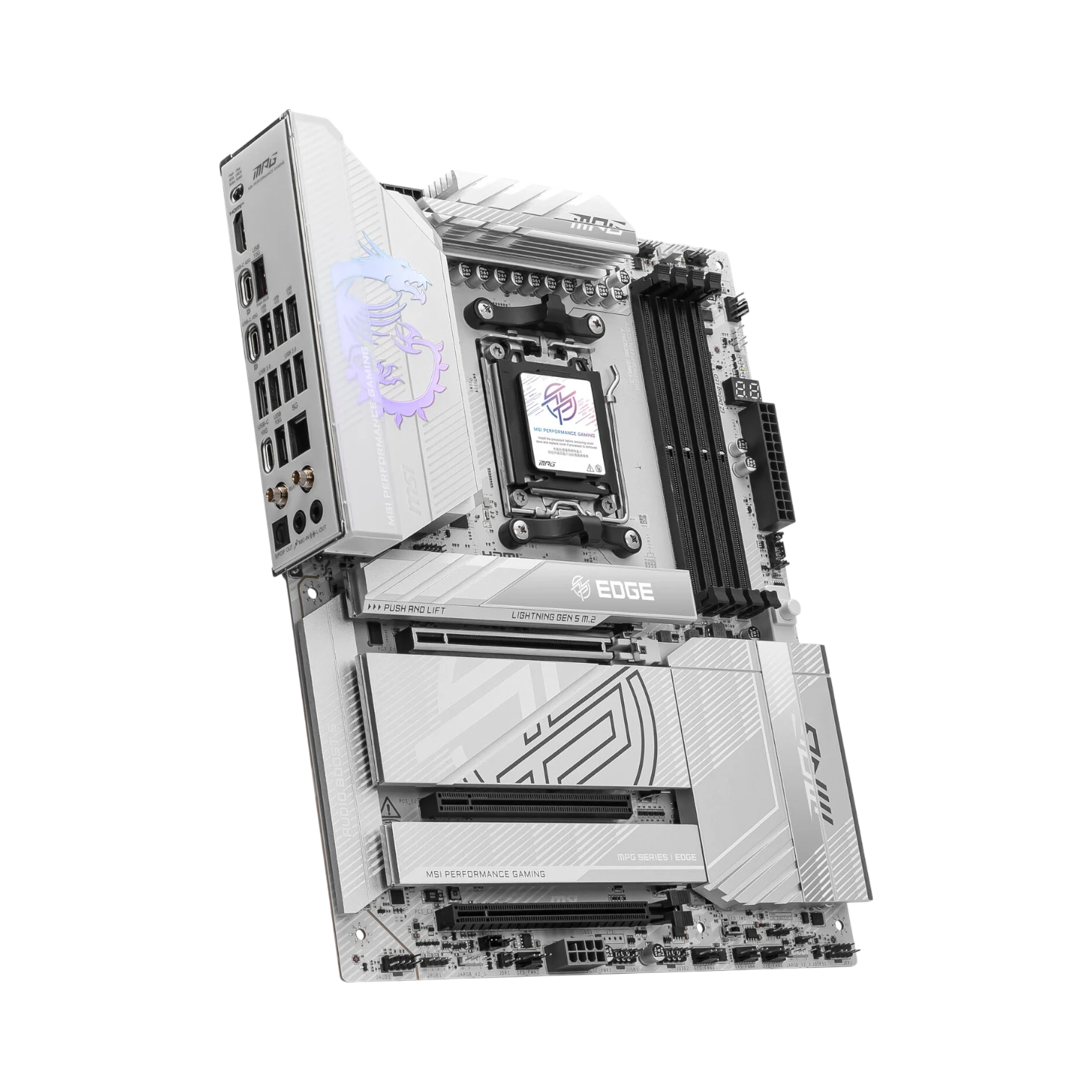

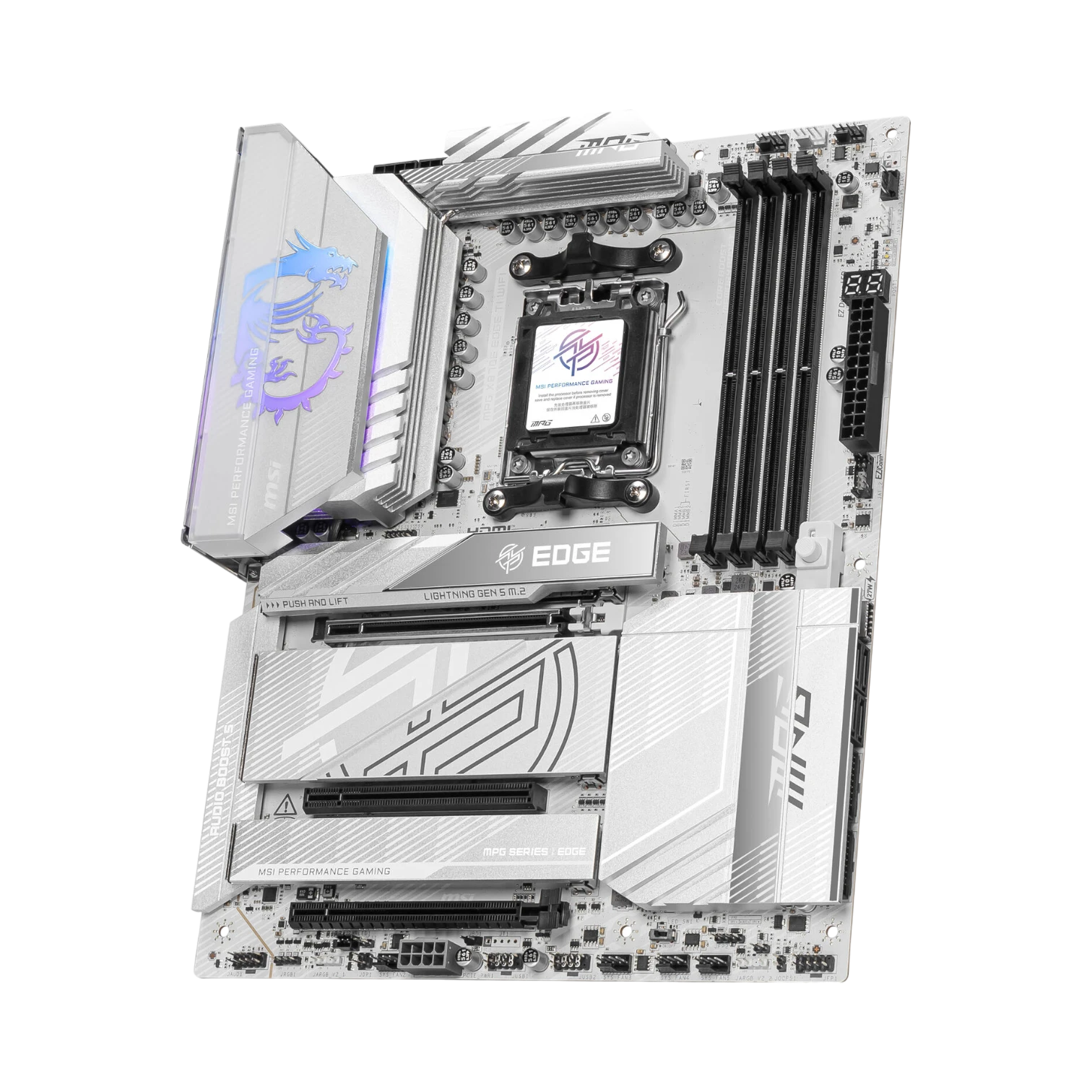

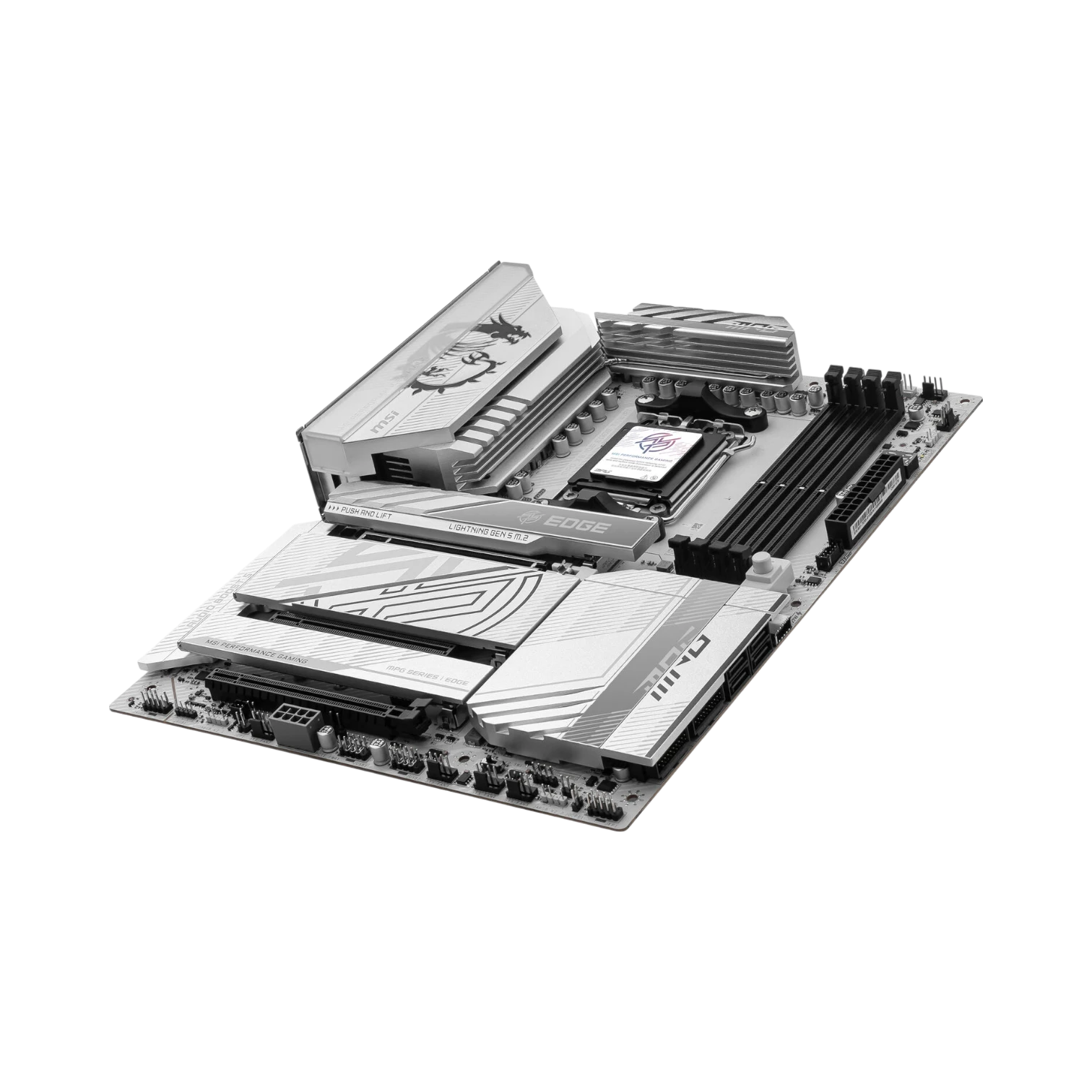

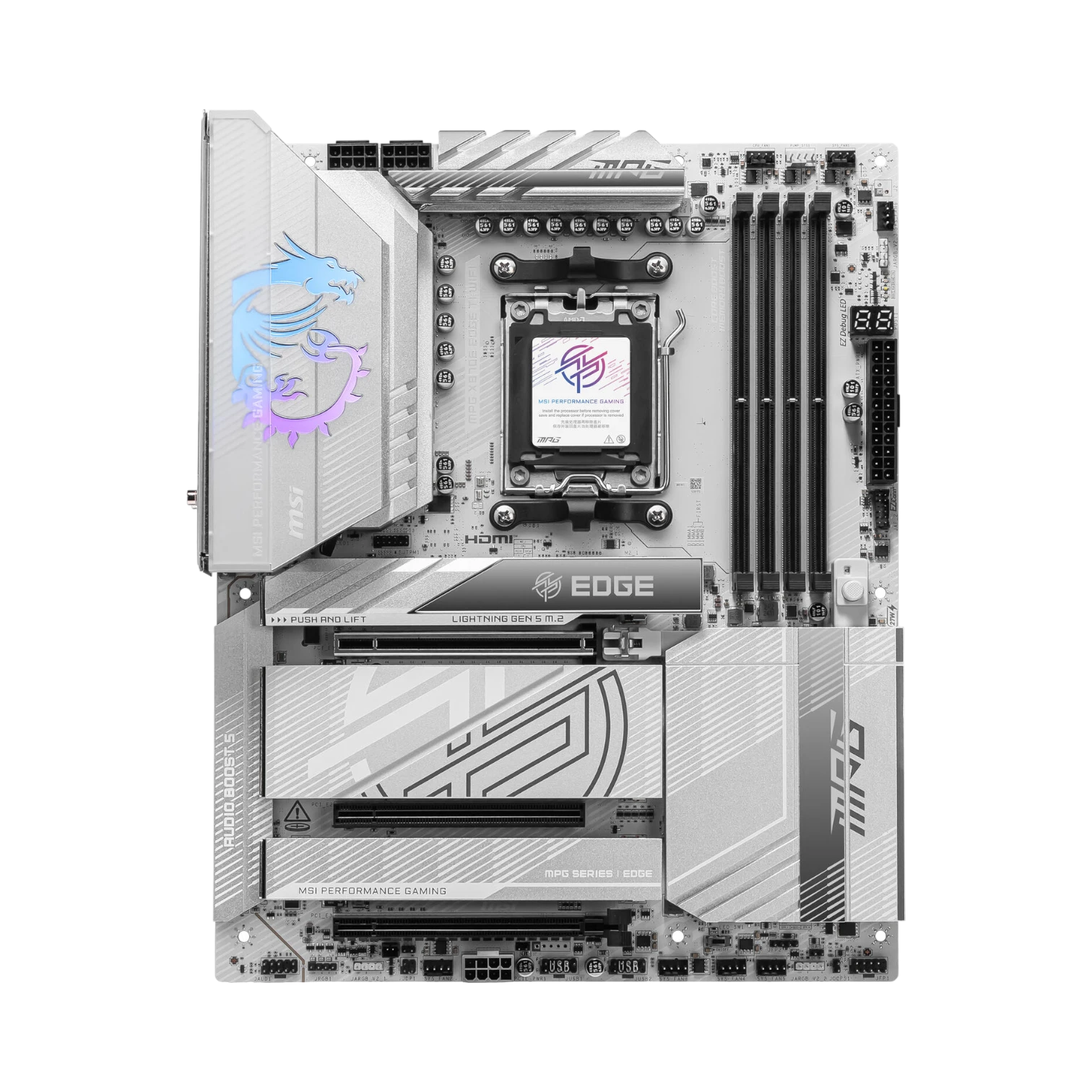

MSI X870EEDGEWIFI

Overview

The MSI X870EEDGEWIFI is an ATX motherboard designed for desktop builders using AMD Ryzen 7000, 8000, or 9000 series processors. It features the AMD X870E chipset and AM5 socket, providing a robust foundation for gaming, content creation, and local AI workloads. With support for up to 256 GB of DDR5 memory across four DIMM slots and a 14 + 2 + 1 phase power design with 80 A stages, it ensures stable performance during intensive tasks.

Storage options include four M.2 slots, two of which support PCIe 5.0 speeds for the fastest NVMe drives, while the PCIe 5.0 x16 slot accommodates high-end graphics cards with reinforced mounting. Networking is handled by Wi-Fi 7 and a 5 Gb Ethernet port, offering fast and reliable connections for gaming and large data transfers. The motherboard also includes multiple USB ports, including two USB4 ports capable of 40 Gb/s, and an HDMI output for easy troubleshooting without a dedicated GPU.

Key features

• AM5 socket and AMD X870E chipset support the latest Ryzen processors for high-performance computing
• Four DDR5 DIMM slots allow for up to 256 GB of memory with overclocking capabilities to boost system speed
• Four M.2 slots with tool-free installation, including two PCIe 5.0 slots, provide flexible and fast storage expansion
• PCIe 5.0 x16 slot with reinforced surface-mount design secures heavy graphics cards and ensures stable bandwidth
• Wi-Fi 7 and 5 Gb Ethernet deliver fast, low-latency network connections suitable for competitive gaming and large file transfers
• Two USB4 ports on the rear I/O offer ultra-fast data transfer rates for external storage and docking stations
• Front-panel USB-C header supplies 27 W power delivery, convenient for charging phones and accessories
• 14 + 2 + 1 phase VRM with 80 A power stages maintains consistent and reliable power to demanding CPUs
• Pre-installed I/O shield and dedicated BIOS and CMOS buttons simplify installation and system recovery

Key specs

• Chipset: AMD X870E
• Socket: AM5
• Memory: 4 x DDR5 DIMM slots, up to 256 GB
• Power design: 14 + 2 + 1 phase VRM with 80 A stages
• Storage: 4 x M.2 slots (2 x PCIe 5.0, 2 x PCIe 4.0)
• Expansion slots: 1 x PCIe 5.0 x16 (reinforced)
• Networking: Wi-Fi 7, 5 Gb Ethernet
• USB ports: 2 x USB4 (40 Gb/s), multiple USB-C and USB-A ports
• Video output: HDMI (for firmware updates and troubleshooting)
• Power delivery: Front USB-C header with 27 W output

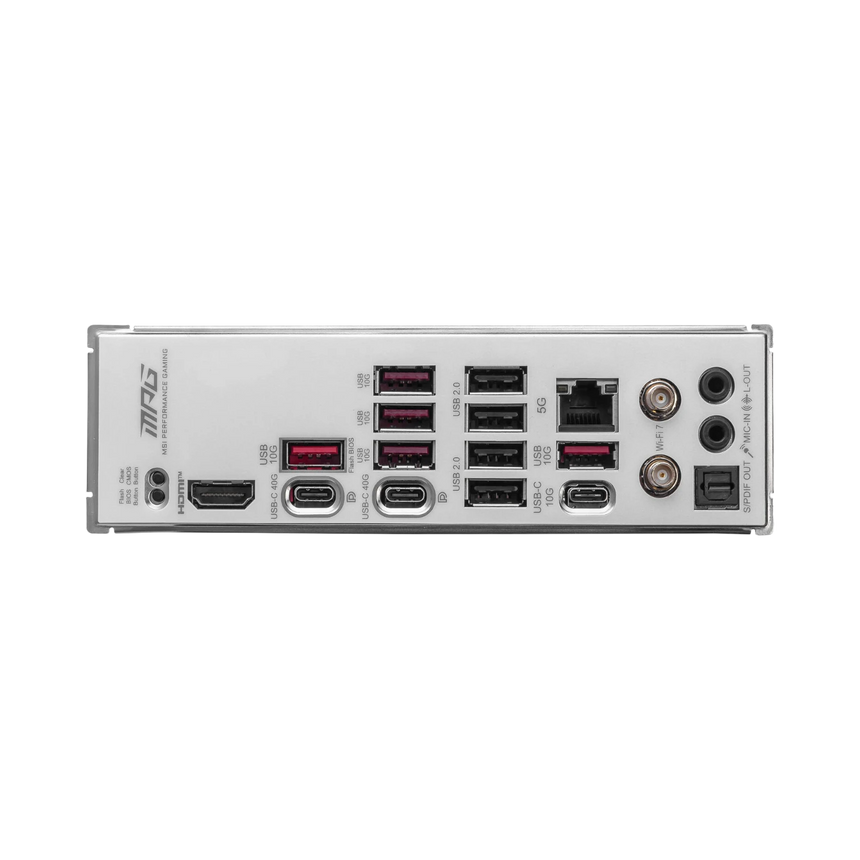

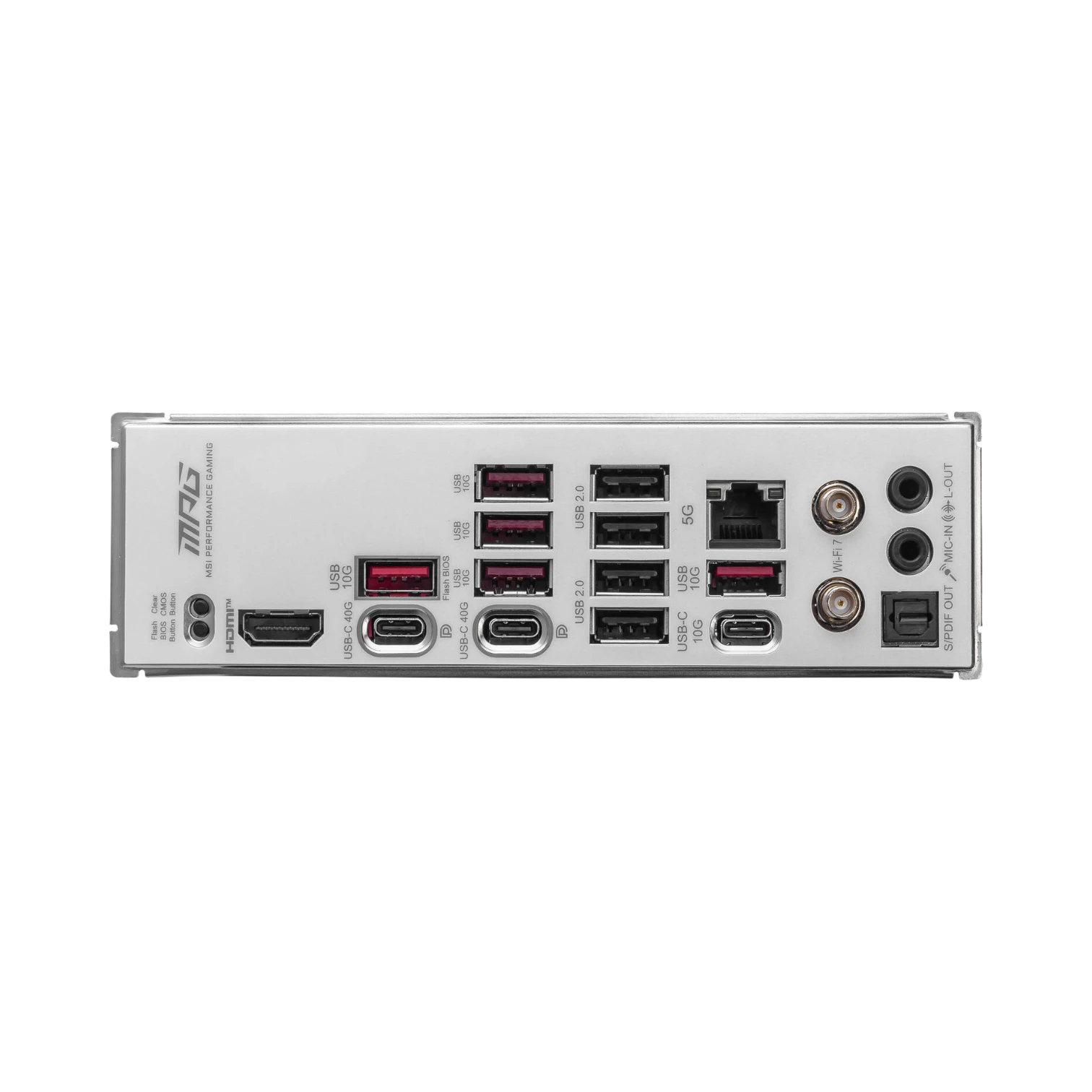

Connectivity and compatibility

This motherboard offers a comprehensive set of connectivity options to support a wide range of peripherals and network environments. The inclusion of Wi-Fi 7 ensures compatibility with the latest wireless routers, providing multi-gigabit speeds for streaming and online gaming. The 5 Gb Ethernet port is ideal for users who require low-latency wired connections or need to transfer large files quickly.

• Wi-Fi 7 for next-generation wireless performance
• 5 Gb Ethernet port for fast and stable wired networking
• Two USB4 ports supporting up to 40 Gb/s for high-speed data transfer
• Multiple USB-C and USB-A ports for connecting peripherals and external storage
• HDMI output for quick access to BIOS updates and troubleshooting without a dedicated GPU

Installation and setup

The MSI X870EEDGEWIFI motherboard is designed to make building and maintaining your system straightforward. The pre-installed I/O shield saves time during assembly and reduces the risk of damage. Dedicated BIOS and CMOS buttons on the board allow for easy recovery and firmware updates without needing to remove components or open the case extensively. Tool-free M.2 slot installation further simplifies adding or upgrading storage.

Ideal uses and environments

This motherboard is well suited to users building high-performance gaming rigs, content creation workstations, or experimental AI development setups. Its support for the latest Ryzen processors and PCIe 5.0 components provides ample headroom for demanding applications. The advanced networking features and robust power delivery make it a strong choice for users who need reliable performance during extended sessions, whether gaming, rendering, or training models.
