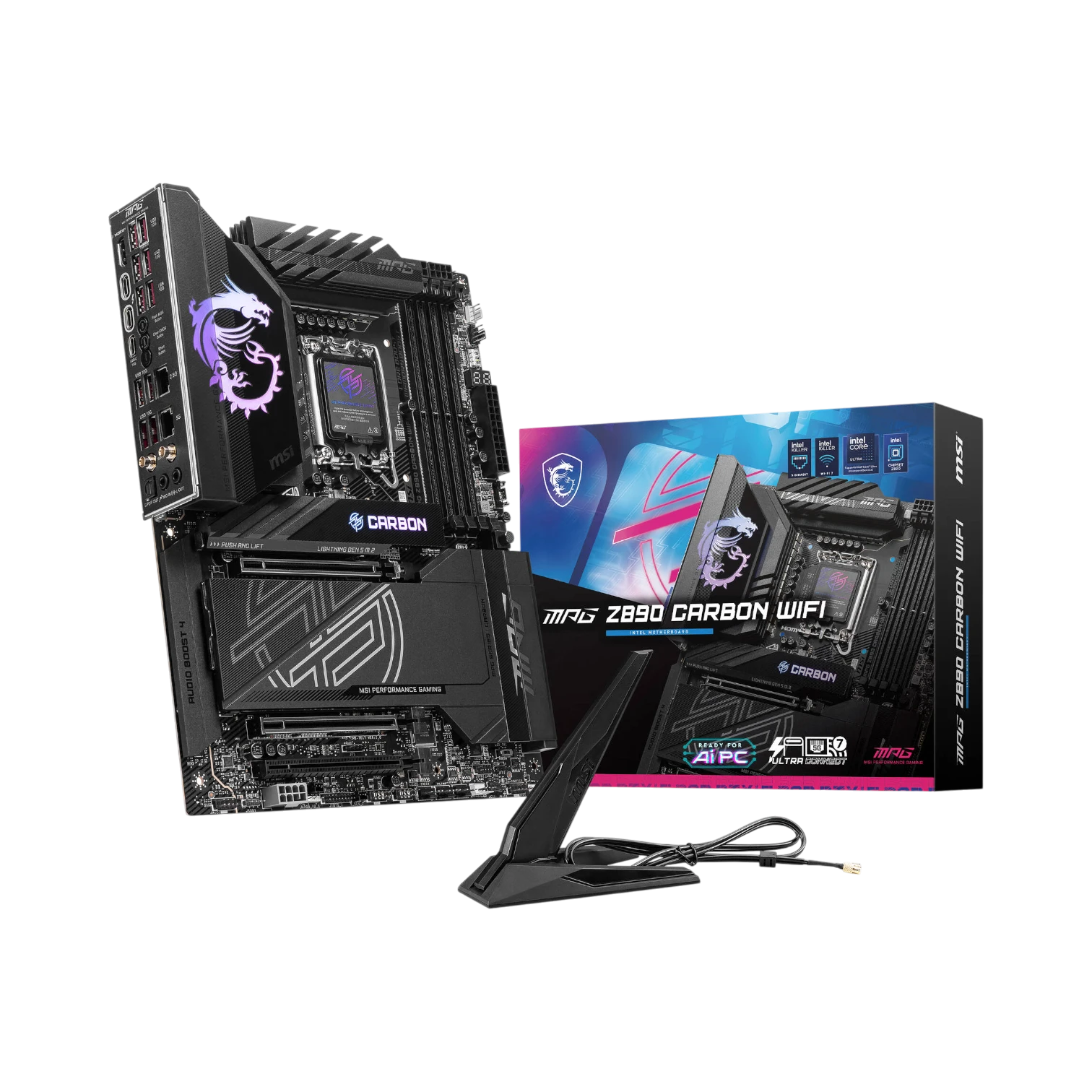

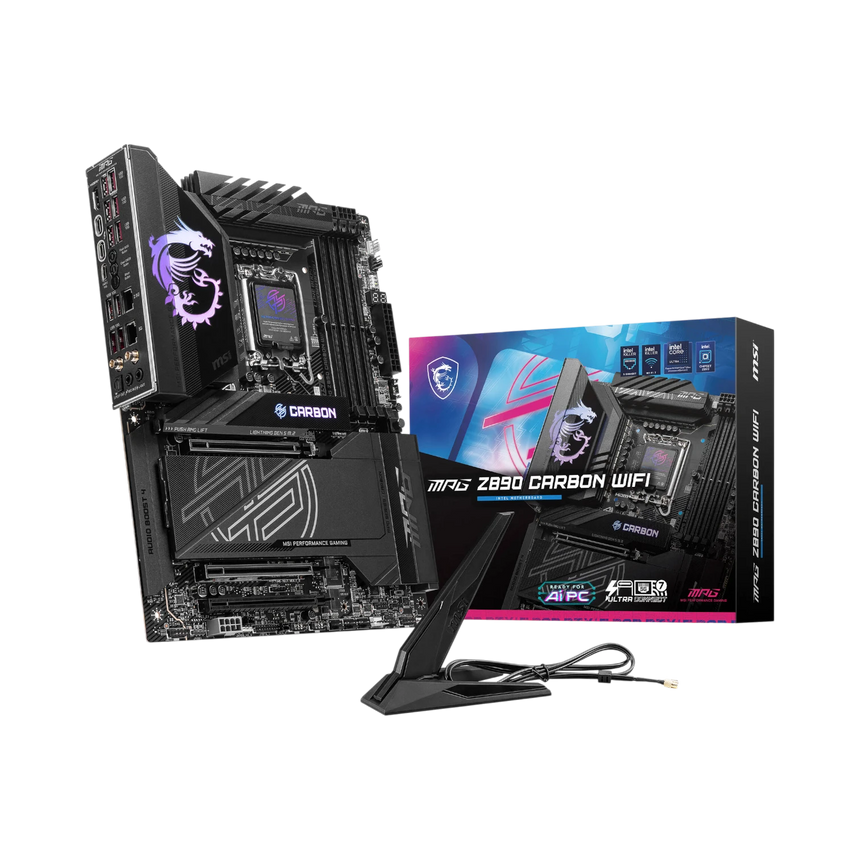

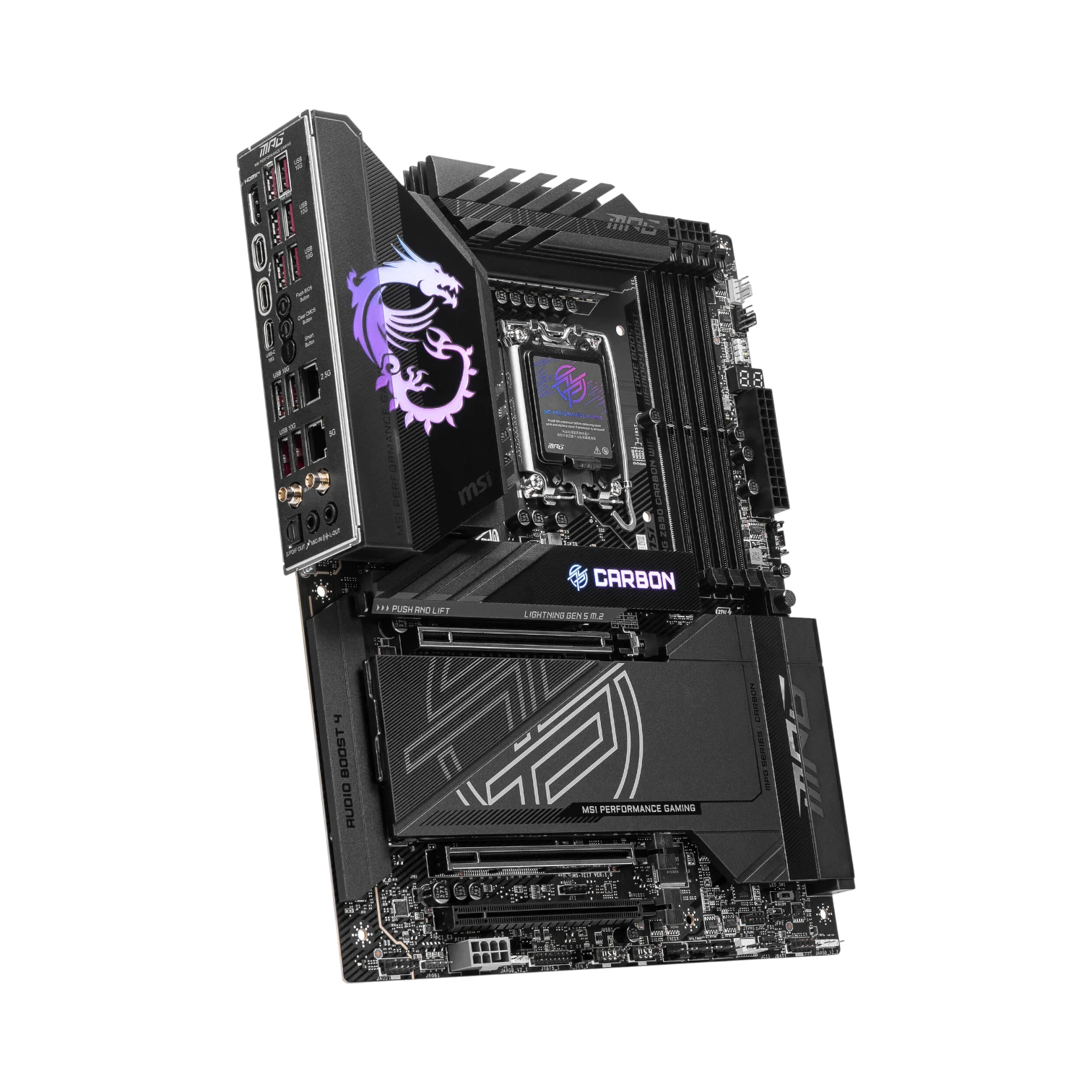

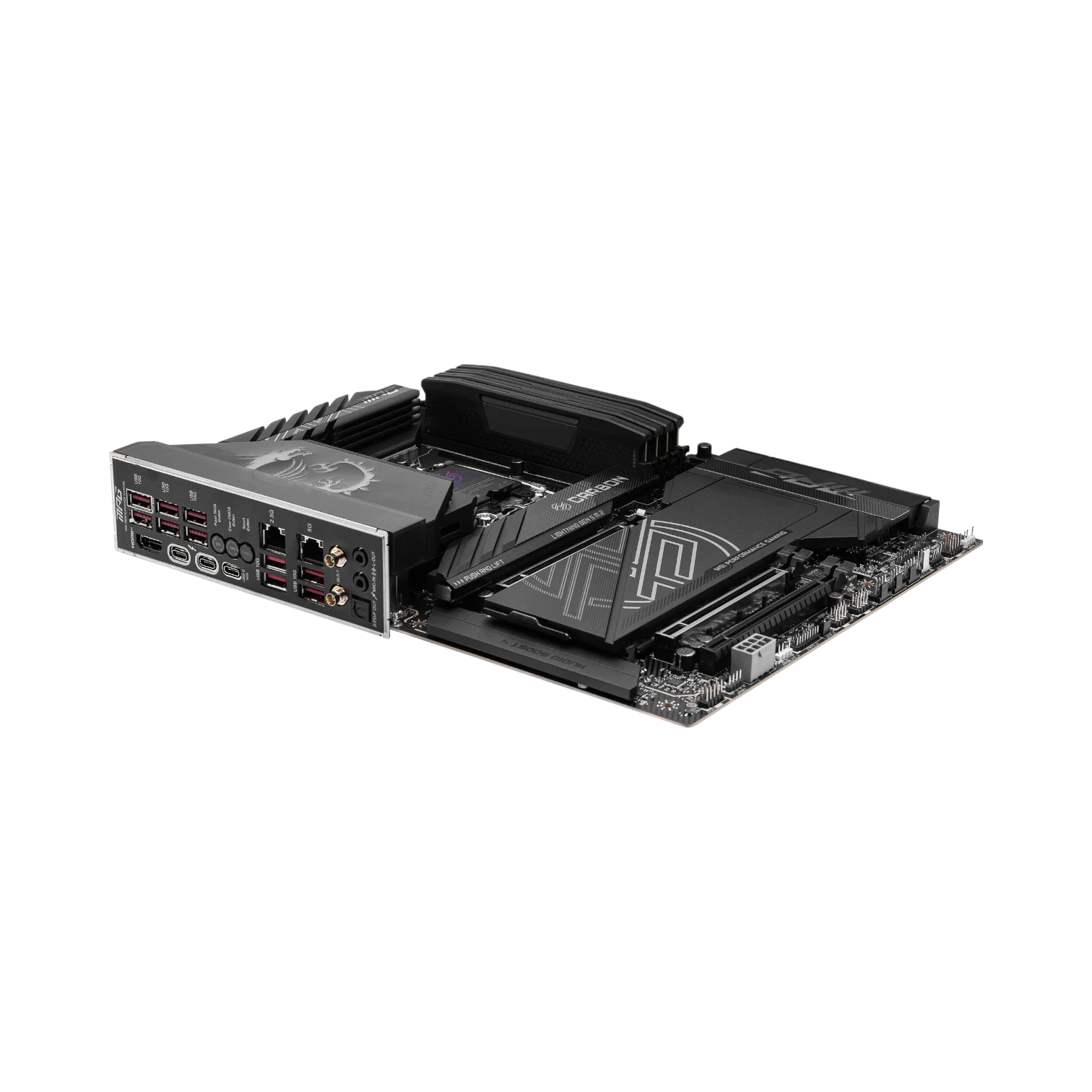

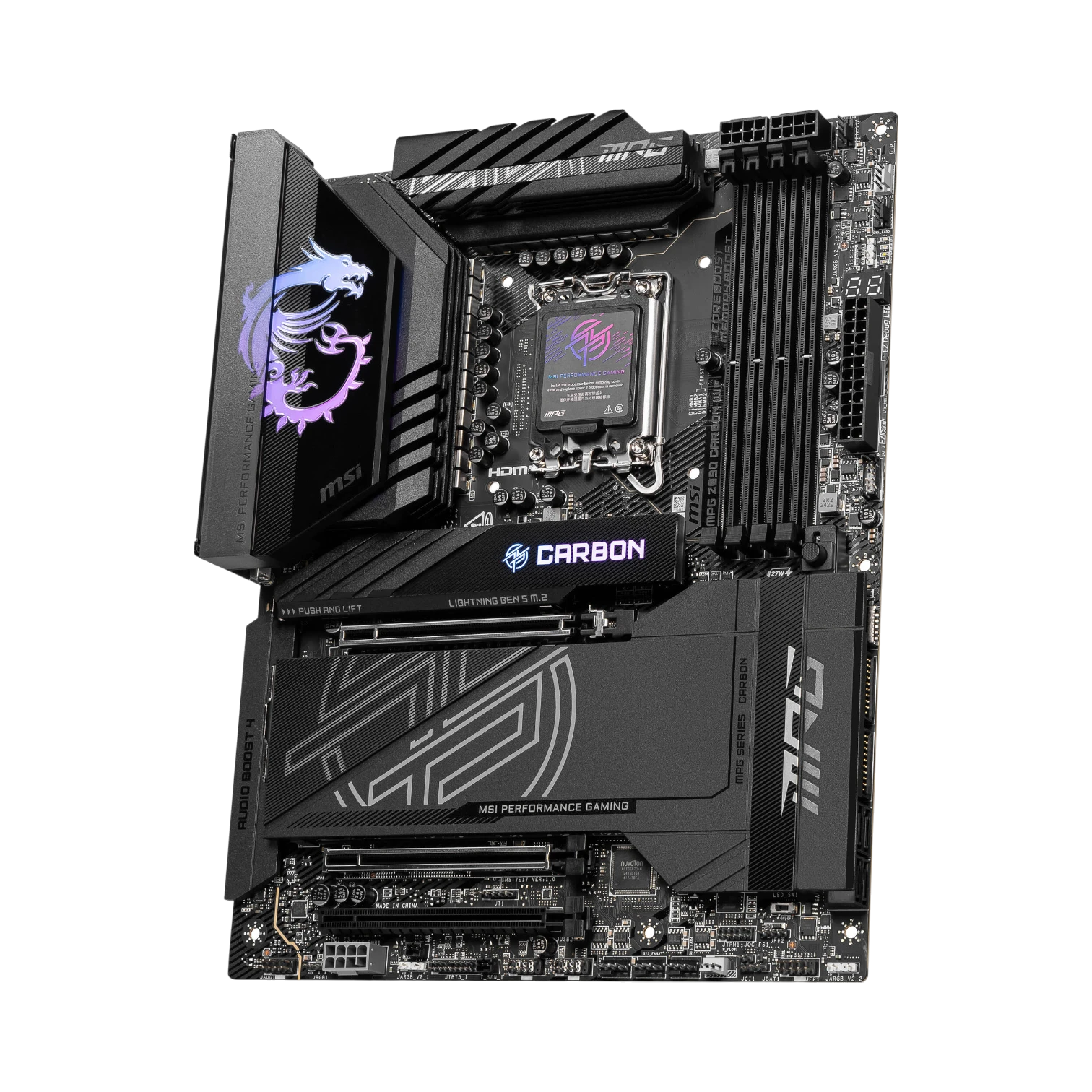

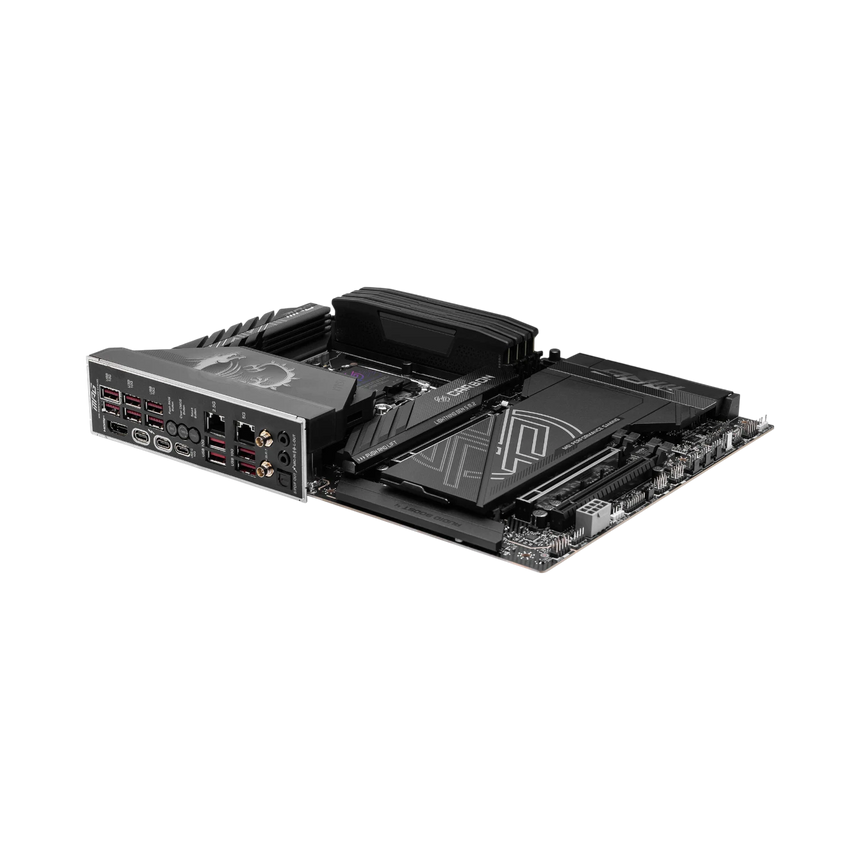

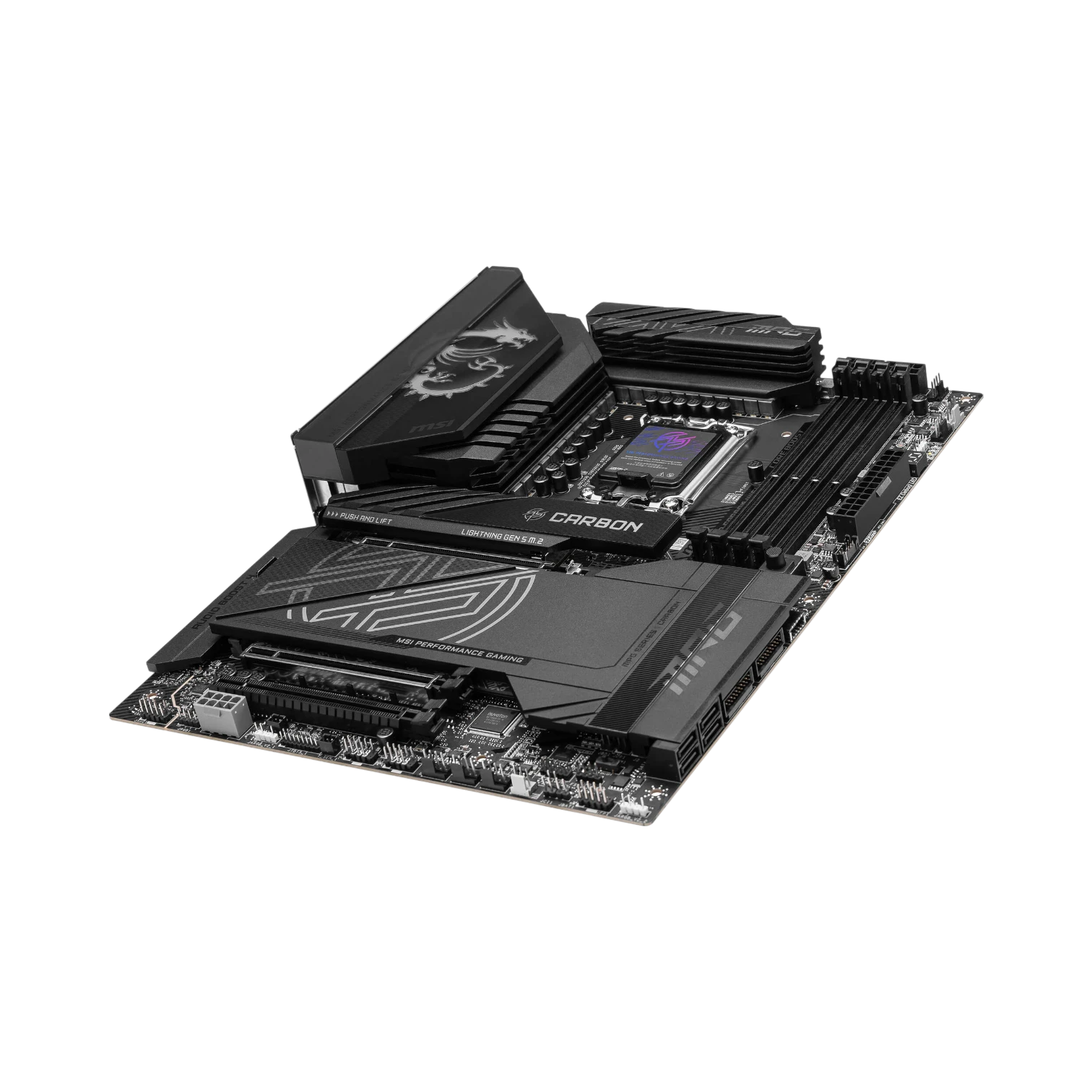

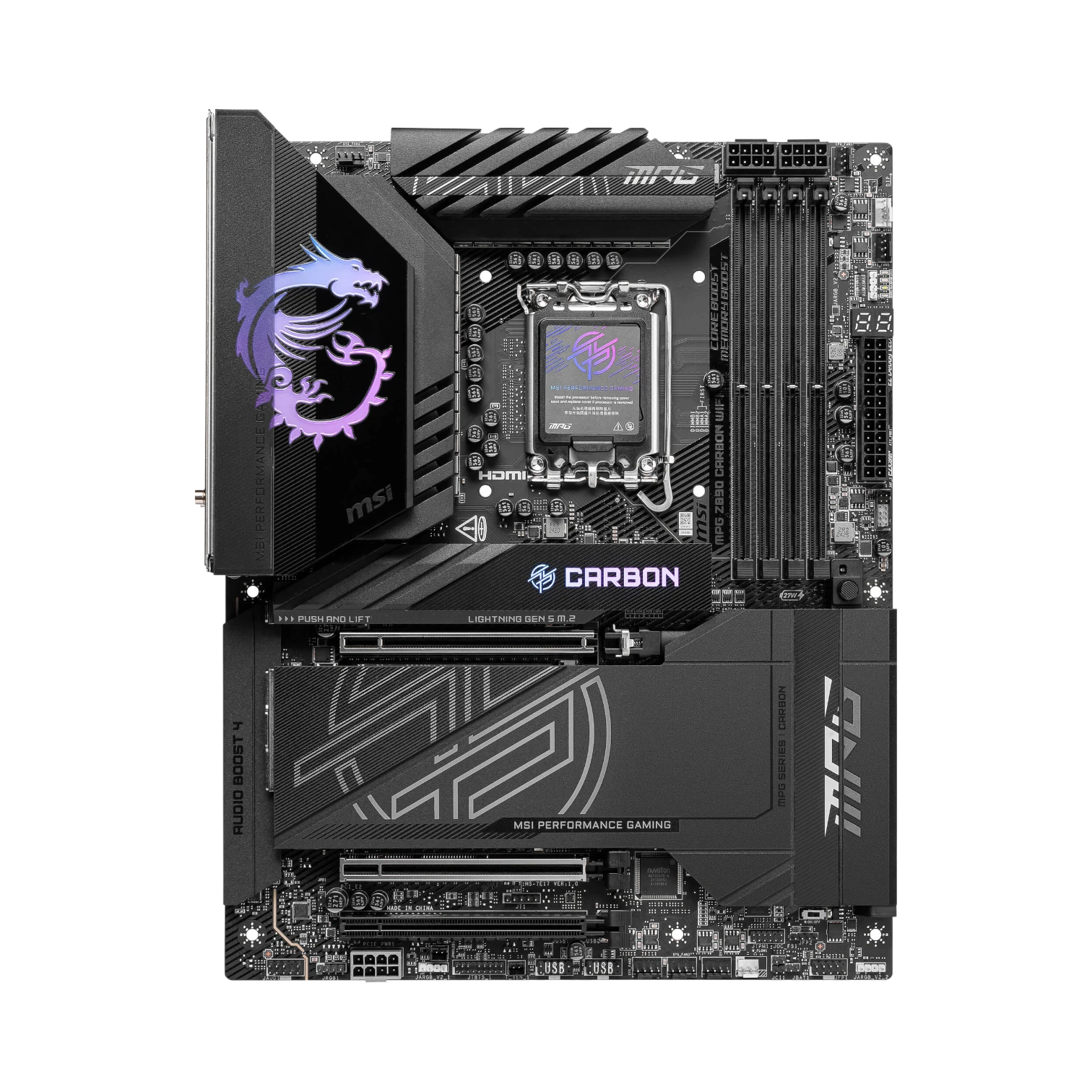

MSI Z890CARBONWIFI

Overview

The MSI Z890CARBONWIFI is an ATX motherboard designed to support Intel Core Ultra Series 2 processors using the Intel Z890 chipset and LGA 1851 socket. It offers a robust platform for high-performance computing with support for up to 256 GB of DDR5 memory running at speeds up to 9200 MT/s when overclocked. This motherboard is ideal for users who need fast storage options, extensive connectivity, and stable power delivery for demanding tasks like 4K gaming, 8K video editing, and virtualization.

Key features

• Supports four DDR5 DIMM slots for high memory capacity and bandwidth, enabling smooth multitasking and quick loading of large files.
• Equipped with five M.2 connectors, including one PCIe 5.0 x4 slot for ultra-fast SSDs and four PCIe 4.0 slots for additional storage expansion.
• Includes three full-length PCIe slots, two of which run at PCIe 5.0 x16 speeds, perfect for high-bandwidth graphics cards and expansion cards.
• Dual Thunderbolt 4 ports on the rear panel provide support for 8K displays and allow daisy-chaining of high-speed peripherals.
• Comprehensive networking options with 5 GbE and 2.5 GbE Ethernet ports, plus integrated Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity.
• Advanced 20 + 1 + 1 + 1 power stage design with 110 A smart power stages ensures stable voltage delivery during intensive workloads.
• Front-panel USB-C header supports data transfer speeds up to 20 Gb/s, ideal for fast external storage and device charging.
• Realtek ALC1220P audio codec delivers clear 7.1-channel sound, enhancing gaming and multimedia experiences.
• Four SATA III ports provide additional options for connecting traditional storage devices.

Key specs

• Chipset: Intel Z890
• Socket: LGA 1851
• Memory: 4 x DDR5 DIMM slots, up to 256 GB, 9200 MT/s (overclocked)
• Storage: 5 x M.2 slots (1 x PCIe 5.0 x4, 4 x PCIe 4.0), 4 x SATA III ports
• Expansion slots: 3 x full-length PCIe (2 x PCIe 5.0 x16, 1 x PCIe x16)
• Rear ports: 2 x Thunderbolt 4, 10 x USB-A, 1 x USB-C
• Networking: 1 x 5 GbE Ethernet, 1 x 2.5 GbE Ethernet, Wi-Fi 7, Bluetooth 5.4
• Audio: Realtek ALC1220P 7.1-channel codec
• Power design: 20 + 1 + 1 + 1 power stages with 110 A smart power stages

Connectivity and compatibility

This motherboard offers a wide range of connectivity options to support modern peripherals and networking needs. The dual Thunderbolt 4 ports enable connection to high-resolution displays and fast external devices, while the abundance of USB ports ensures compatibility with a variety of accessories. The inclusion of both 5 GbE and 2.5 GbE Ethernet ports covers high-speed wired networking scenarios, and the latest Wi-Fi 7 and Bluetooth 5.4 standards provide reliable wireless connections for laptops, smartphones, and other devices.

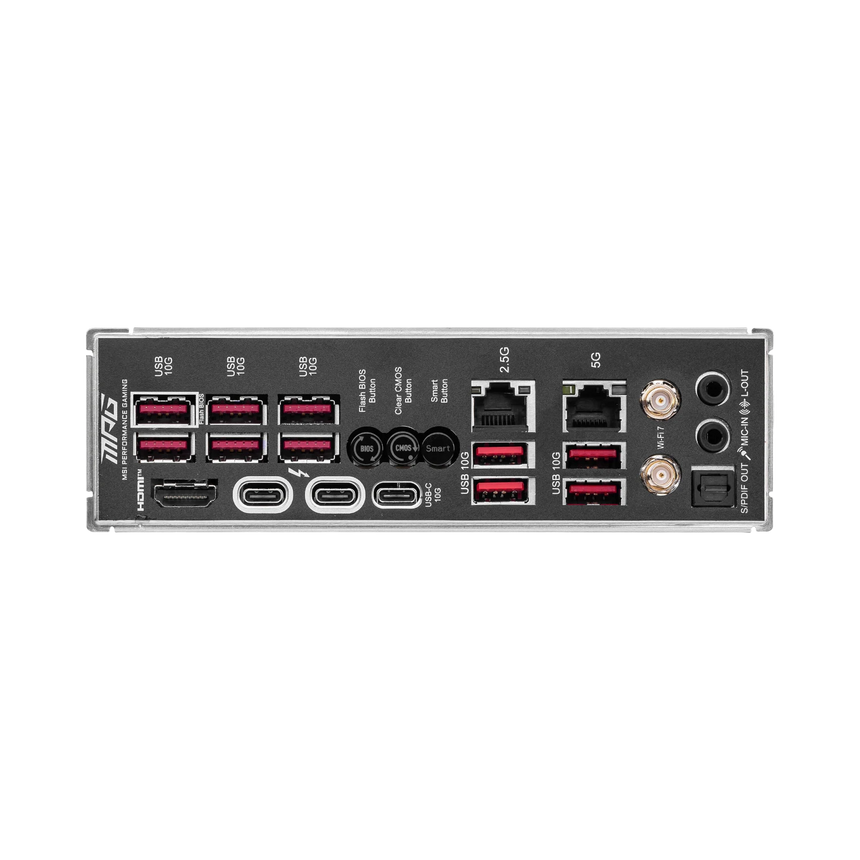

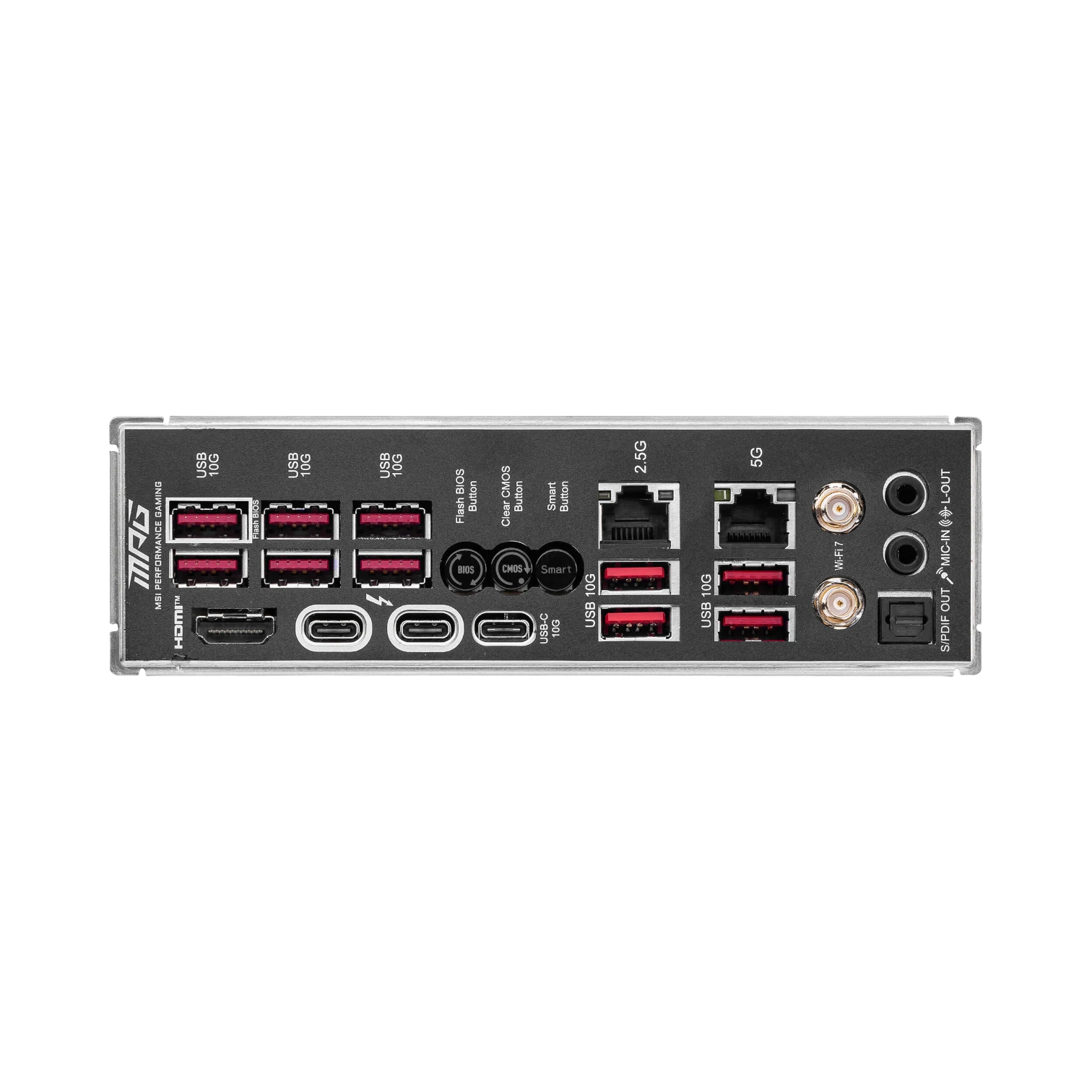

• Dual Thunderbolt 4 ports for 8K display support and peripheral daisy-chaining
• Ten USB-A ports and one rear USB-C port for extensive device connectivity
• Front-panel USB-C header delivering up to 20 Gb/s for fast data transfer and charging
• 5 GbE and 2.5 GbE Ethernet ports for versatile wired networking
• Integrated Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless connections

Performance and reliability

The MSI Z890CARBONWIFI is engineered to maintain stable performance under heavy workloads. Its advanced power delivery system with 110 A smart power stages ensures consistent voltage to the CPU, which is crucial during extended gaming sessions or intensive content creation. The support for high-speed DDR5 memory and PCIe 5.0 devices means this motherboard can handle the latest components, providing a future-proof foundation for demanding setups.

Ideal uses and environments

This motherboard is well suited to enthusiasts and professionals who require a high-performance platform for gaming, video editing, software development, or virtualization. Its extensive storage options and fast networking capabilities make it a strong choice for building a workstation that handles large files and network traffic efficiently. Whether assembling a 4K gaming rig or a content creation system that processes 8K footage, this motherboard offers the bandwidth and stability needed to keep workflows smooth and responsive.
