APC AP4453A

Overview

The APC AP4453A is an automatic transfer switch designed to fit within a 2U space in a standard 19-inch rack. It ensures continuous power to critical equipment by automatically switching between two independent power sources when the primary source becomes unstable or unavailable. With a total load capacity of 2880 VA, it supports medium-density racks commonly found in data centers, branch offices, edge locations, and test labs where maintaining uptime is essential but rack space is limited.

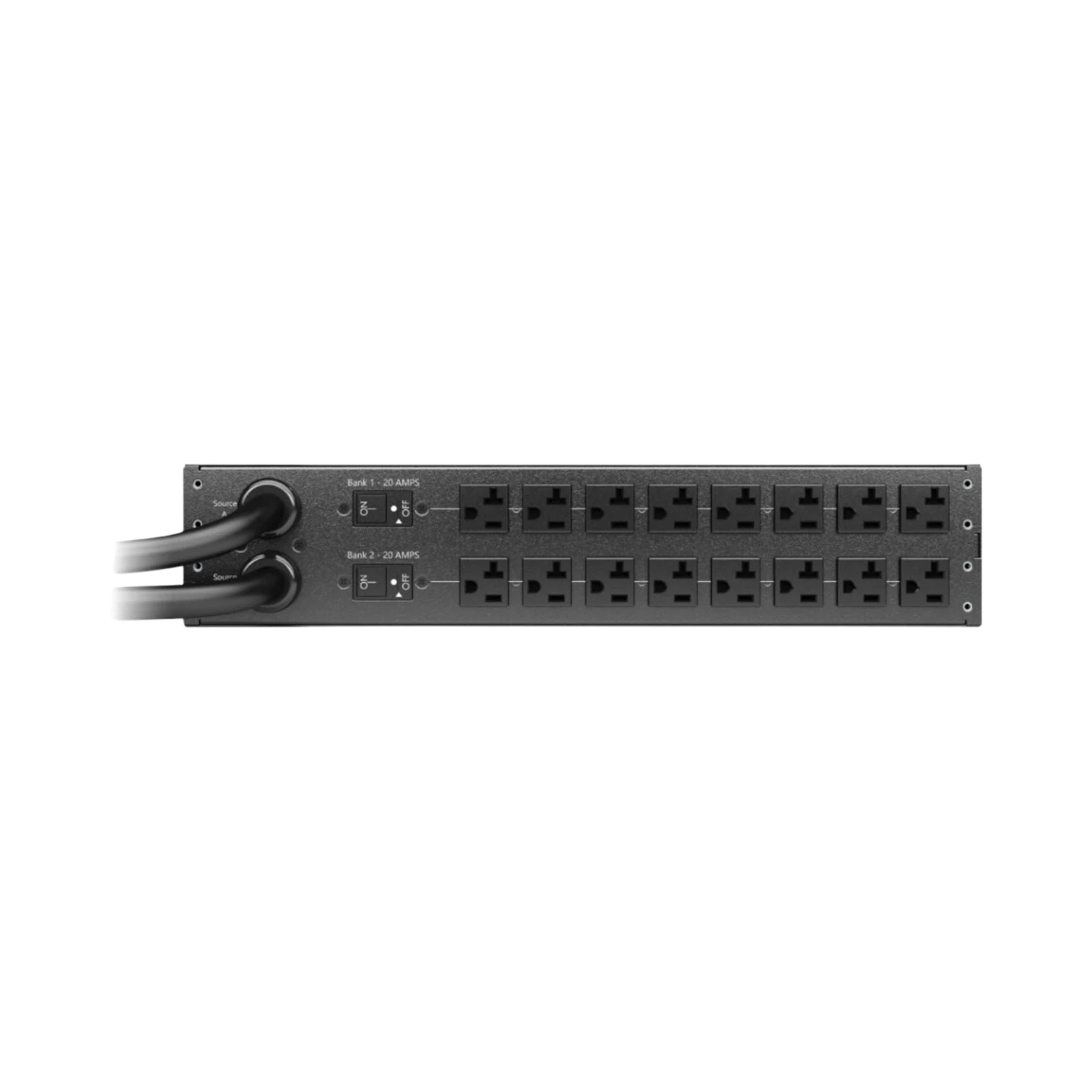

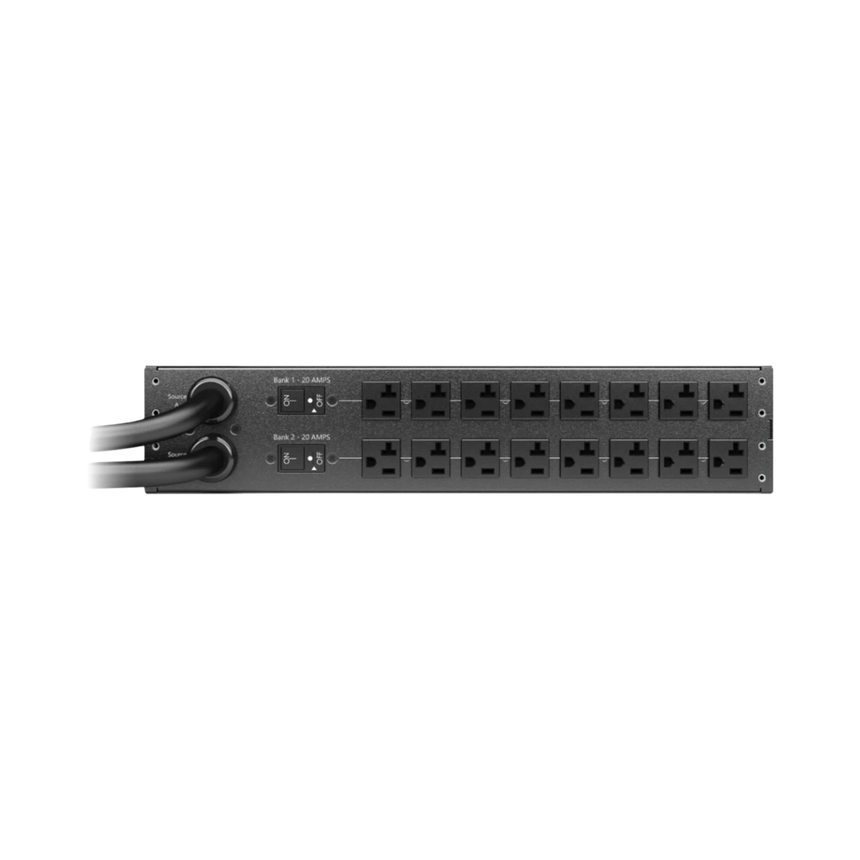

This unit features sixteen NEMA 5-20R outlets divided into two banks, each protected by its own 20 A circuit breaker, allowing for segmented load management and balanced power distribution. The front-panel LCD provides real-time monitoring of input voltage, outlet status, load levels, and ambient temperature, while the integrated Gigabit Ethernet port enables remote management through a web interface, SNMP, or command line.

Key features

• Automatic switching between two power sources to maintain uninterrupted operation of connected equipment
• Two independently protected outlet banks with circuit breakers for effective load segmentation and power balancing
• Dual 8-foot power cords with NEMA L5-30P plugs for connection to separate branch circuits, supporting redundancy without a full secondary UPS
• Front-panel LCD display offering immediate insight into voltage, load, outlet status, and temperature for on-site monitoring
• Integrated Gigabit Ethernet port allowing remote monitoring and management via familiar web UI, SNMP, or CLI tools
• Compact 2U rackmount design that fits standard 19-inch racks, optimizing space in medium-density environments

Key specs

• Load capacity: 2880 VA
• Outlets: 16 NEMA 5-20R arranged in two banks
• Circuit breakers: Two 20 A breakers, one per outlet bank
• Power cords: Two 8 ft cords with NEMA L5-30P plugs
• Form factor: 2U rackmount, fits standard 19-inch racks
• Network interface: Gigabit Ethernet for remote management

Connectivity and compatibility

The AP4453A connects to two separate power sources via its dual NEMA L5-30P plugs, enabling seamless transfer between independent branch circuits. This setup is ideal for racks housing servers, storage arrays, and networking equipment that require continuous power without interruption during maintenance or outages. The Gigabit Ethernet port supports integration into existing network management systems, allowing administrators to monitor power status and receive alerts remotely.

Performance and reliability

By providing rapid source switching and independent circuit protection, this transfer switch minimizes downtime and protects connected devices from power fluctuations. The segmented outlet banks help balance power draw, reducing the risk of overloads. The front-panel display and remote monitoring capabilities ensure that technicians and administrators can quickly assess the unit’s status and respond to issues before they impact operations.

Ideal uses and environments

This automatic transfer switch is well suited to environments where maintaining power continuity is critical but space is at a premium. It fits well in medium-density racks found in data centers, branch offices, edge computing sites, and test labs. Organizations looking to add power redundancy without the expense and footprint of a full secondary UPS will find this unit a practical and efficient solution.
