Bose 831856-0110

Overview

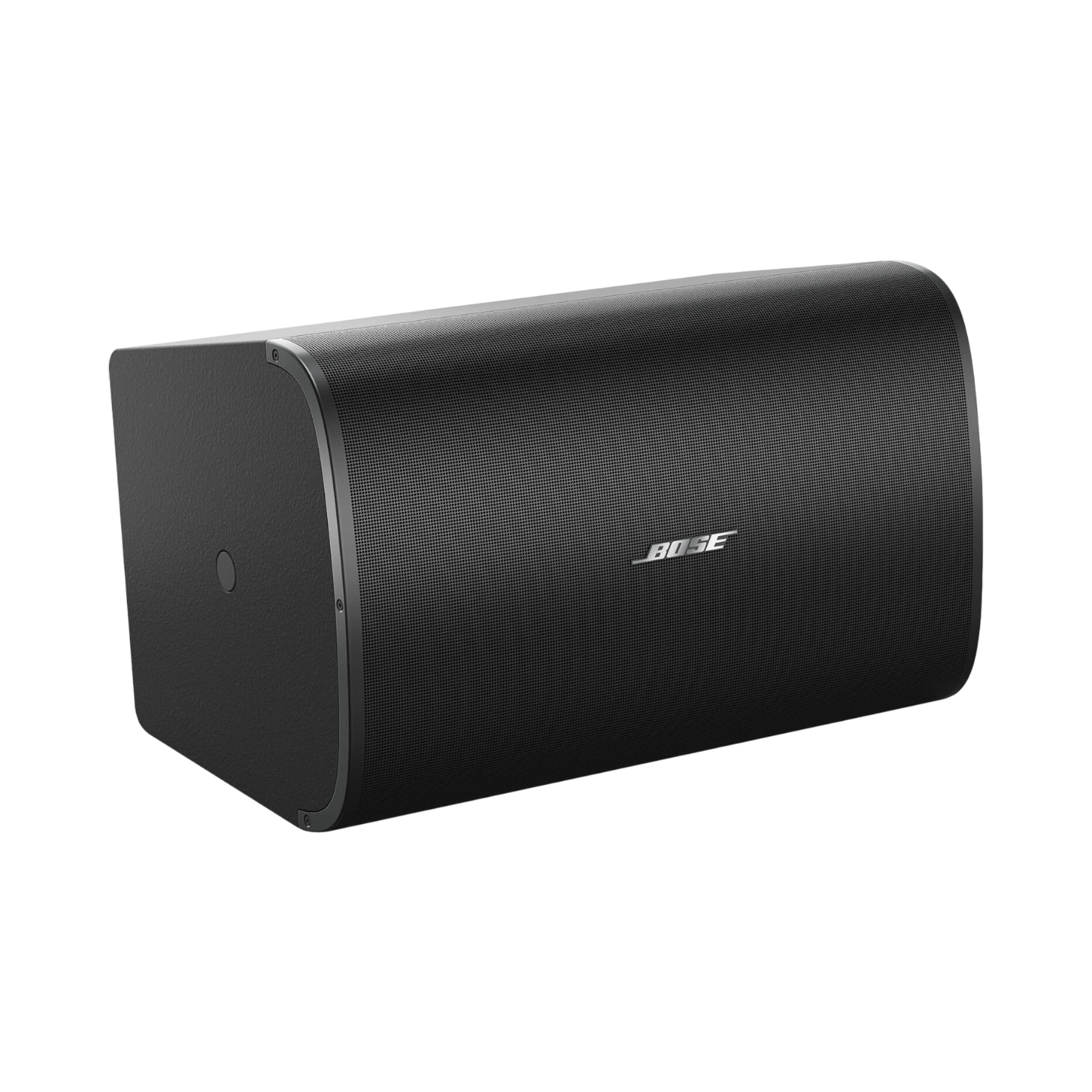

The Bose 831856-0110 is the DesignMax DM10S 10" passive subwoofer, designed to deliver deep and accurate bass for commercial sound systems. Featuring a 10-inch woofer that covers frequencies from 35 Hz to 125 Hz, it provides room-filling low-frequency sound that enhances music and announcements. With a continuous power rating of 300 watts and peak handling up to 1200 watts, this subwoofer manages dynamic audio content without distortion or strain.

Its high-density wood composite enclosure and paintable powder-coated steel grille allow it to blend seamlessly into various indoor environments. The included QuickHold U-bracket supports both vertical and horizontal mounting, making installation quick and flexible for spaces like retail stores, dining areas, and fitness studios.

Key features

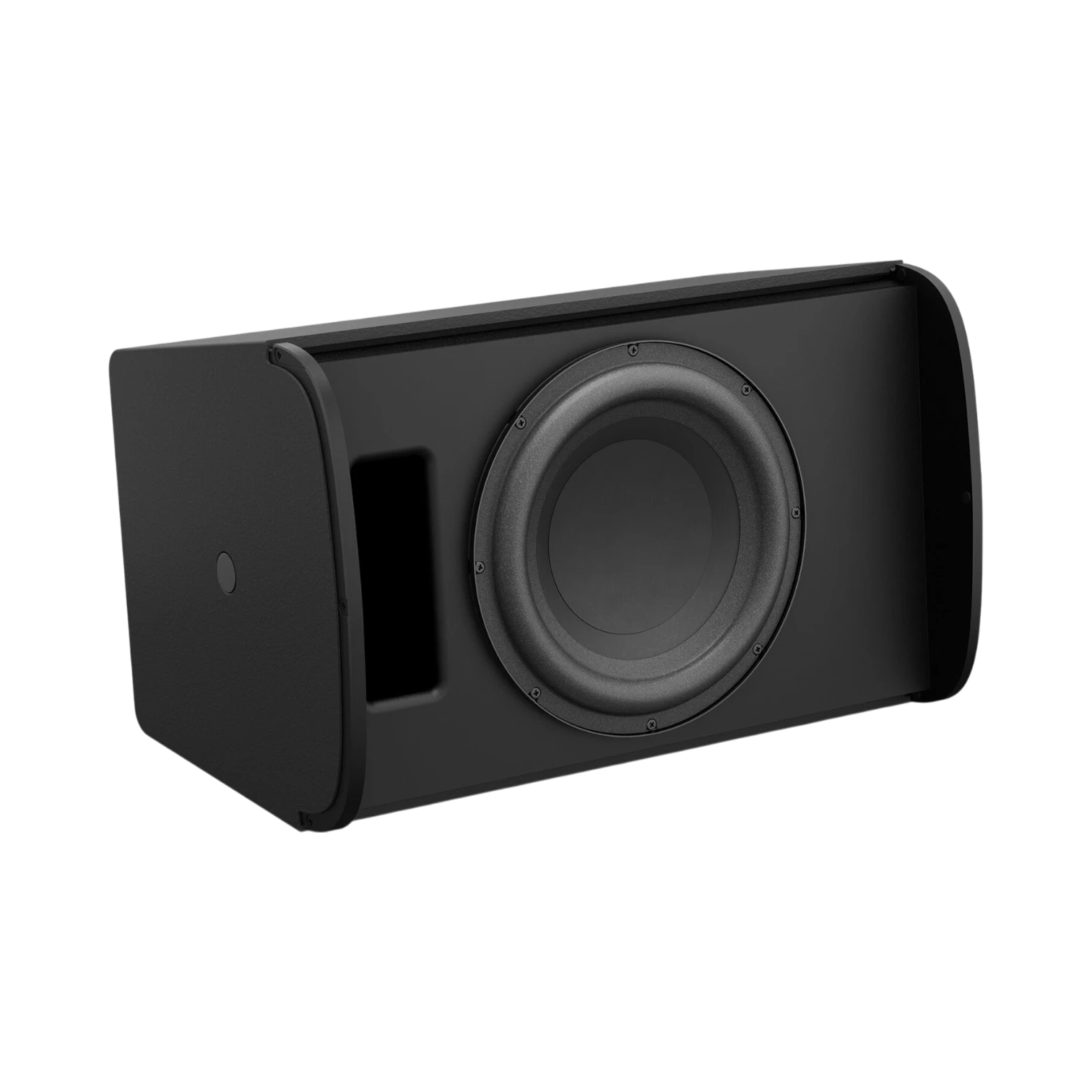

• 10-inch woofer delivers deep bass that extends from 35 Hz to 125 Hz, adding impactful low-end to sound systems
• Handles 300 watts continuous power and peaks up to 1200 watts, ensuring reliable performance during busy or dynamic audio playback
• QuickHold U-bracket allows fast and secure mounting in multiple orientations, simplifying installation and reducing setup time
• Paintable, powder-coated steel grille with tamper-resistant design and removable, rotatable logo for discreet integration with any décor
• Omnidirectional bass coverage below 200 Hz provides even sound distribution across indoor spaces, reducing the number of subs needed
• Durable enclosure built to withstand daily use and operate reliably within a 0 °C to 50 °C temperature range
• Certified to UL 1480A, CE, and NFPA70 standards, offering safety and compliance for commercial installations
• Compatible with Bose Professional DSP amplifiers and other suitable amplifiers for optimized sound control

Key specs

• Woofer size: 10 inches
• Frequency response: 35 Hz to 125 Hz
• Power handling: 300 watts continuous, 1200 watts peak
• Enclosure material: high-density wood composite
• Grille: powder-coated steel, paintable
• Mounting: QuickHold U-bracket for vertical or horizontal installation
• Dimensions: 19.8 × 12.5 × 13.6 inches
• Weight: 35.5 pounds (with bracket)
• Operating temperature range: 0 °C to 50 °C
• Certifications: UL 1480A, CE, NFPA70

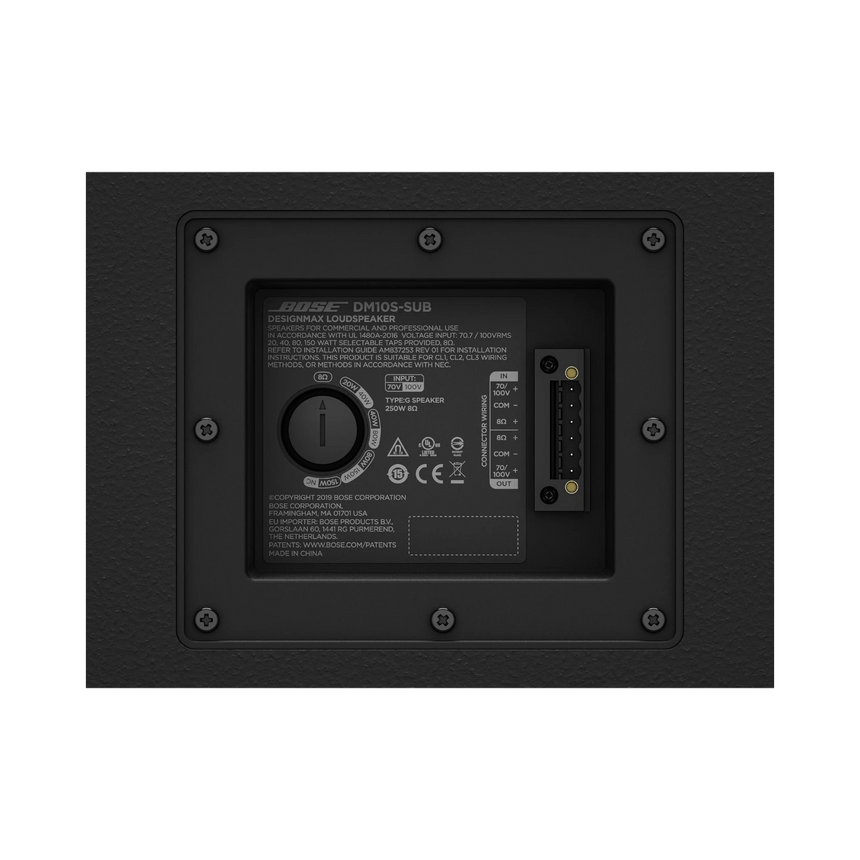

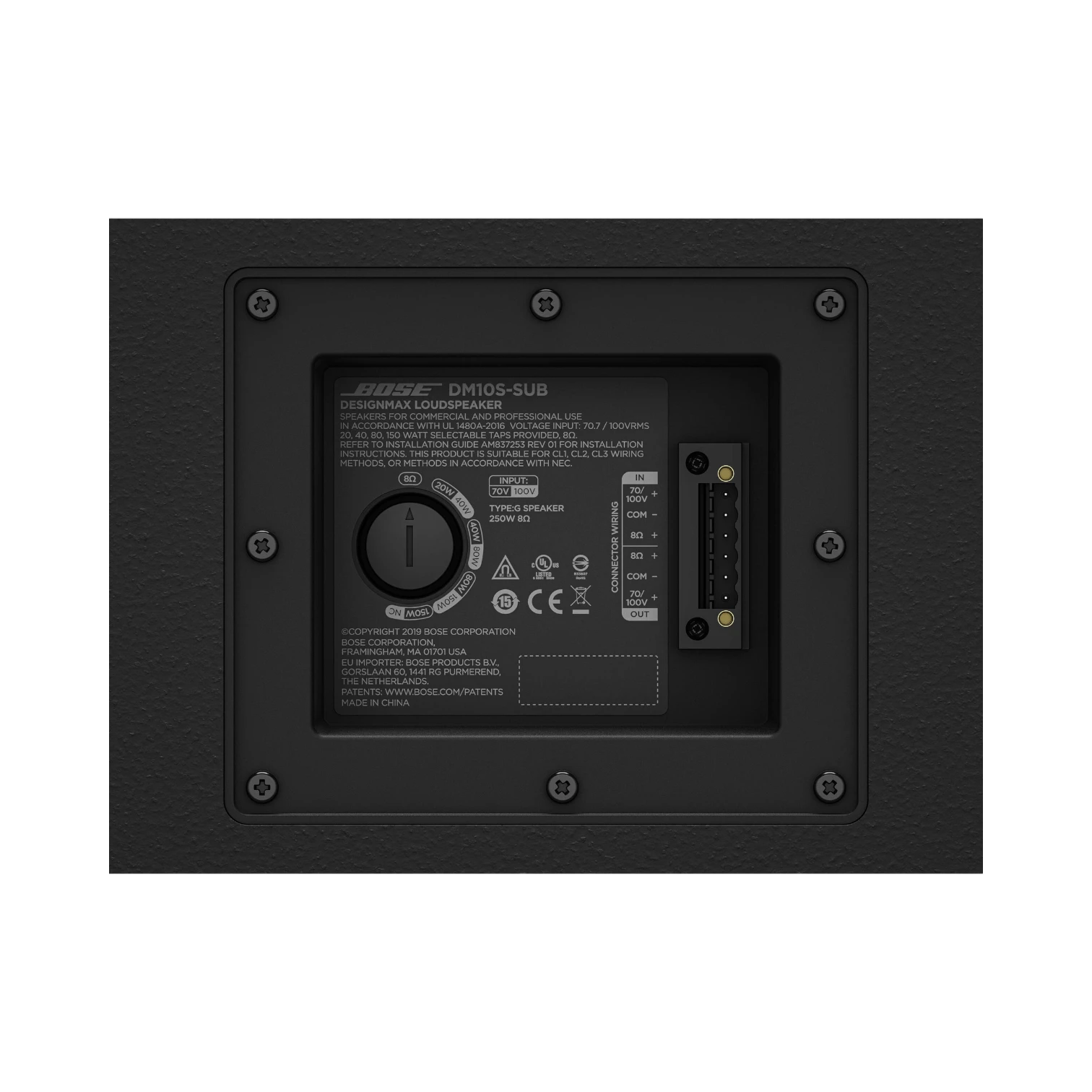

Connectivity and compatibility

The DesignMax DM10S is a passive subwoofer, requiring an external amplifier to power it. It pairs seamlessly with Bose Professional DSP amplifiers, which provide precise control over audio settings to tailor bass response to the specific environment. This flexibility makes it suitable for integration into a wide range of commercial audio systems where consistent low-frequency performance is essential.

Installation and setup

Installation is streamlined thanks to the QuickHold U-bracket, which supports both vertical and horizontal mounting options. This bracket allows installers to lift and lock the subwoofer into place with one hand, minimizing the risk of accidental damage during setup. The subwoofer’s compact dimensions and paintable grille help it blend into ceilings, walls, or other discreet locations, making it a practical choice for venues that require both performance and aesthetics.

Ideal uses and environments

This subwoofer fits well in commercial spaces such as retail stores, hotel lobbies, dining rooms, and fitness studios where even bass coverage enhances the overall sound experience. Its robust power handling and durable construction make it suitable for environments with dynamic audio content and frequent use. Facility managers and consultants will appreciate its safety certifications and reliable operation within typical indoor temperature ranges.
