Bose 768938-0210

Overview

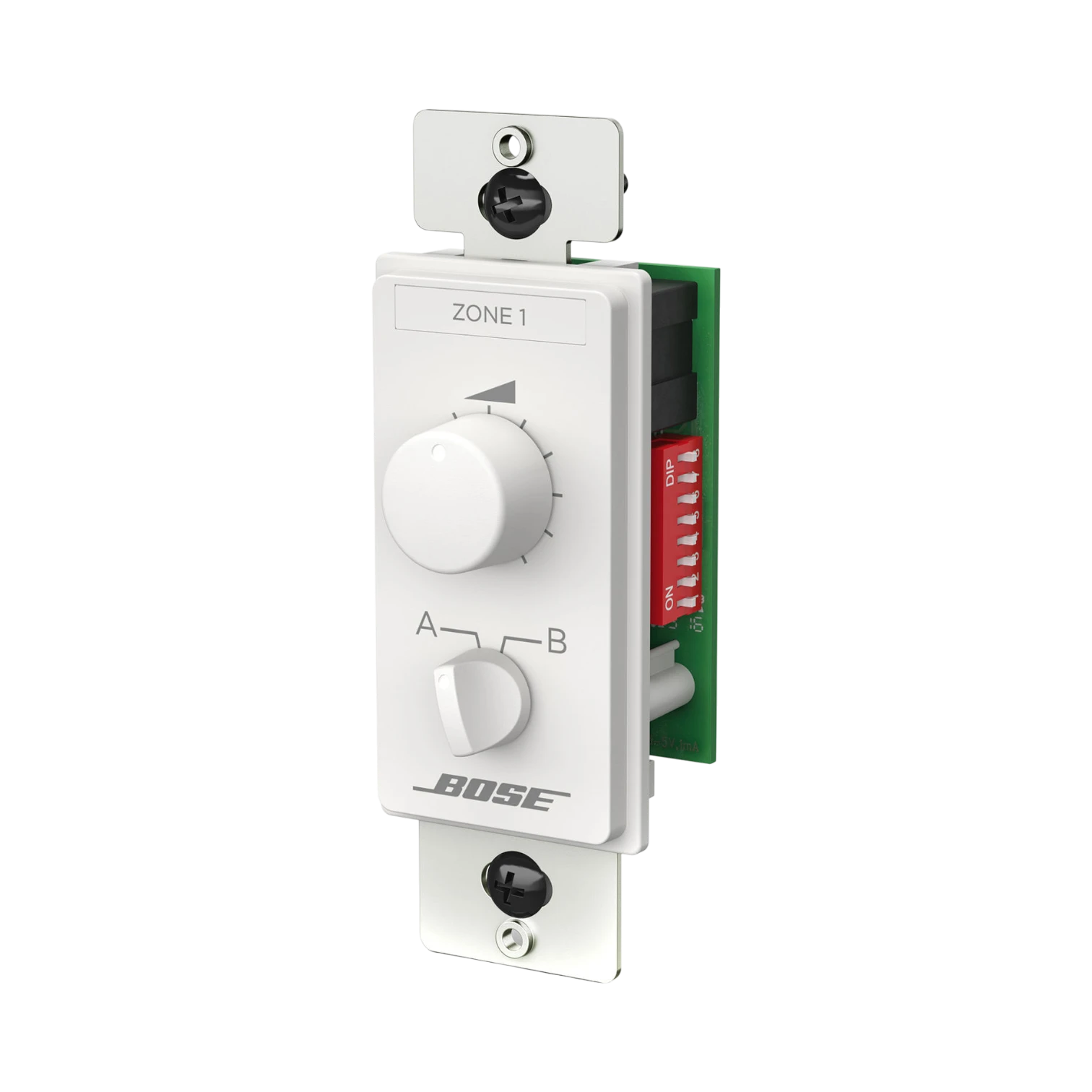

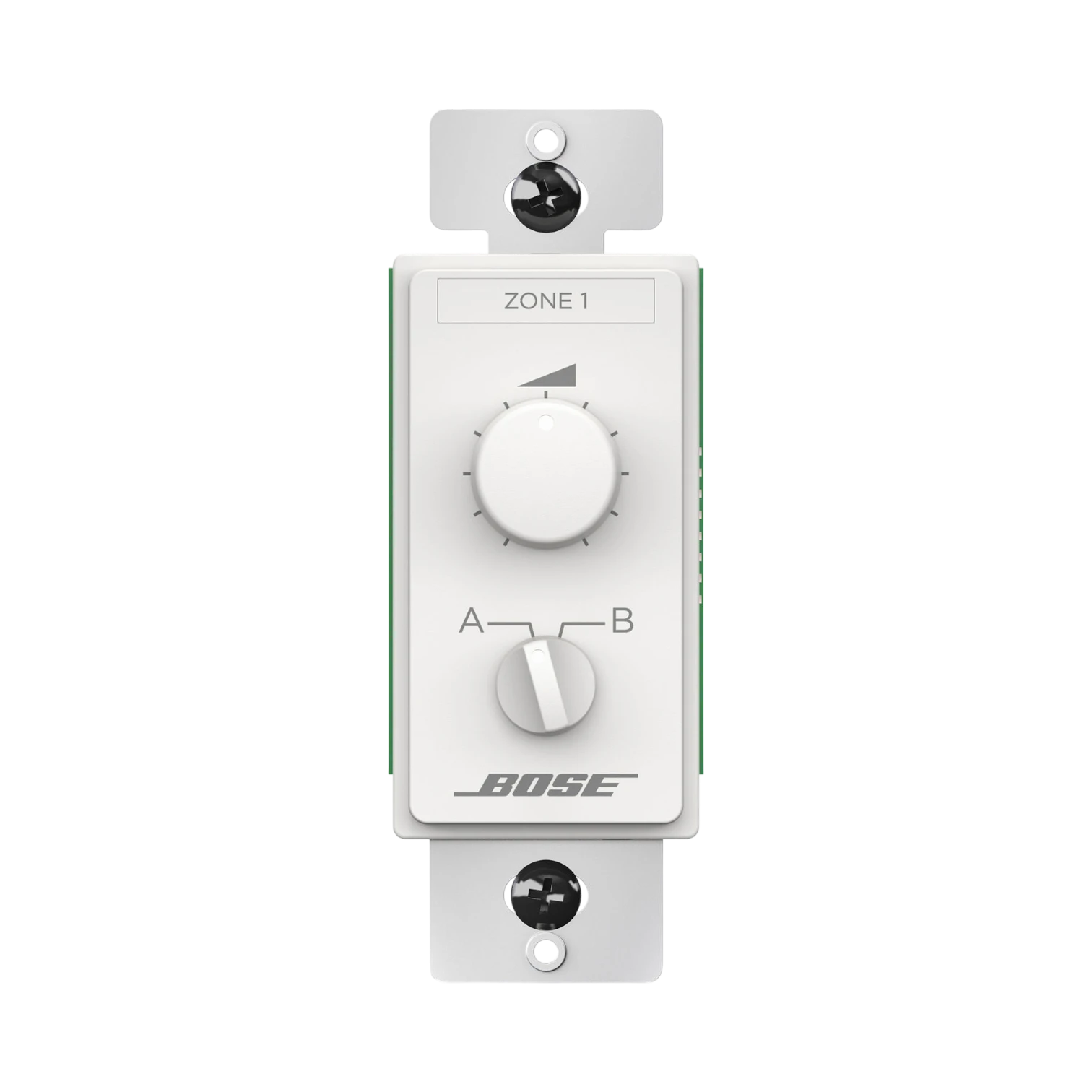

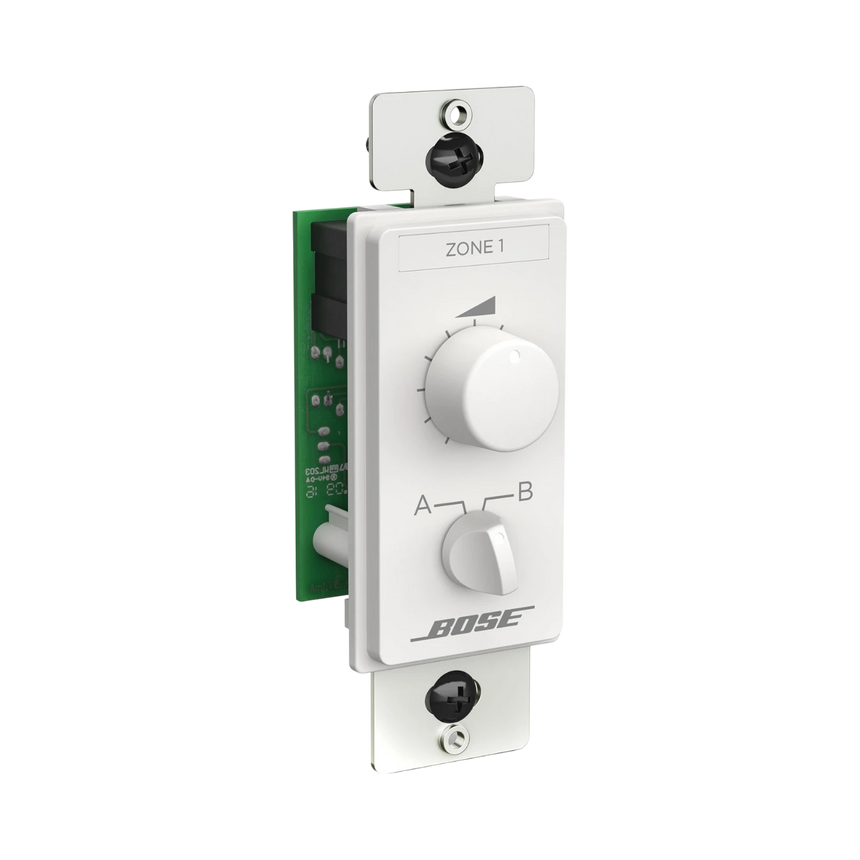

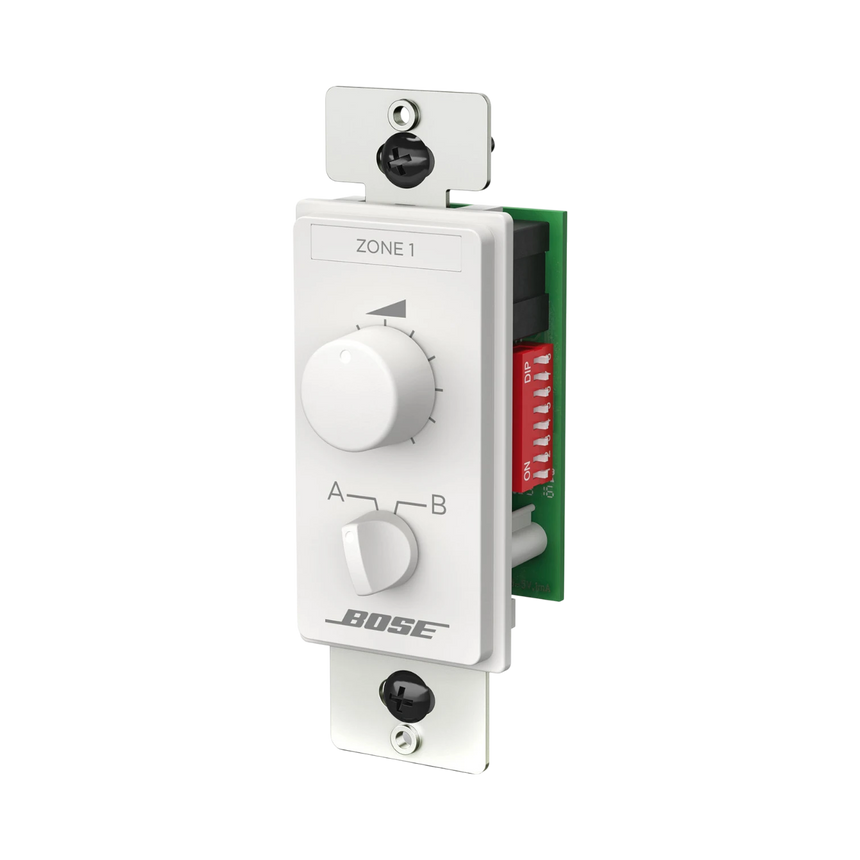

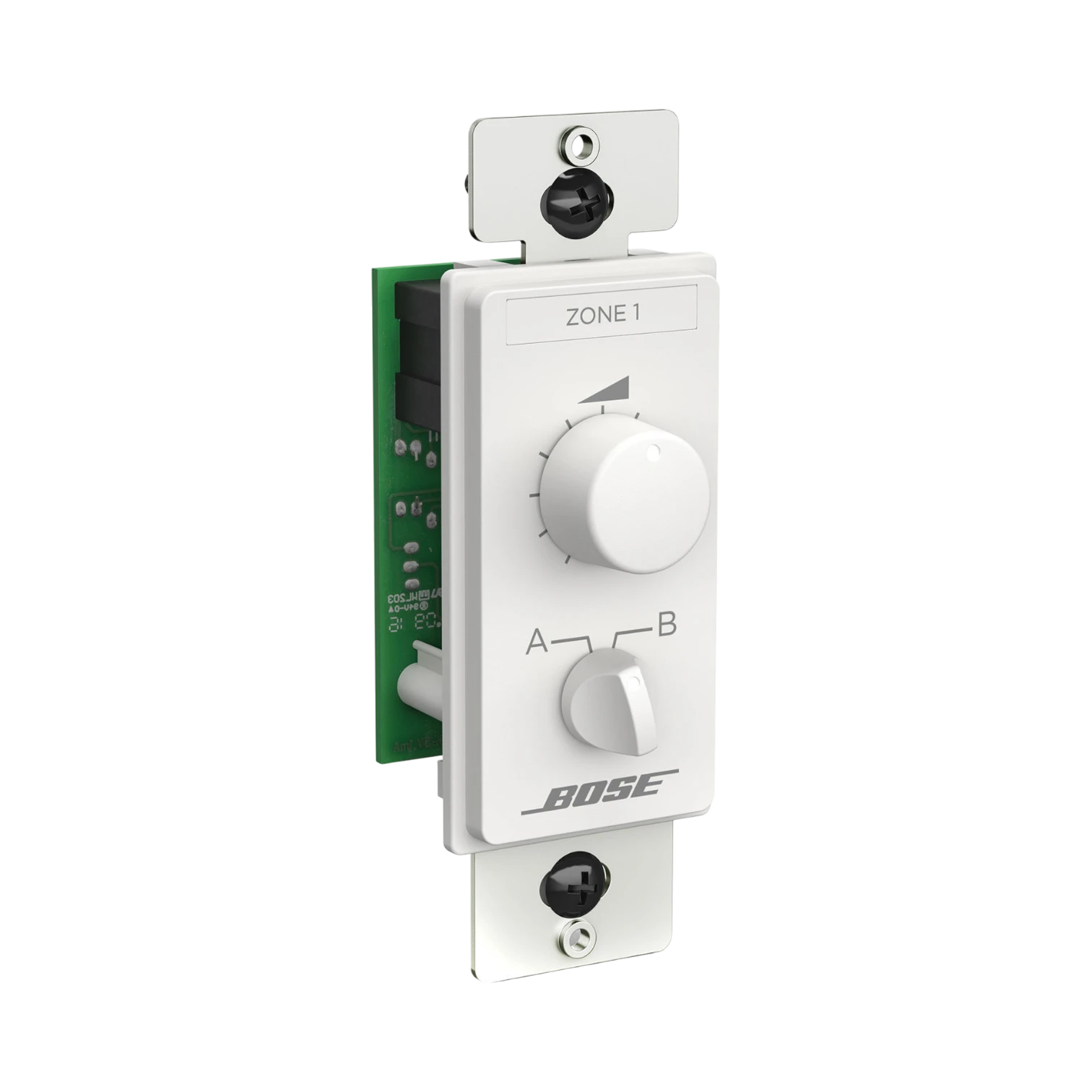

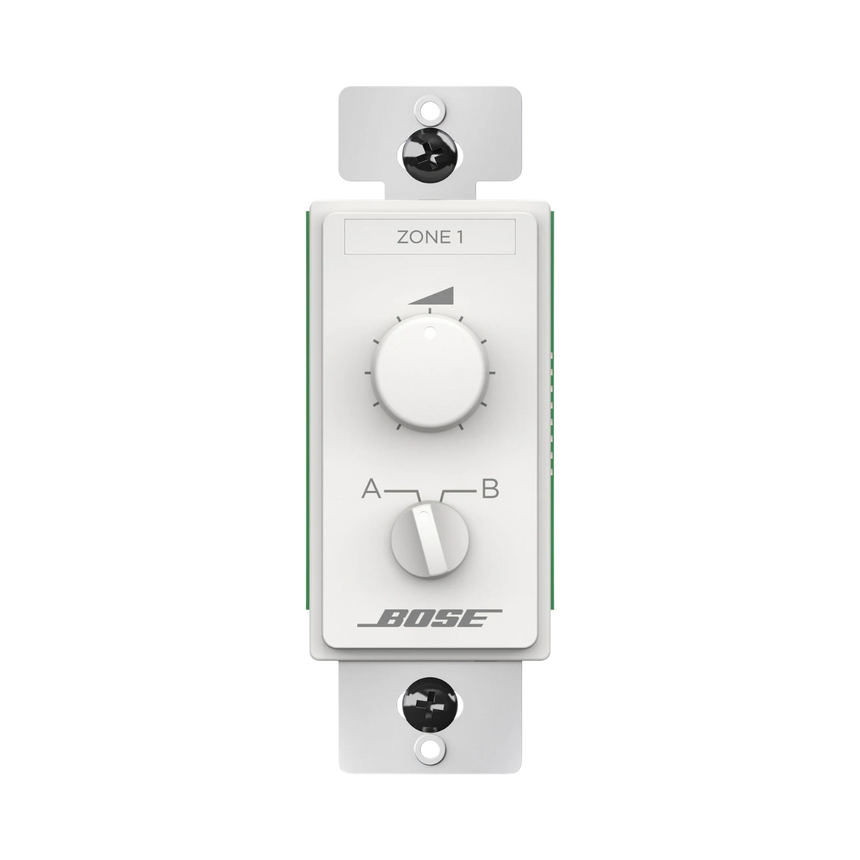

The Bose 768938-0210 is a wall-mounted zone controller designed to provide quick and reliable volume management and source selection for a single audio zone. It works seamlessly with Bose FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors, placing essential audio control directly where it is needed rather than at a central rack. The controller features a smooth rotary volume control and a simple two-position switch for selecting between two audio sources, making it easy for users to adjust settings confidently.

Key features

• Rotary control with a linear potentiometer for precise and smooth volume adjustments without over-twisting
• Two-position switch allows instant selection between two audio sources, labeled A and B for clarity
• Designed to fit into a standard 1-gang electrical box and compatible with Decora style wall plates for easy installation and aesthetic integration

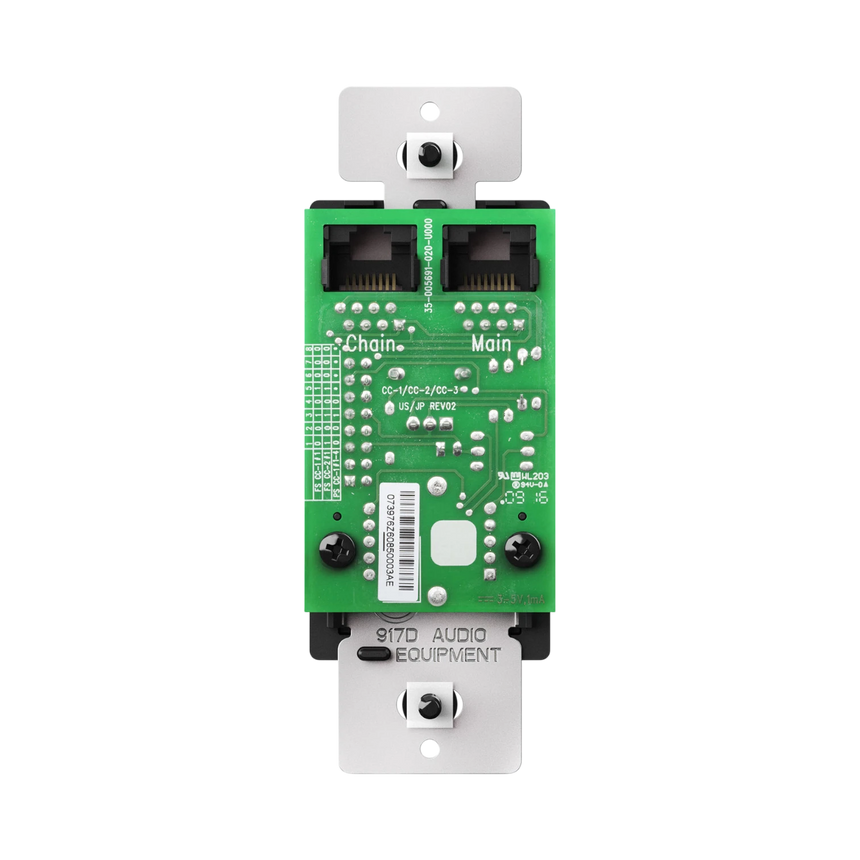

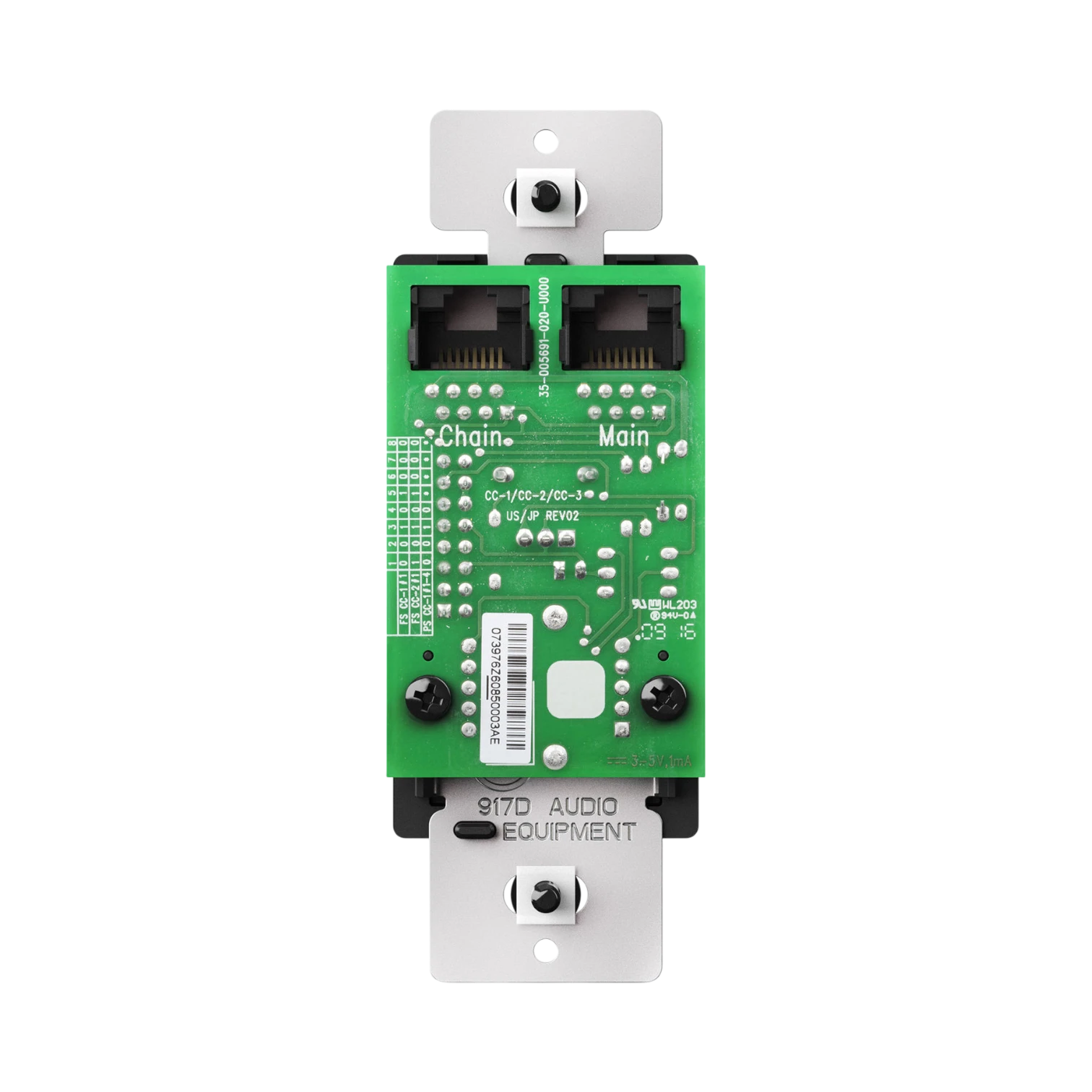

• Dual RJ-45 ports accept Cat5 cable, enabling power, data, and control signals to pass through a single cable run
• Supports daisy chaining multiple controllers to reduce wiring complexity and installation labor
• Eight-position DIP switch on the rear panel allows quick channel addressing for flexible zone configuration
• Includes pre-printed, color-matched labels to clearly identify zones or sources, simplifying user interaction
• Supports cable runs up to 2000 feet when used with FreeSpace or PowerShare systems, providing flexibility for large venues
• Compact white faceplate blends with common interior designs, measuring approximately 1.5 by 4.1 by 1.4 inches

Key specs

• Compatibility: Bose FreeSpace amplifiers, PowerShare amplifiers, ControlSpace processors
• Control type: Rotary volume control with linear potentiometer
• Source selection: Two-position switch (A/B)
• Installation: Fits standard 1-gang electrical box, accepts Decora style wall plates
• Connectivity: Dual RJ-45 ports for Cat5 cable
• Channel addressing: Eight-position DIP switch
• Cable length support: Up to 2000 feet with compatible Bose systems
• Dimensions: Approximately 1.5 x 4.1 x 1.4 inches (faceplate)
• Color: White

Connectivity and compatibility

This zone controller integrates smoothly with Bose FreeSpace and PowerShare amplifiers as well as ControlSpace processors, making it a versatile choice for various professional audio setups. The dual RJ-45 ports allow for straightforward Cat5 cable connections, which carry power, data, and control signals over long distances. Daisy chaining multiple controllers is supported, which simplifies wiring in multi-zone installations and reduces installation time and cost.

Ideal uses and environments

The CC-2 zone controller is well suited for environments where discreet and dependable local audio control is essential. It fits well in restaurants where different areas require distinct volume levels, retail stores that switch between background music and paging, hotels, offices, and houses of worship that need to adjust lobby or service area audio independently. Its simple interface ensures that even untrained staff can manage audio settings confidently, making it a practical solution for busy commercial and public spaces.
