Tripp Lite S510-003

Overview

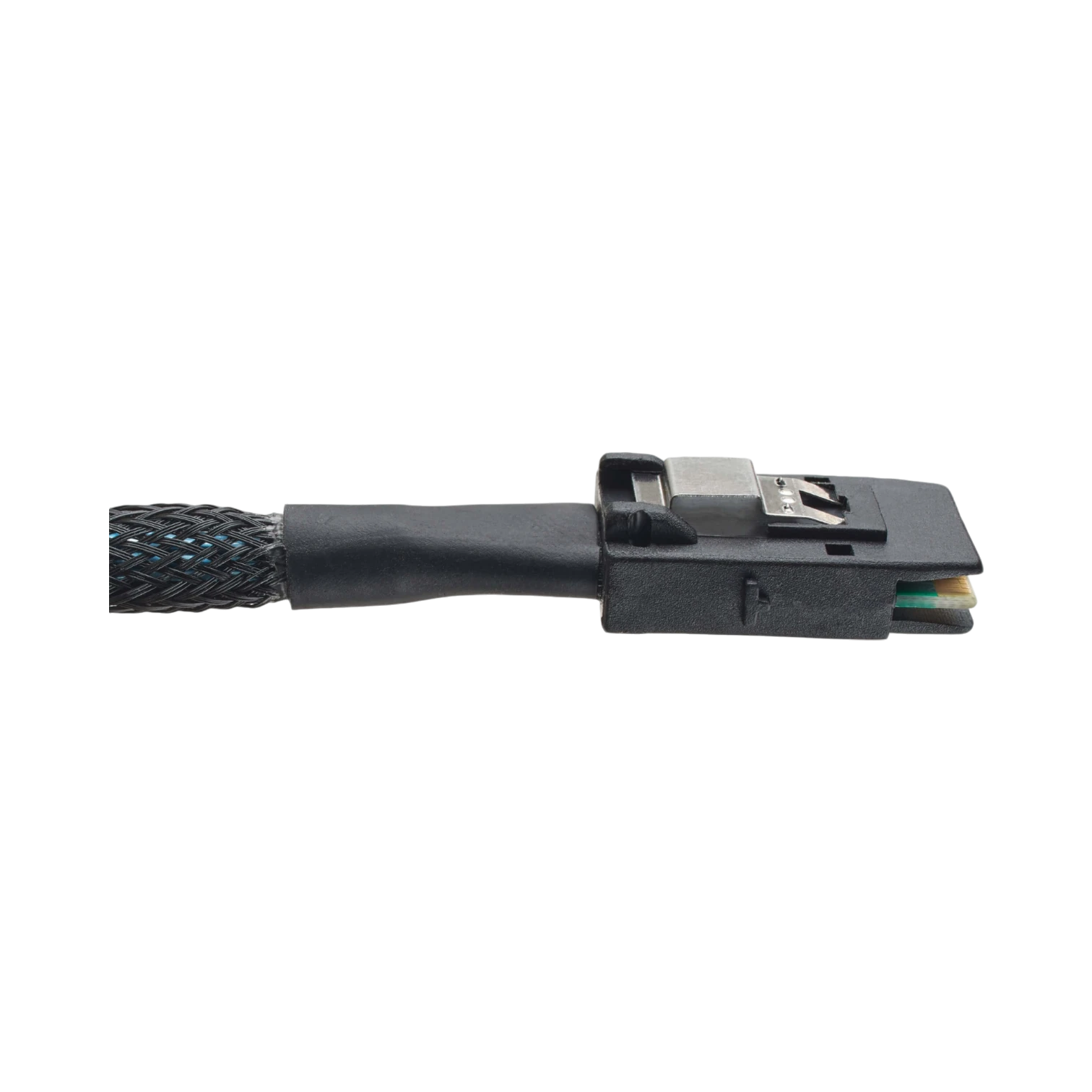

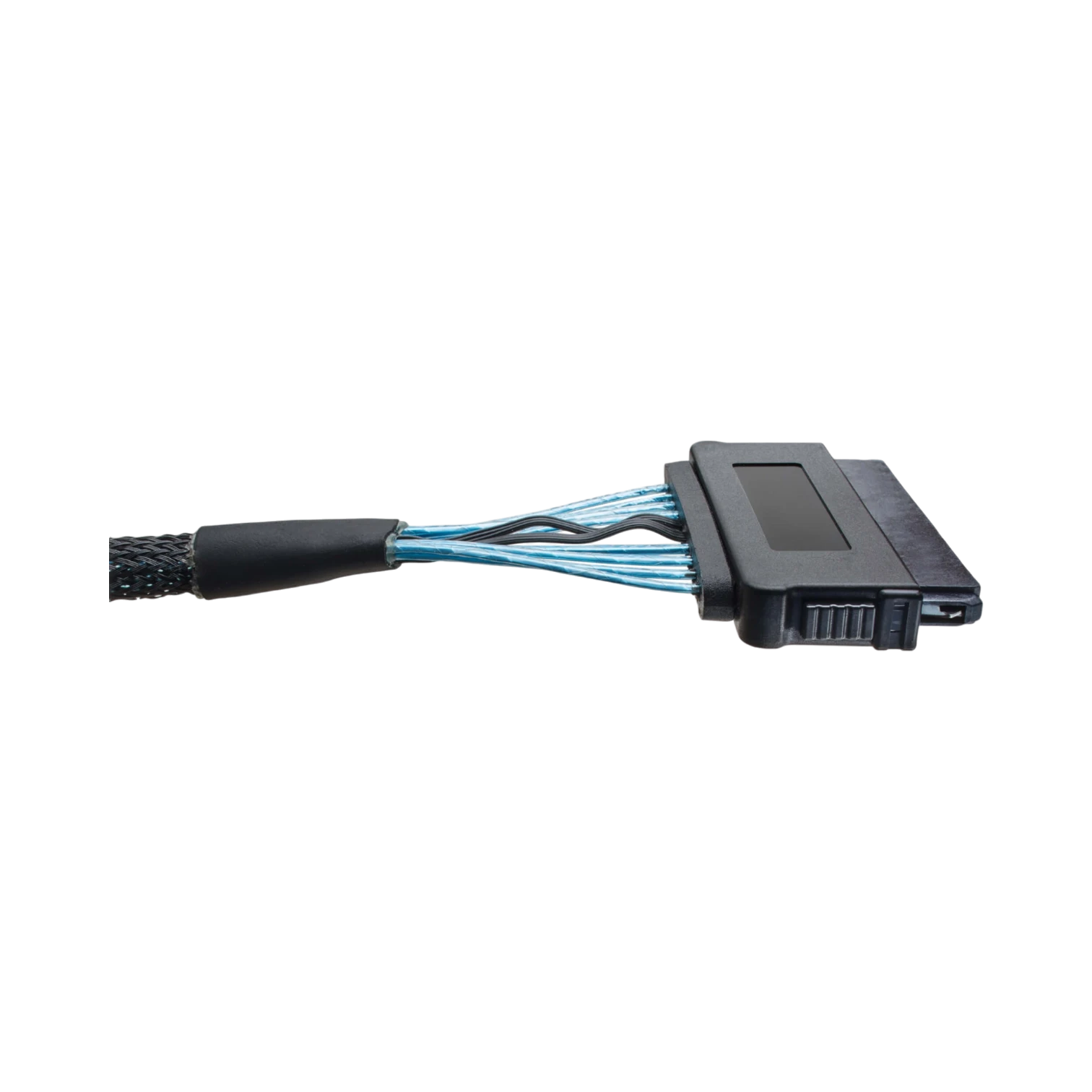

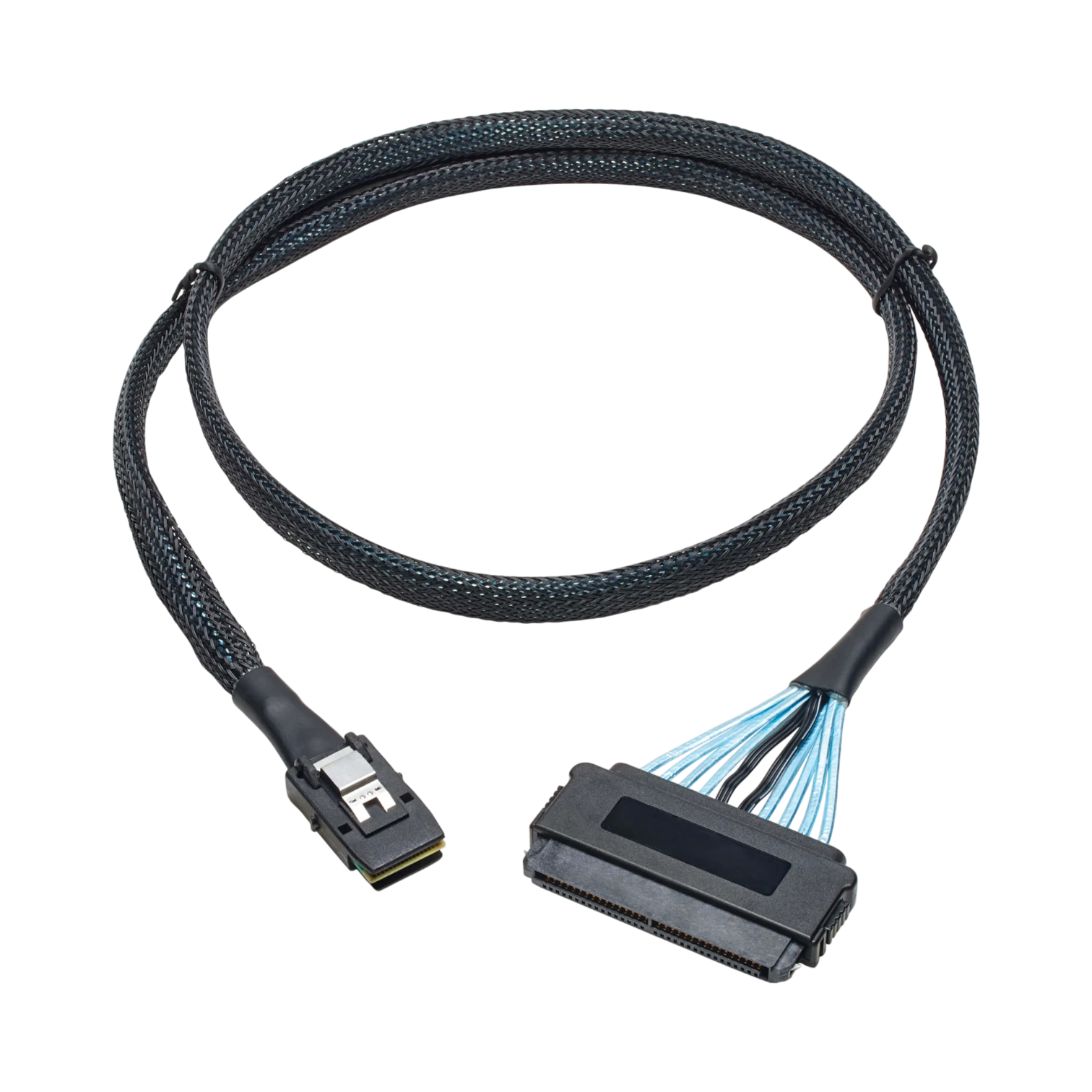

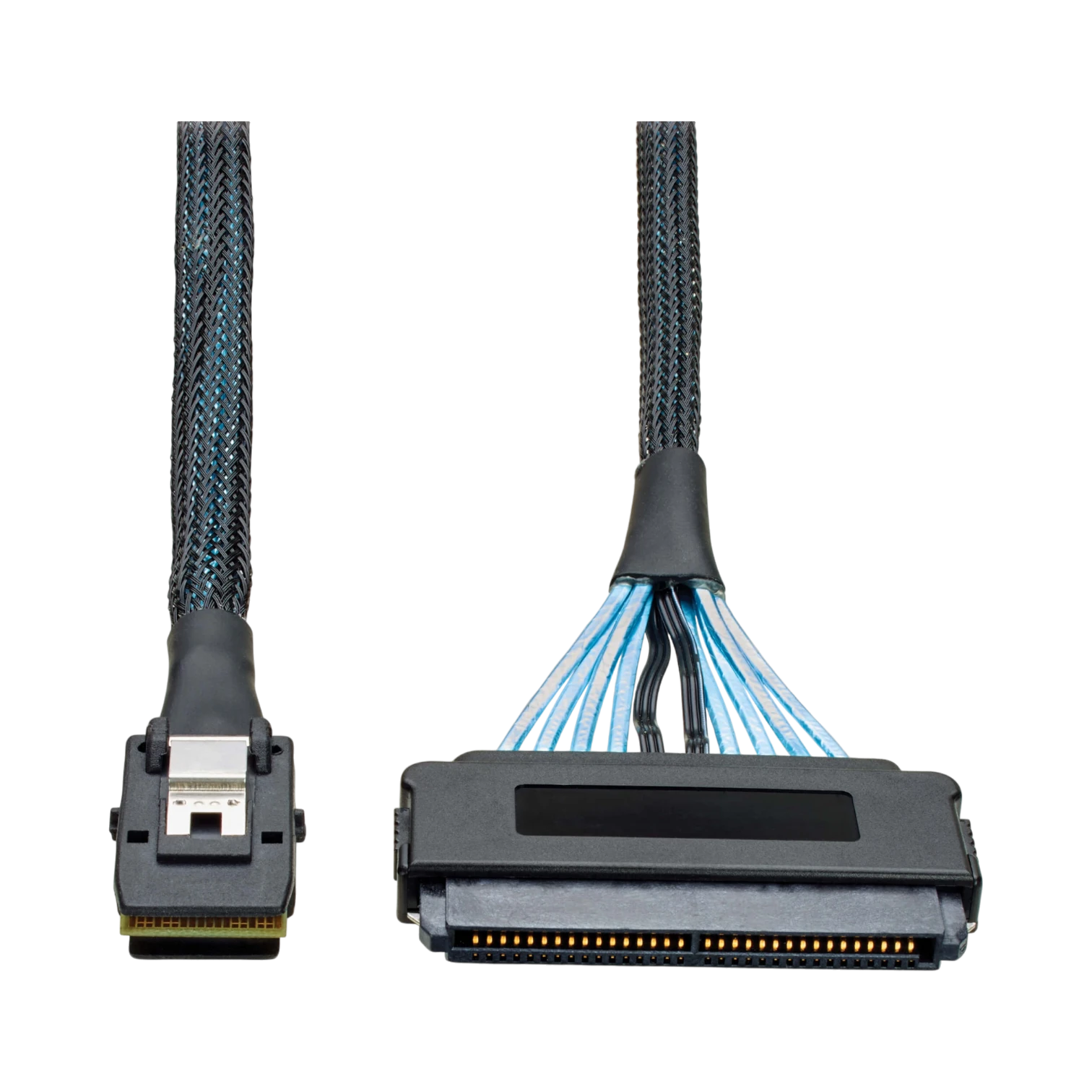

The Tripp Lite S510-003 is an internal Mini-SAS cable designed to connect a host controller to a backplane or storage hardware inside servers, workstations, or RAID enclosures. It features a single Mini-SAS (SFF-8087) connector on one end and four 32-pin (SFF-8484) breakout connectors on the other, allowing you to link multiple drives to one controller port efficiently. With support for SAS and SATA generations I, II, and III, it handles data transfer speeds up to 6Gbps, making it suitable for high-performance storage setups.

Key features

• Single Mini-SAS to four 32-pin breakout connectors enable multiple drive connections from one port
• Three-foot length provides flexibility for routing inside most server and workstation chassis
• Supports SAS and SATA standards up to 6Gbps for fast and reliable data transfer
• Compact design increases port density, improving airflow and reducing cable clutter in tight spaces
• Positive passive latches on all connectors ensure secure connections even during vibration or drive swaps
• Ideal for expanding RAID arrays or building storage solutions in servers and test environments

Key specs

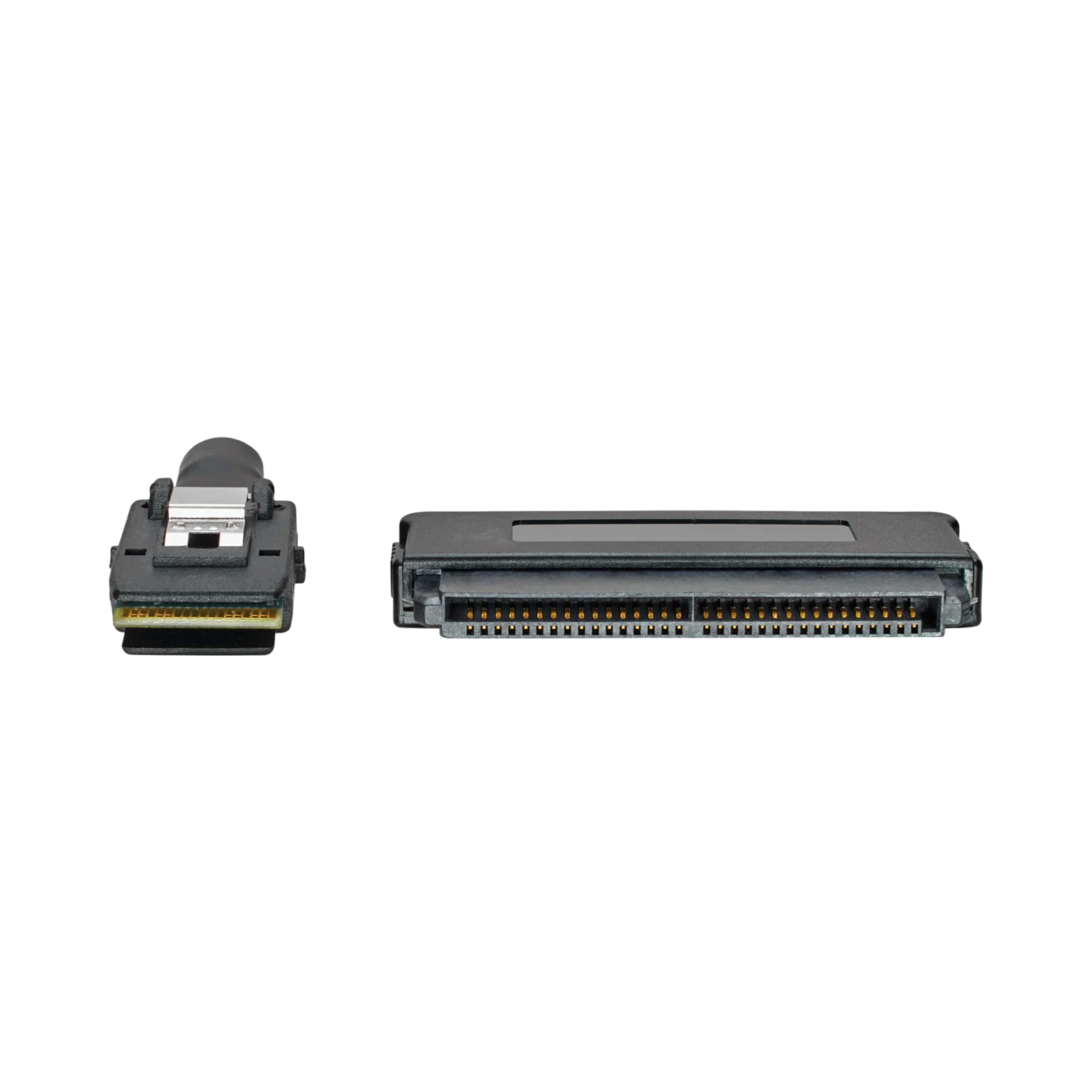

• Connector type: Mini-SAS (SFF-8087) to four 32-pin (SFF-8484) breakout connectors
• Cable length: 3 feet (0.91 meters)
• Data transfer rate: Up to 6Gbps
• Supported protocols: SAS and SATA generations I, II, and III
• Latching mechanism: Positive passive latches on all connectors

Connectivity and compatibility

This cable is designed to work seamlessly with a wide range of SAS and SATA storage devices, including backplanes and RAID enclosures commonly found in servers and workstations. Its Mini-SAS interface consolidates multiple drive connections into a single port, which helps maintain a clean and organized internal layout. The cable’s compatibility with multiple SAS and SATA generations ensures it fits well in both legacy and modern storage environments.

Installation and setup

The Tripp Lite S510-003 is straightforward to install inside standard 1U or 2U rackmount chassis. Its three-foot length offers enough reach to connect controllers and backplanes without excess slack, while the positive passive latches provide a secure fit that resists accidental disconnections during maintenance or system vibration. This makes it a practical choice for IT professionals managing server upgrades or building custom storage arrays.

Ideal uses and environments

This cable suits IT professionals and system builders who need to expand or maintain storage arrays in servers, workstations, or RAID enclosures. It works well in data centers, small business servers, and lab test benches where reliable, high-speed internal connections are essential. Its compact design and secure latching make it especially useful in dense rack environments where airflow and cable management are critical.
