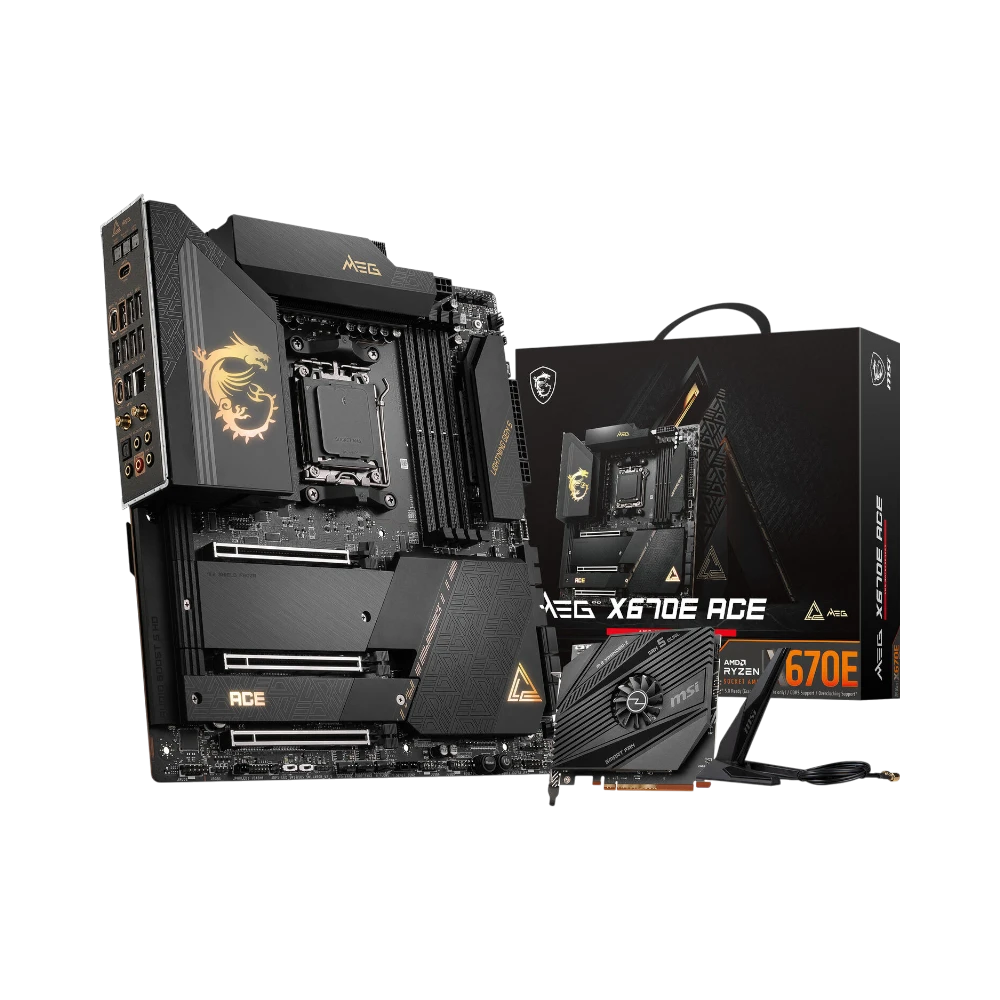

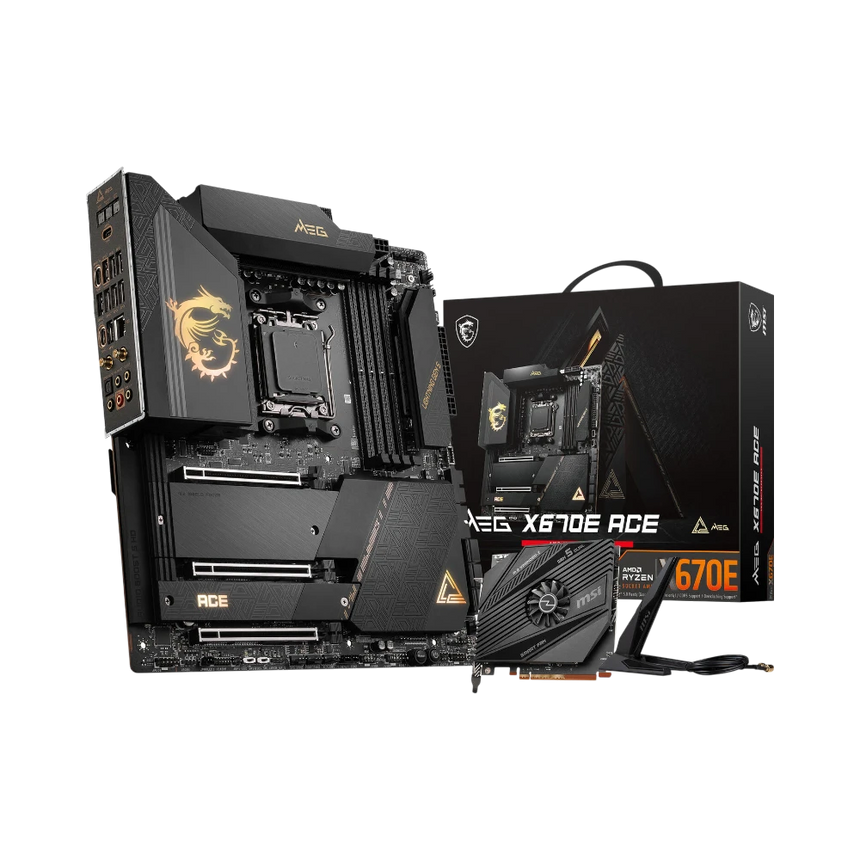

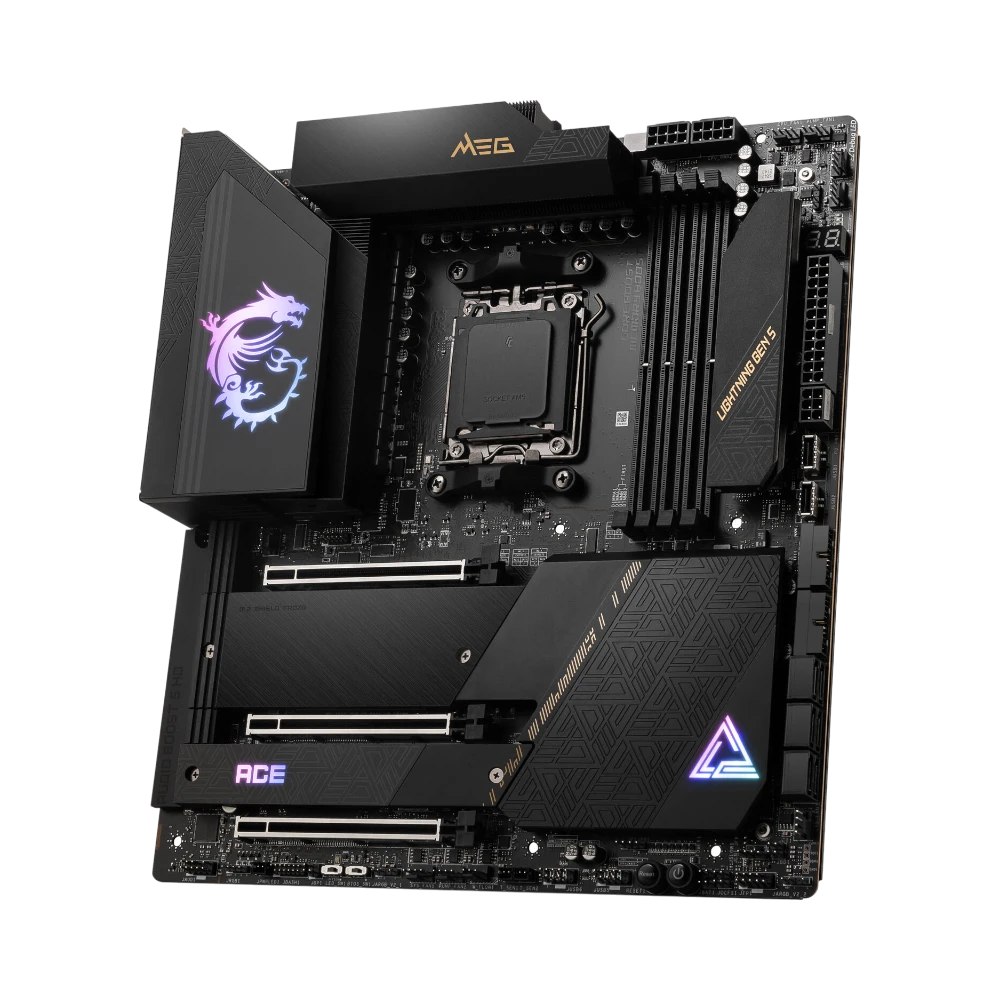

MSI MEG X670E ACE AM5 E-ATX Motherboard

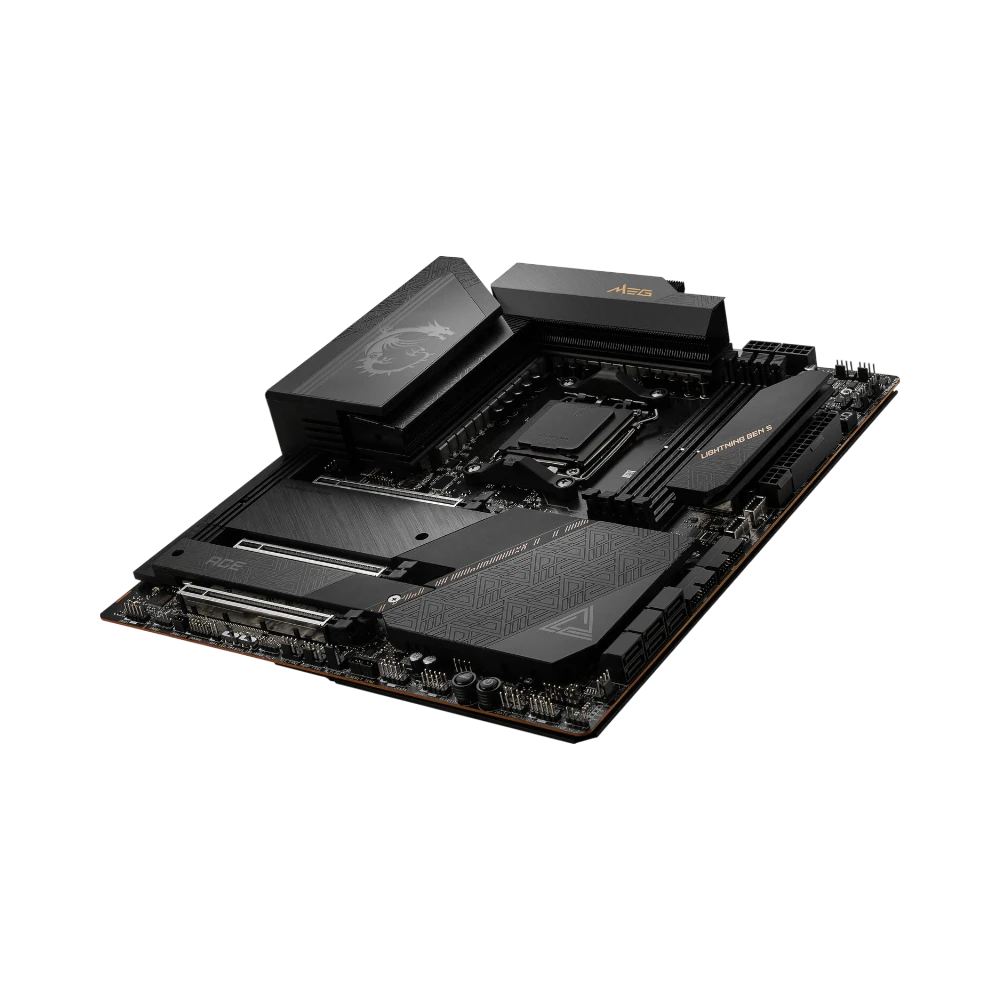

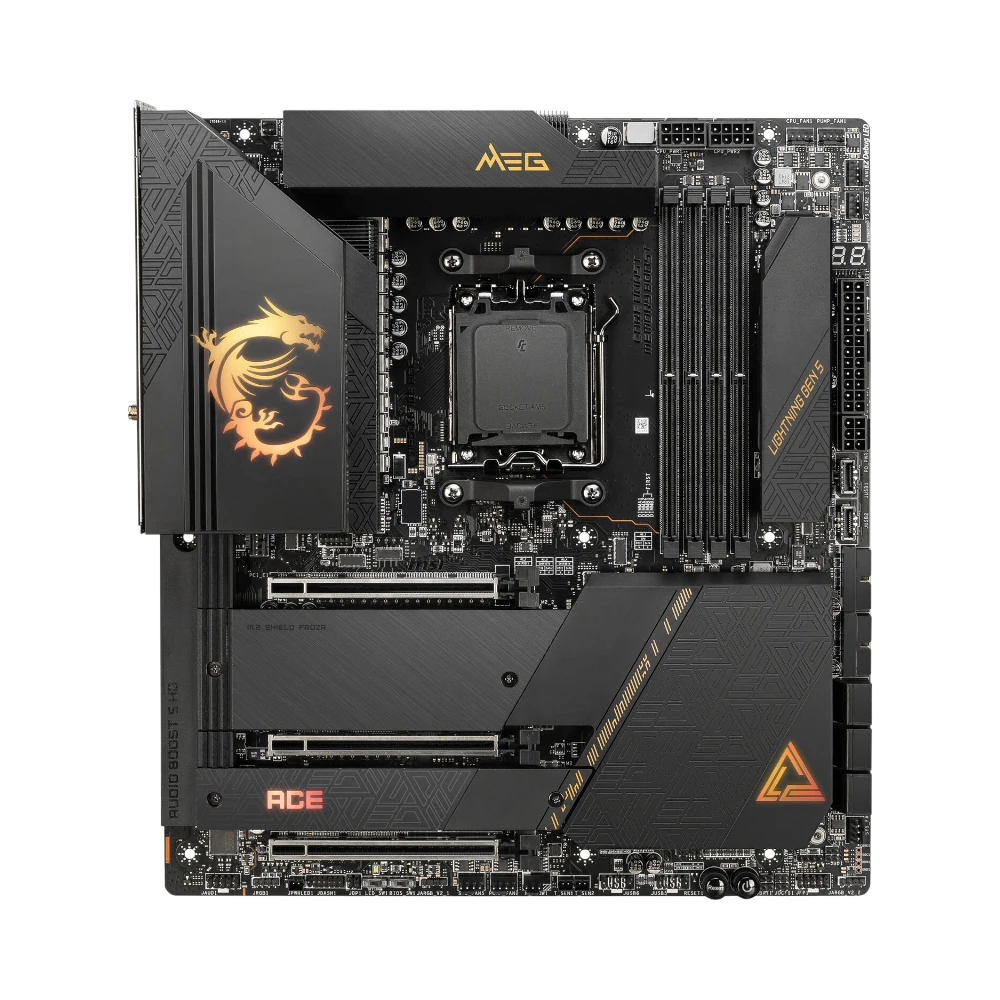

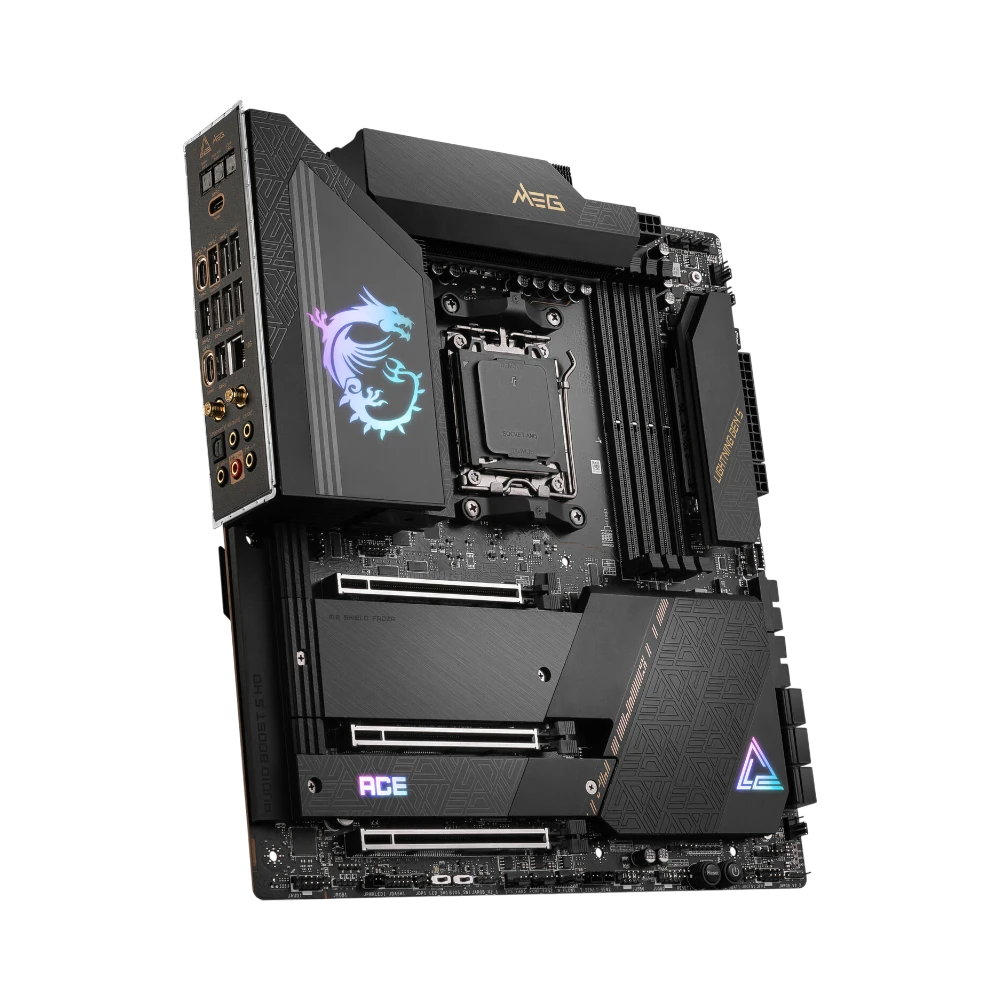

The MSI MEG X670E ACE is an E-ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket and X670 chipset. It supports up to 128 GB of DDR5 memory across four slots and includes three PCIe 5.0 x16 expansion slots for multi-GPU setups. Storage options include six SATA III ports and four M.2 slots, with one PCIe 5.0 x4 interface for high-speed drives. Connectivity features include Wi-Fi 6E, Bluetooth 5.2, and a 10 GbE LAN port. The board uses a 22+2+1 phase power design, enhanced VRM cooling, and double-sided M.2 heatsinks for thermal control. It is suited for high-load gaming, overclocking, and demanding creative workflows.

Highlights:

• AM5 socket with X670 chipset
• 22+2+1 phase power with dual 8-pin CPU connectors
• Four DDR5 slots supporting up to 128 GB
• Three PCIe 5.0 x16 slots for multi-GPU configurations
• One PCIe 5.0 x4 M.2 slot, three PCIe 4.0 x4 M.2 slots

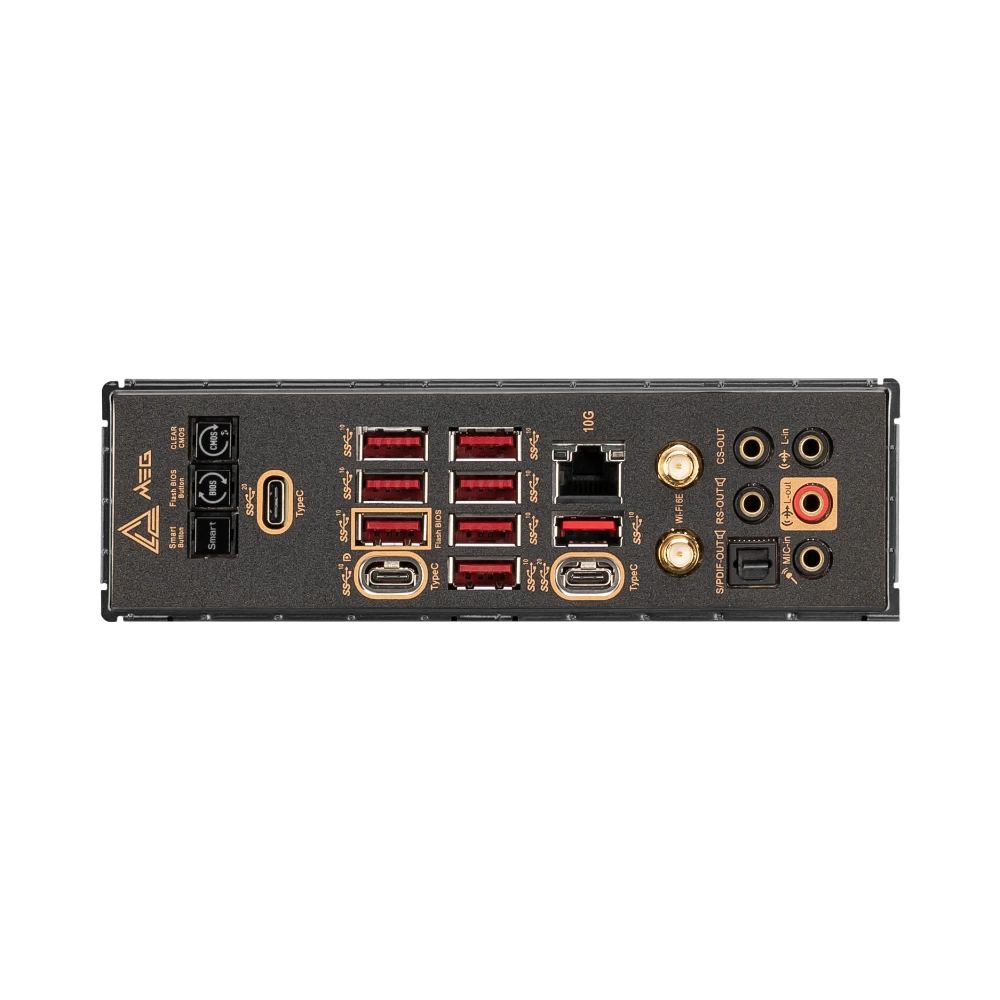

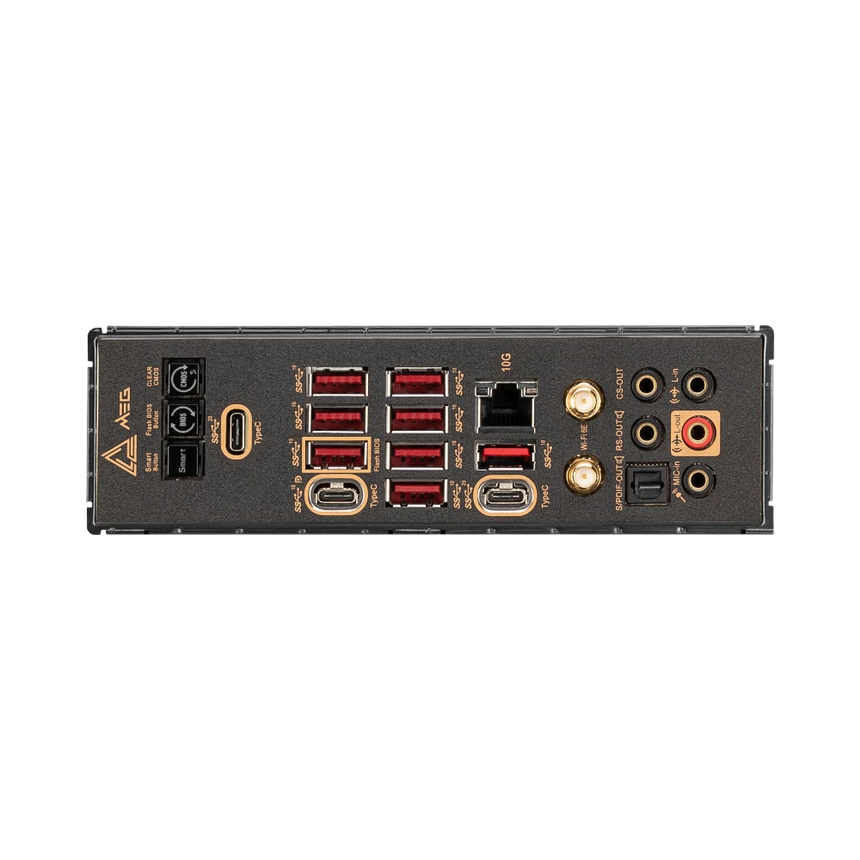

• Wi-Fi 6E, Bluetooth 5.2, and 10 GbE LAN
• USB 3.2 Gen 2x2 Type-C with 60W PD support
• EZ M.2 clip and pre-installed I/O shield for streamlined assembly
• BIOS Flashback and dual BIOS support
• Stacked fin heatsink with direct-touch heat pipe
