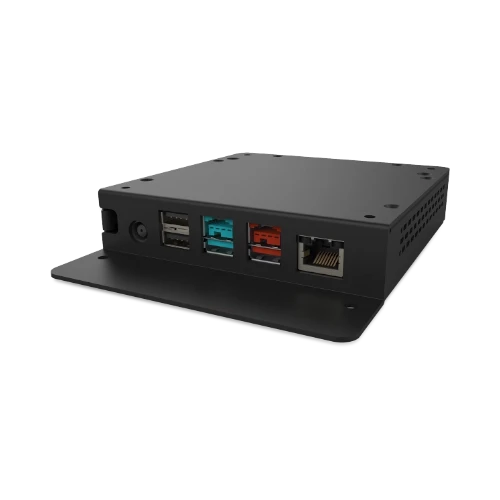

Elo E809509

Overview

The Elo E809509 is an expansion module designed to enhance the connectivity of Elo I-Series 4.0 Android devices, commonly used in retail, hospitality, and self-service environments. It provides additional ports including a serial port, two PoweredUSB ports delivering 12-volt and 24-volt power, and two standard USB 2.0 ports. This module simplifies peripheral connections by consolidating them into a single USB cable to the host device, streamlining setups and reducing clutter.

Its compact design, measuring 5.8 inches wide, 4.7 inches high, and 1 inch deep, along with a weight of just 20.1 ounces, allows for flexible mounting options such as behind displays or on pole mounts using the standard 100 x 100 mm VESA pattern. Built for commercial use, it operates reliably within a temperature range of 32°F to 104°F and meets certifications including FCC Class A, UL, and China RoHS.

Key features

• Provides a serial port and two PoweredUSB ports supplying 12 V and 24 V power for versatile peripheral support
• Includes two USB 2.0 ports for connecting additional accessories like barcode scanners and receipt printers
• Connects to the host device through a single USB cable, reducing cable clutter and simplifying installation
• Supports VESA 100 x 100 mm mounting for flexible placement behind displays or on poles
• Compact and lightweight design that fits neatly into tight spaces without adding bulk
• Operates within a wide temperature range suitable for commercial environments
• Includes a serial cable in the box for immediate setup and use
• Certified to meet FCC Class A, UL, and China RoHS standards, ensuring compliance and safety
• Backed by a two-year limited warranty for reliable long-term use

Key specs

• Ports: 1 serial port, 2 PoweredUSB ports (12 V and 24 V), 2 USB 2.0 ports
• Dimensions: 5.8 inches (W) x 4.7 inches (H) x 1 inch (D)
• Weight: 20.1 ounces
• Mounting: VESA 100 x 100 mm compatible
• Operating temperature: 32°F to 104°F
• Certifications: FCC Class A, UL, China RoHS
• Warranty: Two-year limited warranty

Connectivity and compatibility

This expansion module is specifically designed to work with Elo I-Series 4.0 Android devices, providing essential ports that these systems often lack. The PoweredUSB ports deliver power and data through a single connection, making it easy to connect peripherals such as customer displays, barcode scanners, and receipt printers without needing multiple adapters or hubs. The included serial cable ensures you can connect serial devices right out of the box.

The single USB connection to the host device keeps your setup clean and manageable, which is especially valuable in busy retail or hospitality environments where space and cable management are critical.

Installation and setup

Mounting the Elo E809509 is straightforward thanks to its support for the common 100 x 100 mm VESA mounting pattern. This allows you to place the module behind a display, on a pole mount, or in other convenient locations without taking up valuable counter space. Its slim profile and light weight make it easy to handle and position during installation.

The included serial cable simplifies initial setup, so you can quickly connect your serial peripherals without needing to source additional accessories. The module’s design ensures a tidy and efficient workspace, reducing downtime and installation complexity.

Ideal uses and environments

This expansion module fits well in retail stores, restaurants, and self-service kiosks where multiple peripherals need to connect to a single Android-based point-of-sale or service device. It is a strong choice for businesses that require reliable power delivery to peripherals alongside data connections, all while maintaining a clean and organized setup.

Its commercial-grade certifications and operating temperature range make it suitable for environments that demand consistent performance and compliance with safety standards. The module is well suited to operators who want to expand their device’s capabilities without adding bulky adapters or complicated wiring.
