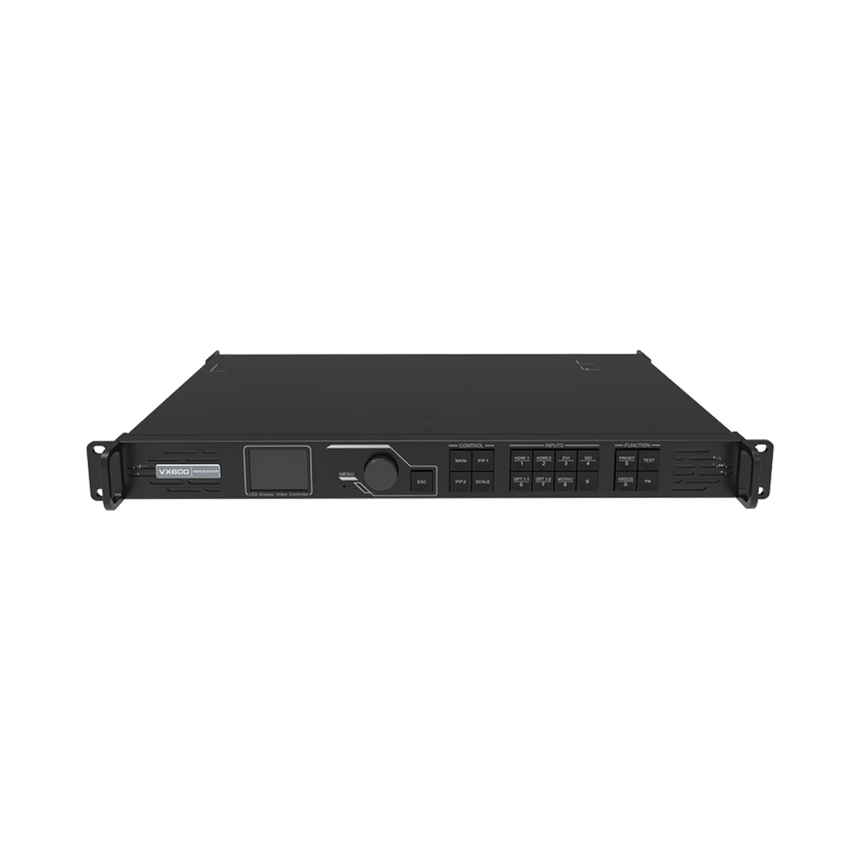

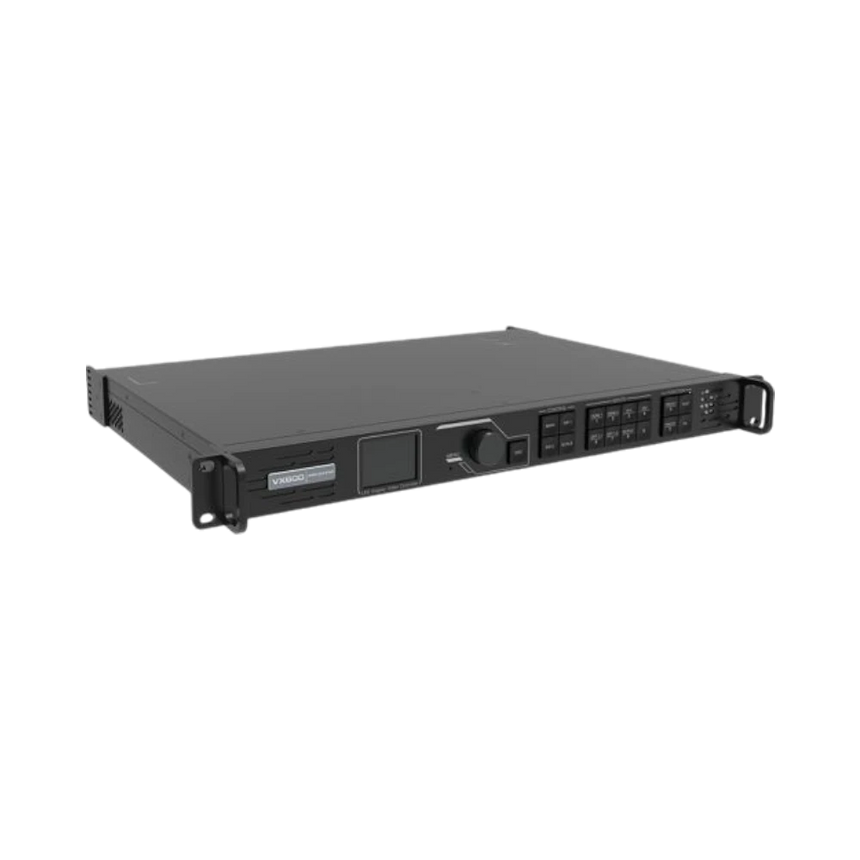

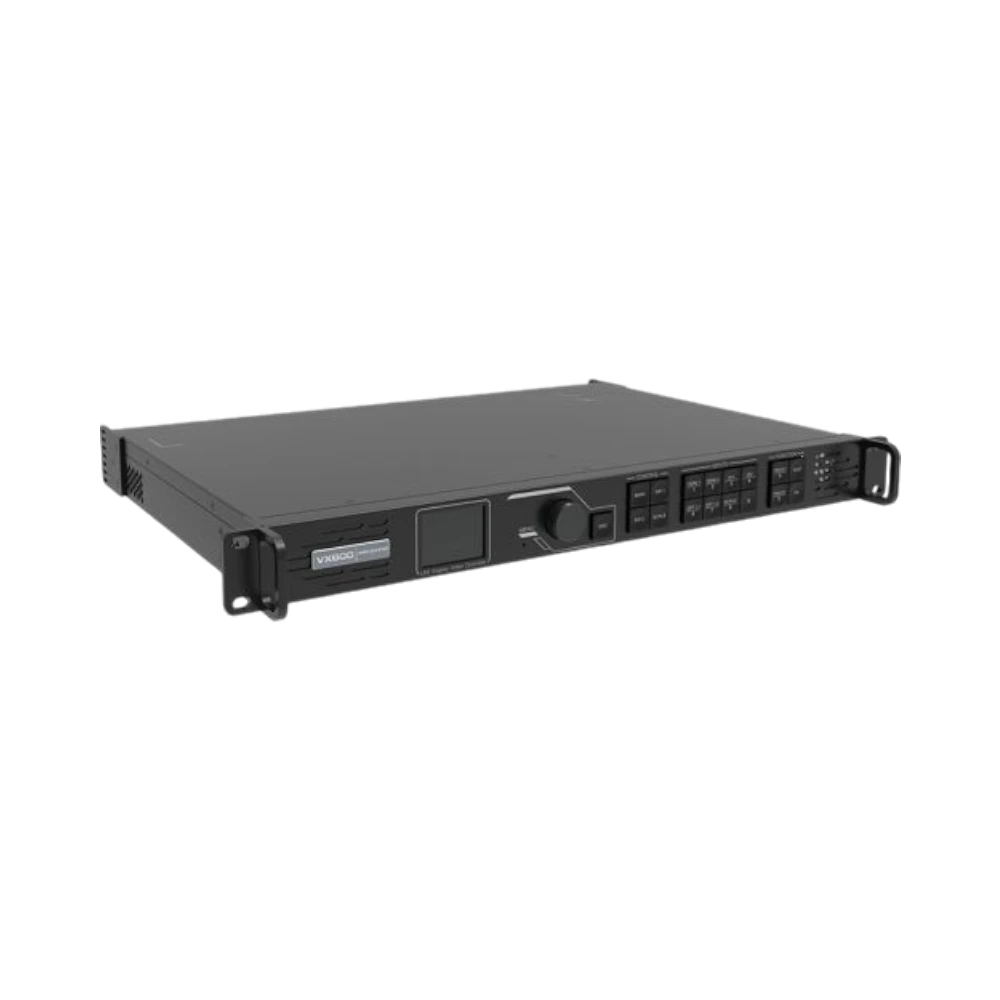

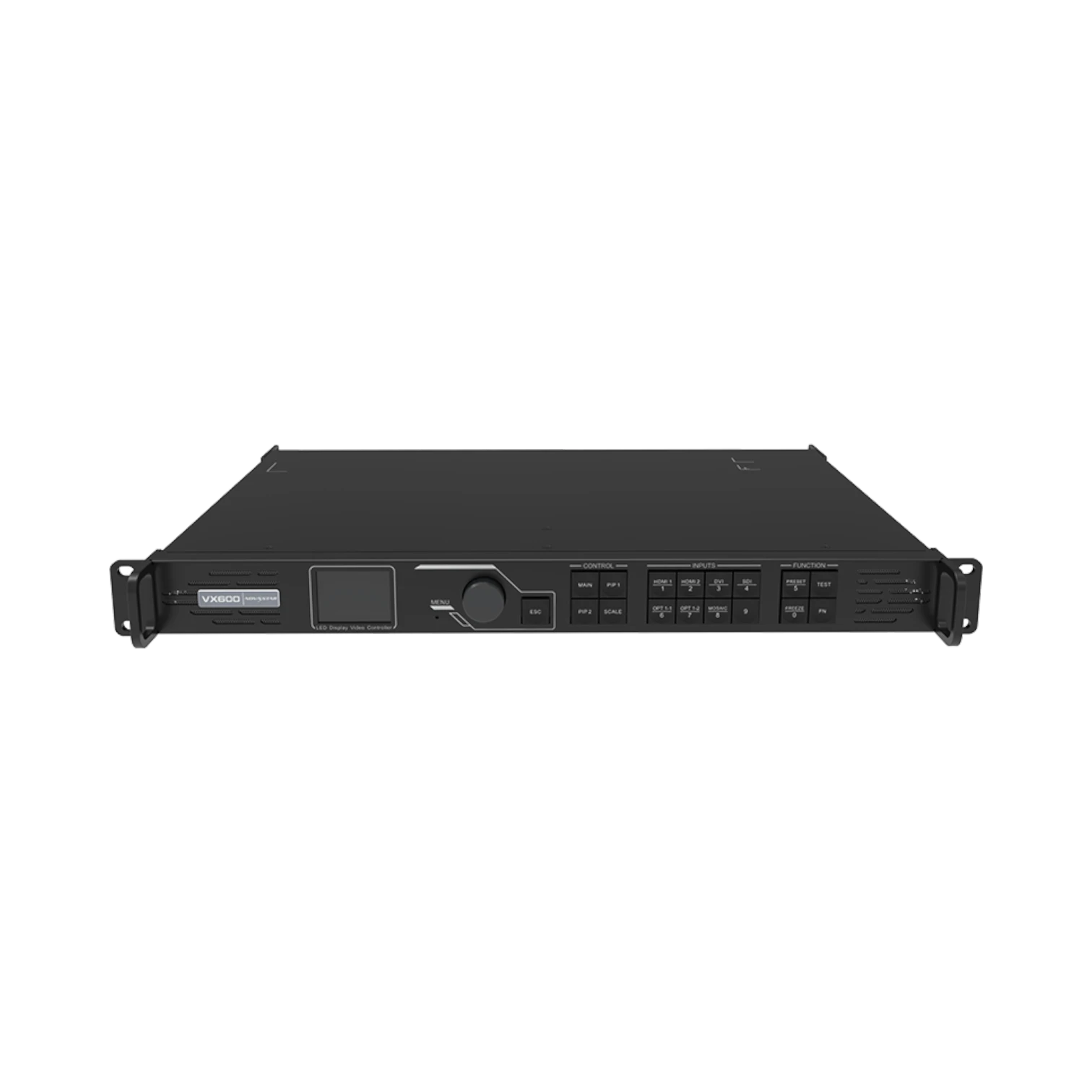

ADJ VX600

Overview

The ADJ VX600 is an all-in-one video processing controller designed to handle scaling, switching, and LED mapping within a single rack-ready unit. It supports driving LED displays up to 3.9 million pixels through six dedicated Ethernet outputs, making it suitable for ultra-wide or high-resolution screens without the need for multiple send cards. This unit accepts HDMI, DVI, and 3G-SDI inputs, each with loop outputs for confidence monitoring or additional equipment, and includes fiber optic ports for backup or long-distance connections. With low latency of only 20 lines in bypass mode and support for up to three layers with Picture in Picture, the VX600 ensures smooth, synchronized visuals for live events and installations.

Key features

• Drives large LED displays with up to 3.9 million pixels through six Ethernet outputs, simplifying complex video setups.
• Supports multiple input types including HDMI, DVI, and 3G-SDI, each with loop outputs to maintain signal integrity and enable monitoring.
• Includes two fiber optic ports that provide reliable backup paths or allow placement of the processor far from the LED wall when needed.
• Maintains low latency performance at only 20 lines in bypass mode, keeping live action and screen visuals tightly synchronized.
• Offers three adjustable layers with Picture in Picture functionality to blend live video, graphics, and backgrounds seamlessly.
• Provides flexible control options via front panel buttons and rotary knob, USB connection, or Ethernet software for remote management.
• Features genlock input and output to ensure frame-accurate synchronization across multiple processors, essential for broadcast environments.
• Compact and efficient design with a power draw of just 28 watts, fitting into a single rack unit and weighing only 8.8 pounds for easy transport and installation.

Key specs

• Maximum pixel output: 3.9 million pixels
• Ethernet outputs: 6 dedicated ports
• Input types: HDMI, DVI, 3G-SDI
• Loop outputs: Available for each input
• Fiber optic ports: 2 for backup or long-distance connection
• Latency: 20 lines in bypass mode
• Layers: Up to 3 with Picture in Picture
• Power consumption: 28 watts
• Dimensions: 19 x 13.8 x 1.97 inches
• Weight: 8.8 pounds

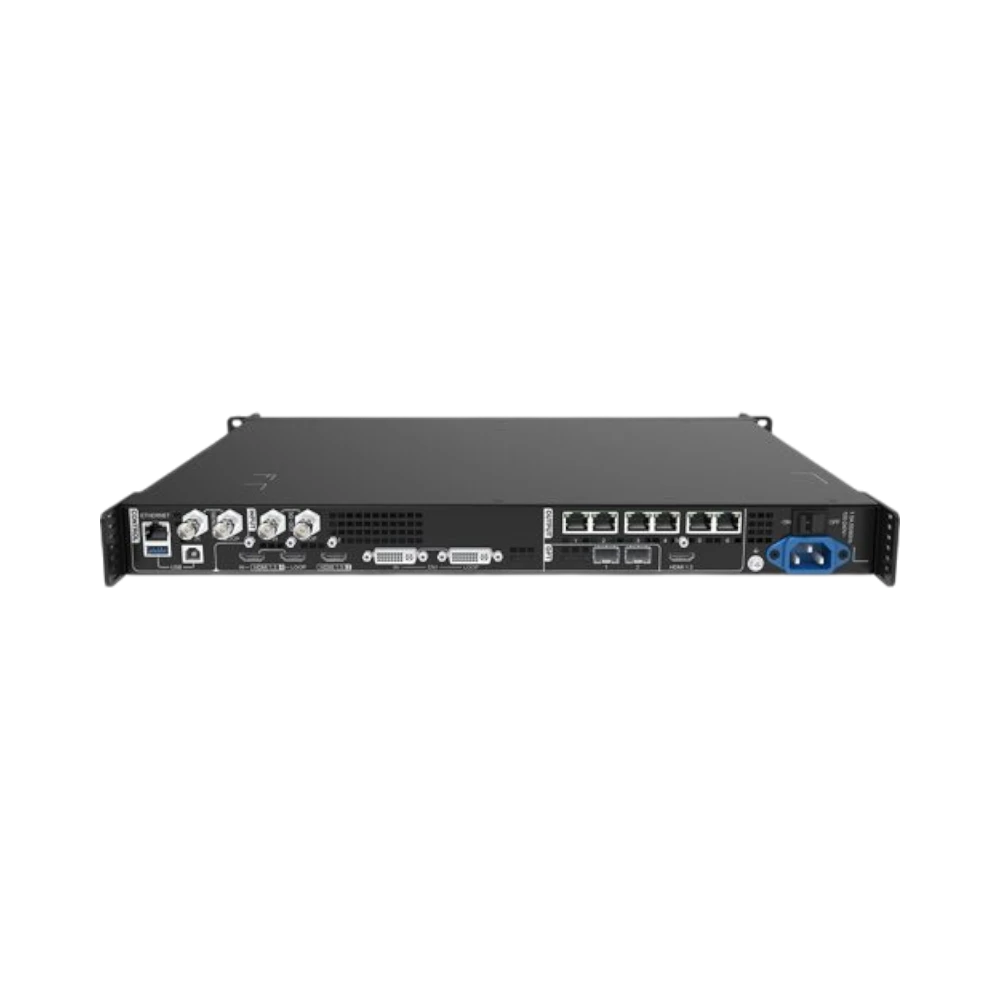

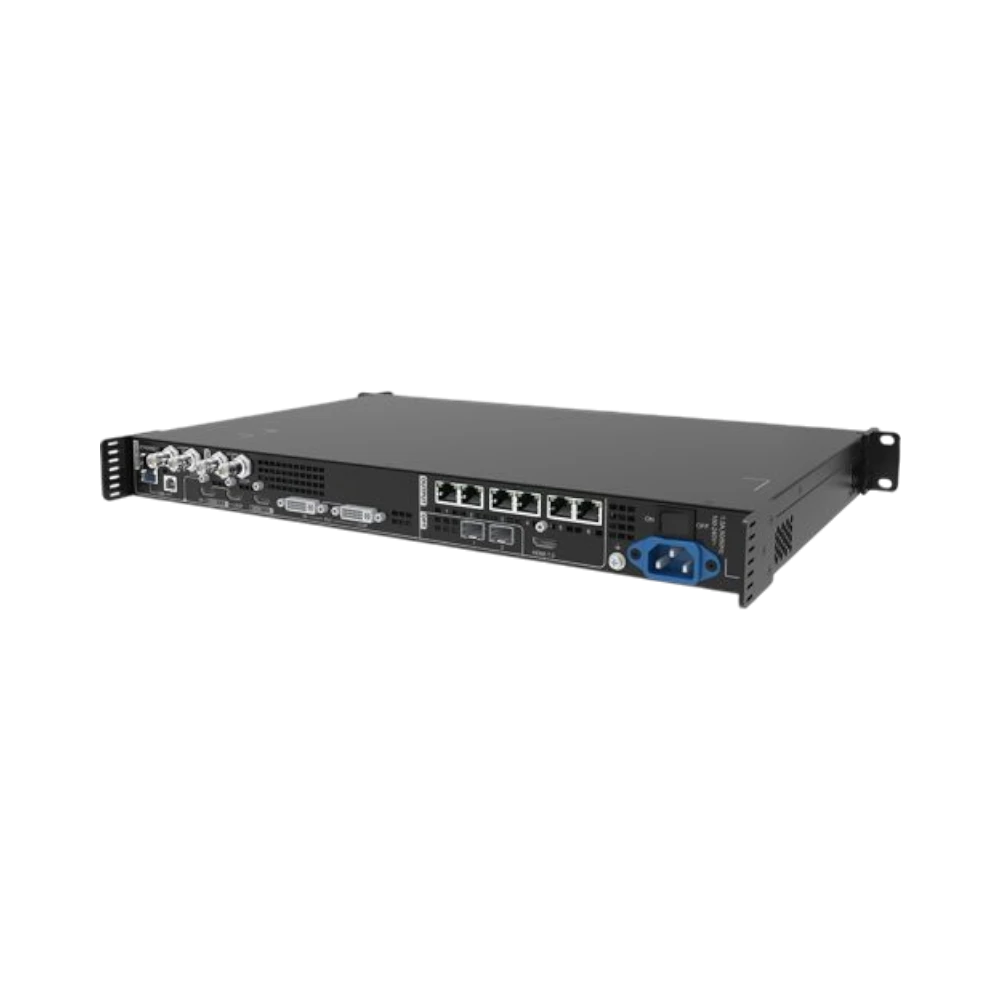

Connectivity and compatibility

The VX600 offers versatile connectivity options to integrate smoothly with a variety of video sources and display setups. Its HDMI, DVI, and 3G-SDI inputs cover most common professional video signals, while loop outputs allow you to monitor the input signal or feed additional devices without signal loss. The inclusion of fiber optic ports extends the range for LED wall placement and provides redundancy to maintain signal integrity during critical events. Genlock input and output ensure that multiple processors can synchronize perfectly, which is crucial for multi-screen or broadcast applications.

Ideal uses and environments

This video processor is well suited for rental companies, touring productions, houses of worship, and corporate venues that require dependable video processing for small to mid-sized LED walls. Its all-in-one design reduces setup time and cabling complexity, making it a strong choice for live events where quick load-in and reliable performance are essential. The low power consumption and compact chassis also make it practical for fixed installations and mobile setups alike.
