Tripp Lite SRW12USDPG

Overview

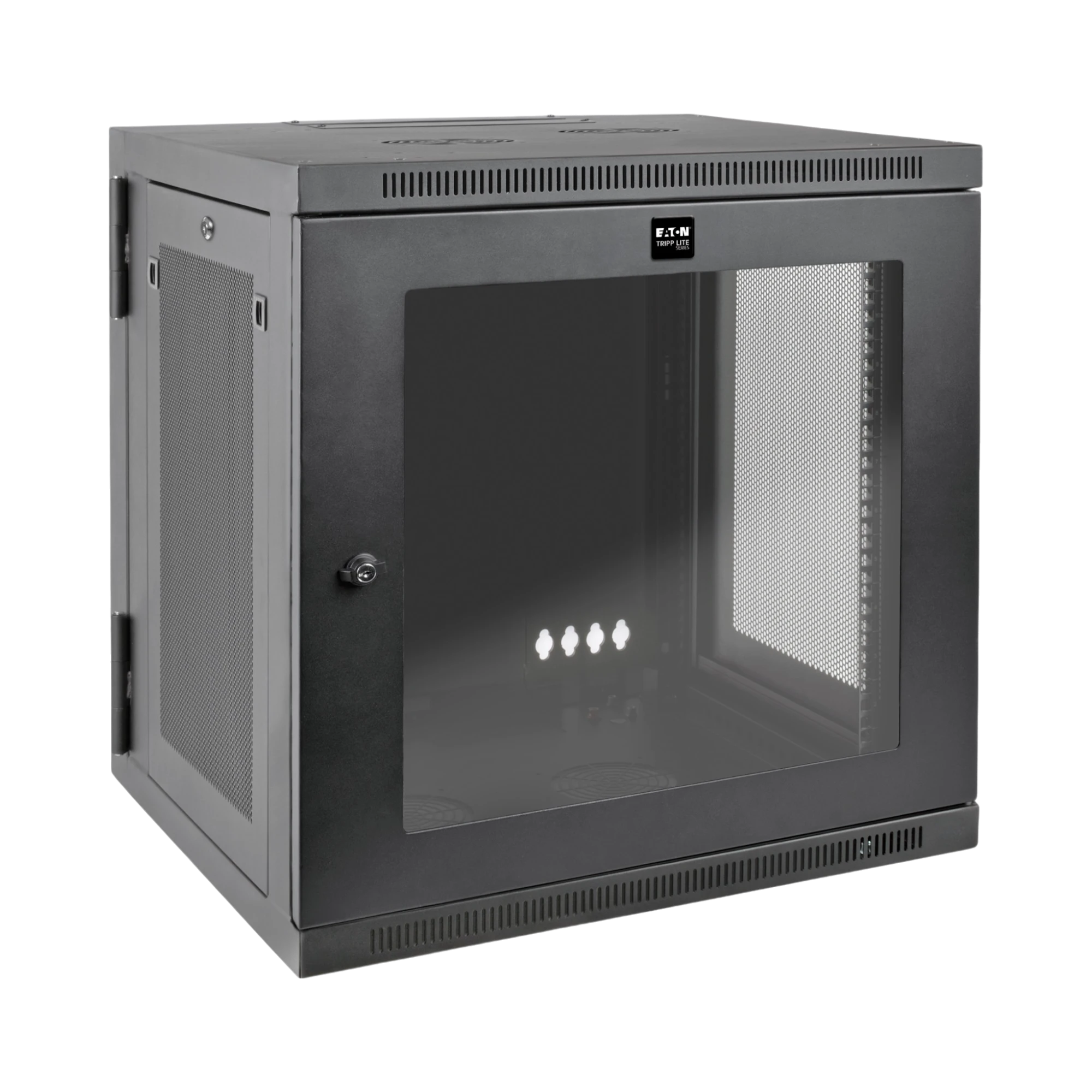

The Tripp Lite SRW12USDPG is a 12U wall-mount rack enclosure designed to secure and organize 19-inch IT equipment while saving valuable floor space. Constructed from sturdy steel, it supports up to 200 pounds and accommodates devices up to 24.5 inches deep, such as network switches, patch panels, short-depth servers, or UPS units. Its clear acrylic front window allows quick visual status checks without unlocking, and the hinged cabinet swings open for easy rear access to cables and ports.

Key features

• Wall-mount design that maximizes space by keeping equipment off the floor and out of the way

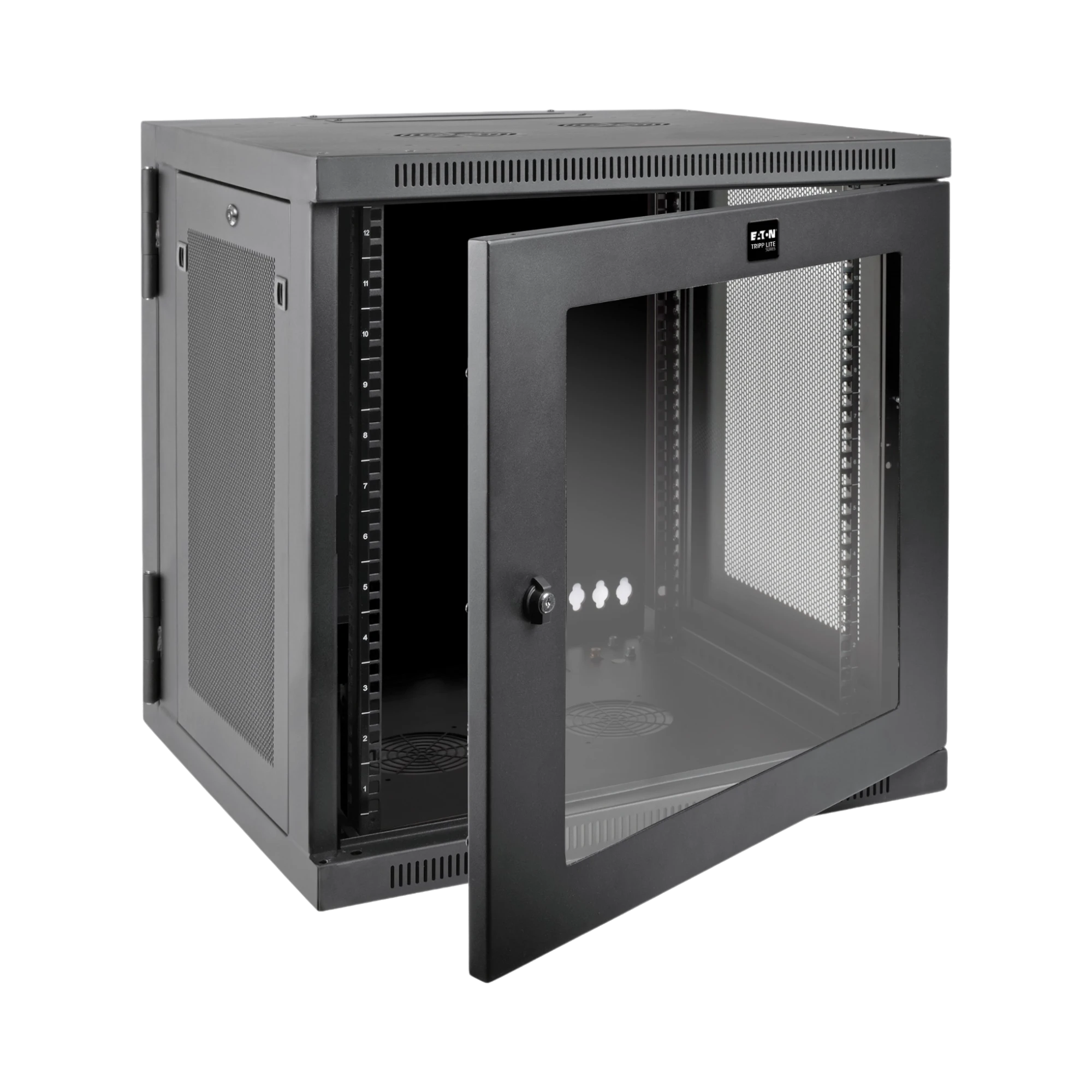

• Hinged cabinet door that swings open to provide unobstructed access to the rear of installed devices
• Clear, shatter-resistant acrylic window enabling visual monitoring of status lights without compromising security
• Lockable front door and side panels to protect sensitive equipment from unauthorized access
• Vented side panels and open bottom promote natural airflow to help maintain optimal operating temperatures

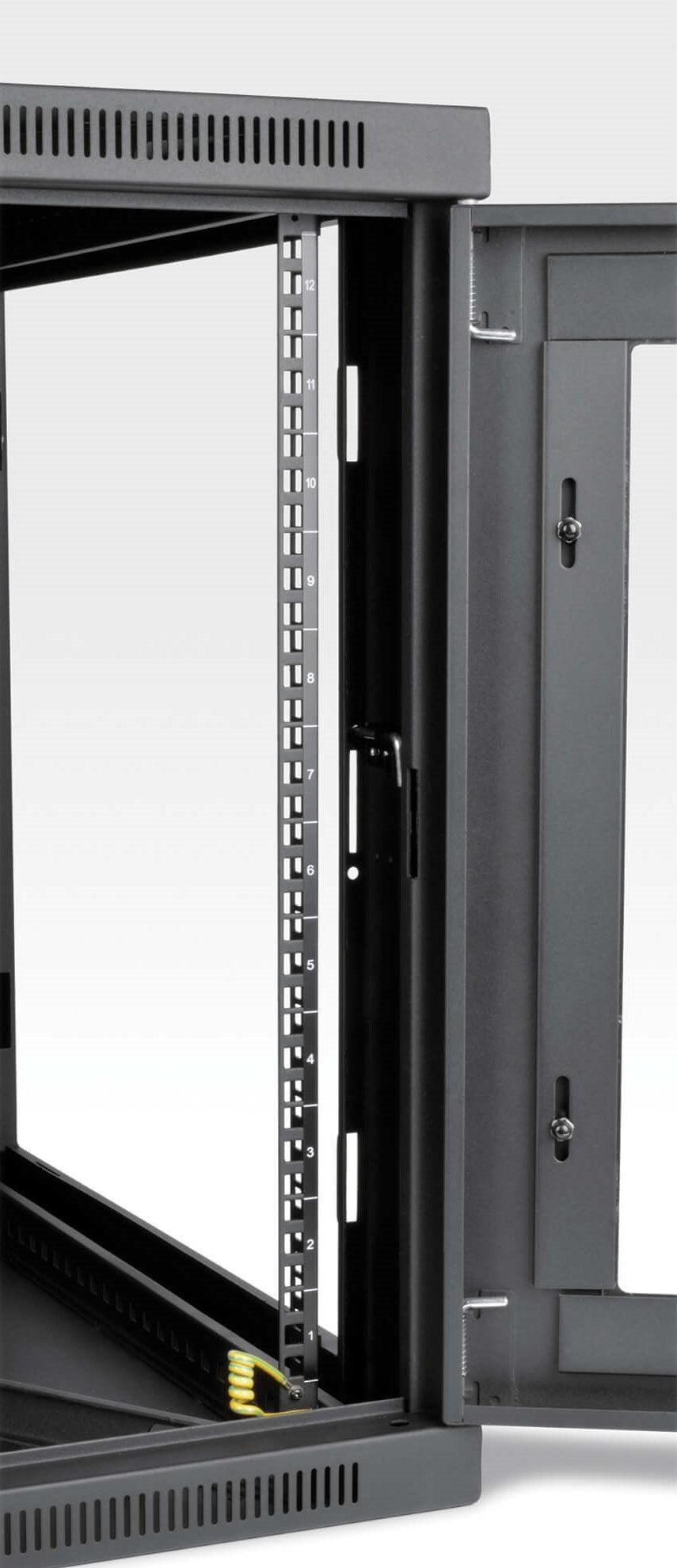

• Preinstalled adjustable vertical rails allow precise mounting depth adjustments without special tools
• Fan mounting points included for adding active cooling if needed in warmer environments

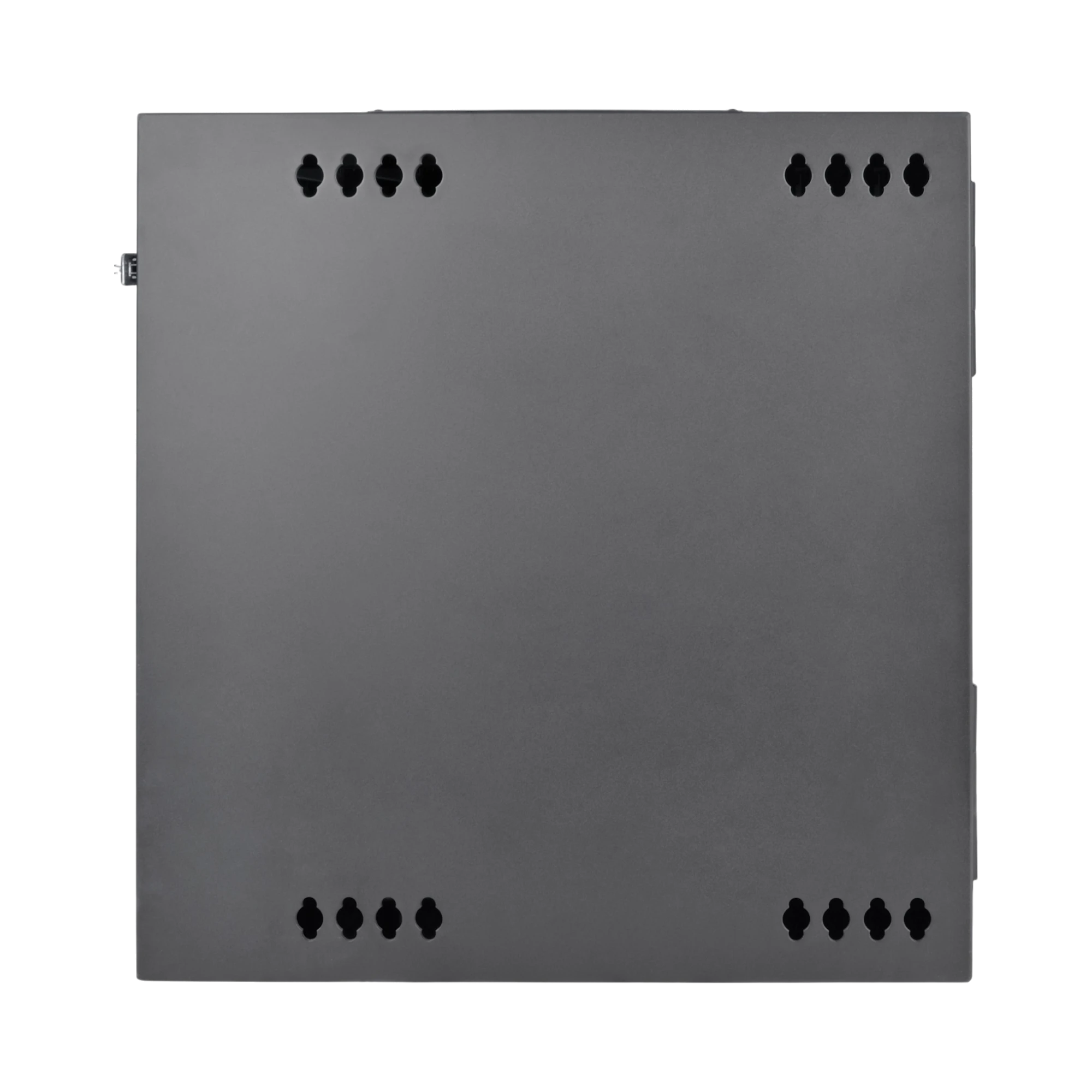

• Fully assembled out of the box with mounting holes aligned for standard 16-inch-on-center studs, enabling quick installation
• Optional caster kit available to convert the enclosure into a mobile rack for labs or temporary setups

Key specs

• Rack units: 12U EIA-standard 19-inch
• Maximum supported weight: 200 pounds
• Maximum device depth: 24.5 inches
• Material: Steel construction with clear acrylic front window
• Mounting type: Wall mount with hinged cabinet
• Ventilation: Vented sides and open bottom with fan mounting points
• Locking: Front door and side panels accept standard keyed locks
• Installation: Ships fully assembled with mounting holes for 16-inch stud spacing

Connectivity and compatibility

This enclosure is compatible with a wide range of 19-inch rack-mountable IT equipment, including network switches, patch panels, short-depth servers, and UPS units up to 24.5 inches deep. Its adjustable rails accommodate various device depths, making it flexible for different hardware configurations. The lockable design and clear window make it suitable for environments where physical security and quick status monitoring are important.

Installation and setup

The SRW12USDPG arrives fully assembled, allowing a two-person team to mount it on the wall in minutes. Its mounting holes align with common 16-inch-on-center studs, simplifying installation in offices, classrooms, retail stock rooms, or branch locations where floor space is limited. The hinged cabinet design provides easy access to the rear of devices without removing the enclosure from the wall, streamlining maintenance and cable management.

Ideal uses and environments

This rack enclosure fits well in small IT closets, branch offices, classrooms, and retail environments where space is at a premium but equipment security and accessibility remain priorities. It is a strong choice for IT teams needing to organize and protect network gear or UPS units without installing a full server rack. The option to add casters also makes it suitable for labs or temporary setups requiring mobility.
