Chief CMS018024W

Overview

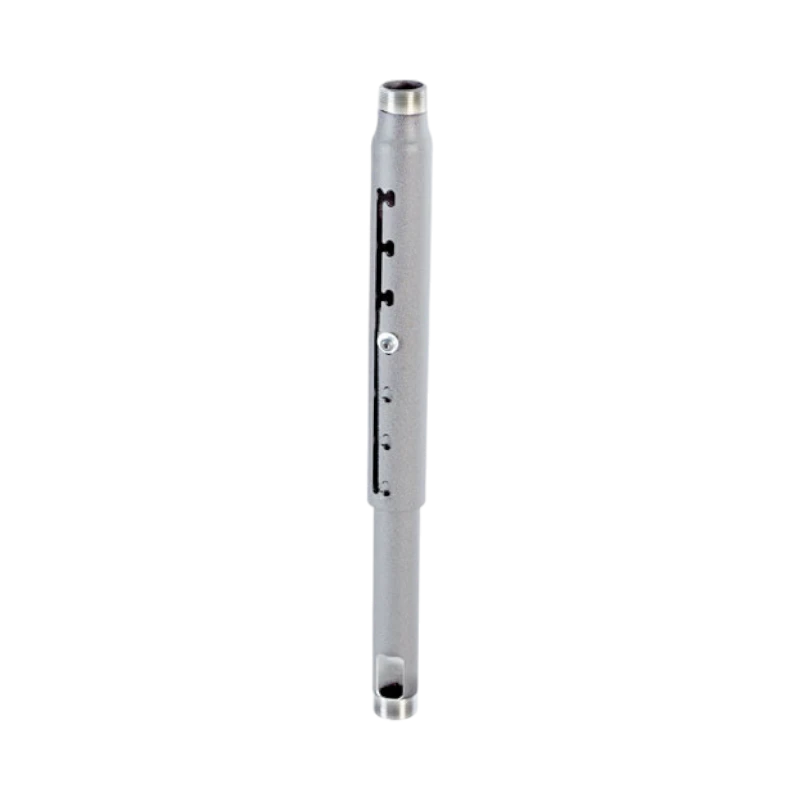

The Chief CMS018024W is an adjustable extension column designed to provide precise control over the drop distance when mounting projectors or flat panel displays from ceilings. It offers a height adjustment range from 18 to 24 inches in 1-inch increments, allowing installers to fine-tune the positioning without disassembling the mount. Its white finish blends seamlessly with most ceiling materials, keeping the installation discreet and professional.

Constructed from aluminum, this extension column balances strength and lightness, supporting loads up to 500 lbs. It features integrated cable management that conceals power and signal cables inside the column, maintaining a clean appearance and reducing the risk of cable damage or snagging.

Key features

• Adjustable height from 18 to 24 inches in 1-inch steps for precise positioning after installation
• Standard 1.5-inch NPT threading on both ends enables direct connection to Chief ceiling plates and mounts without extra adapters
• Strong aluminum construction supports heavy displays or projectors up to 500 lbs, suitable for large AV setups
• Integrated internal cable management keeps wiring hidden and protected throughout the column’s length
• Notched inner sleeve design allows height adjustments without disassembling the mount, saving installation time
• White finish that blends with typical ceiling surfaces for a subtle, unobtrusive look

Key specs

• Height adjustment range: 18 to 24 inches in 1-inch increments
• Threading: 1.5-inch NPT on both ends
• Material: Aluminum
• Weight capacity: Up to 500 lbs (227 kg)
• Finish: White
• Cable management: Internal path with side port at top and exit near display

Installation and setup

The extension column’s design simplifies installation by allowing multiple units to be roughed in quickly. Installers can set the approximate height during initial mounting and then make precise adjustments later without removing the display or mount. The notched inner sleeve ensures secure positioning at each height increment, while the standard threading ensures compatibility with Chief ceiling plates and mounts, eliminating the need for additional adapters.

Ideal uses and environments

This extension column is well suited for professional AV installations in conference centers, classrooms, houses of worship, retail spaces, and home theaters. Its high weight capacity and adjustable height make it a strong choice for mounting large projectors, multi-panel video walls, or heavy interactive displays where precise positioning and clean cable management are essential.
