Black Box KVS4-1004HV

Overview

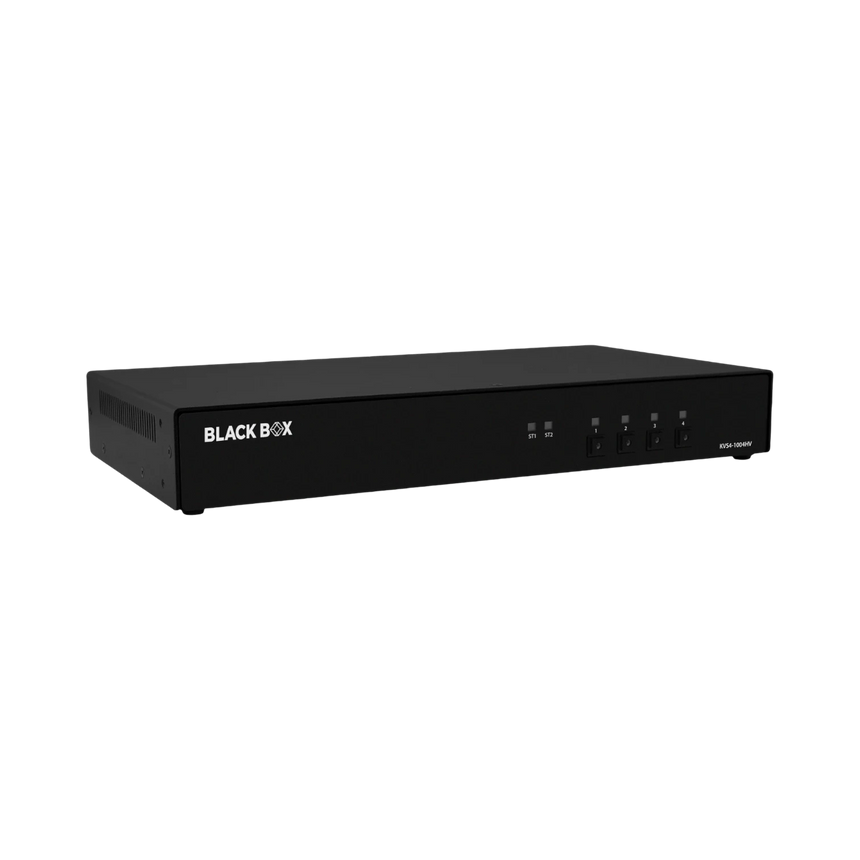

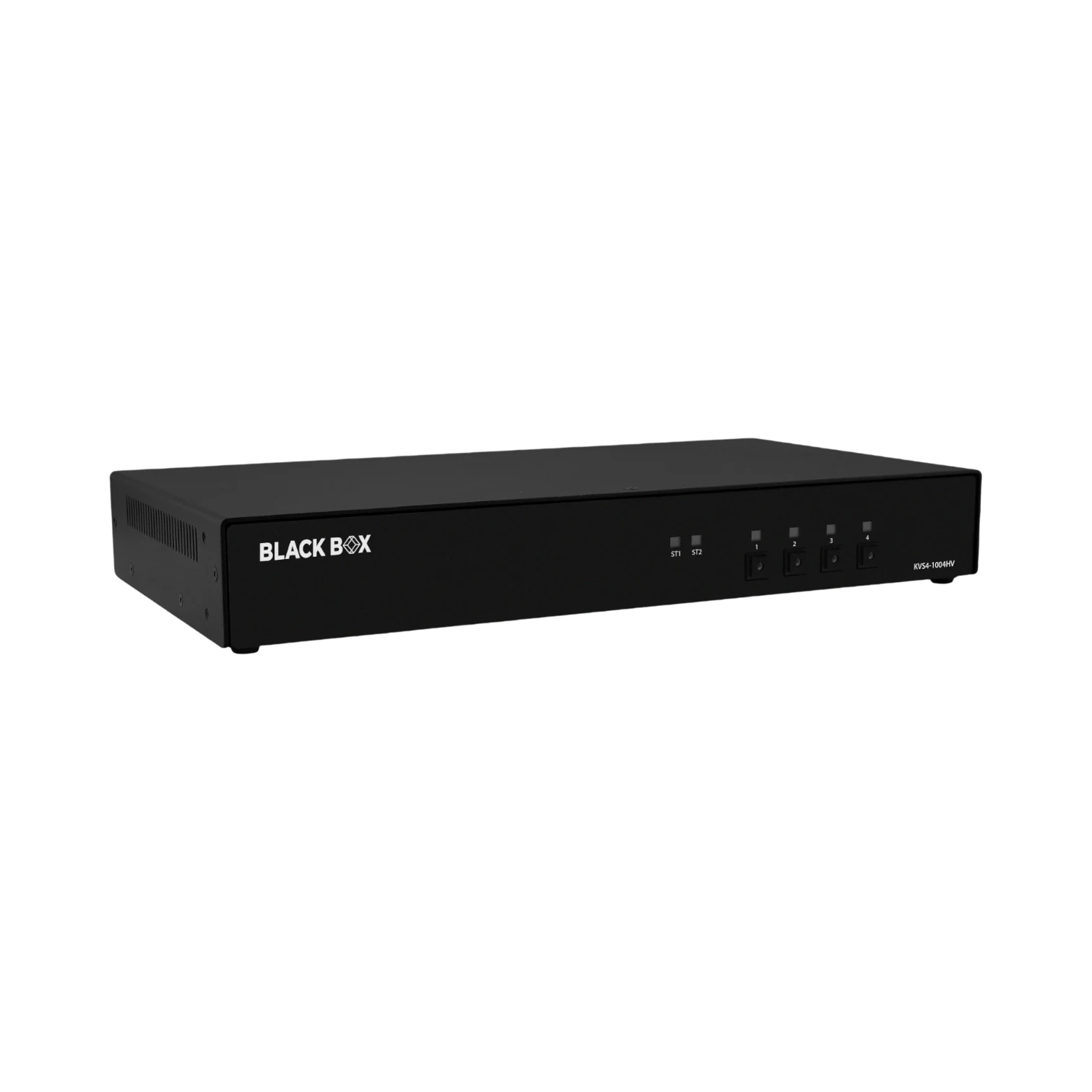

The Black Box KVS4-1004HV is a secure KVM switch designed to control up to four computers from a single keyboard, mouse, and display setup while maintaining complete data separation. It supports both HDMI and DisplayPort connections with FlexPort technology, enabling single or dual monitor setups at 4K resolution and 60 Hz refresh rate. This switch is ideal for environments where strict data segregation is essential, such as government, corporate security, and medical facilities.

Key features

• NIAP Protection Profile 4.0 certification ensures compliance with U.S. government standards for secure peripheral sharing.
• FlexPort technology allows flexible connections via HDMI or DisplayPort for each computer, supporting up to dual 4K monitors at 60 Hz.
• Isolated data channels and non-reprogrammable firmware prevent any data crossover between connected systems.
• Tamperproof seals and an internal anti-tamper battery provide physical security by detecting unauthorized access attempts.

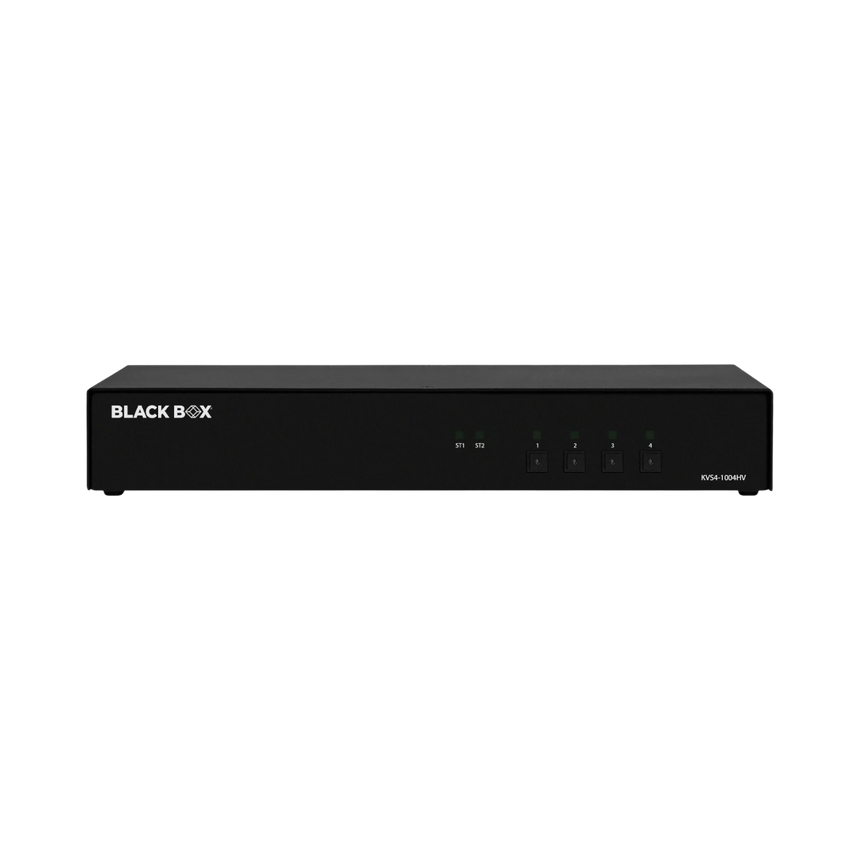

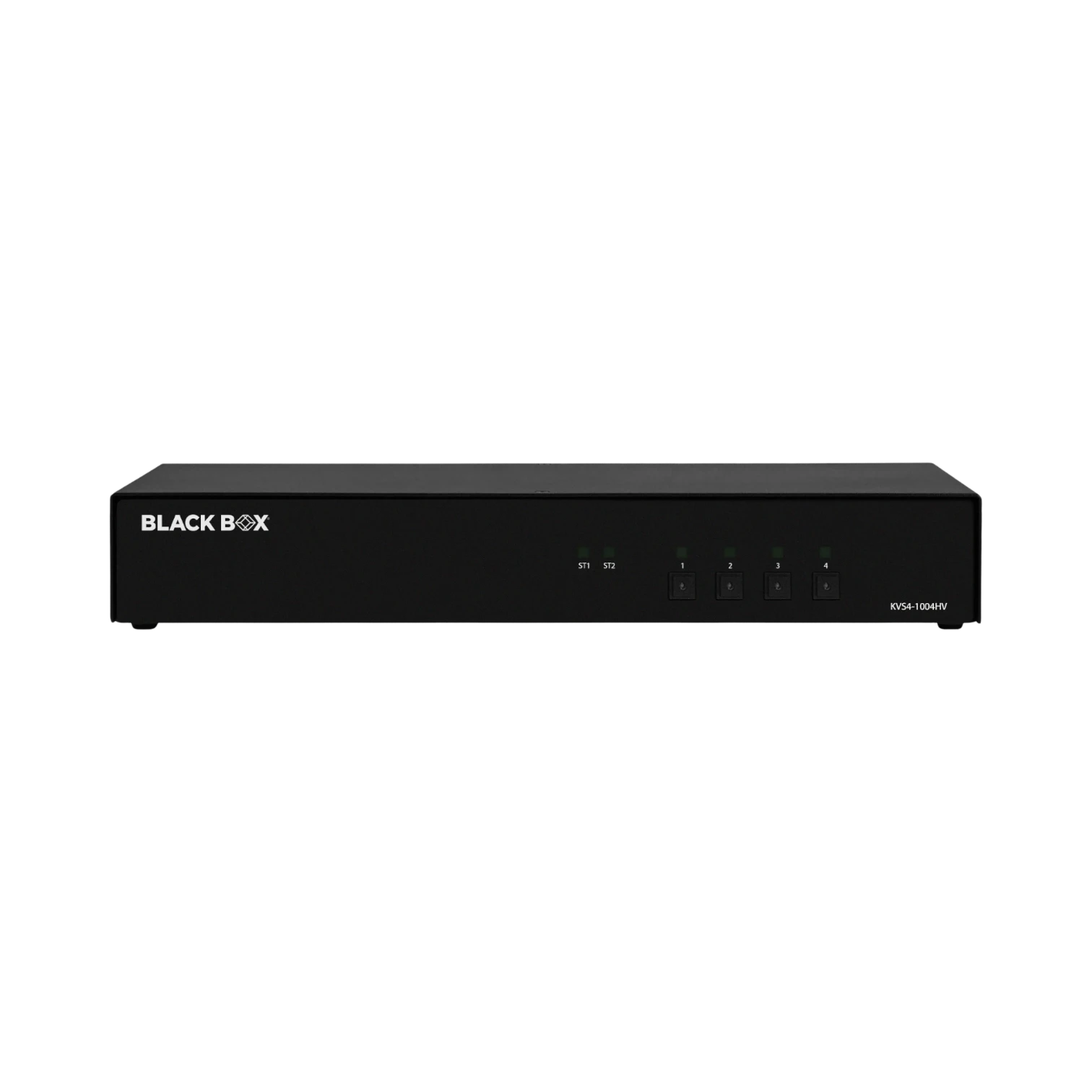

• Front-panel push buttons offer tactile, reliable switching with LED indicators to confirm the active channel.
• USB 1.1 ports dedicated to keyboard and mouse maintain strict security, while a separate USB 2.0 port supports approved peripherals like smart card readers.
• Rugged enclosure suitable for desk or secure rack installation in demanding environments.

Key specs

• Number of ports: 4 computers
• Video inputs: HDMI and DisplayPort (FlexPort technology)
• Maximum resolution: 4K at 60 Hz for single or dual monitors
• USB ports: USB 1.1 for keyboard and mouse, USB 2.0 for peripheral
• Security certification: NIAP Protection Profile 4.0
• Firmware: Non-reprogrammable ROM
• Physical security: Tamperproof seals and internal anti-tamper battery

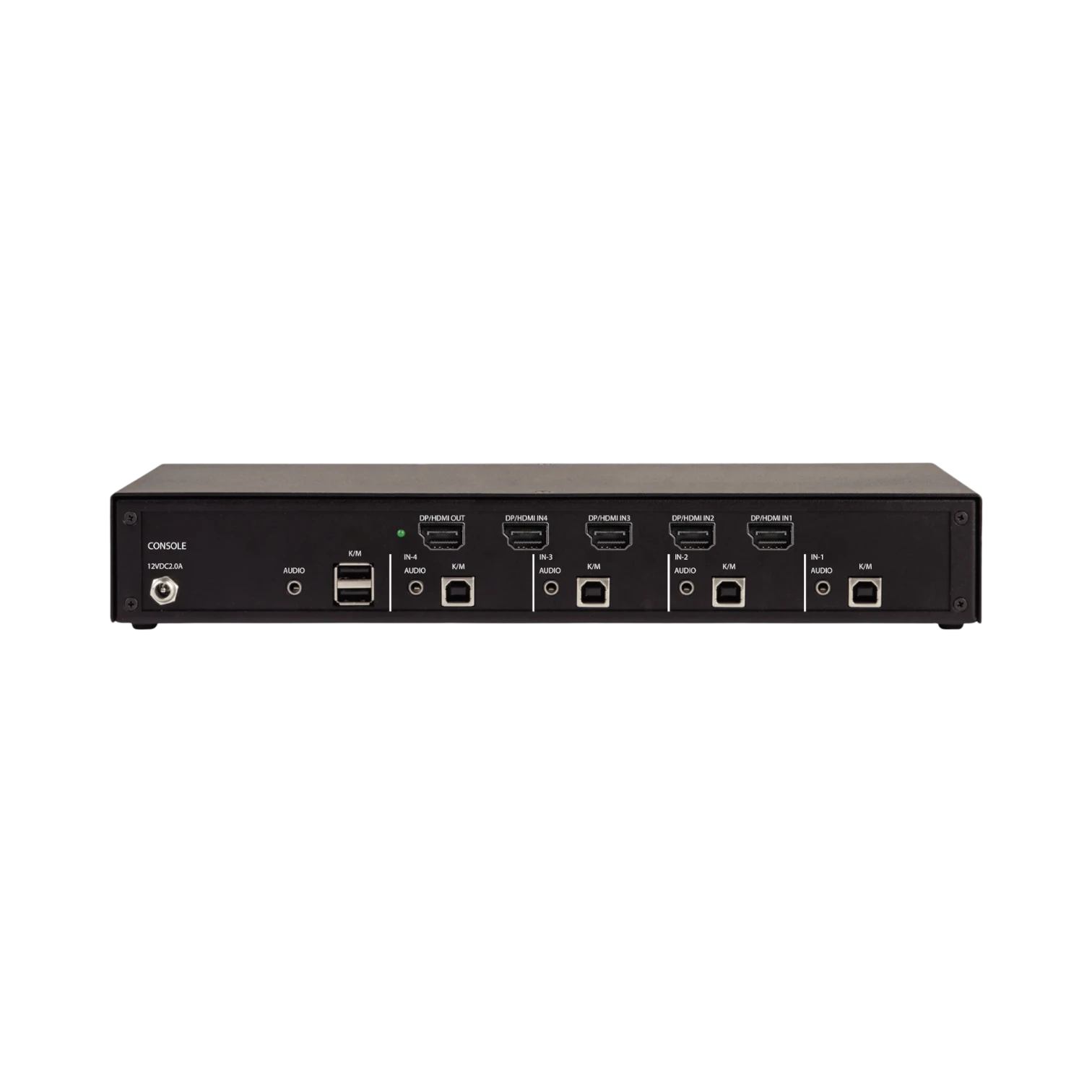

Connectivity and compatibility

This KVM switch supports a wide range of computers through HDMI or DisplayPort connections, making it compatible with most modern desktops and workstations. The USB 1.1 ports ensure secure keyboard and mouse operation, while the USB 2.0 port allows connection of approved peripherals such as smart card readers, enhancing secure access control.

• Supports both HDMI and DisplayPort video inputs for flexible setup options
• USB 1.1 ports dedicated to secure keyboard and mouse connections
• USB 2.0 port for approved peripherals to maintain security compliance

Ideal uses and environments

This switch is well suited to high-security environments where data separation is critical. It fits naturally in defense command centers, corporate security operations, financial trading desks, and medical diagnostic stations. Users who need to switch quickly and securely between networks with different security classifications will find this device particularly valuable.

The rugged design and tamper detection features make it a reliable choice for installations requiring both physical and data security, whether on a desktop or mounted in a secure rack.
