Samsung CY-LJRNPF

Overview

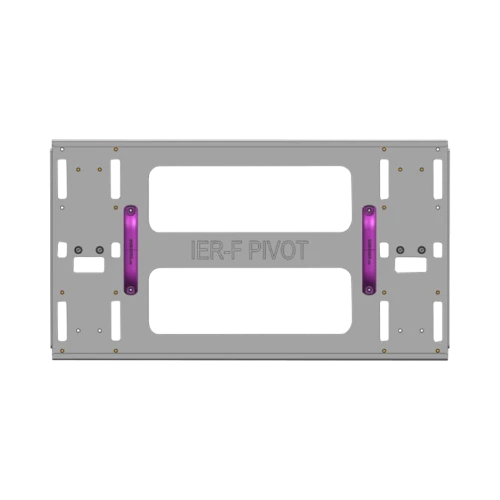

The Samsung CY-LJRNPF is a mounting jig designed to align and secure pivot extension LED panels during the installation of Samsung video walls. It ensures that each cabinet is positioned accurately, resulting in nearly invisible seams and perfectly aligned pixel rows. This tool is essential for assembling large-scale displays with precision and stability, supporting a range of Samsung IE and IF series models.

Key features

• Precisely aligns pivot extension LED panels to create seamless video walls with accurate pixel row matching
• Compatible with multiple Samsung IE and IF series models, including IE015R, IE020R, IE025R, IE040R, IF015R, IF020R, IF025R, IF040R, and their F variants
• Includes a D-tool and four stud-pems that guide panels into place and lock them securely to the frame
• Maintains cabinet level and stability, reducing the need for adjustments after installation
• Streamlines installation workflow, making it faster and more reliable for professional AV integrators and staging crews
• One jig per package simplifies job-site planning and inventory management

Key specs

• Compatible models: Samsung IE015R, IE020R, IE025R, IE040R, IF015R, IF020R, IF025R, IF040R, and F variants
• Included accessories: D-tool and four stud-pems
• Function: Aligns and secures pivot extension LED video wall panels
• Brand: Samsung

Installation and setup

The jig simplifies the installation process by holding each LED cabinet firmly in the correct position, which minimizes alignment errors and speeds up assembly. The included D-tool and stud-pems make it easy to guide and lock panels securely, ensuring the video wall remains level and stable over time. This reduces the need for post-installation adjustments and helps maintain the integrity of the display in demanding environments.

Ideal uses and environments

This mounting jig is well suited for professional AV integrators, rental staging teams, and facility maintenance crews who install Samsung LED video walls. It performs reliably in a variety of settings such as corporate lobbies, broadcast studios, stadium concourses, retail environments, and control rooms. Wherever a flawless, large-format Samsung LED display is required, this jig supports a precise and stable installation.
