APC SBP10KRMT4U

Overview

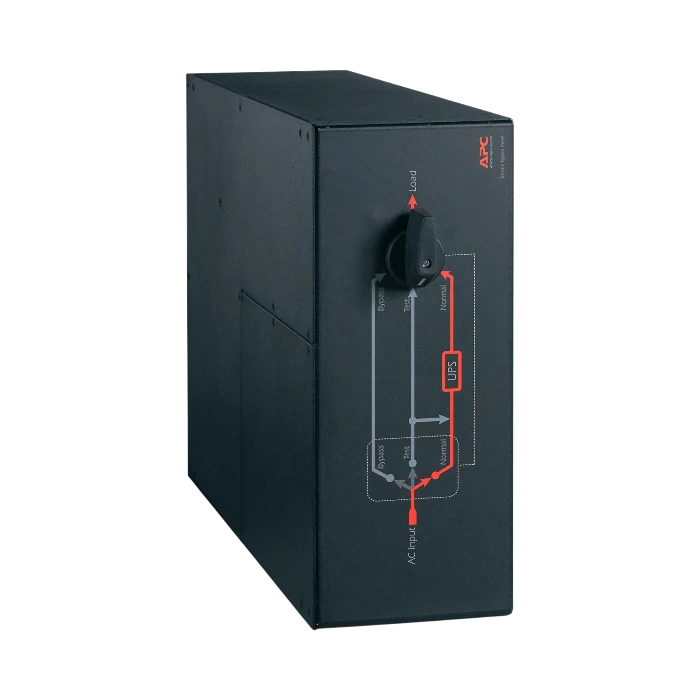

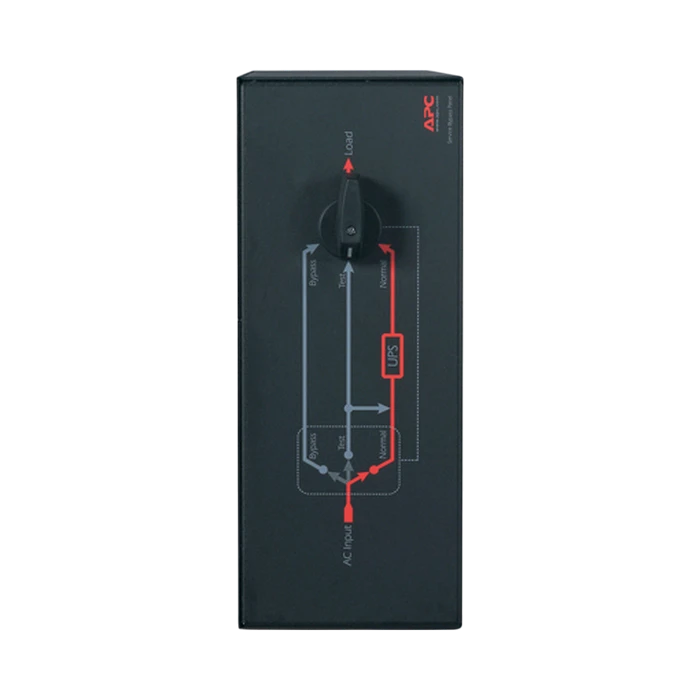

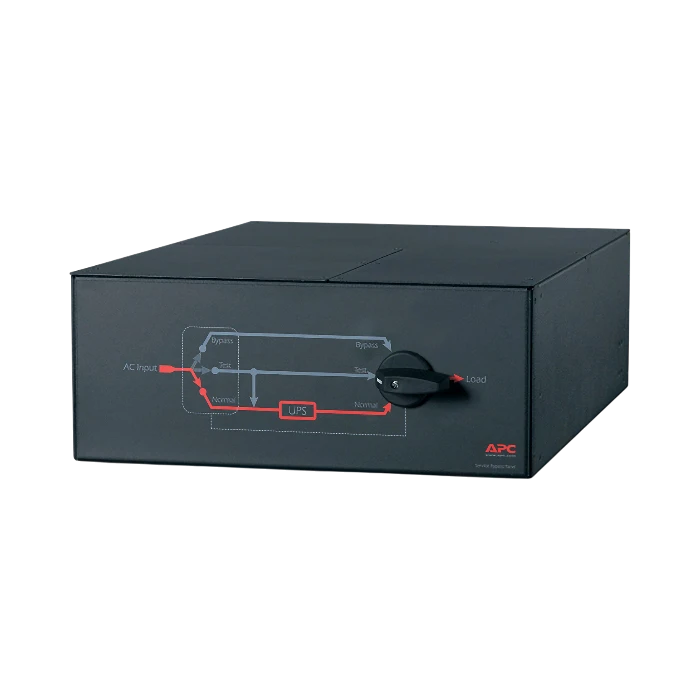

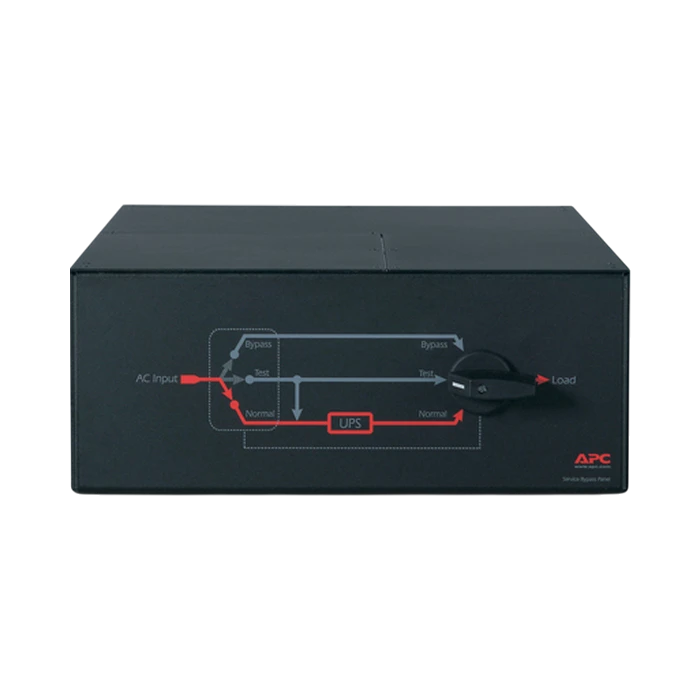

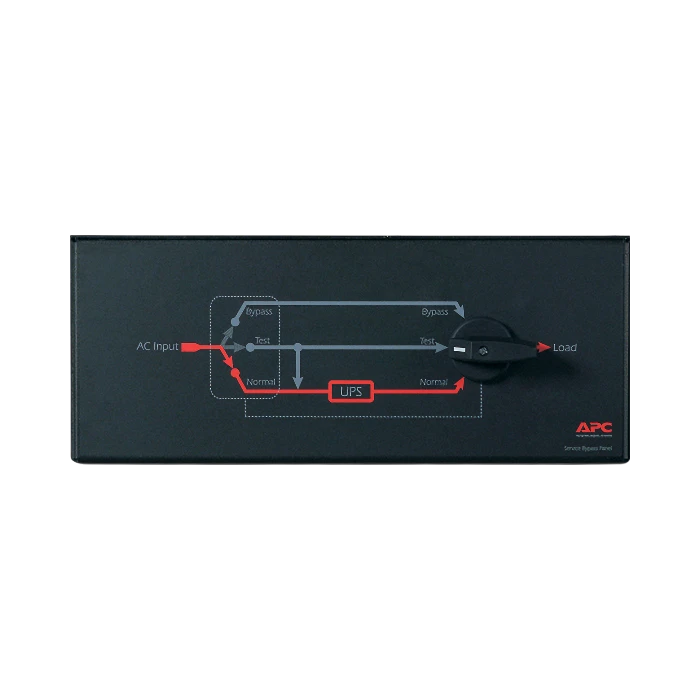

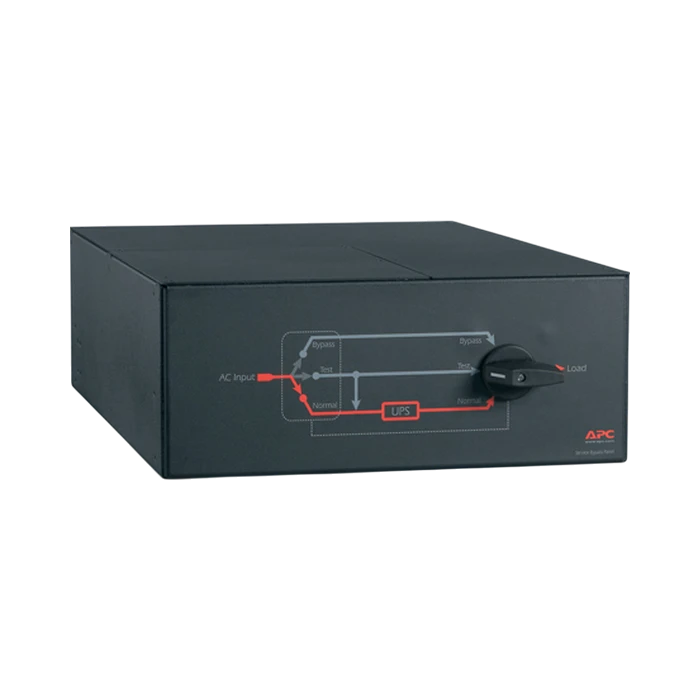

The APC SBP10KRMT4U is a service bypass panel designed to maintain continuous power to your servers, network switches, or industrial controllers during UPS maintenance. It supports 200, 208, or 240 volt input at up to 100 amps, delivering as much as 20,000 VA of capacity. This panel allows you to transfer the load to utility power quickly, avoiding downtime and keeping your critical equipment running smoothly.

Key features

• Supports multiple voltage inputs (200, 208, or 240 volts) to fit various power systems.
• Provides six outlets with a mix of three NEMA L6-20R and three NEMA L6-30R connectors for flexible power distribution to devices with different power demands.
• Hardwired three-wire input simplifies connection to your existing electrical infrastructure.
• Compact 4U chassis fits into standard racks, optimizing space in data centers or network closets.
• Front access to circuit breakers and outlets allows easy cable management and quick resets without disturbing other equipment.
• Integrated circuit breakers protect connected devices from overloads and faults.
• Operates at approximately 99 percent efficiency, minimizing energy loss and heat generation.
• Compatible with both 50 Hz and 60 Hz utility frequencies, ensuring broad applicability.
• Rated for ambient temperatures from -4 °F to 122 °F, suitable for a range of environments including production floors and server rooms.
• Includes installation guide and mounting brackets for straightforward setup within a single maintenance window.

Key specs

• Input voltage: 200/208/240 V
• Maximum current: 100 A
• Power capacity: up to 20,000 VA
• Output connectors: three NEMA L6-20R and three NEMA L6-30R outlets
• Input type: hardwired, three-wire
• Rack space: 4U standard rack mount
• Operating frequency: 50 Hz / 60 Hz
• Operating temperature range: -4 °F to 122 °F
• Efficiency: approximately 99%

Installation and setup

The panel is designed for easy installation in standard 19-inch racks, occupying 4U of space. Front-facing breakers and outlets simplify wiring and maintenance tasks, allowing technicians to manage connections without accessing the rear of the rack. The included mounting brackets and detailed installation guide help ensure a smooth setup process, making it possible to have the panel operational within a single maintenance window.

Ideal uses and environments

This service bypass panel is well suited for data centers, network closets, and industrial environments where uninterrupted power is critical. It supports maintenance activities on UPS systems without requiring shutdowns, making it a strong choice for IT professionals and facility managers who need to maintain uptime for servers and network equipment. Its wide temperature rating and compatibility with common voltages and frequencies make it adaptable to various operational settings.
