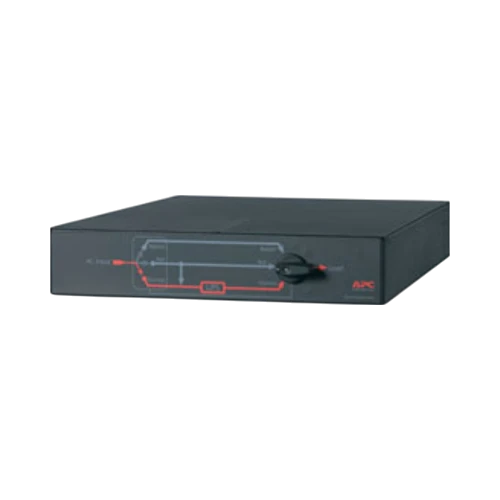

APC SBP3000

Overview

The APC SBP3000 is a service bypass panel designed to maintain continuous power to critical equipment while servicing or replacing an APC UPS. It supports input and output voltages of 100, 120, or 230 volts and handles up to 30 amps through a hardwired three-conductor connection. This panel ensures uninterrupted power transfer between utility power and the UPS, eliminating planned downtime for servers, network switches, and other sensitive devices.

Its compact 2U rack size and included mounting brackets allow flexible installation on racks or walls, making it suitable for data centers, branch offices, and industrial control rooms. The built-in circuit breaker provides over-current protection, and the panel operates at 99 percent efficiency to minimize energy loss during normal use.

Key features

• Seamless load transfer between utility power and APC UPS systems to avoid downtime during maintenance
• Hardwired three-conductor connection (hot, neutral, earth) compatible with common electrical standards
• Compact 2U enclosure with rack and wall mounting options for flexible installation
• Integrated circuit breaker enhances safety by protecting against over-current conditions
• High operational efficiency at 99 percent reduces energy waste and heat generation
• Wide operating temperature range from -4 to 122°F (-20 to 50°C) ensures reliable performance in various environments
• Includes installation guide, rack-mounting hardware, and user manual for straightforward setup
• Backed by a two-year, parts-only warranty for long-term reliability and support

Key specs

• Input/output voltage: 100, 120, or 230 volts
• Current capacity: 30 amps
• Connection type: Hardwired three-conductor (hot, neutral, earth)
• Rack space: 2U
• Operating temperature: -4 to 122°F (-20 to 50°C)
• Efficiency: 99 percent
• Warranty: Two years, parts-only

Connectivity and compatibility

The panel’s hardwired connection uses a straightforward three-conductor setup that fits standard electrical wiring practices in commercial and industrial settings. This makes it compatible with a wide range of UPS systems and power configurations commonly found in server rooms and control environments. Its design supports smooth integration into existing power infrastructure without requiring specialized connectors or adapters.

Installation and setup

Installation is simplified by the included rack-mounting brackets and wall-mounting hardware, allowing technicians to position the panel where it best suits cable management and service access. The comprehensive installation guide and user manual provide clear instructions, helping reduce setup time and ensuring proper wiring and safety compliance. The built-in circuit breaker adds an extra layer of protection during installation and operation.

Ideal uses and environments

This service bypass panel is well suited to environments where continuous power is critical, such as data centers, branch offices, and industrial control rooms. It supports maintenance activities without interrupting power to sensitive equipment, making it a strong choice for IT professionals and facility managers who need to minimize downtime. Its robust temperature tolerance and efficient design also make it reliable in edge locations and demanding industrial settings.
