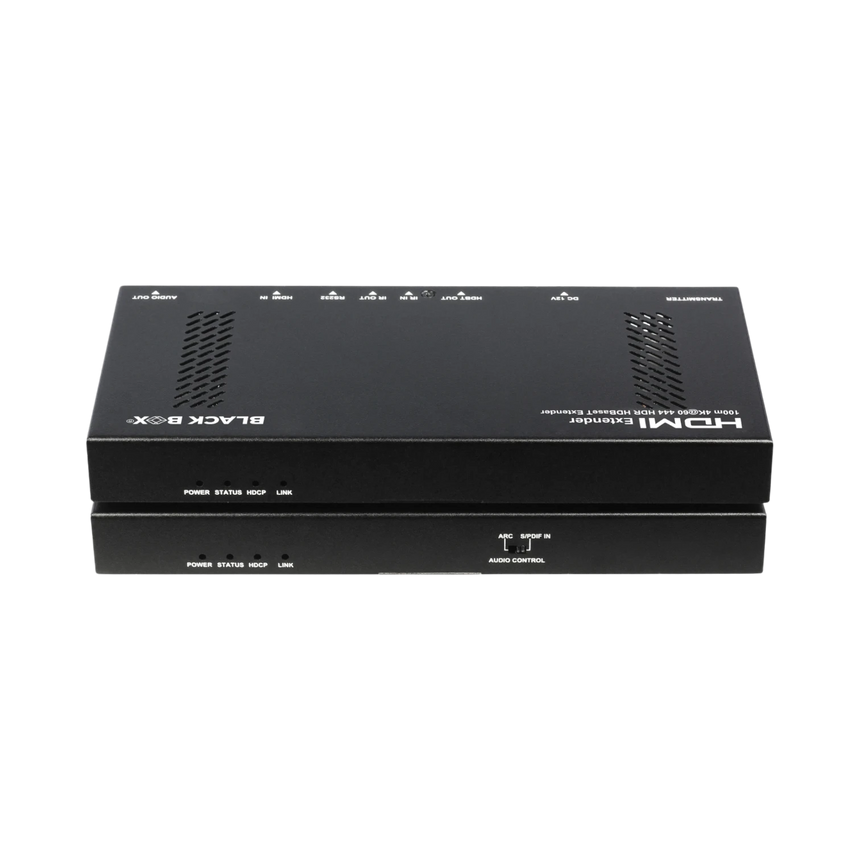

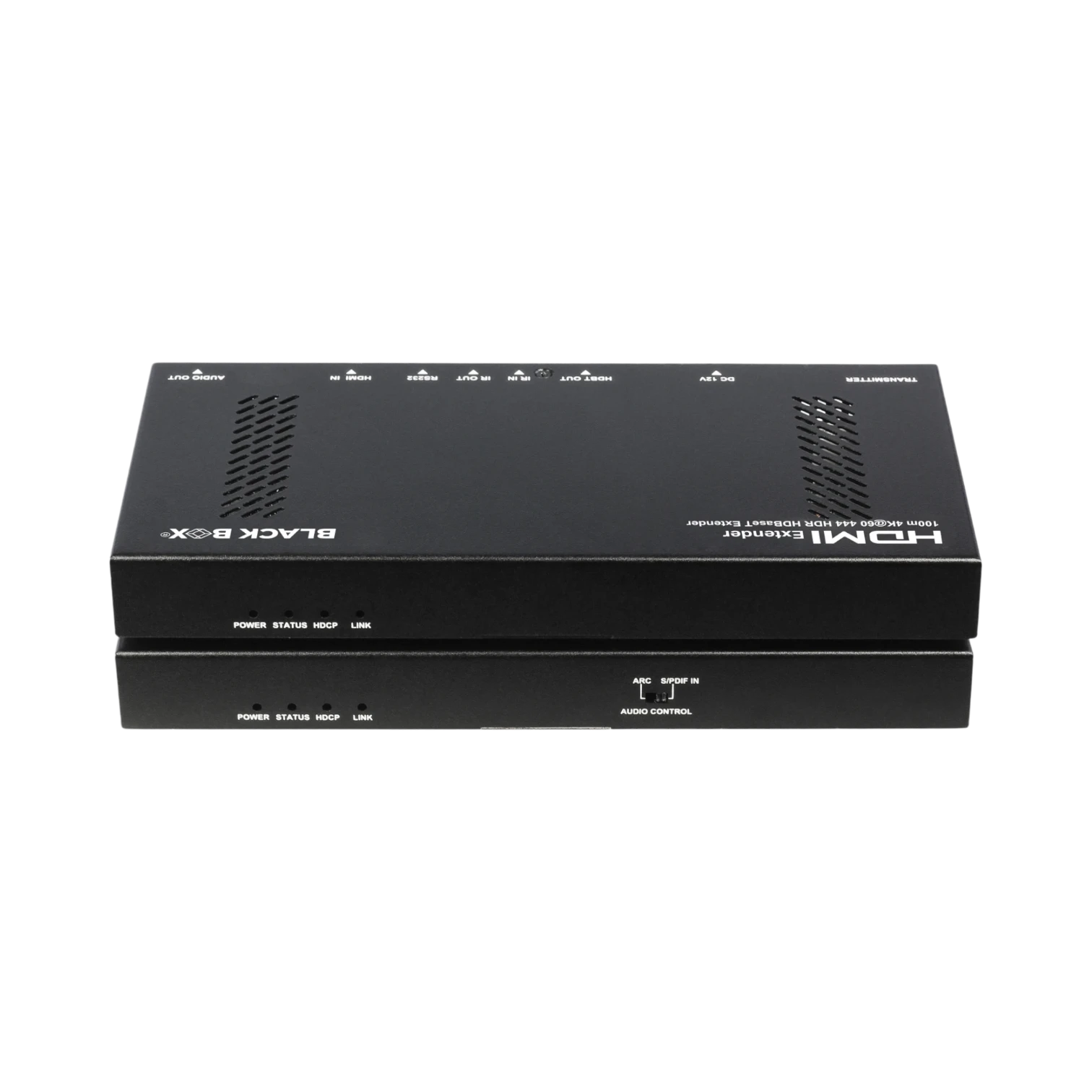

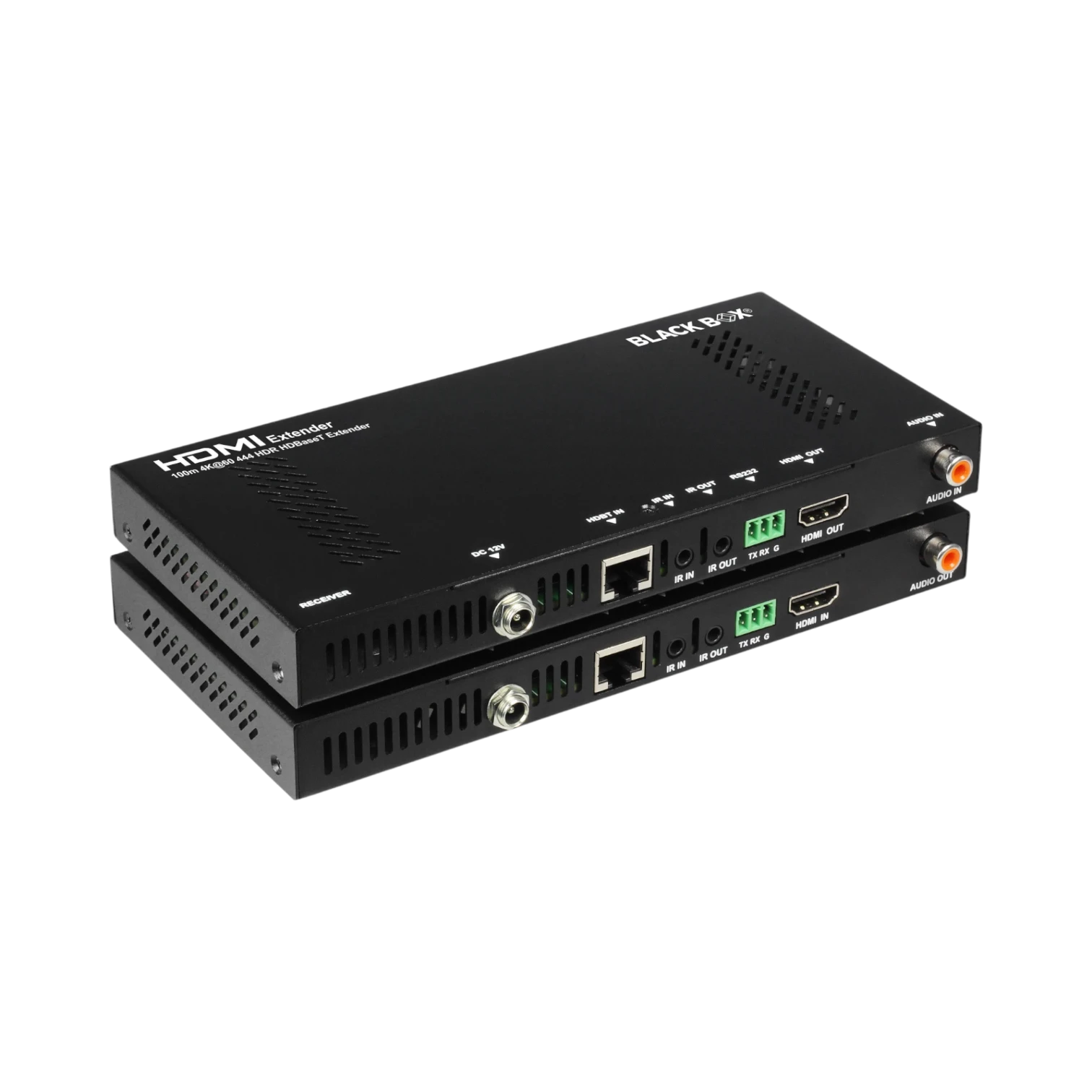

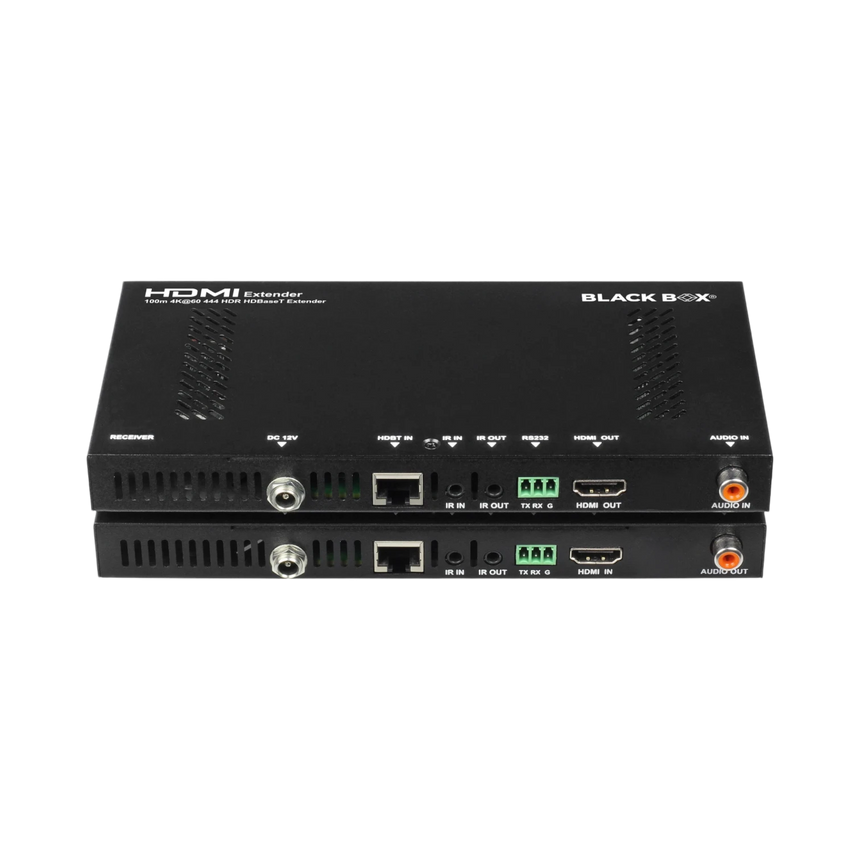

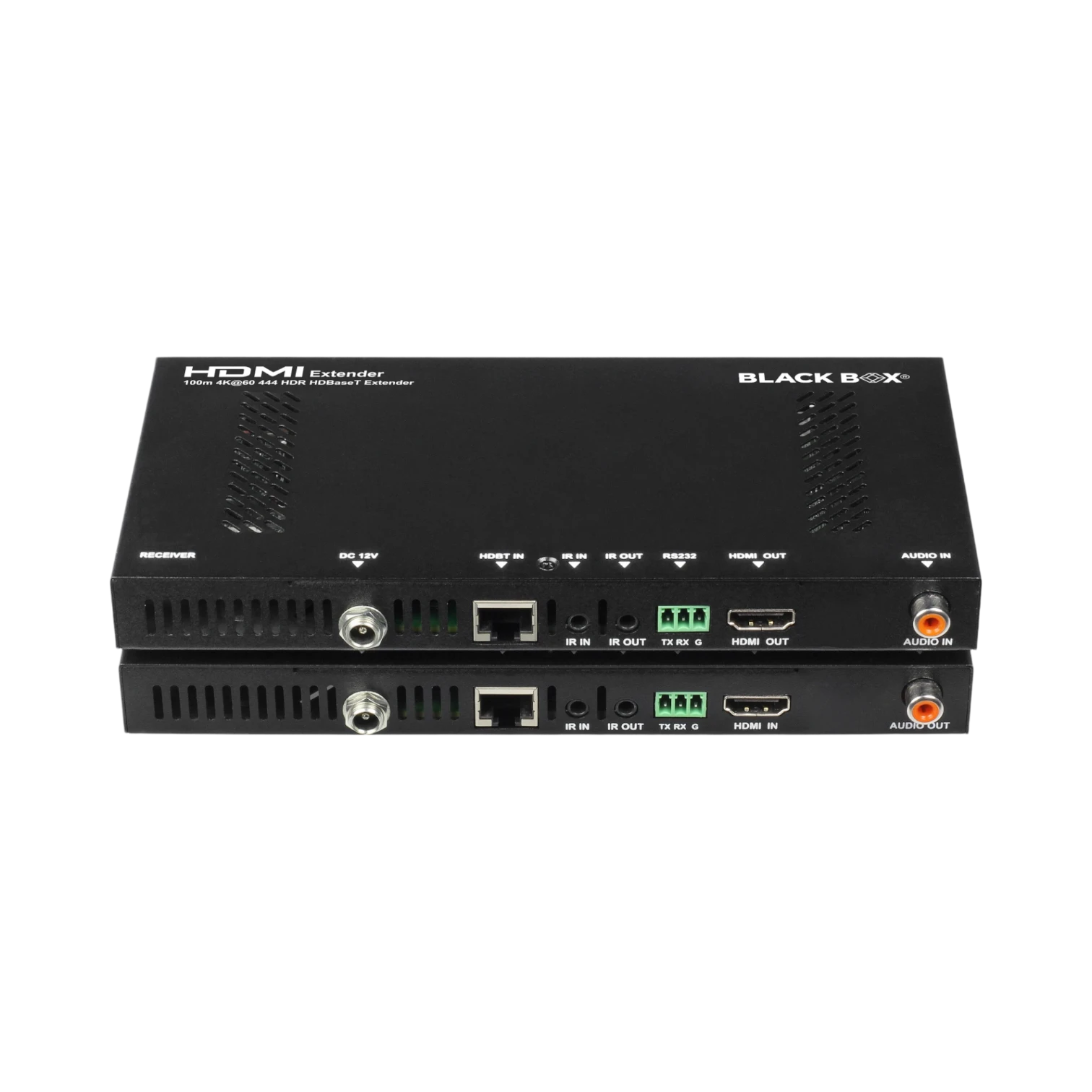

Black Box AVX-HDMI2-HDB-R2

Overview

The Black Box AVX-HDMI2-HDB-R2 is an HDMI 2.0 extender designed to transmit uncompressed 4K video at 60 Hz with full 4:4:4 color sampling, along with multichannel audio, power, and IR control over a single CATx cable. It supports distances up to 328 feet without compression or latency, ensuring the image quality remains identical to the source. This makes it an excellent solution for extending high-definition signals in professional AV setups, home theaters, and digital signage installations.

Key features

• Supports 4K resolution at 60 Hz with 4:4:4 color sampling to maintain sharp and accurate images
• Extends video, audio, power, and control signals up to 328 feet using just one CATx cable, simplifying installation
• HDCP 2.2 compliance and HDR capability ensure compatibility with protected content and enhanced contrast
• Bi-directional IR pass-through allows remote control of source or display devices from either end
• RS-232 communication provides integrators with a straightforward option for system automation
• One-way Power over Cable (PoC) technology powers the remote unit from the local side, reducing the need for extra power adapters
• Locking HDMI connector prevents accidental disconnections, improving reliability in busy environments
• Low-profile enclosure fits discreetly behind displays, inside lecterns, or within equipment racks

Key specs

• Maximum extension distance: 328 feet (100 meters) over CATx cable
• Video resolution: 4K UHD at 60 Hz with 4:4:4 color sampling
• HDCP version: 2.2 compliant
• HDR support: Yes
• Control interfaces: Bi-directional IR pass-through, RS-232
• Power delivery: One-way Power over Cable (PoC)
• Connector type: Locking HDMI
• Form factor: Low-profile enclosure

Connectivity and compatibility

This extender integrates seamlessly with a wide range of HDMI sources and displays, including Blu-ray players, streaming devices, set-top boxes, and professional AV equipment. The locking HDMI connector ensures a secure physical connection, while the bi-directional IR and RS-232 control options provide flexible management of connected devices. Its HDCP 2.2 compliance guarantees smooth playback of protected content, making it suitable for modern digital media environments.

Installation and setup

The AVX-HDMI2-HDB-R2 simplifies installation by using a single CATx cable to carry video, audio, control signals, and power. The one-way PoC feature eliminates the need for a power outlet at the remote unit, which is especially useful in locations where power access is limited. Its compact, low-profile design allows it to be tucked away behind displays or inside AV furniture without cluttering the space. The locking HDMI connector adds peace of mind by preventing accidental cable disconnections during presentations or events.

Ideal uses and environments

This extender is well suited to environments that require reliable long-distance HDMI transmission without signal degradation. It works well in auditoriums, conference rooms, classrooms, sports bars, and digital signage networks. Whether placing a projector at the back of a large room, feeding menu boards in a commercial kitchen, or connecting a media player to a TV across the house, it provides the reach and performance needed for professional and residential AV setups.
