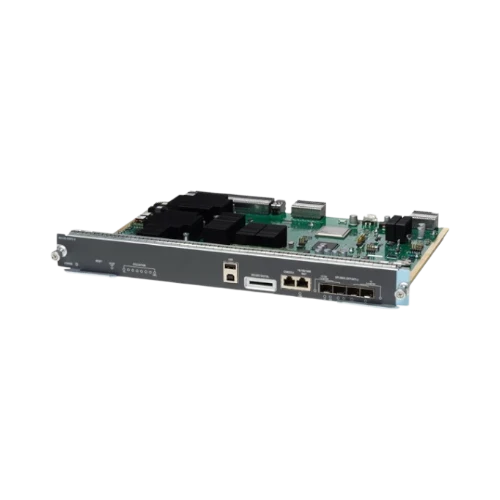

Cisco WS-X45-SUP7L-E=

Overview

The Cisco WS-X45-SUP7L-E= is a supervisor engine designed to upgrade Catalyst 4500E chassis, providing the performance and visibility required by modern enterprise networks. It delivers a total switching capacity of 520 Gbps and allocates 48 Gbps of dedicated bandwidth to each slot, ensuring line cards operate without contention even during traffic surges. This module supports high packet forwarding rates, handling up to 225 million IPv4 packets and 110 million IPv6 packets per second, making it well suited for environments with growing device counts and dual-stack applications.

Equipped with 2 GB of SDRAM and 1 GB of flash memory, it can store large routing tables and feature-rich IOS software. Features like Non-Stop Forwarding and Stateful Switchover maintain network uptime during maintenance or failover events. Cisco EnergyWise integration helps monitor and reduce power consumption, supporting energy-efficient network operations.

Key features

• Provides 520 Gbps total switching capacity to handle high network traffic efficiently
• Allocates 48 Gbps bandwidth per slot to prevent bottlenecks on line cards
• Supports deep traffic analysis with built-in Flexible NetFlow for application and user insights
• Enables hitless failover with Non-Stop Forwarding and Stateful Switchover for continuous data flow
• Stores large routing tables and advanced IOS features with 2 GB SDRAM and 1 GB flash memory
• Supports up to 64,000 QoS and security entries to maintain network performance and protection
• Complies with key IEEE 802 standards including 802.3, 802.1Q, and 802.1X for broad compatibility
• Includes Cisco EnergyWise to help monitor and reduce power consumption across the network

Key specs

• Total switching capacity: 520 Gbps
• Bandwidth per slot: 48 Gbps
• IPv4 forwarding rate: up to 225 million packets per second
• IPv6 forwarding rate: up to 110 million packets per second
• Memory: 2 GB SDRAM
• Flash storage: 1 GB
• Routing table scale: 64,000 IPv4 entries and 32,000 IPv6 entries
• QoS and security entries supported: 64,000
• Standards compliance: IEEE 802.3, 802.1Q, 802.1X

Connectivity and compatibility

This supervisor engine integrates seamlessly into Catalyst 4500E chassis, supporting a wide range of line cards and network modules. Its compliance with IEEE 802 standards ensures compatibility with existing Ethernet networks and VLAN configurations. The module’s high forwarding rates and large routing table capacity make it suitable for complex Layer 3 routing environments in enterprise campuses, hospitals, and universities.

Performance and reliability

Designed to maintain network stability, the module’s Non-Stop Forwarding and Stateful Switchover features allow uninterrupted data forwarding during software upgrades or hardware failovers. This resilience is critical for mission-critical environments where downtime is not an option. The dedicated bandwidth per slot prevents performance degradation during traffic spikes, ensuring consistent throughput across all connected devices.

Ideal uses and environments

This supervisor engine fits well in enterprise networks requiring advanced routing and traffic analysis without replacing existing Catalyst 4500E infrastructure. It is a strong choice for organizations that need detailed flow analytics, robust Layer 3 routing, and energy monitoring capabilities. Whether deployed in a core network with redundancy or a cost-conscious wiring closet, it balances throughput, operational insight, and reliability to support growing network demands.
