ADJ UNI PAK II

Overview

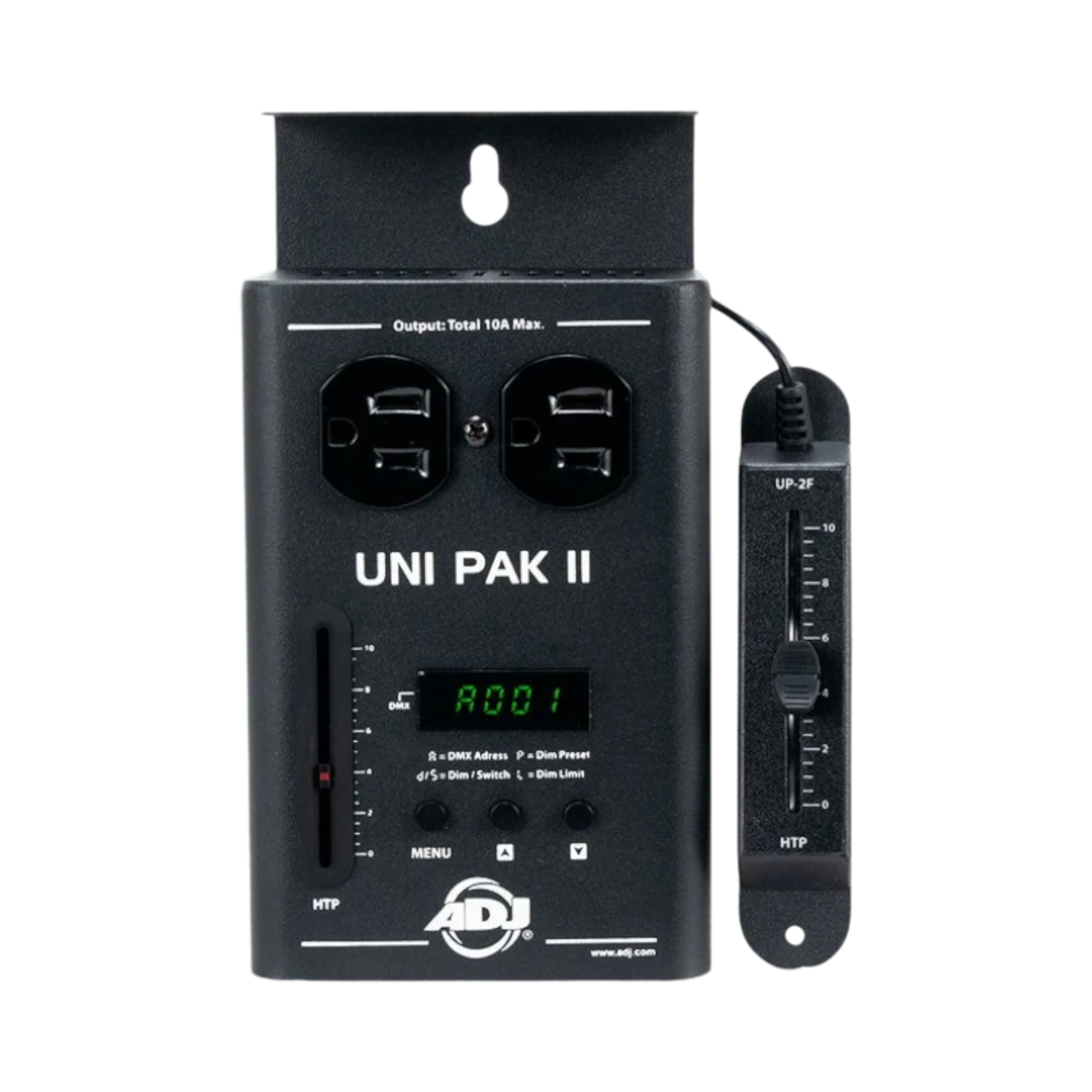

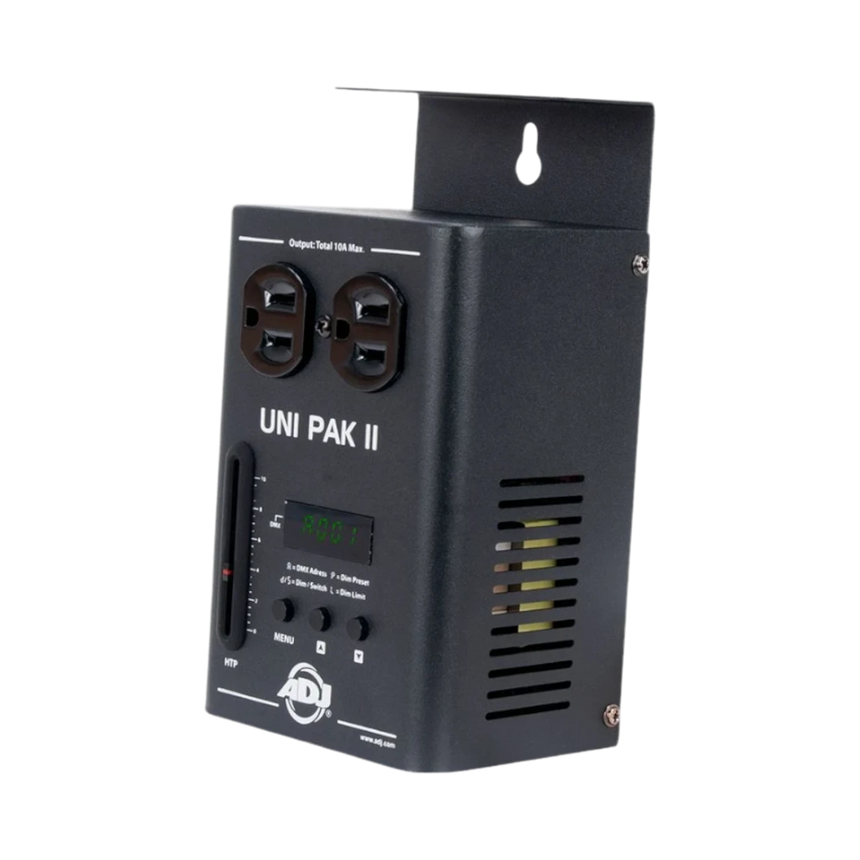

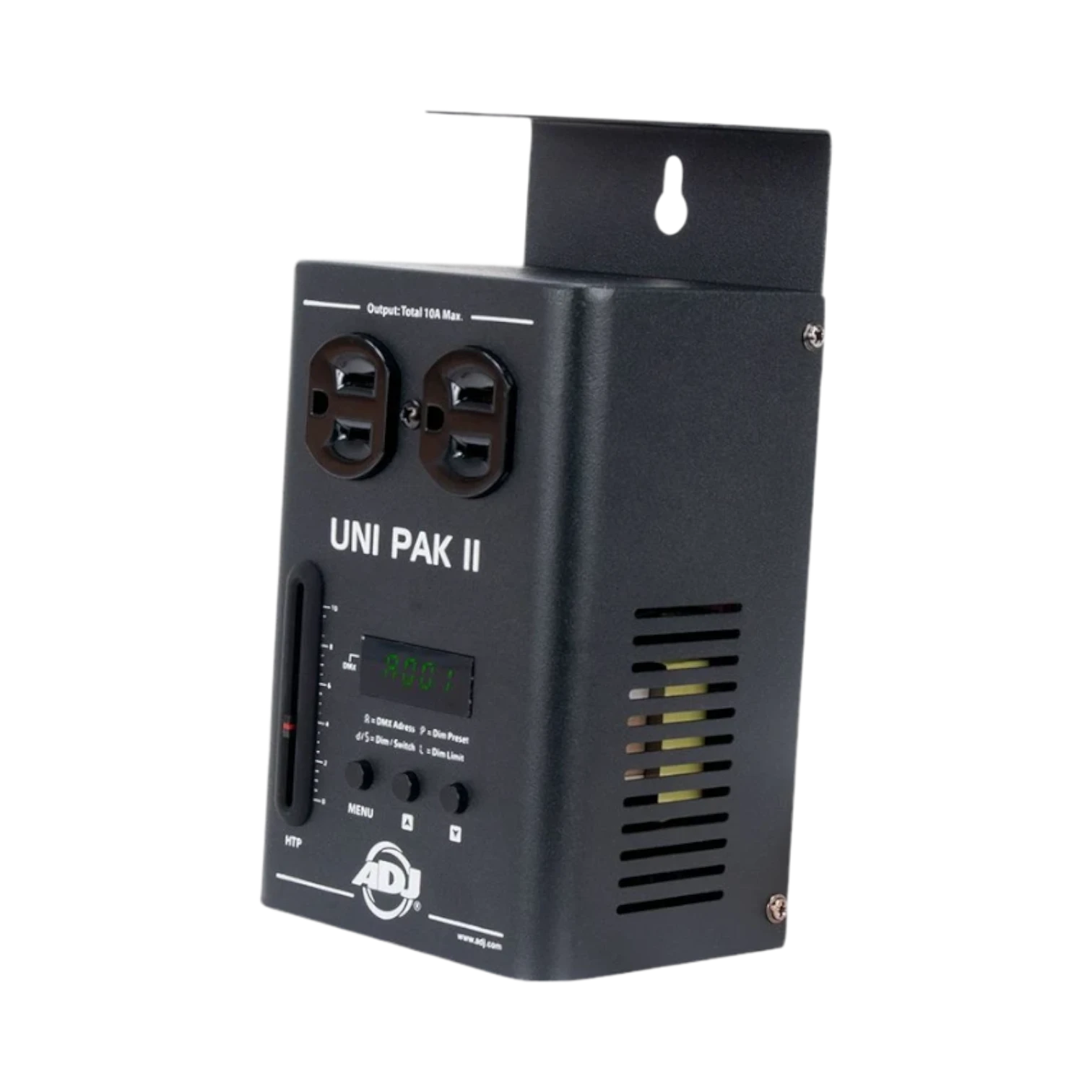

The ADJ UNI PAK II is a 1-channel dimmer and switch pack designed to give you precise control over a single lighting circuit. It connects easily to lighting consoles using the DMX-512 protocol and supports manual operation through an on-board or external HTP slider. Compact and lightweight, this unit fits well in small venues, mobile setups, or permanent installations where space and simplicity matter.

Key features

• Single channel dimmer or switch operation for straightforward lighting control
• On-board HTP slider allows manual fading without a console

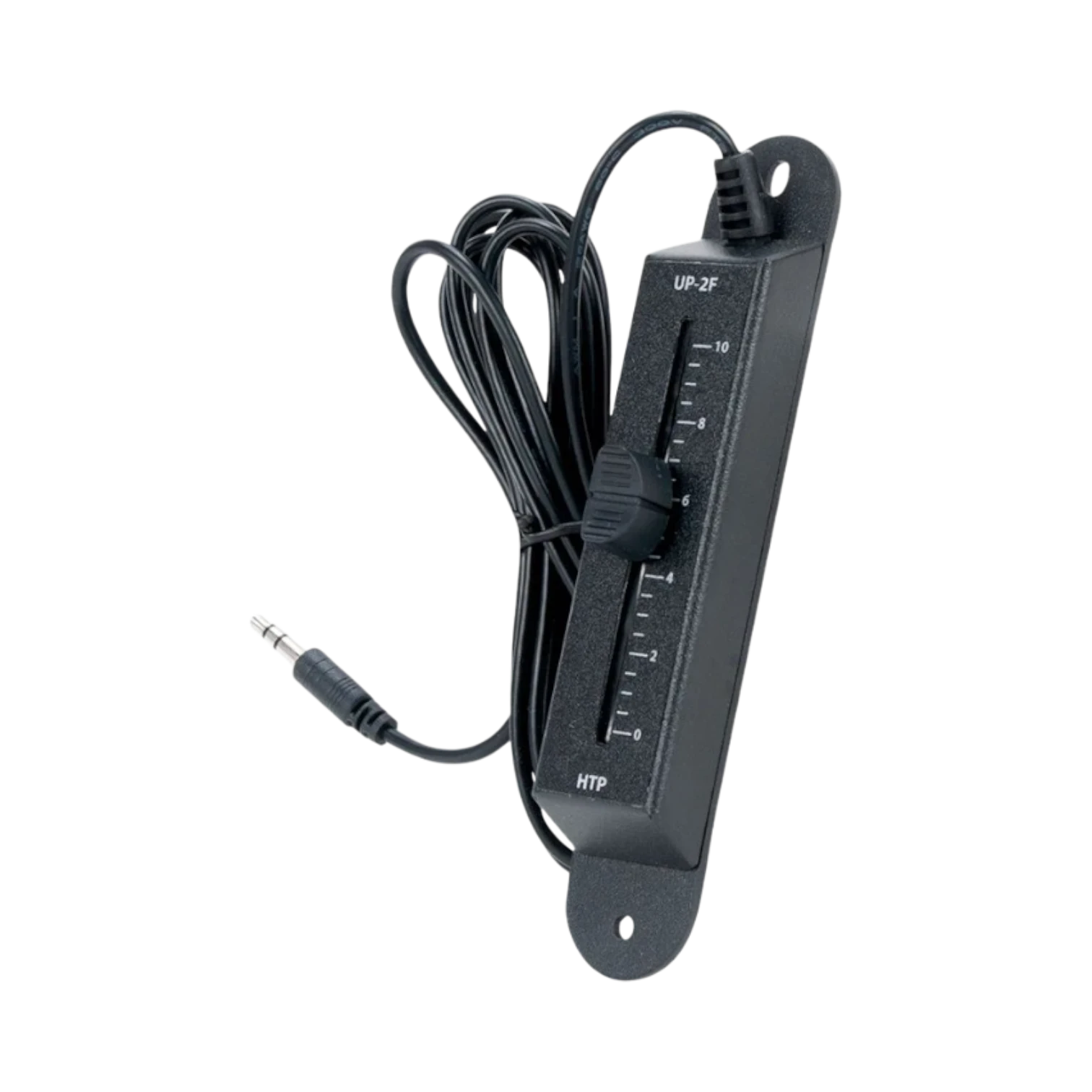

• External HTP slider input enables remote manual control from front of house or stage side
• DMX-512 compatibility with 3-pin XLR input and output for easy daisy chaining
• LED display on the front panel simplifies DMX addressing and status monitoring in low light
• Two 3-prong Edison AC outlets support a combined load of up to 10 amps
• Sturdy mounting bracket for secure attachment to truss or walls
• Compact footprint and lightweight design make it easy to transport and install

Key specs

• Channels: 1
• Maximum load: 10 amps total across two Edison outlets
• Dimensions: 7.25 x 3.62 x 2.62 inches
• Weight: 3 pounds
• DMX protocol: DMX-512

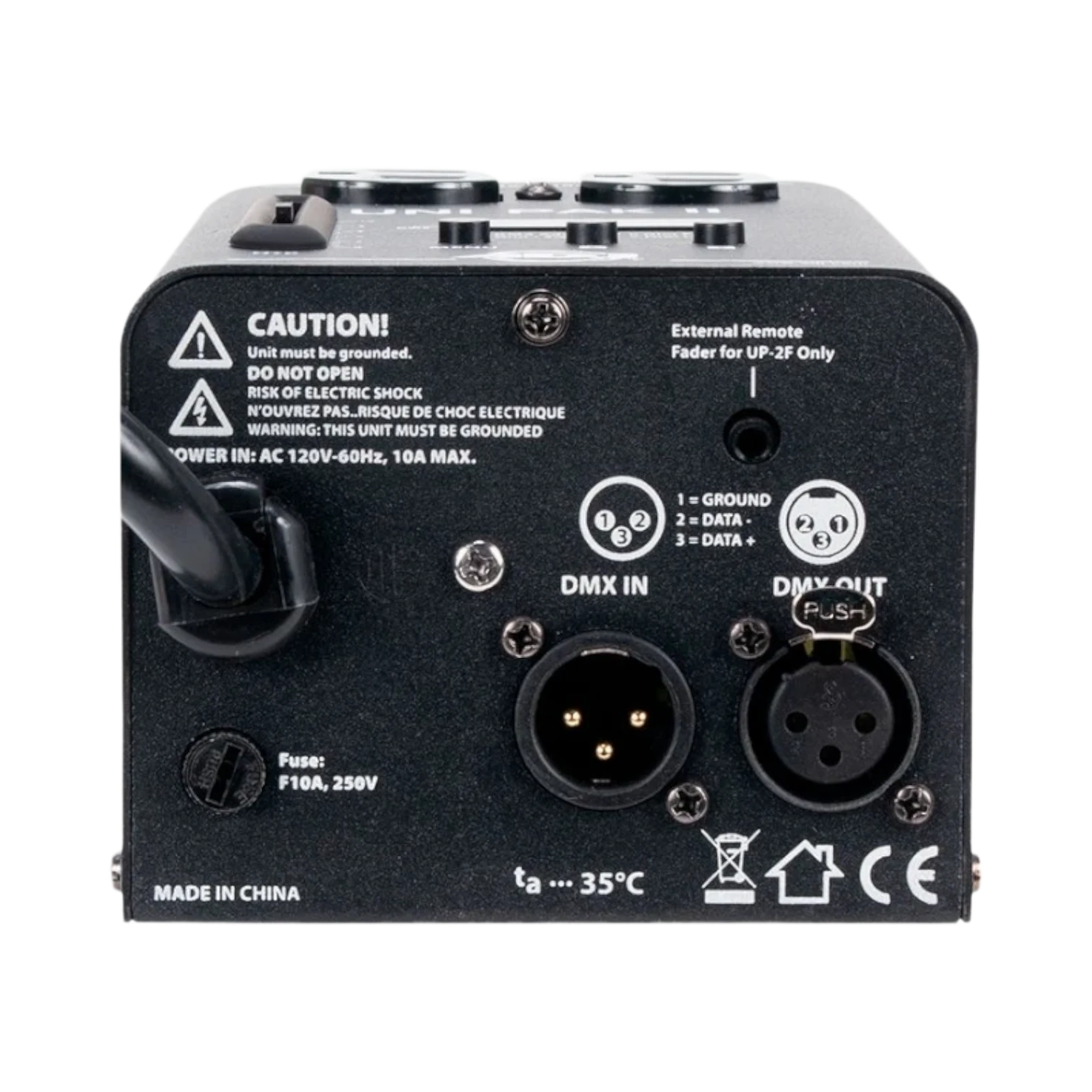

• Connectors: 3-pin XLR input and output

Connectivity and compatibility

The unit integrates seamlessly into DMX-controlled lighting setups, using standard 3-pin XLR connectors for input and output. This allows quick daisy chaining with other DMX devices, making it suitable for both simple and more complex lighting rigs. The two Edison outlets accept standard 3-prong plugs, accommodating a wide range of stage and effect lights without requiring special adapters.

Installation and setup

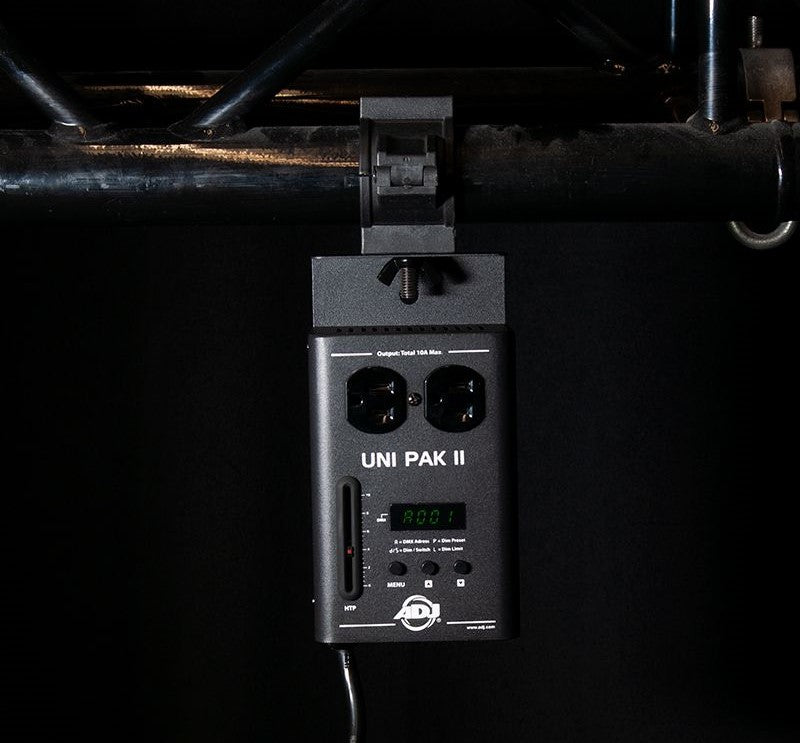

With its compact size and included mounting bracket, the UNI PAK II can be easily clamped to truss or mounted on walls, saving valuable space in tight setups. The LED display on the front panel makes setting the DMX start address quick and intuitive, even in dark environments. Its lightweight design ensures it can be transported effortlessly between venues or integrated into permanent installations without adding bulk.

Ideal uses and environments

This dimmer pack is well suited to small clubs, bars, mobile performers, and technicians who need reliable, simple control over a single lighting circuit. It works well for controlling par cans, effects lights, or practical stage lamps where a full dimmer rack would be excessive. The manual slider options also make it a strong choice for situations where quick, hands-on adjustments are needed without a lighting console.
