Chief LCM2X1U

Overview

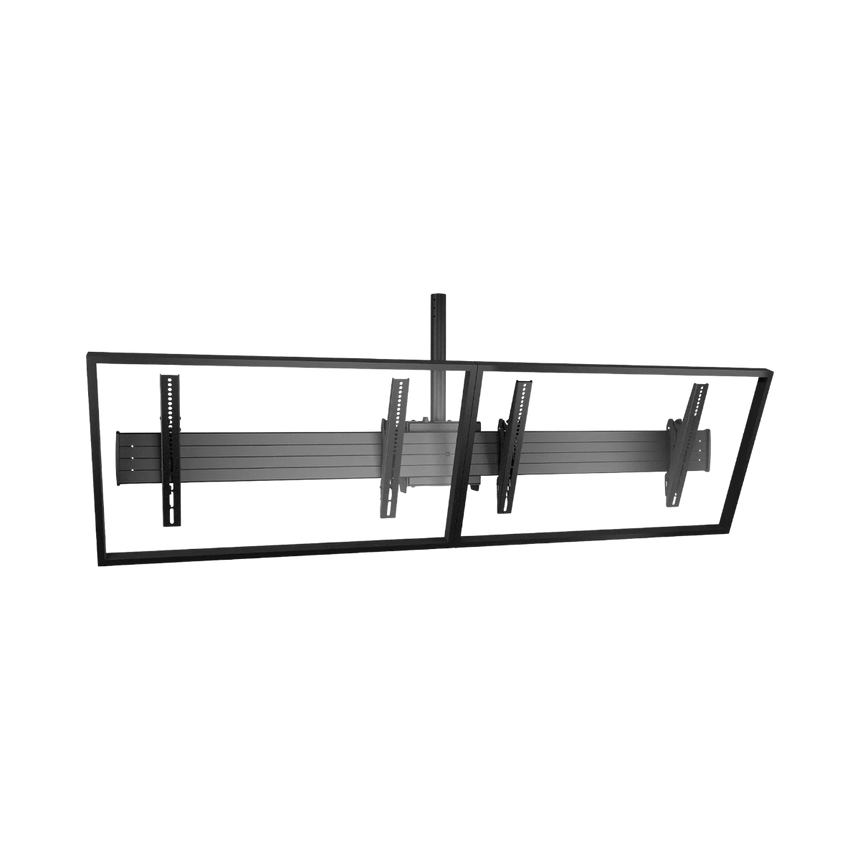

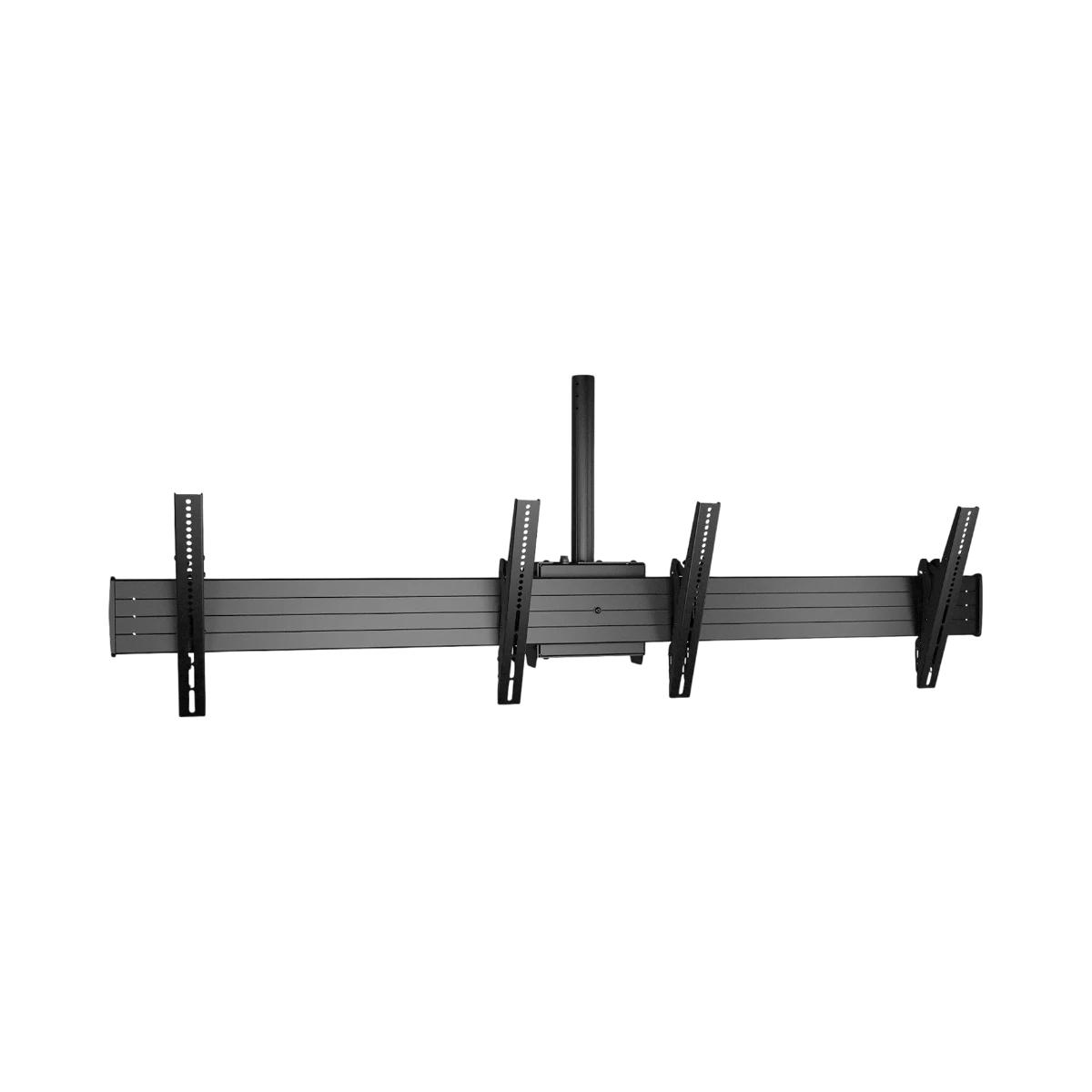

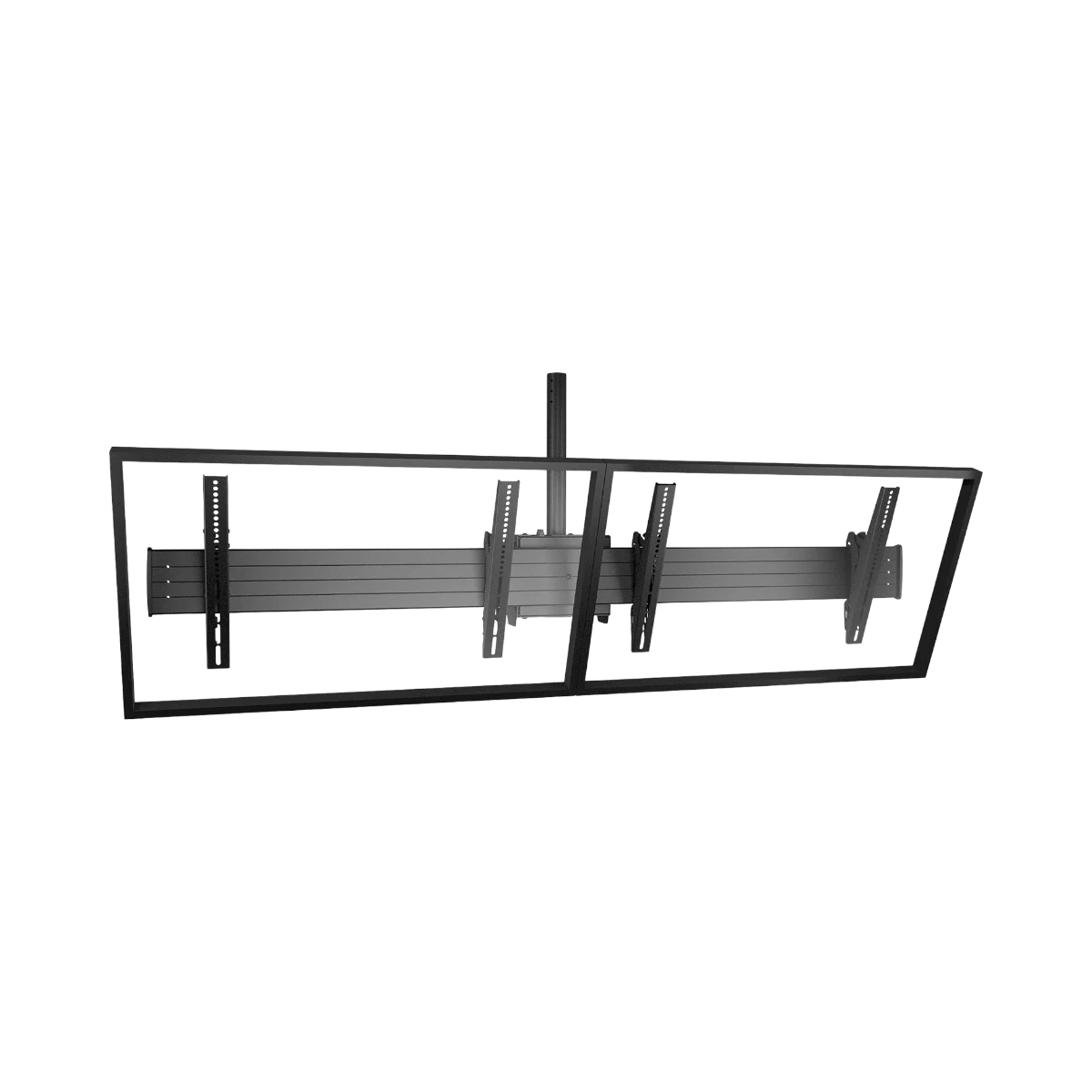

The Chief LCM2X1U is a ceiling-mounted menu board mount designed to hold two displays side by side, primarily for environments where wall space is limited or open-area suspension is preferred. It supports most 40 to 55 inch screens and can accommodate up to 65 inch displays with optional brackets. Each mount position can hold up to 125 pounds, making it suitable for heavy commercial panels in settings like quick-service restaurants, airports, retail aisles, and gyms.

Key features

• Supports two side-by-side displays with easy tool-free engagement for quick installation and servicing
• Single drop design reduces ceiling clutter and simplifies mounting
• Centris technology enables one-handed tilt adjustment from minus 20 to plus 5 degrees for optimal viewing angles
• Micro roll adjustment allows fine leveling within plus or minus 3 degrees to ensure perfectly aligned screens
• Full 360-degree swivel lets you reorient displays toward different viewing areas without moving the mount
• Compatible with standard 1.5 inch NPT and CPA pinned ceiling columns for flexible installation options
• Integrated slot for padlock adds security in public or high-traffic environments

Key specs

• Display size compatibility: 40 to 55 inches standard, up to 65 inches with optional FCAX brackets
• Weight capacity: 125 pounds per display
• Tilt adjustment range: -20° to +5°
• Micro roll adjustment: ±3°
• Swivel range: 360°
• Mounting compatibility: 1.5 inch NPT and CPA pinned ceiling columns

Installation and setup

The mount’s single drop design streamlines installation by minimizing hardware and visual clutter on the ceiling. It connects to common ceiling column standards, allowing you to select the appropriate ceiling plate and extension column separately to match your site’s structure. Tool-free screen engagement means you can quickly click displays into place or release them for maintenance without extra tools, saving time during setup and servicing.

Ideal uses and environments

This mount is well suited to commercial and public spaces where digital signage needs to be visible without relying on wall mounts. It works well in quick-service restaurants for menu boards, airports for flight information displays, retail aisles for promotional content, and gyms or training rooms for scoreboards. Its secure design and flexible adjustments make it a strong choice for locations requiring both durability and easy viewing angle customization.
