Chief CMS440P2

Overview

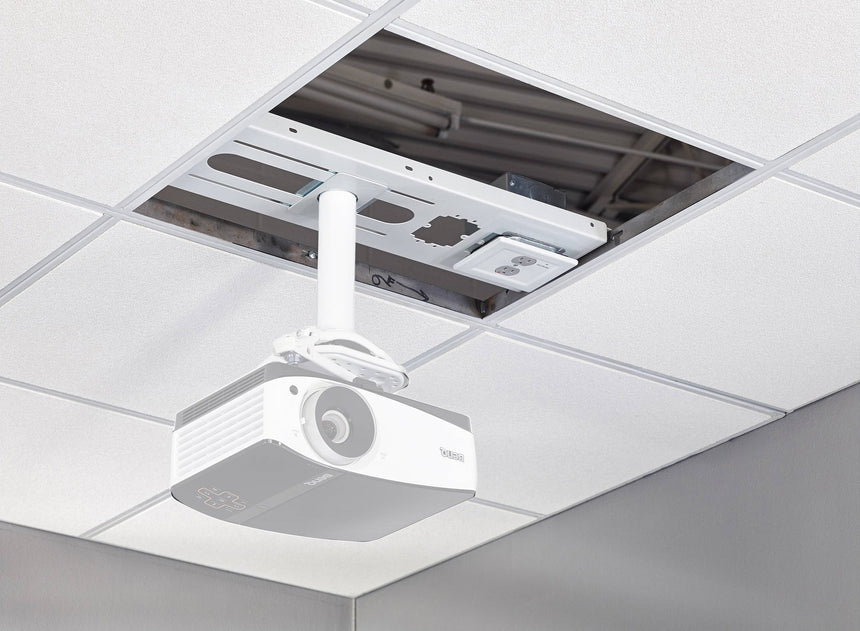

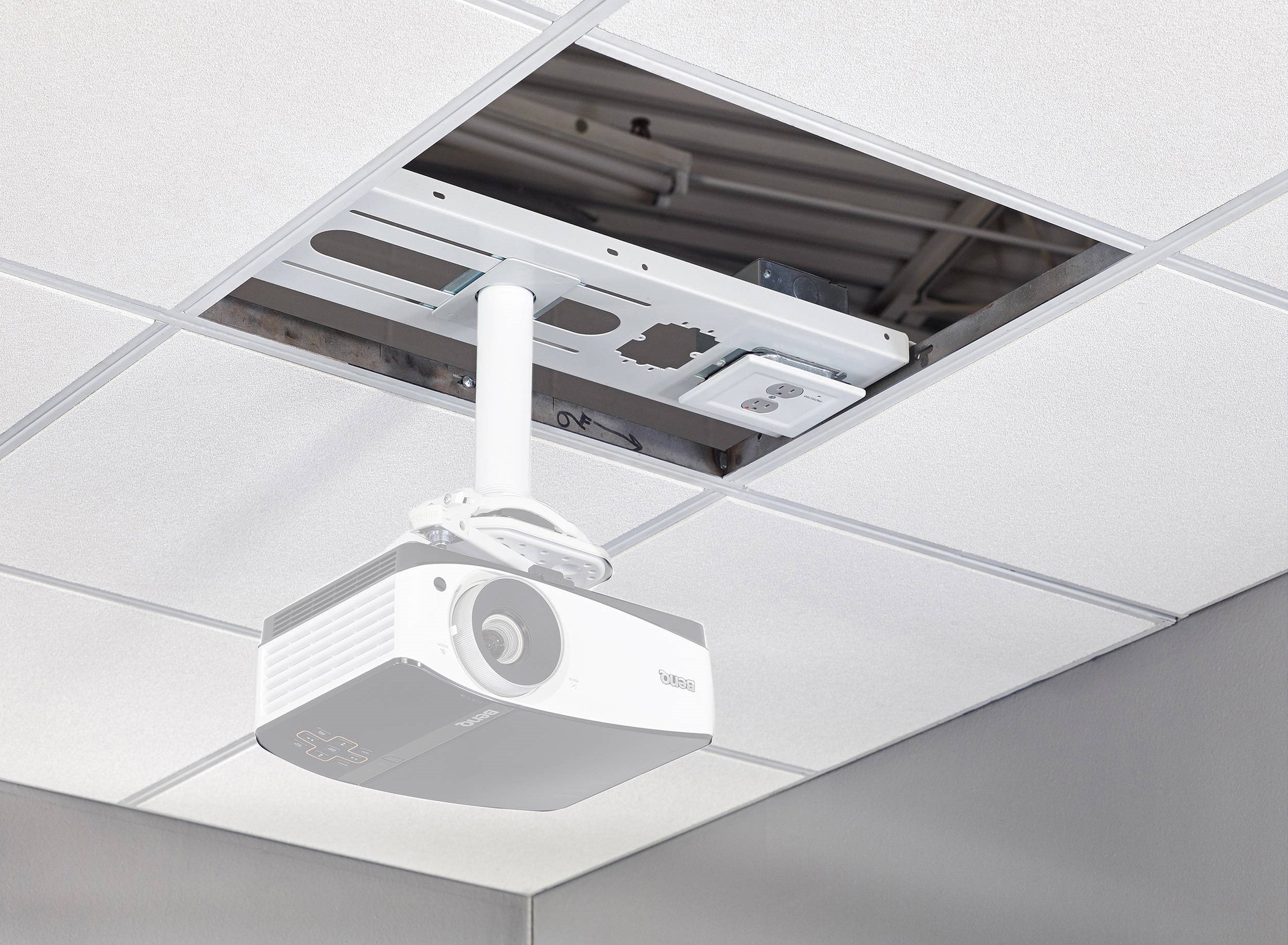

The Chief CMS440P2 is a suspended ceiling kit designed to securely mount projectors or AV devices above standard ceiling tiles while integrating built-in surge protection. It replaces a single ceiling tile to create a stable platform compatible with any Chief extension column or 1.5-inch NPT accessory. This kit supports equipment weighing up to 50 lbs, making it suitable for a variety of classroom projectors, conference room short-throw models, and small PTZ cameras.

Its dual gang electrical housing features SurgeX multi-stage filtration, which protects sensitive electronics from power spikes and line noise without limiting current flow. The kit fits common 600 x 600 mm and 600 x 1200 mm ceiling grids found in classrooms, meeting rooms, and hospitality venues across Europe, Canada, and Mexico.

Key features

• Supports equipment up to 50 lbs, providing a sturdy and reliable mounting solution for AV devices.
• Dual gang housing with isolated ground and SurgeX multi-stage filtration protects connected electronics from harmful power surges and line noise.
• Non-sacrificial surge protection design ensures no modules need replacement after a surge event, with an LED indicator confirming circuit status.
• WireVice Cable Suspension System and included TwisTile Cutter allow a single installer to cut the ceiling tile, hang the frame, and adjust height easily using the 20-foot strand wire.
• Includes a 10-foot safety cable for additional security once the device is mounted.
• Fits both 600 x 600 mm and 600 x 1200 mm suspended ceiling tiles, accommodating common ceiling grid sizes.
• All-Points Security System locks the column connection to deter tampering or theft in public or multi-use environments.
• Non-current-limiting design allows full power pass-through, ensuring connected devices receive uninterrupted power.

Key specs

• Load rating: supports up to 50 lbs
• Ceiling tile compatibility: 600 x 600 mm and 600 x 1200 mm grids
• Electrical housing: dual gang with isolated ground
• Surge protection: SurgeX multi-stage filtration, non-sacrificial design
• Cable suspension: WireVice system with 20-foot strand wire
• Safety cable length: 10 feet
• Accessory compatibility: Chief extension columns and 1.5-inch NPT accessories

Installation and setup

The kit simplifies installation by allowing a single technician to handle cutting the ceiling tile, hanging the frame, and adjusting the height with the WireVice Cable Suspension System. The included TwisTile Cutter ensures precise tile cutting, while the 20-foot strand wire offers flexible positioning for the mounted device. The 10-foot safety cable adds an extra layer of security, preventing accidental falls or damage.

Facility managers benefit from easy maintenance since the ceiling tile can slide out for inspection without disturbing the mounted column. The All-Points Security System further secures the installation by locking the column connection, reducing the risk of tampering in shared or public spaces.

Ideal uses and environments

This ceiling kit is well suited to educational settings, conference rooms, and hospitality venues where projectors or AV devices need to be mounted discreetly above suspended ceilings. Its compatibility with common ceiling grid sizes and support for a wide range of equipment weights make it a versatile choice for classrooms, meeting rooms, and small studios. The integrated surge protection and security features also make it a strong option for environments where device safety and theft prevention are priorities.
