APC APDU10350SM

Overview

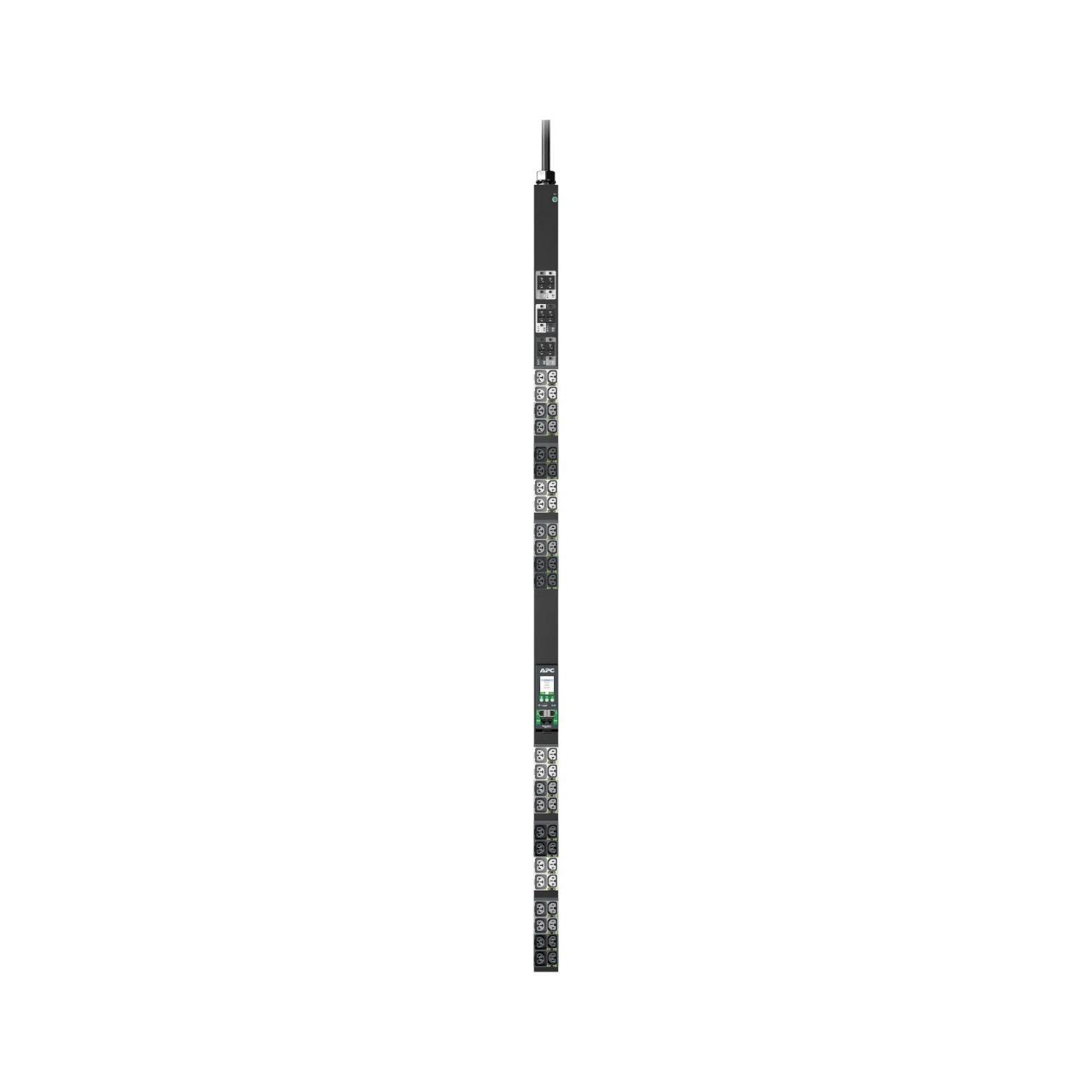

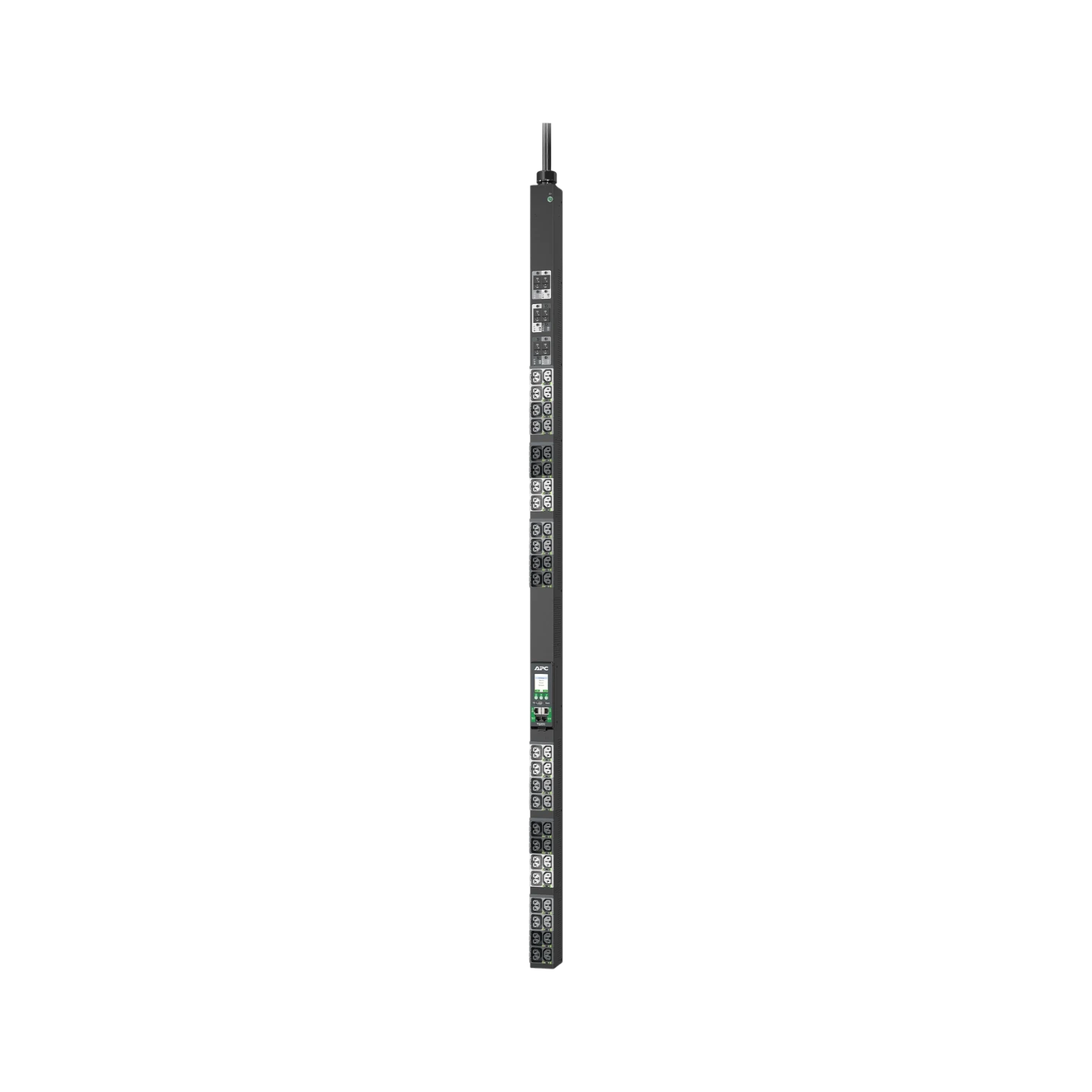

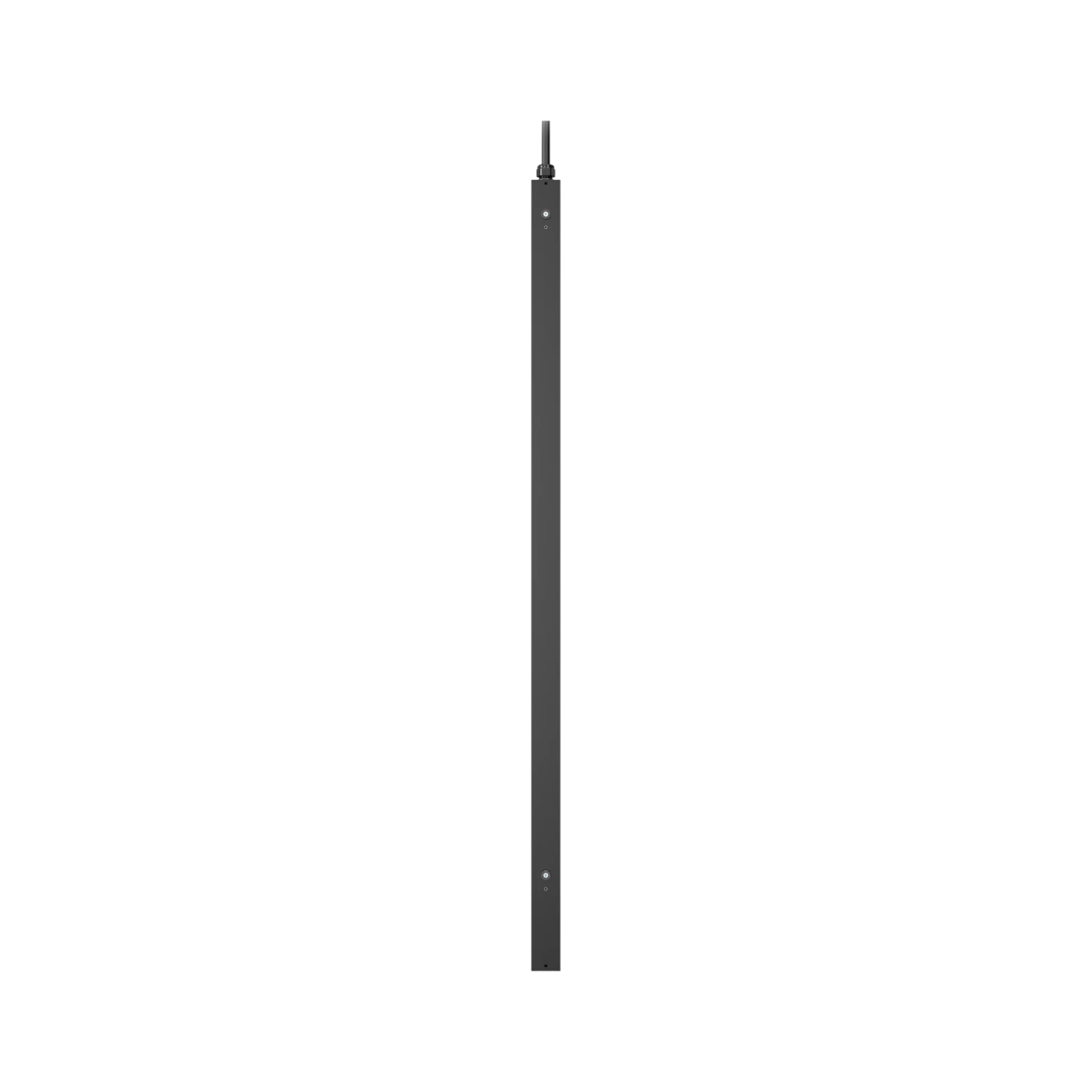

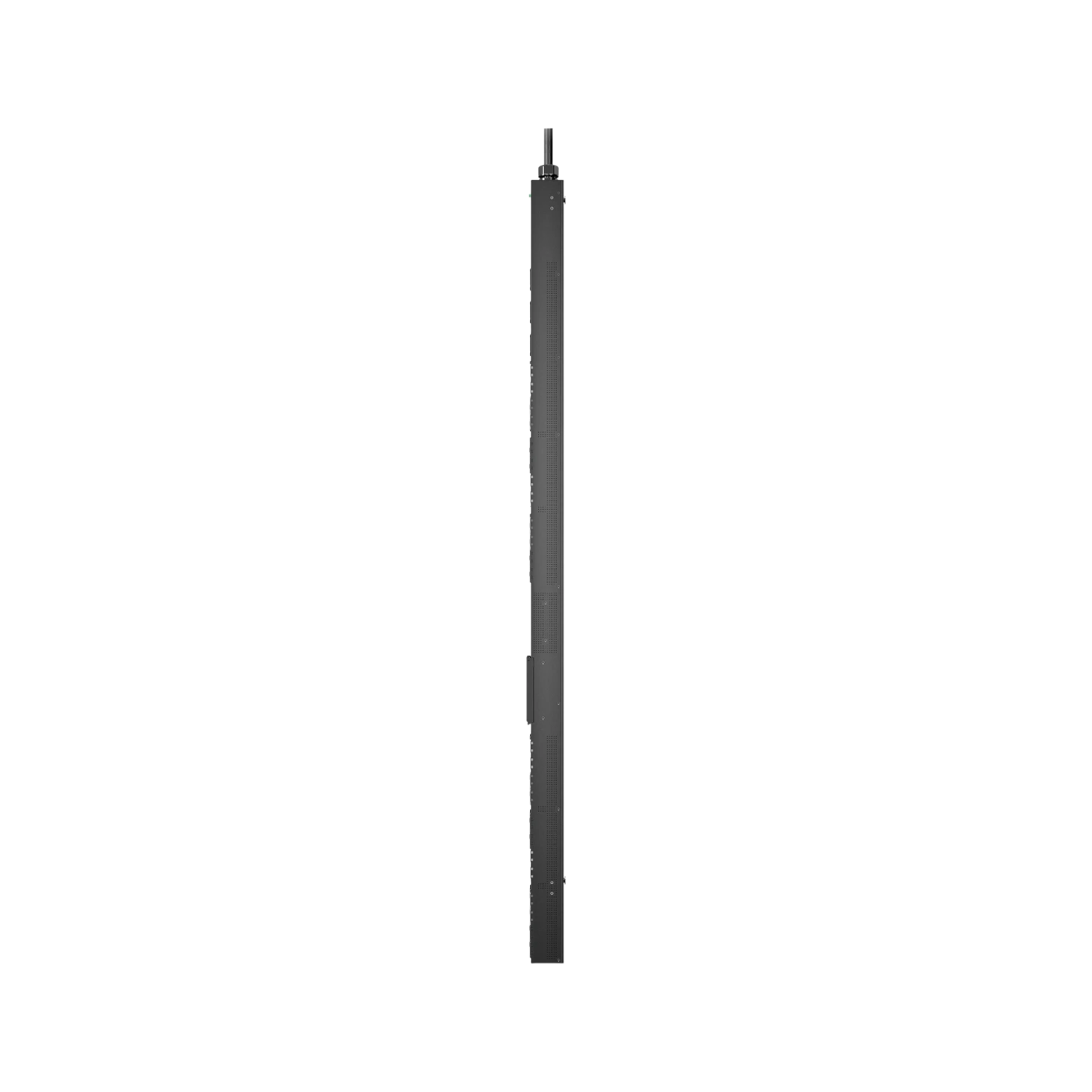

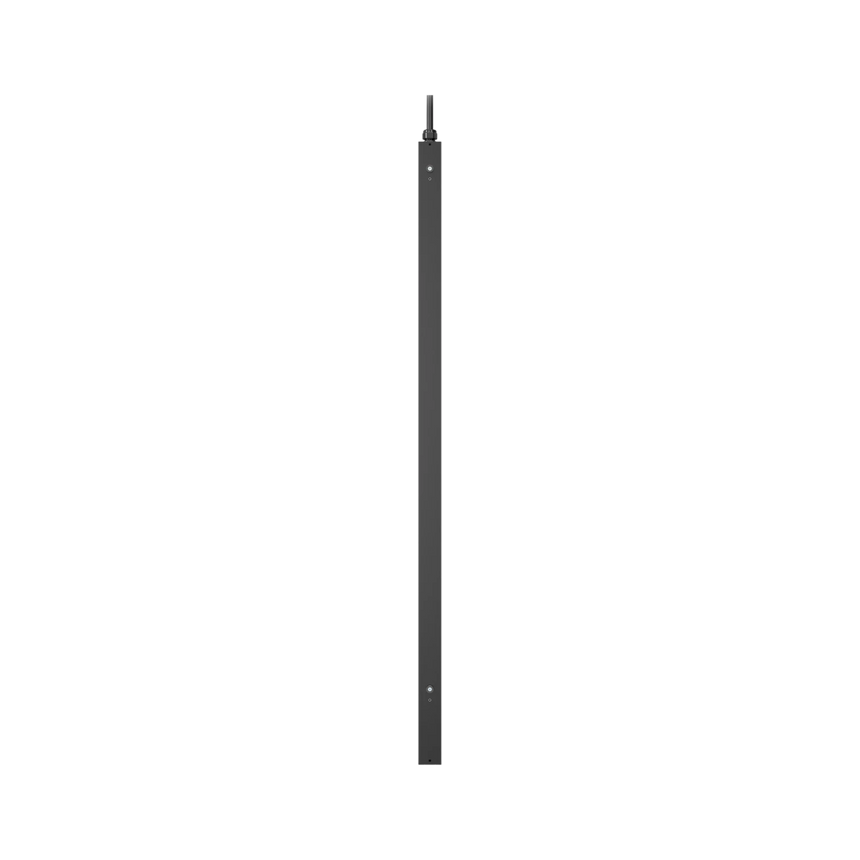

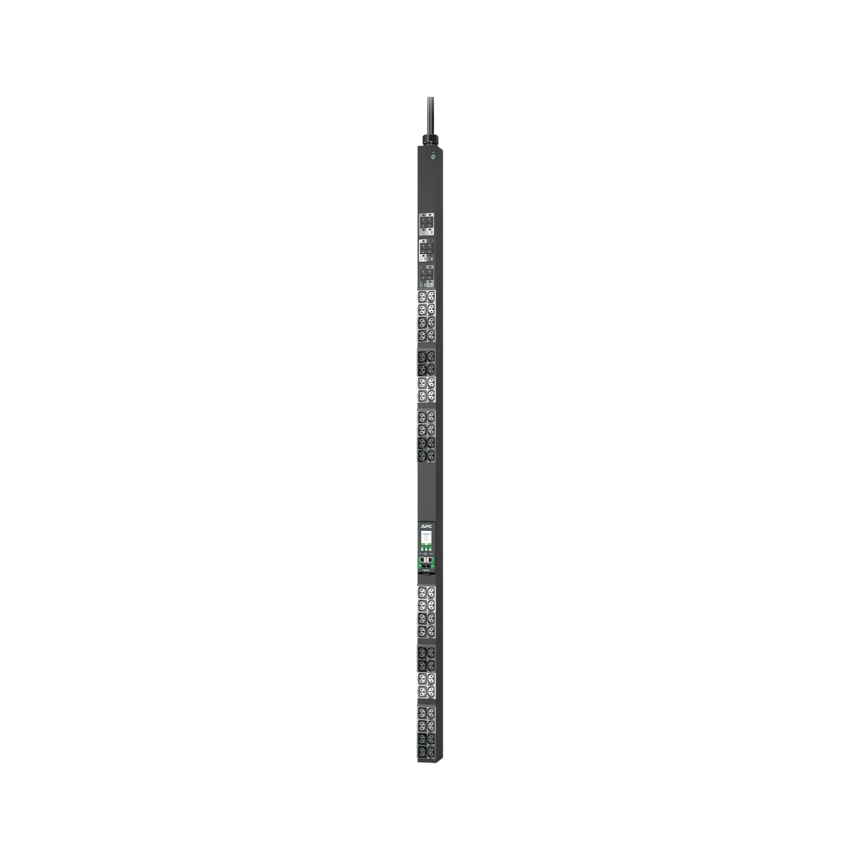

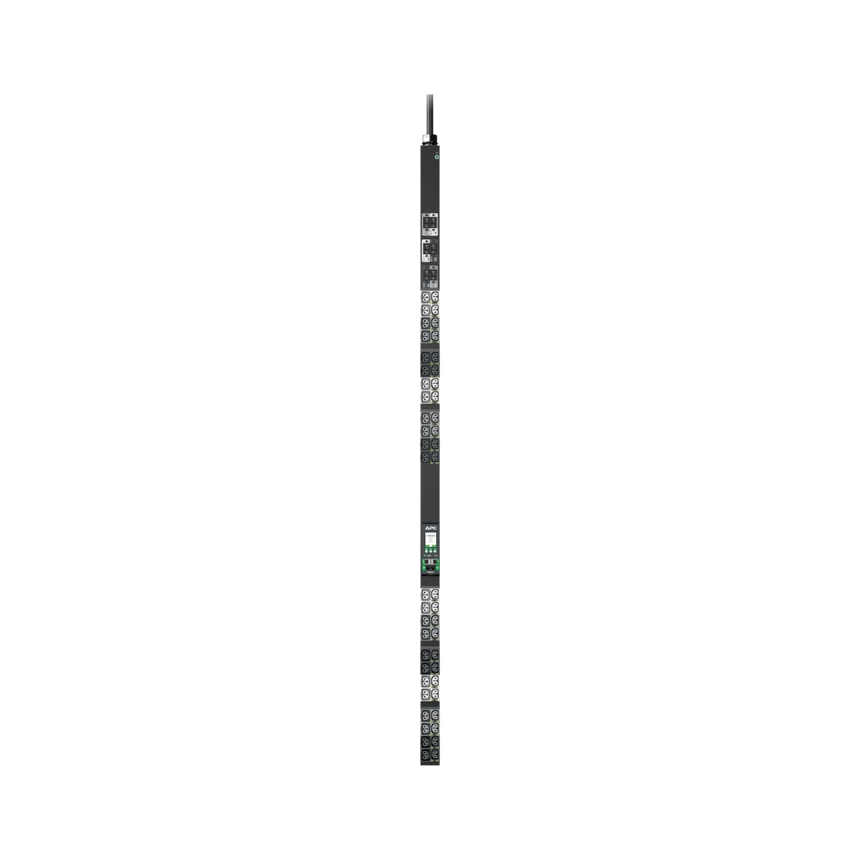

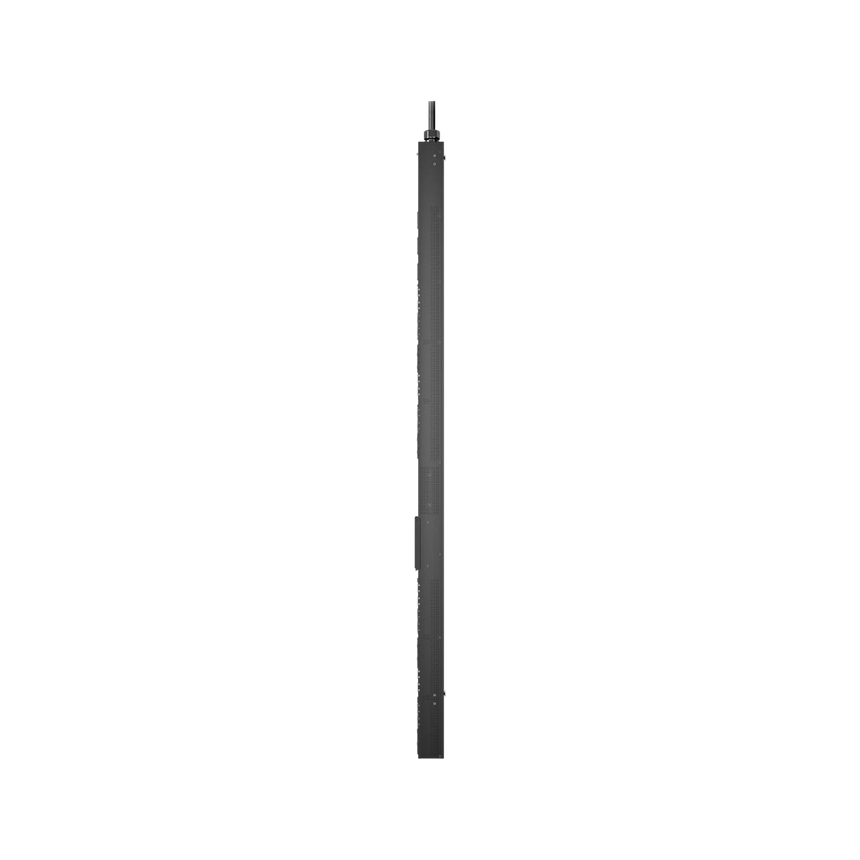

The APC APDU10350SM is a switched, metered outlet power distribution unit designed for racks housing critical servers, storage, and networking equipment. It supports up to 22.1 kW on a 400 V, 32 A circuit or 17.3 kW on a 415 V, 30 A circuit, providing ample power capacity for demanding data center environments. Its vertical zero-U design fits neatly into standard NetShelter racks, offering 48 versatile outlets that accommodate C13, C15, C19, and C21 plugs without the need for adapters.

With built-in remote management and precise metering, this PDU helps data center managers monitor and control power usage at both the outlet and unit level. Its robust design supports continuous operation in warm environments and includes features that minimize downtime and simplify deployment across global sites.

Key features

• Remote on/off switching for each outlet enables convenient rebooting or power cycling without physical access to the rack.
• Outlet-level and unit-level metering with one percent accuracy supports detailed capacity planning and charge-back billing.
• Power-sharing architecture maintains network management card operation during mains power loss, allowing graceful shutdowns or status updates.

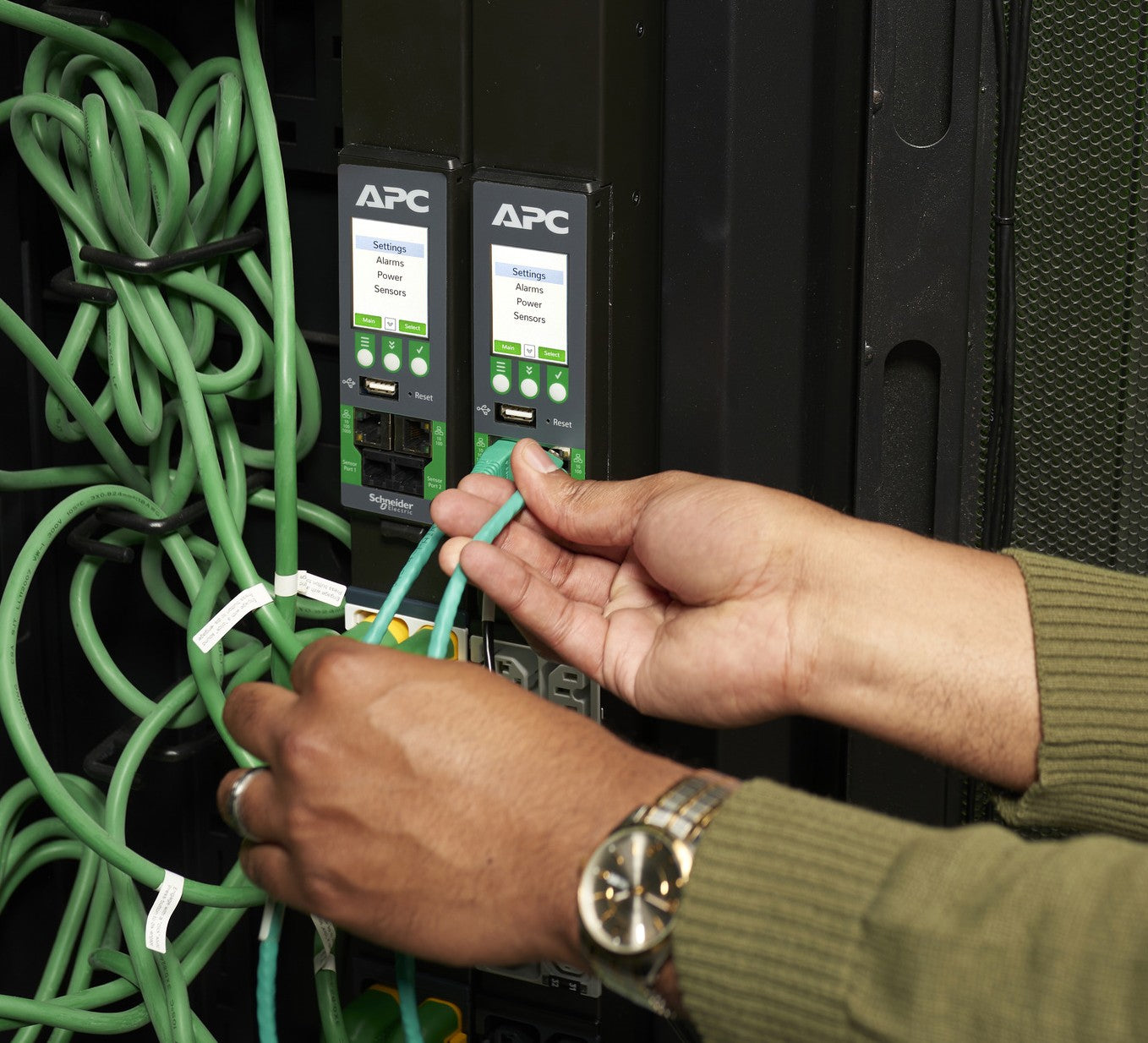

• Dual Ethernet ports provide options for daisy-chaining multiple PDUs or creating redundant network paths for enhanced reliability.

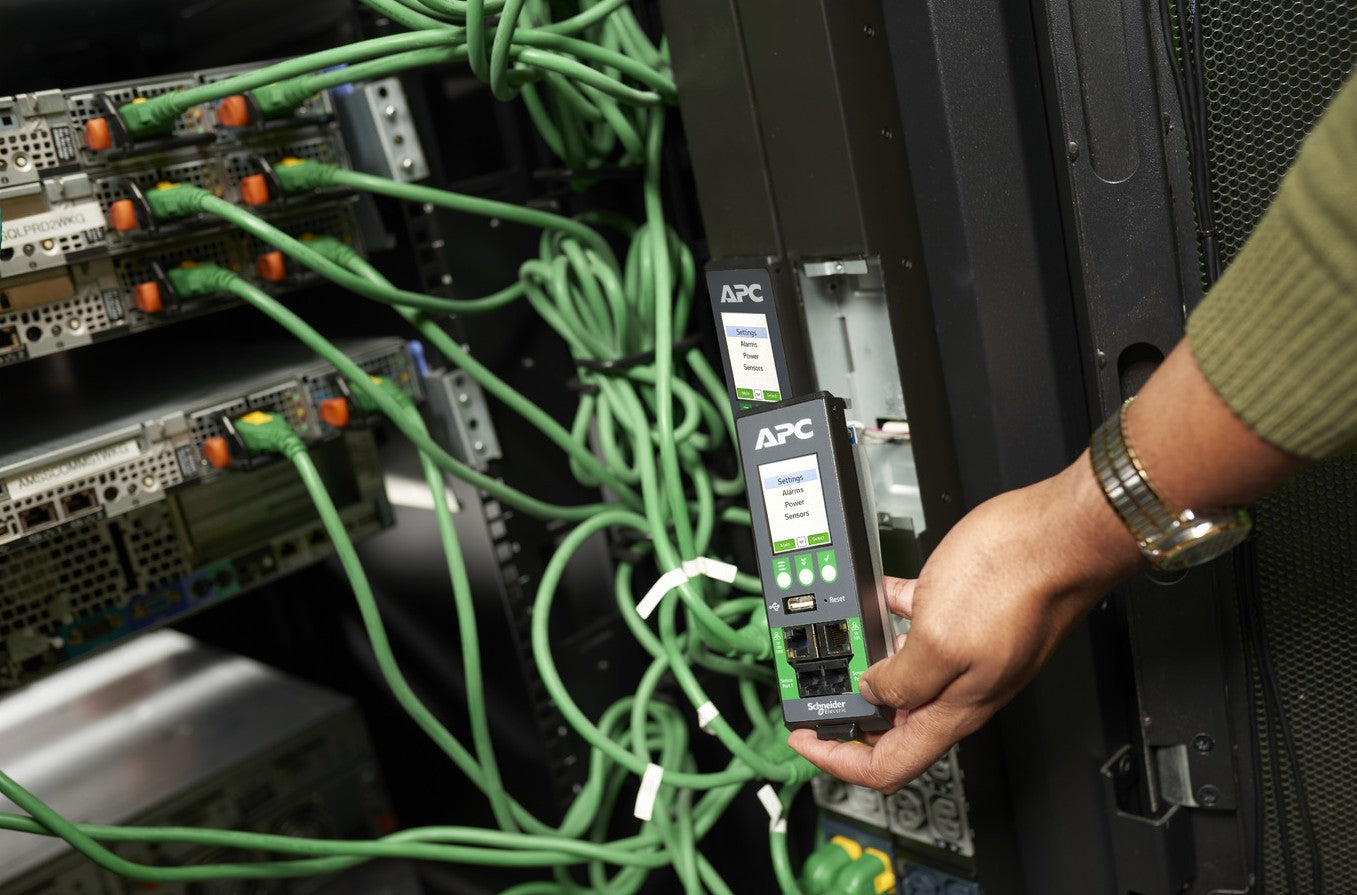

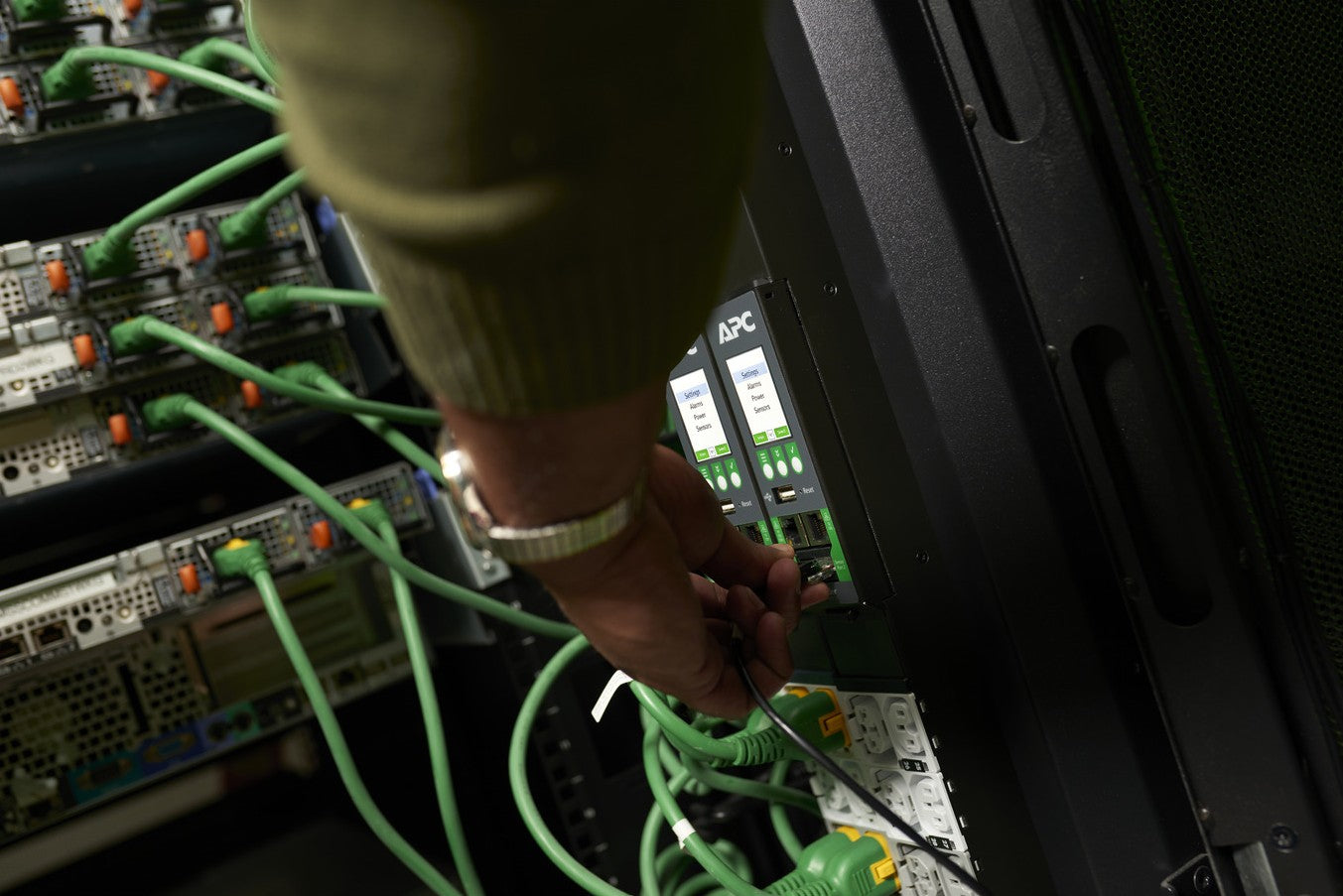

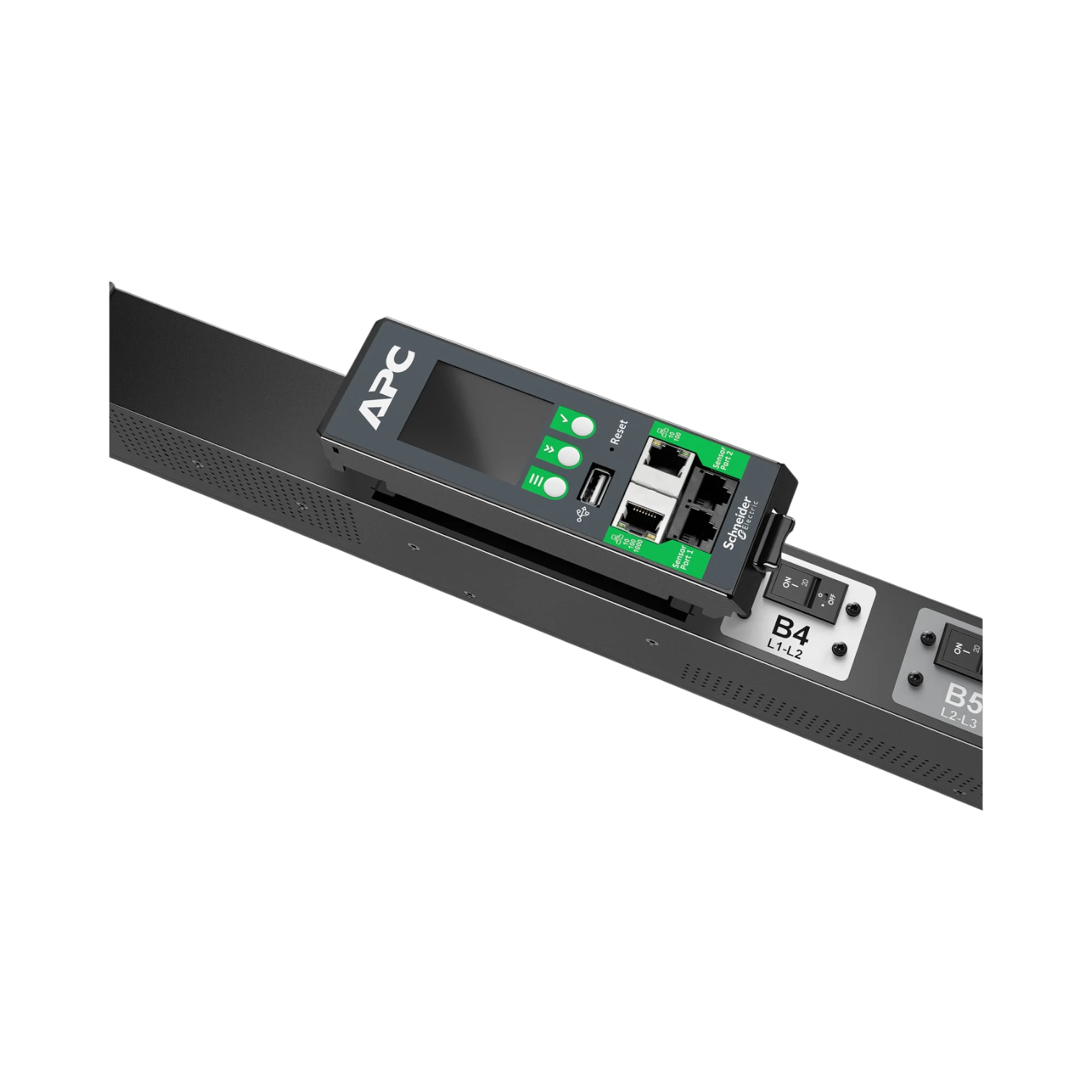

• Live-swap network-management card allows replacement without powering down the unit, reducing downtime during maintenance.
• Rated for continuous full-load operation up to 140 °F, suitable for warmer data center environments.

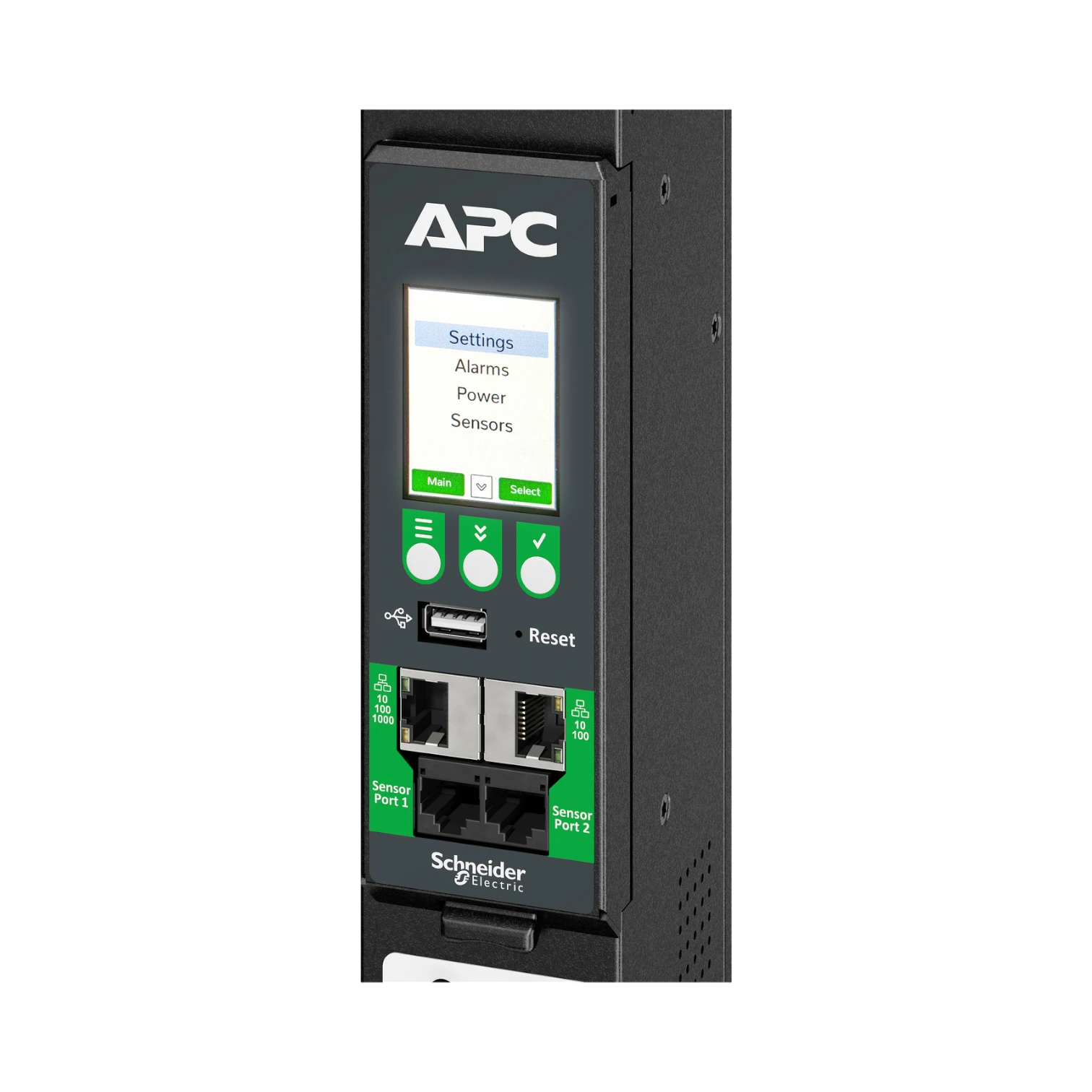

• Two sensor ports accept optional temperature and humidity probes for real-time environmental monitoring.
• Global certifications facilitate deployment in multiple regions, ideal for colocation providers and enterprises with distributed sites.
• Compact 2.2-inch wide vertical design maximizes rack space while delivering 48 outlets for diverse equipment connections.
• Alternating input phases along the outlet strip help maintain balanced loads and keep power cords organized.

Key specs

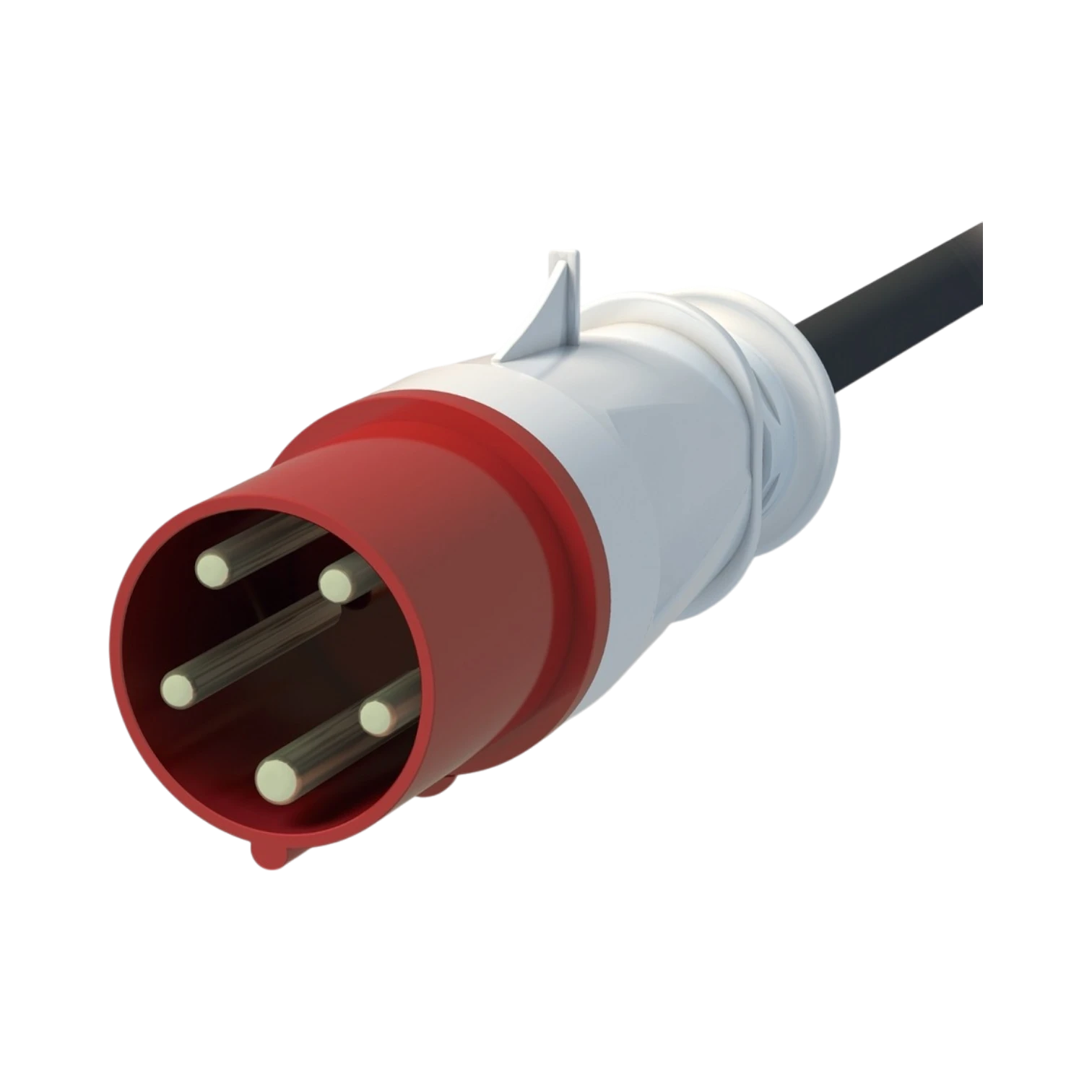

• Power capacity: 22.1 kW at 400 V, 32 A or 17.3 kW at 415 V, 30 A three-phase input
• Number of outlets: 48

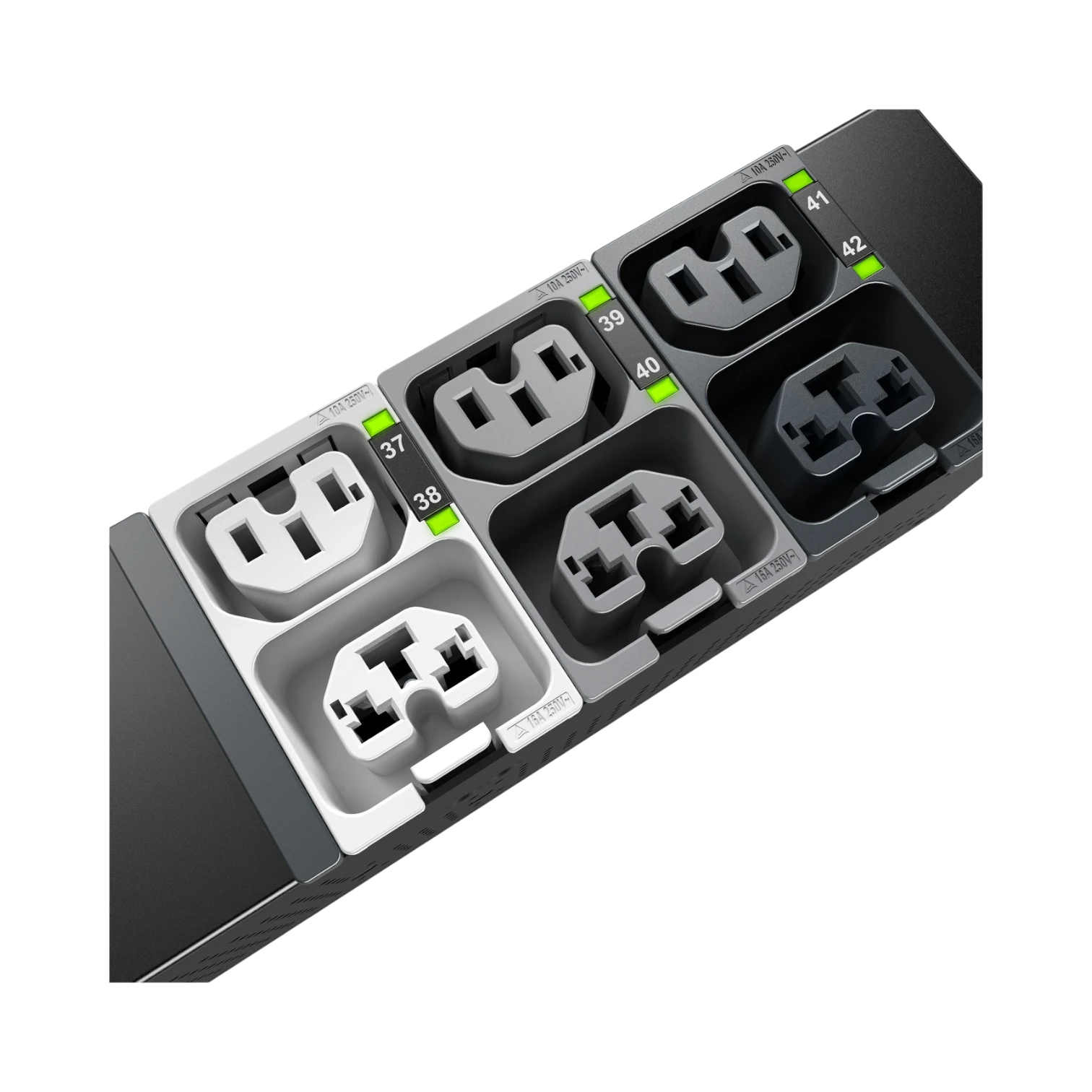

• Outlet types supported: IEC C13, C15, C19, C21
• Form factor: Vertical zero-U rack mount, 2.2 inches wide
• Operating temperature rating: Continuous full load up to 140 °F (60 °C)
• Network ports: Dual Ethernet for daisy-chaining or redundancy
• Metering accuracy: ±1% for current, voltage, power, and energy
• Sensor ports: Two for optional temperature and humidity probes
• Management: Web interface, SNMP, and DCIM platform compatibility

Connectivity and compatibility

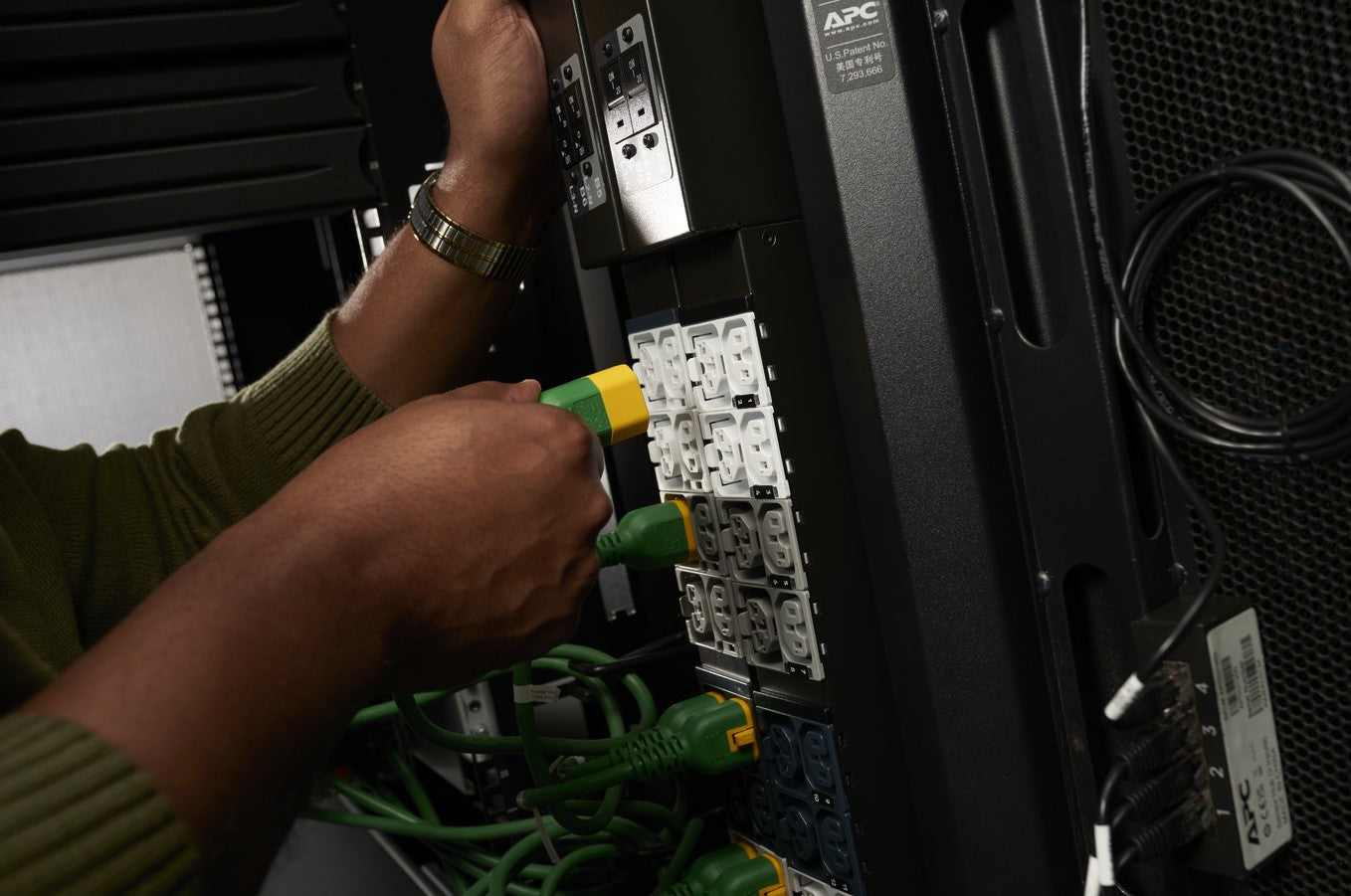

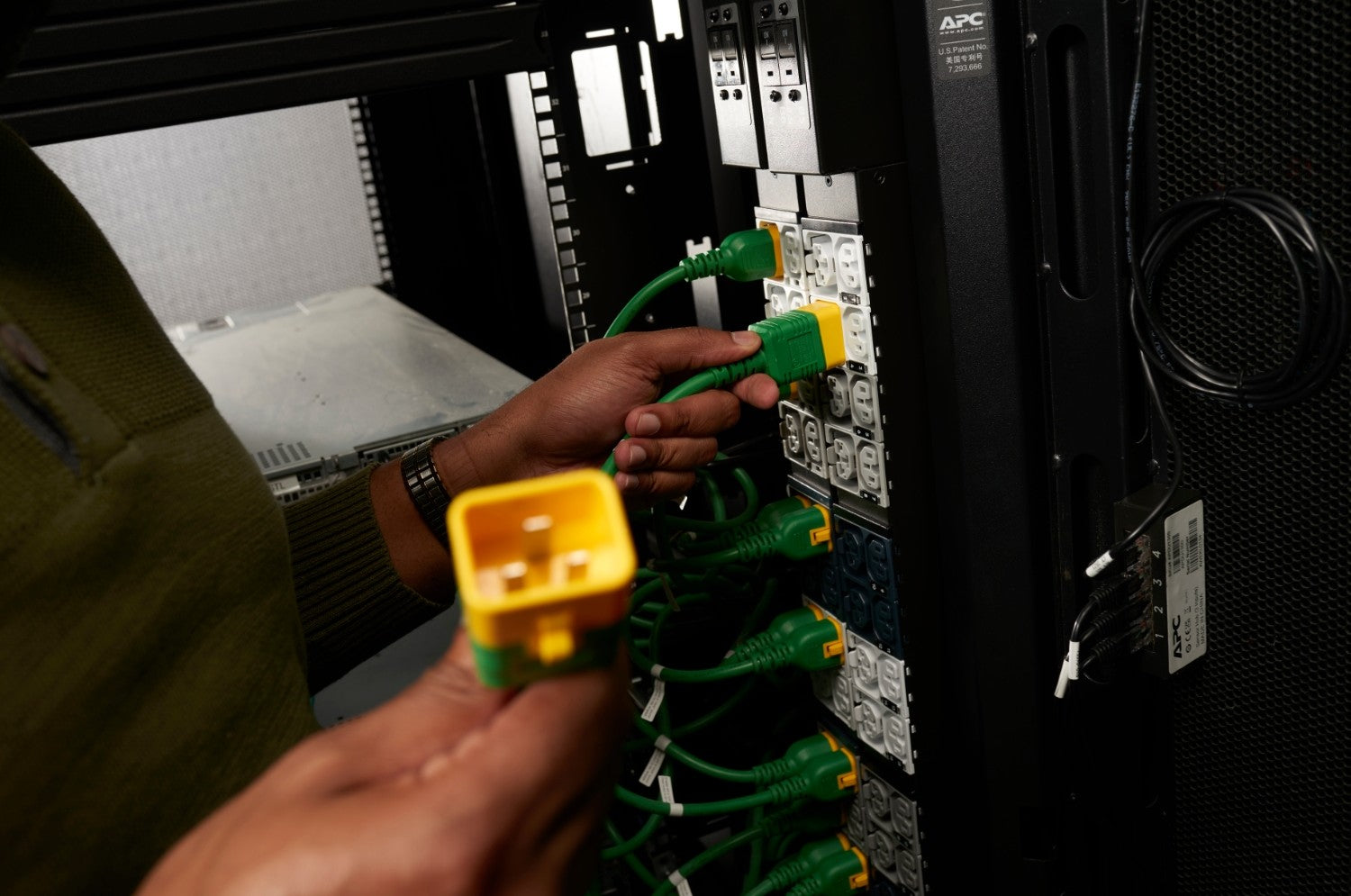

This PDU supports a wide range of rack-mounted equipment through its mixed outlet types, eliminating the need for additional adapters. The dual Ethernet ports enable flexible network configurations, including cascading multiple PDUs or establishing redundant management paths to ensure continuous monitoring and control. Its compatibility with common DCIM platforms and SNMP protocols integrates smoothly into existing data center management systems.

Performance and reliability

Designed for demanding data center conditions, the unit’s power-sharing architecture ensures the network management card remains powered during mains outages, allowing for controlled shutdowns or status reporting. The ability to hot-swap the management card minimizes downtime during upgrades or repairs. Its high operating temperature rating supports deployment in warmer environments without compromising performance or safety.

Ideal uses and environments

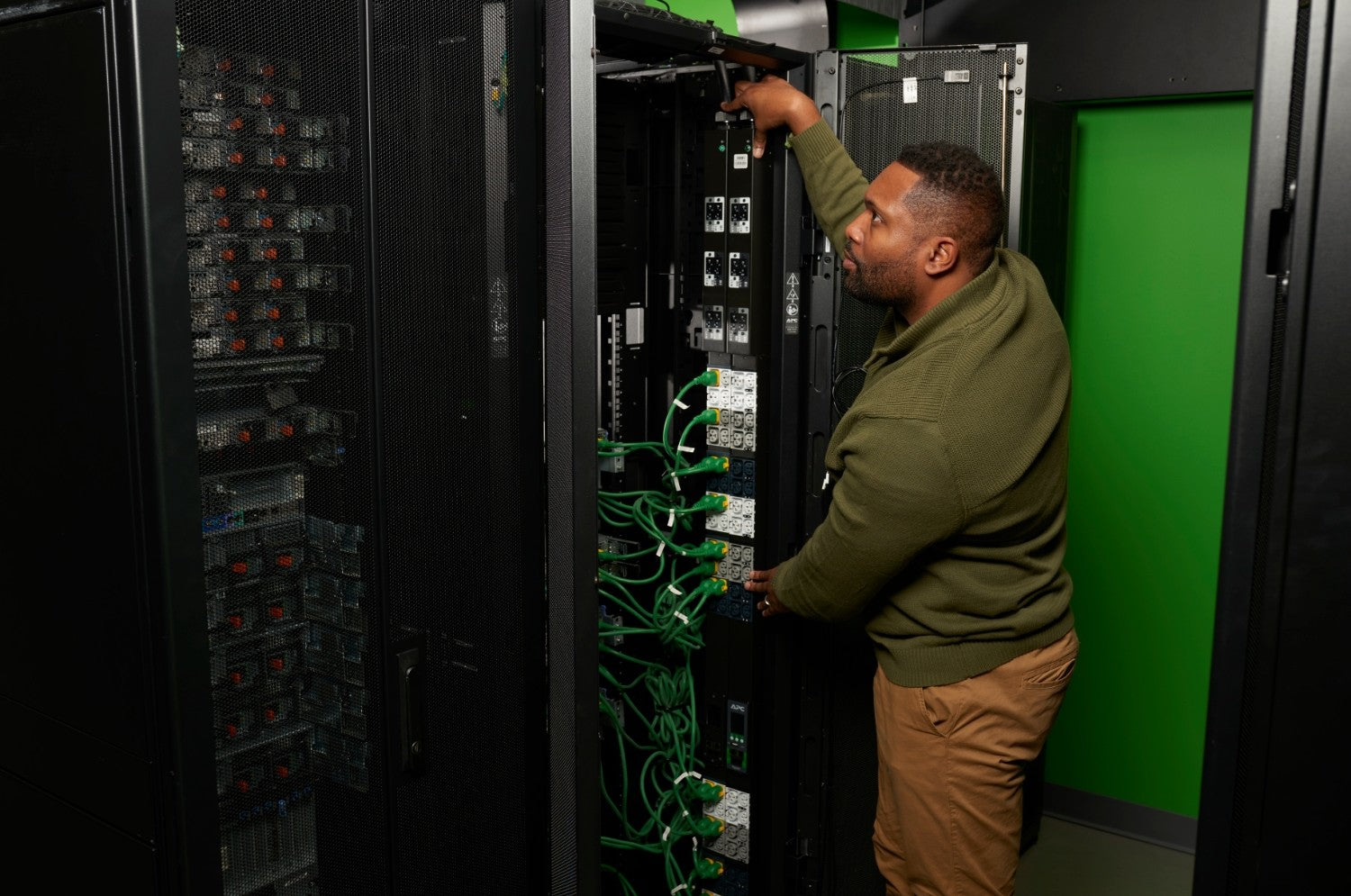

This PDU is well suited to data centers and server rooms that require high-density power distribution with precise monitoring and remote management capabilities. It fits particularly well in environments where space is limited but power demands are high, such as colocation facilities, enterprise IT racks, and network closets. The unit’s global certifications and environmental sensor support make it a strong choice for organizations managing distributed infrastructure across multiple regions.
