CyberPower PDU20M2F10R

Overview

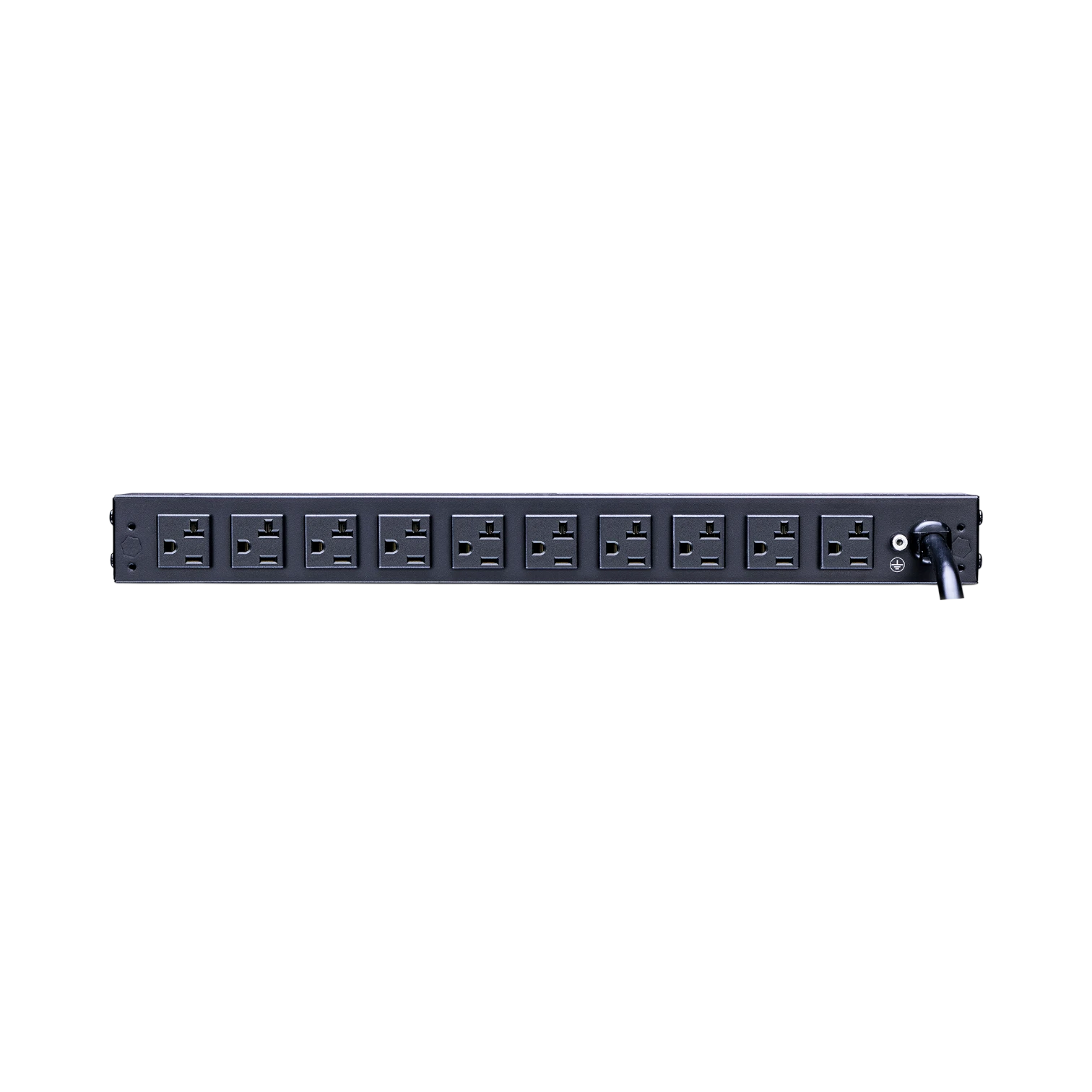

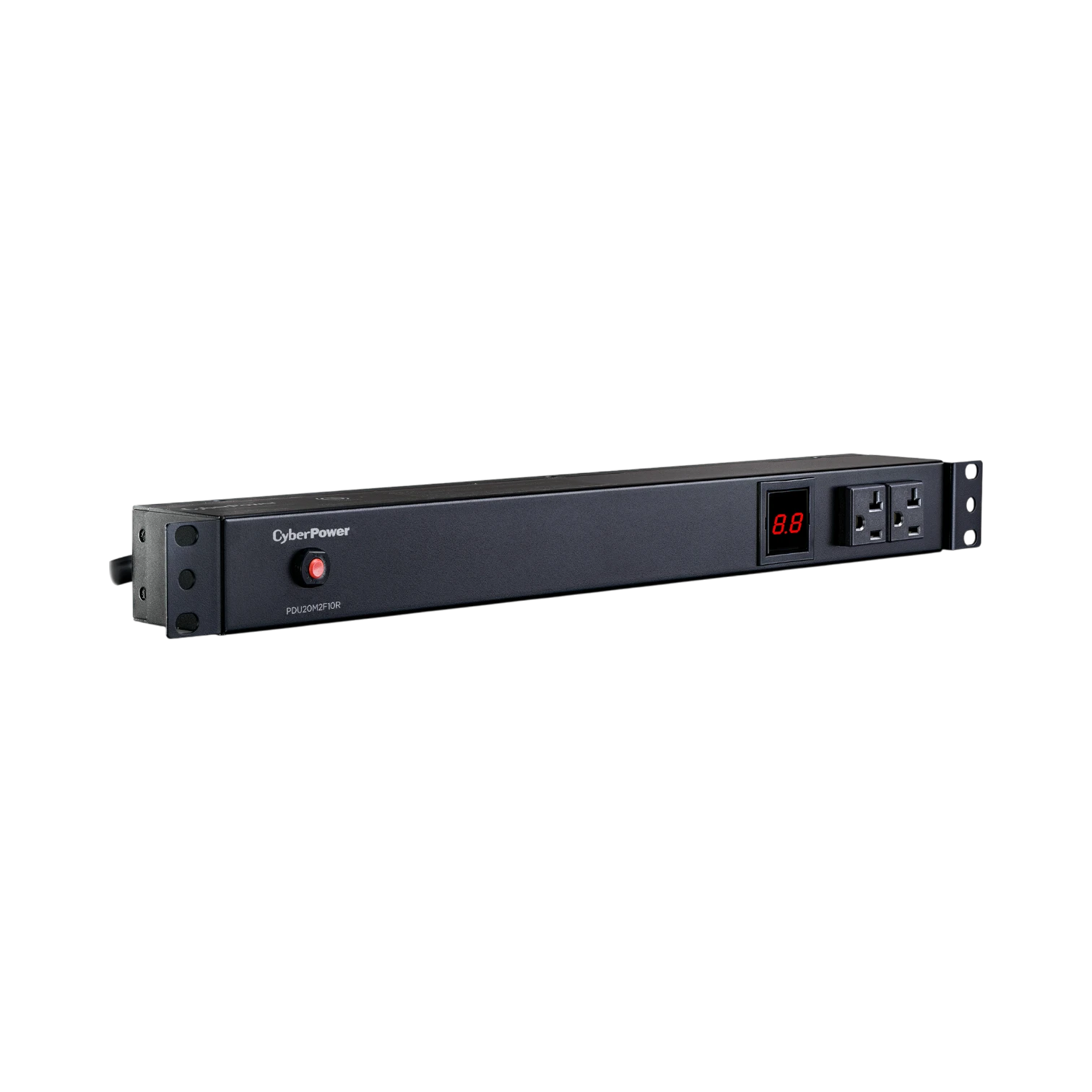

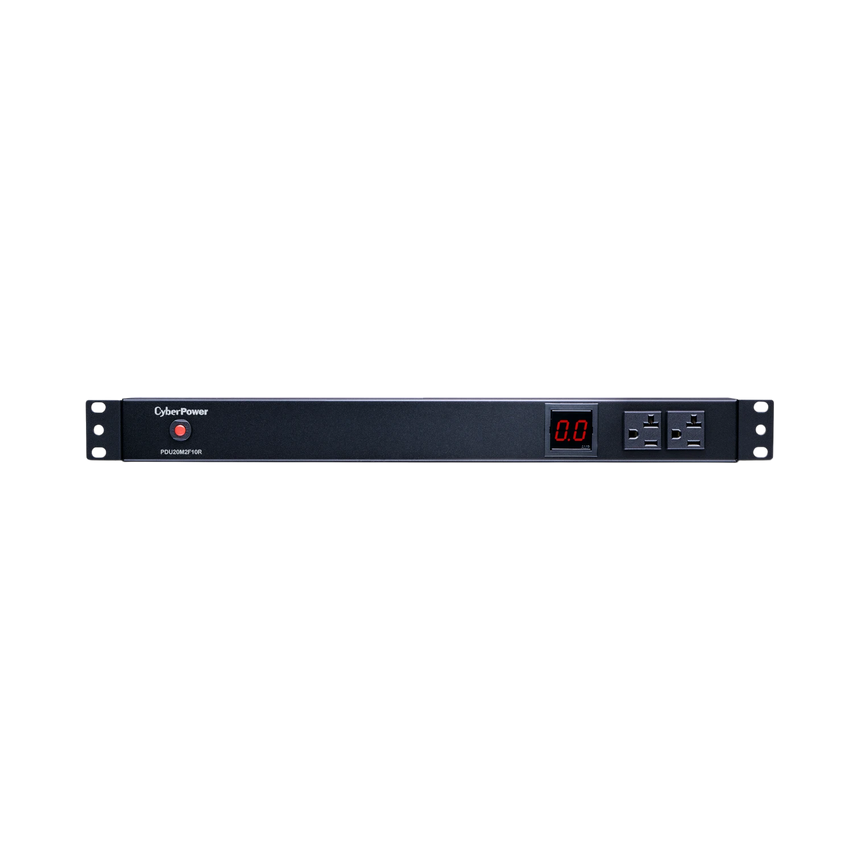

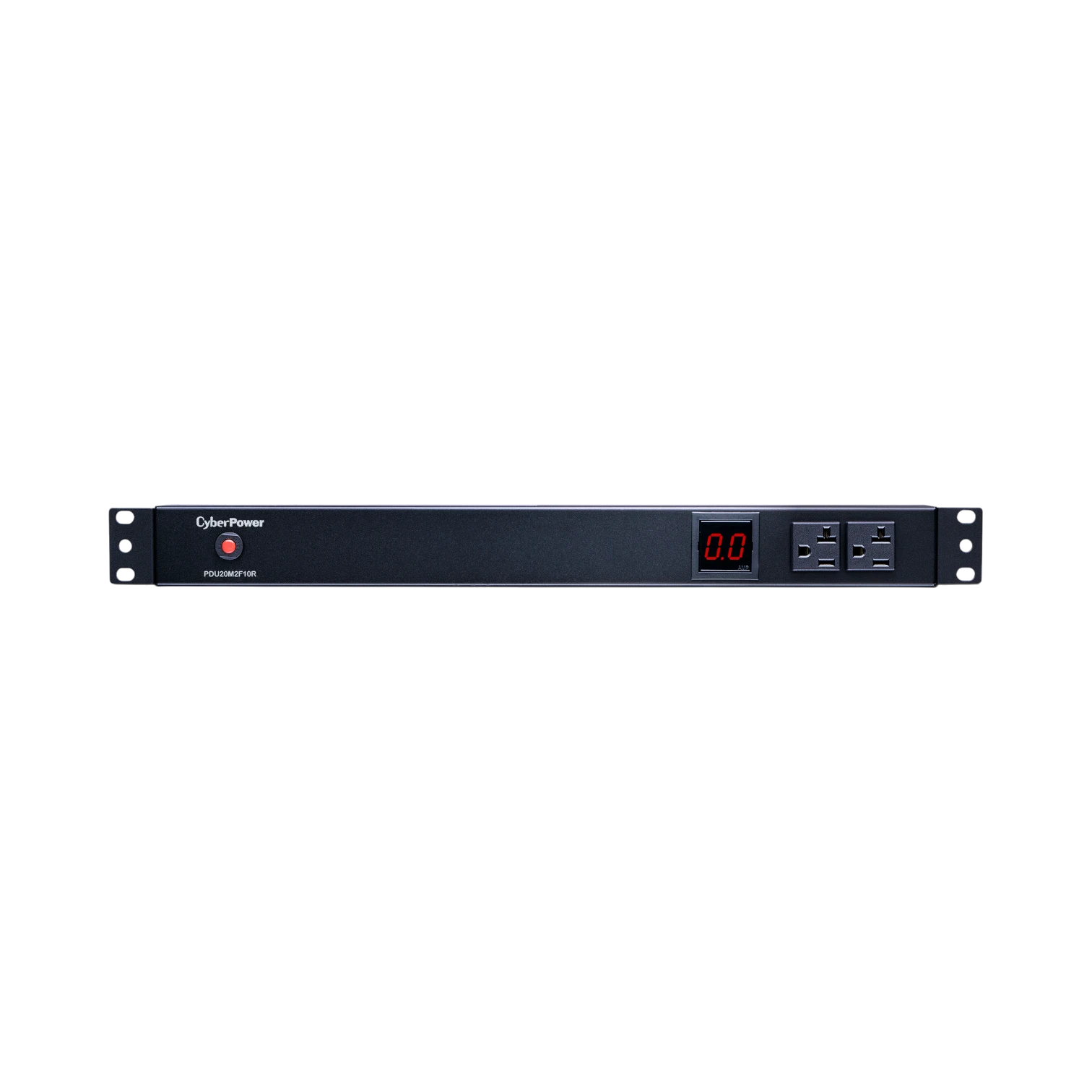

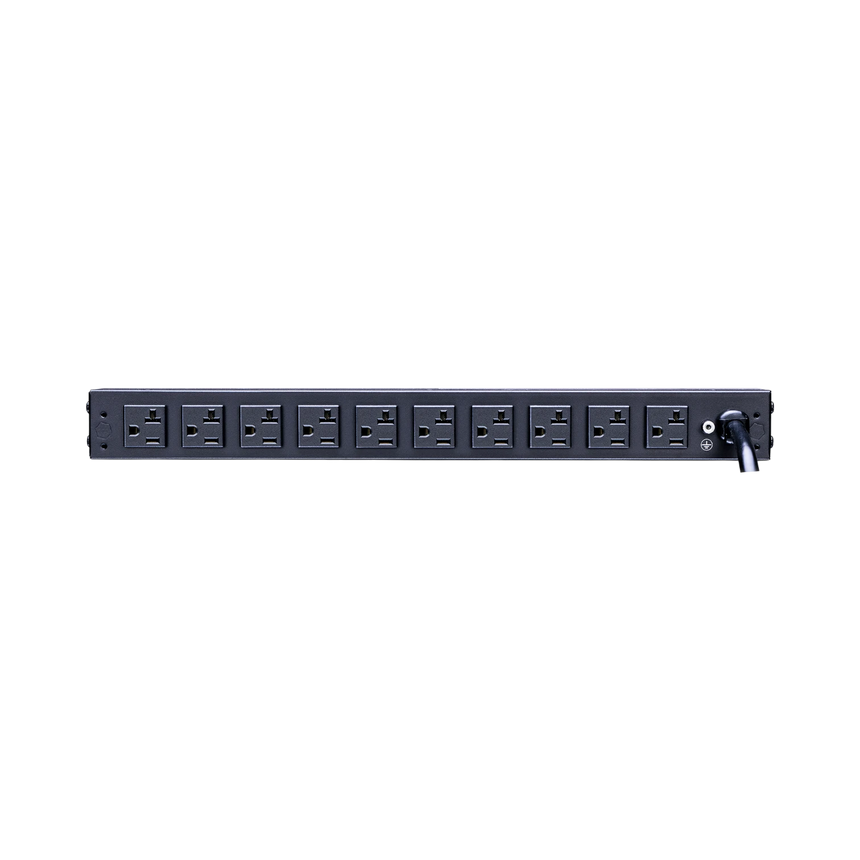

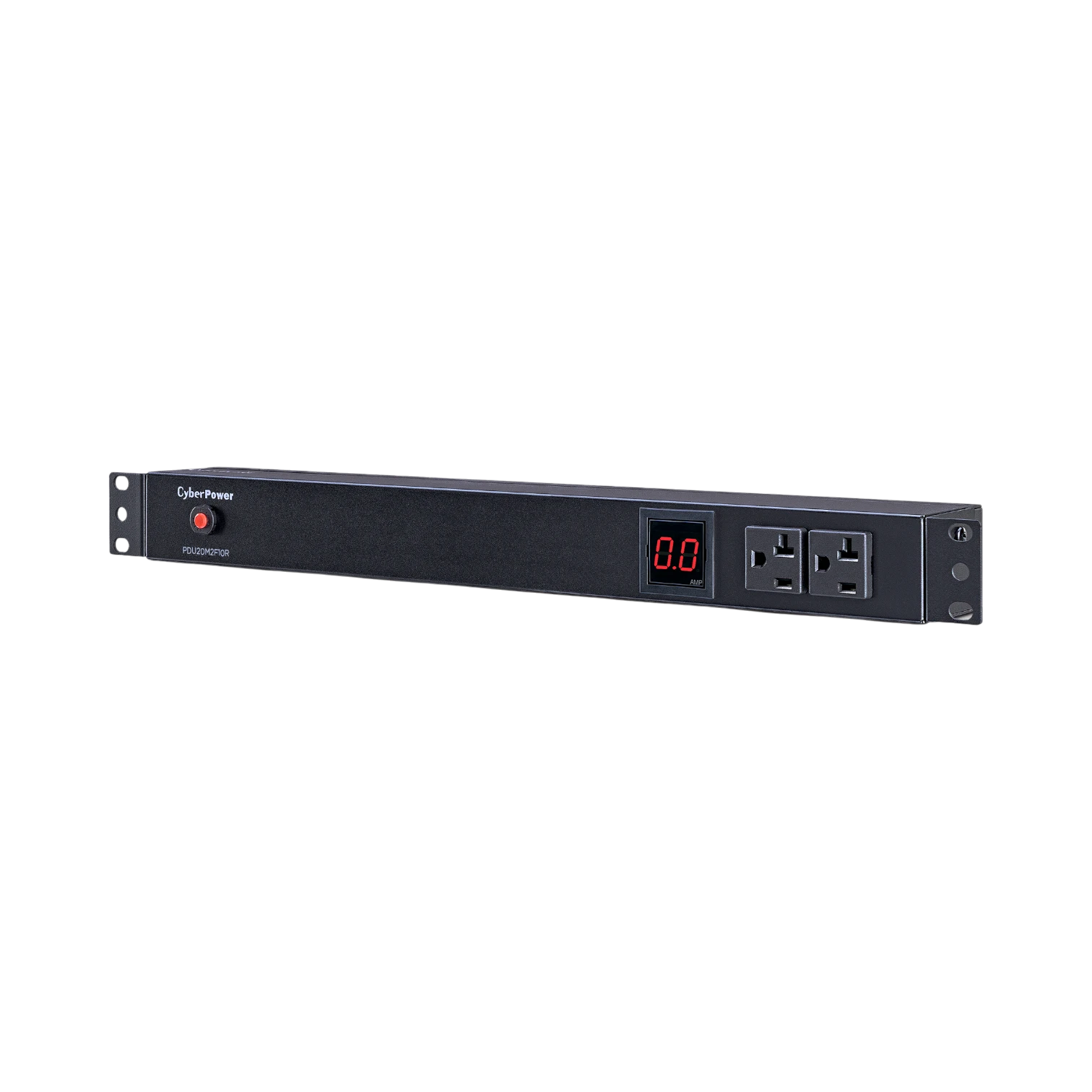

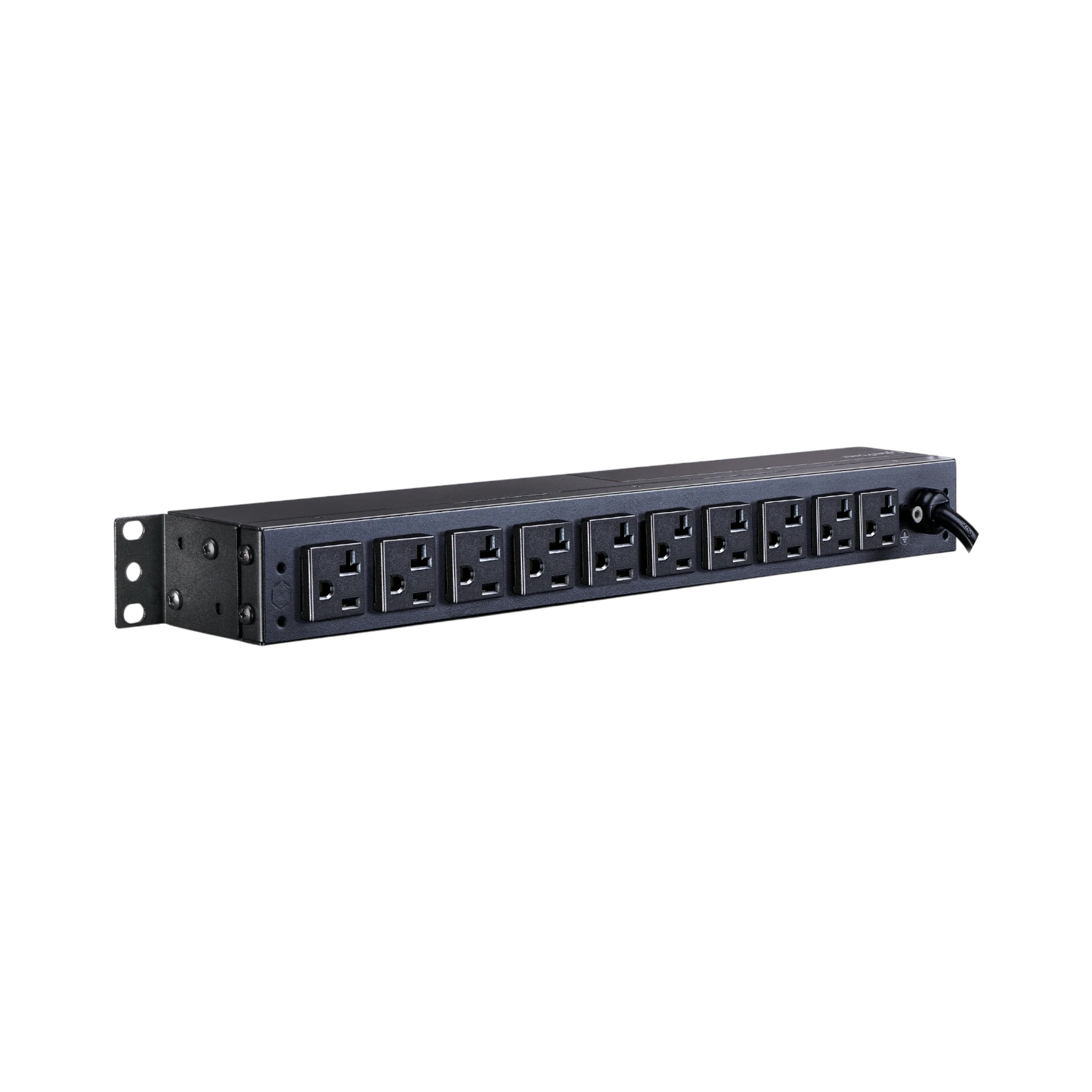

The CyberPower PDU20M2F10R is a metered power distribution unit designed to deliver reliable power management in modern rack environments. It provides 100 to 125 volts at up to 20 amps through twelve NEMA 5-20R outlets, with two outlets on the front panel for quick access and ten on the rear for permanent connections. The front LCD displays real-time current draw in amps, helping technicians balance loads and prevent breaker trips. Its metal housing is built to endure the heat, vibration, and movement typical of server rooms and industrial settings, making it a durable choice for critical power distribution.

Key features

• Twelve NEMA 5-20R outlets arranged for balanced power distribution, with two front and ten rear outlets
• Front panel metered LCD that shows live amperage to monitor current draw and avoid overloads
• Long 15-foot power cord allows flexible placement in racks or distant wall and floor receptacles
• Switch-free design prevents accidental shutdowns in crowded or busy cabinet environments
• Robust metal enclosure engineered to withstand the demands of data centers and industrial plants
• Mounting hardware included for horizontal 1U rack installation or vertical side rail mounting
• Cord retention tray secures power cables to reduce accidental unplugging and service interruptions
• Pass-through power delivery without filtering or voltage conversion ensures clean utility feed to sensitive equipment
• ETL and RoHS certified for safety and environmental compliance
• Backed by a limited lifetime warranty from CyberPower for long-term reliability

Key specs

• Voltage output: 100 to 125 volts
• Current capacity: up to 20 amps
• Outlets: 12 NEMA 5-20R (2 front, 10 rear)
• Power cord length: 15 feet
• Form factor: 1U rack mountable horizontally or vertical side rail mount
• Enclosure material: metal
• Certifications: ETL, RoHS

Connectivity and compatibility

This PDU is compatible with a wide range of rack-mounted servers, networking gear, and other IT equipment that use standard NEMA 5-20R plugs. The combination of front and rear outlets allows convenient connection of both frequently accessed devices and permanently installed hardware. Its 15-foot power cord provides flexibility to connect to wall outlets or floor PDUs, fitting well in data centers, branch offices, and industrial environments.

Installation and setup

The unit includes mounting brackets for easy installation in a 1U rack space or vertically along rack side rails, adapting to different rack configurations. The switch-free design means no power switch to accidentally turn off, reducing downtime risks. The cord retention tray helps keep power cables organized and secure, minimizing accidental disconnections during maintenance or equipment changes.

Ideal uses and environments

This power distribution unit suits system administrators who need to monitor circuit loads closely and balance power distribution to avoid breaker trips. It works well in server rooms, test labs, and branch office IT closets where enterprise-level power management is required without the expense of fully managed PDUs. Its durable construction and certifications make it a strong choice for environments where reliability and safety are critical.
