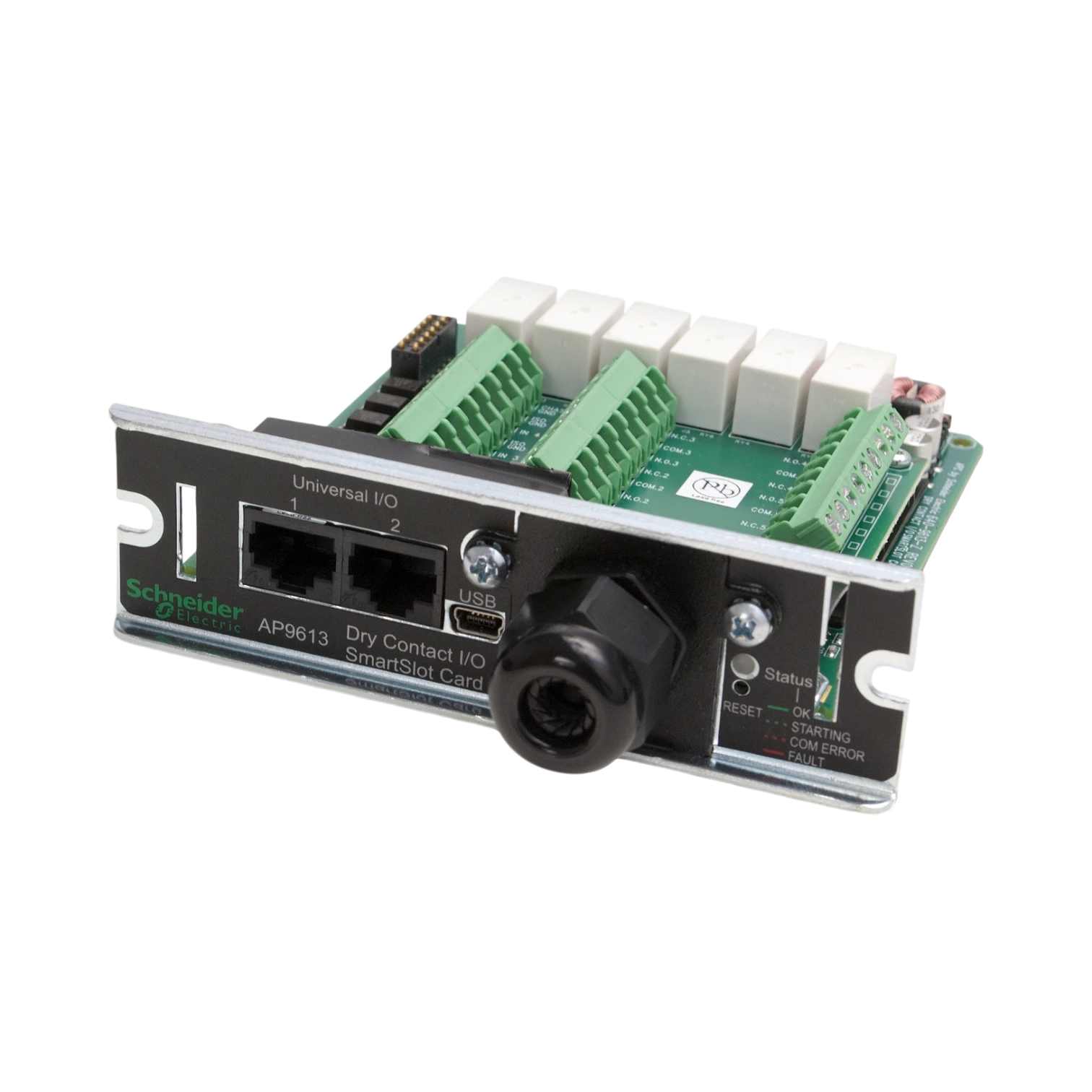

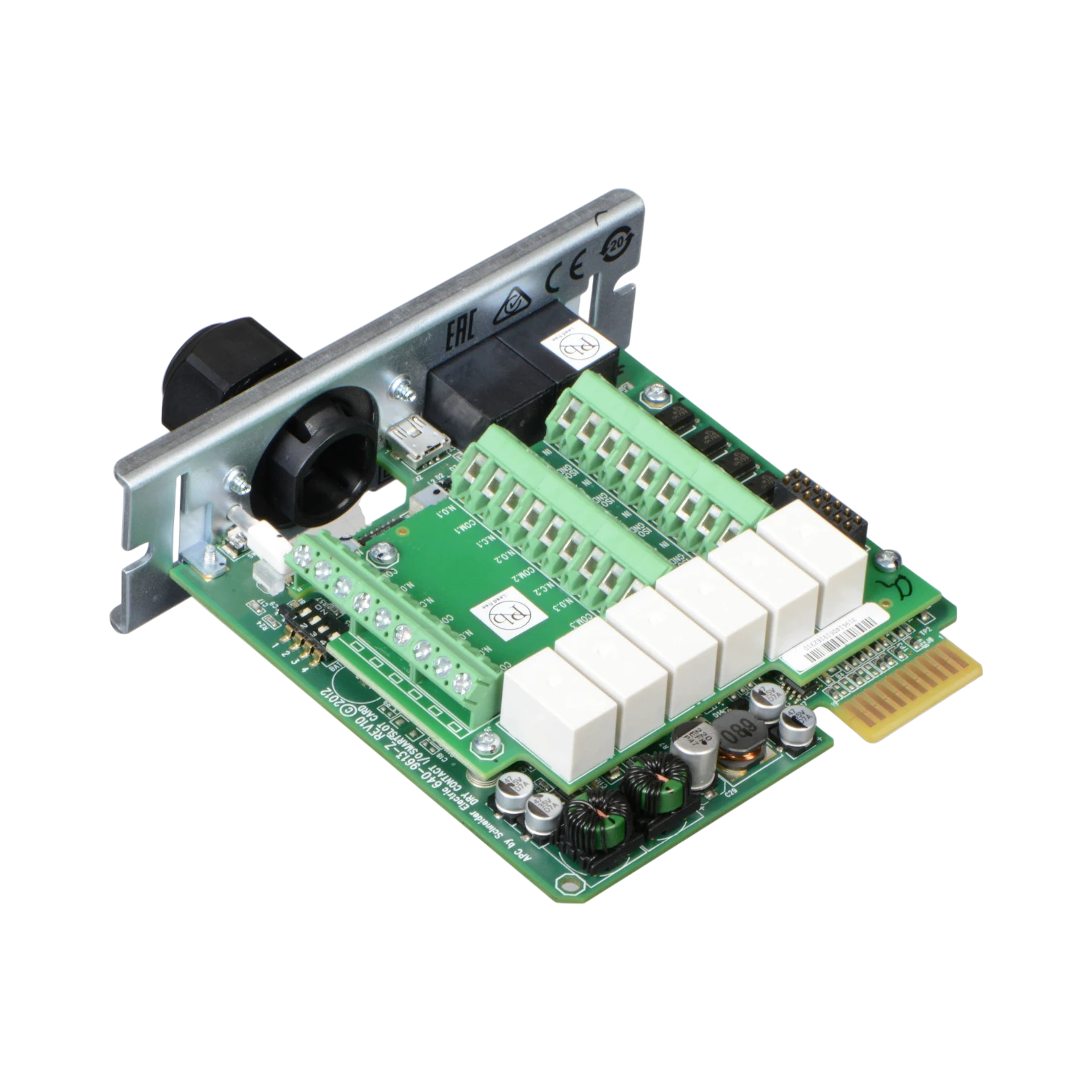

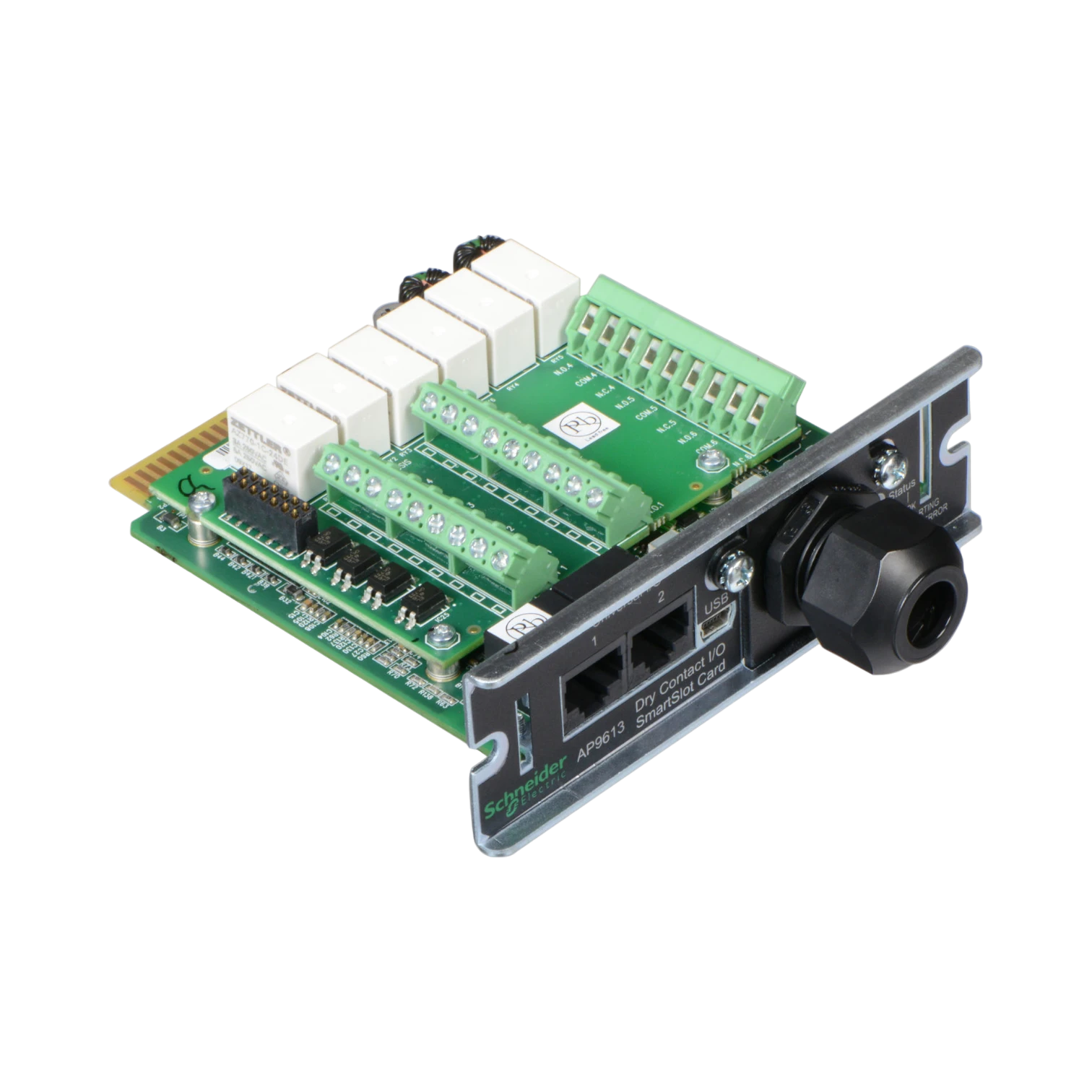

APC AP9613

Overview

The APC AP9613 is a Dry Contact I/O SmartSlot Card designed to enhance the monitoring and control capabilities of any SmartSlot compatible APC UPS. It provides four configurable input contacts and six relay outputs, allowing the UPS to interact with external devices such as door switches, alarms, and cooling equipment. This card also supports optional temperature and humidity sensors, making it a versatile tool for integrating environmental data into your power management system.

Key features

• Four input contacts that can be individually configured to monitor external dry contact devices and environmental sensors
• Six relay outputs programmable to trigger actions like starting generators, activating alarms, or controlling indicator lights
• Compatibility with APC UPS units featuring a SmartSlot bay for seamless integration
• Support for optional temperature and humidity sensors to provide additional environmental monitoring
• Expandable input and output capacity through additional dry contact accessories without increasing rack space
• Compact design with a footprint of 4.8 by 1.5 by 4.5 inches, fitting easily in various facility environments
• Simple installation and configuration using the included utility for naming inputs, setting thresholds, and assigning actions
• Reliable operation within a temperature range of 32 to 104°F and up to 95 percent humidity
• Lightweight construction at 0.46 pounds for easy handling and installation
• Compliance with EN and FCC regulatory standards ensuring safe and dependable use

Key specs

• Input contacts: 4 configurable dry contacts
• Relay outputs: 6 programmable relays
• Dimensions: 4.8 x 1.5 x 4.5 inches
• Weight: 0.46 pounds
• Operating temperature: 32 to 104°F (0 to 40°C)
• Humidity tolerance: up to 95% non-condensing
• Regulatory compliance: EN and FCC standards

Connectivity and compatibility

This card fits into the SmartSlot bay of compatible APC UPS units, enabling direct communication between the UPS and external dry contact devices. It supports a range of environmental sensors and can be expanded with additional dry contact accessories to increase monitoring and control capabilities without requiring extra rack space. This makes it suitable for integration in network closets, branch offices, and large data centers.

Installation and setup

Installation involves sliding the card into the UPS SmartSlot and securing it with the provided screws. The included configuration utility guides you through naming inputs, setting delay timers, and assigning relay actions, allowing you to tailor the system to your facility’s specific alert and automation needs. The lightweight and compact design simplifies handling and fits well in tight spaces.

Ideal uses and environments

The AP9613 is well suited to facilities managers and IT administrators who need precise control over power and environmental conditions. It works effectively in environments ranging from single racks to distributed edge locations, helping maintain uptime by synchronizing power events with external alarms, cooling systems, and other critical equipment. Its environmental sensor support adds valuable insight for maintaining optimal conditions in sensitive installations.
