JBL AWC159

Overview

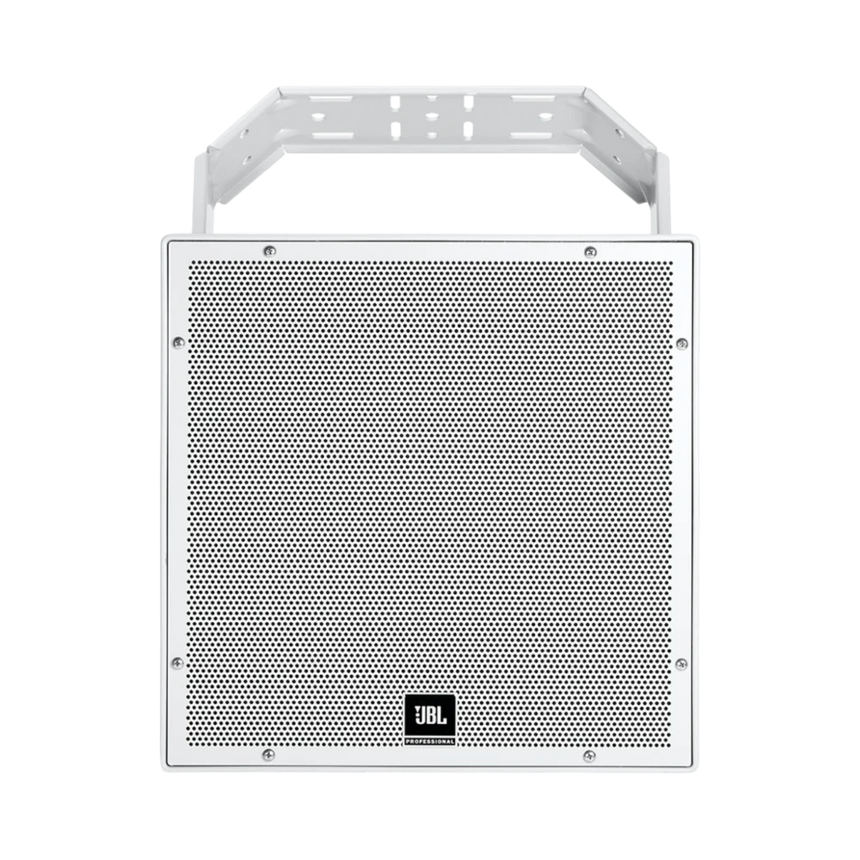

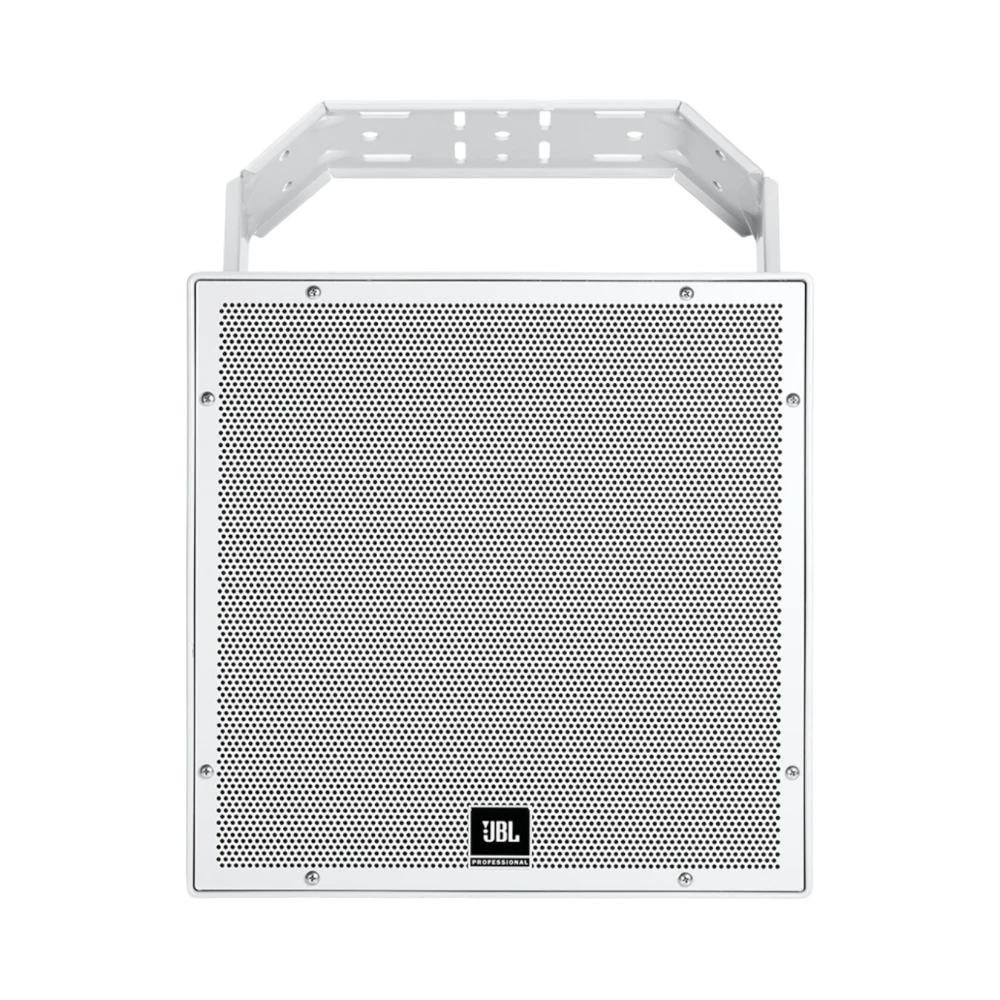

The JBL AWC159 is a 15-inch all-weather compact two-way coaxial loudspeaker designed to deliver clear and full-range sound in challenging outdoor environments. Featuring a Kevlar-reinforced woofer and a 1.5-inch compression driver, it produces deep bass and crisp high frequencies with a frequency response spanning from 52 Hz to 20 kHz. Its IP56 rating ensures reliable performance even in rain, dust, and salt air, making it suitable for venues like sports fields, water parks, and outdoor patios.

Key features

• 15-inch woofer with Kevlar-reinforced cone and 3-inch voice coil delivers powerful bass and high output for impactful sound.
• 1.5-inch compression driver with a high-temperature polymer diaphragm provides clear and intelligible high frequencies.
• Weather-resistant IP56 rating protects the speaker from dust and strong water jets, ensuring durability in harsh conditions.
• 90 by 90 degree horn pattern offers even sound coverage across wide listening areas, minimizing hot spots and dead zones.
• Handles up to 500 watts at 8 ohms, supporting strong performance for foreground music and paging applications.
• Built-in 70 V / 100 V transformer with taps up to 300 watts simplifies integration into distributed audio systems.
• Passive two-way network with a high-power crossover maintains accurate frequency band separation under heavy loads.
• ABS enclosure reinforced with glass fiber resists impact, UV exposure, and temperature fluctuations without cracking or warping.
• Includes a heavy-duty U-bracket with multiple M10 mounting points for secure and flexible installation on walls, poles, or overhead beams.

Key specs

• Woofer size: 15 inches
• Woofer cone material: Kevlar-reinforced
• Woofer voice coil diameter: 3 inches
• Compression driver size: 1.5 inches
• Frequency response: 52 Hz to 20 kHz
• Power handling: 500 watts at 8 ohms
• Transformer taps: up to 300 watts at 70 V / 100 V
• Horn coverage pattern: 90° horizontal by 90° vertical
• Enclosure material: ABS reinforced with glass fiber
• Weather rating: IP56
• Mounting hardware: U-bracket with M10 points included

Connectivity and compatibility

This loudspeaker supports both low-impedance (8 ohms) and constant-voltage (70 V / 100 V) audio systems, making it versatile for various professional sound installations. The built-in transformer taps allow easy connection to distributed audio networks commonly used in large outdoor venues, ensuring consistent sound quality across multiple units.

Installation and setup

The included heavy-duty U-bracket with multiple M10 mounting points enables quick and secure installation on a variety of surfaces such as walls, poles, or overhead beams. This flexibility allows precise aiming of the speaker to optimize sound coverage for the intended listening area. The rugged enclosure and weatherproof design reduce maintenance needs, even in demanding outdoor conditions.

Ideal uses and environments

The JBL AWC159 is well suited to outdoor venues that require reliable, high-quality sound in changing weather conditions. It works effectively in municipal sports fields, school courtyards, amusement parks, and arena concourses. Its robust build and wide coverage pattern make it a strong choice for installations where consistent audio performance and durability are essential.
